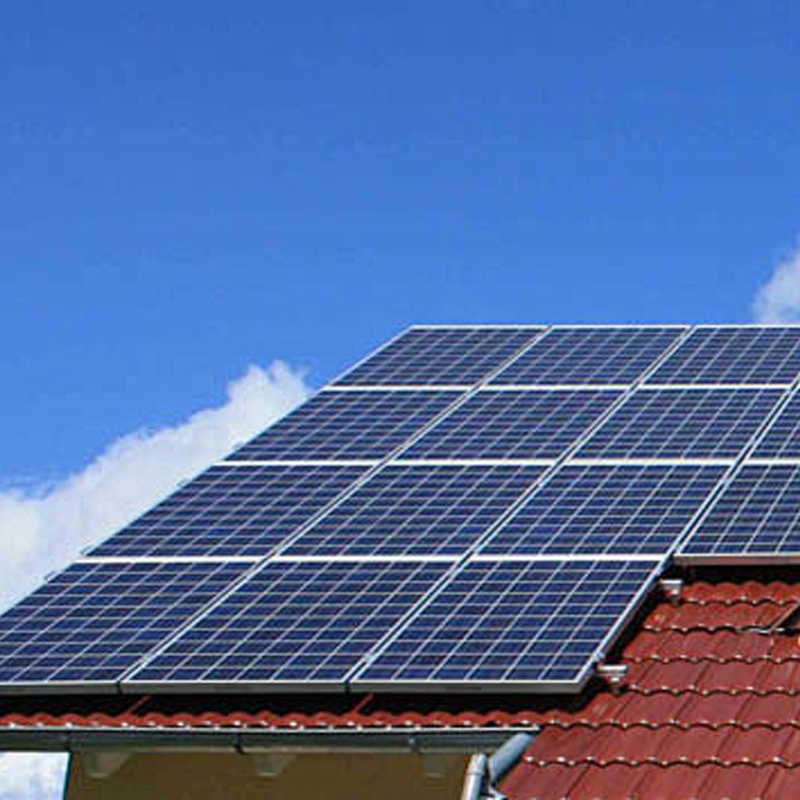

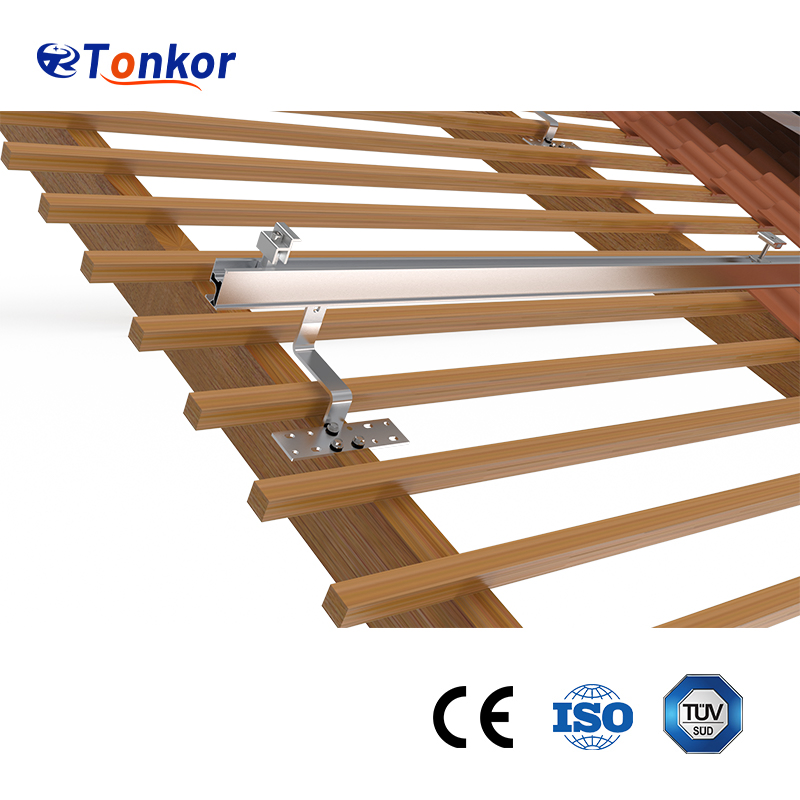

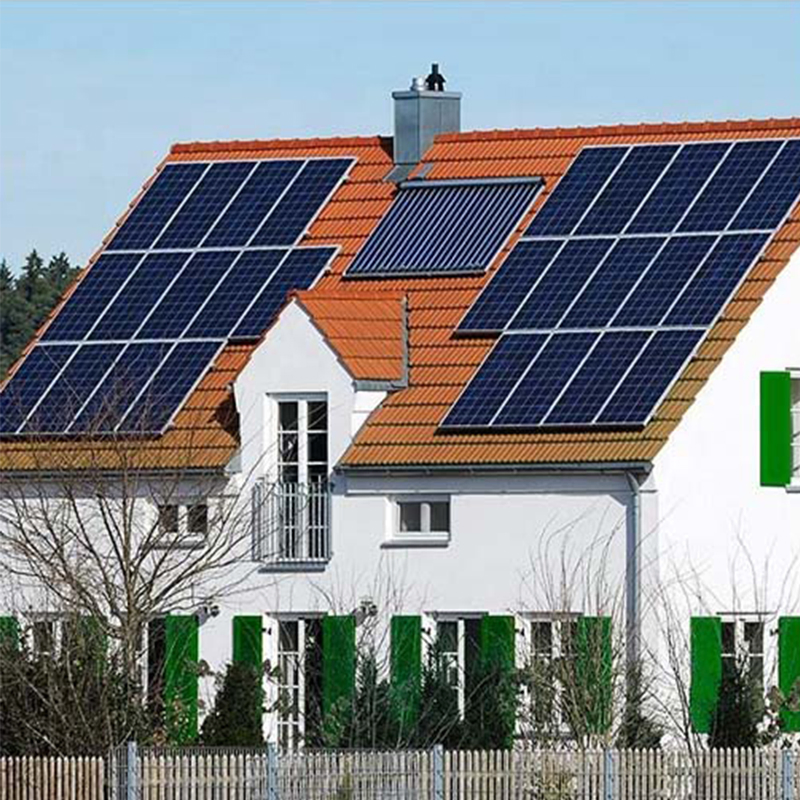

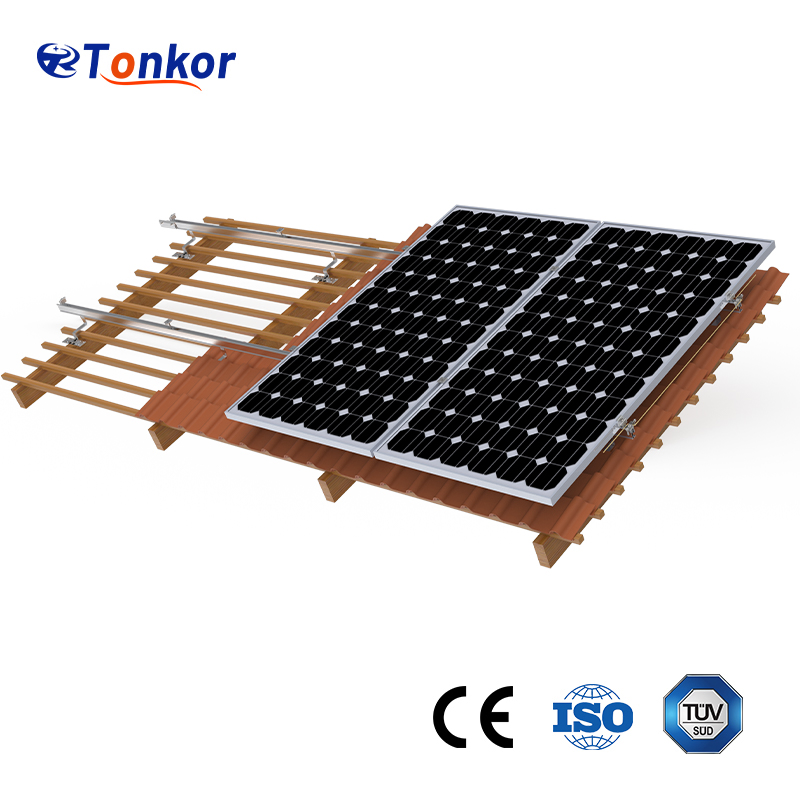

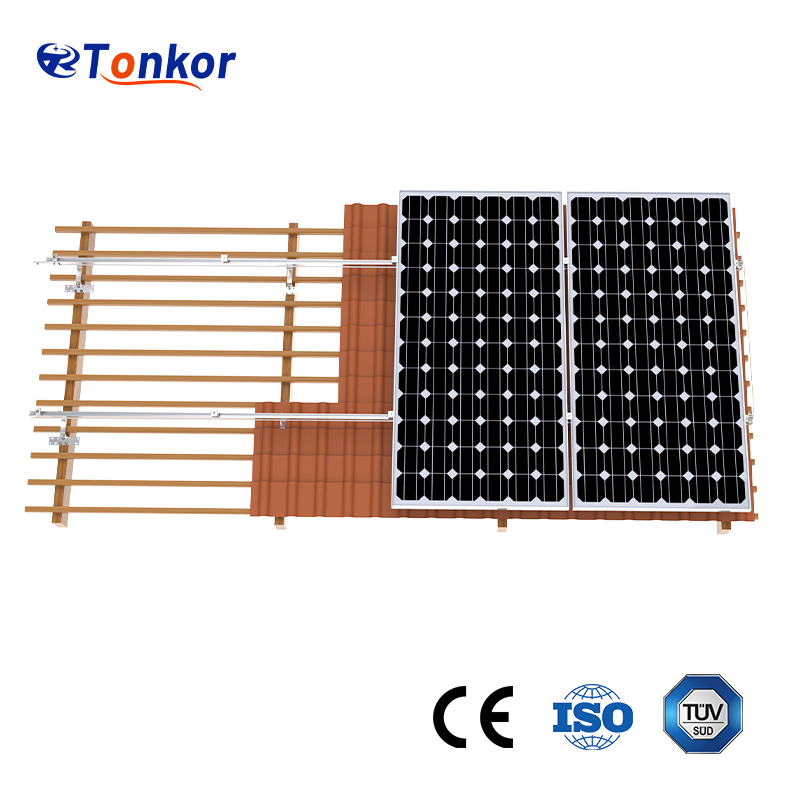

This pitched tile roof solar mounting system is designed for both framed and frameless solar modules installed flush with pitched roofs. It provides a reliable and efficient solution for tile roof installations, using high-strength stainless steel roof hooks that are compatible with almost all roof coverings, including pantiles, plain tiles, and slate tiles. The system is engineered to withstand high wind and snow loads, fully compliant with international standards, ensuring safe and stable performance across various climatic conditions.
Product Specifications
Installation location
Roof
Installation angle
10°/15°, 15°/30°, 30°/60°
Wind load
60m/s (216kmh/133mph)
Snow load
1.4KN/m²
Applicable module type
Mono-crystalline, Poly-crystalline, Double wave and Thin film
Bracket material
AL6005-T5 (Anodized Oxidation)
Fastener Material
Stainless steel SUS304
Design standard
AS/NZS1170, JIS C 8955-2017
Module Orientation
Horizontal, Vertical

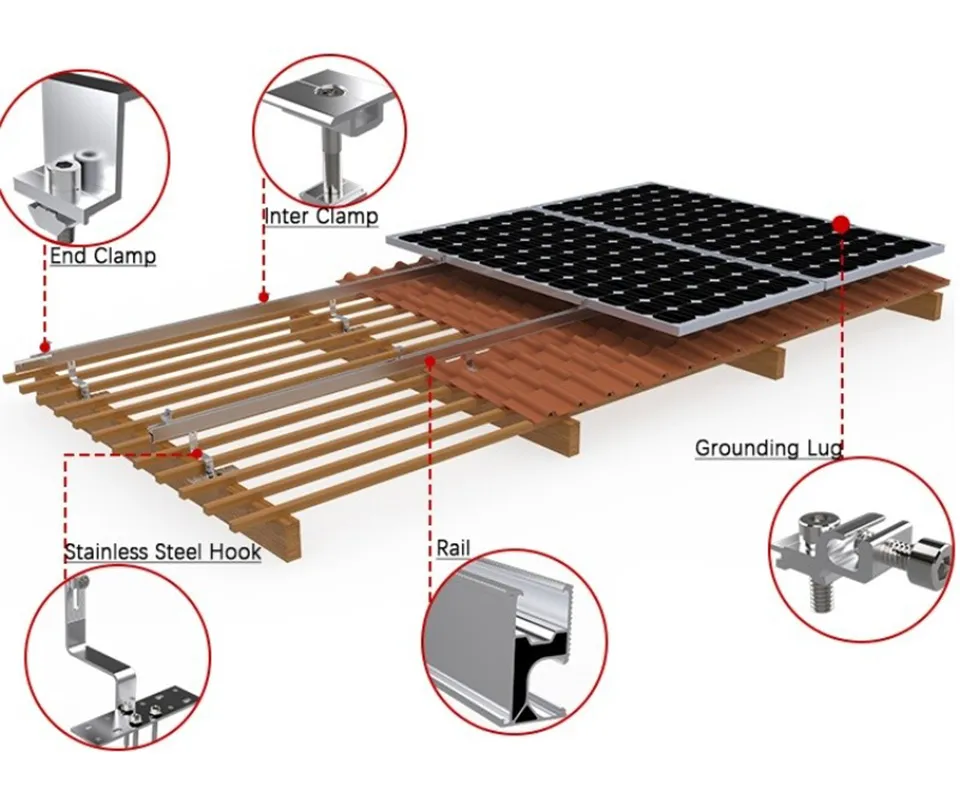

Features & Benefits
Suitable for a wide variety of pitched tile roofs and different roofing materials.
Pre-assembled components at the factory reduce on-site labor and installation time.
A wide range of stainless steel roof hooks available to match actual project needs.
Compatible with various framed and frameless PV modules.
Solar modules can be positioned anywhere along the rail for flexible installation.
Rails and accessories provide strong structural support under diverse environmental conditions.
About the Manufacturer
Established in 2015, our manufacturing facility is a high-tech enterprise specializing in solar mounting systems and integrated energy storage solutions. We combine R&D, production, and project engineering with a modern manufacturing base of over 20,000 m². Equipped with automated extrusion, cutting, stamping, and welding lines, the factory operates under a complete ISO 9001 quality system. Our products are exported to more than 30 countries across Southeast Asia, the Middle East, Europe, and South America. We provide complete project-based solutions from structural design to on-site technical guidance.
Certifications & Quality Control
Projects & Exhibitions
We are a professional manufacturer and have successfully cooperated with major state-owned engineering groups, providing reliable solar mounting solutions and structural support for large-scale infrastructure projects.
Packaging & Shipping
Frequently Asked Questions
1. Which roof types is this system compatible with?

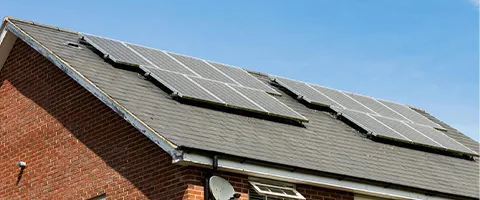

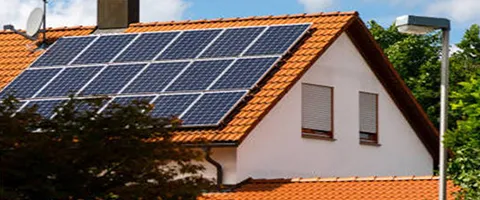

This mounting system is highly versatile and compatible with almost all tile roof coverings, including pantiles, plain tiles, and slate tiles, using various high-strength stainless steel hooks.
2. Can the system be customized for specific project requirements?
Yes, we provide customization based on project drawings, specific terrain conditions, and environmental load requirements. Both OEM and ODM services are fully supported.
3. How do you ensure the long-term durability of the components?
The brackets are made of AL6005-T5 aluminum with an anodized finish, and all fasteners are SUS304 stainless steel. This combination ensures excellent corrosion resistance and a long service life even in harsh environments.
4. What is the standard lead time for orders?
Standard mounting systems are typically delivered within 10–20 working days. Products are securely packed in cartons or on iron frames/steel pallets to ensure safety during long-distance shipping.
5. Does the system comply with international safety standards?
Absolutely. Our designs comply with rigorous standards such as AS/NZS1170 and JIS C 8955-2017, and the production process is certified under the ISO 9001 quality management system.
6. Is technical support available for installation?
Yes, we offer comprehensive technical support, including detailed installation guidance, structural design simulation, and online assistance to ensure a smooth installation process.
