| Model NO. | PD-BS03 | Certification | ISO, CE, SGS |
|---|---|---|---|
| Application | Commercial | Material | Aluminum Alloy |
| Type | Roof Ballast Bracket | Color | Silver |
| Snow Load | 1.4 kN/M2 | Wind Speed | 60 M/S |
| Surface Treatment | Anodized | Lead Time | 21 Days |
| Material Specs | Component: AL6005-T5; Parts: AL6005-T5/SUS304 | ||

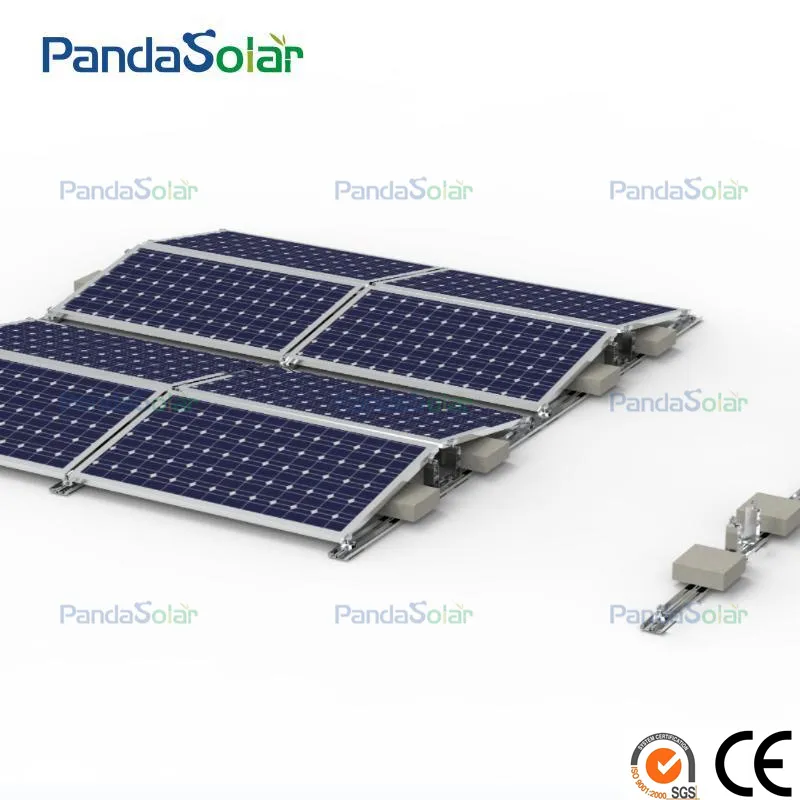

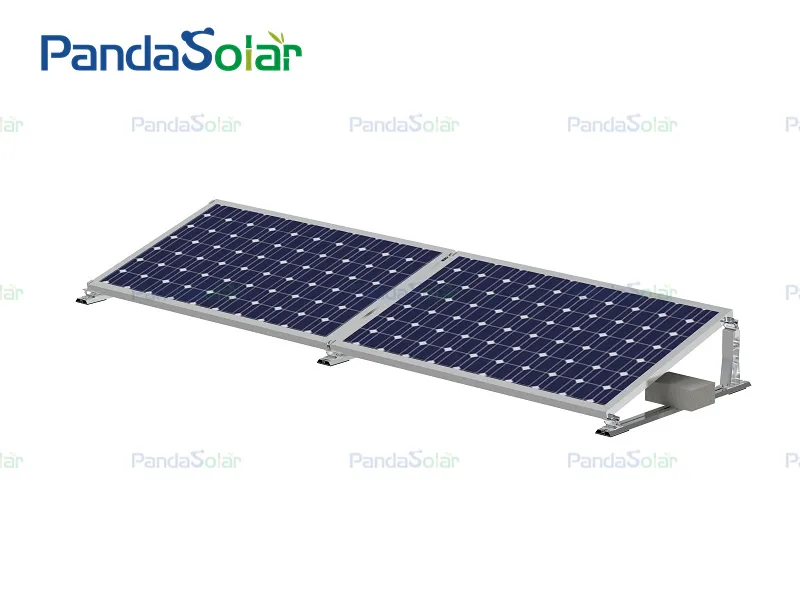

Flexible Installation Adjustable Solar Ballasted Flat Rooftop Mounting System
As an innovation team, we always developed new products to meet different market demand. The adjustable solar ballasted system is designed to meet customer's different installation requirement, allowing for the best angle to generate maximum energy.

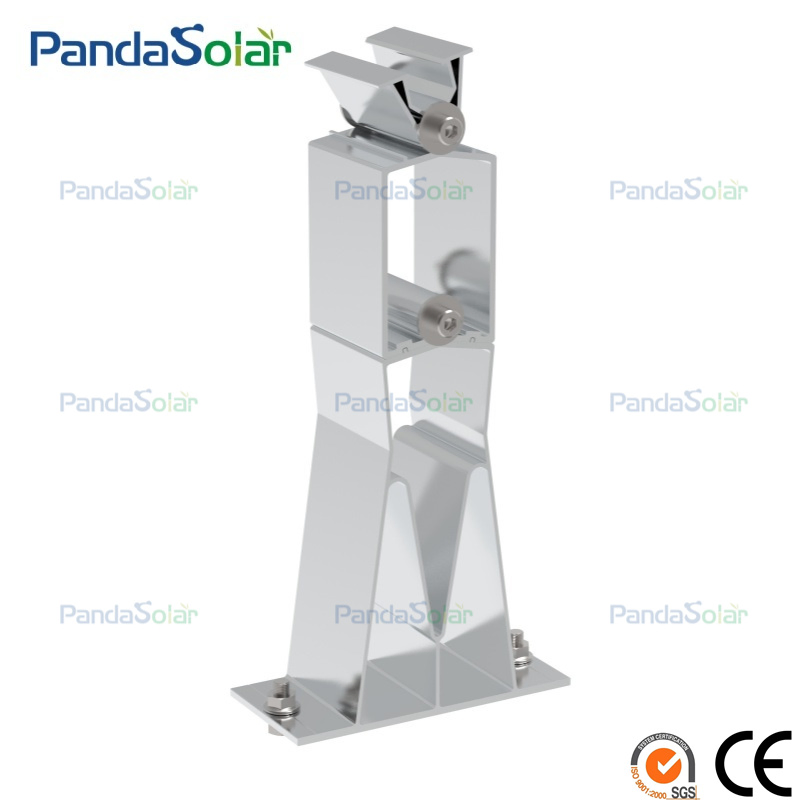

The system features a 5-degree heightening part design. The original angle is 10 degrees; by adding heightening parts, it can be easily increased to 15 or 20 degrees. It is constructed from high-quality aluminum with stainless steel 304 parts to ensure high anti-corrosion capability and longevity.
| Material | Structure: AL6005-T5 (Anodized); Components: SUS304 |
| Application | Flat Solar Roof Mounting |
| Adjustable Angle | 10-20 Degrees |
| Wind Speed | 0-45 m/s |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955, IBC 2009 |
| Service Life | Over 30 Years |
| Warranty | 12 Years |

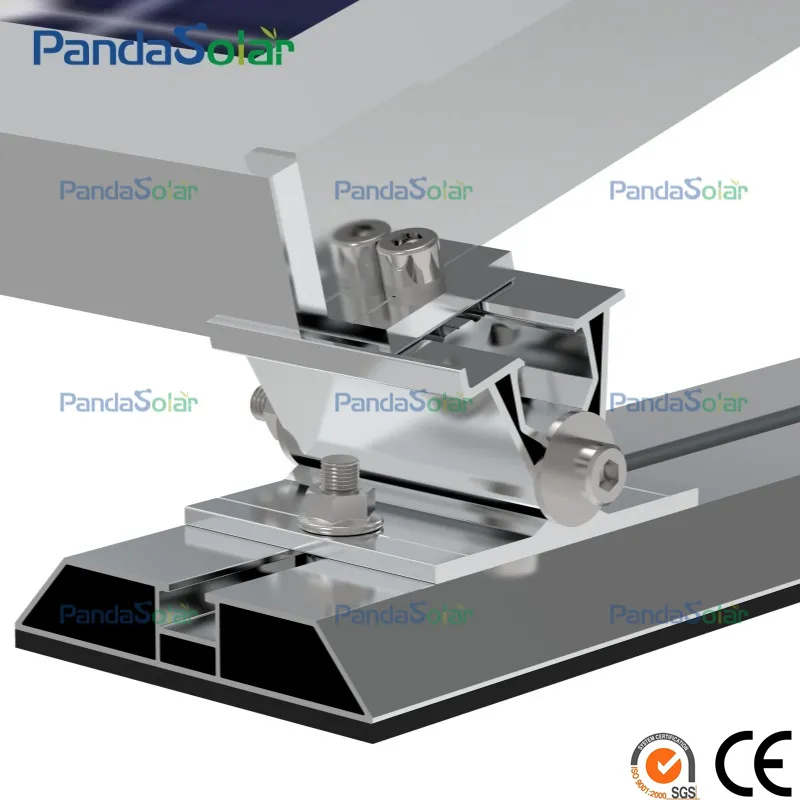

STEP 1
Place the bottom profile on the ground and attach the front leg to the bottom profile.

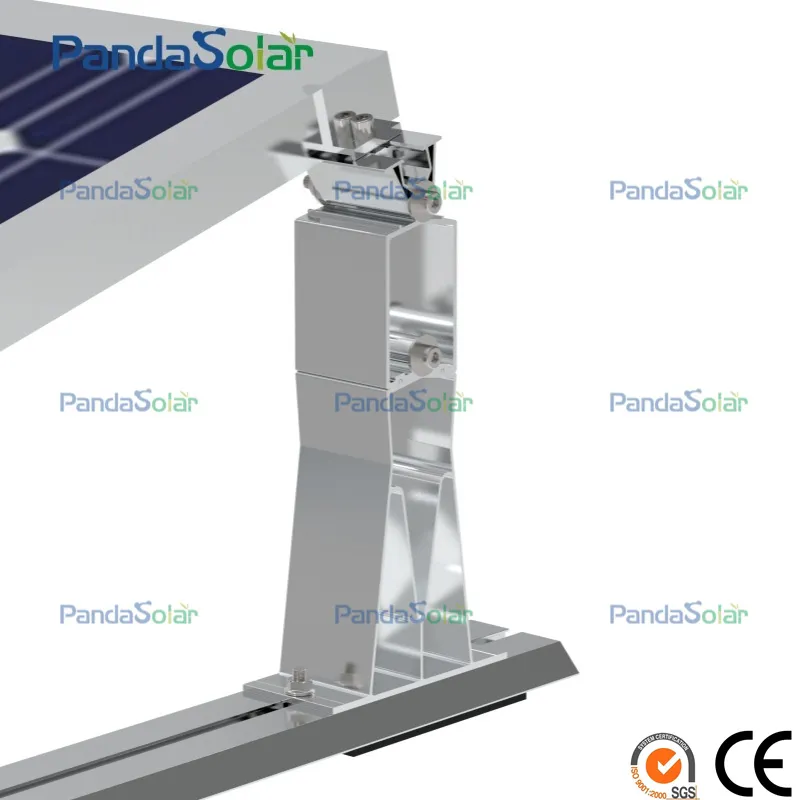

STEP 2
Attach the rear leg to the bottom profile securely.

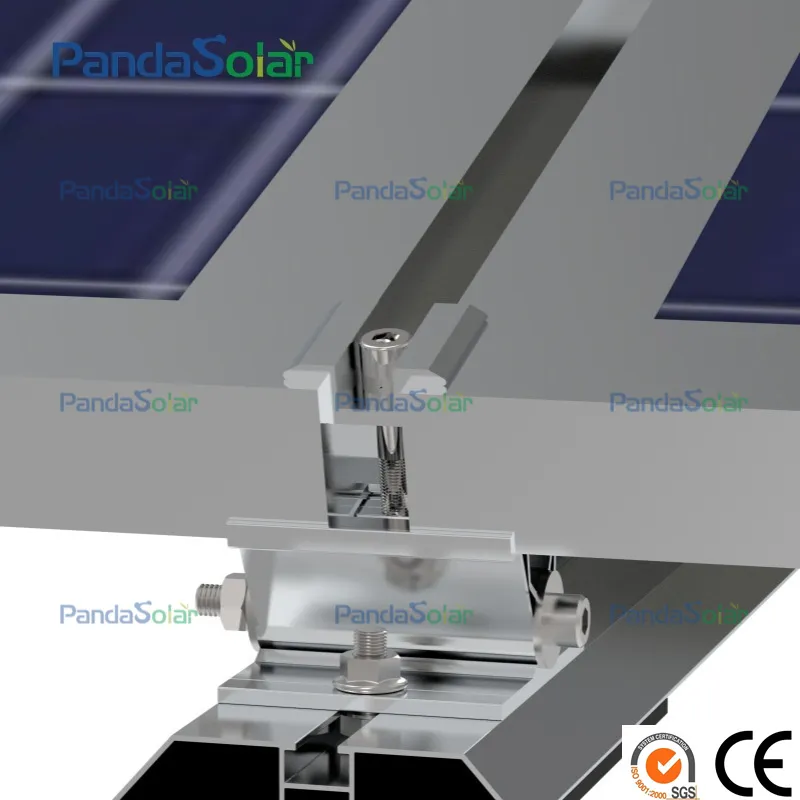

STEP 3
Fix the solar panel to the Ballast Mounting System using end clamps and mid clamps.

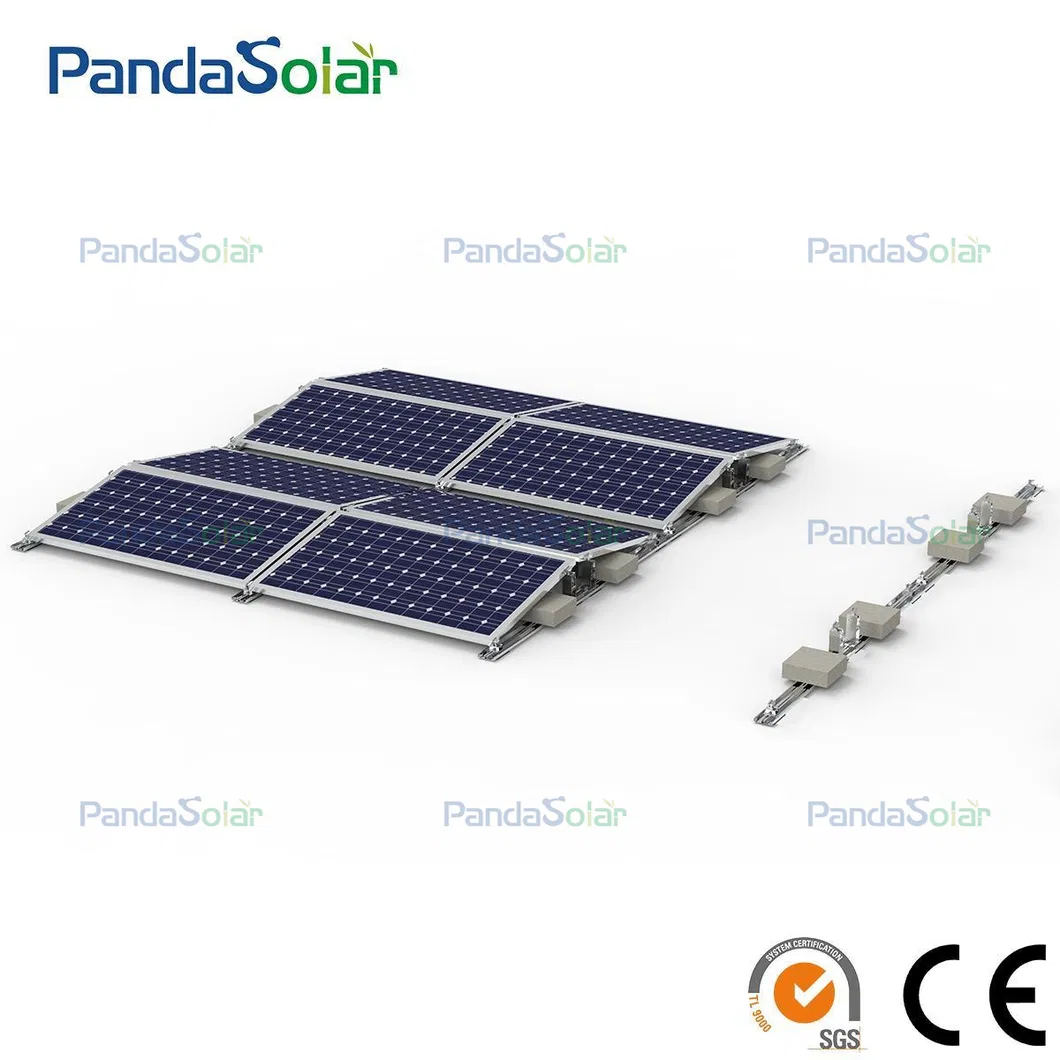

STEP 4

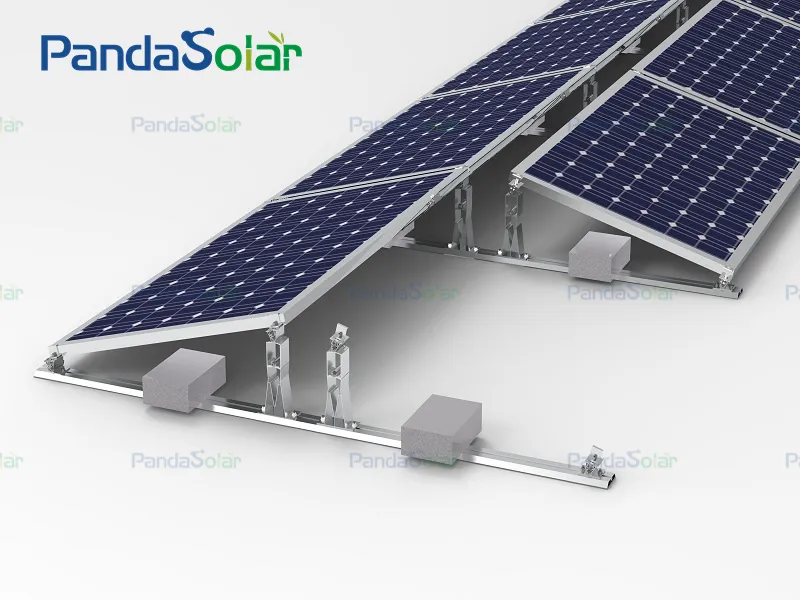

Place the corresponding weight of the cement piers on the bottom profile according to wind and snow load requirements.
Our products are fully CE certified, covering roof mounting brackets, ground mounting, carports, and aluminum profiles.
Items are packed in secure cartons and palletized for international shipping standards, ensuring safety from damage during transit.

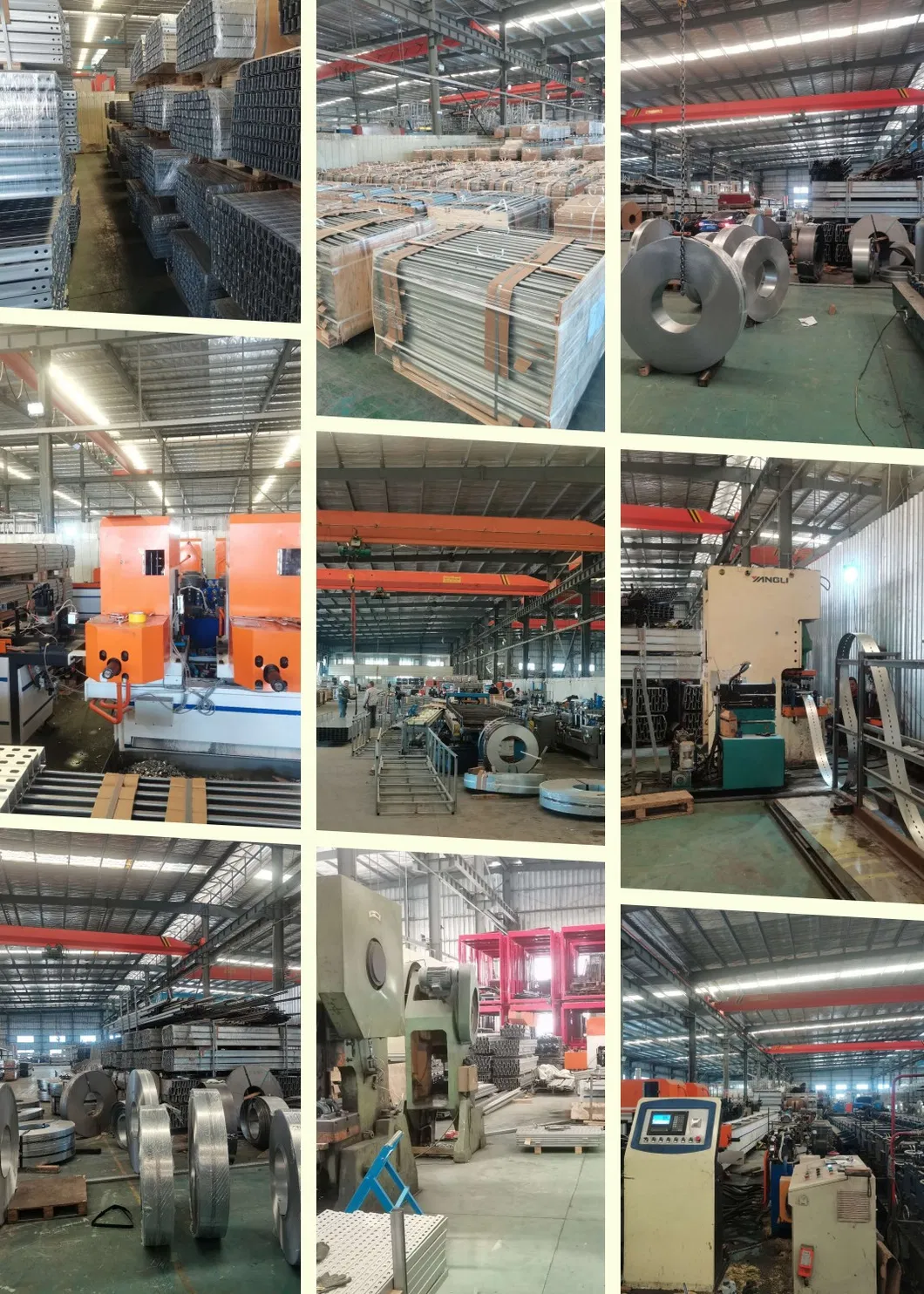

We operate independent workshops for aluminum and steel processing, including cutting, drilling, and stamping. Our monthly productivity reaches 40-50MW.
