Product Description

Basic Information

Model NO.

SF-M11

Certification

ISO, TUV, CE

Application

Commercial

Material

Concrete

Type

Ground Bracket

Product Name

Solar Panel Ground Mounting Structure

Installation Site

Open Field

Color

Silver

Tilt Angle

0-45deg

Feature

Quick Installation

Surface Treatment

Aluminum Anodized

Mounting Type

Ground Solar Mounting

Production Capacity

300,000,000 Sets Per Month

Product Description

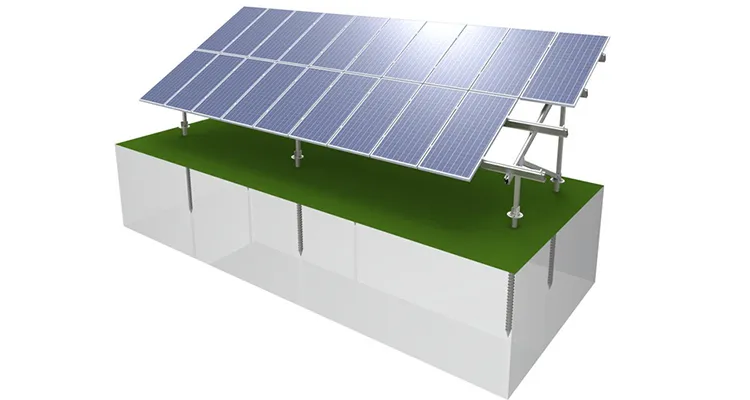

Solar Ground Mounting System

The Ground Screw Mounting Structure is widely applied for large solar farms, with fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design greatly ensures the stability for withstanding static loads.

📊 Key Advantages

High anti-corrosion and anti-rust performance.
Simple and fast installation process.
Significant reduction in labor costs.

⚙ Technical Specifications

Installation site: Open field ground mount
Foundation: Ground screw & Concrete
Tilt angle: 0-45 Degree
Main components: AL6005-T5
Accessories: Stainless steel fastening
Service Life: More than 25 years

Technical Details

Installation Site	Open field
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tilt Angle	0-45 deg
Standards	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Warranty	10 Years Warranty and 25 Years Service Life

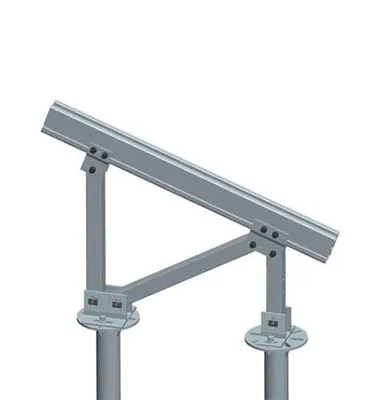

Screw Piles

• High traction and pressure values
• Installation by mini-digger machine with rotating head support

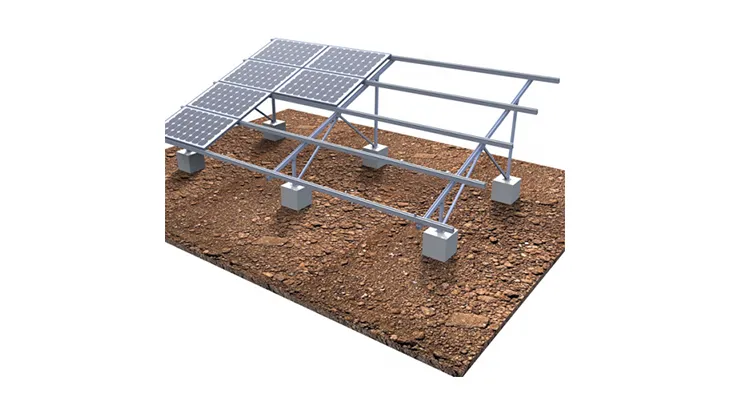

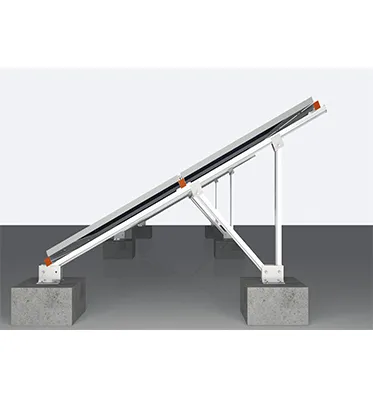

Concrete Base

• Best suited where ground excavation is not permitted
• Size adjusted based on static requirements and location

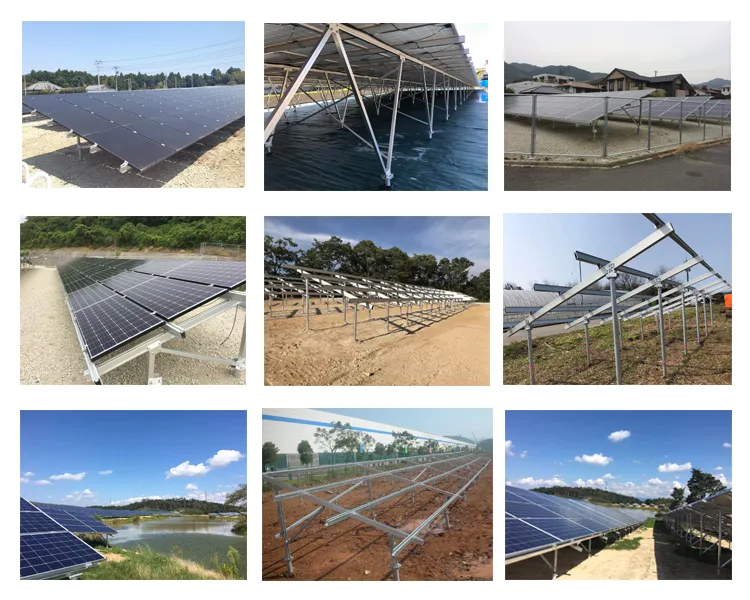

Project Showcase

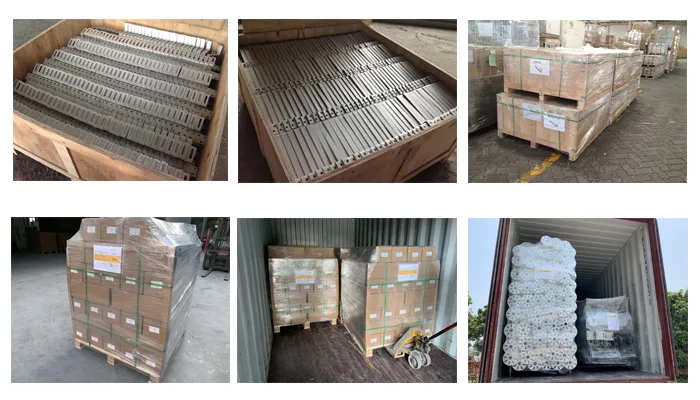

Packaging & Shipping

Exhibition & Certifications

Frequently Asked Questions

What is the expected service life of this mounting system?

The system is designed with high-quality materials such as Anodized AL6005-T5 and Stainless Steel SUS304, ensuring a service life of more than 25 years.

Can the tilt angle be customized for specific locations?

Yes, the structure supports a tilt angle range from 0 to 45 degrees to optimize solar energy absorption based on your geographical location.

What types of foundations are compatible with this system?

This mounting structure is versatile and can be installed using either ground screw piles or a concrete base, depending on the soil conditions and project requirements.

How does the system perform under extreme weather conditions?

The system is engineered to withstand wind loads of up to 60m/s and snow loads of 1.4kn/m2, meeting international standards like AS/NZS1170 and IBC 2006.

Is the installation process complicated?

No, the structure is designed for quick installation with pre-assembled components, which helps in reducing labor costs and time on-site.

What materials are used for the main structure?

The main components are made of high-strength Anodized Aluminum (AL6005-T5), providing excellent durability and resistance to corrosion.
