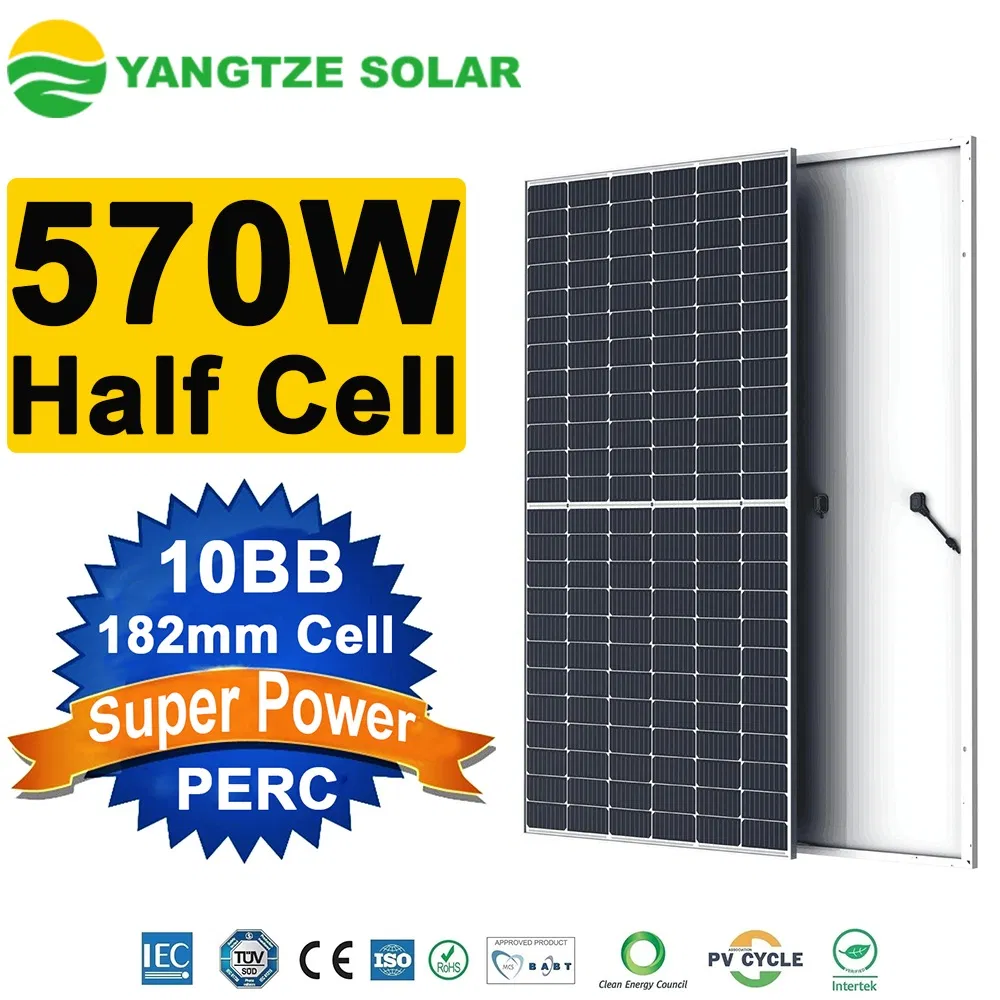

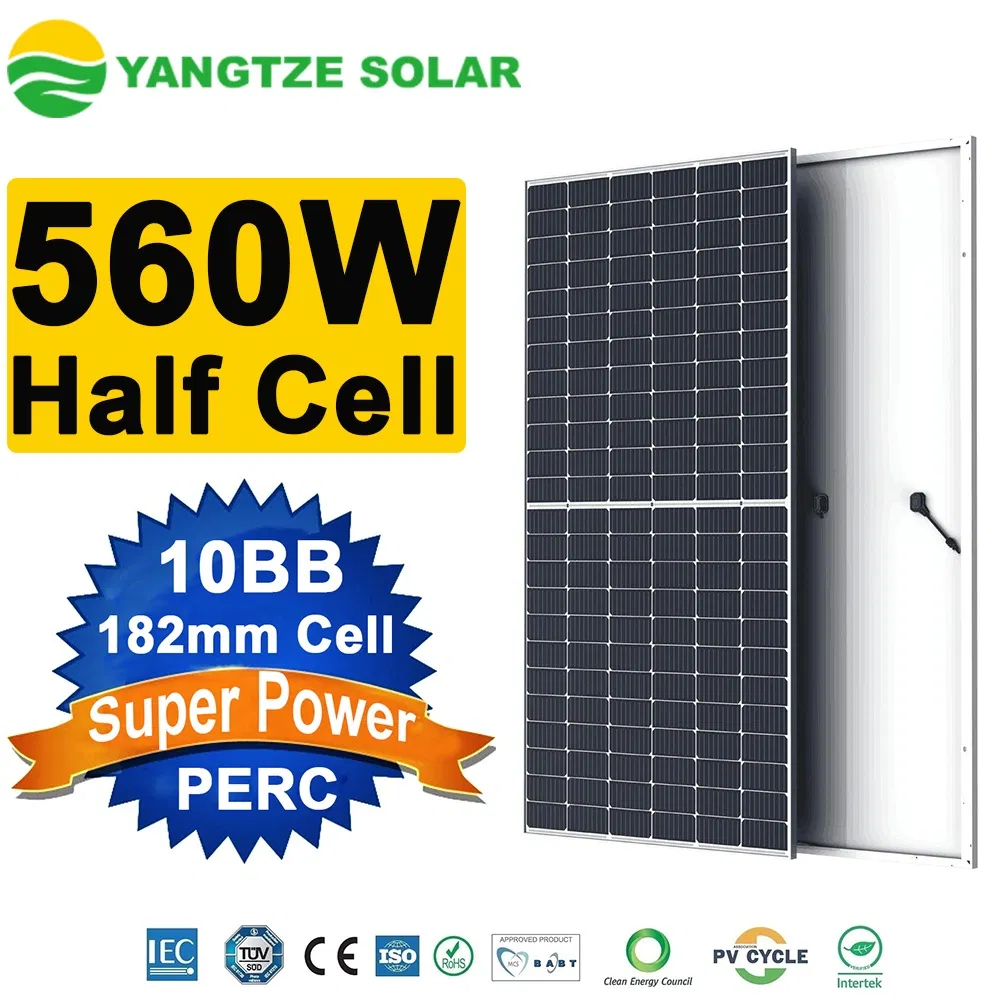

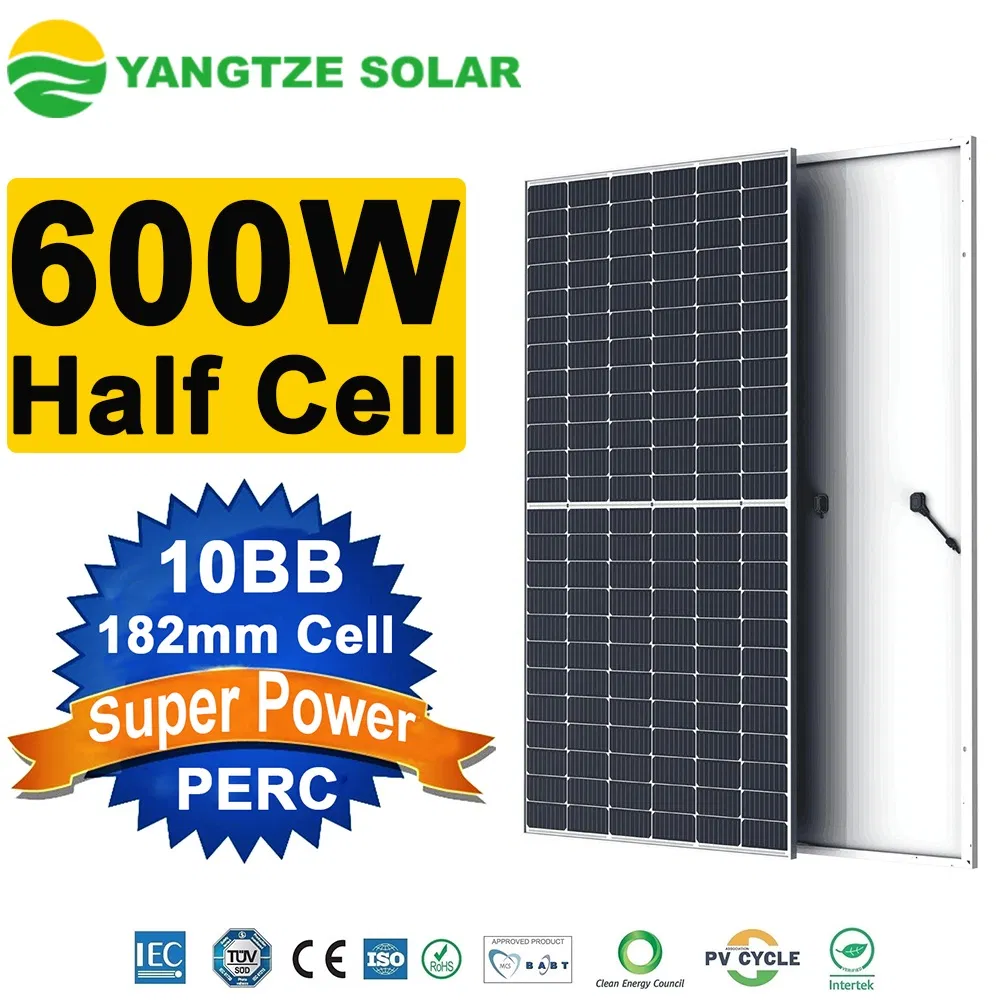

Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price

1 / 5

Yangtze 182mm Half Cell 580W 590W 600W PV Cell Monocrystalline Solar Panel for Solar Energy System with The Best Price

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

YS600M-72

Number of Cells

144 PCS

Application

Industrial

Material

Monocrystalline Silicon

Certification

ISO, CE

Frame

Anodized Aluminium Alloy

Junction Box

IP68 Waterproof

Solar Cell

Mono 182X91mm Half Cell

Front Cover

3.2mm High Transmission Low Iron Tempered Glass

Size

2274*1134*35mm

Weight

28.9 Kg

HS Code

8541402000

🔍 Product Overview

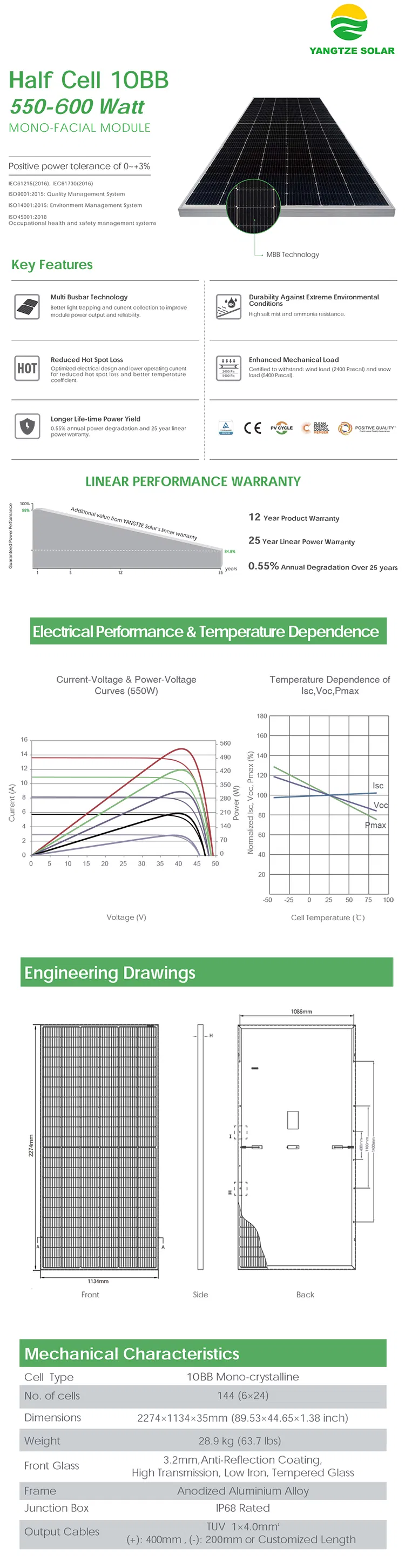

182mm Half Cell Monocrystalline Solar Panel Specifications

📊 Technical Specifications

Module Type	YS550M-72	YS560M-72	YS570M-72	YS580M-72	YS590M-72	YS600M-72
Maximum Power (Pmax)	550W	560W	570W	580W	590W	600W
Maximum Power Voltage (Vmp)	40.90V	41.10V	41.30V	41.50V	41.90V	42.10V
Maximum Power Current (Imp)	13.45A	13.63A	13.27A	13.98A	14.08A	14.25A
Open-circuit Voltage (Voc)	49.62V	49.72V	49.82V	49.91V	49.95V	49.99V
Short-circuit Current (Isc)	14.03A	14.33A	14.62A	14.81A	14.92A	14.97A
Module Efficiency STC	21.33%	21.72%	22.10%	22.49%	22.87%	23.27%
Operating Temperature	-40~+85ºC
Max System Voltage	1000VDC/1500VDC (IEC)
Temp Coeff of Pmax	-0.35%/ºC
Power Tolerance	0~+3%

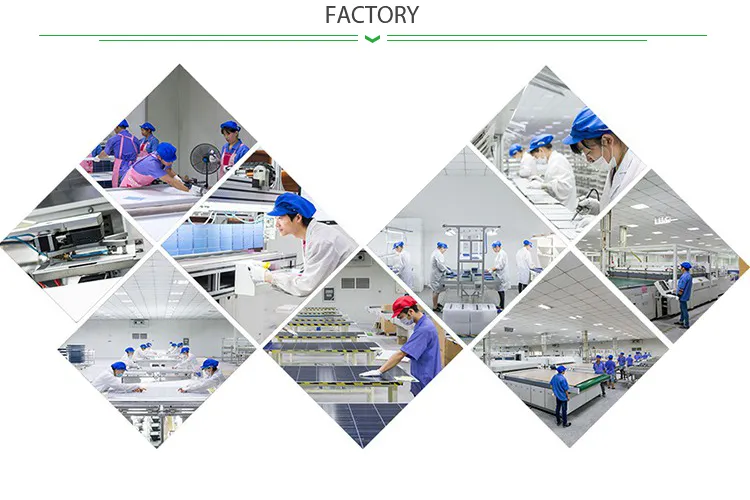

🖼️ Product Details & Production

✅ Key Advantages

✔300MW solar panel production capacity, range from 3W to 800W.
✔10 years workmanship and materials warranty.
✔25 years linear power output warranty (at least 80%).
✔100% EL test before package and shipping to ensure no micro-cracks.
✔Products are exported to more than 150 countries worldwide.
✔Certified by TUV (Germany) and CE.
✔Rich experience in overseas construction of solar projects.

❓ Frequently Asked Questions

Q: What is the maximum efficiency of the 600W solar panel? A: The 600W monocrystalline solar panel achieves a high module efficiency of up to 23.27% under Standard Test Conditions (STC).

Q: What kind of warranty is provided with these panels? A: We offer a 10-year total workmanship and materials warranty, along with a 25-year linear power output warranty ensuring at least 80% performance.

Q: Are the solar panels tested before shipment? A: Yes, all panels undergo a 100% EL (Electroluminescence) test before packaging and shipping to guarantee the absence of internal defects or micro-cracks.

Q: Is the junction box waterproof for outdoor industrial use? A: Absolutely. The panels feature an IP68 waterproof junction box, which provides the highest level of protection against dust and water immersion.

Q: Can these panels withstand extreme weather conditions? A: Yes, they are designed to operate in temperatures ranging from -40ºC to +85ºC and are built with high-transmission tempered glass and an anodized aluminium alloy frame for durability.

Q: Do you support OEM orders for specific project requirements? A: Yes, OEM orders are acceptable to meet the customized needs of different industrial and commercial solar energy systems.
