Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
1 / 5
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System
Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System

Wonvolt Complete Solar System 100kw 200kw 300kw 500kw off Grid Storage Solar Energy System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview Commercial ESS System Configuration Technical Support Ref. Projects FAQ
📊

Basic Information

Model NO.
WV-200KW-400KWh-C
Condition
New
Certification
ISO, CB, CE, Un38.3 MSDS
Application
Home, Industrial, Commercial, Microgrid
Cycle Life
10000 Times and up Lithium Battery
Nominal Capacity
100kw/200kwh Solar Battery
Battery Type
LiFePO4/Lithium Solar Storage Battery
AC Output
380V/400V/415V/480V/220V
Solar Panel
Topcon Mono 585W-700W
Support
UPS/Black Start/Dg
Transport Package
Wooden Box
Origin
China
🏢

Commercial Energy Storage System

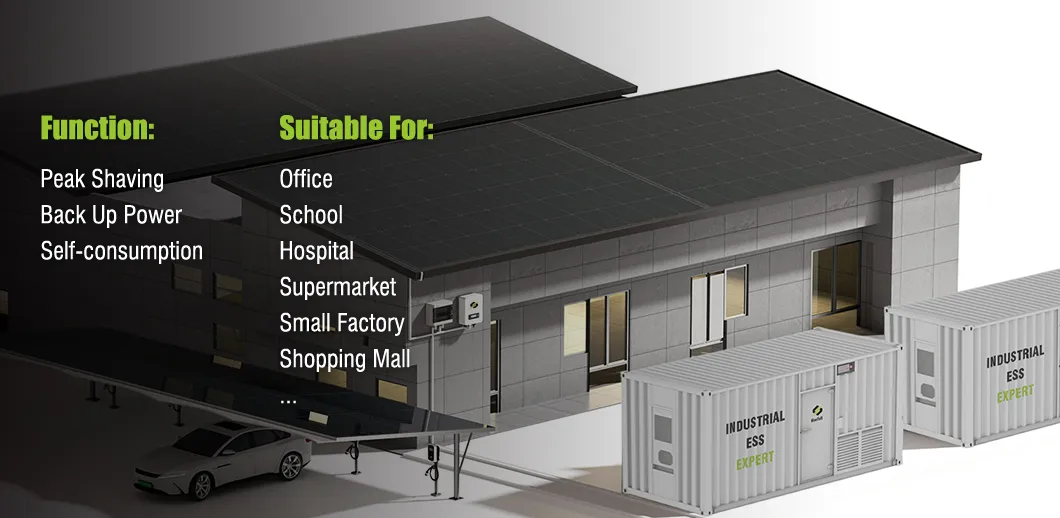

Complete Solar Storage System
⚙️

System Configuration

Equipment Model 30KW/46kWh 50KW/100kWh 100KW/201kWh
N type Solar Panel WV-72KUN605-H8NS 51pcs 96pcs 170pcs
Hybrid Inverter 220 / 380 / 480VAC 30KW 50KW 100KW
Lithium Ion Battery WV51280H 46kWh 100kWh 201kWh

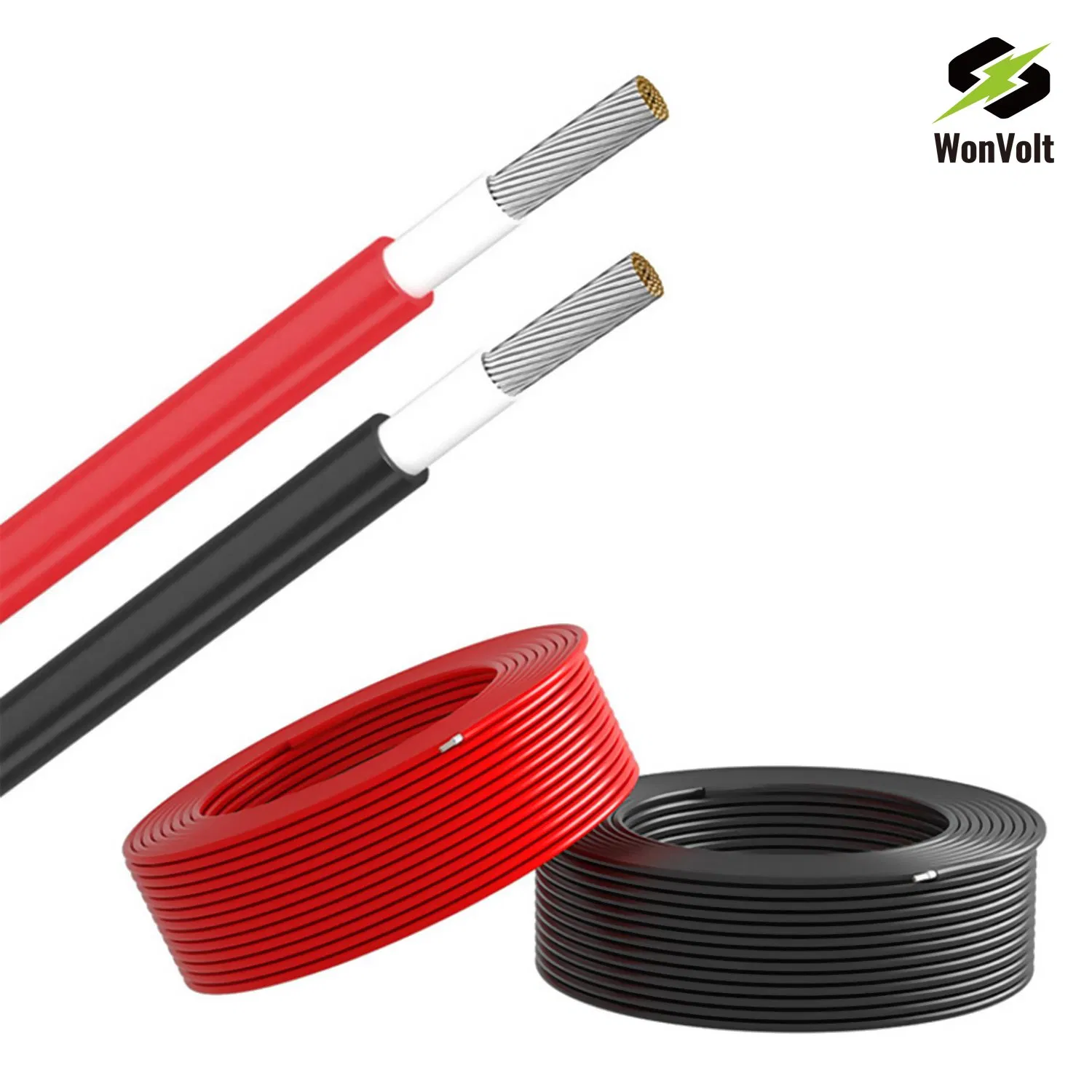

PV cable PV1-F 1*4/6mm2 300m 600m 1000m
▶

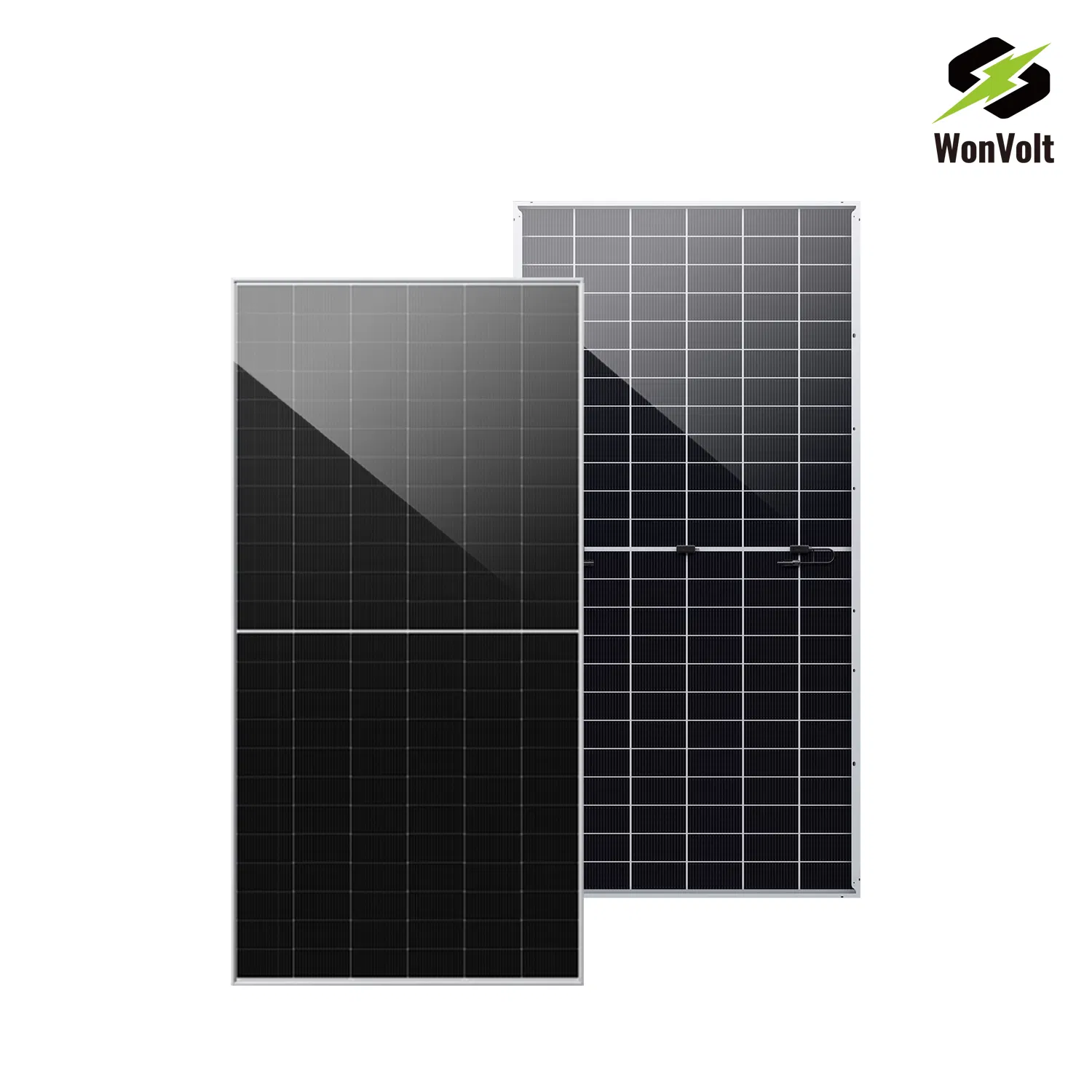

Solar panel: N type Monofacial or Bifacial dual glasses solar pv panel 420W-750W optional, black frame or silver frame.
▶
Solar Inverter: Stand alone off grid solar system and hybrid on off grid solar system, 1KW-100MWH storage systems. Three phases 208V/220V/380V/480VAC customized.
▶
Battery storage system: 0.5C or 1C battery cell lithium battery solutions, battery cluster with BMS.
▶
BESS container: Outdoor cabinet IP65, with fire protection and ventilation systems, 10ft, 20ft or 40ft options.
📝

Product Details

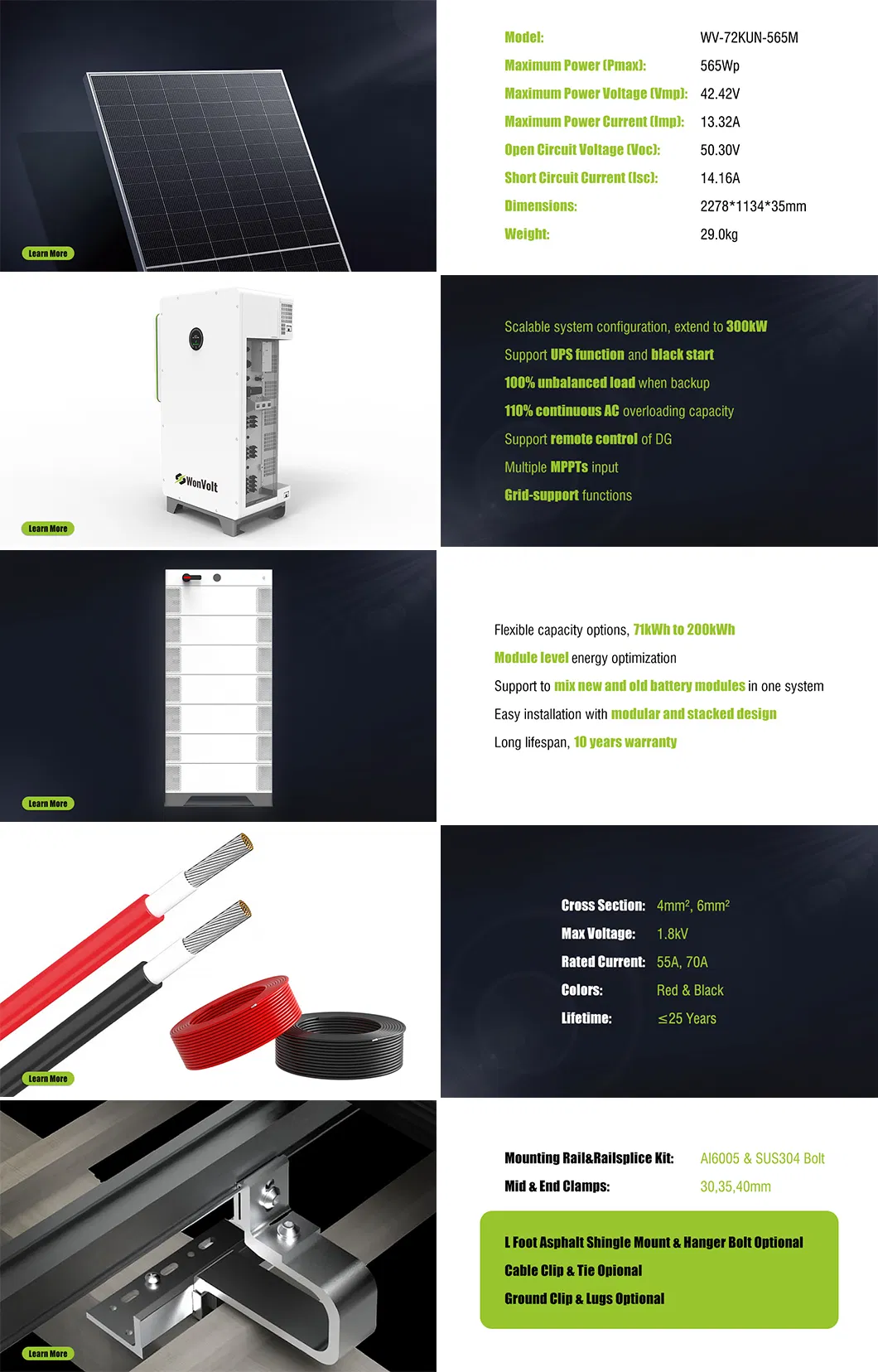

Product Description
🛠️

Technical Support

Technical Info 1

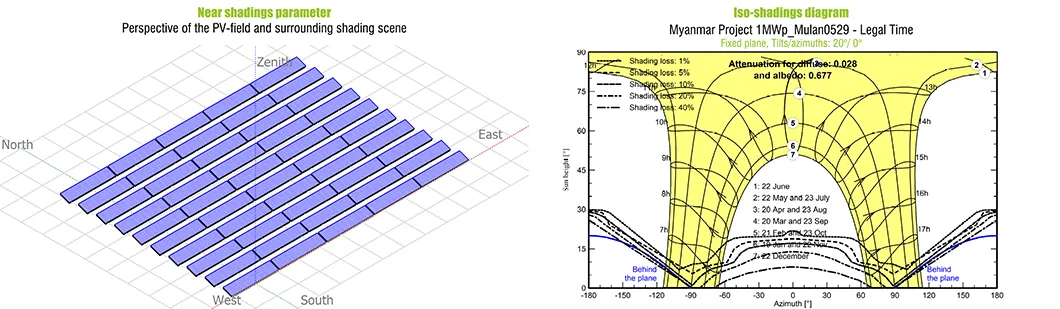

Technical Info 2

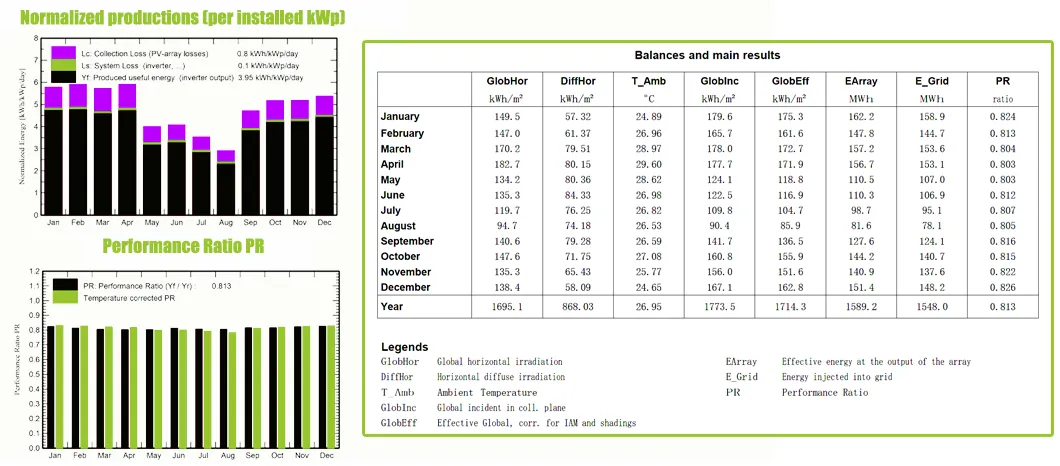

Technical Info 3
🏭

Production Facility

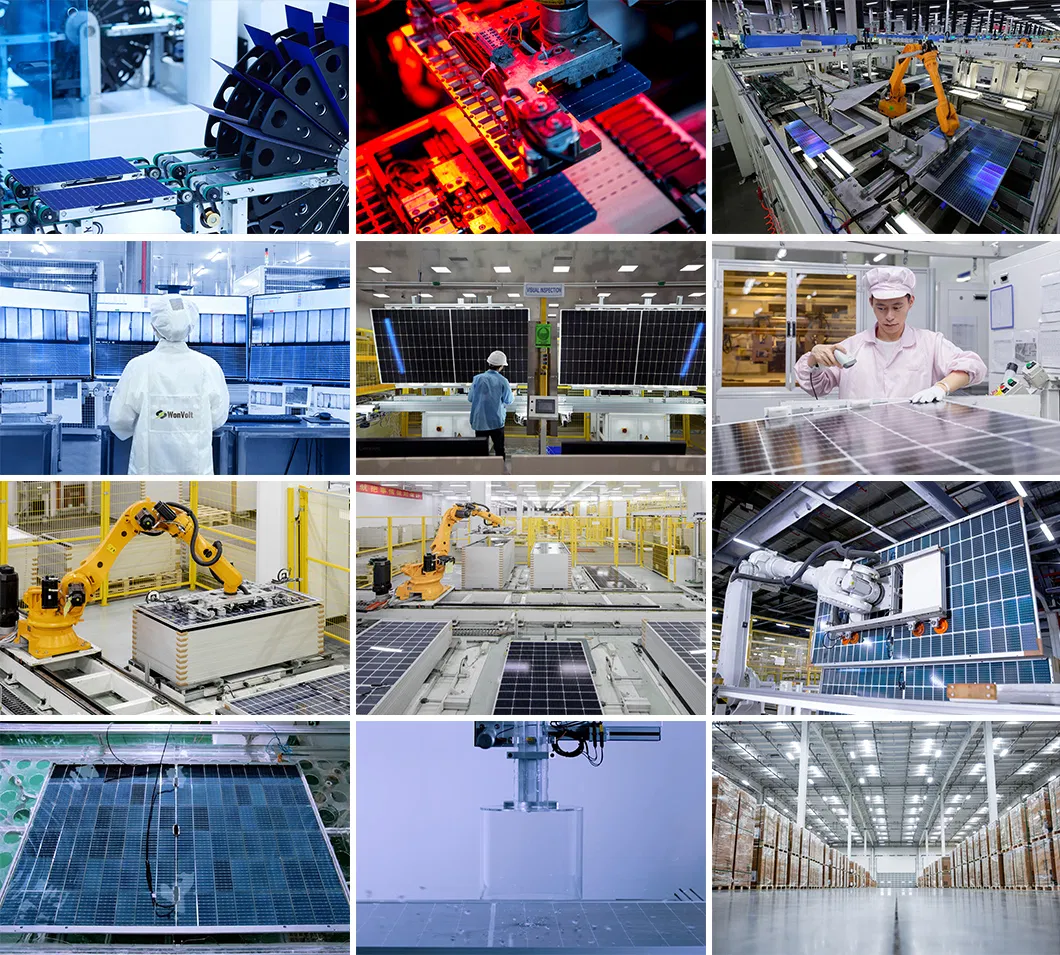

Production Factory
✅

Reference Projects

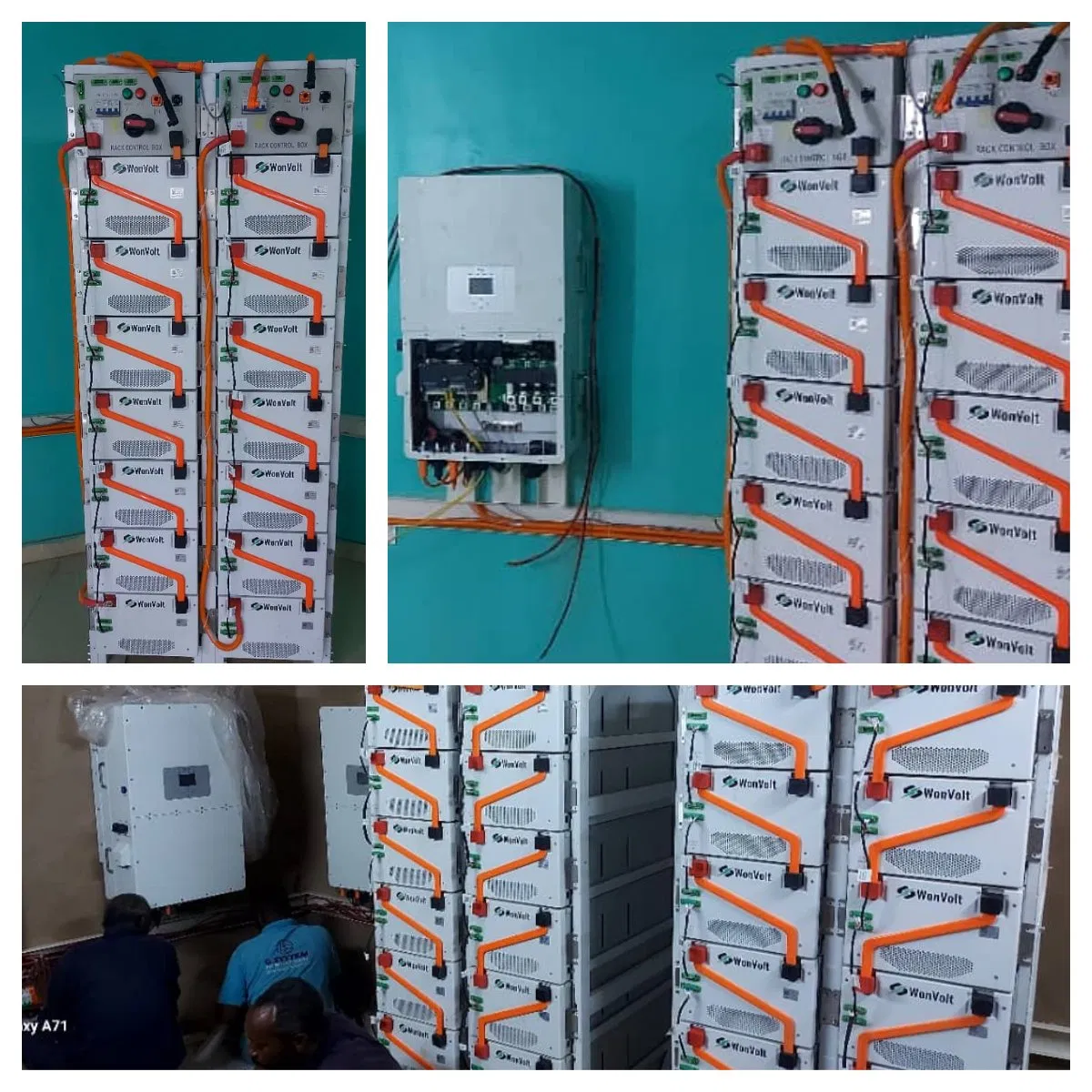

Project Cases
❓

Frequently Asked Questions

1. What is the typical lifespan of the lithium batteries used?
The system utilizes high-quality LiFePO4 lithium batteries with a cycle life of over 10,000 times, ensuring long-term reliability for industrial and commercial use.
2. Can the energy storage system be customized for specific power needs?
Yes, the system is highly customizable. We offer configurations ranging from 30KW/46kWh up to 500KW/1075kWh and beyond to meet different commercial requirements.
3. What types of applications is this ESS suitable for?
It is designed for a wide range of applications including residential complexes, industrial plants, commercial buildings, schools, hospitals, and microgrid projects.
4. Does the system support remote monitoring?
Absolutely. The system supports remote control and monitoring via WIFI, Enterlog, or BR300, allowing you to track energy production and consumption in real-time.
5. What certifications do the products carry for international safety?
The systems are fully certified with international standards including CE, UN38.3, IEC, EN50549, and ISO, ensuring compliance with global safety and performance regulations.
6. Is the system compatible with different mounting surfaces?
Yes, we provide mounting structures suitable for metal rooftops, tile rooftops, and ground-level installations with adjustable brackets.
