| Model NO. | HE200-7200-F |
| Phase | Single |
| Output Power | >1000W |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| Circuit Topologies | Half-Bridge Type |
| Nature of Wave String | Sine Wave Inverter |
| Max Solar Charging Current | 120A |
| Nominal Output Voltage | 220/230/240VAC |
| Full Load | 6200W |
| MPPT Voltage Range | 60~450V |
| Dimensions (H*W*D) | 395*320*120 mm |
| Operating Temperature | -10°C ~ 50°C |

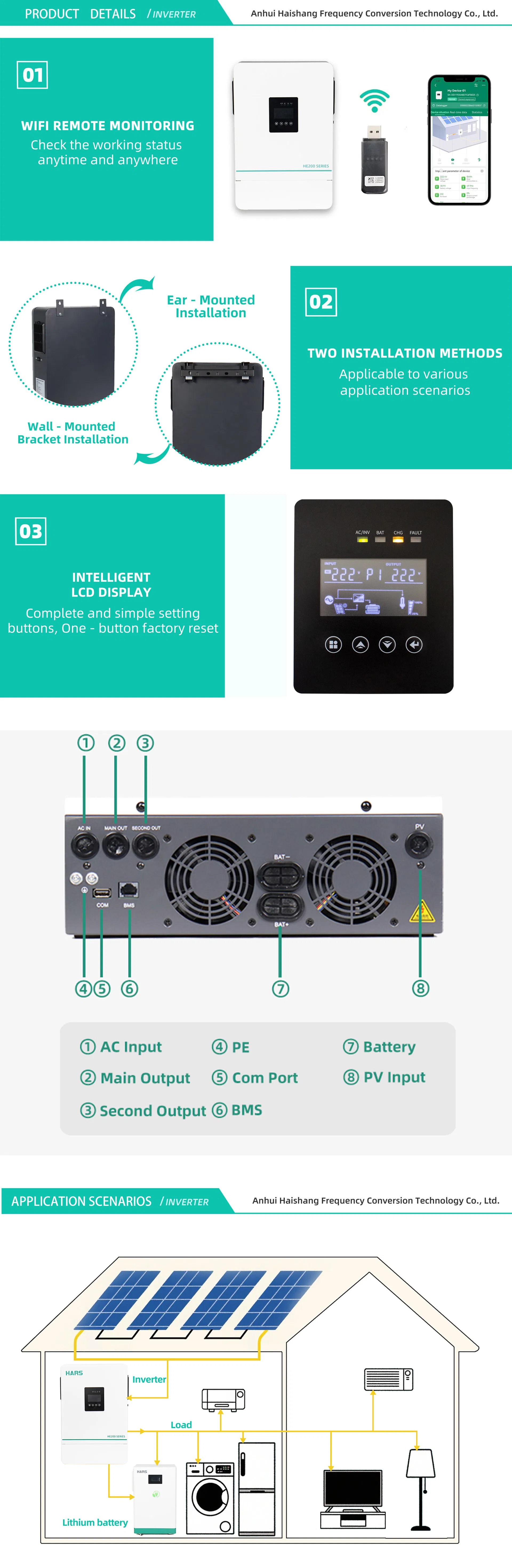

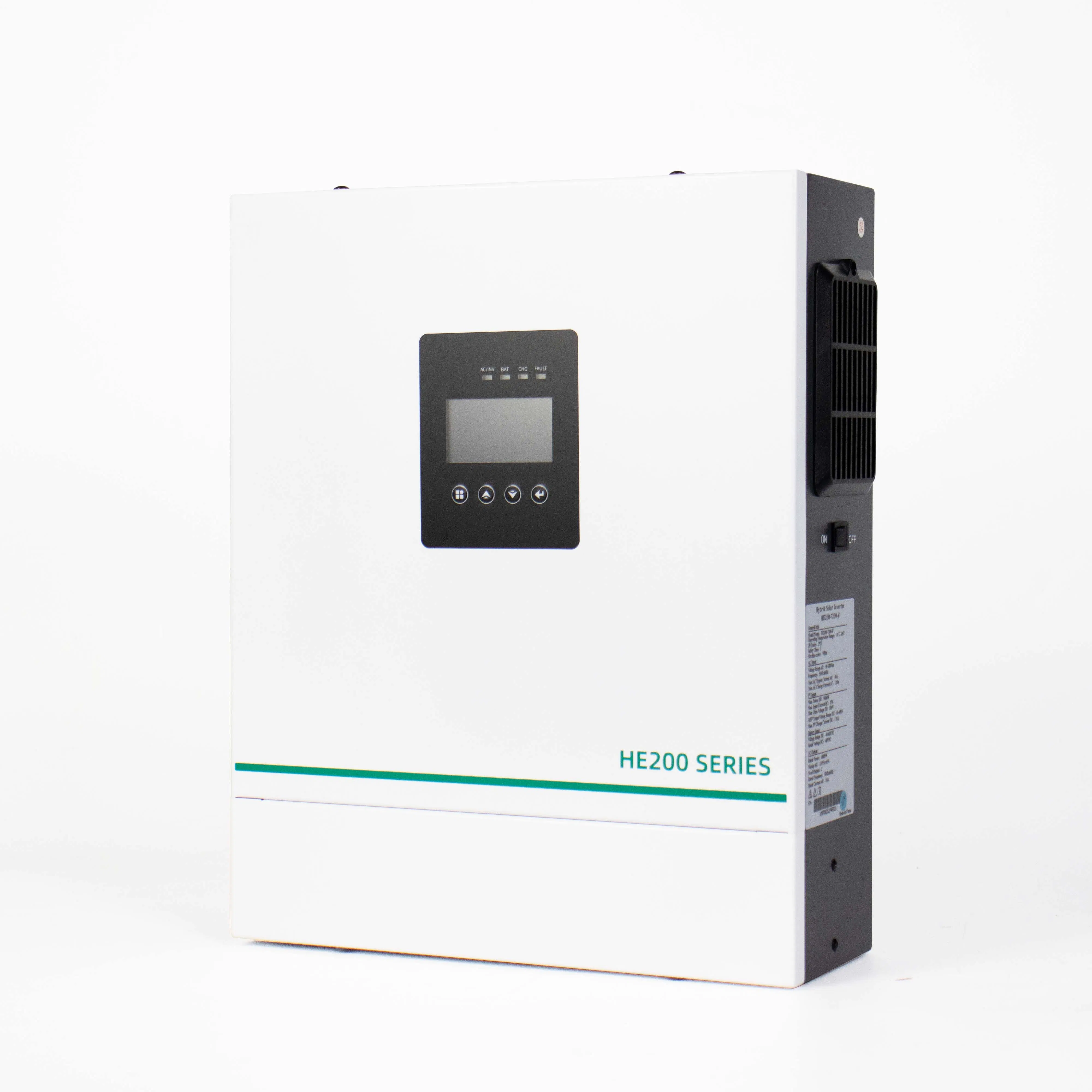

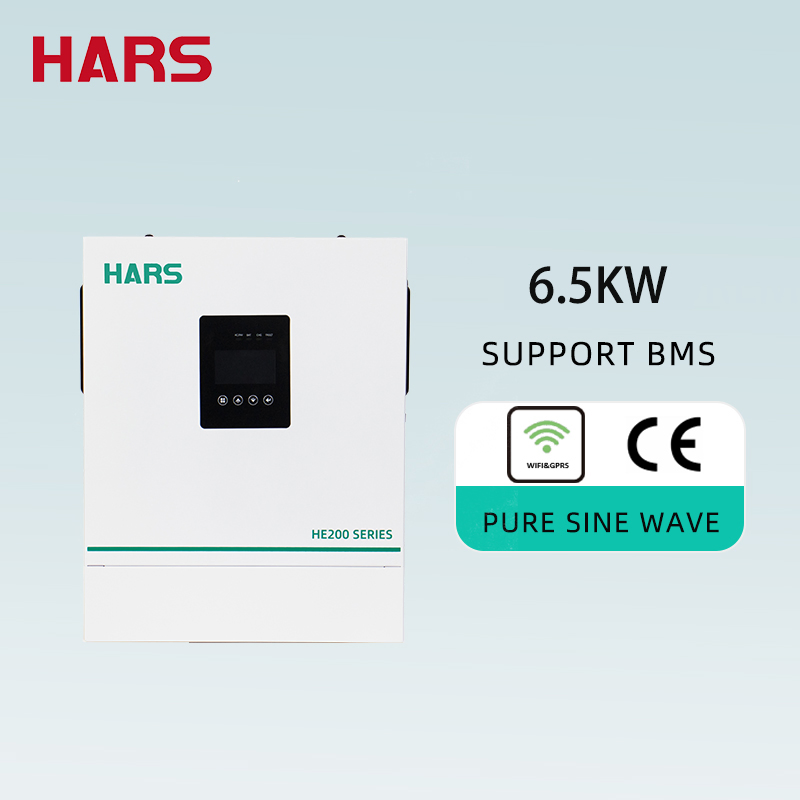

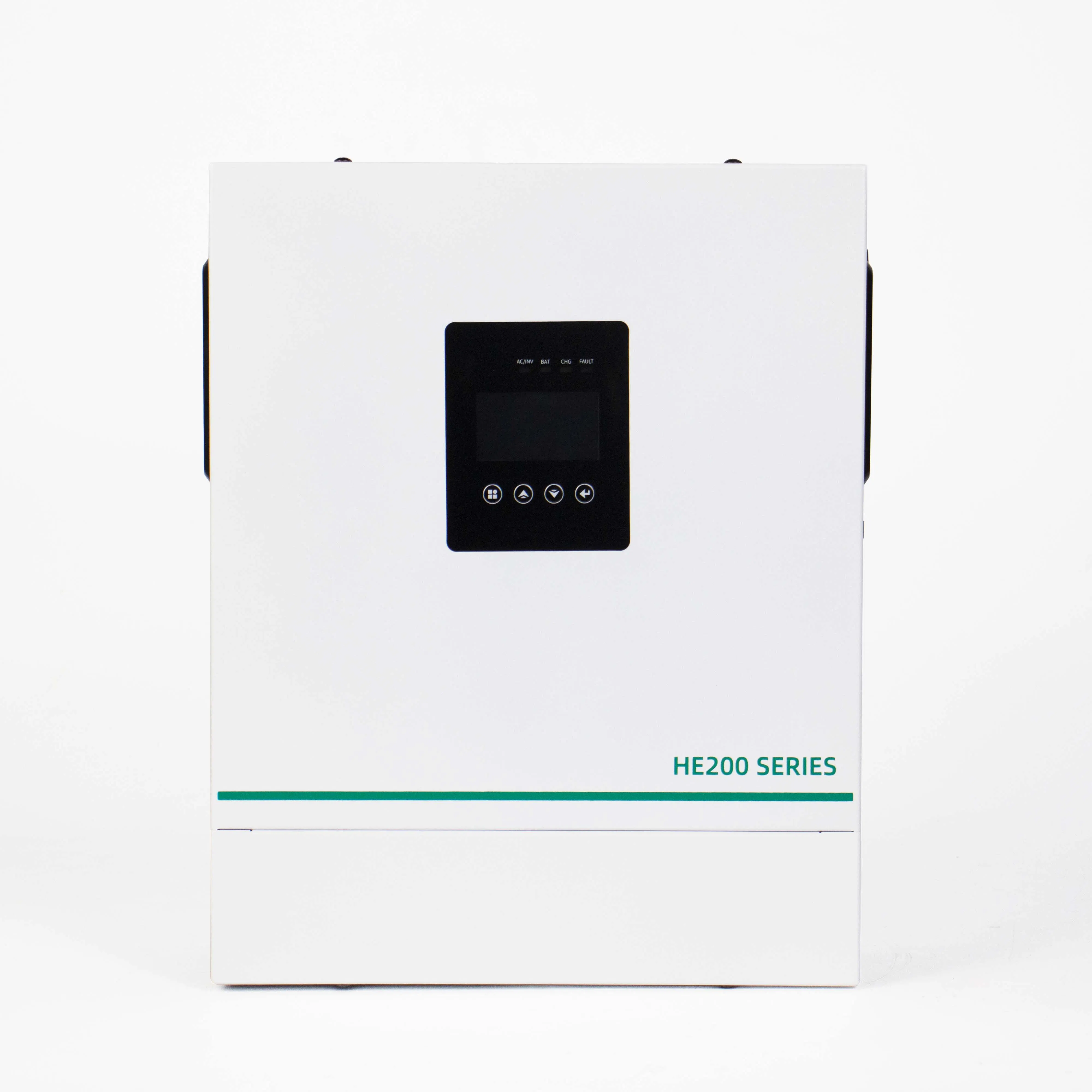

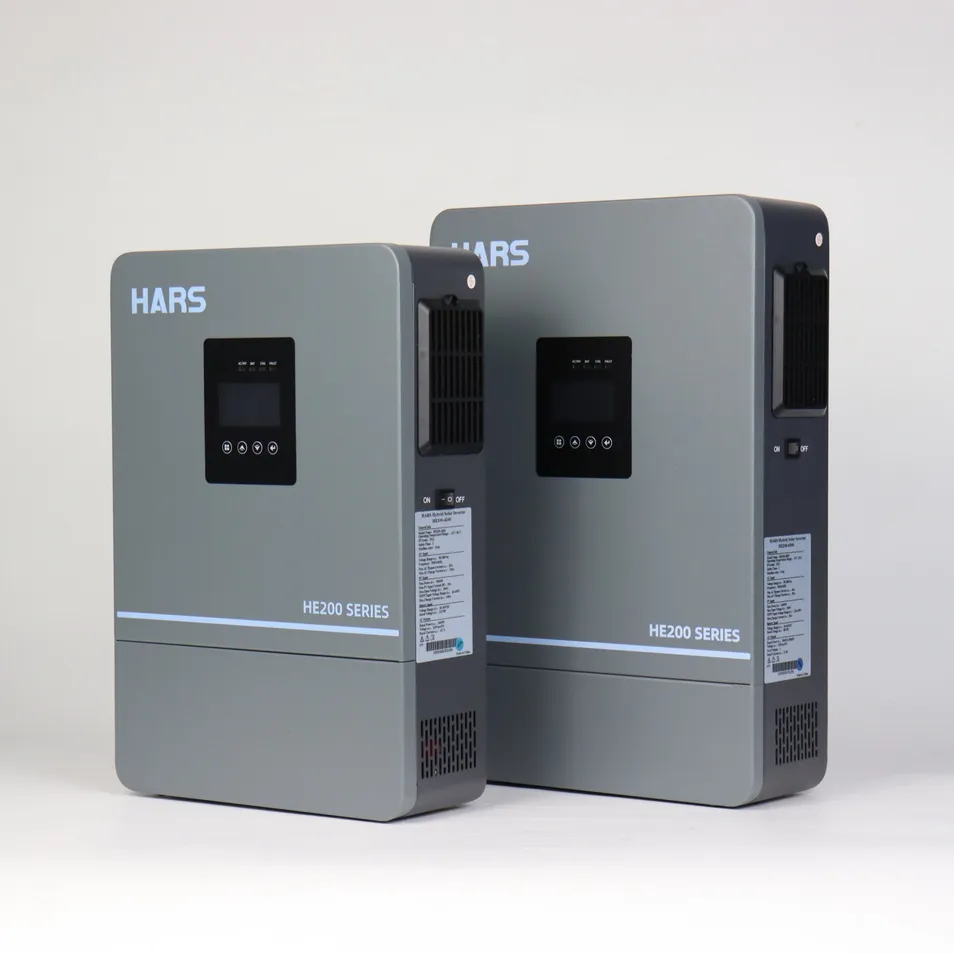

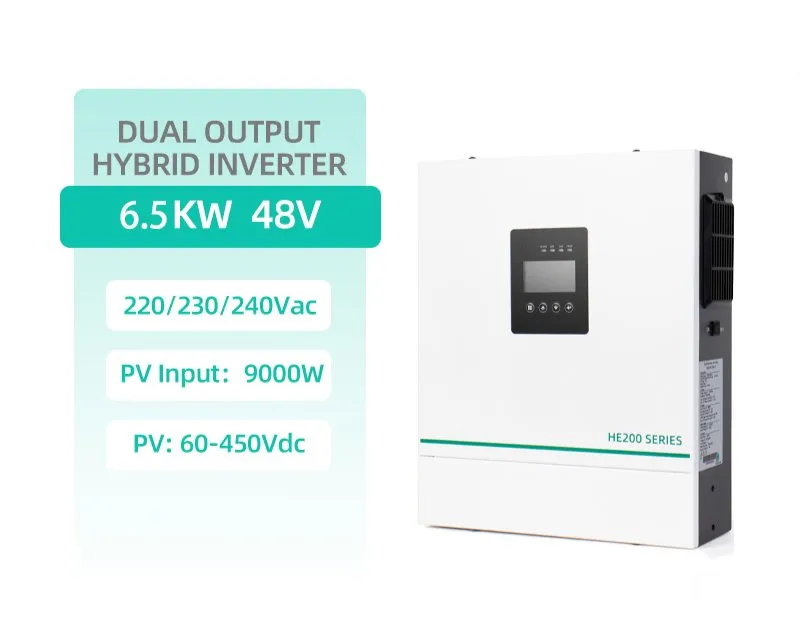

The HE200 is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. Designed with a portable size, it supports uninterruptible power supply switching and provides comprehensive functions for setting battery charging voltage and current. With multiple power input and output priority settings, the AC voltage and frequency are fully adjustable to suit different grid environments. The system also features a dedicated mobile APP for real-time online data monitoring.
| Inverter Output Specification | |
|---|---|
| Rated Output Power | 6500W |
| Rated Output Voltage | 230Vac ± 5% (Single Phase) |
| Rated Output Current | 27A |
| Output Waveform | Pure Sine Wave |
| Battery & Charging | |
| Battery Type | Lead-acid / Gel / Lithium battery |
| Rated Battery Voltage | 48V |
| Max PV Charging Voltage | 500Vdc |
| Max PV Input Power | 9000W |

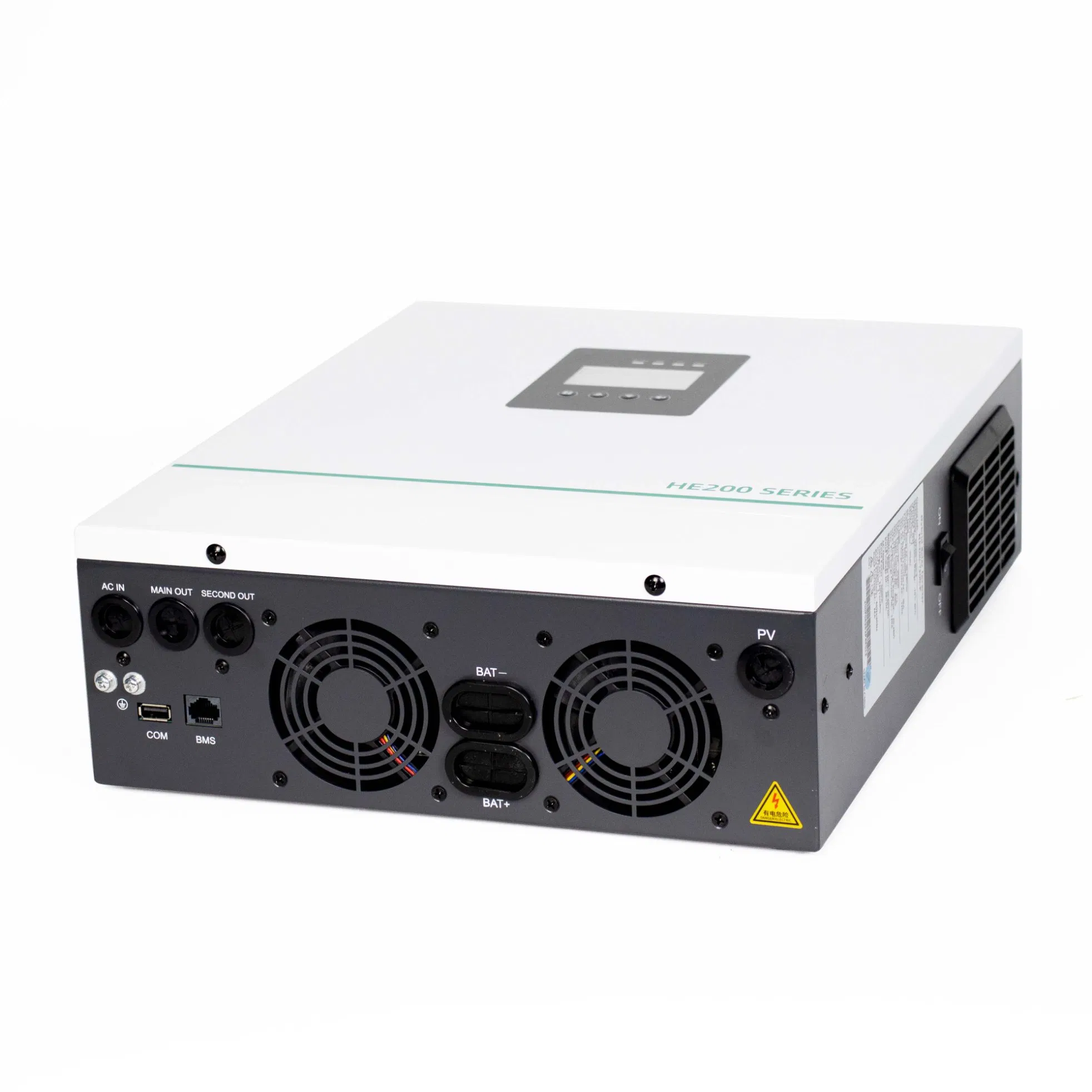

| PV Input & AC Bypass | |
| MPPT Number | 1 |
| Max Input Current | 27A |
| AC Input Voltage Range | 90~280Vac |
| Max AC Bypass Current | 50A |

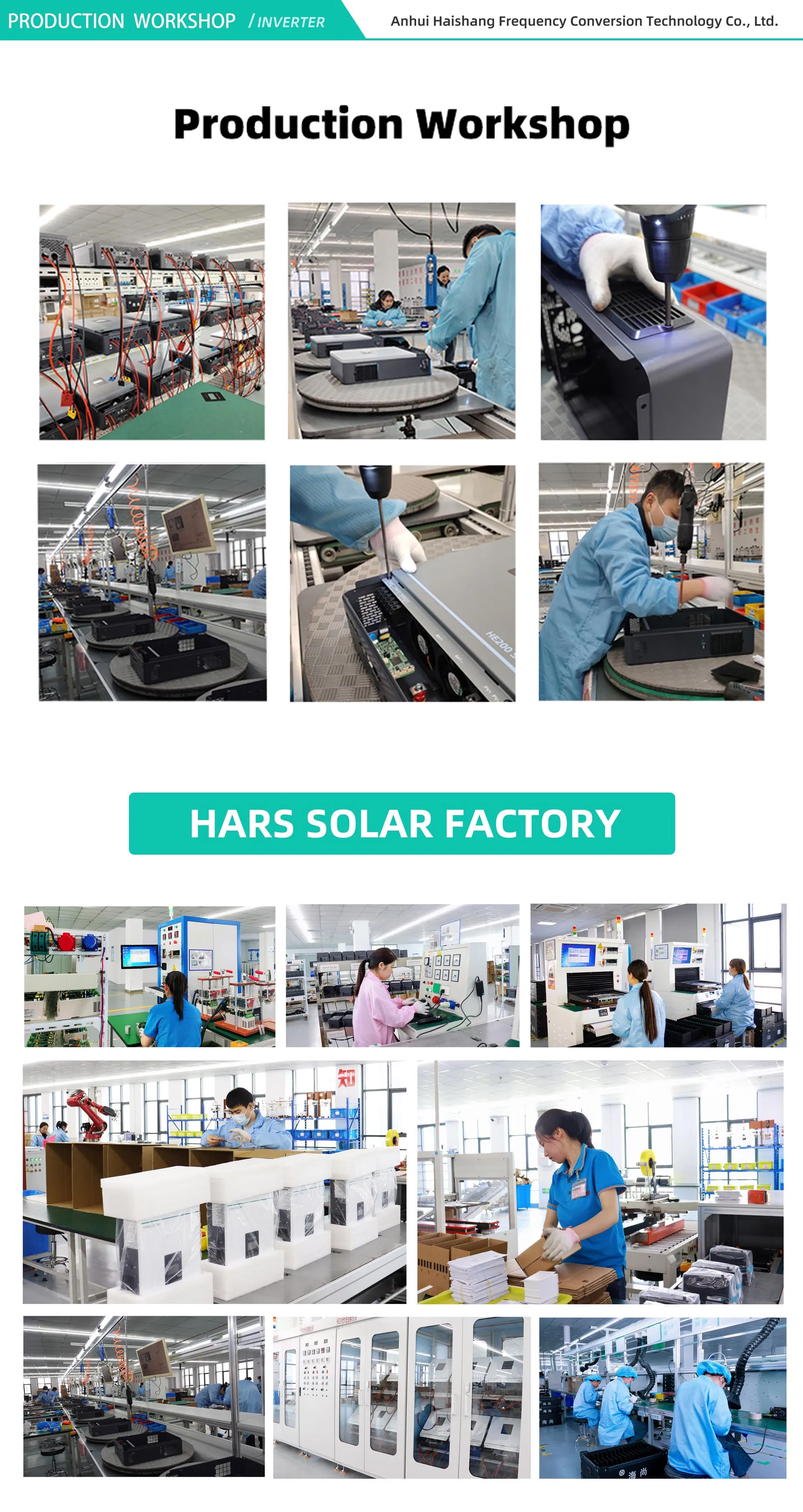

We are a high-tech enterprise integrating R&D, production, sales, and technical services. Our automated production levels reach 80%, ensuring consistent quality and sufficient inventory for prompt delivery. With multiple technical centers, we provide robust ODM and OEM services backed by strong technical support to meet global demand.
