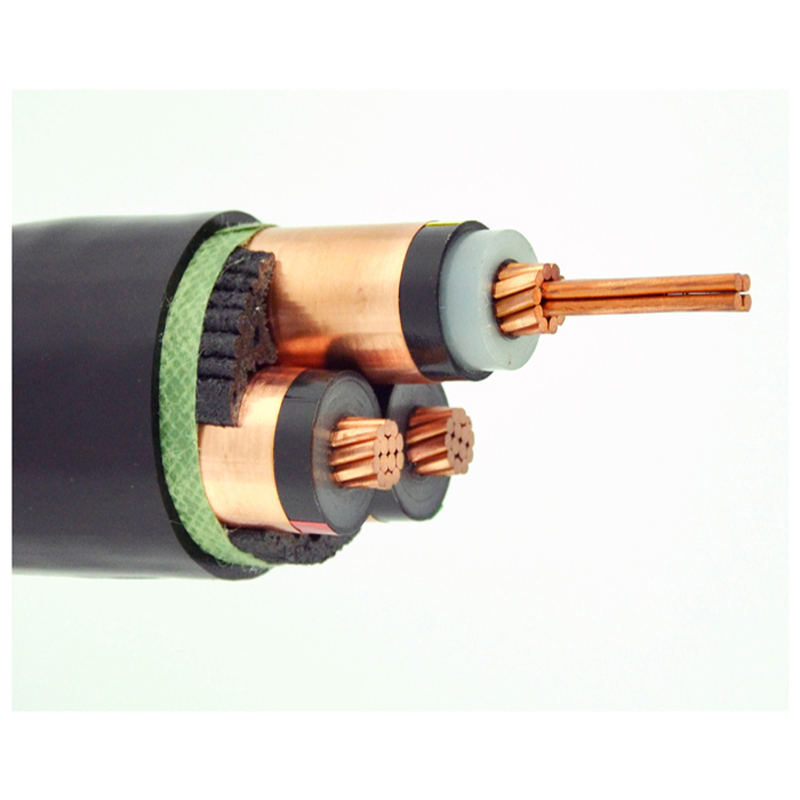

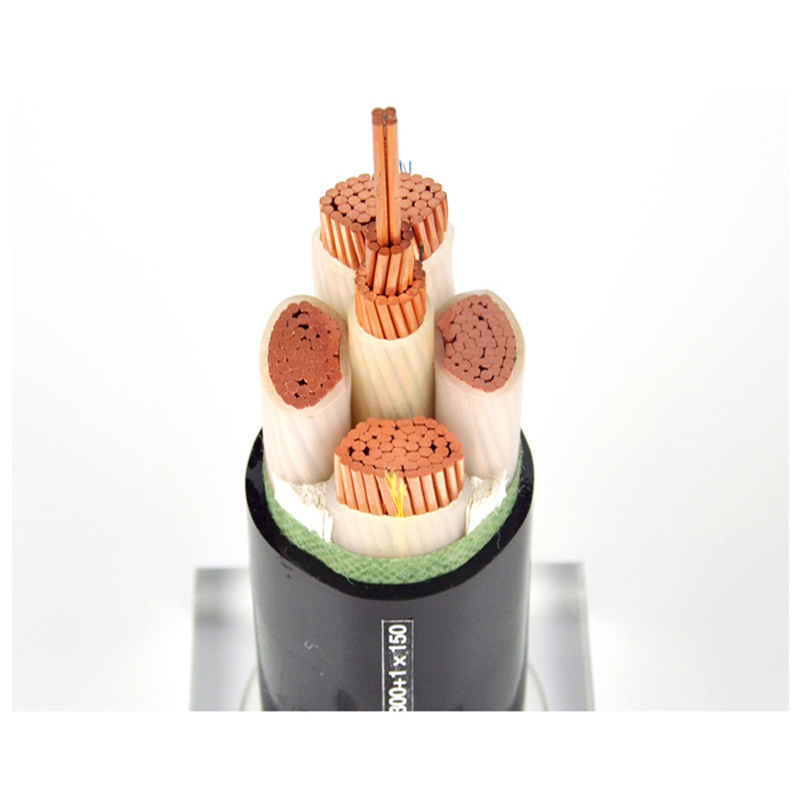

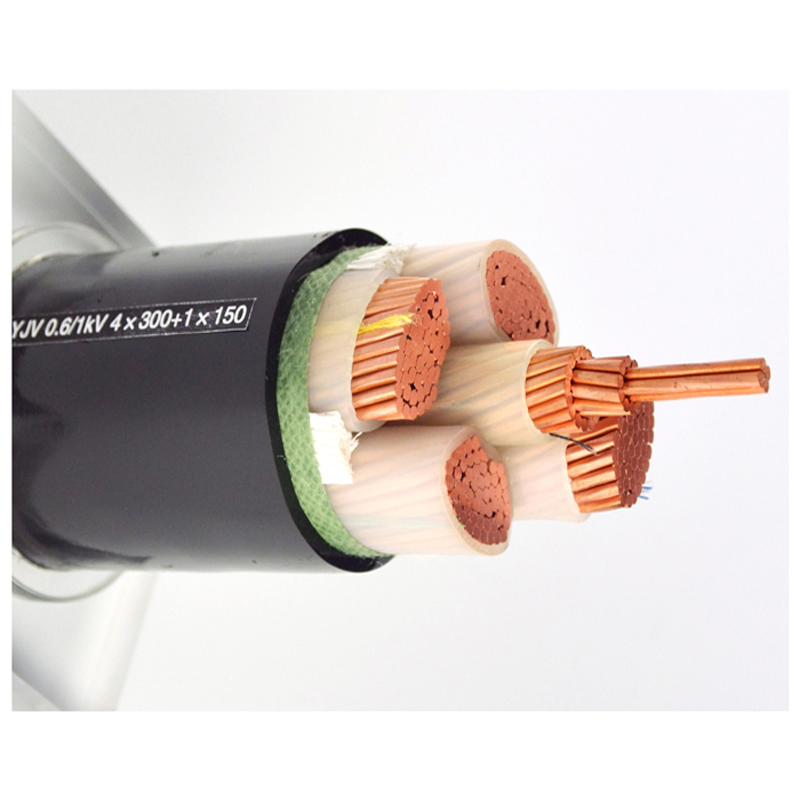

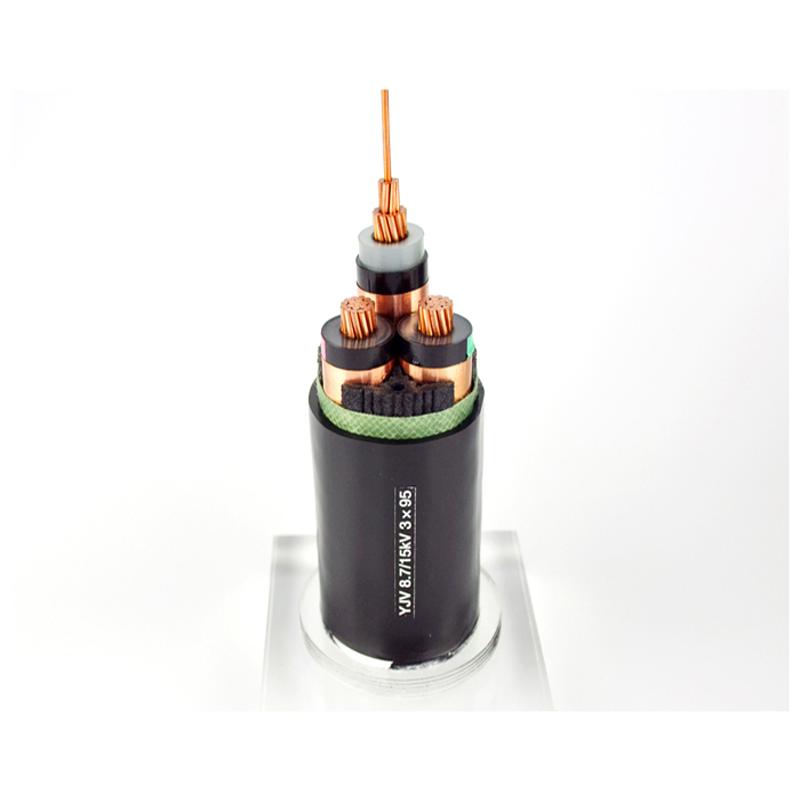

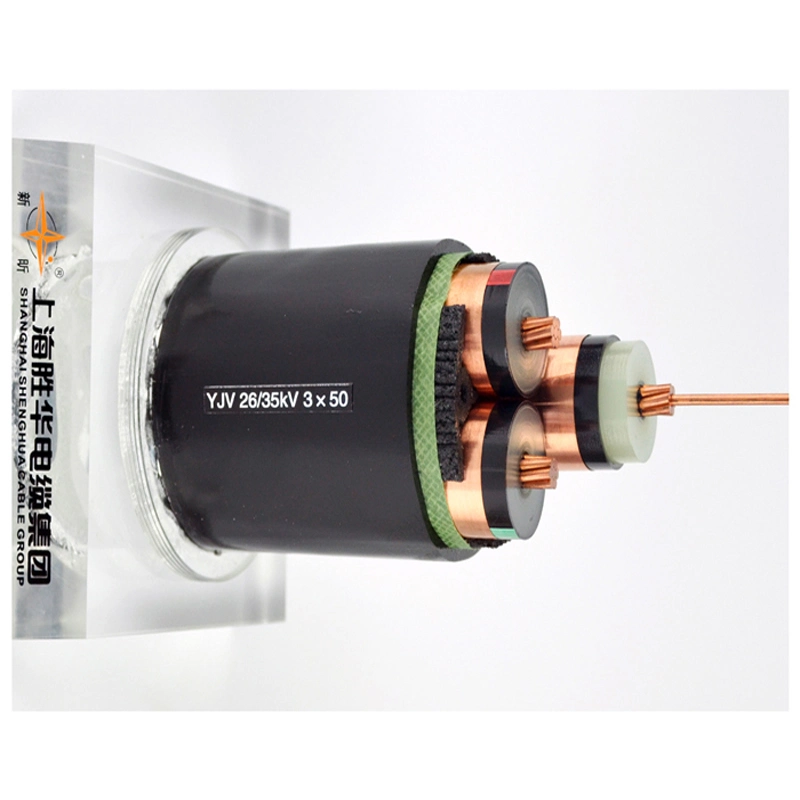

Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
1 / 5
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms
Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms

Underground XLPE Power Cable 0.6/1kv - Direct Burial HDPE-Jacketed Cable for Grids & Solar Farms

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
YJY YJV WDZ-YJY WDZ-YJV
Current
DC & AC
Insulation Material
XLPE
Sheath Material
PE
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE, RoHS
Color
White/Black
MOQ
500m
Rated Voltage
0.6 kV
HS Code
8544492100
Package
Wooden Steel Drum
📦 Packaging & Delivery
Package Size
110.00cm * 110.00cm * 75.00cm
Gross Weight
800.000kg
🛡️ Product Description

Product Name: YJY XLPE insulation LSOH Sheathed Flame retardant Power Cable

Description: CU/XLPE/LSOH, high-performance power cable complying with international safety standards.

🏗️ Constructions
  • Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
  • Insulation: XLPE/A
  • Inner Covering: LSOH
  • Sheath: LSOH, black (Standard or custom requirements)
🏭 Applications

Ideal for use in tall buildings, hospitals, theaters, power stations, metro tunnels, petrochemical industry, or other special locations requiring low smoke, zero halogen (LSOH) clean and safe cabling.

📜 Standards

International: IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754

National: GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001

Others: BS, DIN and ICEA upon request

⚙️ Technical Data
Parameter Specification Details
Rated Voltage0.6 kV
Max. Conductor Temp.Normal: 90ºC; Short circuit (5s): Max 250ºC
Min. Ambient Temp.Pre-heat required if below 0ºC
Min. Bending RadiusSingle core: 20(d+D)±5%; Multi-core: 15(d+D)±5%
Insulation MaterialXLPE/A (Flame Retardant)
🖼️ Product Visuals

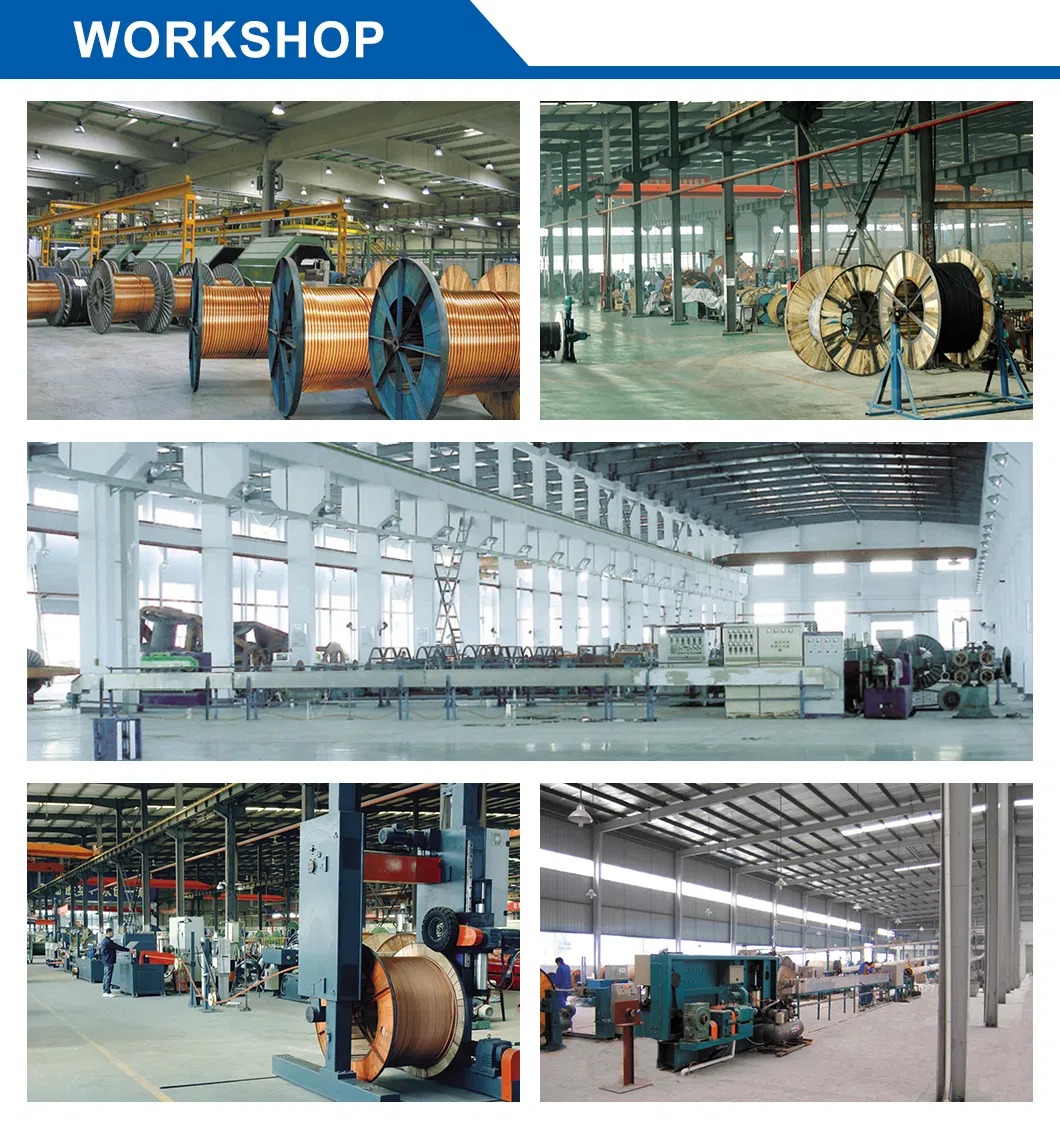

XLPE Power Cable 1 XLPE Power Cable 2 XLPE Power Cable 3 XLPE Power Cable 4 XLPE Power Cable 5 XLPE Power Cable 6 XLPE Power Cable 7
Frequently Asked Questions
1. What are the primary advantages of XLPE insulation in power cables?
XLPE (Cross-linked Polyethylene) offers excellent electrical properties, high thermal stability, and superior resistance to chemical and environmental stress, allowing for higher current carrying capacity.
2. What makes LSOH sheathing different from standard PVC?
LSOH (Low Smoke Zero Halogen) sheathing is designed to reduce toxic and corrosive gas emissions during a fire, making it much safer for use in enclosed spaces like tunnels, hospitals, and high-rise buildings.
3. What is the maximum operating temperature for these cables?
The maximum conductor temperature for normal operation is 90ºC. During a short circuit (lasting no more than 5 seconds), the temperature can reach up to 250ºC.
4. Can these cables be installed in environments with temperatures below 0ºC?
Yes, but the cable should be pre-heated if the ambient temperature is below 0ºC during installation to prevent damage to the insulation and sheath.
5. What is the bending radius requirement for installation?
For single-core cables, the minimum bending radius is 20(d+D)±5%. For multi-core cables, it is 15(d+D)±5%, where 'd' is the conductor diameter and 'D' is the overall cable diameter.
6. Are these cables compliant with international fire safety standards?
Yes, they are manufactured according to IEC 60331 and IEC 60754 standards, ensuring they meet flame retardant and low smoke requirements.
