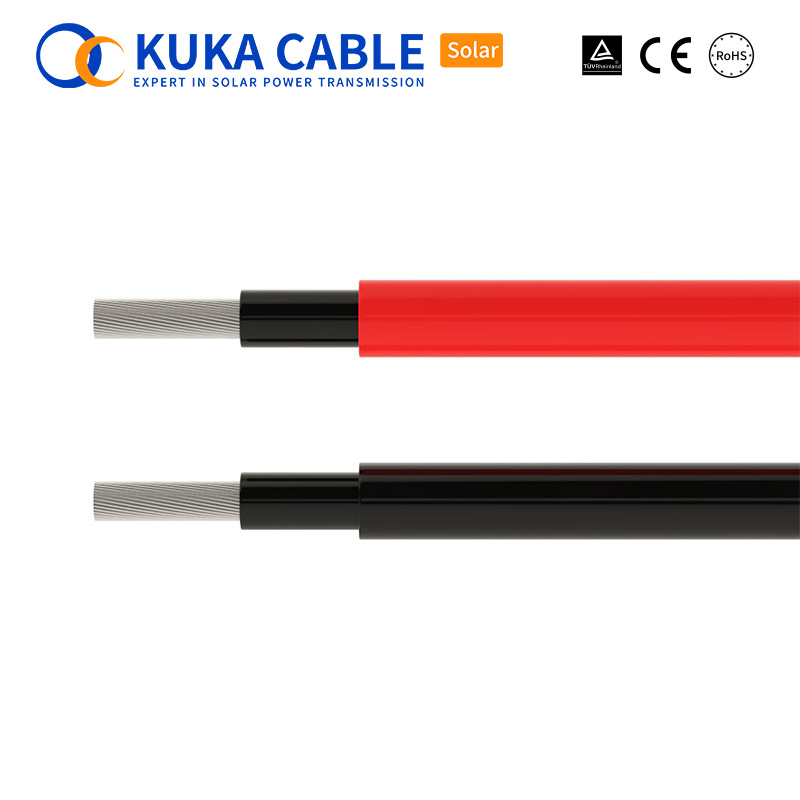

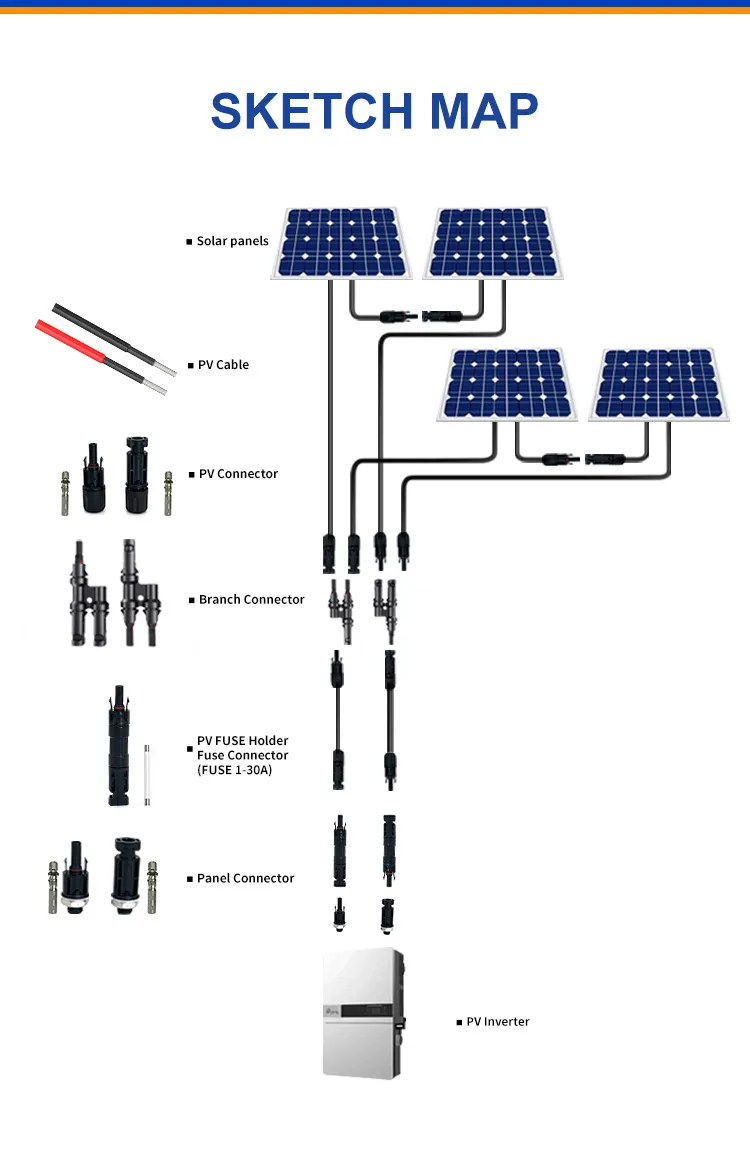

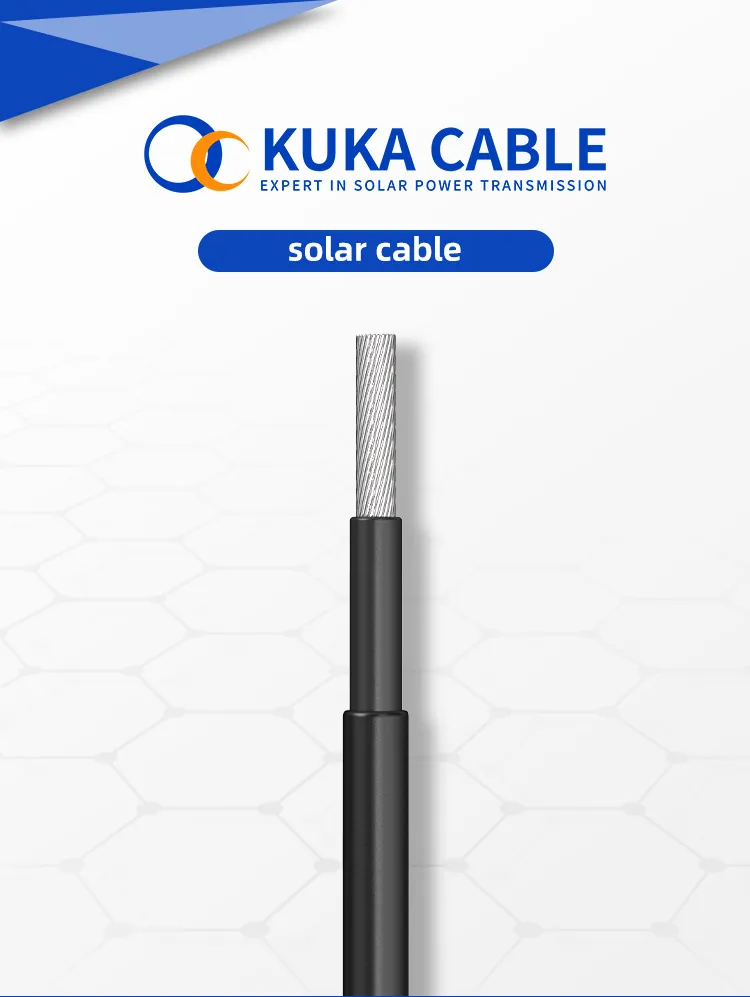

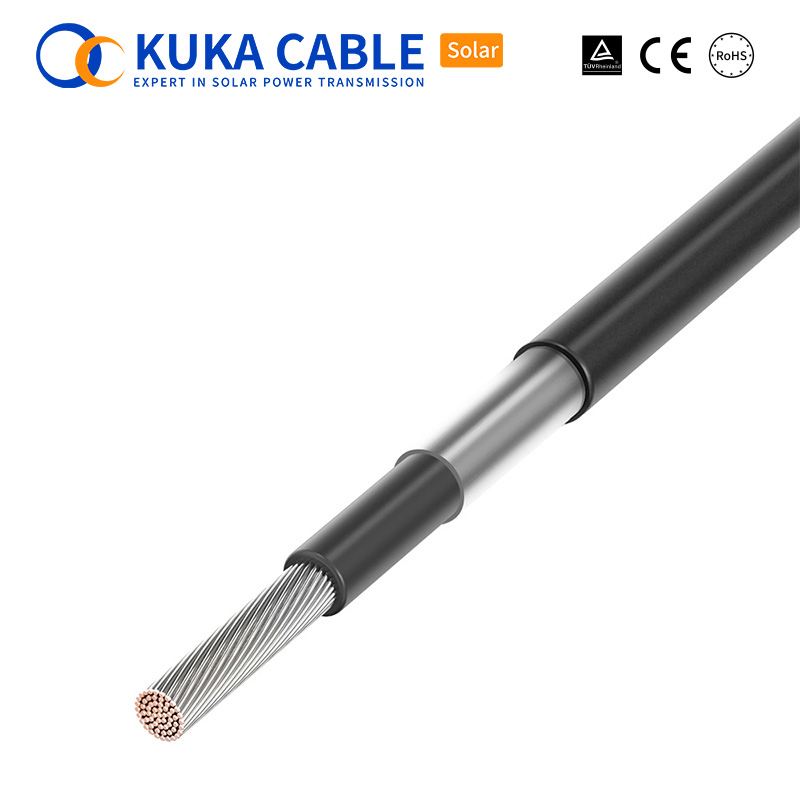

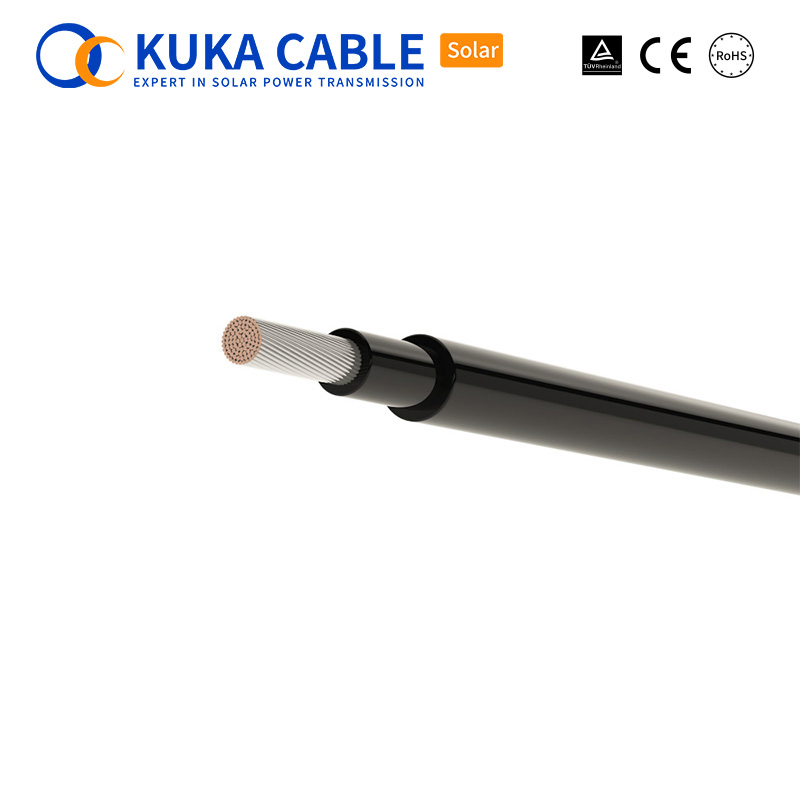

Solar cable is the specialized interconnection cable used in photovoltaic power generation. It serves as the vital link between solar panels and other electrical components of a photovoltaic system. Engineered for durability, these cables are UV and weather-resistant, capable of maintaining performance across a wide temperature range for outdoor installations.
| Cross section (mm2) | Conductor Construction | Outer (mm) | Resistance Max. | Current Carrying Capacity |
|---|---|---|---|---|
| 1*1.5 | 30/0.25 | 4.90 | 13.30 | 30 |
| 1*2.5 | 50/0.25 | 5.45 | 7.89 | 41 |
| 1*4 | 56/0.3 | 6.10 | 4.75 | 50 |
| 1*6 | 84/0.3 | 7.20 | 3.39 | 70 |
| 1*10 | 142/0.3 | 9.00 | 1.95 | 98 |
| 1*16 | 228/0.3 | 10.20 | 1.24 | 132 |
| Cross section (mm2) | Conductor Construction | Outer (mm) | Resistance Max. | Current Carrying Capacity |
|---|---|---|---|---|
| 2 x 1.5 | 30/0.25 | 8.3 ± 0.2 | 13.30 | 30 |
| 2 x 2.5 | 50/0.25 | 9.2 ± 0.2 | 7.98 | 41 |
| 2 x 4 | 56/0.3 | 12.0 ± 0.2 | 4.75 | 50 |
| 2 x 6 | 84/0.3 | 13.5 ± 0.2 | 3.39 | 70 |
| 2 x 10 | 142/0.3 | 17.6 ± 0.2 | 1.95 | 98 |
