| Model NO. | Solar Cable | Sheath Material | Crosslinking |
| Insulating Material | Xlpo | Conductor Type | Stranded |
| Certification | TUV | Wire Core Material | Tinned Wire |
| Fireproof Class | Flame Retardant, Fire Resistant, LSZH | Standard | 2 Pfg 1169, En 50618, Nb/T 42073 |
| DC Rated Voltage | 1.5kv | AC Rated Voltage | 0.6/1kv; 1.0/1.0kv |
| Color | Red/Black | Production Capacity | 20,000,000m/Year |

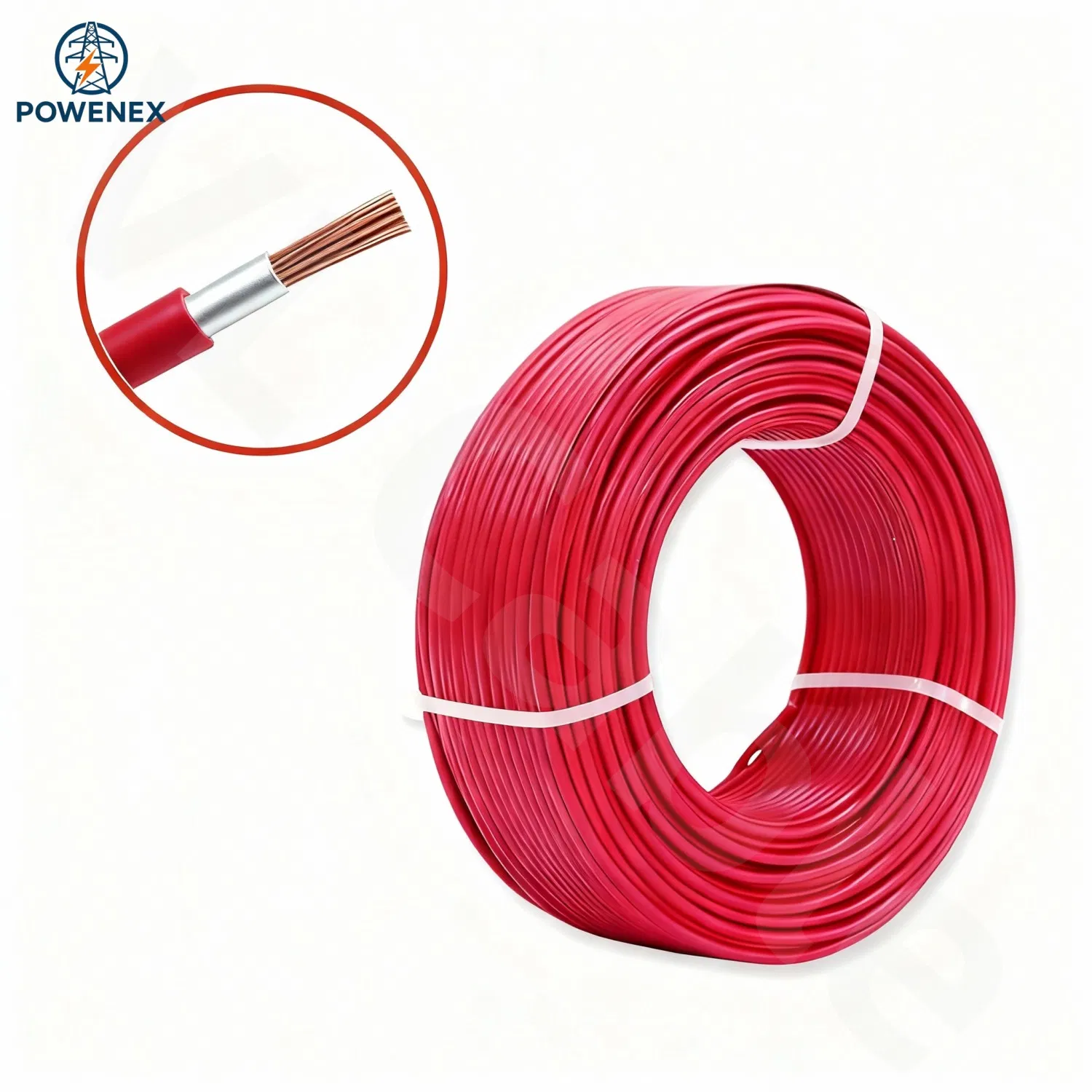

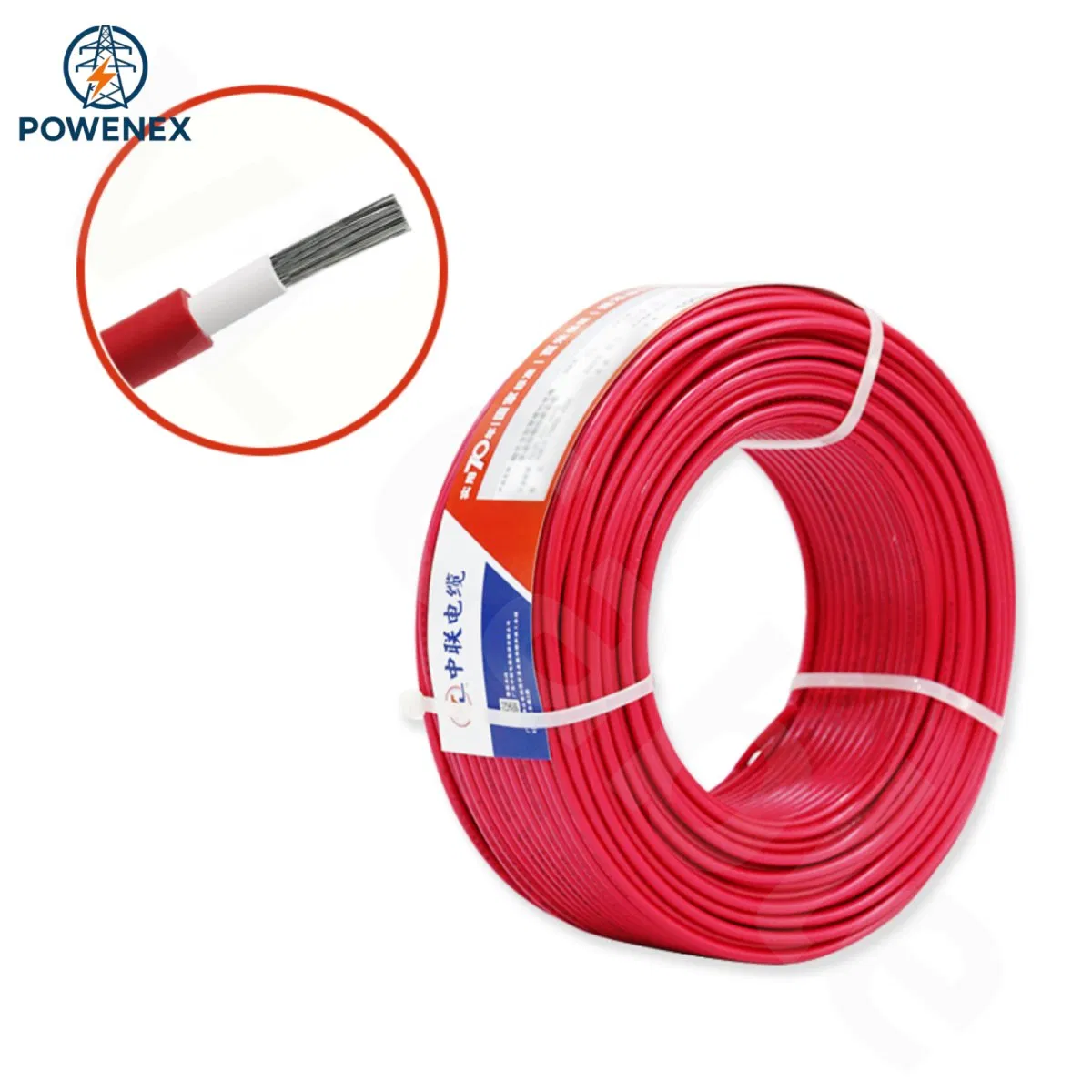

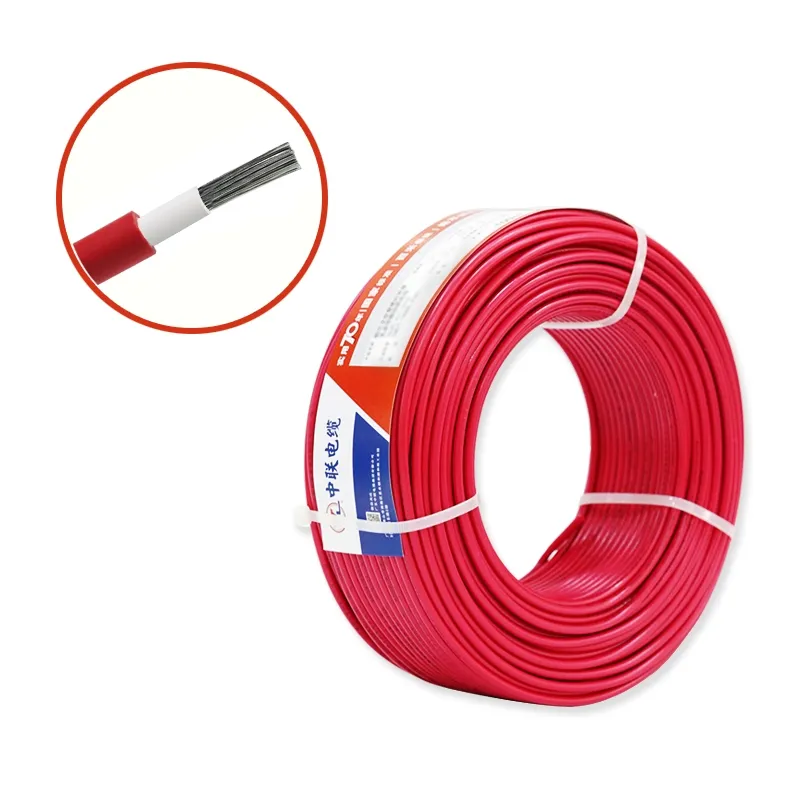

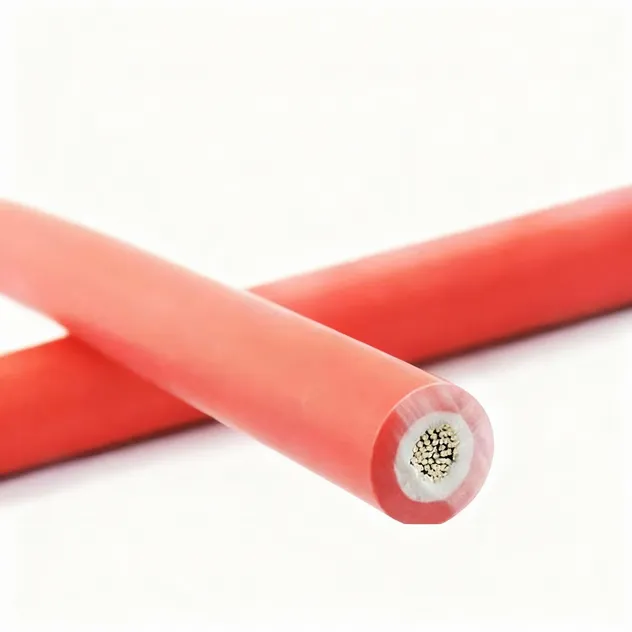

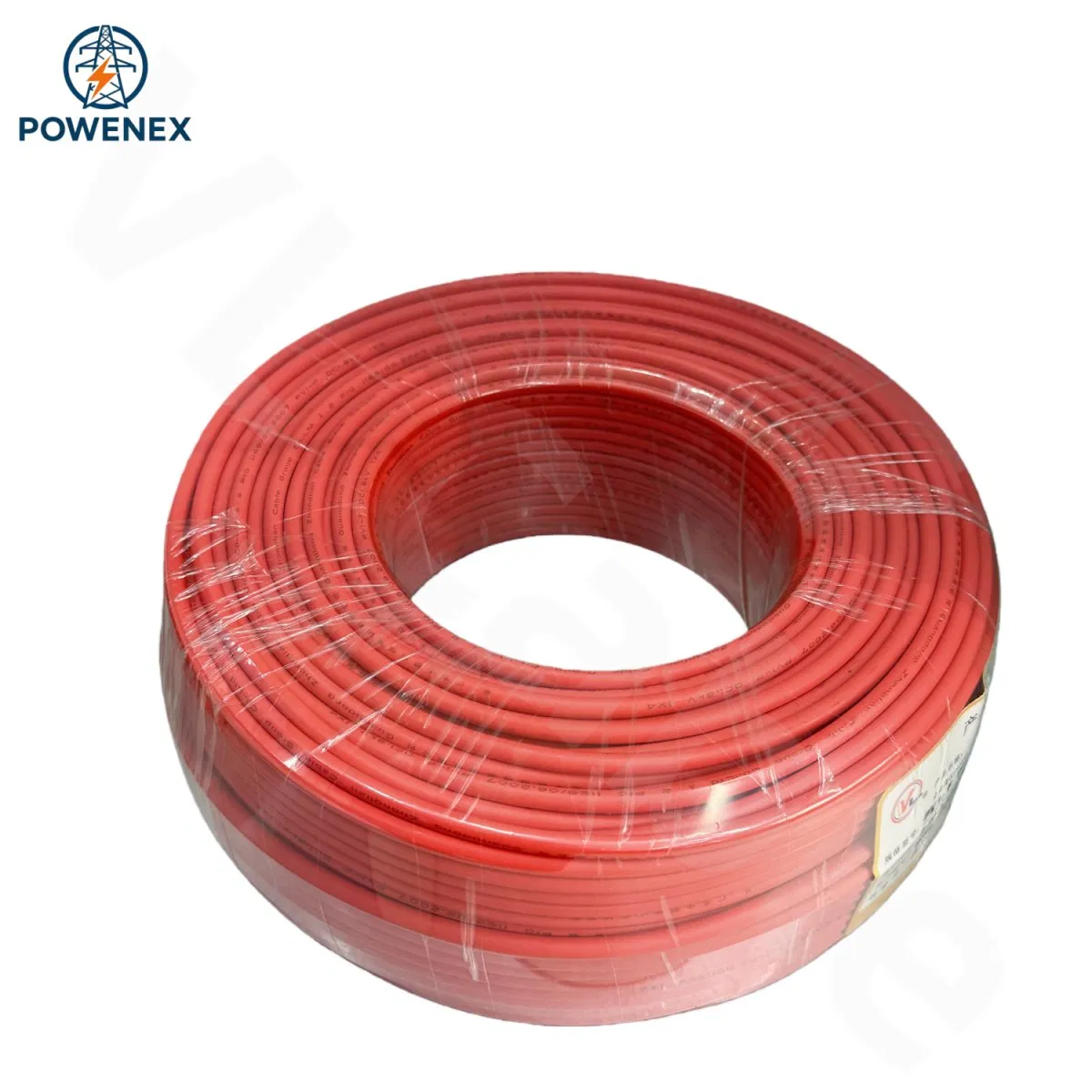

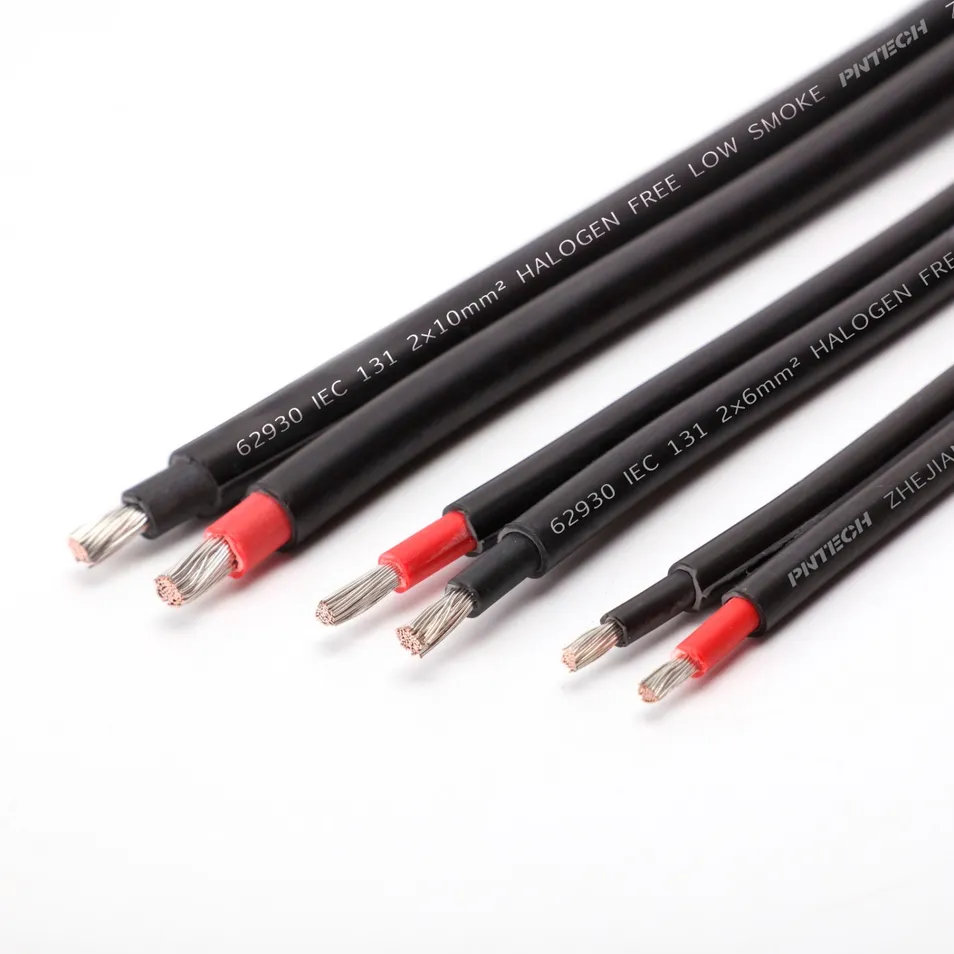

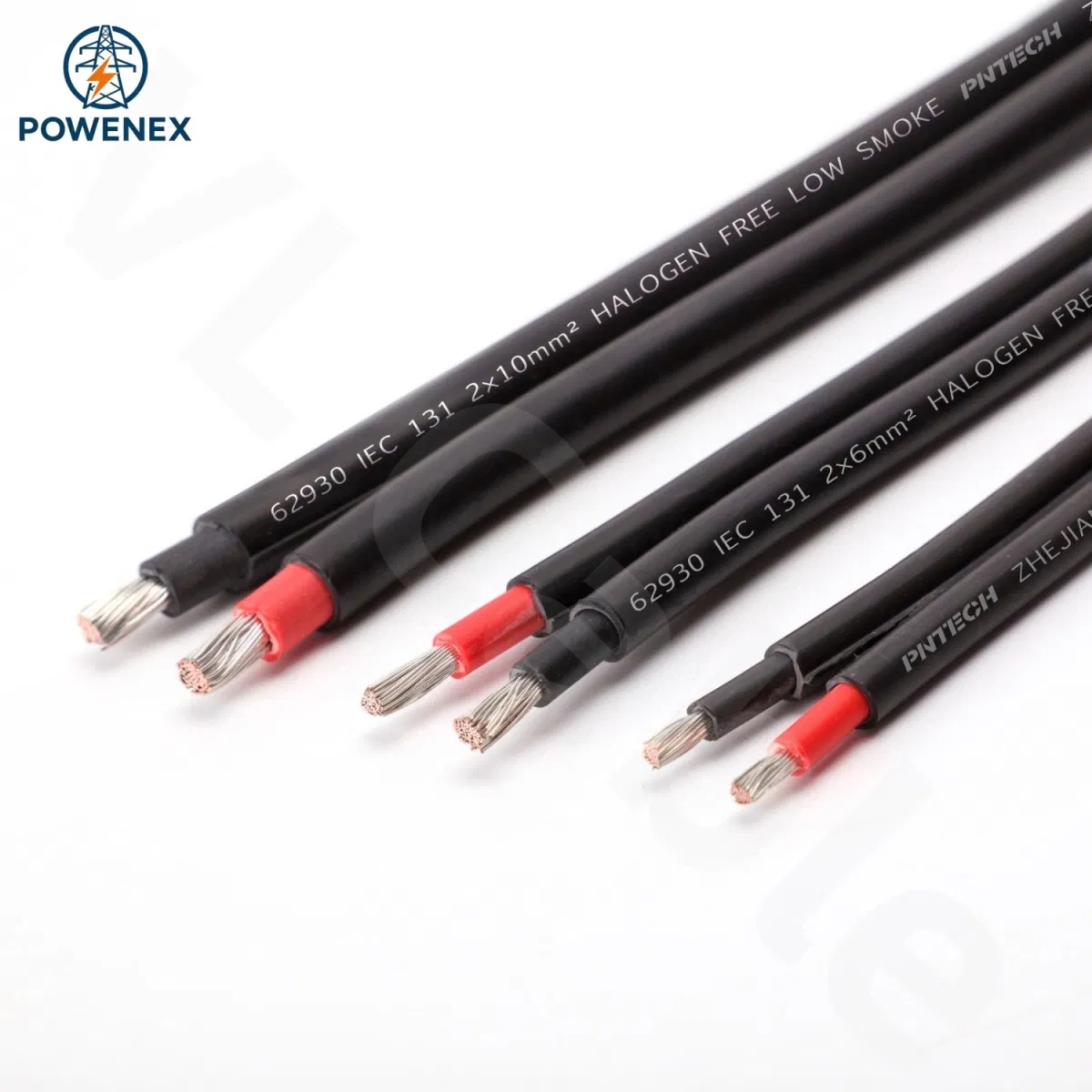

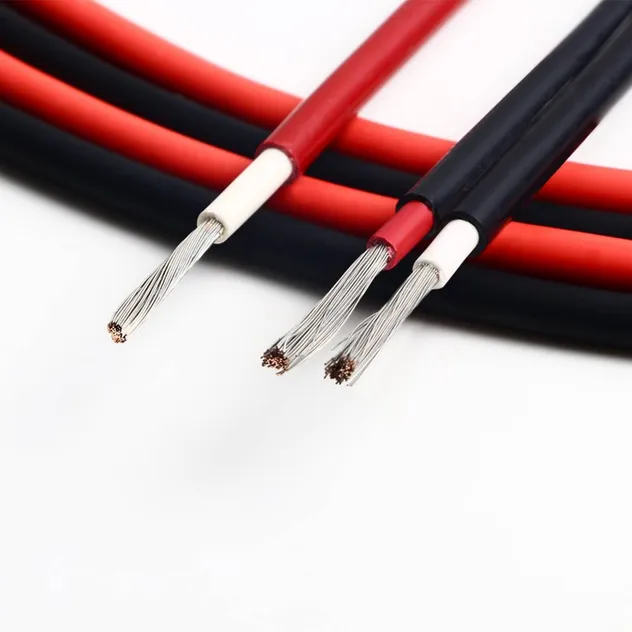

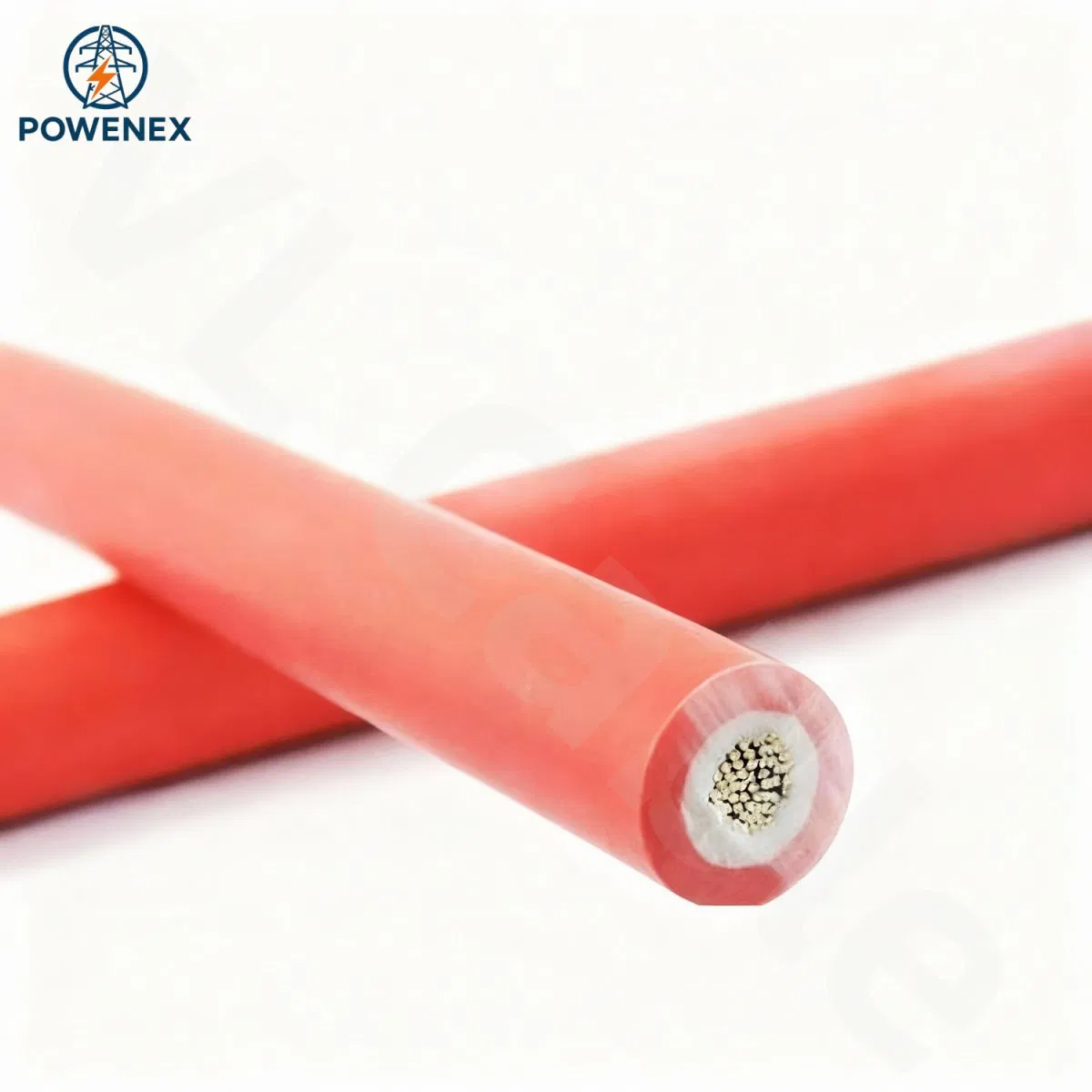

Our solar photovoltaic cables are specially designed for the DC side interconnection between photovoltaic modules and system components. Manufactured using high-conductivity tinned copper conductors and cross-linked polymer insulation/sheathed materials (XLPE/LSZH), these cables provide outstanding electrical, thermal, and environmental performance.
| Spec. (mm²) | Max. ø single wire | Max. DC resistivity (20°C) Ω/km | Insulation Thickness (mm) | Sheath Thickness (mm) | Outer ø (mm) | Weight (kg/km) |
|---|---|---|---|---|---|---|
| 1*1.5 | 0.26 | 13.700 | 0.7 | 0.8 | 4.6 | 36.7 |
| 1*2.5 | 0.26 | 8.210 | 0.7 | 0.8 | 5.0 | 49.2 |
| 1*4 | 0.31 | 5.090 | 0.7 | 0.8 | 5.5 | 66.5 |
| 1*6 | 0.31 | 3.390 | 0.7 | 0.8 | 6.2 | 90.4 |
| 1*10 | 0.41 | 1.950 | 0.7 | 0.8 | 7.2 | 136.8 |
| 1*16 | 0.41 | 1.240 | 0.7 | 0.9 | 8.5 | 202.8 |
| 1*25 | 0.41 | 0.795 | 0.9 | 1.0 | 10.4 | 308.1 |
| Spec. (mm²) | Core Number | Conductor ø (mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | Nominal Outer ø (mm) |
|---|---|---|---|---|---|
| 1*1.5 | 73 | 1.59 | 0.6 | 0.6 | 4.0 |
| 1*4 | 77 | 2.45 | 0.6 | 0.6 | 4.9 |
| 1*6 | 115 | 3.18 | 0.7 | 0.7 | 6.0 |
| 1*16 | 126 | 5.33 | 0.7 | 0.9 | 8.5 |
| 1*35 | 266 | 7.76 | 0.9 | 1.1 | 11.8 |

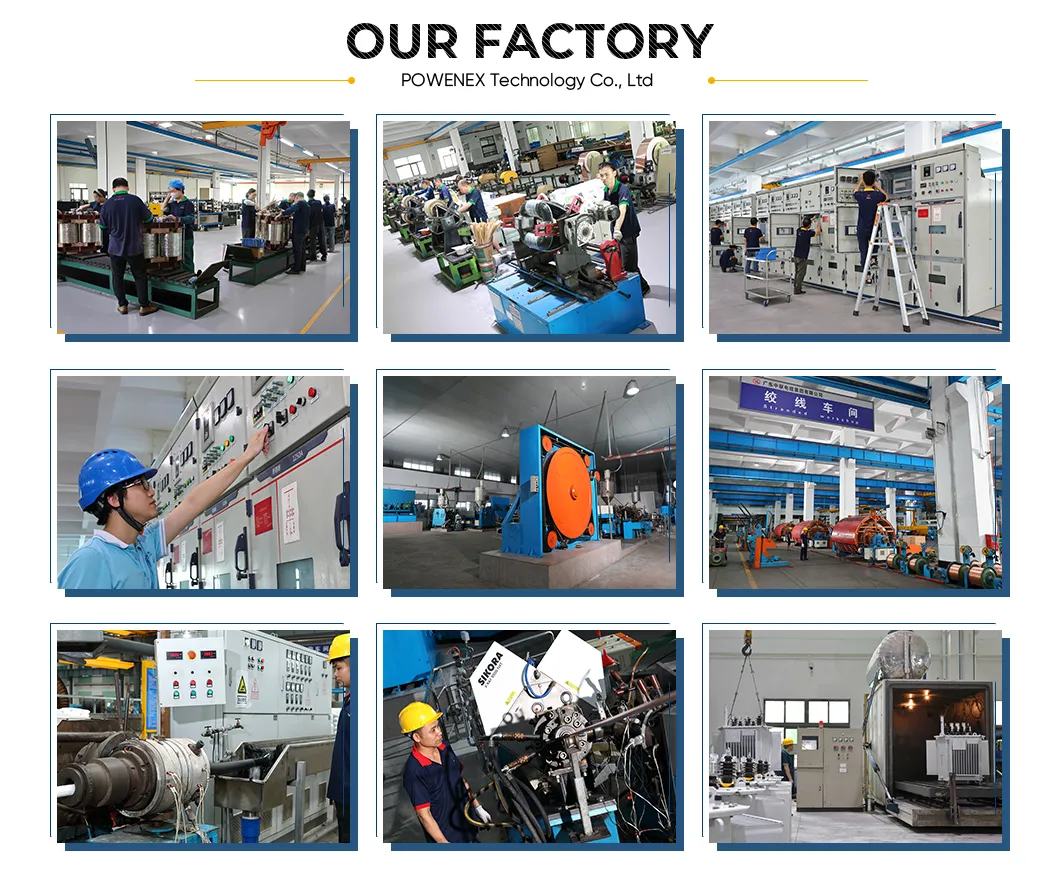

With more than 45 years of industry experience, our manufacturing group operates a complete industrial chain in the power transmission and distribution sector. All products are manufactured in accordance with international standards and certified by ISO and TÜV.
From raw materials to final inspection, every step is monitored to ensure stable quality, high reliability, and long service life. We are committed to providing global customers with high-quality electrical products and professional solutions.
