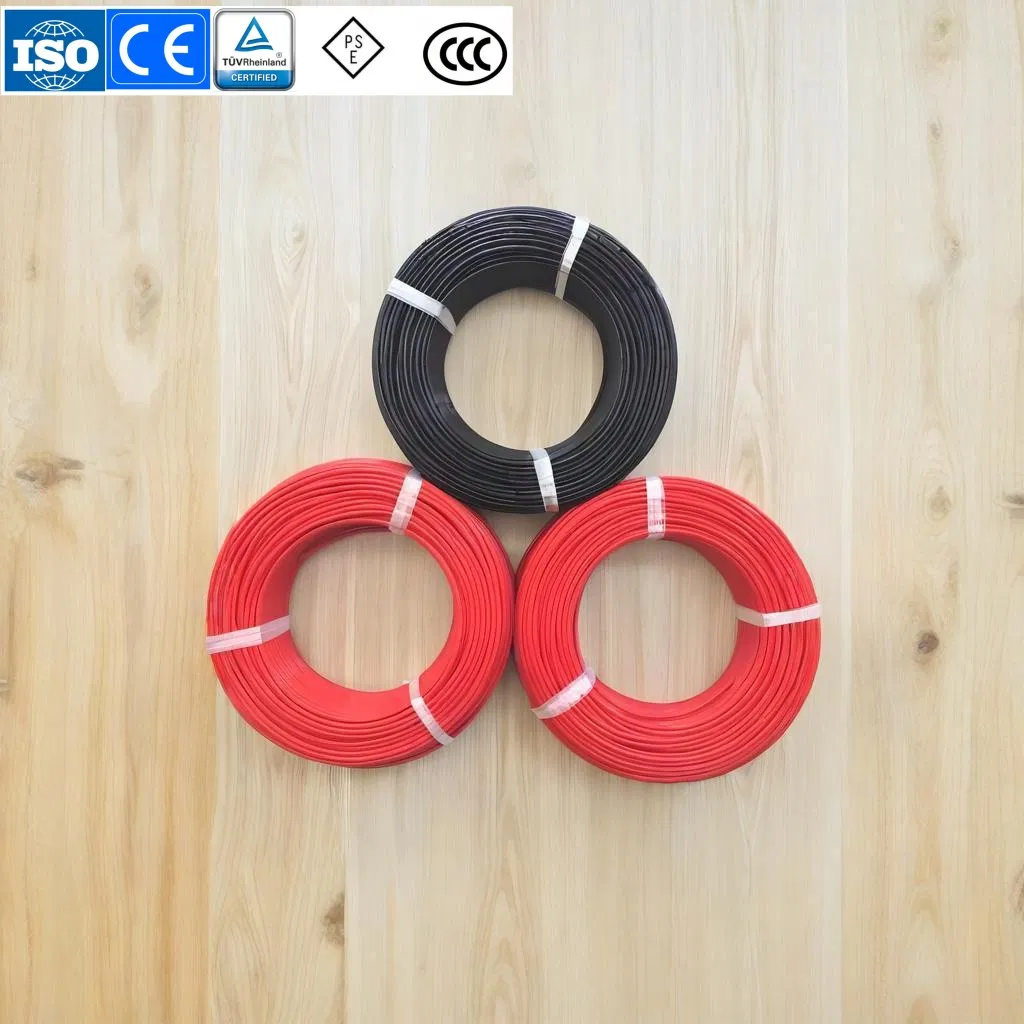

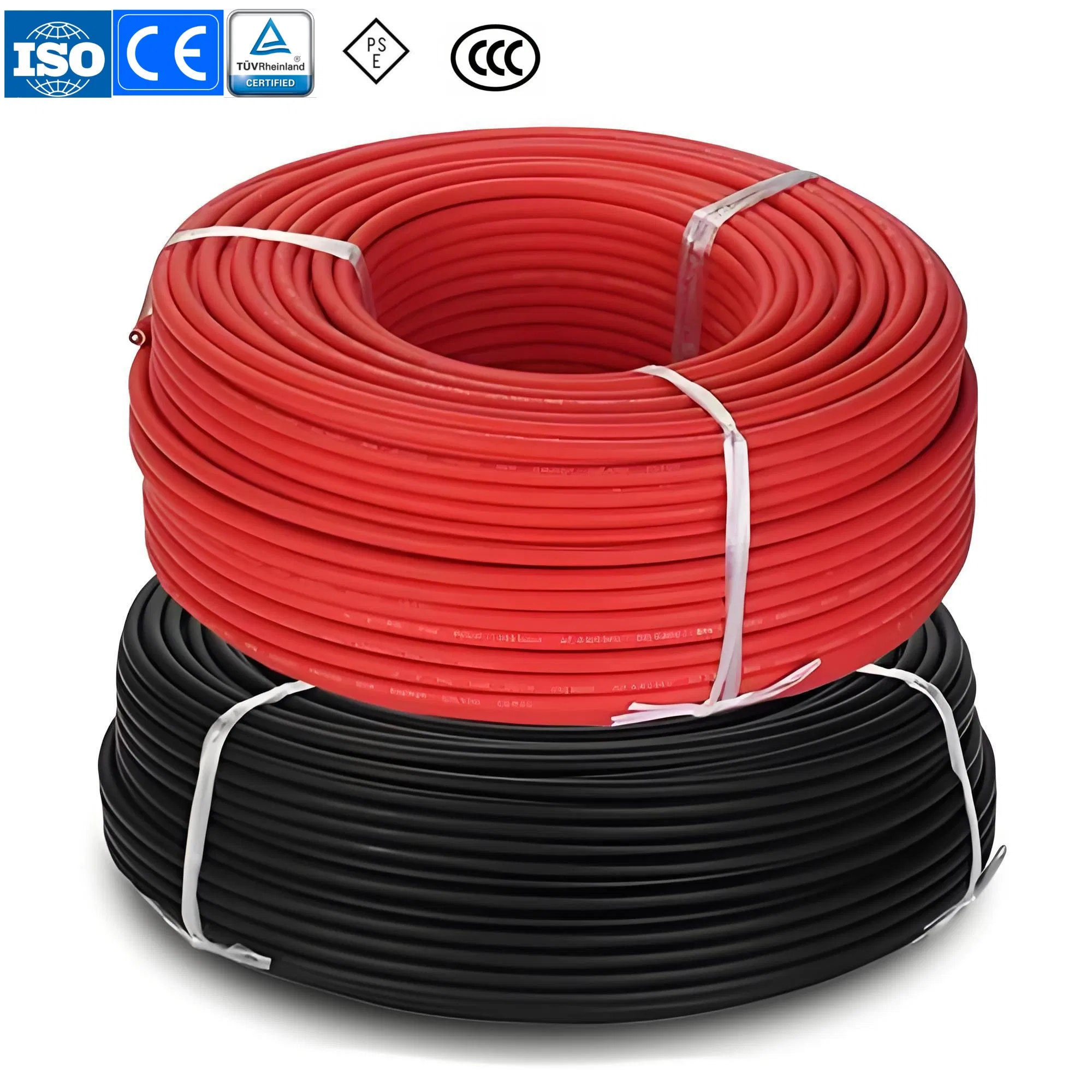

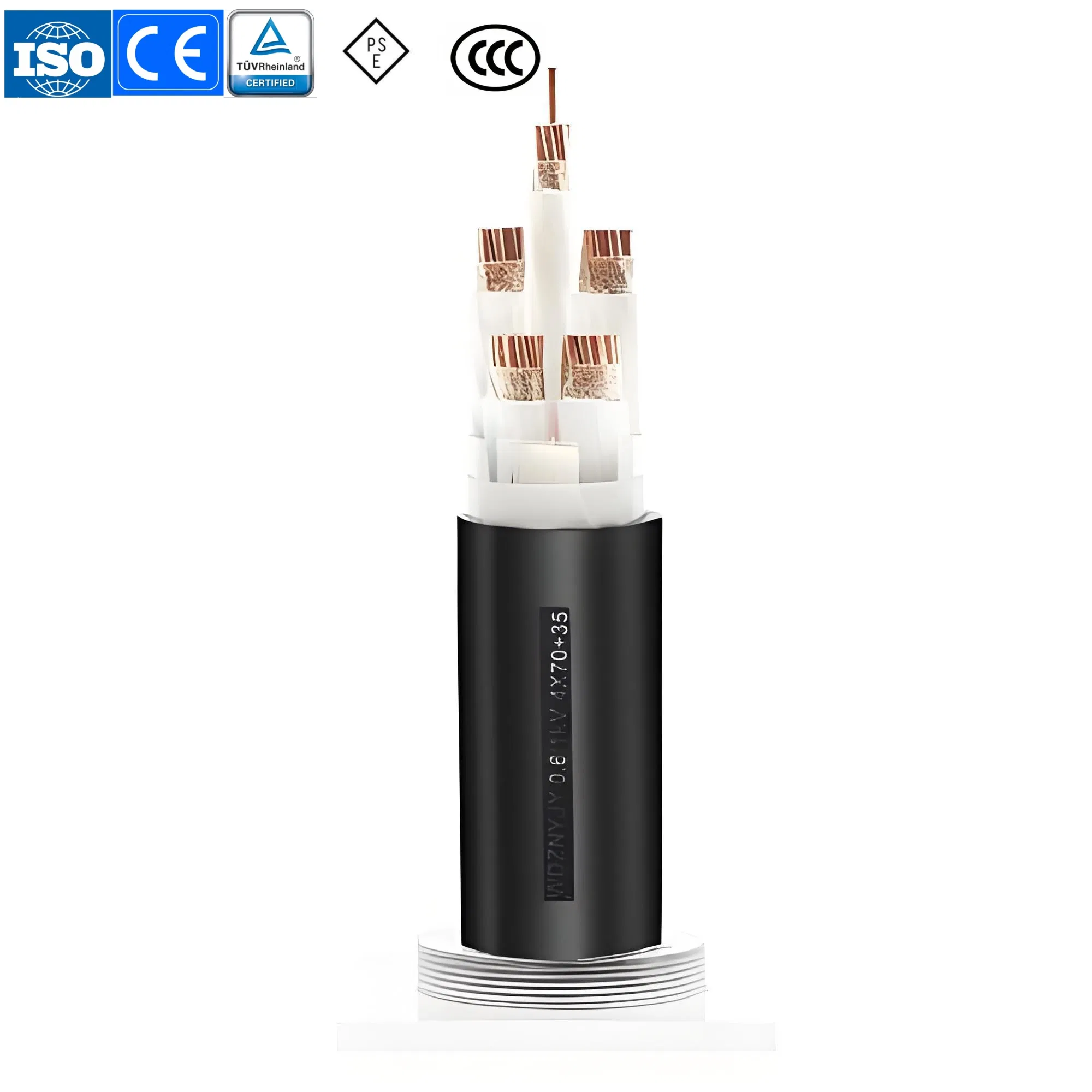

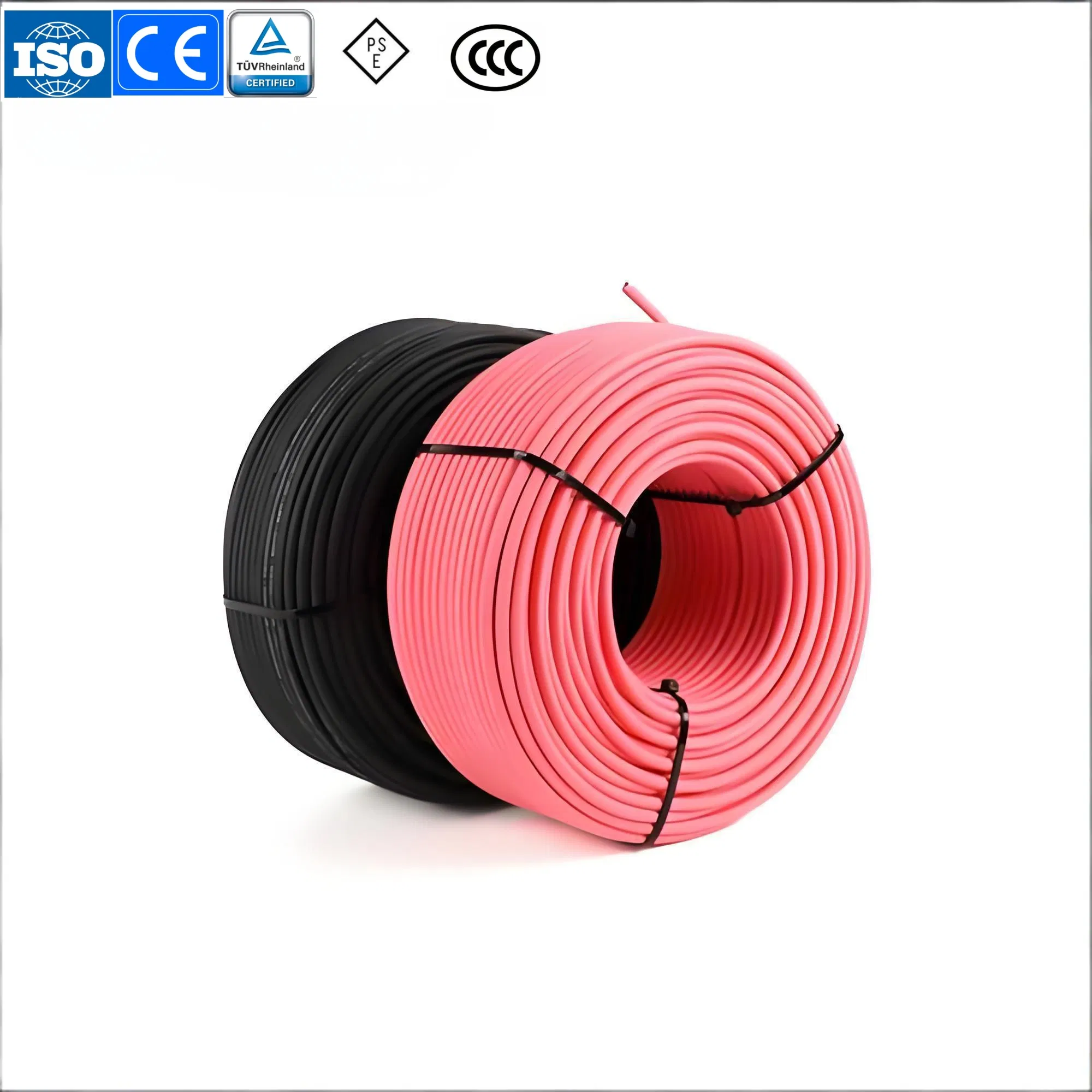

Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
1 / 5
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price
Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price

Insulated TUV Certified PV Solar Power Electrical Photovoltaic Cable with Factory Price

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
YJV
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
XLPE
Material Shape
Round Wire
Certification
ISO9001, CE, CCC, RoHS, VDE
Operating Temp.
Up to 70°C
Temperature Range
5°C to +50°C
Rated Voltage
450/750V AC or 600/1000V AC
Short-Circuit Max Temp
165°C (≤5s)
P

Product Description

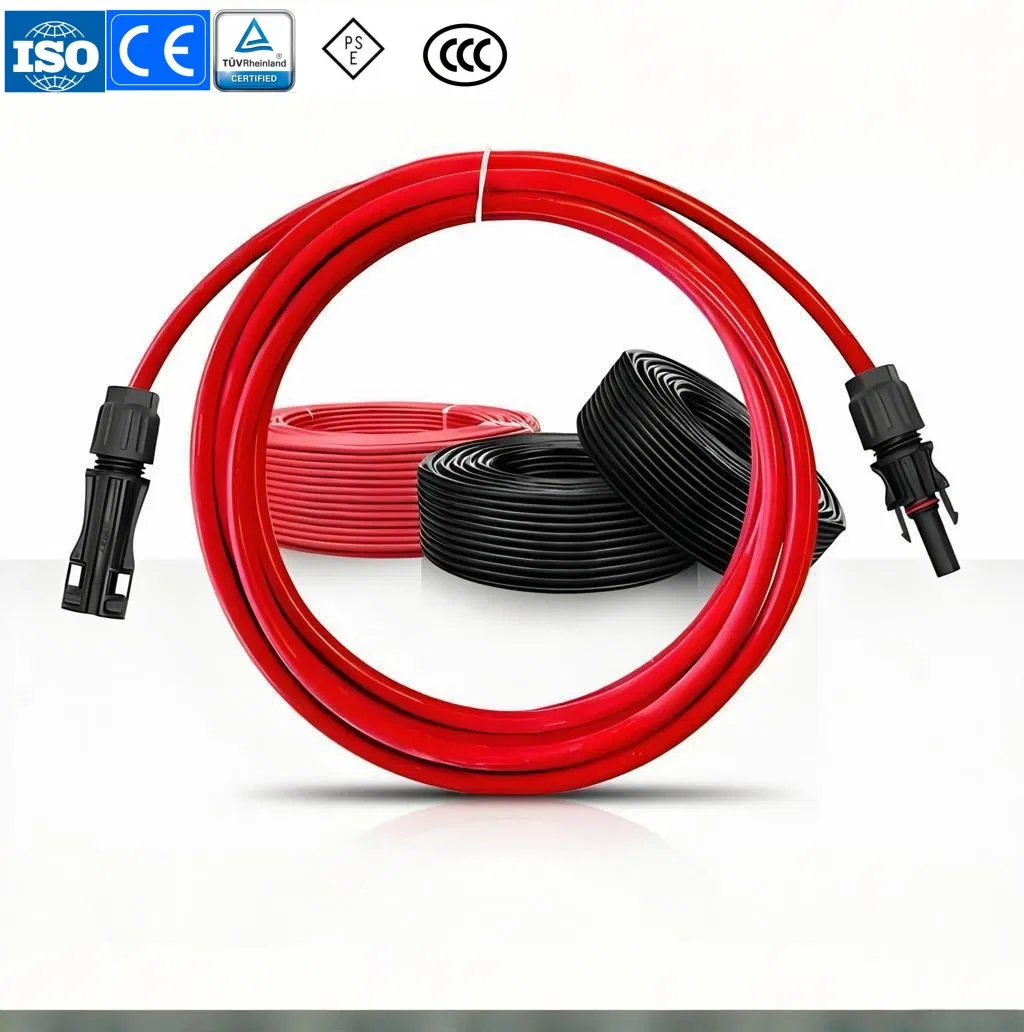

PV Solar Power Cable
PV Wire Application

Especially designed for the connection between solar power generation device connectors and inverters. Suitable for various outdoor climates and adaptable to both dry and wet indoor working environments.

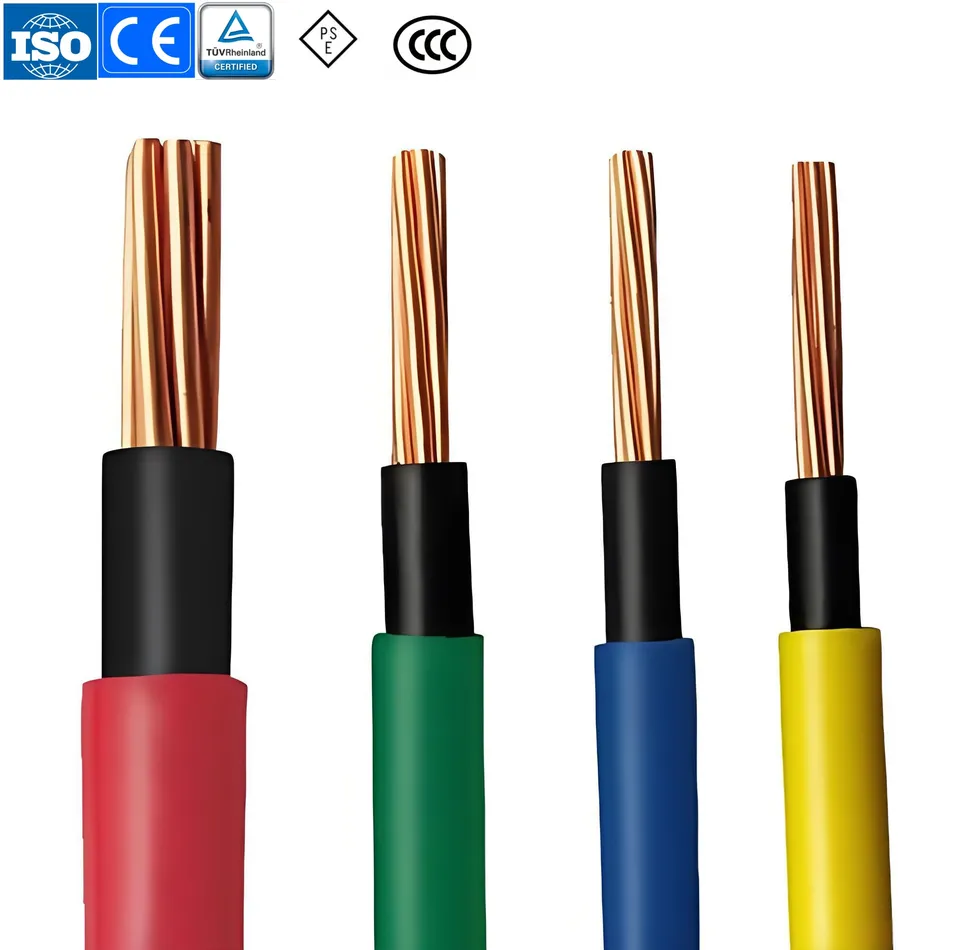

Cable Detail
Cable Structure
  • Conductor: Tinned Copper, according to VDE 0295/IEC 60228, Class 5
  • Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV2PfG/1169
  • Sheath: Polyolefin Copolymer electron-beam cross-linked TUV2PfG/1169
  • Color Options: Black, Red, Blue, Yellow/Green or customized demand
C

Key Characteristics

Heat Resistance
High heat-resistant flame retardant properties.
Halogen-Free
No hydrochloric acid (EN50627-2-1) or fluorine (EN60684-2).
Safety
Flame retardant and self-extinguishing (IEC60332-1-2).
Durability
Excellent climate resistance and flexibility.
T

Technical Specifications

Section Area (mm2) External Diameter (mm) Current Carrying Capacity (A)
6 7.2 70
G

Product Gallery

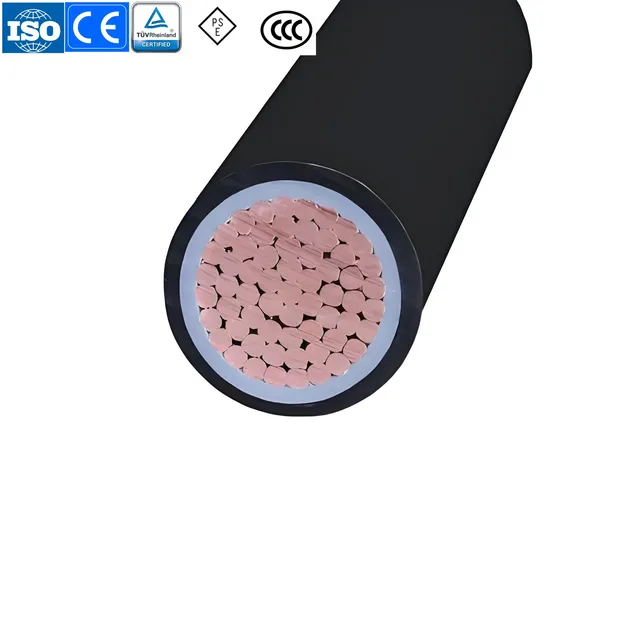

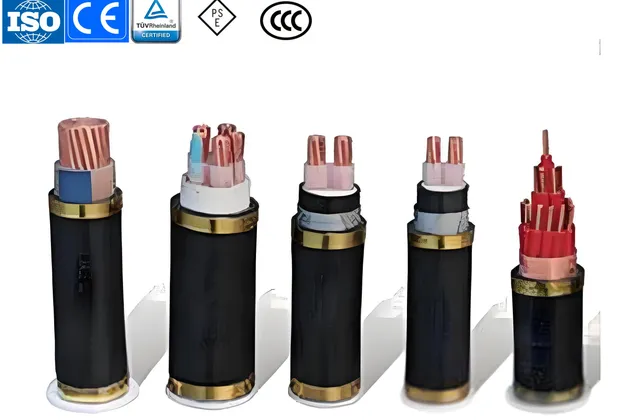

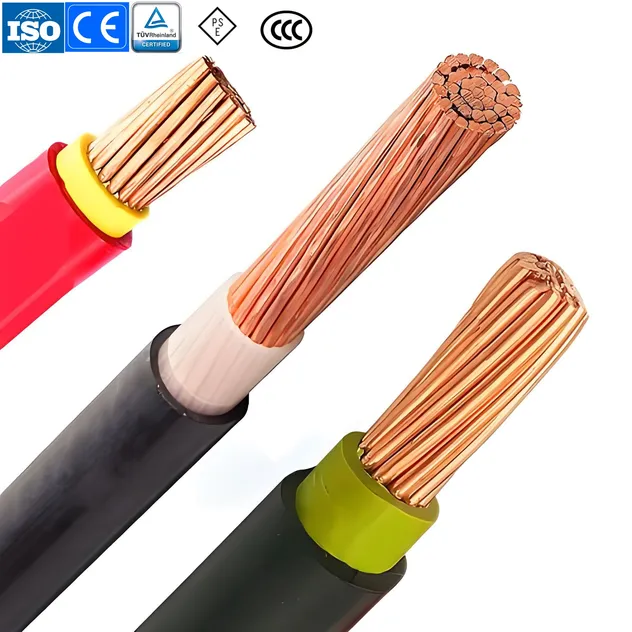

PV Cable 1 PV Cable 2 PV Cable 3

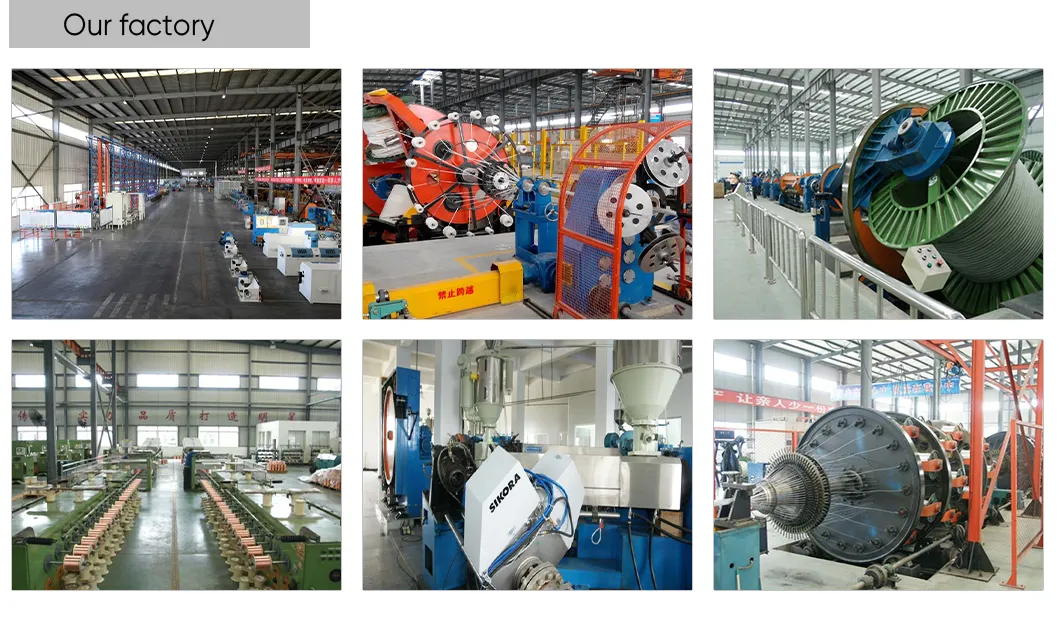

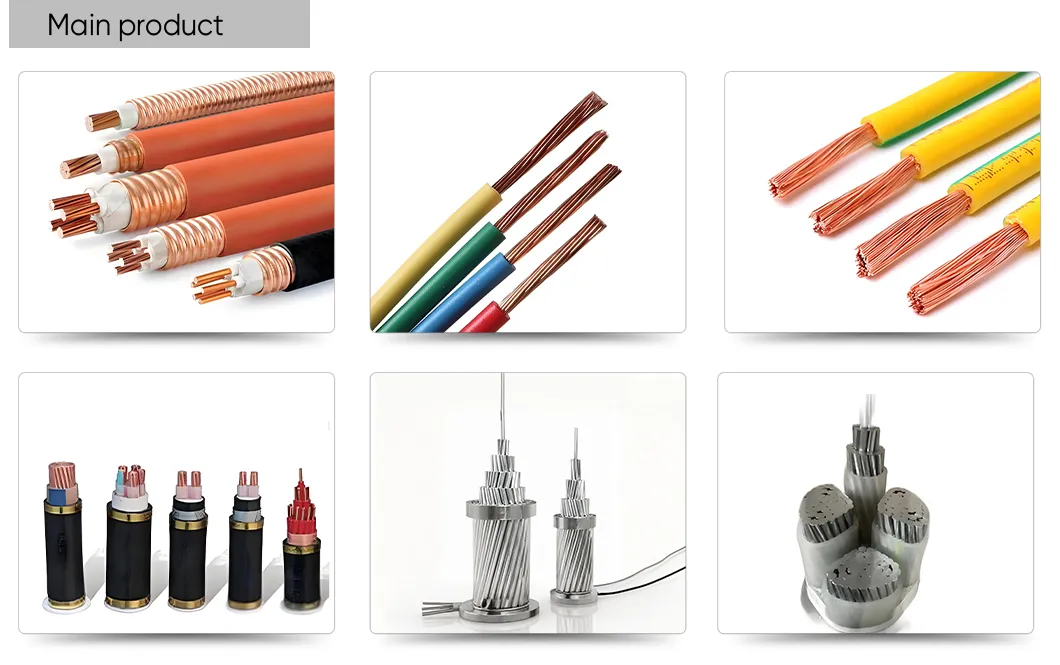

Production Process Quality Control
L

Packaging & Logistics

Package Size
100.00cm * 50.00cm * 100.00cm
Package Gross Weight
500.000kg
Transport Package
Wooden Drums / Steel Wooden Drums

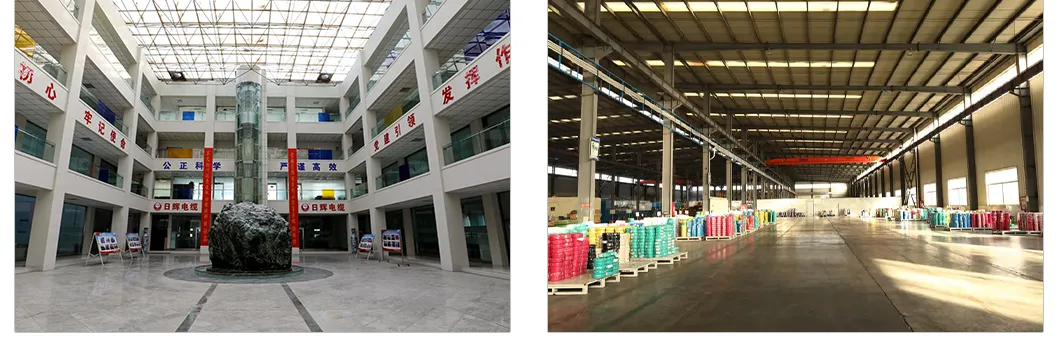

Packaging 1 Packaging 2

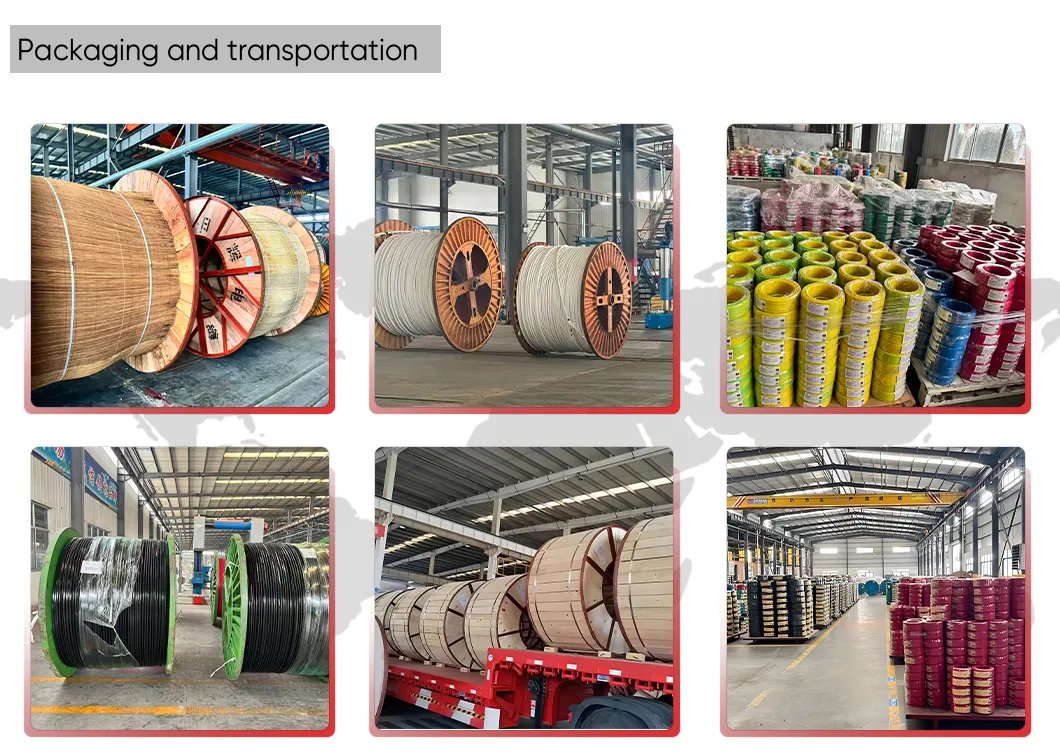

Shipping 1 Shipping 2
?

Frequently Asked Questions

What are your standard payment terms?
Our payment term is usually T/T 30% in advance, the balance before picking up the goods, or L/C at sight.
What is the typical lead time for an order?
The lead time usually ranges between 10 to 30 working days depending on the specification and quantity.
How are the cables packaged for transport?
Cables are typically packed in wooden drums, steel-wooden drums, or coils, based on the product type and customer requirements.
Can you provide free samples for quality checking?
Yes, we provide free samples for customers to check the quality before placing a formal order.
What certifications do your photovoltaic cables hold?
Our cables are fully certified with ISO9001, CE, CCC, RoHS, and VDE to ensure international quality standards.
What is the maximum operating temperature for these PV wires?
The long-term operating temperature is up to 70°C, with a short-circuit maximum temperature of 165°C for up to 5 seconds.
