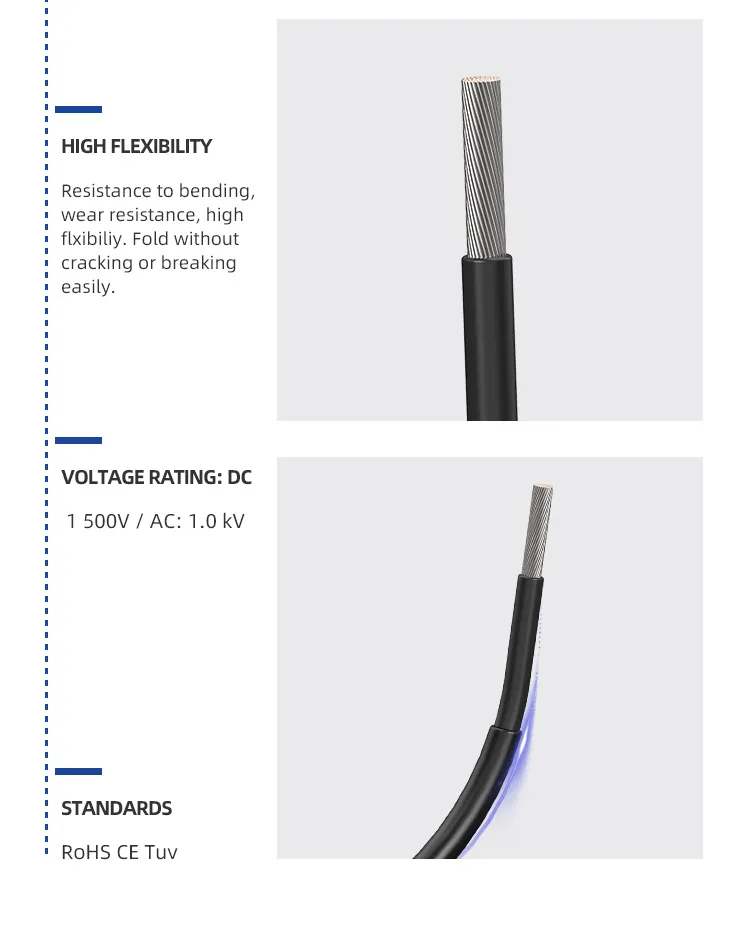

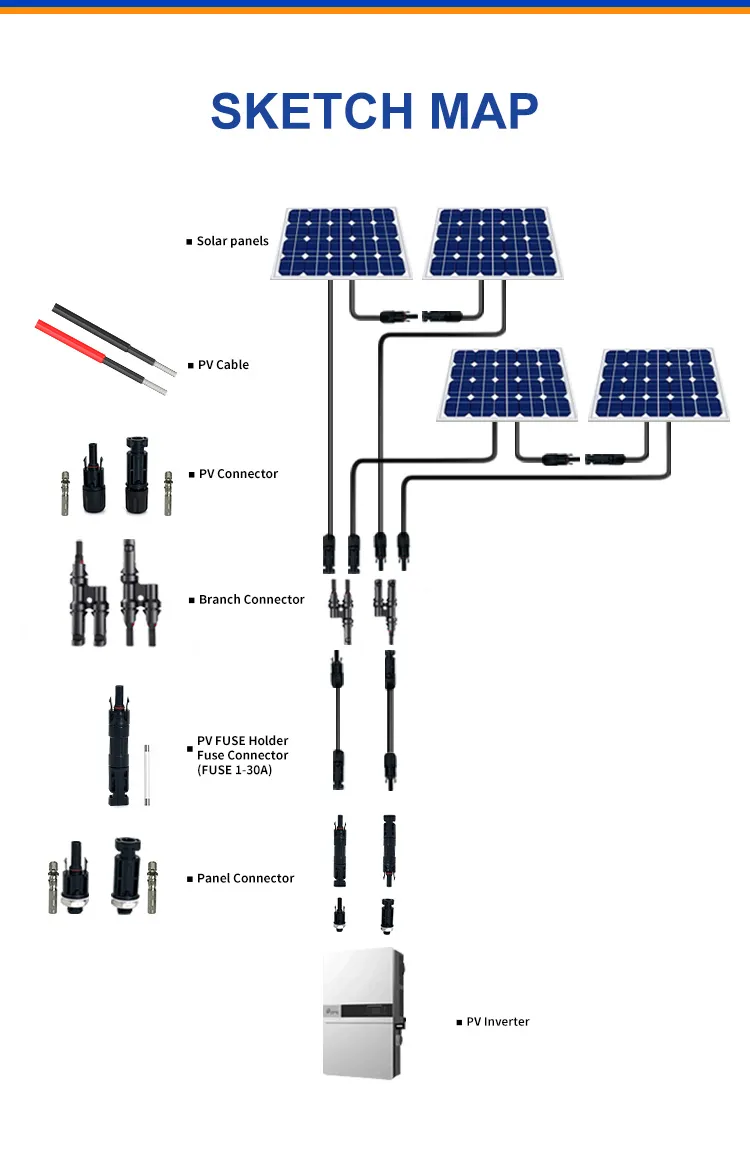

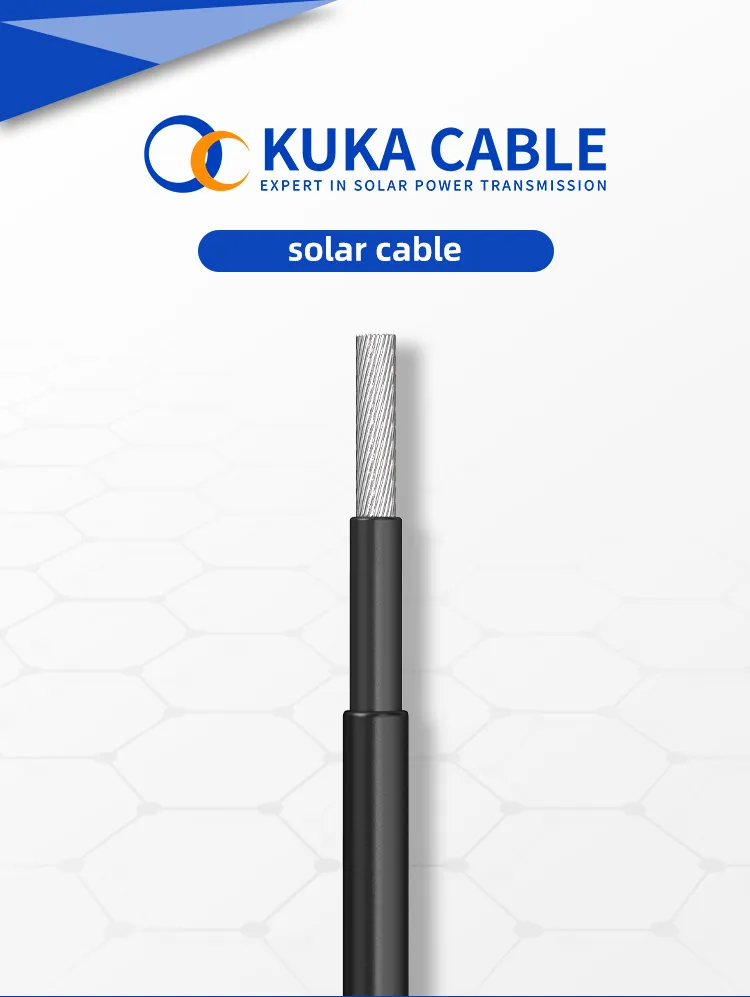

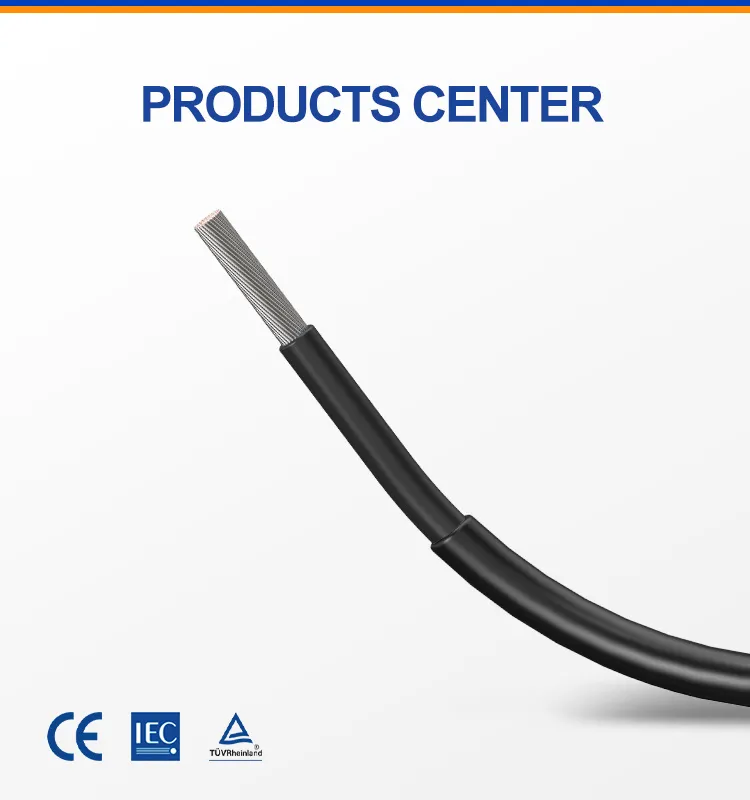

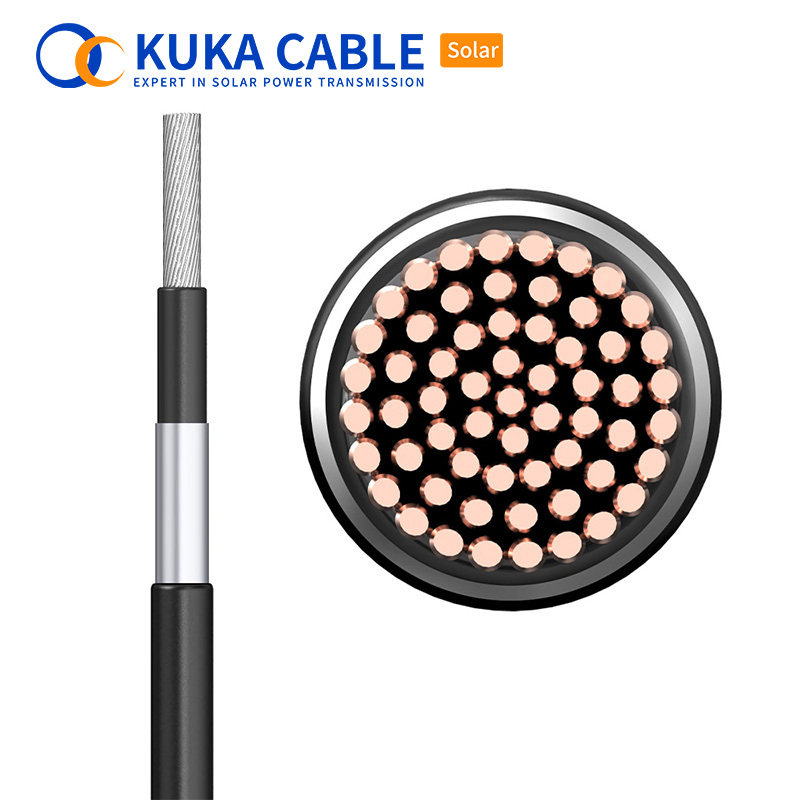

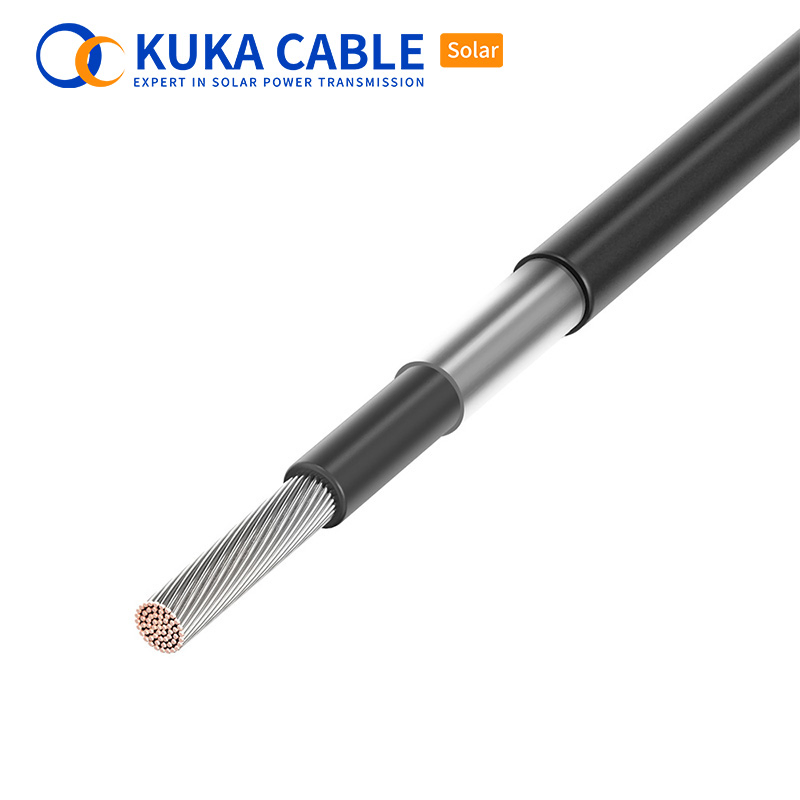

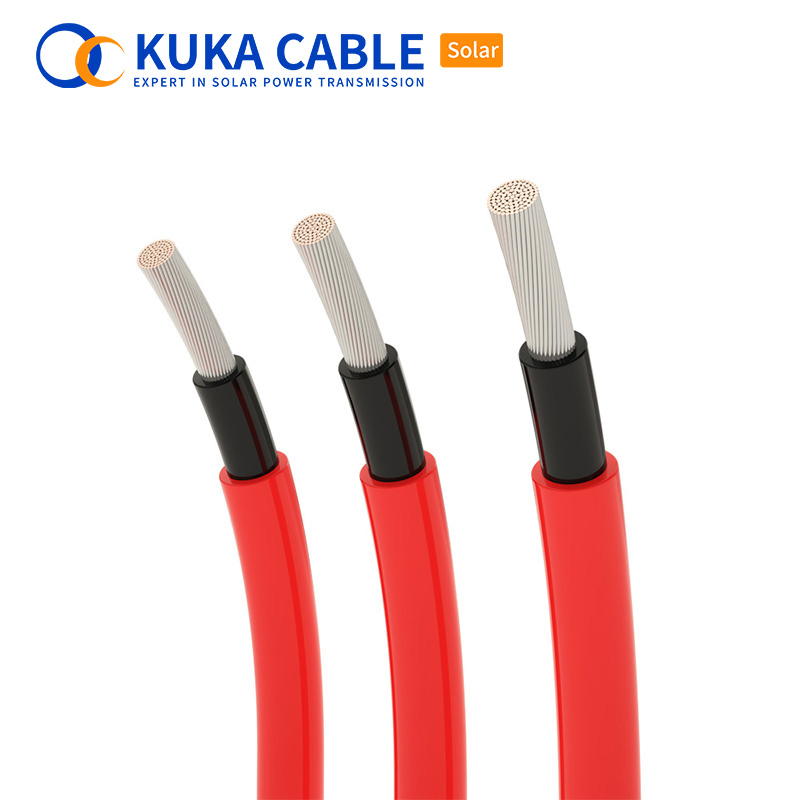

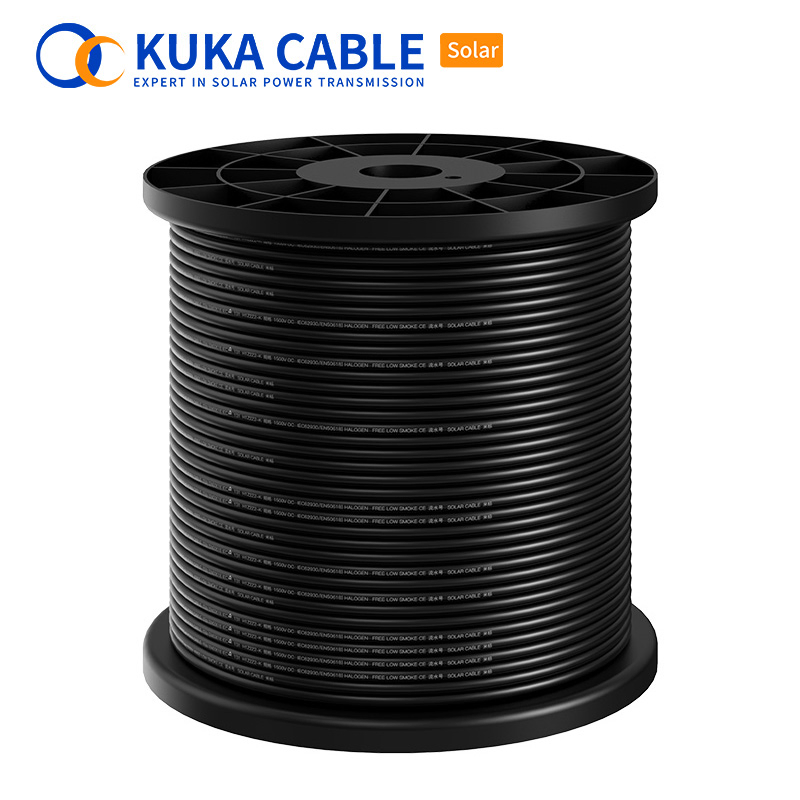

Solar Cables are high-quality electrical cables specifically designed for use in solar power systems. They are made of materials that can withstand extreme temperatures, UV radiation, and moisture. Solar Cables ensure safe and efficient transmission of electricity throughout the system, and come in various sizes and lengths to accommodate different system configurations.

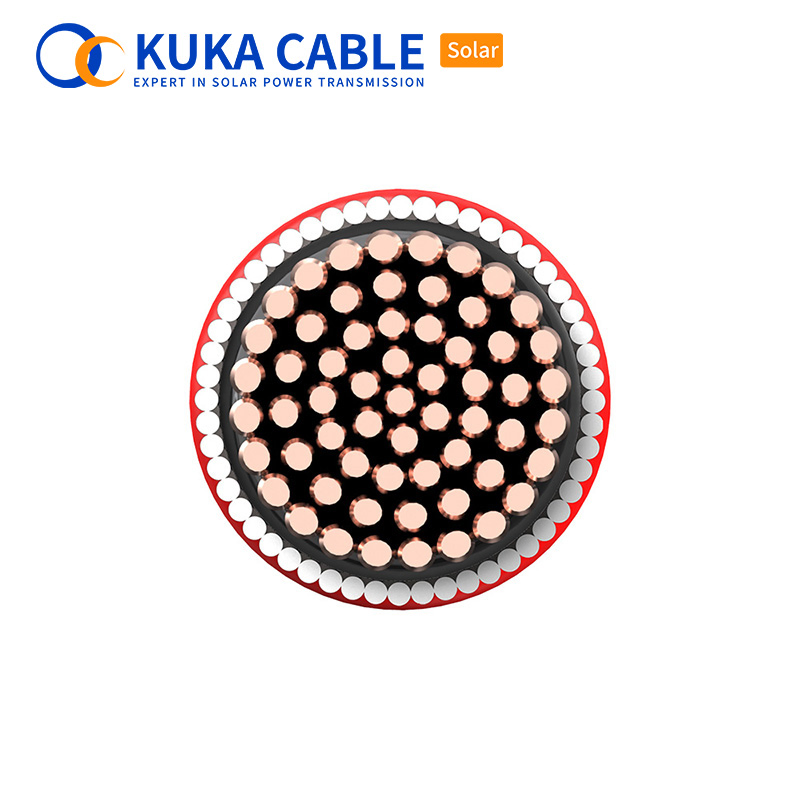

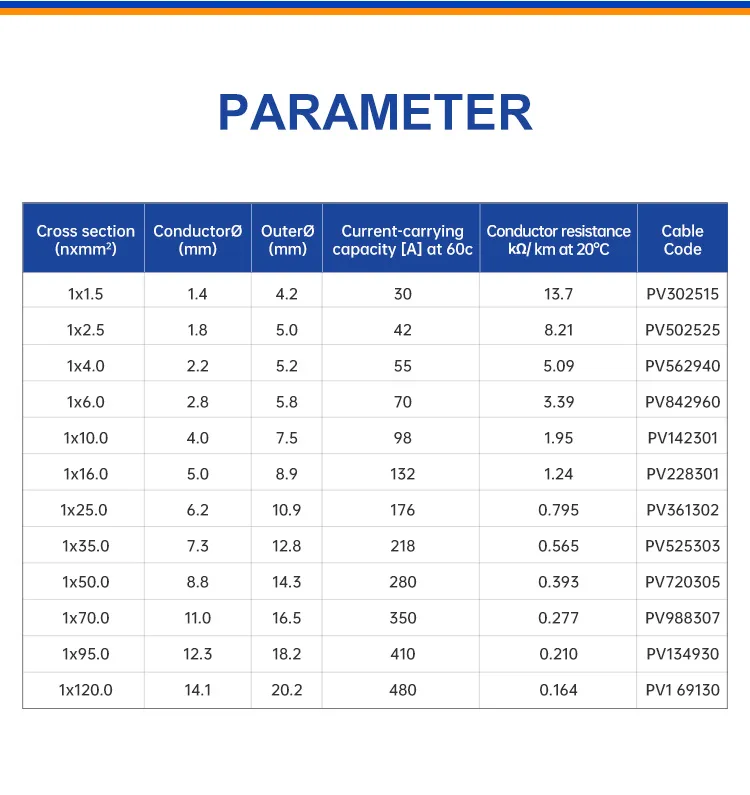

Certified to meet international safety standards such as TUV and UL, these cables ensure reliability and quality. They have a long service life, often lasting up to 25 years or more, and are designed to minimize power losses, maximizing overall system efficiency. Commonly used specifications include 4mm², 6mm², and 10mm² wire sizes.
| MECHANICAL FEATURE | |
|---|---|
| Minimum Bending Radius | Fixed: 4xOD; Flexing: 5xOD |
| Temperature Range | -40ºC to +90ºC (Max. conductor +120ºC) |
| Weather/UV Resistance | EN 50289-4-17 |
| Ozone Resistance | EN 50396:2005 |
| Halogen Free | EN 50525-1 |
| Flame-Resistance Test | EN 60332-1-2 |
| Water Resistance | EN 50525-2-21 |
| Anticipated Service Life | 30 years |
| Tensile Strength Before Aging | ≥8N/mm² |
| Elongation Strength Before Aging | ≥125% |
