📋 Basic Specifications
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP67 Waterproof
Solar Cell
Mono 125X125mm Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
Frame Color
Silvery or Black
🌟 Product Overview

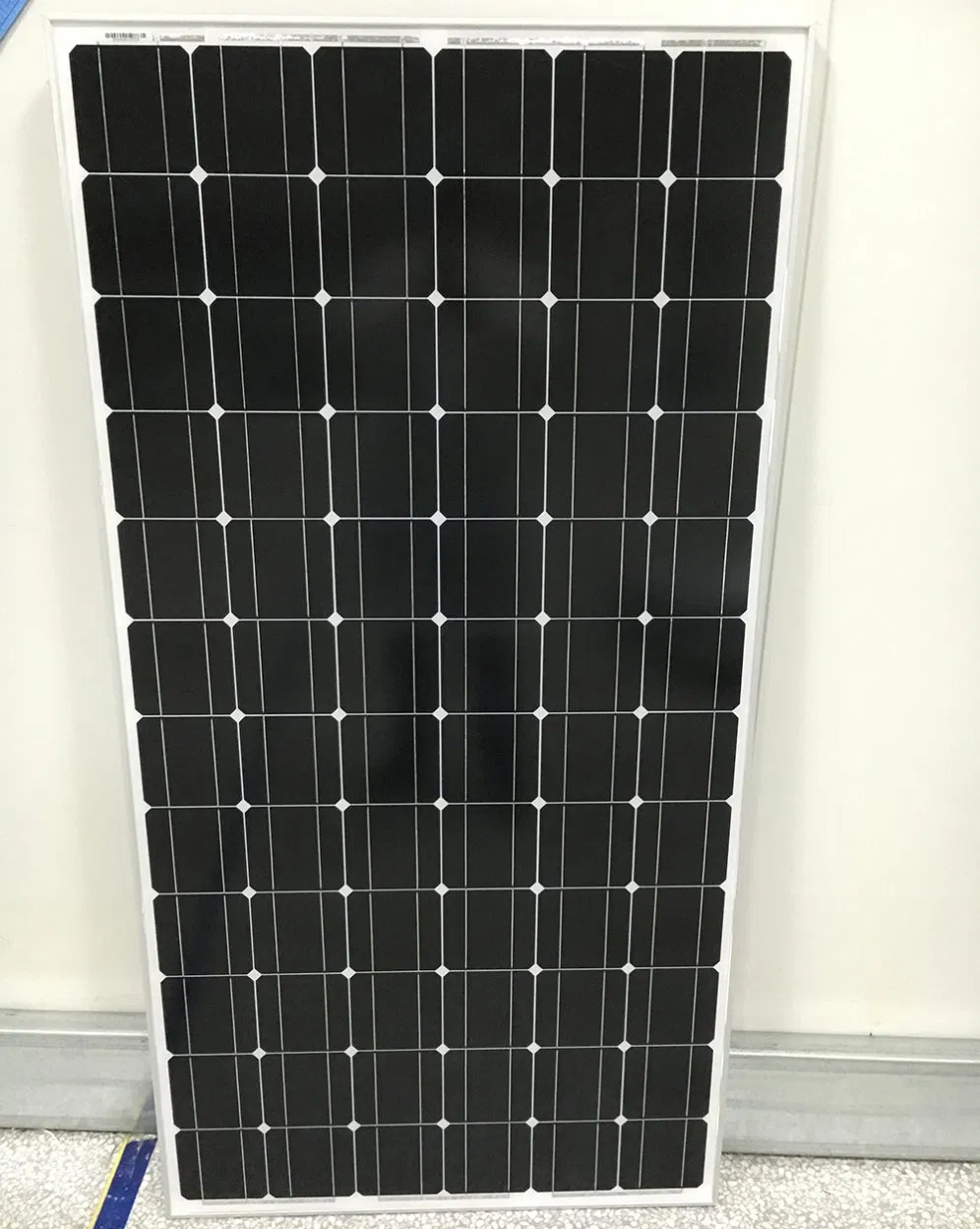

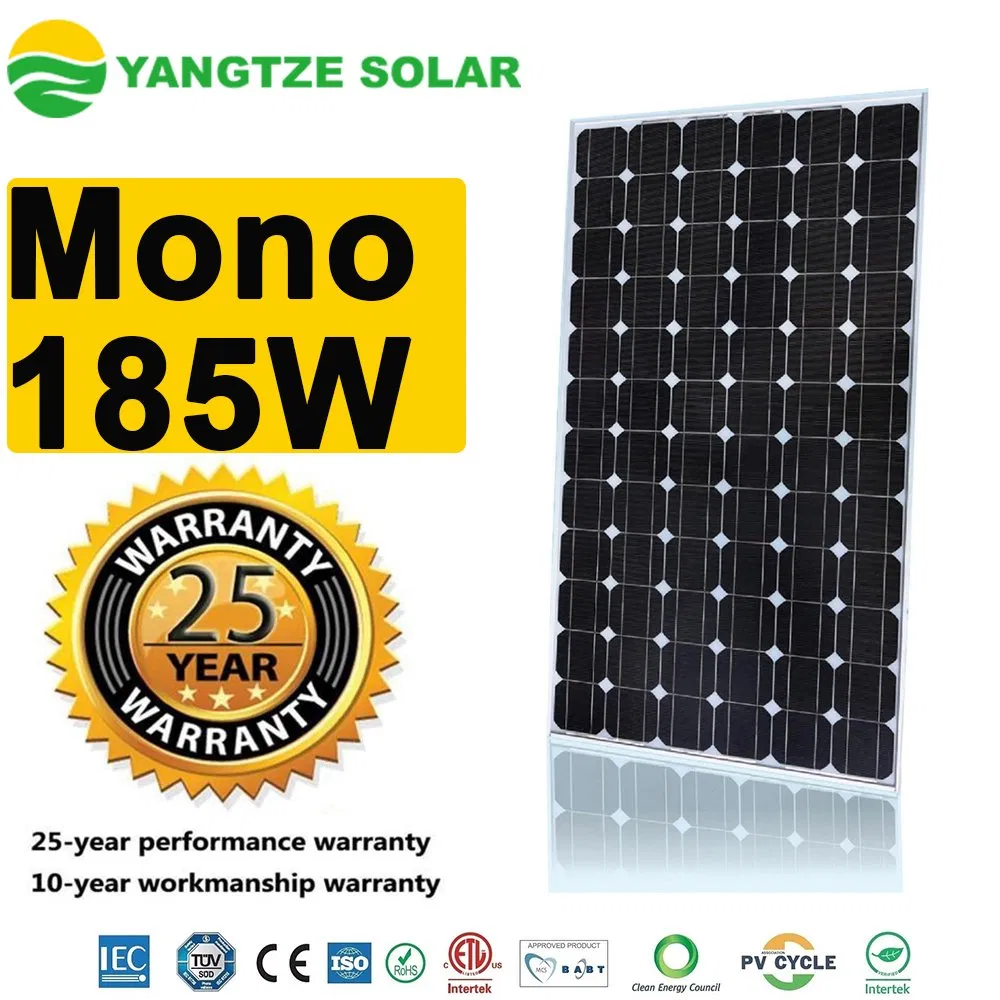

Top Quality 180W - 185W Monocrystalline Solar Panel
| Rated Max Power (STC) |
185W | 190W | 195W | 200W | 205W | 210W | 215W |
| Max Power Voltage (Vmp) |
36.1V | 36.5V | 36.8V | 37.1V | 37.4V | 37.6V | 37.8V |
| Max Power Current (Imp) |
5.12A | 5.21A | 5.29A | 5.39A | 5.48A | 5.58A | 5.68A |
| Open Circuit Voltage (Voc) |
45.2V | 45.4V | 45.6V | 45.8V | 36.1V | 46.3V | 46.5V |
| Short Circuit Current (Isc) |
5.45A | 5.53A | 5.62A | 5.71A | 5.79A | 5.88A | 5.96A |
| Module Efficiency |
14.49% | 14.88% | 15.27% | 15.67% | 16.06% | 16.45% | 16.84% |

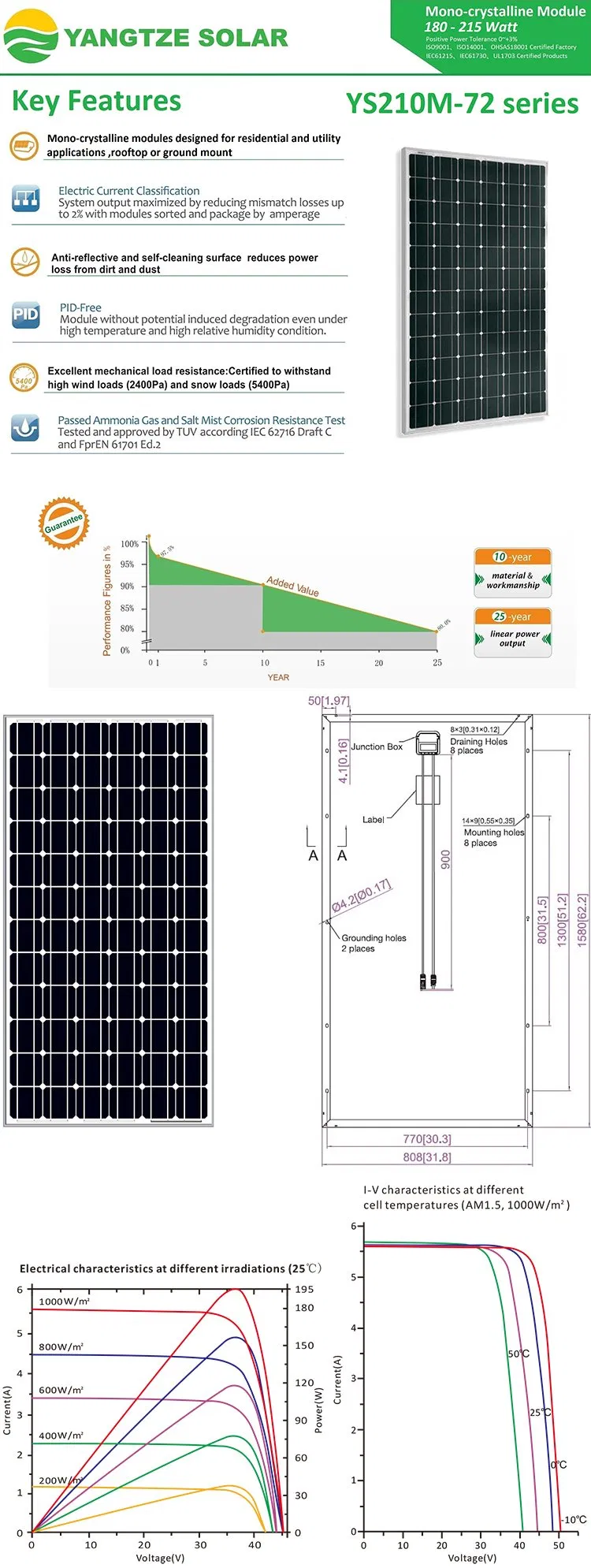

⚙️ Mechanical Parameters
Cell Type
Mono-crystalline 125x125mm (5inch)
Dimension
1580x808x35/40mm
Glass
3.2mm, High Transmission, Low Iron, Tempered Glass
Junction Box
IP65 & IP67 Rated
Output Cable
4mm², Length: 900mm
✅ Key Features & Quality
- Linear Power Warranty: 10 years workmanship warranty; 10 years for 90% and 25 years for 80% linear power output.

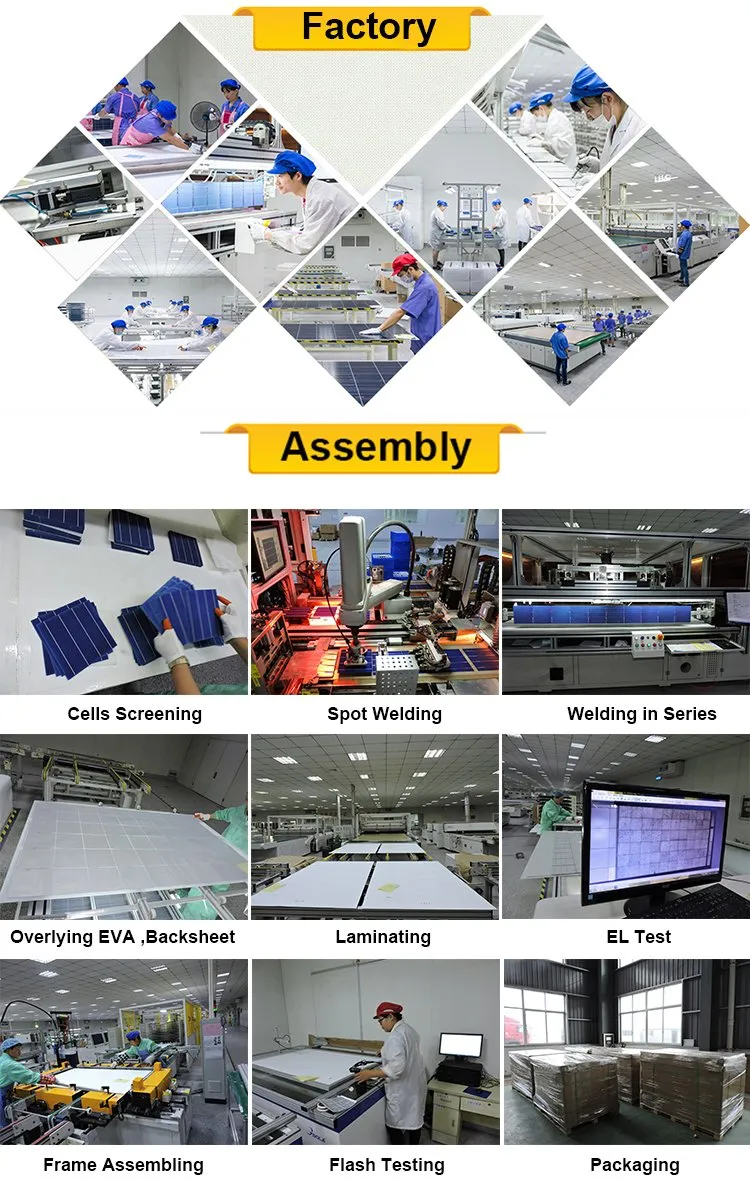

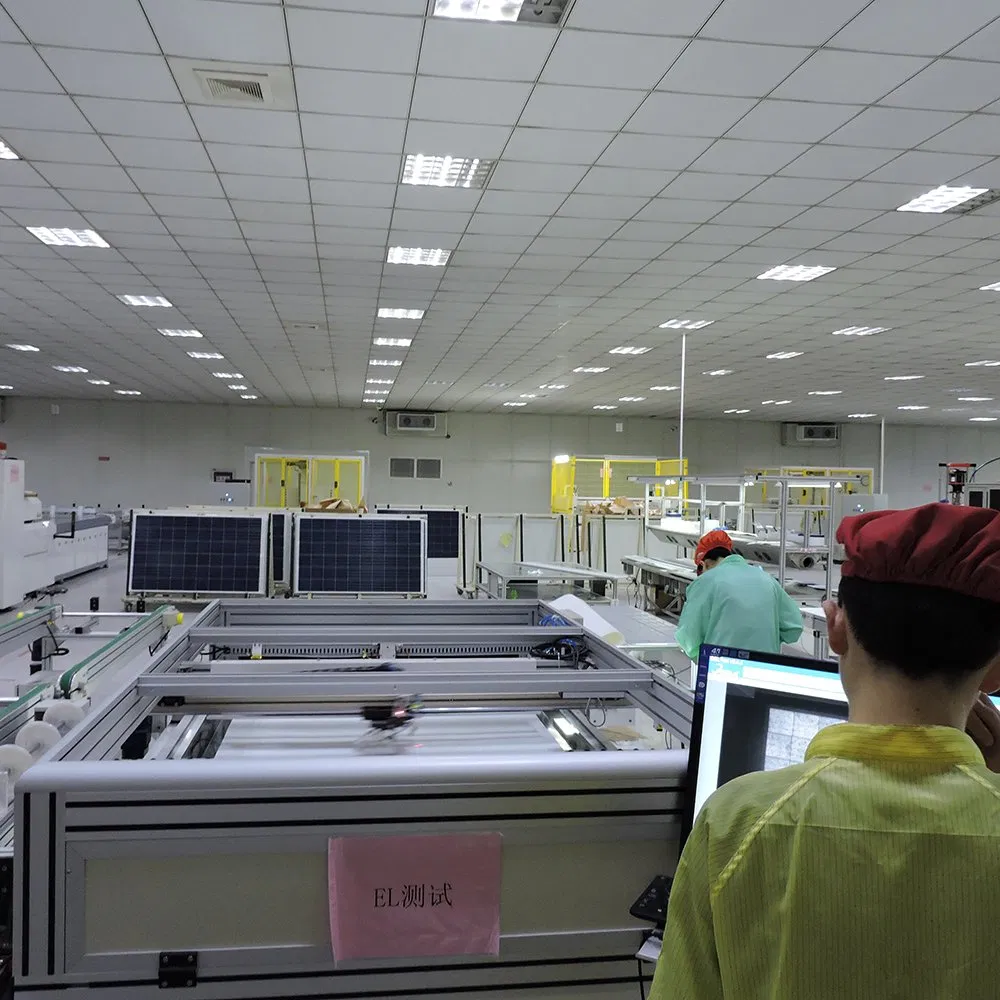

- Testing Standard: 100% EL test performed before package and shipping.
- Global Reach: Products are certified by TUV (Germany) and CE, exported to more than 150 countries.
- Turn-key Solutions: Complete solar systems offered to save time and money.
- Operating Durability: Withstands temperatures from -40°C to +85°C.
❓ Frequently Asked Questions
What is the cell material of this solar panel?
This panel uses high-quality Monocrystalline Silicon cells, specifically 125x125mm (5 inch) cells.
Is this solar panel waterproof for outdoor industrial use?
Yes, it features an IP67 waterproof rated junction box and an anodized aluminium alloy frame, designed for industrial applications.
What certifications does the product hold?
The product is certified by ISO, CE, TUV (Germany), Cec, IEC61215, and IEC61730.
What is the power output warranty for these panels?
We offer a 10-year workmanship warranty, plus a linear power warranty of 90% at 10 years and 80% at 25 years.
Can I place an OEM order for my project?
Yes, OEM orders are acceptable for these monocrystalline solar panels.
What is the maximum system voltage supported?
The maximum system voltage is DC 1000V (IEC) or 1500V (IEC) depending on the configuration.
