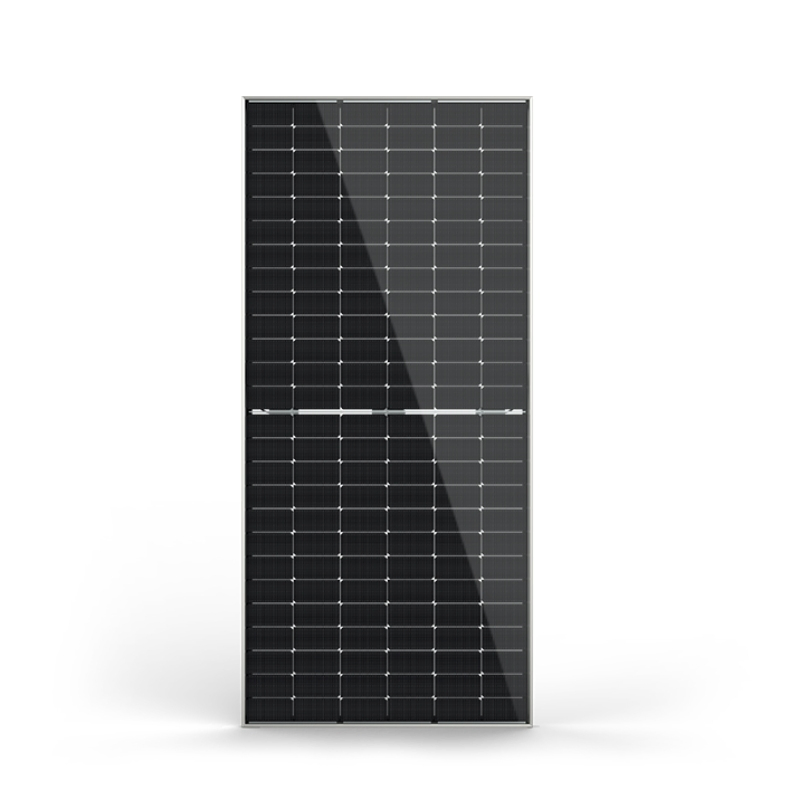

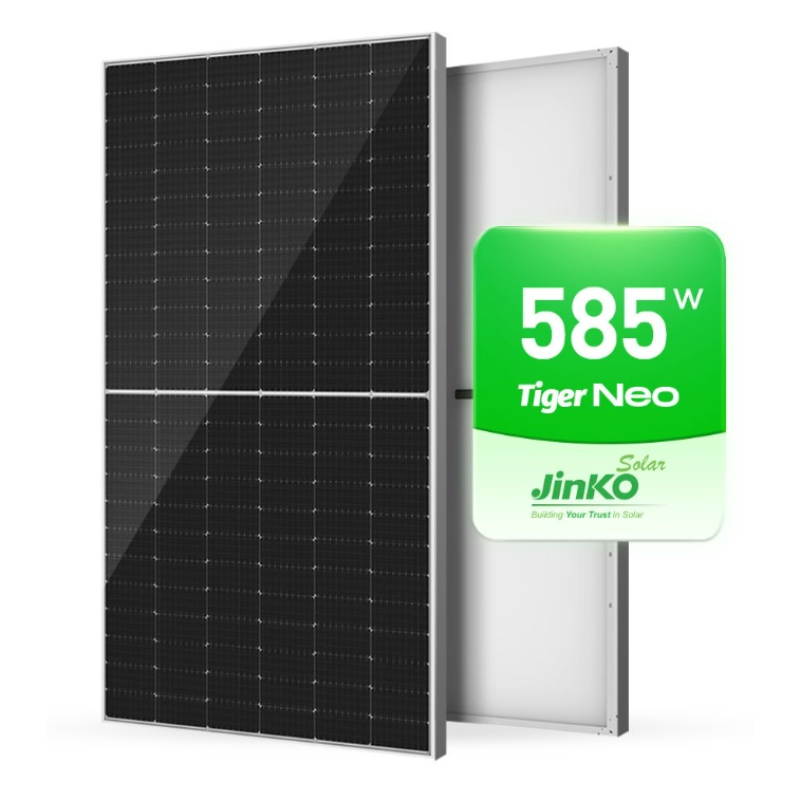

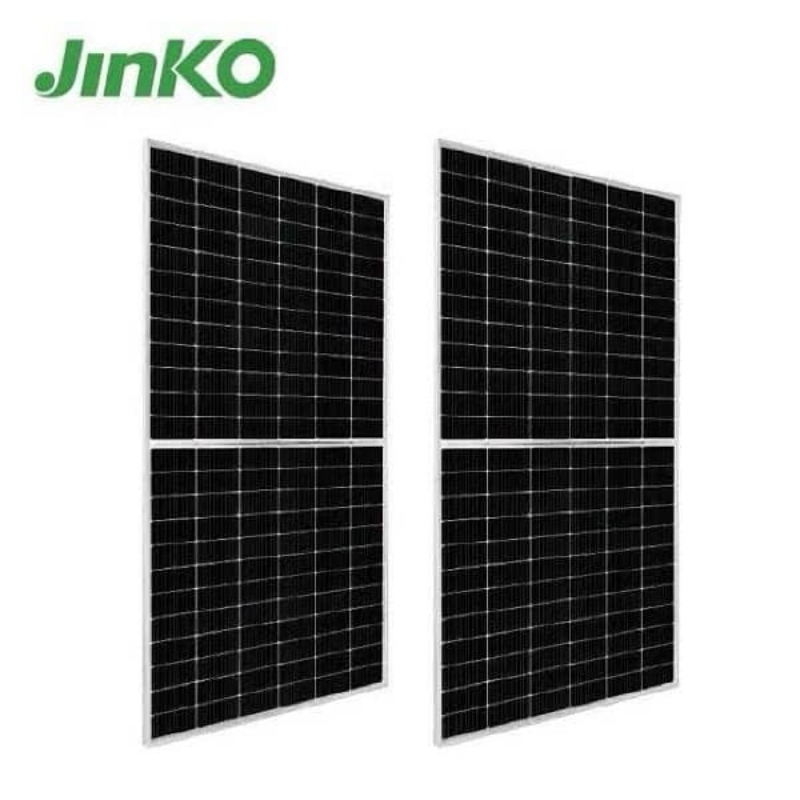

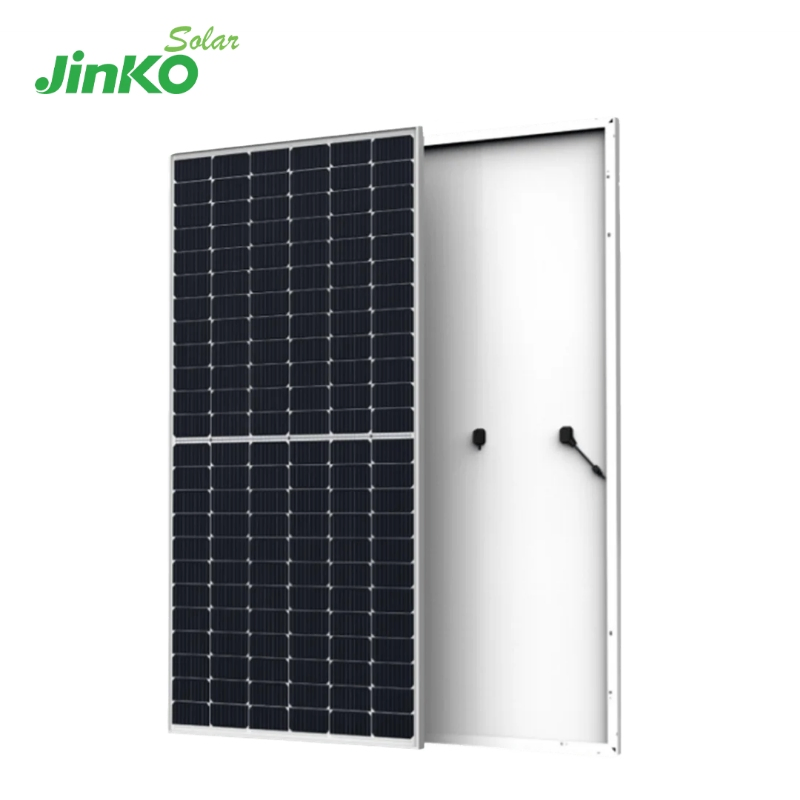

Tiger Neo N-Type Solar Module for Solar Panel System 580W 590W 600W 605W Topcon Solar PV Modules for Residential Use

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Information

Model NO.
72HL4-(V)580-605 Watt
Number of Cells
144 (72*2)
Application
Industrial
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Type
Topcon; N-Type
Efficiency
22%-24%
Max. Power
605watt
Dimensions
2278*1134*30 mm
📦

Products Description

Solar Module

Advantages of Tiger Neo Module

Ultra-high Power Generation
Higher Bifacial Gain
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance
⚙️

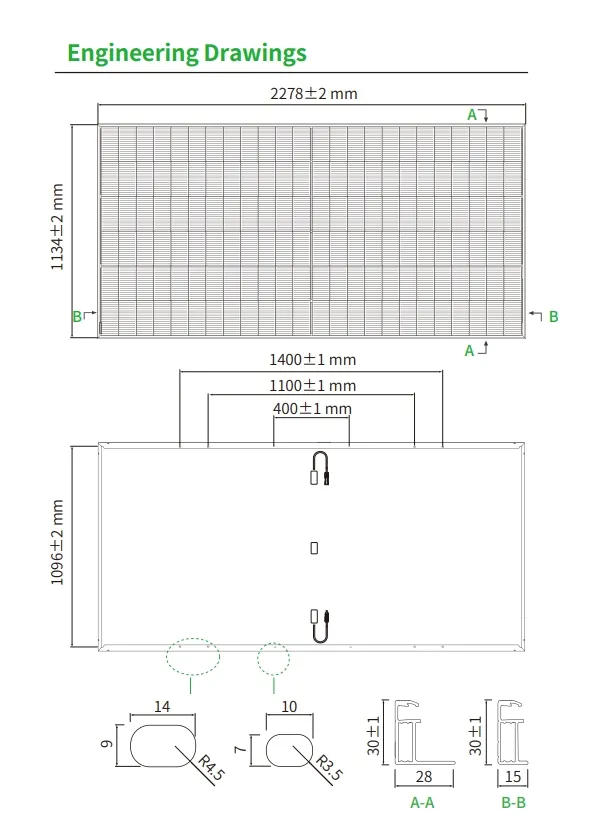

Mechanical Characteristics

FeatureDetails
Cell TypeN-type Mono-crystalline
No. of cells144 (72×2)
Dimensions2278×1134×30 mm
Weight27.0 kg
Front Glass3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
FrameAnodized Aluminium Alloy
Junction BoxIP68 Rated
Output Cables4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length

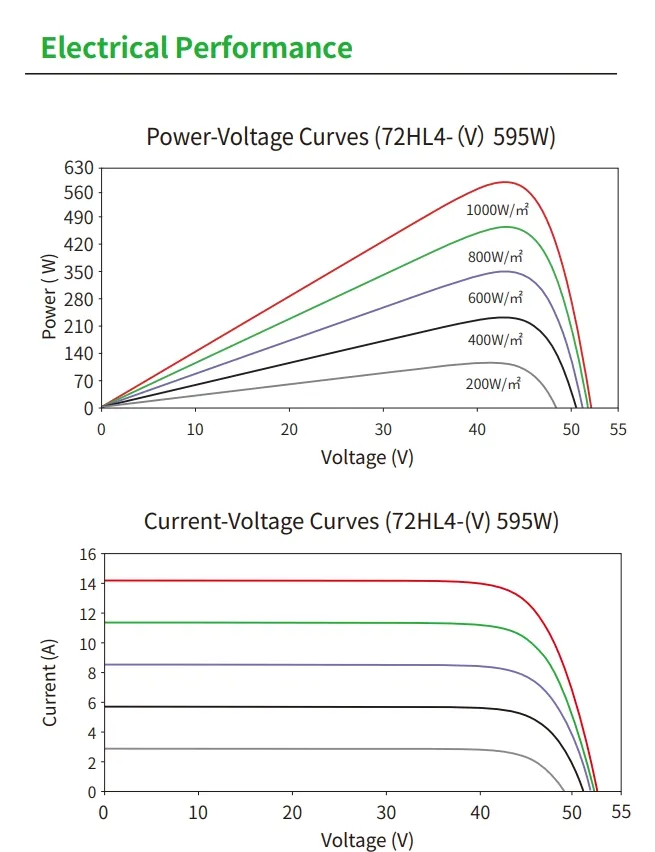

Specifications (STC)

Pmax [Wp] 580 585 590 595 600 605
Vmp [V] 43.35 43.53 43.71 43.88 44.06 44.23
Imp [A] 13.38 13.44 13.50 13.56 13.62 13.68
Voc [V] 52.31 52.47 52.63 52.79 52.95 53.11
Efficiency [%] 22.45 22.65 22.84 23.03 23.23 23.42
🚚

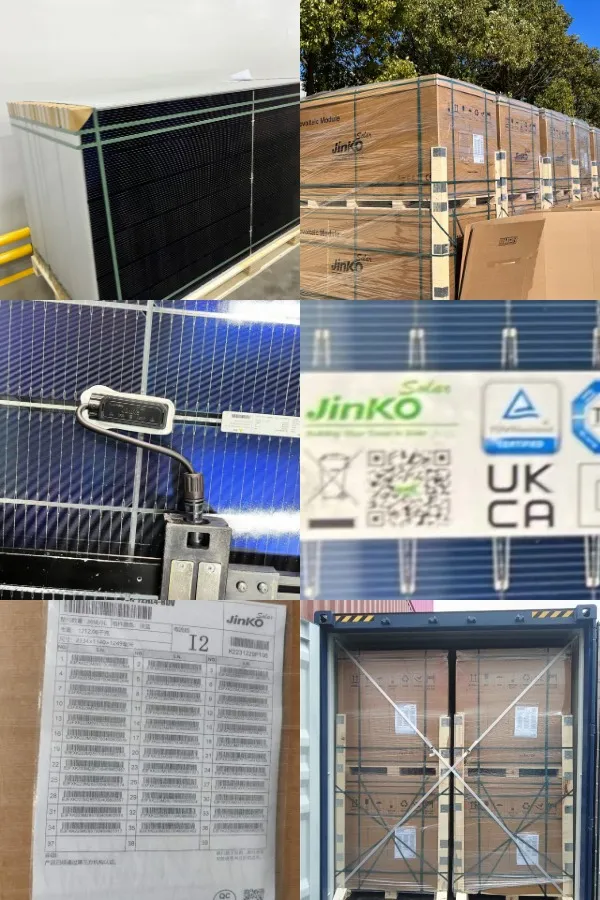

Product Packaging

Packaging Information
📜

Certifications

Certifications Display
🏗️

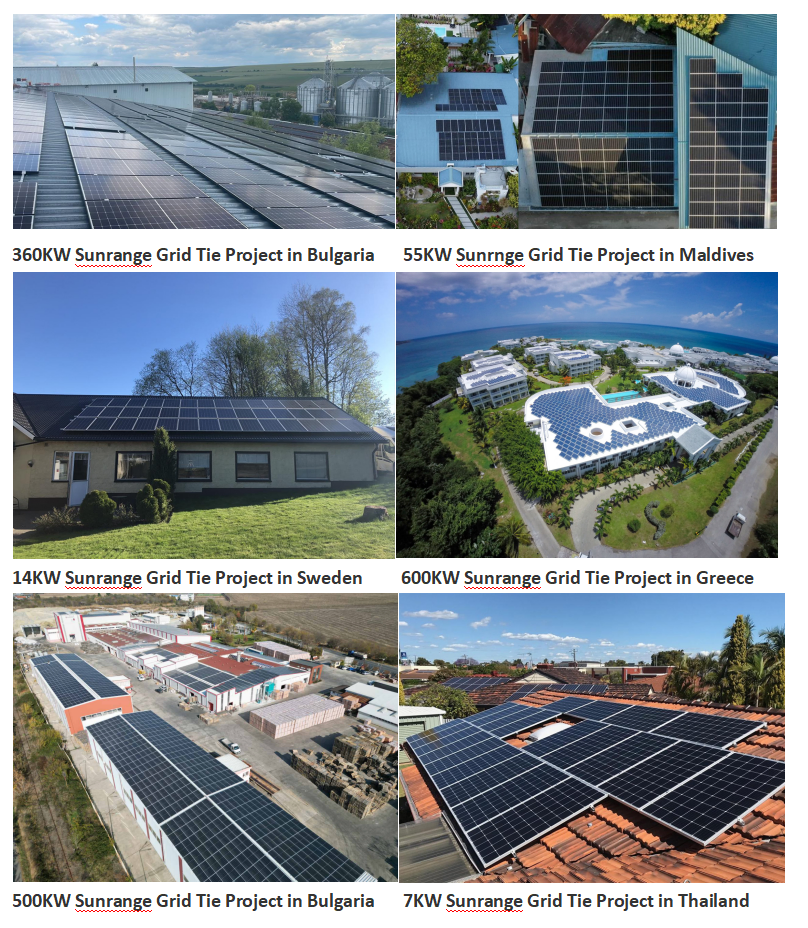

Project Show

Solar Project Showcase

Frequently Asked Questions

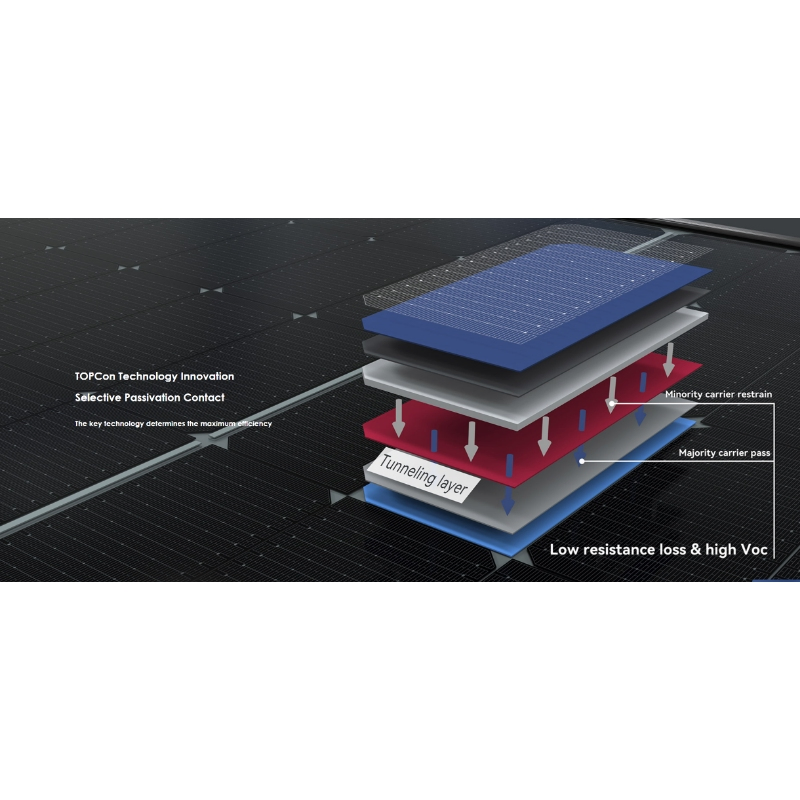

What are the core benefits of the N-Type Topcon technology?
N-type Topcon technology offers higher efficiency, better temperature coefficients, and lower degradation rates compared to traditional P-type cells, resulting in significantly higher lifetime energy yield.
What is the maximum power output of these modules?
The Tiger Neo series modules in this range provide a maximum power output of up to 605 Watts with a panel efficiency reaching 22.84% or higher.
Are these solar panels suitable for industrial applications?
Yes, these modules are specifically designed for industrial and large-scale utility applications, providing high reliability and excellent performance in various environmental conditions.
How do these panels perform in low-light conditions?
The modules feature outstanding low-light performance due to advanced glass and cell surface texturing, ensuring energy production even on cloudy days.
What is the standard packaging configuration for shipping?
The modules are typically packed 36 pieces per pallet and 720 pieces per 40'HQ container, optimized for safe and efficient international transport.
What kind of durability features do these modules have?
They come with IP68-rated junction boxes, anodized aluminum frames, and high-transmission tempered glass, providing exceptional PID resistance and mechanical strength.
