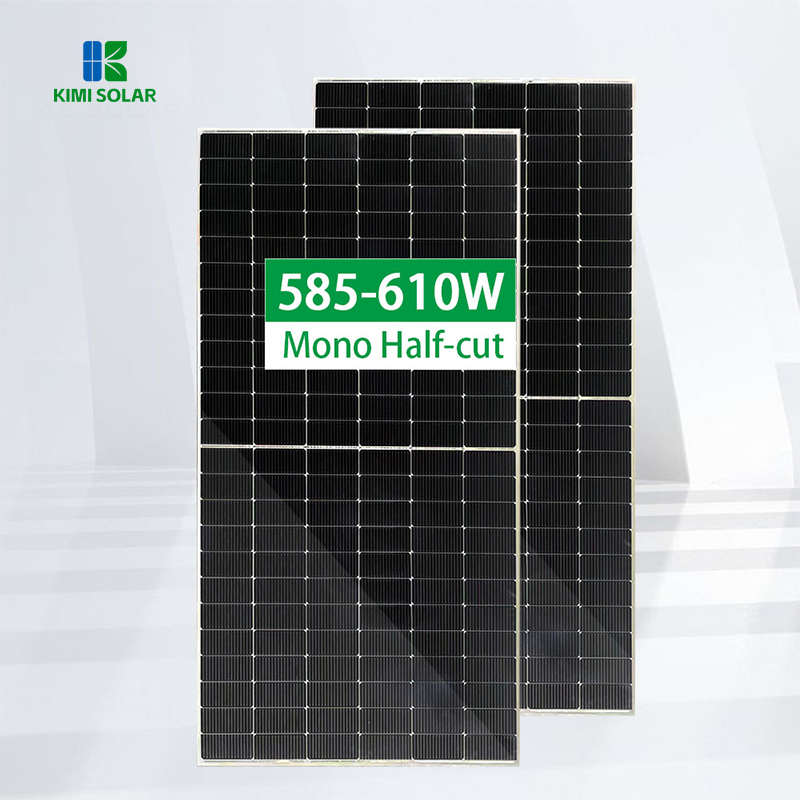

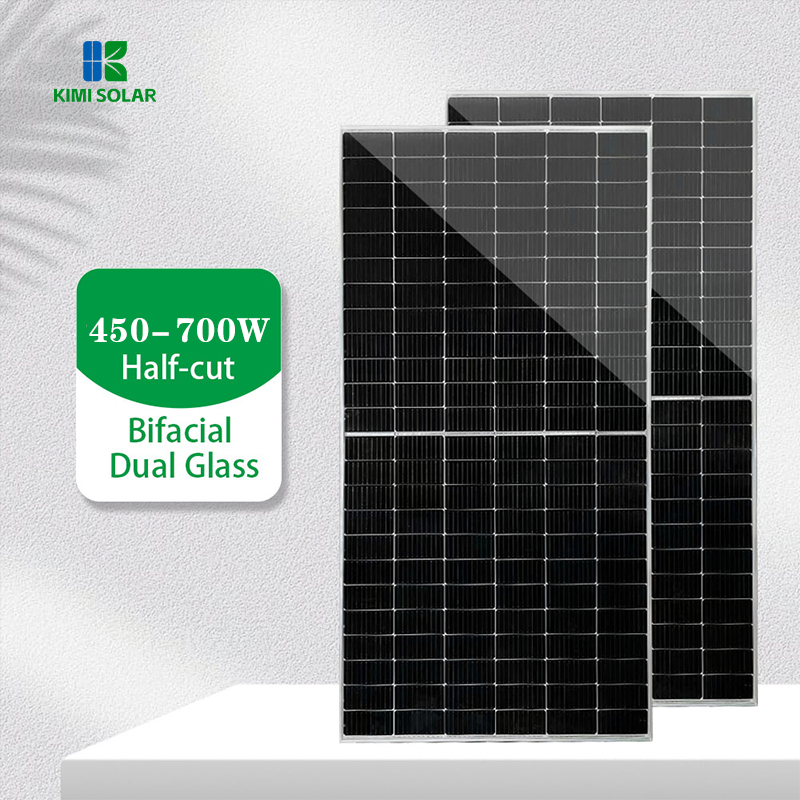

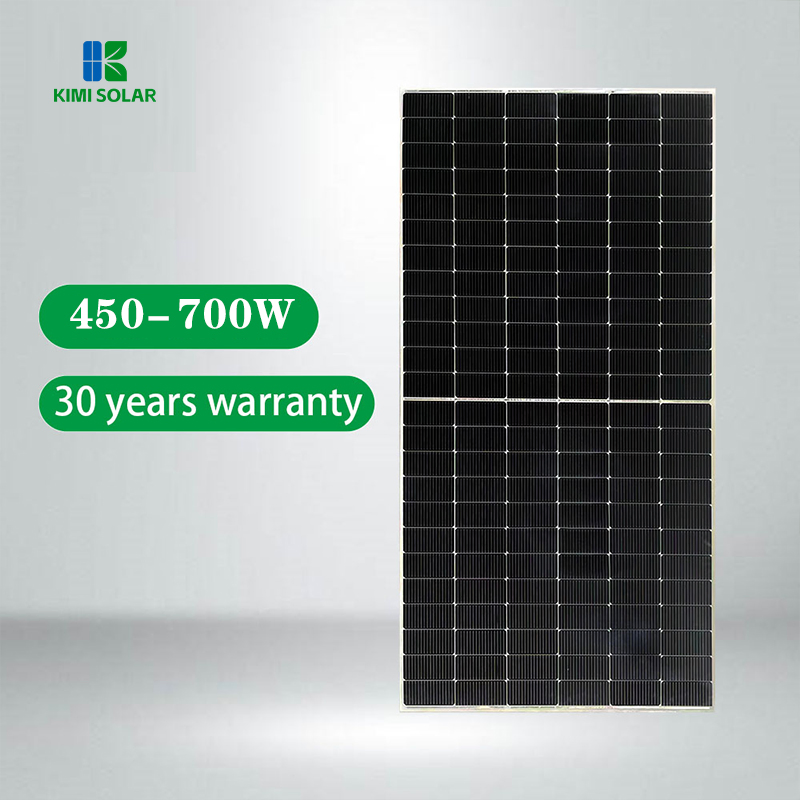

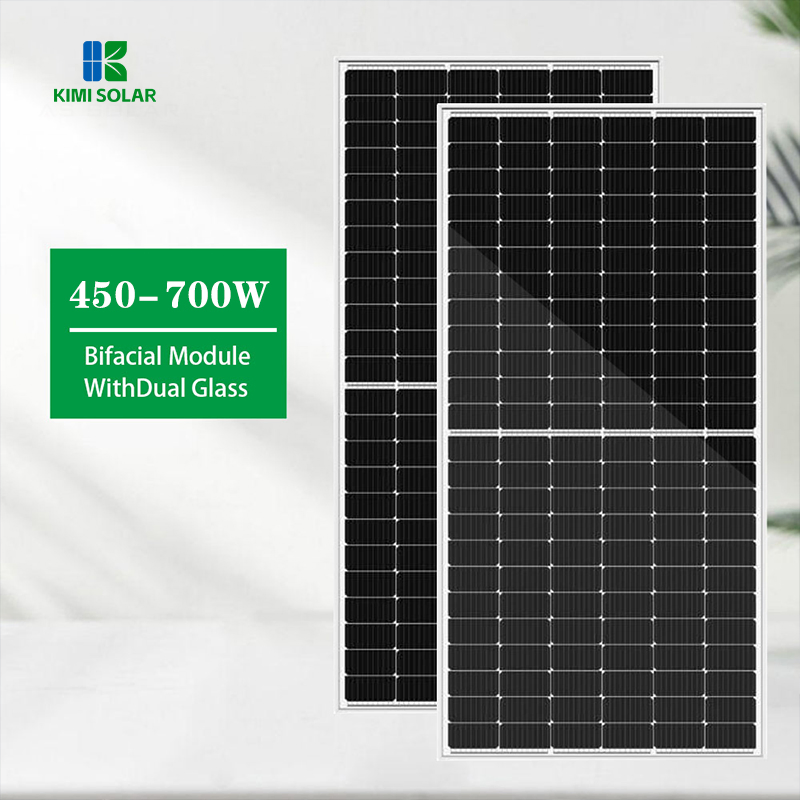

Longi/Ja/Jinko/Trina Tier1 Bifacial Mono Solar Panel PV Module 580W 550W 600W 700W

Customization: Available
After-sales Service: Support
Warranty: 25 Years

Product Description

📋 Basic Information
Model NO.KM580W-144
Number of Cells72pcs
ApplicationLight Industry
MaterialMonocrystalline Silicon
CertificationEST, ISO, CB, CE
Junction BoxIP68 / TUV Certified
Temperature Range-40°C to +85°C
Production Capacity50,000 PCS/Year
📦 Packaging & Delivery
Package Size230.00cm * 120.00cm * 120.00cm
Package Gross Weight38.000kg
Transport PackageCarton; Wooden Case; Pallet
🔍 Product Description
Mono Solar Panel Overview

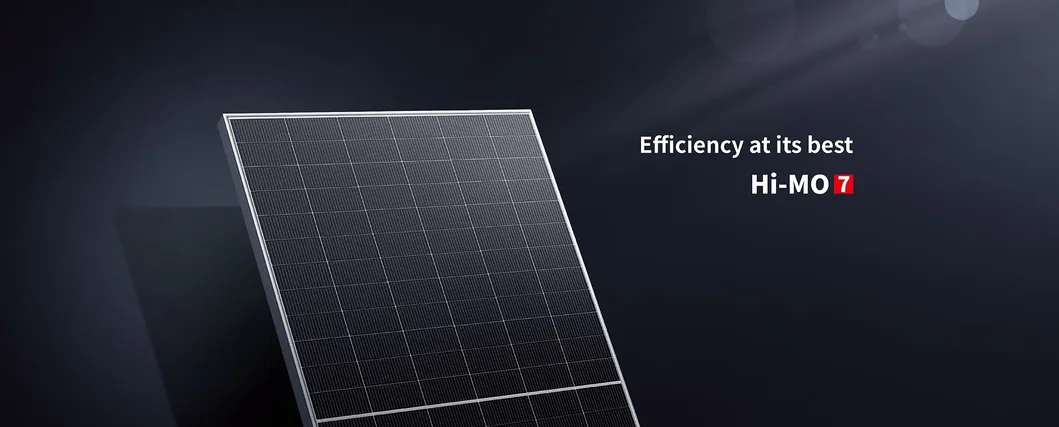

Mono Solar Panel Features

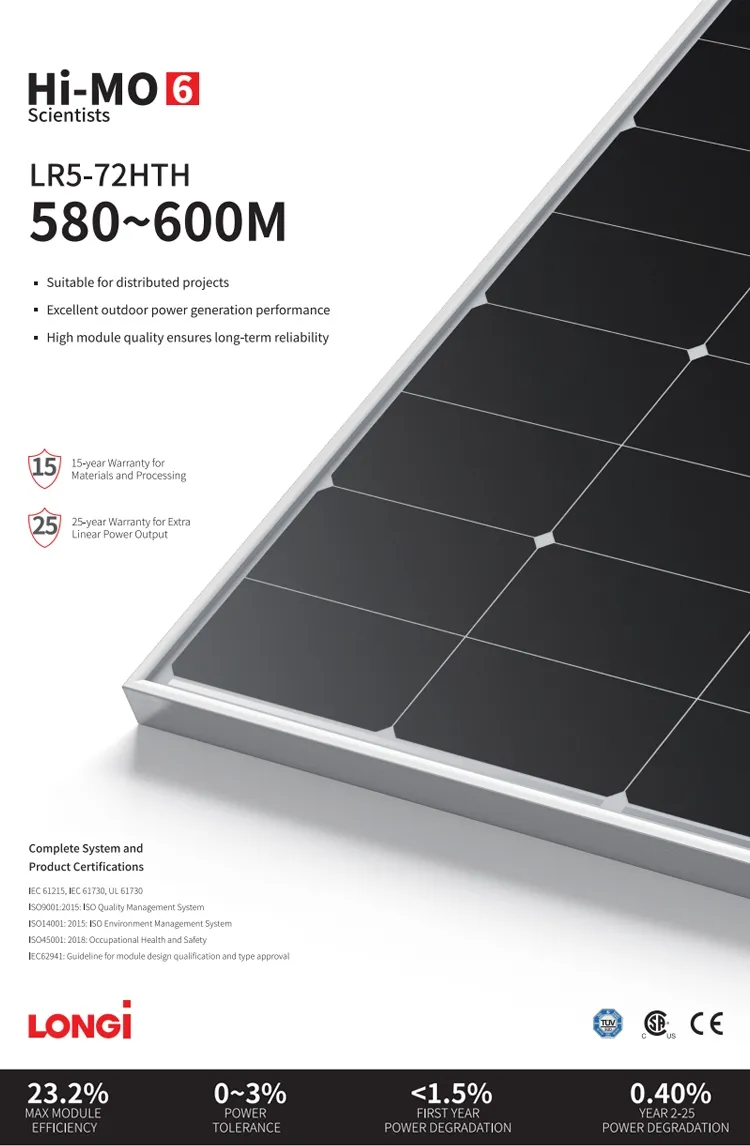

Module Structure
Electrical Characteristics (STC)
Module Type LR5-72HTH-580M LR5-72HTH-585M LR5-72HTH-590M LR5-72HTH-595M LR5-72HTH-600M
Maximum Power (Pmax/W) 580 585 590 595 600
Open Circuit Voltage (Voc/V) 52.21 52.36 52.51 52.66 52.81
Short Circuit Current (Isc/A) 14.20 14.27 14.33 14.40 14.46
Voltage at Pmax (Vmp/V) 44.06 44.21 44.36 44.51 44.66
Current at Pmax (Imp/A) 13.17 13.24 13.31 13.37 13.44
Module Efficiency (%) 22.5 22.6 22.8 23.0 23.2
🛠️ Mechanical Parameters
Cell Orientation144 (6x24)
Junction BoxIP68, three diodes
Output Cable4mm²; Length customizable
Glass3.2mm coated tempered glass
FrameAnodized aluminum alloy frame
Weight27.5kg
Dimension2278 x 1134 x 35mm
🏭 Production & Packaging

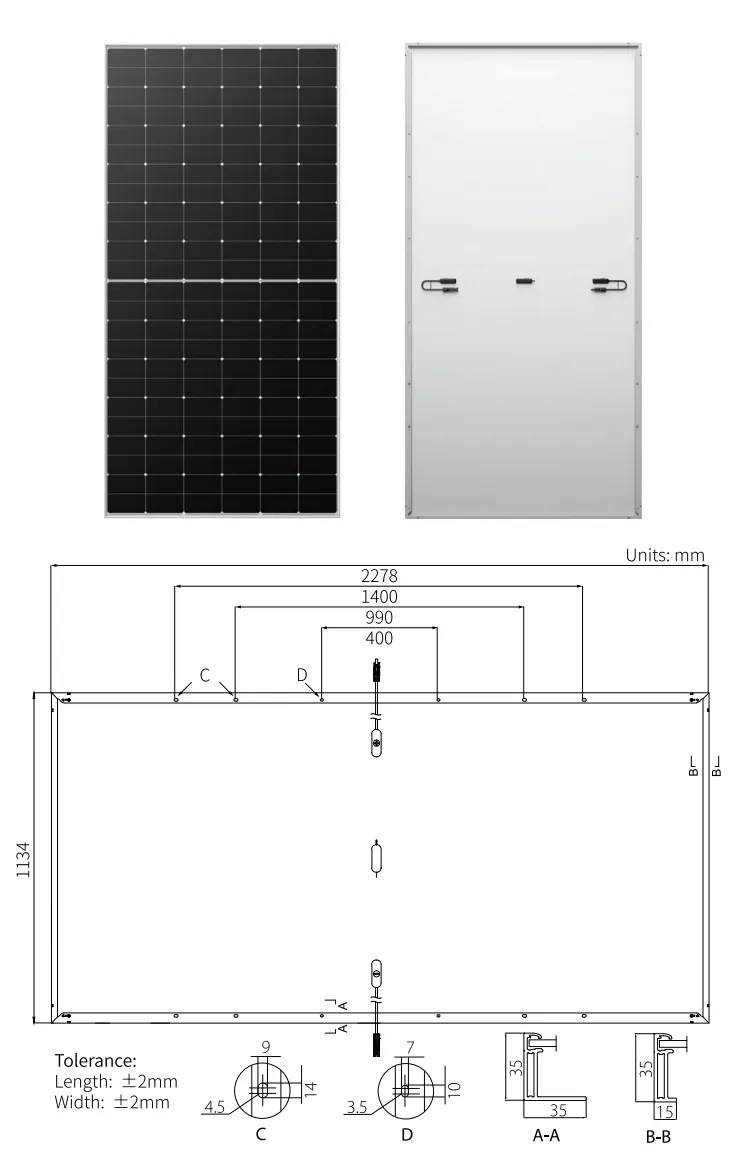

Technical Specs 1

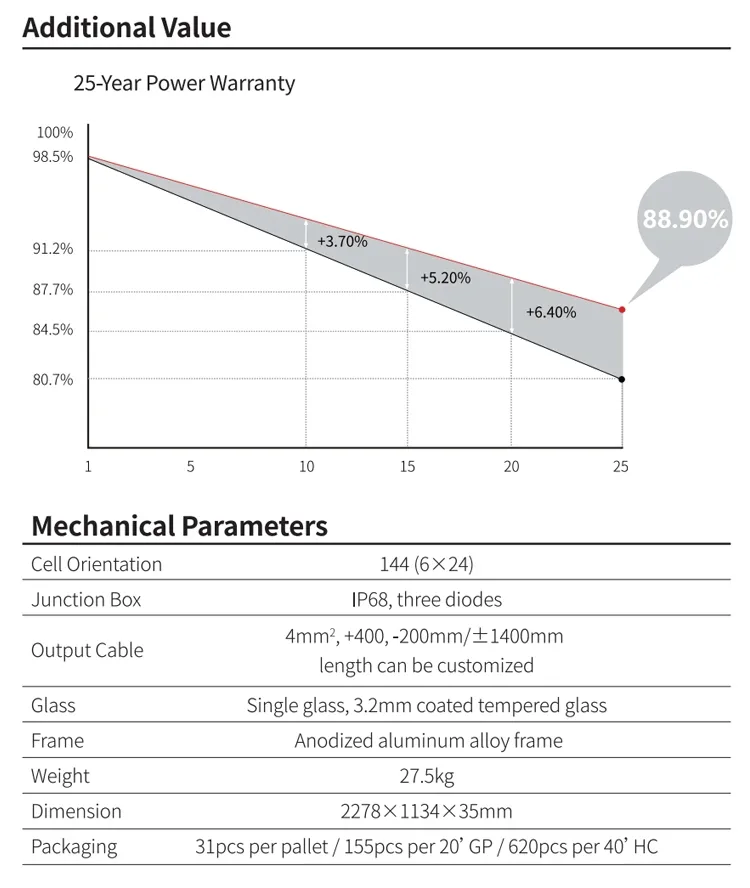

Technical Specs 2

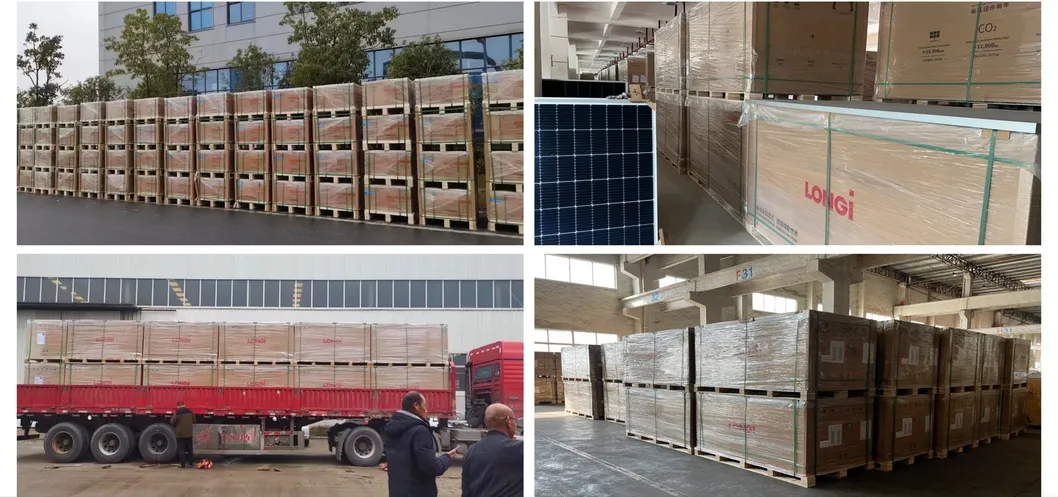

Packaging Detail

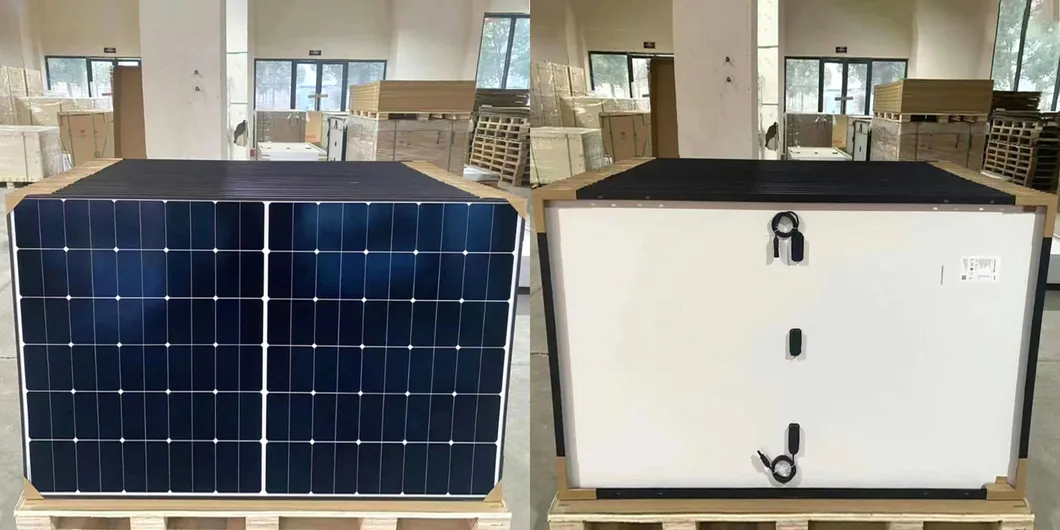

Shipping Load
Main Products Range

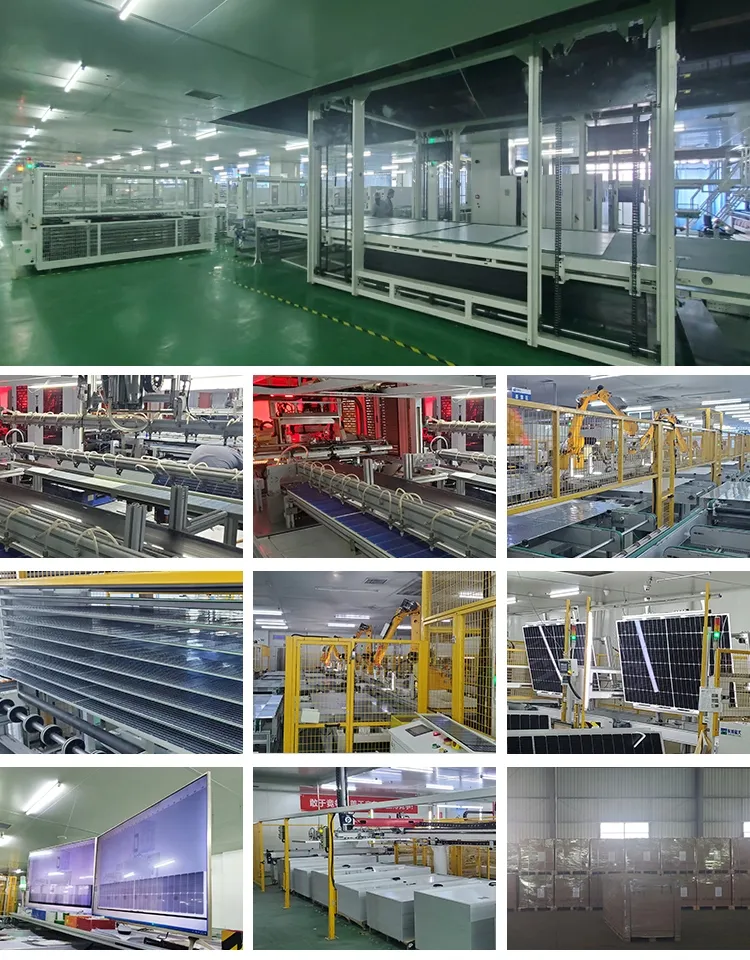

Automated Production
📸 Detailed Photos

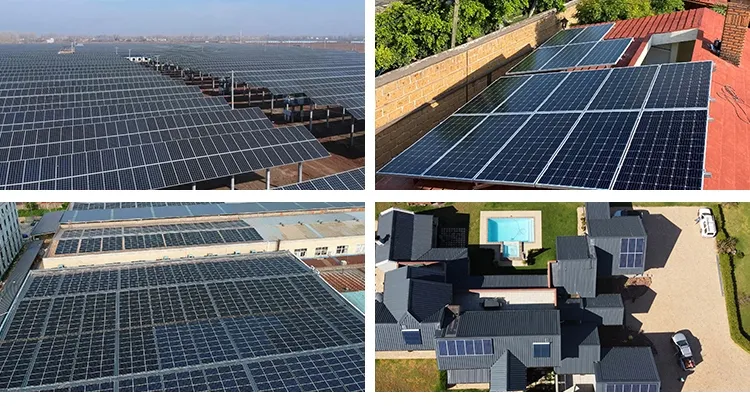

Detail View 1

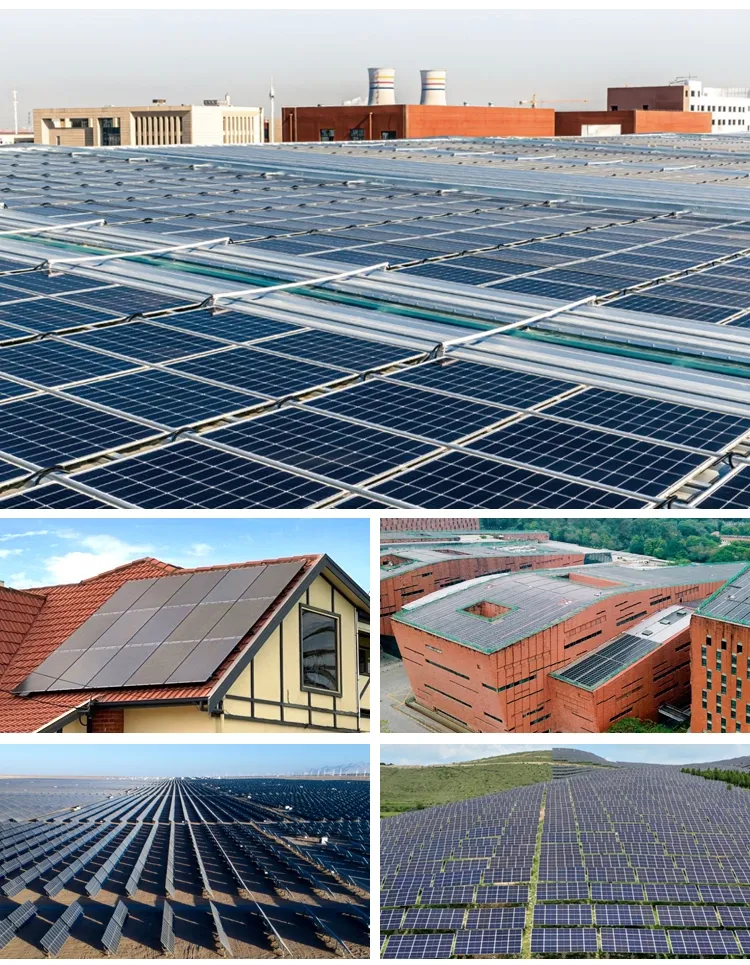

Detail View 2
Frequently Asked Questions
How can we guarantee quality?
We utilize cutting-edge, fully automated production equipment to uphold superior standards. A meticulous inspection system scrutinizes every product step-by-step before shipment.
What products are available?
We offer premium Solar Panels and comprehensive solar system sets, including batteries, controllers, and inverters, tailored to unique energy requirements.
Are you a manufacturer or a trading company?
We are a dedicated manufacturer with over 15 years of industry leadership, focusing on professional solar panel and energy solutions.
What services and payment terms do you provide?
We support FOB, CIF, EXW, and Express Delivery. Accepted currencies include USD, EUR, HKD, and CNY via T/T or Cash. Our team provides support in English, Chinese, and French.
What is the standard lead time?
Orders are efficiently processed and typically ready for dispatch within 15 working days once payment is received.
Why choose these solar solutions?
With extensive experience serving over 60 countries, we specialize in high-efficiency mono and poly panels and bespoke power systems with globally recognized quality.
