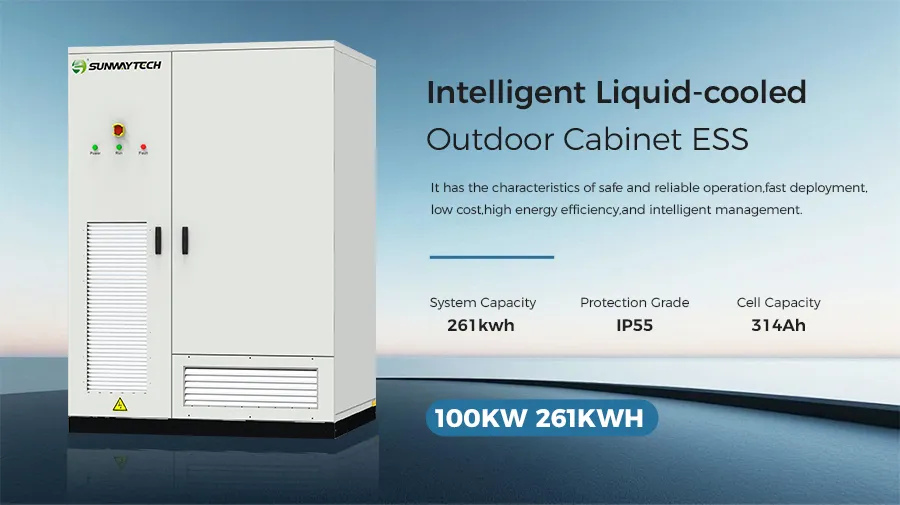

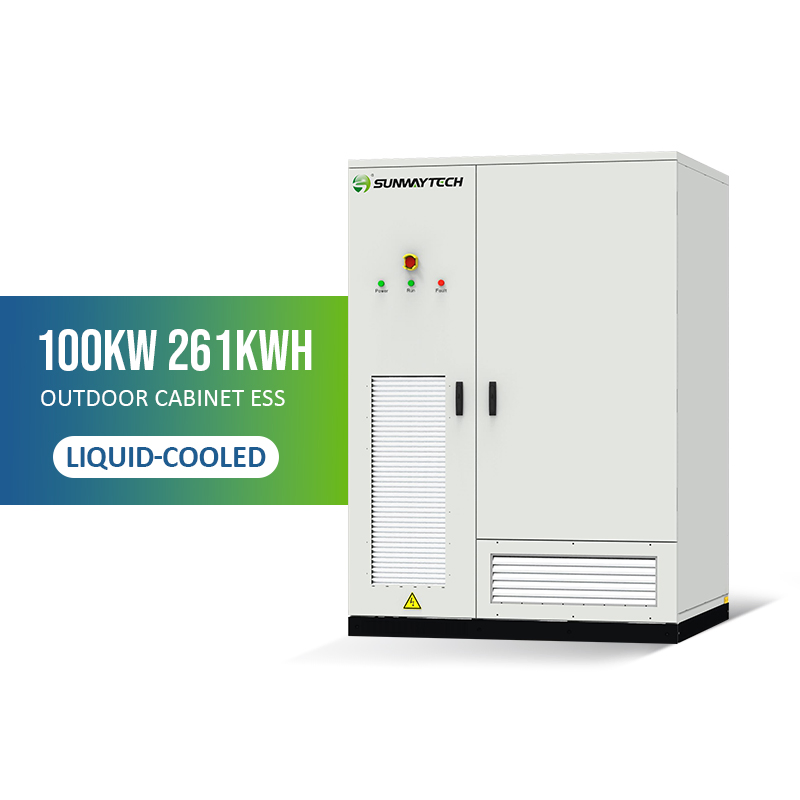

Intelligent Liquid-cooled Outdoor Cabinet ESS (100KW 261KWH)
This product is a highly efficient energy storage solution designed for versatility. It can be configured according to specific requirements to provide an exclusive energy solution for your needs.
Note: Mounting structures can be selected based on different roof materials. All systems are customizable as per user requests.
| Battery System Parameters | |
| Model | SWMonet-125CL |
| Battery Rated Capacity | 261kWh |
| Battery Rated Voltage | 832V |
| Battery Type | Lithium iron phosphate battery (LFP) |
| Cell Capacity | 314Ah |
| Cooling Mode | Intelligent Liquid-Cooled |
| Photovoltaic (PV) Parameters | |
| Rated Power | 100kW |
| PV Voltage Range | 250~500V (MPPT) |
| MPPT Quantity | 2 |
| AC Parameters | |
| Rated AC Power | 125kW |
| Rated AC Voltage | 400V, 3W+N+PE |
| Protection Level | IP55 |

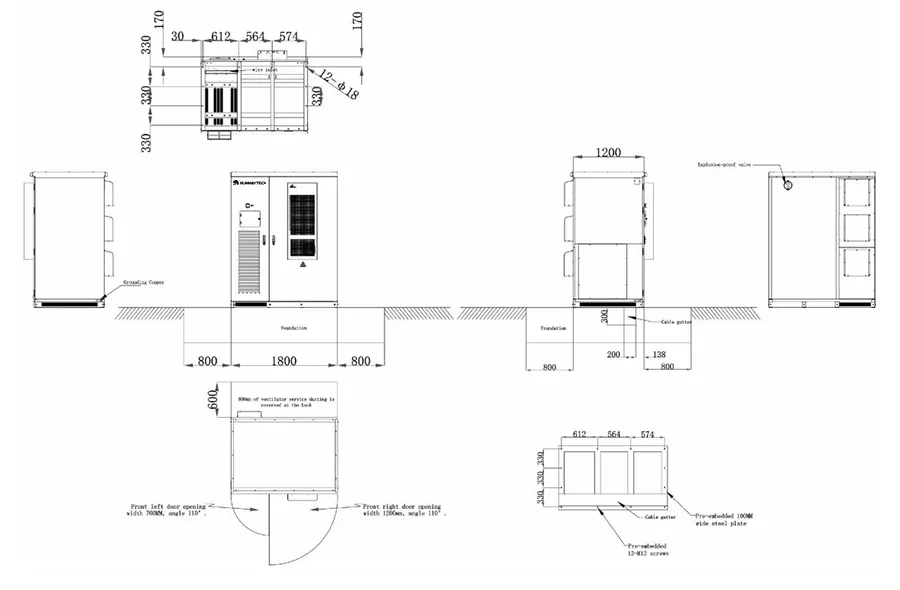

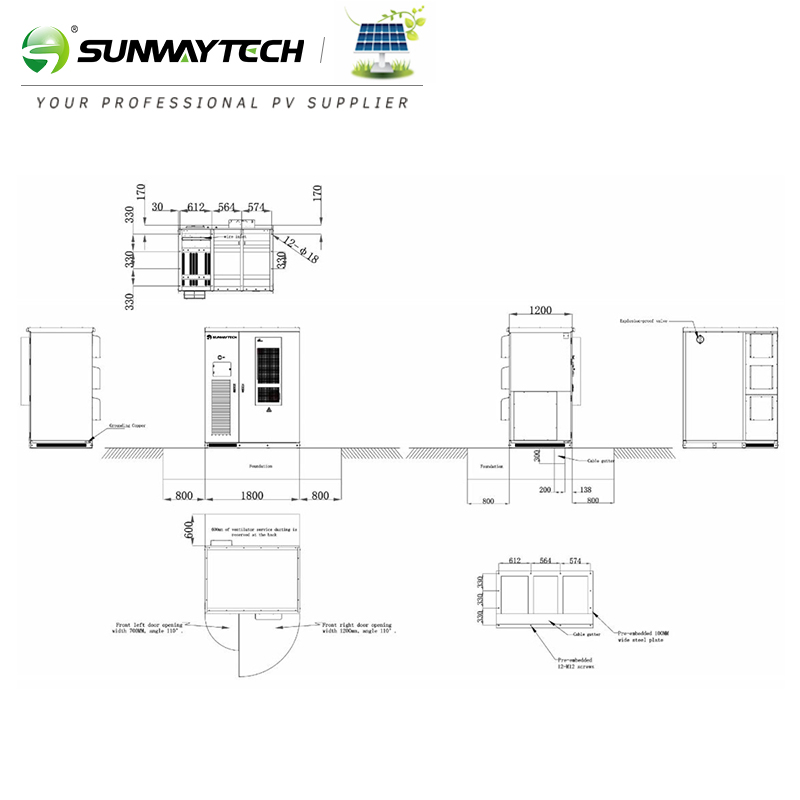

| Dimension (W*D*H) | 1600*1350*2300mm |
| Weight (Approx.) | 3330kg |

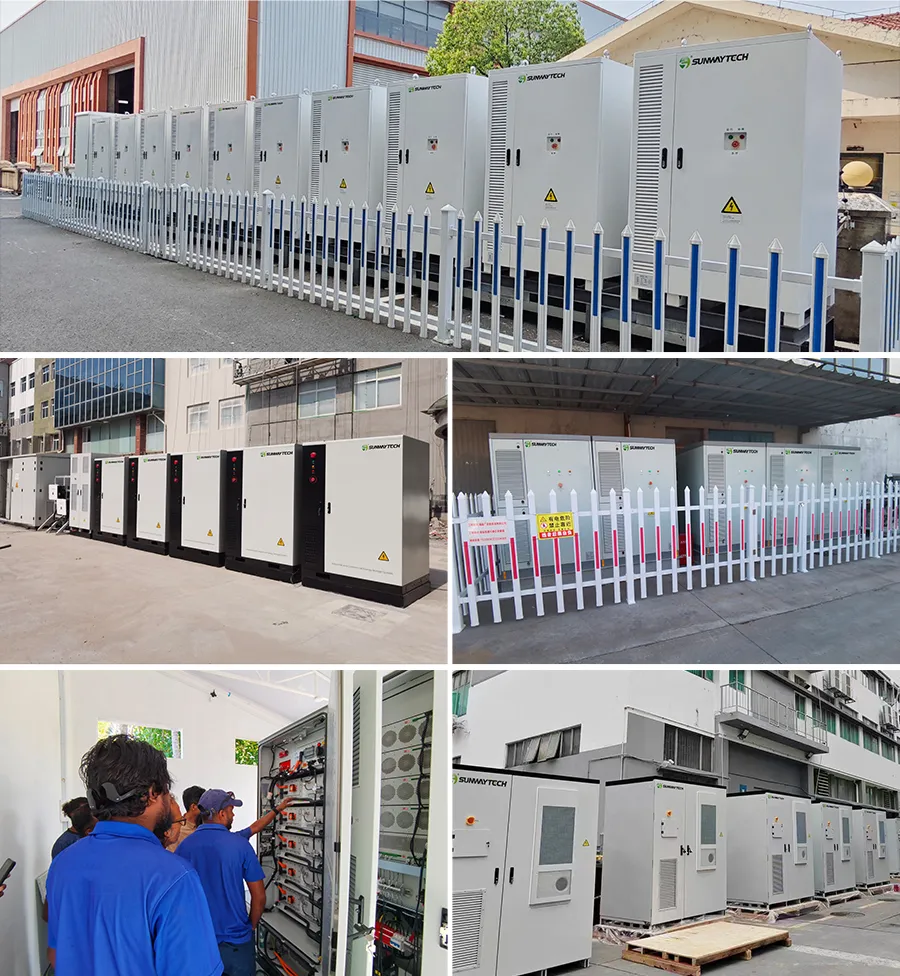

Commercial and Industrial Energy Storage:
Designed for households, schools, factories, gas stations, and other commercial buildings with high energy demands. This system allows users to maximize energy independence, reduce grid power reliance, and lower electricity bills. It helps mitigate the risks of rising energy prices and reduces environmental impact through renewable energy utilization.

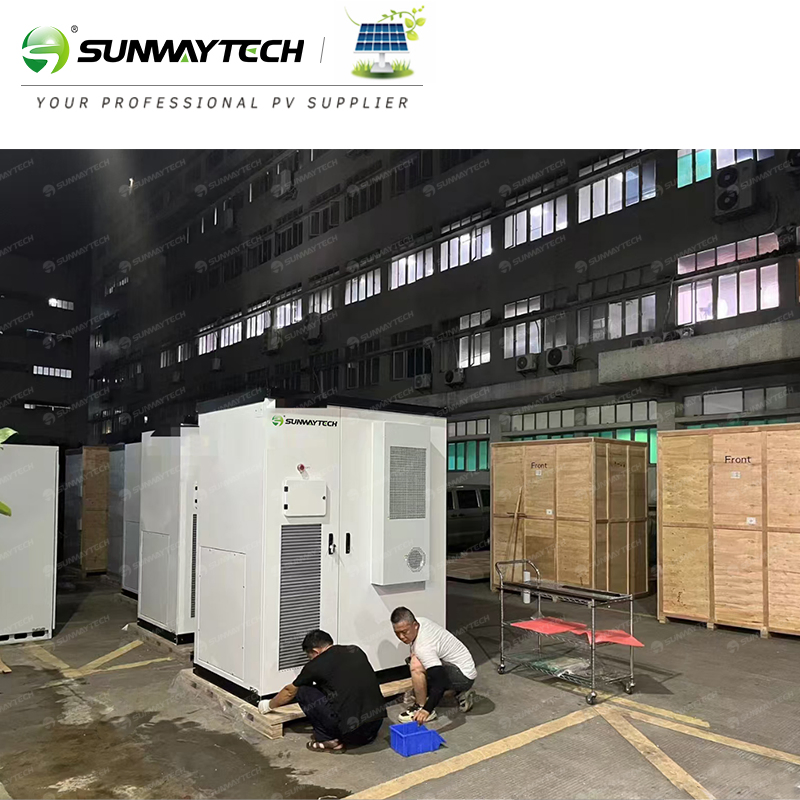

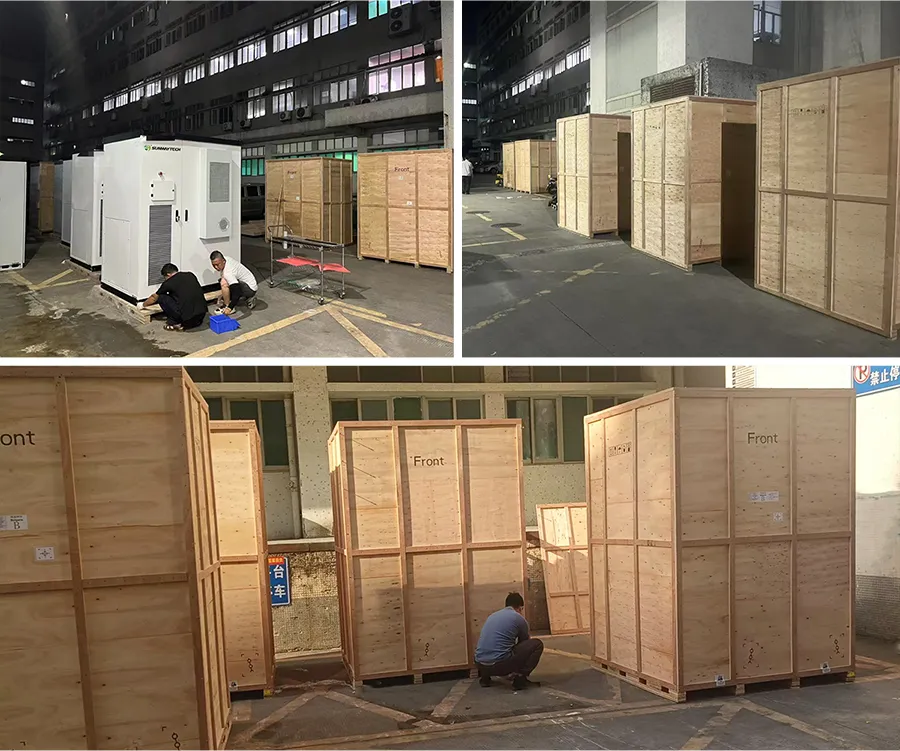

Packaging Advantage: Wooden box packaging allows for high-strength stacking, simple operation, and cost-effectiveness. Extra-large and extra-long sizes can be easily accommodated. Units can be loaded/unloaded from the front and transported flat or as kits to the assembly site.
