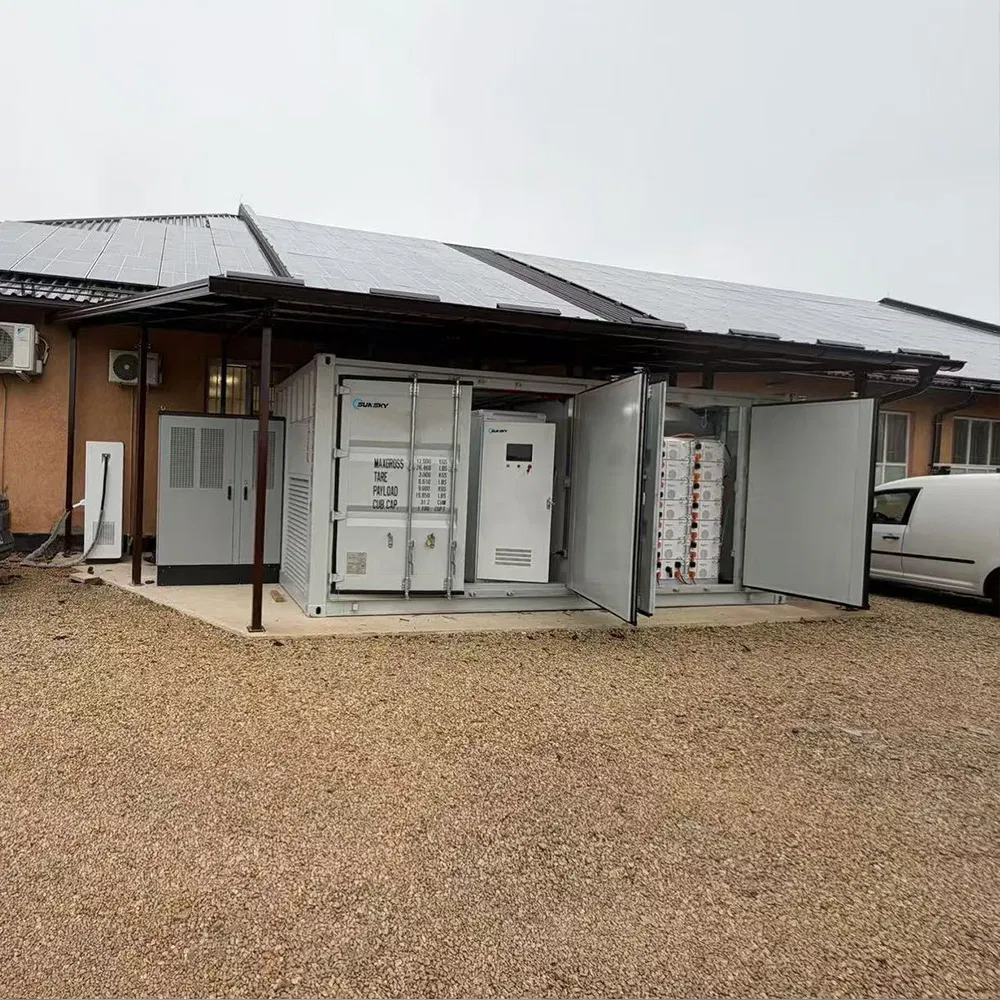

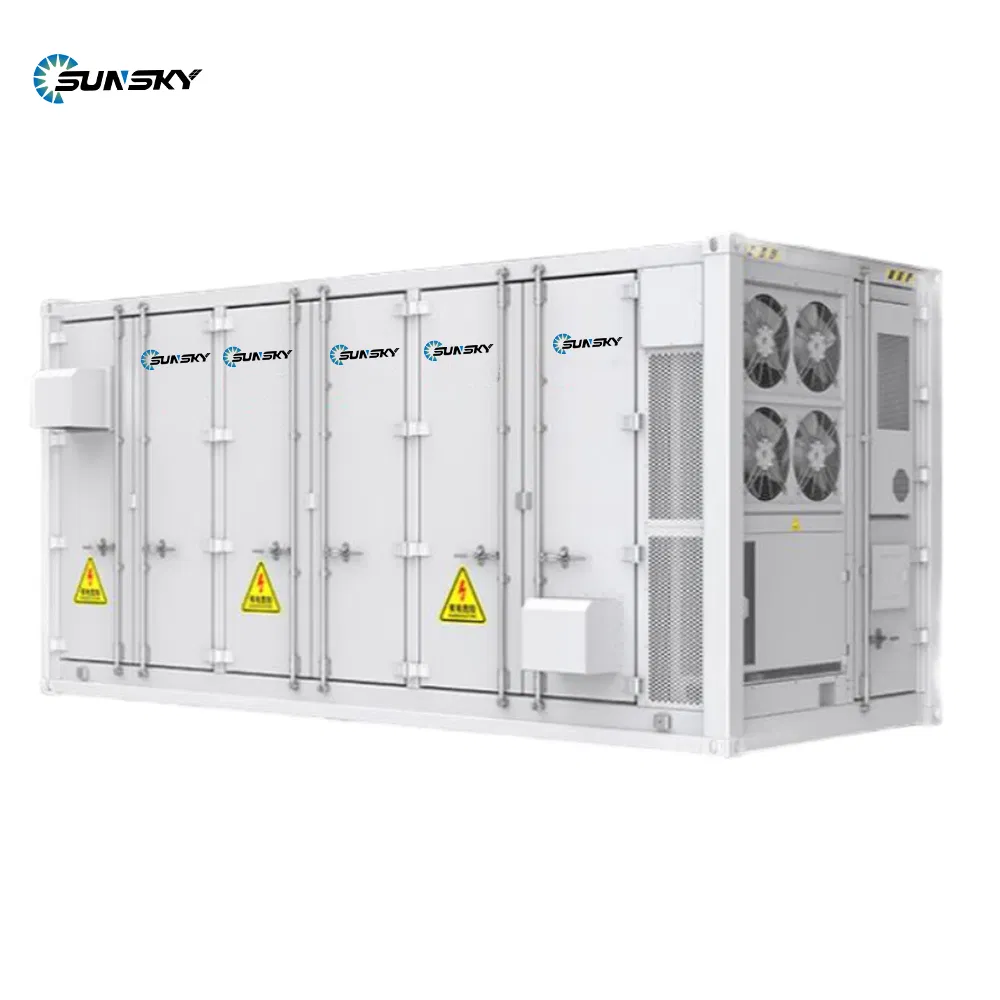

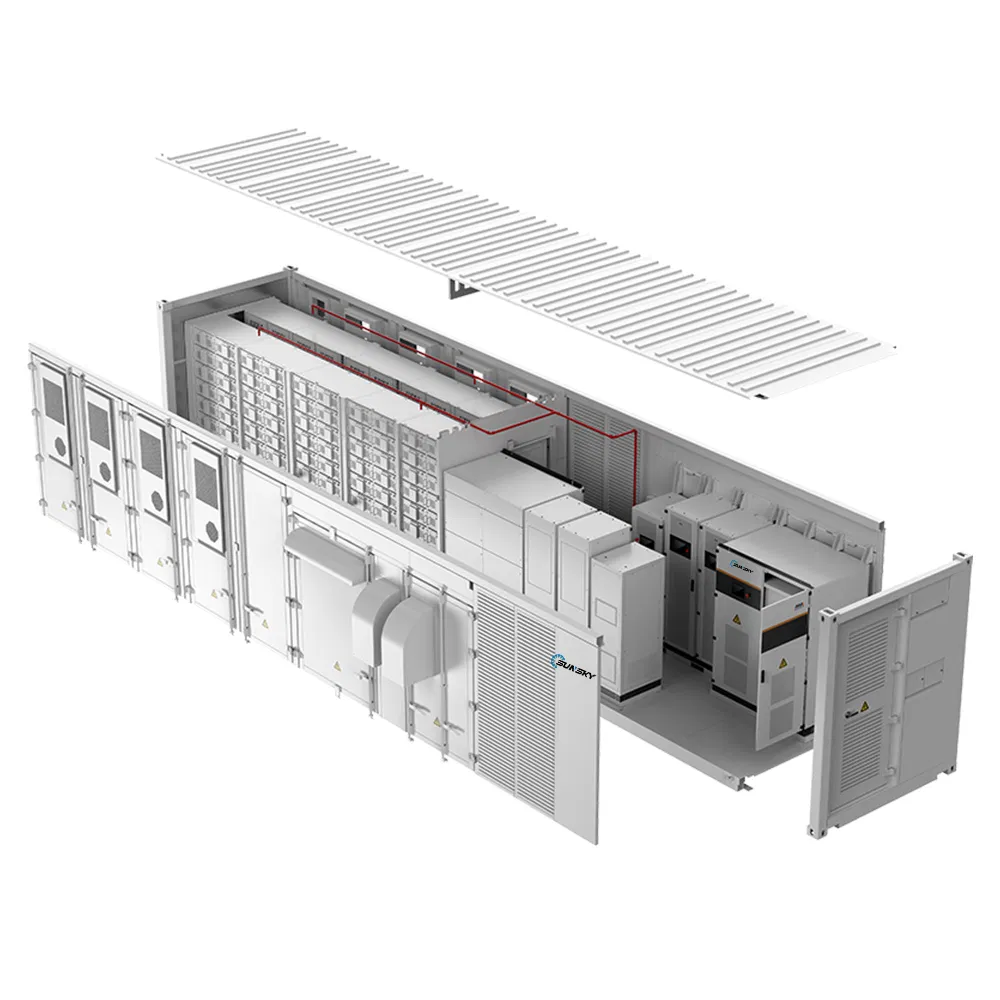

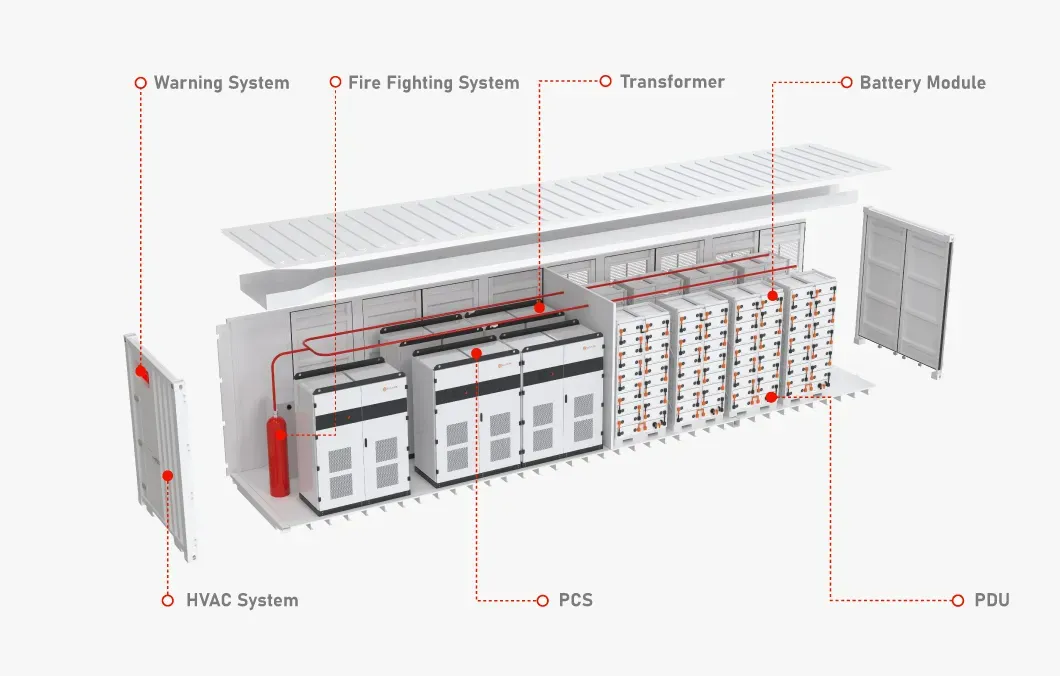

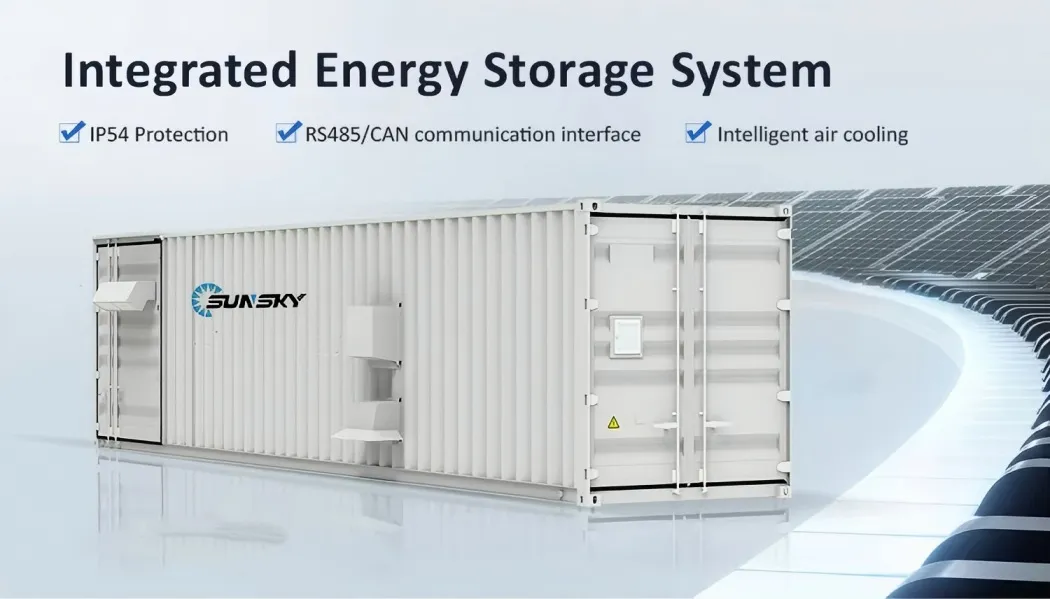

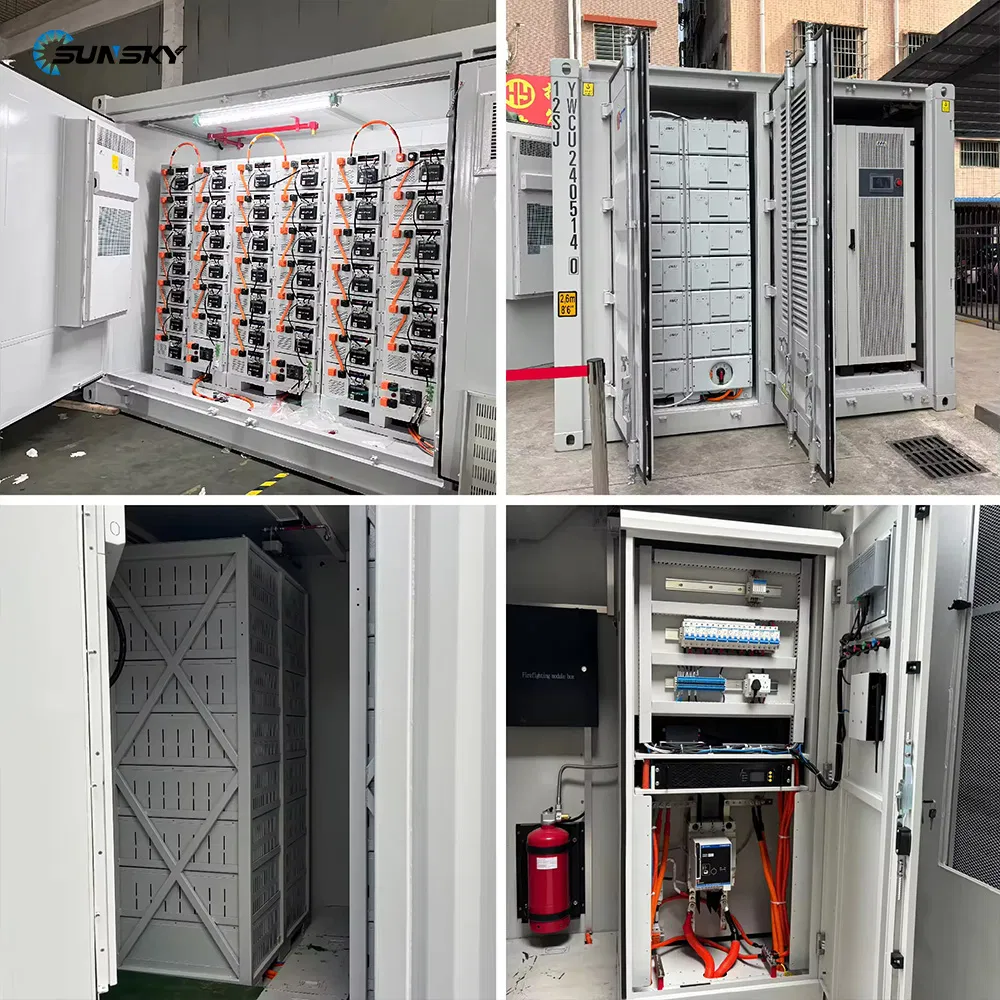

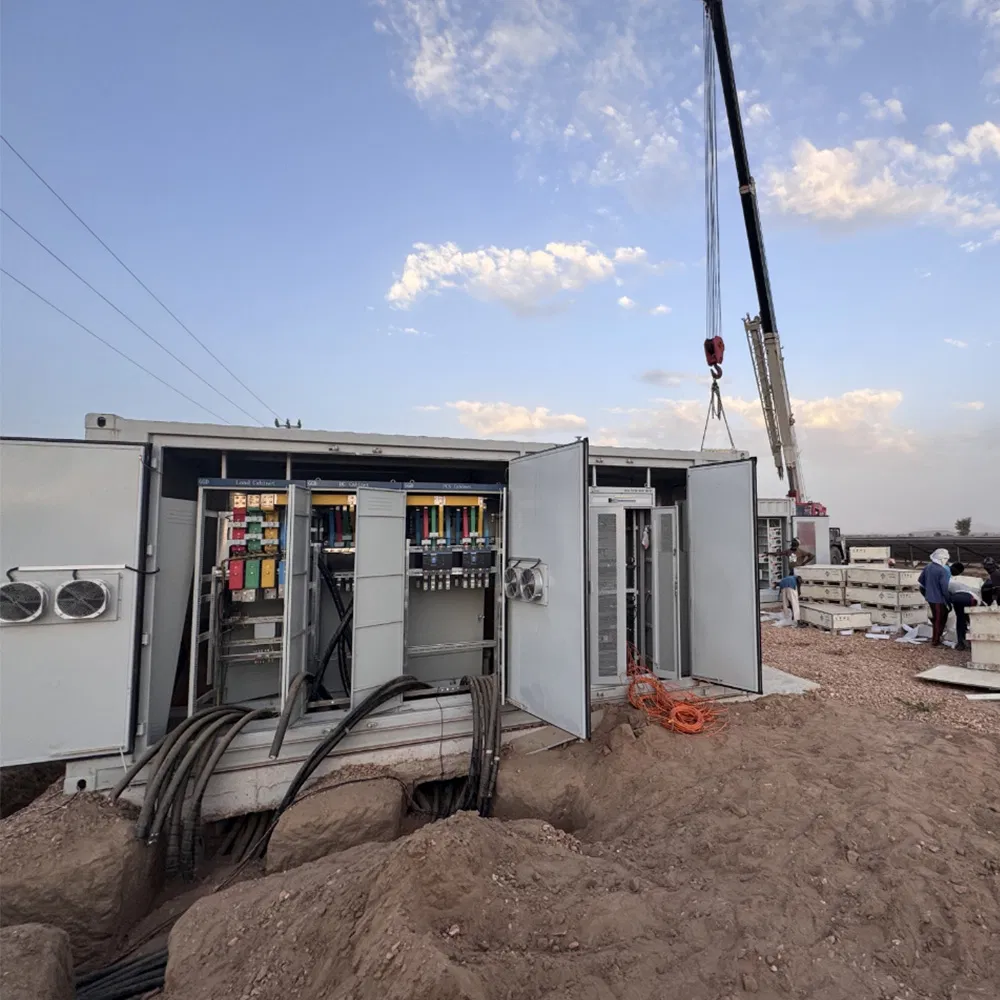

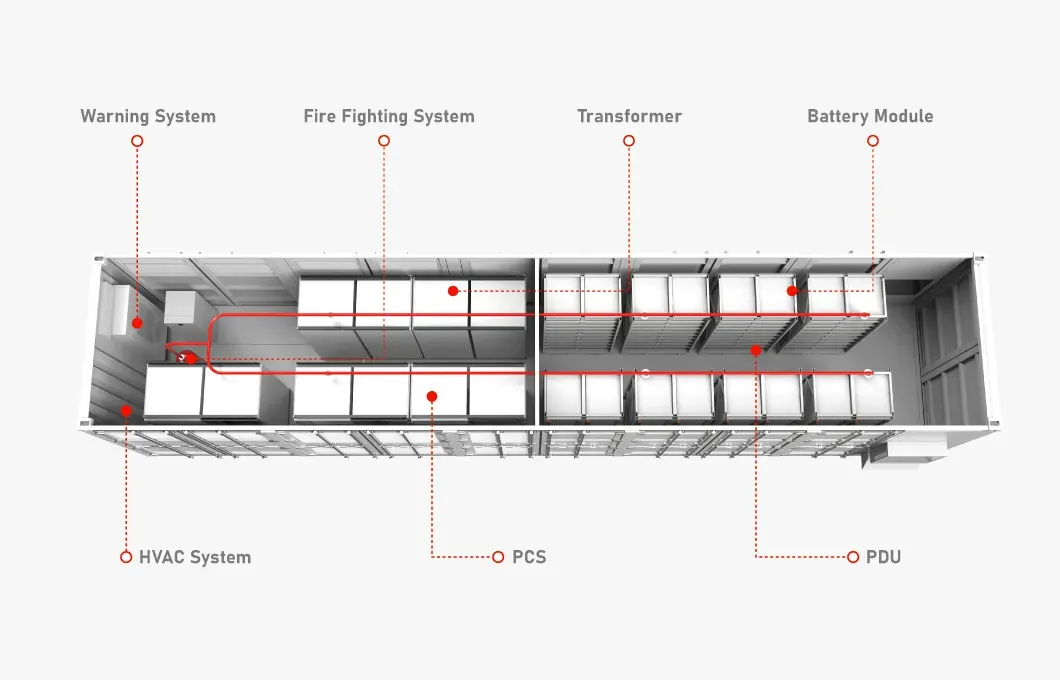

20-ft and 40HQ liquid-cooled ESS container integrates PACK, EMS, BMS, HVAC, and fire safety system into one cabinet. Compared with air cooling, liquid cooling empowers the ESS product with higher power density and ensures the temperature difference between the cells within 3 ºC, which effectively extends battery service life and improves energy efficiency. The 20-ft liquid-cooled ESS container product can be applied to the power generation side, grid side, as well as C&I ESS scenarios.
| Model | SUN20FT-0.5MW/1MWh | SUN40FT-1MW/2MWh |
|---|---|---|
| Cell type | 3.2V/280Ah/LFP | |
| Cell life cycle | >8,000 Cycles @ 25°C | |
| Number of Cluster | 5 | 10 |
| Total Rated Energy Capacity | 1003.52kWh | 2007.04kWh |
| Rated voltage | 627.2V | |
| Communication protocol | Modbus RTU, Modbus TCP | |
| Rated AC power | 1*500kW | 2*500kW |
| Rated AC voltage | 380V/400V/220V/480V | |
| Degree of protection | IP54 | |
| Operating temperature | -20~65°C | |
| Fire extinguisher system | HFC bottle group | |

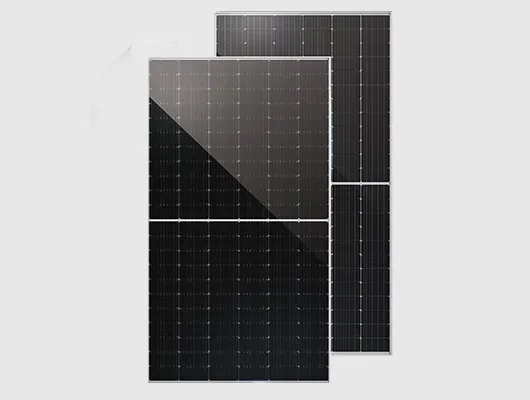

• Efficiency up to 22.84%
• SMBB + Half-cell tech reduces internal current loss
• Lower temperature coefficient (-0.29%/ºC)
• Bifaciality rate up to 80-85%
• 25 or 30 years warranty optional

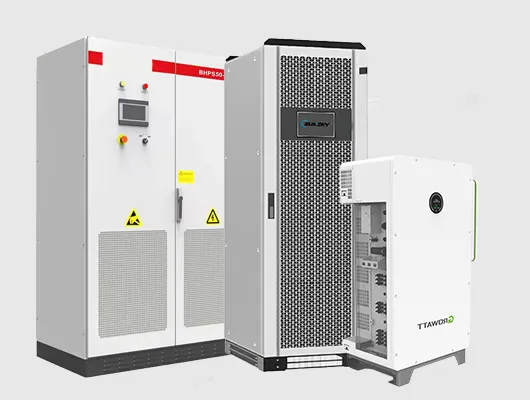

• Intelligent IC control & Multiple protection functions
• Pure sine wave output
• Double Sided PCB / Import zero device
• Aluminum alloy shell for durability
• Warranty: 10 Years

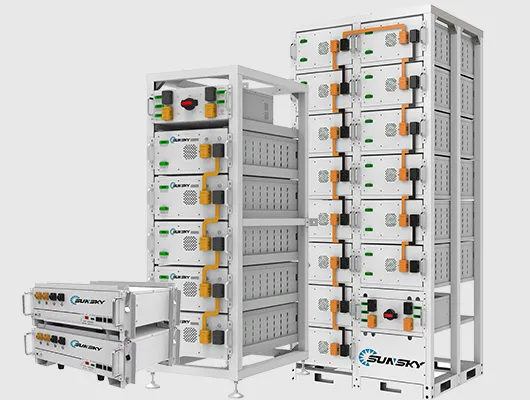

Standard module consists of 16 units 3.2V single cells. Nominal voltage 51.2V, total capacity customizable from kWh to MWh/GWh according to client requirements.

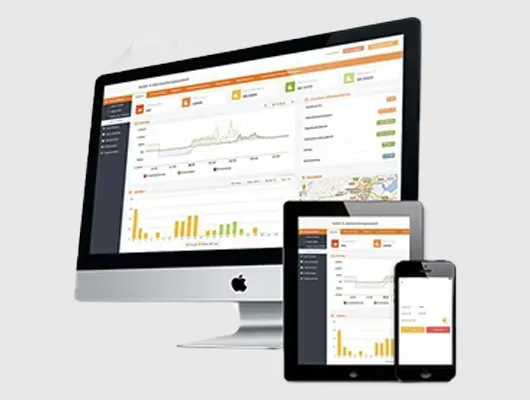

• One-click installation and registration
• Real-time safe operation monitoring
• Traceable logs and data security
• Full lifecycle data storage
