Stove Solar
1 / 5

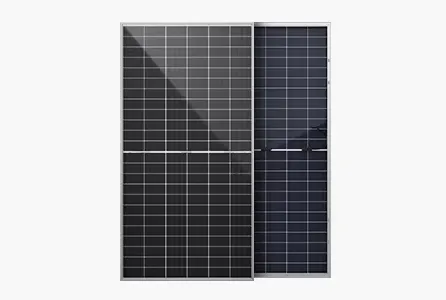

Peak Power: 580W
Max Power Voltage: 42.71V | Max Power Current: 13.58A
Open Circuit Voltage: 51.79V | Short Circuit Current: 14.29A
Size: 2279*1134*30mm | Weight: 31.5 kg

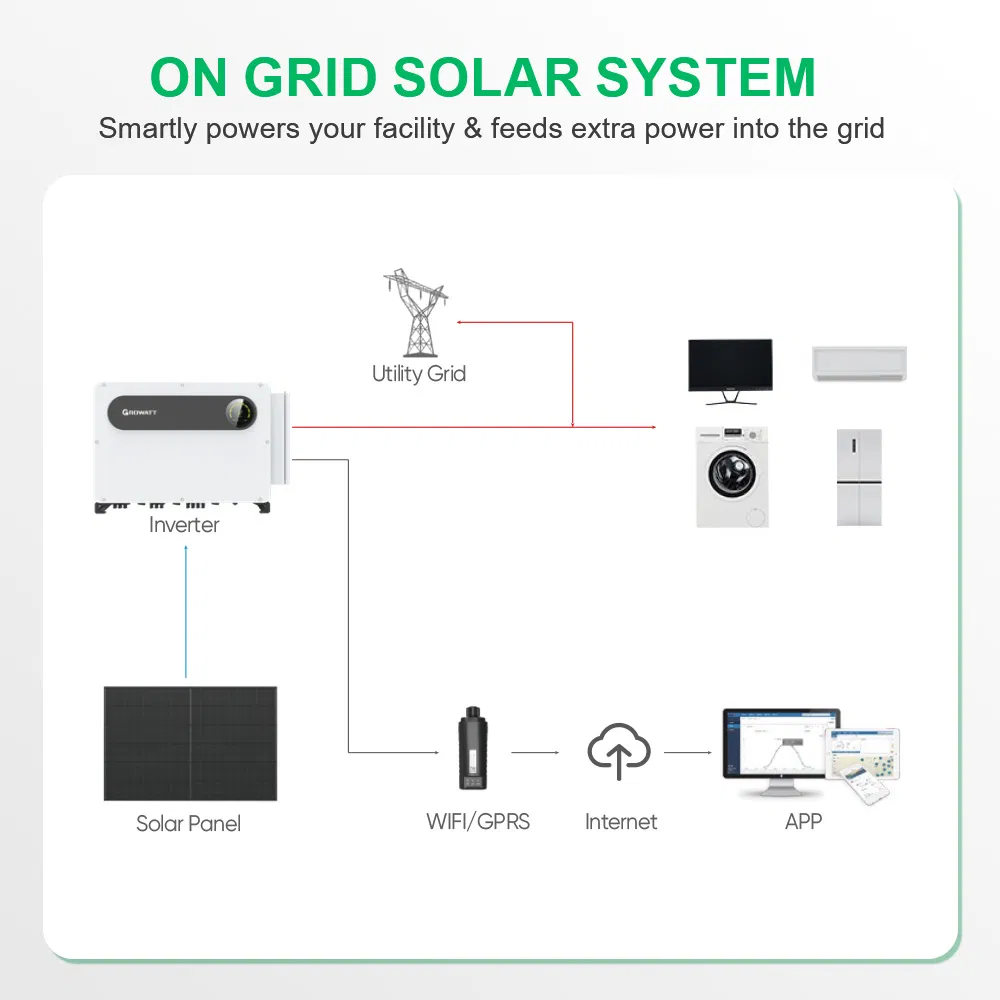

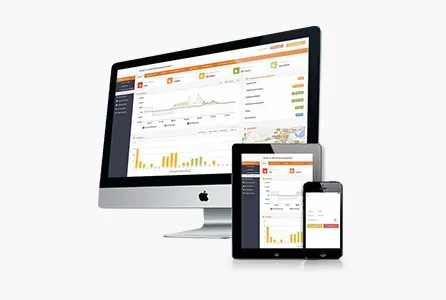

Open station supports one-click installation and registration. Features include problem dispatch, navigation, traceable logs, and full lifecycle data storage to ensure security and reliability.

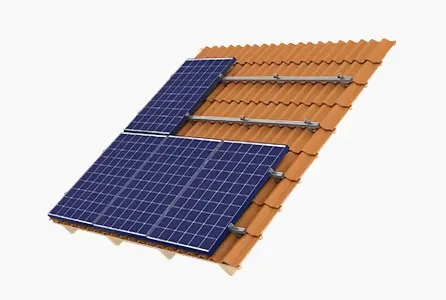

Applicable for different tile roofs. We provide project-specific designs with flexible configuration of mounting system components to save onsite installation time and costs.

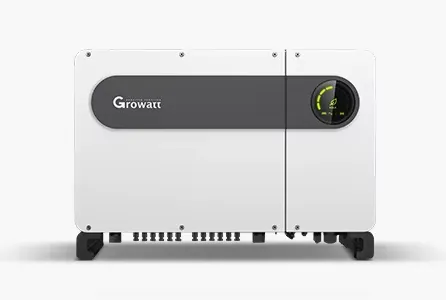

| Input Data (DC) | |
|---|---|
| Max. DC Voltage | 1100V |
| MPP Voltage Range | 180V-1000V |
| No. of MPP Trackers | 10 |
| Max. Input Current per MPPT | 32A |
| Output Data (AC) | |
| AC Nominal Power | 100000W |
| Nominal AC Voltage Range | 400V/380V (340-440VAC) |
| AC Grid Frequency | 50/60 Hz |
| AC Grid Connection Type | 3W/N/PE |
| General Data | |
| Dimensions (W / H / D) | 970/640/345mm |
| Weight | 84kg |
| Protection Degree | IP66 |
The Solar Energy System is certified to meet stringent global standards, including CE, TUV, CSA, UL, CEC, IEC, and VDE, ensuring seamless grid integration and compliance with local regulations.
We deliver end-to-end solar and energy storage solutions, integrating cutting-edge technology with expert engineering for residential, commercial, and industrial clients worldwide. We handle the entire process—from project design and product selection to installation guidance and after-sales support.
