Model NO.
MAX 100KTL3-X LV
Certification
ISO, CB, CE, TUV
Solar panel
Monocrystalline
Package Size
231.50cm * 112.50cm * 127.50cm
| Input data (DC) |
| Max. DC voltage | 1100V |
| MPP voltage range | 180V-1000V |
| No. of MPP trackers | 10 |
| Max. input current per tracker | 32A |
| Output data (AC) |
| AC nominal power | 100000W |
| Nominal AC voltage | 400V/380V (340-440VAC) |
| AC grid frequency | 50/60 Hz |
| General data |
| Dimensions (W / H / D) | 970/640/345mm |
| Weight | 84kg |
| Protection degree | IP66 |

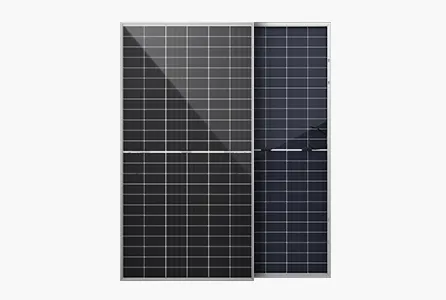

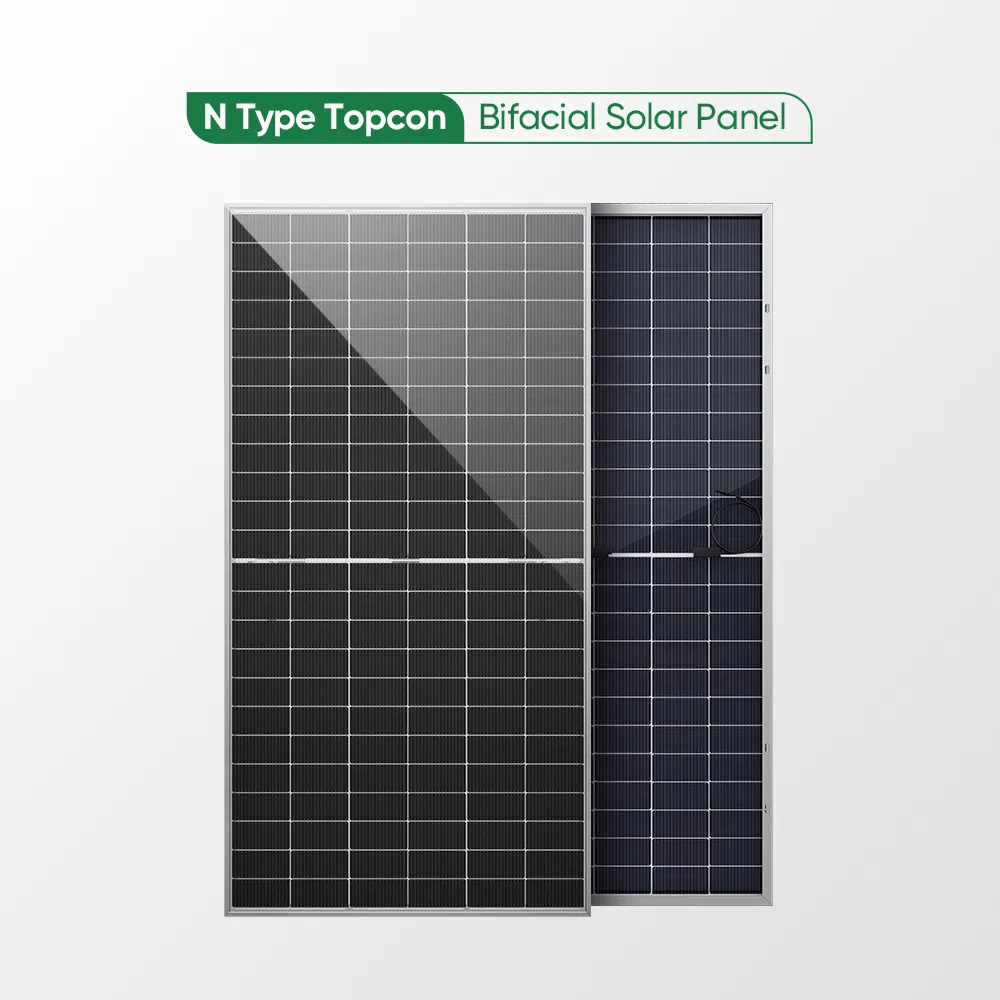

Topcon Half Cut Solar Panel
Peak Power: 580W
Maximum Power Voltage: 42.71V
Maximum Power Current: 13.58A
Size: 2279*1134*30mm | Weight: 31.5 kg

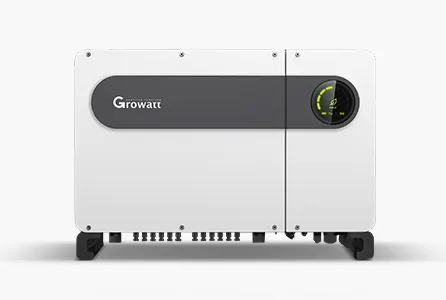

Grid-tied Solar Inverter
10 MPPTs fuse-free design;
Smart I/V scan and diagnosis;
Intelligent string monitoring;
AC & DC type II SPD.

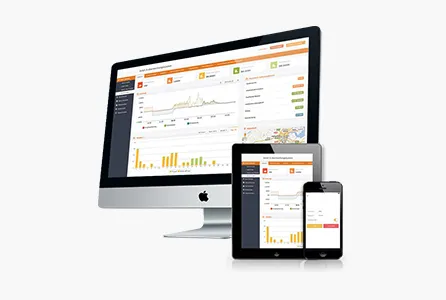

Monitoring System
One-click installation and registration;
Smart problem dispatch and navigation;
Traceable logs and safe operation;
Full lifecycle data storage for security.

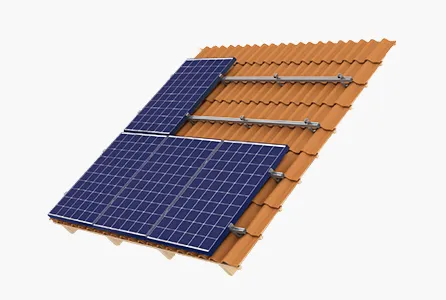

Roof Mounting Bracket
Applicable for various tile roofs;
Flexible component selection project by project;
Pre-assembled components to save installation time;
Clear manuals provided for onsite setup.

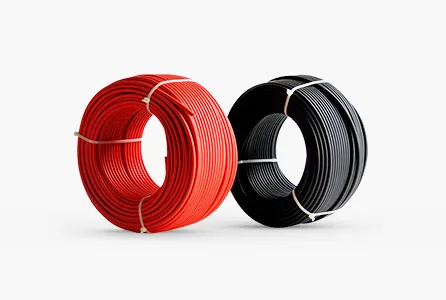

PV Cable & Connectors
Cross Section: 4mm², 6mm² optional;
Rated Voltage: 600VDC/1000VDC;
Colors: Black, Red;
Lifetime: Up to 25 Years.
V

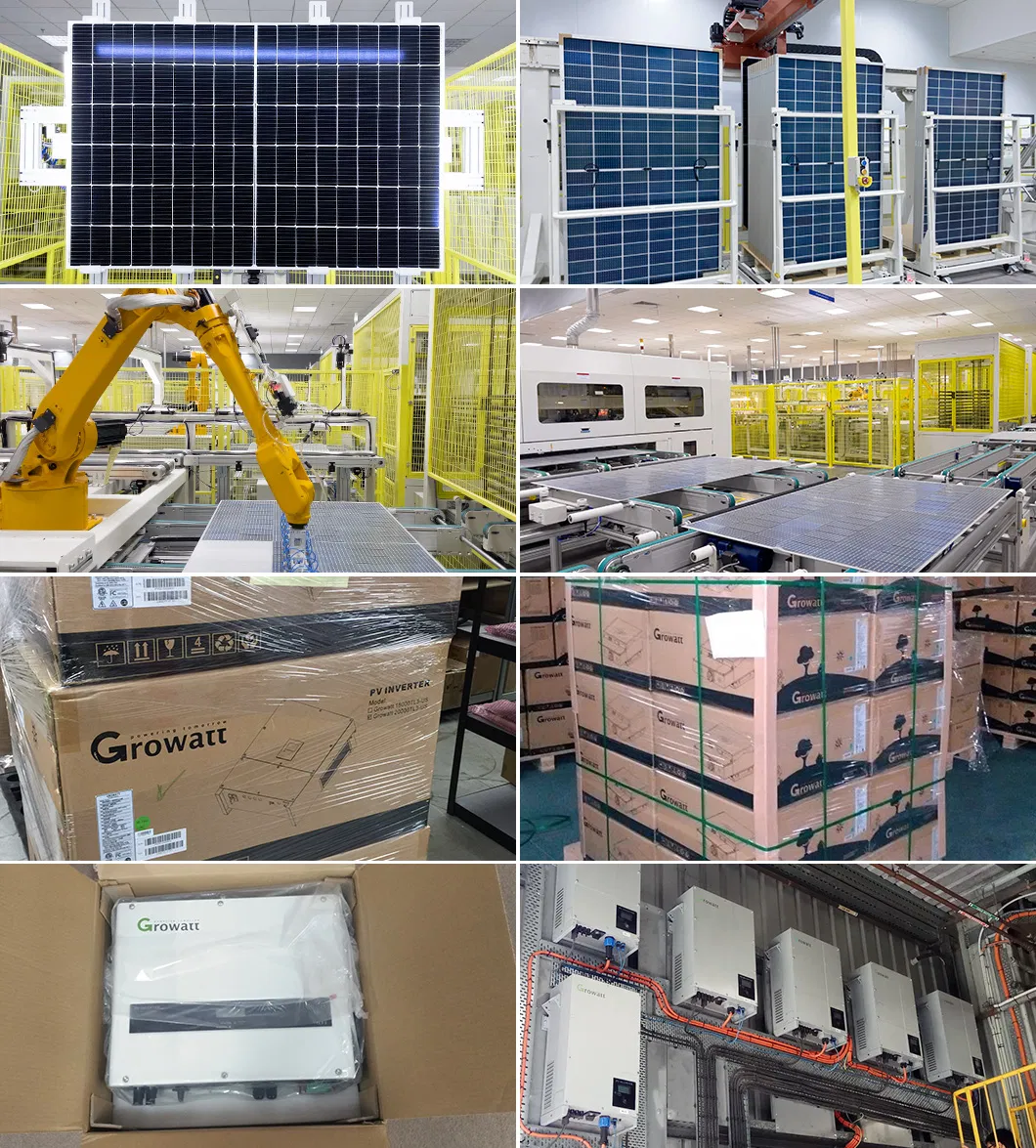

Packaging & Company Overview
Our on-grid solar systems have been exported to more than 50 countries and regions with full quality assurance.
Manufacturer Overview
Specializing in research, development, and production of solar PV products. Focused on All-black solar panels since 1998, with exports to 86 countries. Facility covers 150,000 square meters with a dedicated workforce of 600 employees.
?
Frequently Asked Questions
What is the efficiency of the MAX 100KTL3-X LV inverter?
The inverter features high efficiency with 10 MPPT trackers, ensuring optimal power harvesting even in complex shading conditions.
Is the system compatible with different roof types?
Yes, our mounting brackets are customized project by project to suit various tile and metal roof structures.
How can I monitor the performance of my solar system?
The system includes a smart monitoring gateway with Wifi communication, allowing you to track energy production via a mobile app or web portal.
What is the protection rating for the inverter?
The inverter is rated IP66, making it highly resistant to dust and high-pressure water jets, suitable for outdoor installation.
Do the solar panels come with a warranty?
Yes, all our monocrystalline solar panels are manufactured under strict ISO standards and come with long-term performance guarantees.
Can the system be customized for larger power requirements?
Absolutely. While this kit is designed for 80kW-120kW, the components are modular and can be scaled for larger commercial requirements.
