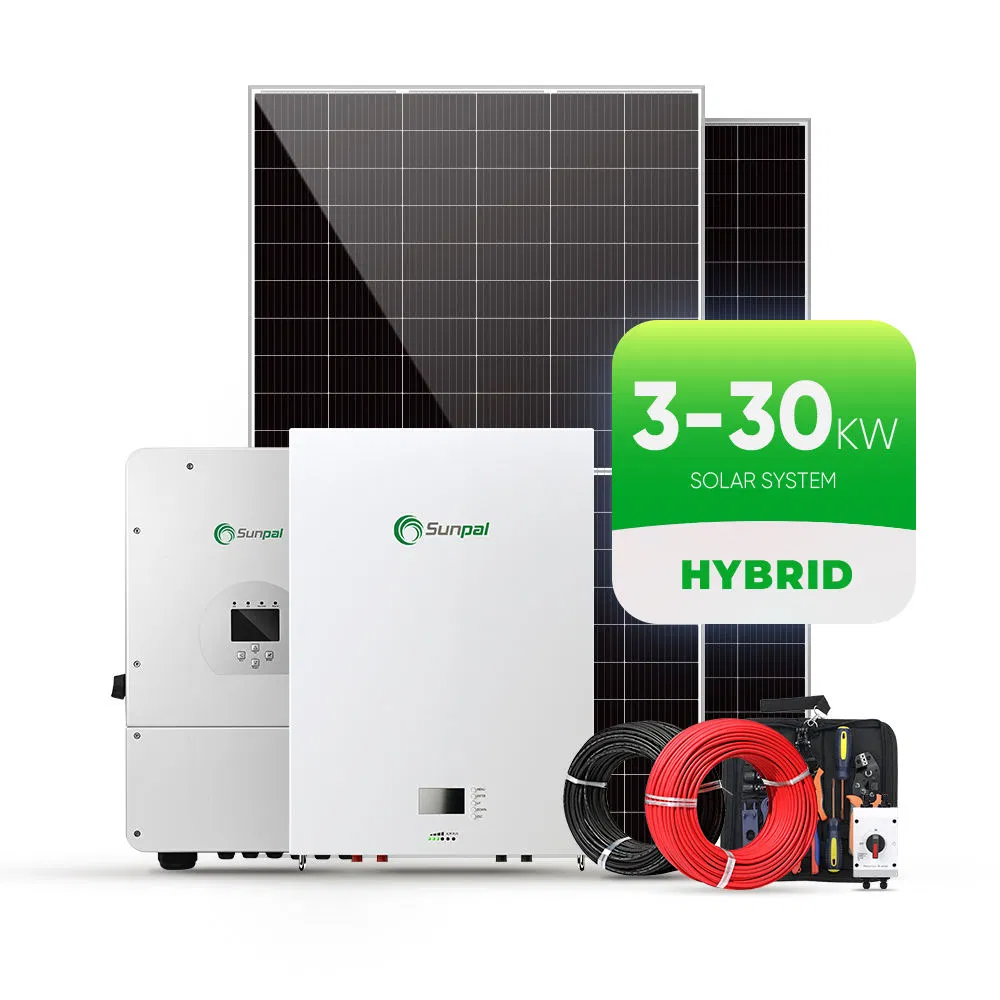

Sunpal Full Solar Power System 5Kw 6Kw 10Kw Hybrid Solar System Complete Kit

Customization: Available
Weight: 1228kg
Warranty: 10 Years

Product Description

📊
Basic Information
Model NO.Hybrid-SP3-30KW
Cycle Life6000 Cycles @ 80% DOD
Nominal Capacity3KW, 5KW, 10KW, 20KW, 30KW
ApplicationHome
Solar Panel TypeMonocrystalline Silicon
Battery TypeLead-Acid, Lithium Ion
Controller TypeMPPT
Mounting TypeGround Mounting
Output Voltage (V)380-415V
Output Frequency50/60HZ
Product NameResidential Hybrid Solar System
System TypeOff-grid Hybrid Solar Photovoltaic System
InverterSingle Phase/Split Phase/3Phase
BatteryLead Acid/LiFePO4 Lithium Battery
Production Capacity50sets/Day
📦
Packaging & Delivery
Package Size231.50cm * 112.50cm * 127.50cm
Package Gross Weight1228.000kg
Transport PackageWooden with Pallet
📝
Product Description

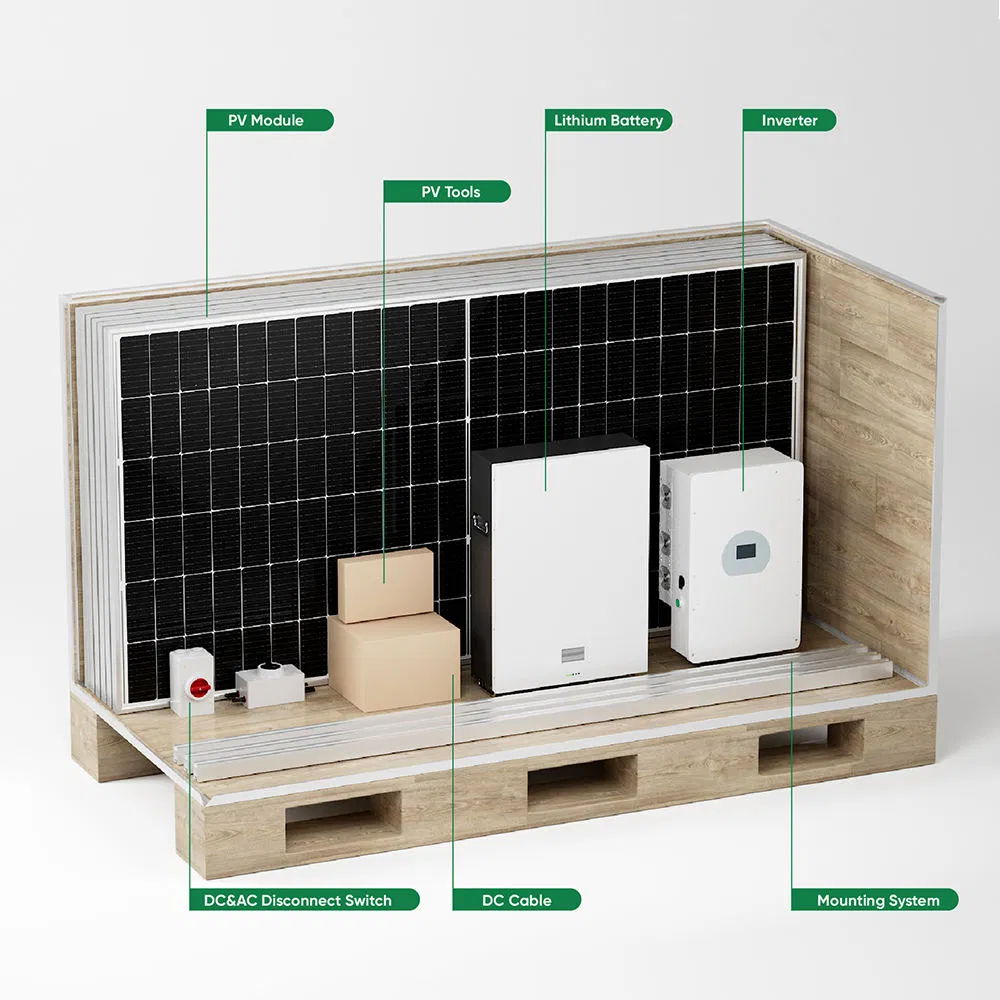

Hybrid Solar System Complete Kit

Warranty & Operation

Warranty Information

How It Works

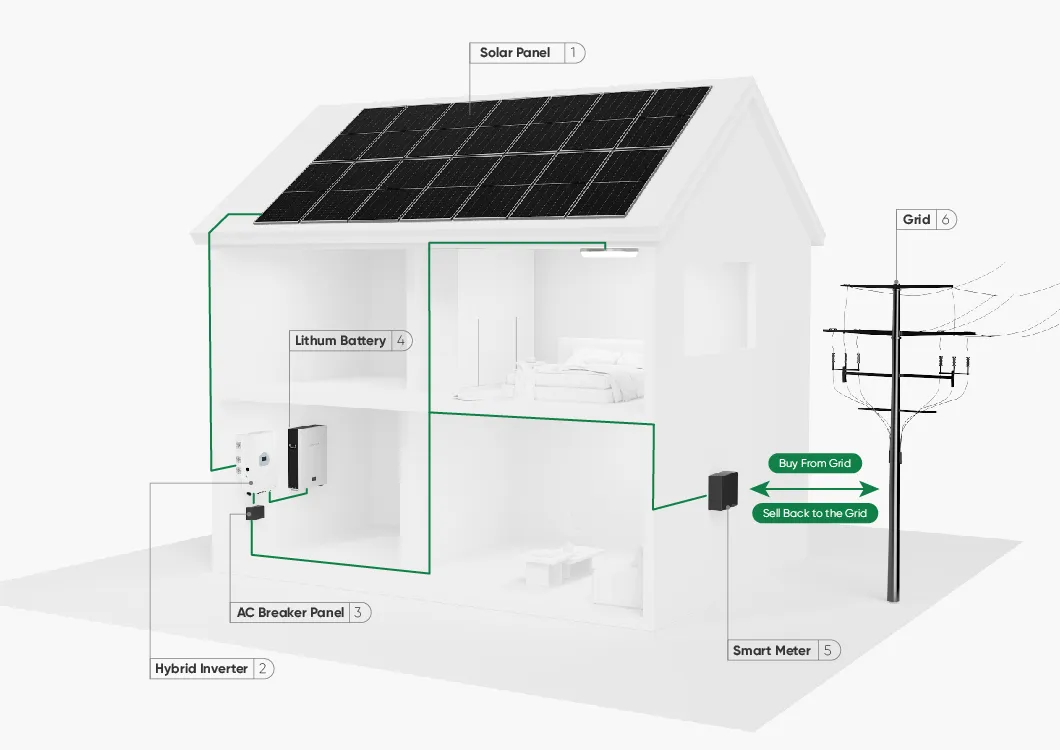

Solar System Diagram

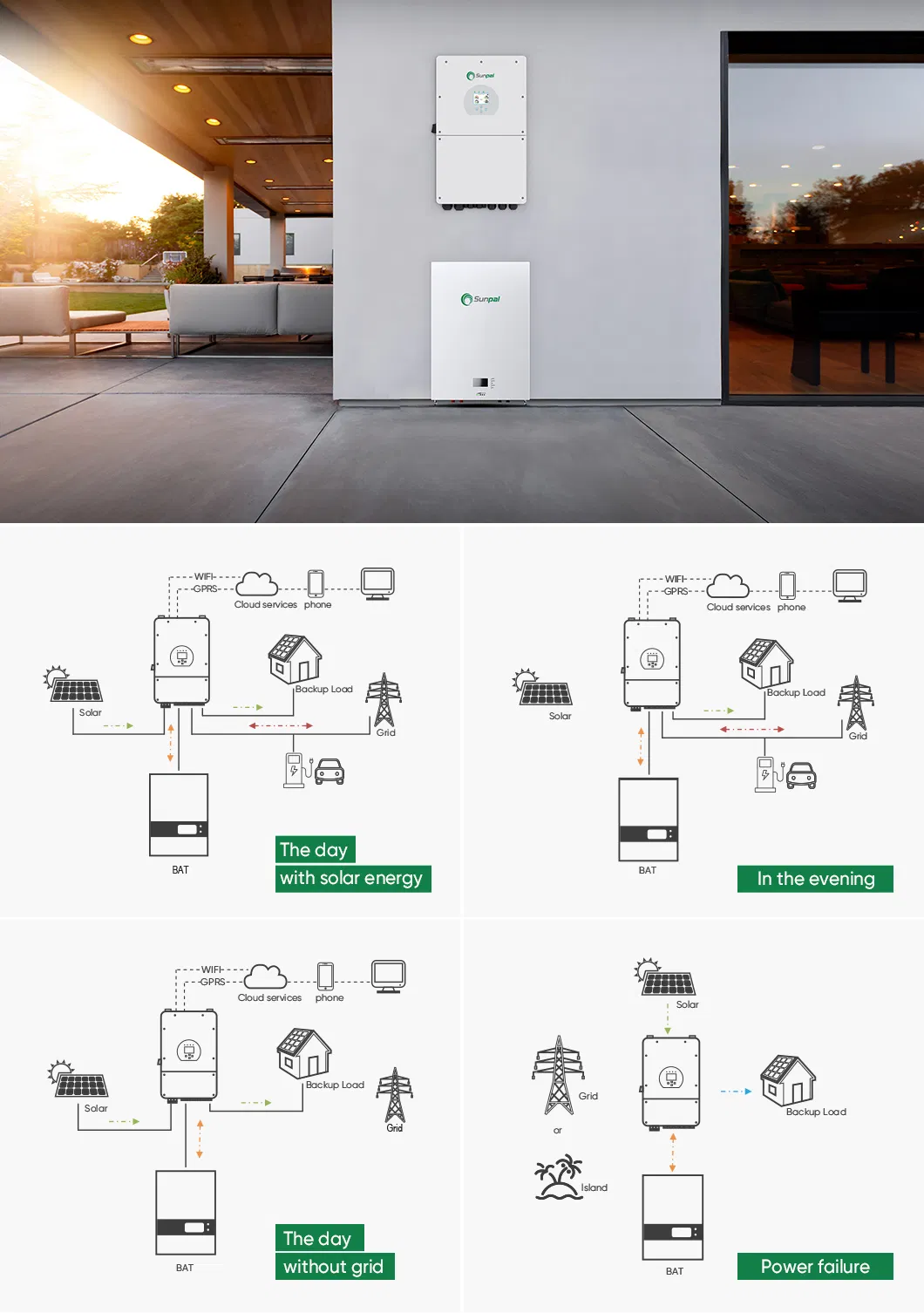

System Workflow
📋
Technical Specifications
ModelSP-3KW-HYSP-5KW-HYSP-10KW-HY
Mono 550W Panel6 Pieces10 Pieces20 Pieces
Hybrid InverterSUN-3K-SG04LP1-EUSUN-5K-SG03LP1-EUSUN-10K-SG04LP3-EU
LiFePo4 Battery5Kwh5Kwh10Kwh
DC Cable 4mm2100 meter200 meter400 meter
Mounting SystemCustomized Based On Installation Site
ModelSP-15KW-HYSP-20KW-HYSP-30KW-HY
Mono 550W Panel30 Pieces42 Pieces63 Pieces
Hybrid InverterSUN-5K (3 Pcs)SUN-5K (3 Pcs)SUN-5K (3 Pcs)
LiFePo4 Battery15Kwh20Kwh30Kwh
DC Cable 4mm2600 meter800 meter1000 meter
🔍

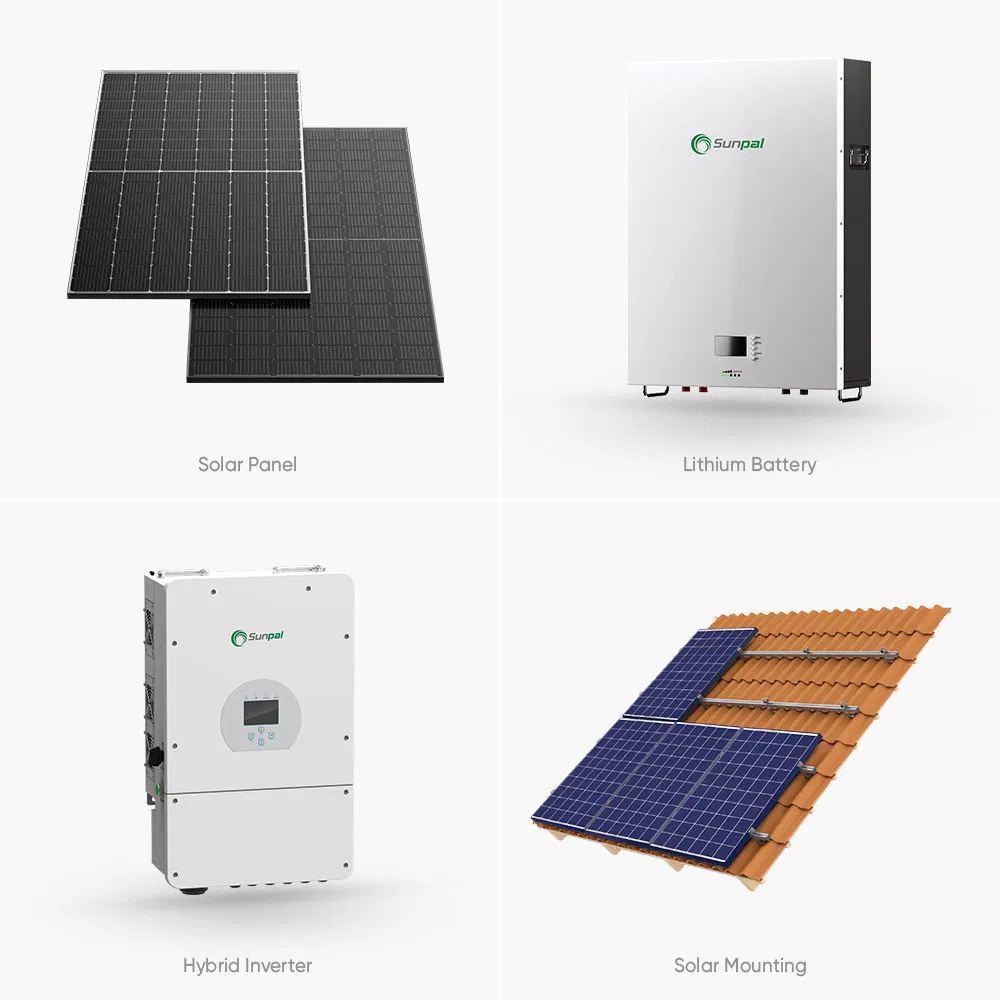

Product Components

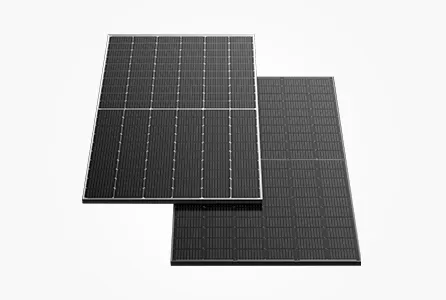

N Type Topcon Mono Solar Panel

N Type Topcon Mono 580W Panel

  • Peak Power: 580W
  • Max Power Voltage: 43.09V
  • Max Power Current: 12.84A
  • Dimensions: 2279x1134x30mm
  • Weight: 27.5 kg

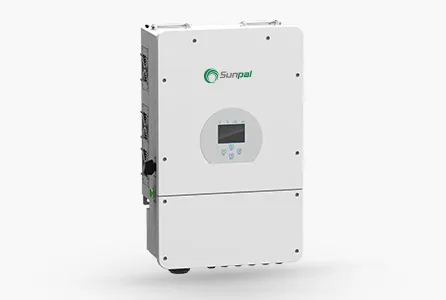

Hybrid Solar Inverter

  • 48V low voltage battery design
  • 6 time periods for charging/discharging
  • Max charging/discharging current 240A
  • Support DC and AC couple retrofit
Hybrid Solar Inverter

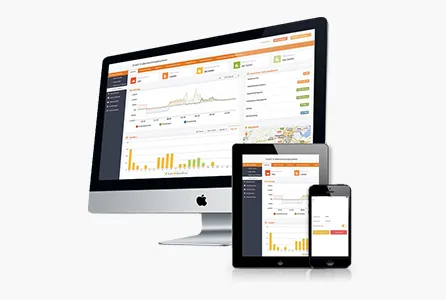

Monitoring System

Monitoring System

  • One-click installation and registration
  • Safe operation with traceable logs
  • Full lifecycle data storage
  • Remote data security and reliability

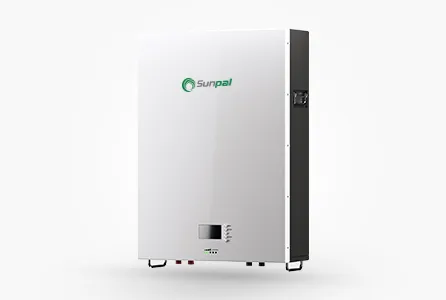

Wall Mounted LiFePo4 Battery

  • 15-20 years design life
  • 6000+ cycle life
  • Scalable battery module design
  • High quality built-in BMS protection
LiFePo4 Battery
🏭
Our Factory & Projects
Factory Production

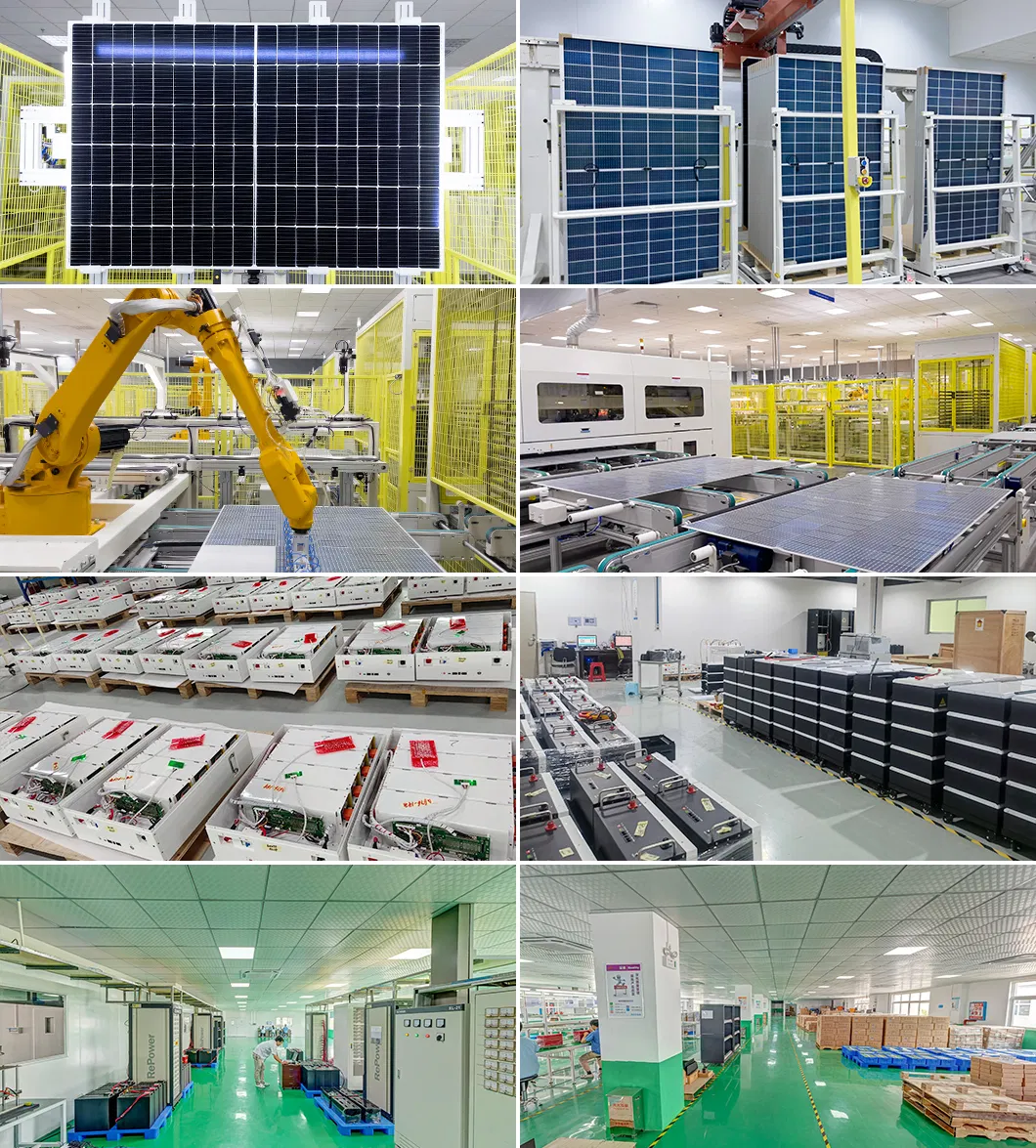

Factory Testing

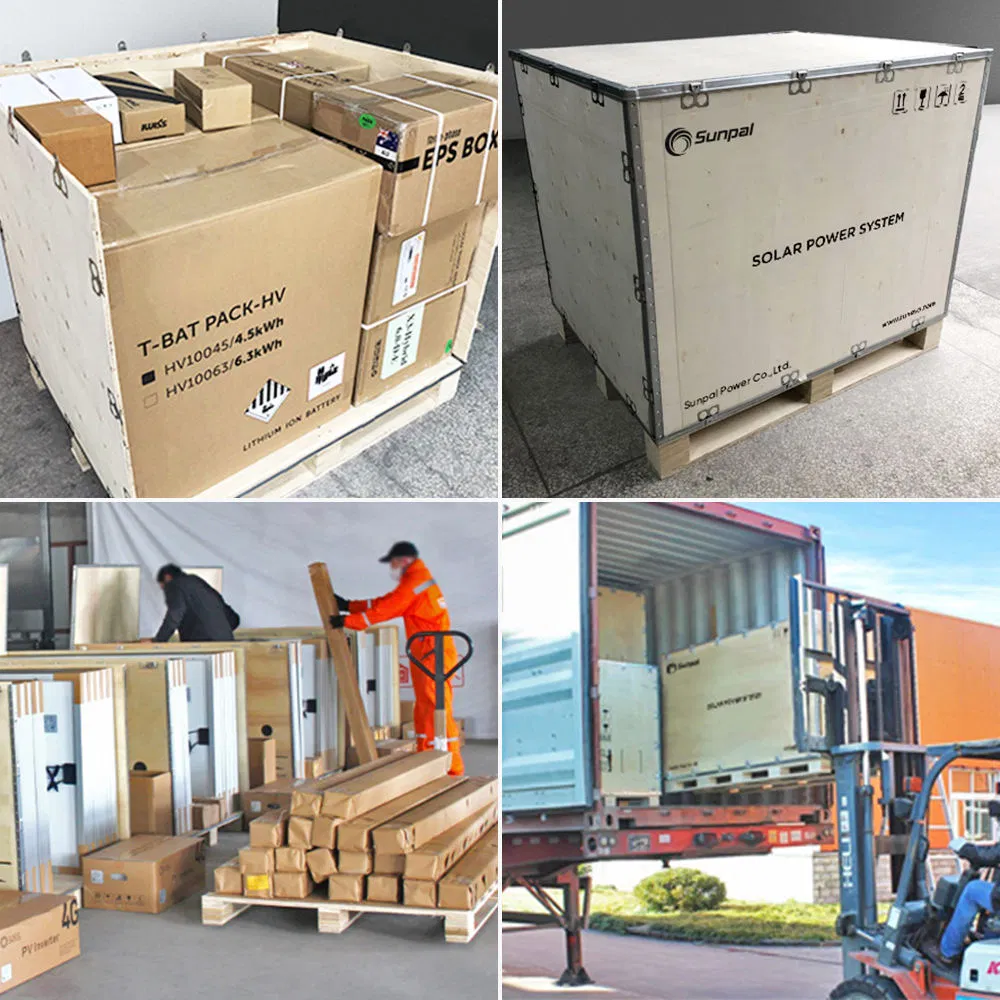

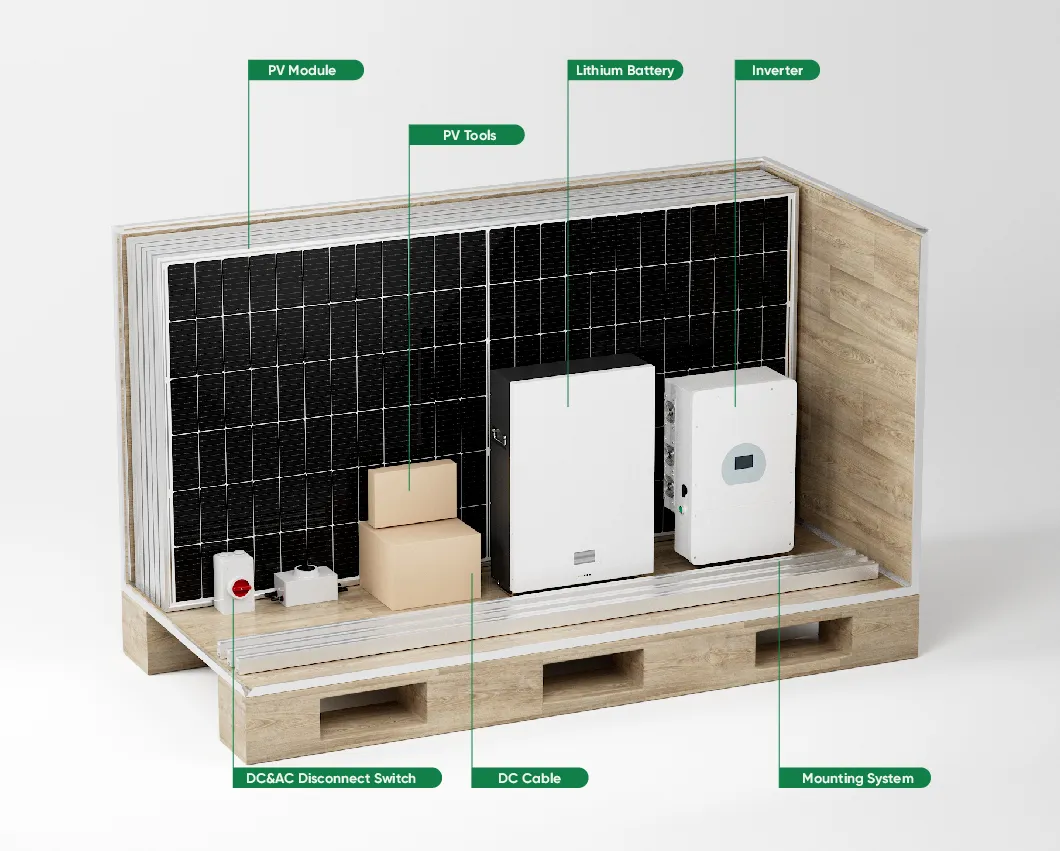

Packaging

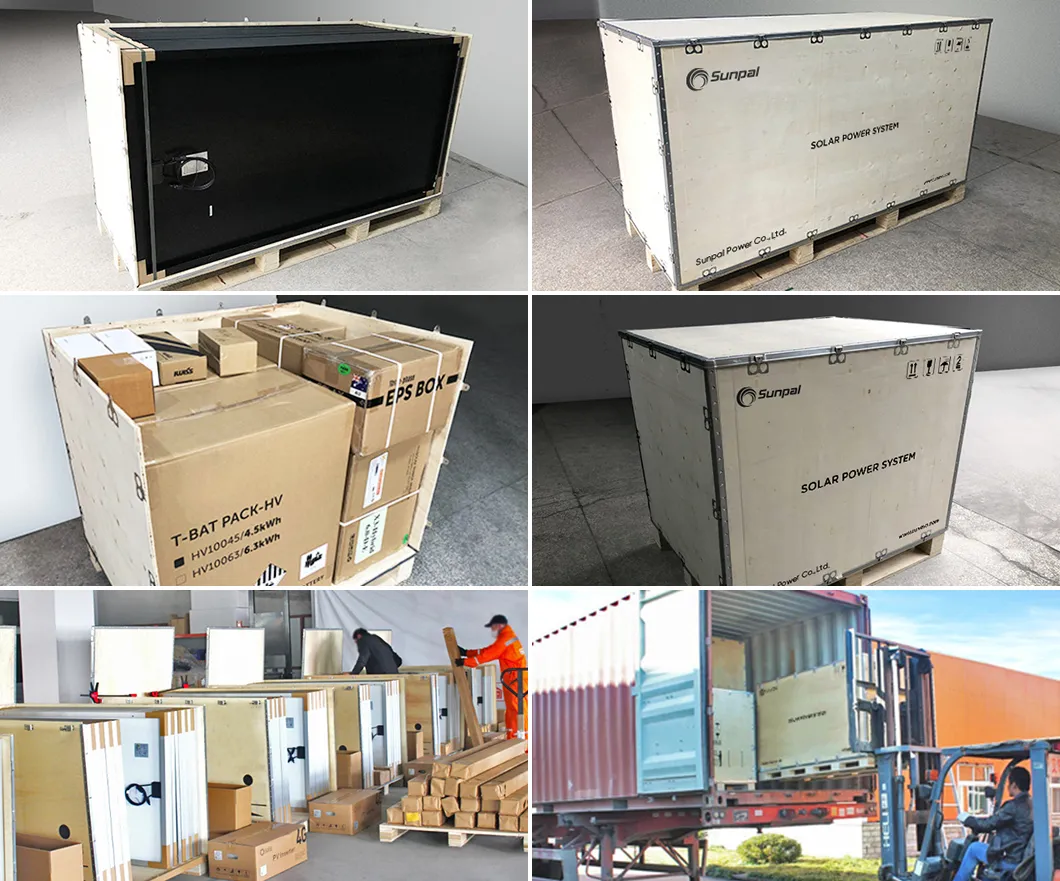

Shipping

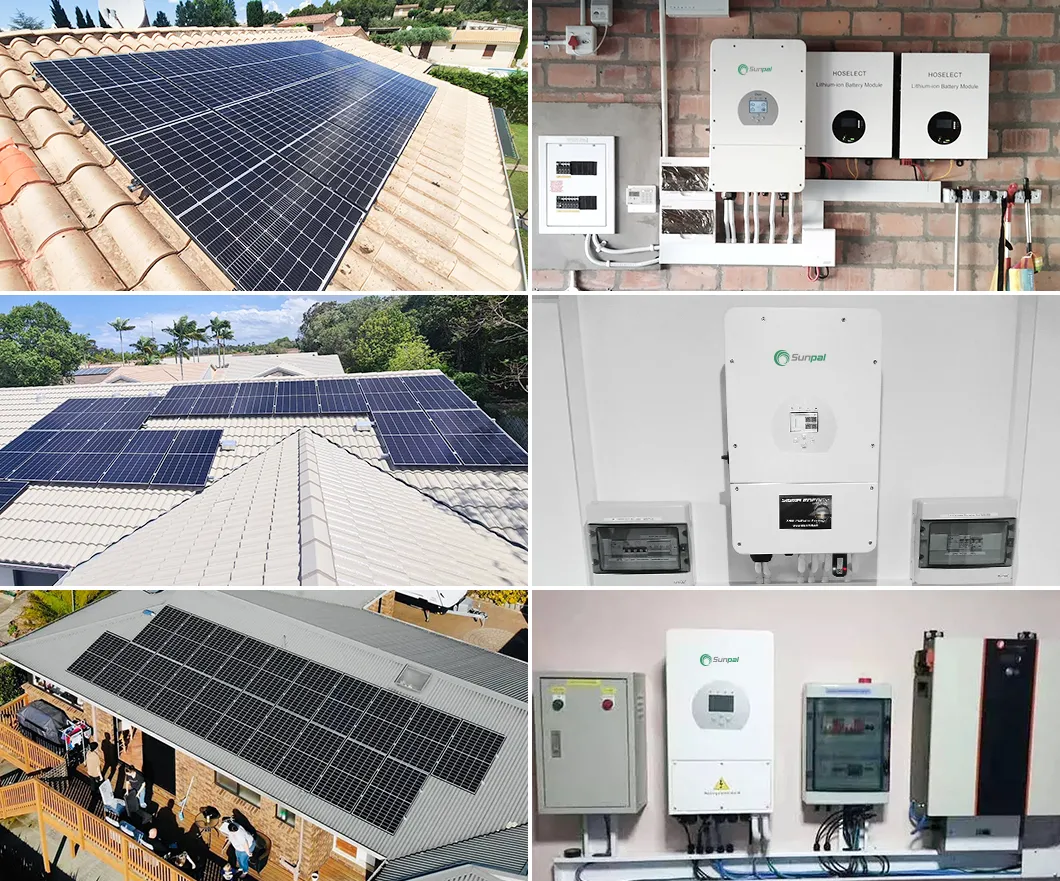

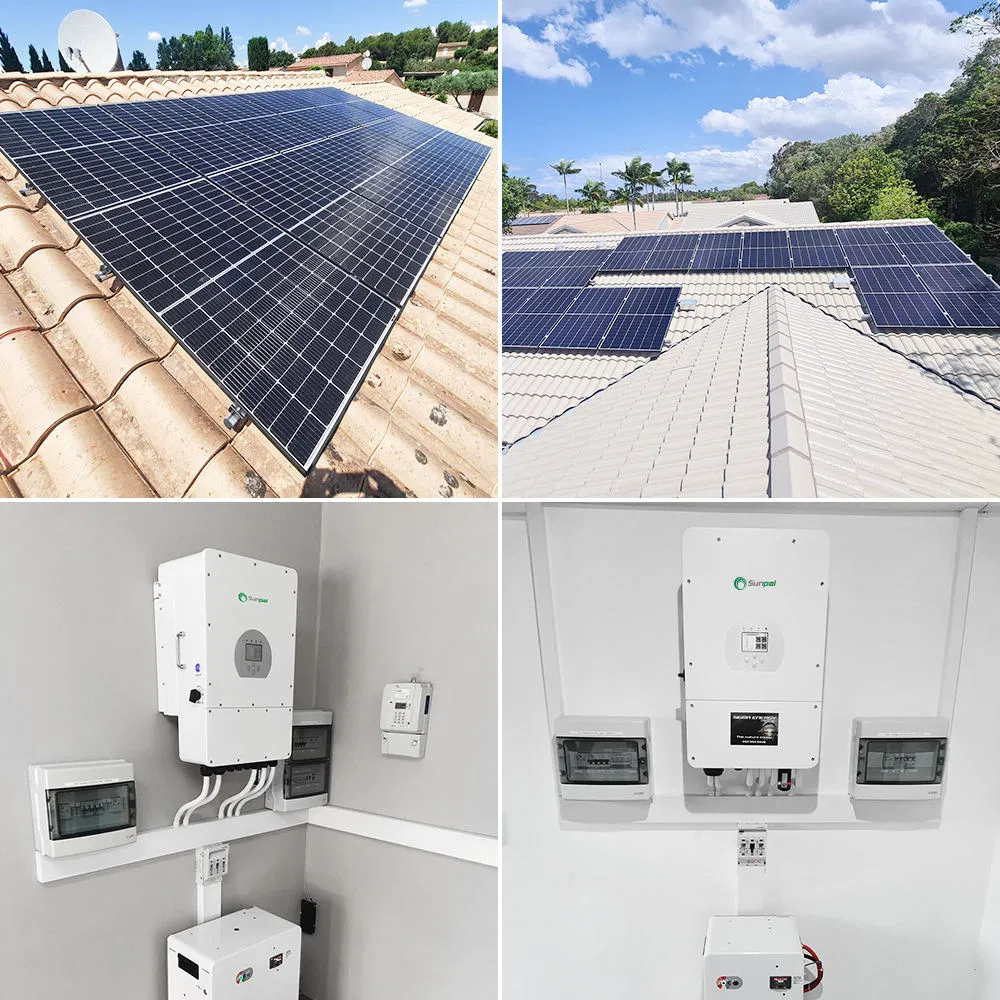

Project Case
Frequently Asked Questions
Q1: What is the lifespan of the battery in this hybrid system?
The LiFePo4 battery is designed for a 15-20 year lifespan and supports over 6000 cycles at 80% Depth of Discharge (DOD).
Q2: Can the system work with both off-grid and on-grid setups?
Yes, this is a hybrid photovoltaic system that can operate off-grid while also allowing for AC/DC coupling to existing solar infrastructures.
Q3: Is the monitoring system included in the complete kit?
Yes, the kit includes a monitoring system that supports one-click installation and remote data tracking for security and reliability.
Q4: Are the solar panels high efficiency?
We use N-Type Topcon Monocrystalline solar panels (up to 580W), which offer superior efficiency compared to standard panels.
Q5: Can the mounting structure be customized for my roof?
Absolutely. The mounting system is a customized product based on your specific installation requirements, whether it's for a rooftop or ground mounting.
Q6: What tools are provided for installation?
The kit comes with a complete set of PV installation tools, including wire cable cutters, strippers, and MC4 crimping tools.
