Sunman PV Flexible Solar Module 144 Half Cell 430W 520W Flexible Solar Panel for House

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Basic Info.

Model NO. SMF250-430M Number of Cells 144cells
Application Light Industry Condition New
Certification ISO, CE, TUV Material Monocrystalline Silicon
Specification 2054*1080*2mm Trademark Flexible solar panel
HS Code 8541402000 Origin China

Packaging & Delivery

Package Size 212.00cm * 105.00cm * 132.00cm
Package Gross Weight 500.000kg

Product Description

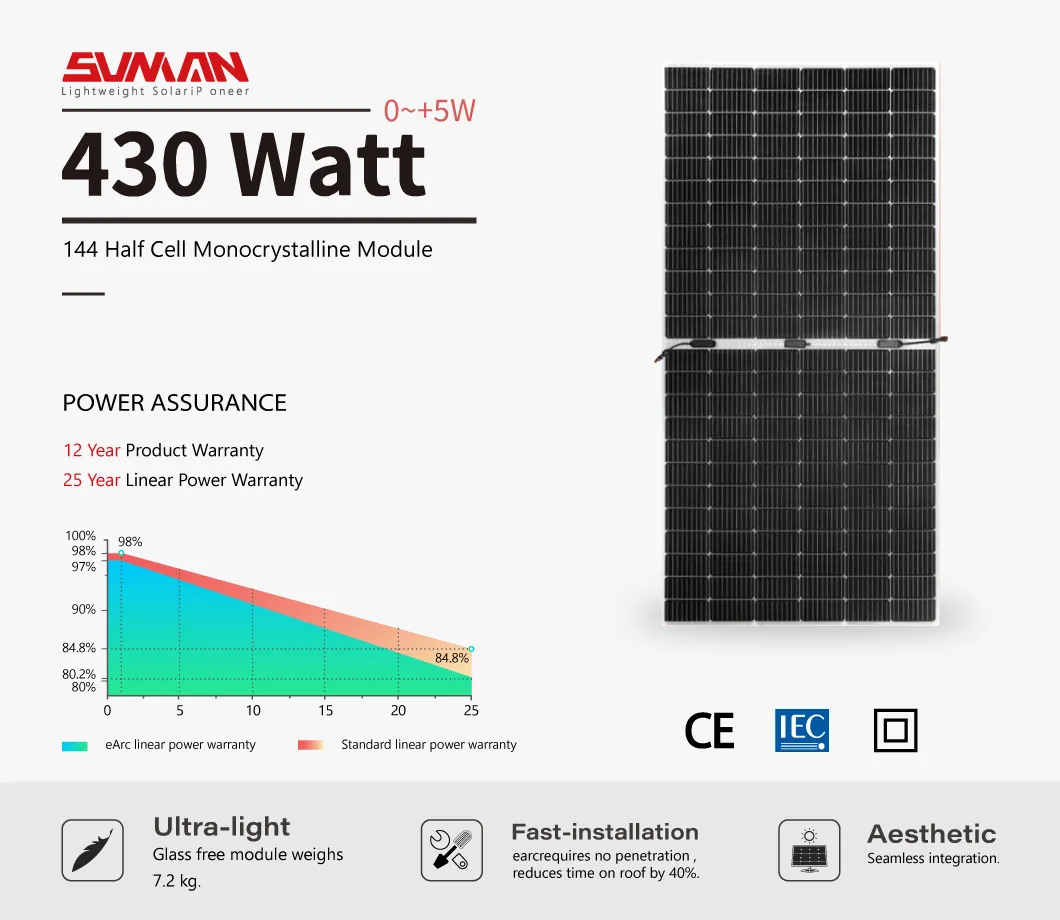

Flexible Solar Module

Product Parameters

STC SMF430F-12X12UW
Maximum Power (Pmax) 430
Maximum Power Voltage (Vmp) 42.0
Maximum Power Current (Imp) 10.24
Open-circuit Voltage (Voc) 49.8
Short-circuit Current (Isc) 10.74
Module Efficiency (%) 19.2
Operating Temperature -40ºC to 85ºC
Maximum System Voltage 1000V DC(IEC)
Maximum Series Fuse Rating 20A
Weight 7.3KG
Size 2120*1046*2mm

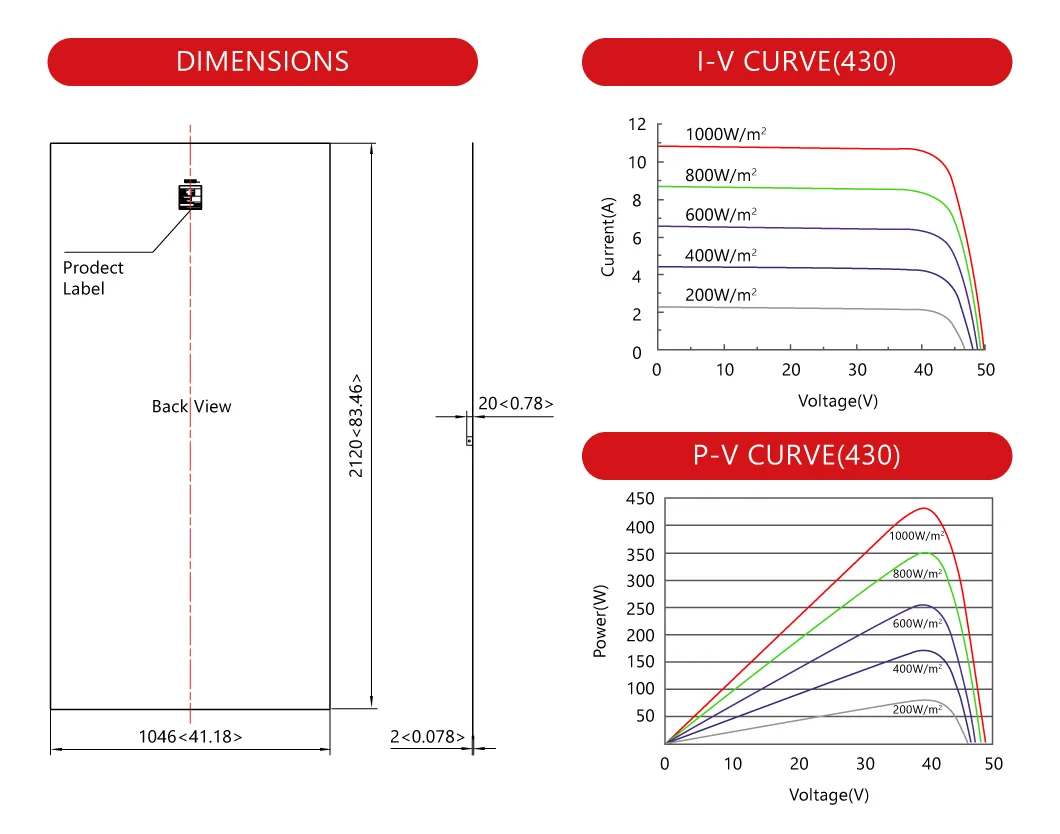

Flexible Solar Panel parameters

Detailed Photos

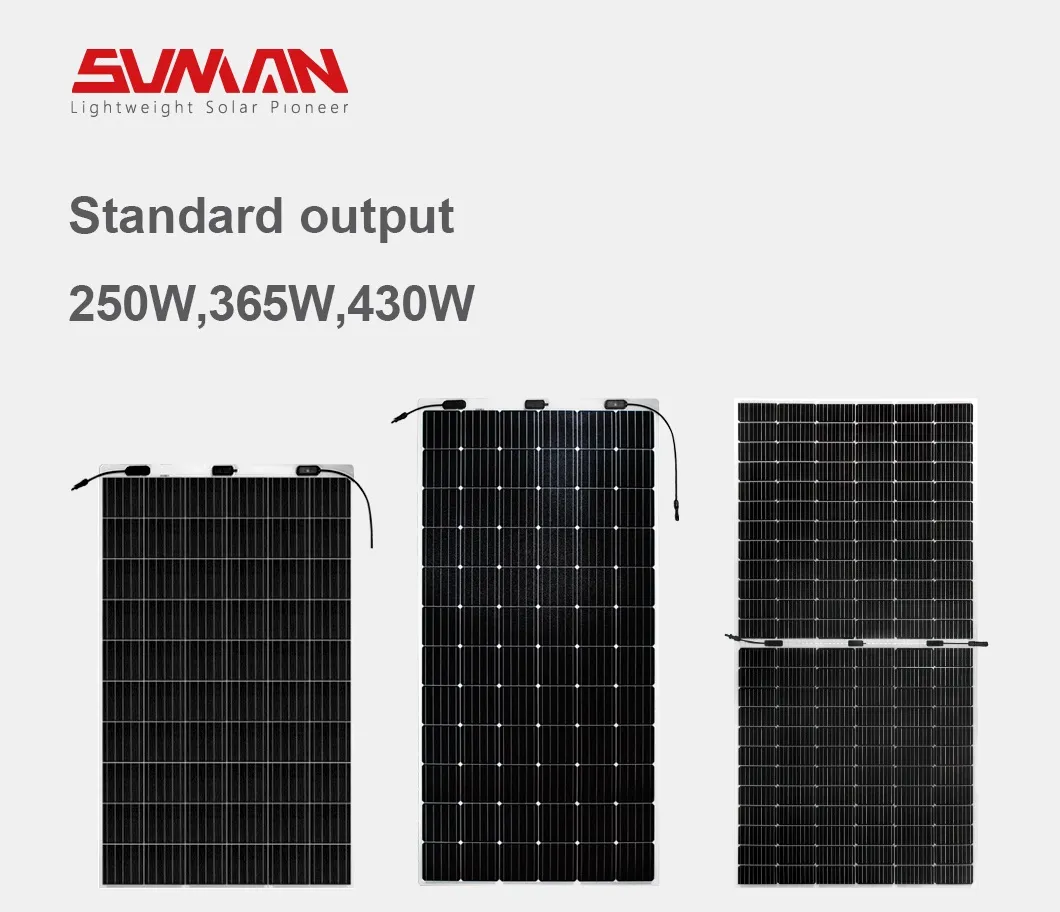

Detailed View 1

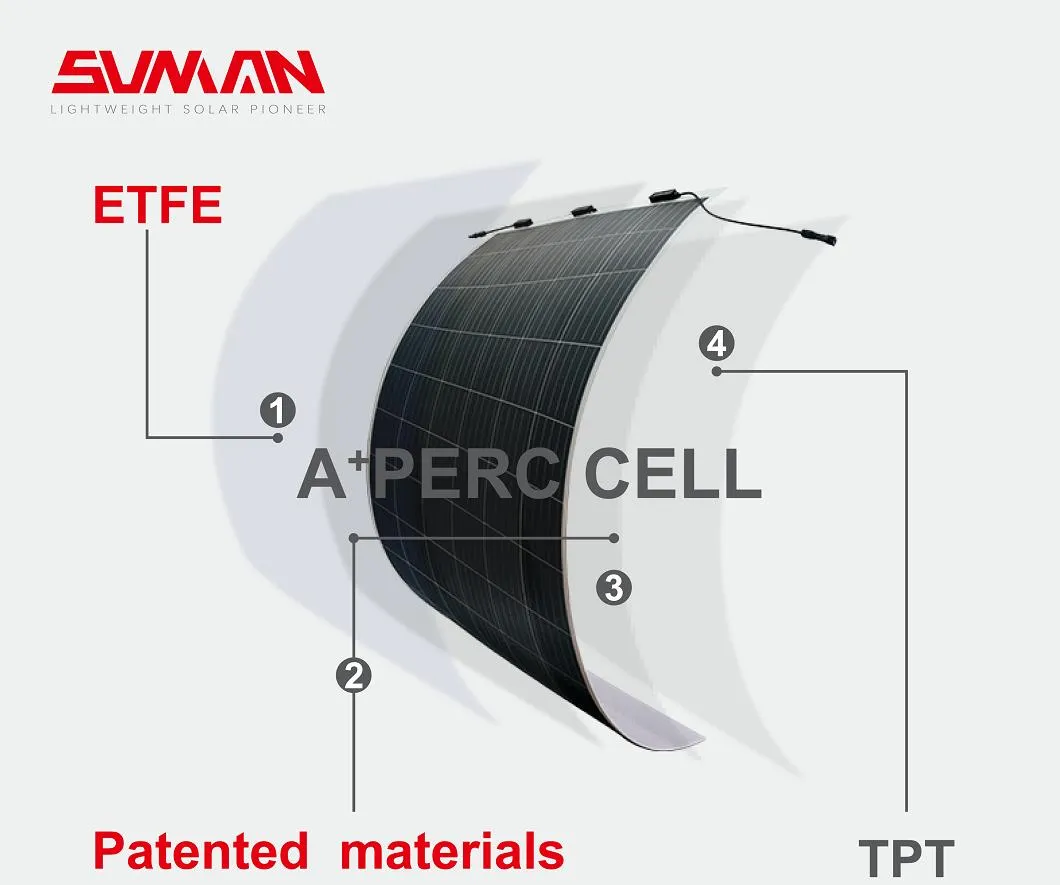

Detailed View 2

Project Case

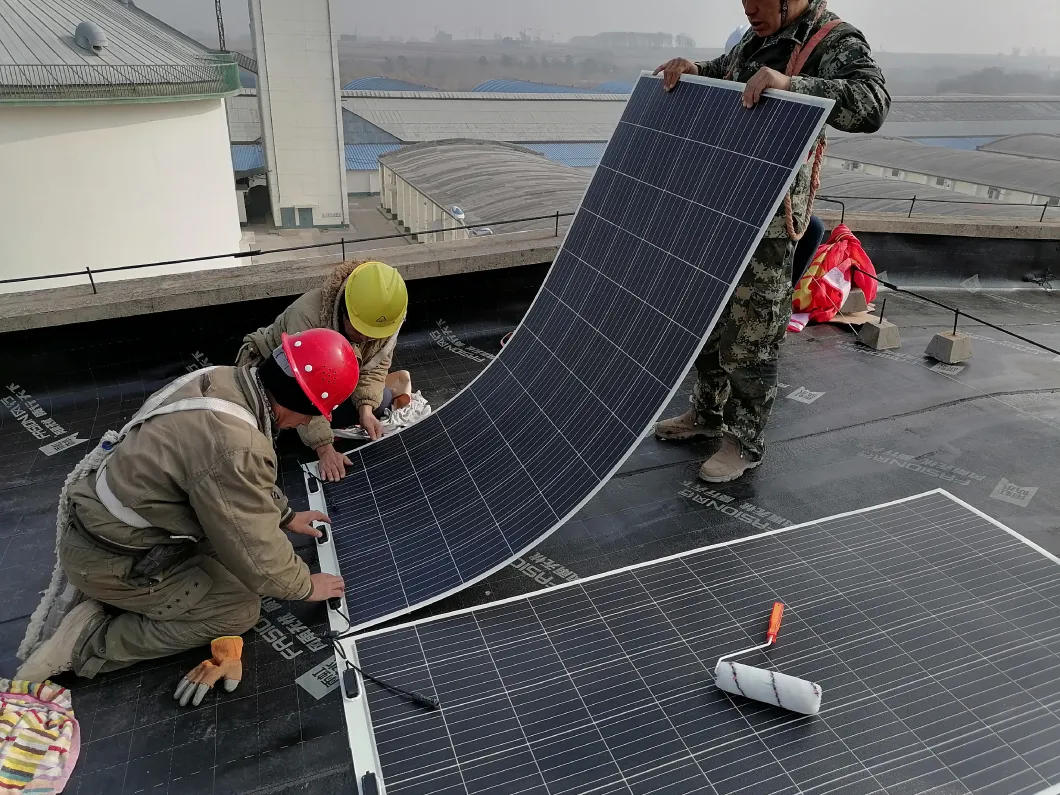

Project Case 1
Project Case 2

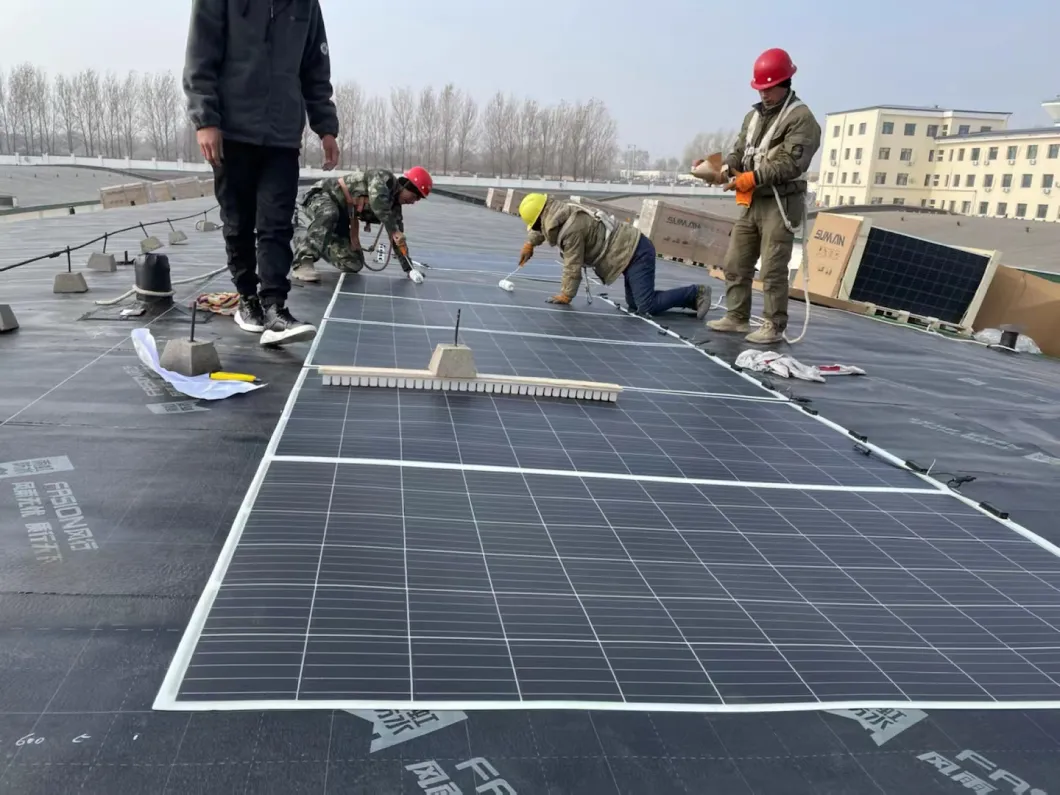

Project Case 3

Packaging & Shipping

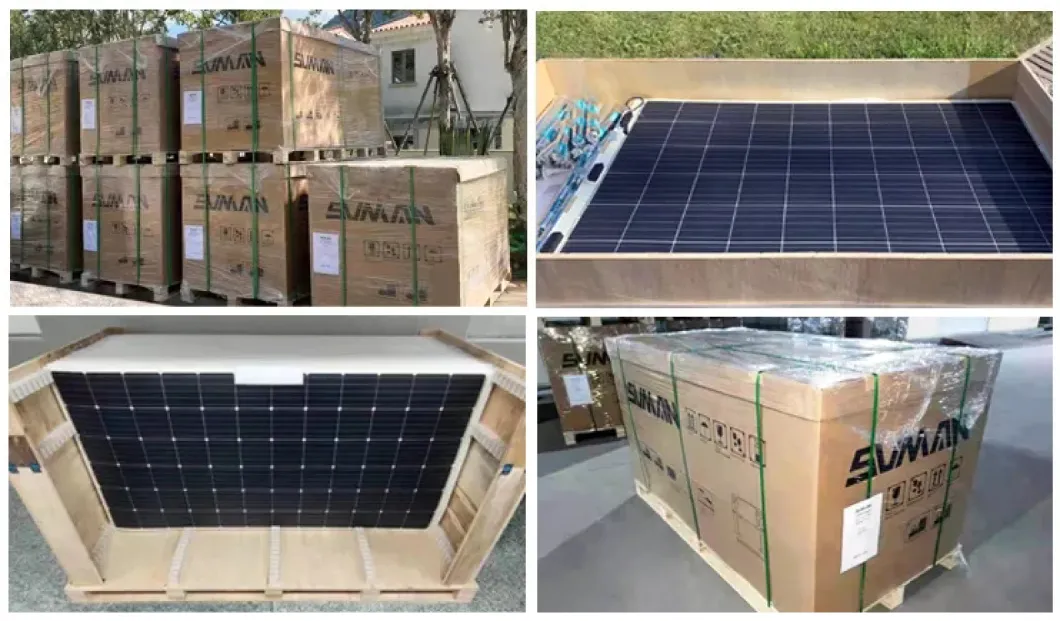

Shipping 1
Shipping 2

FAQ

How to choose the right panel?
Tell us your demand, then our sales will recommend a suitable panel for you.
What's the difference between Mono and Poly panel?
Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
How about the delivery time?
Delivery time 7 days for sample; 15 days for bulk order.
What is the warranty for solar panels?
Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
How can I get better service from you?
We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
