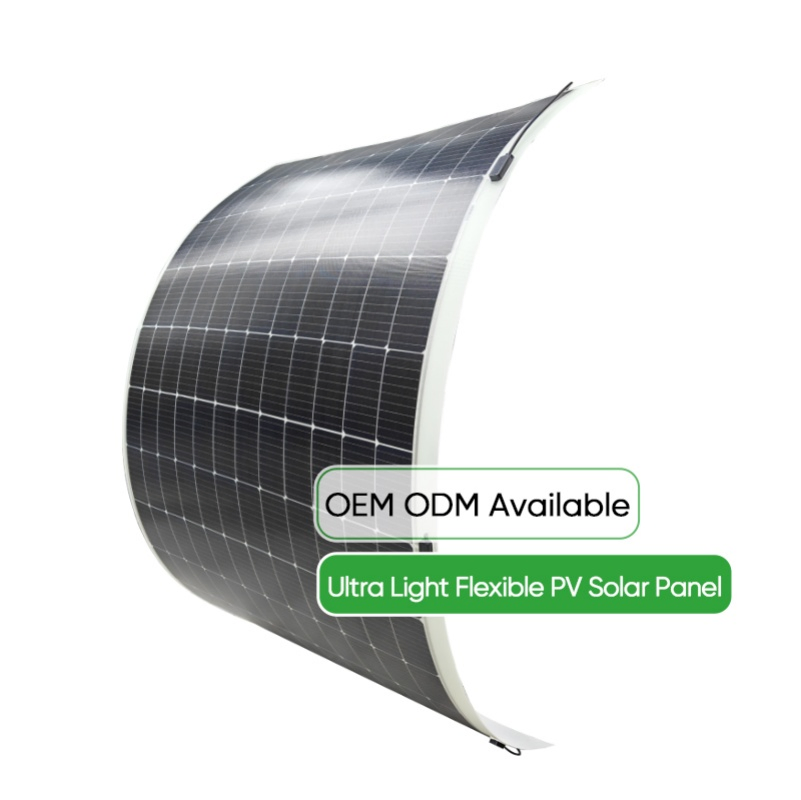

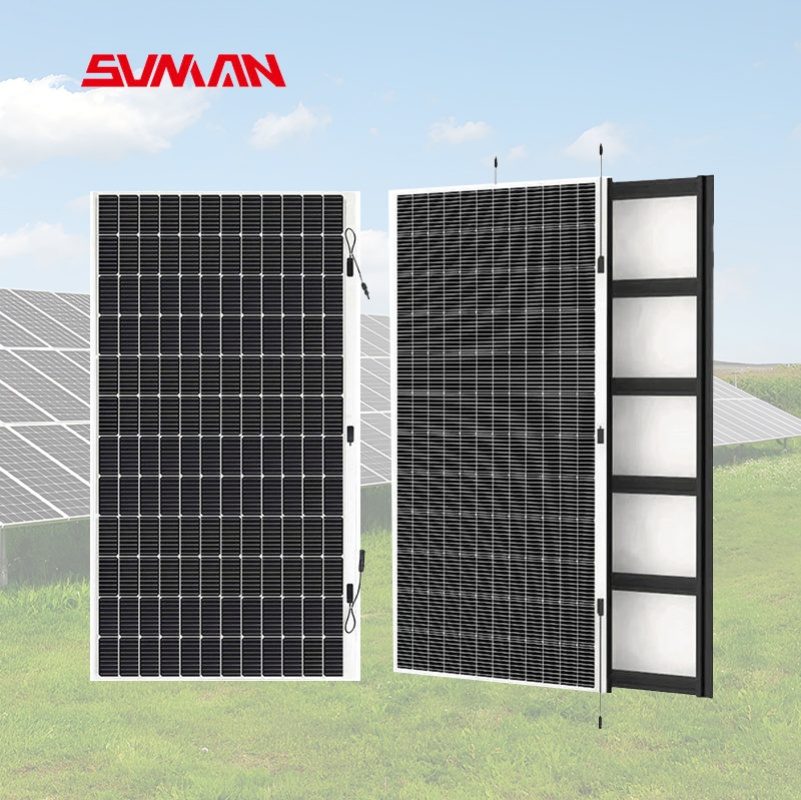

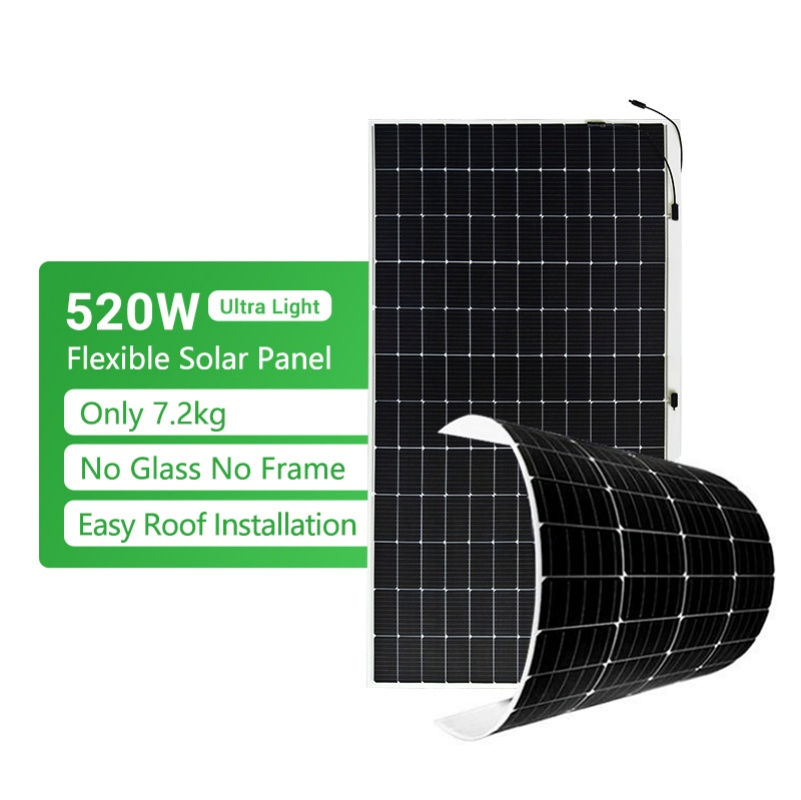

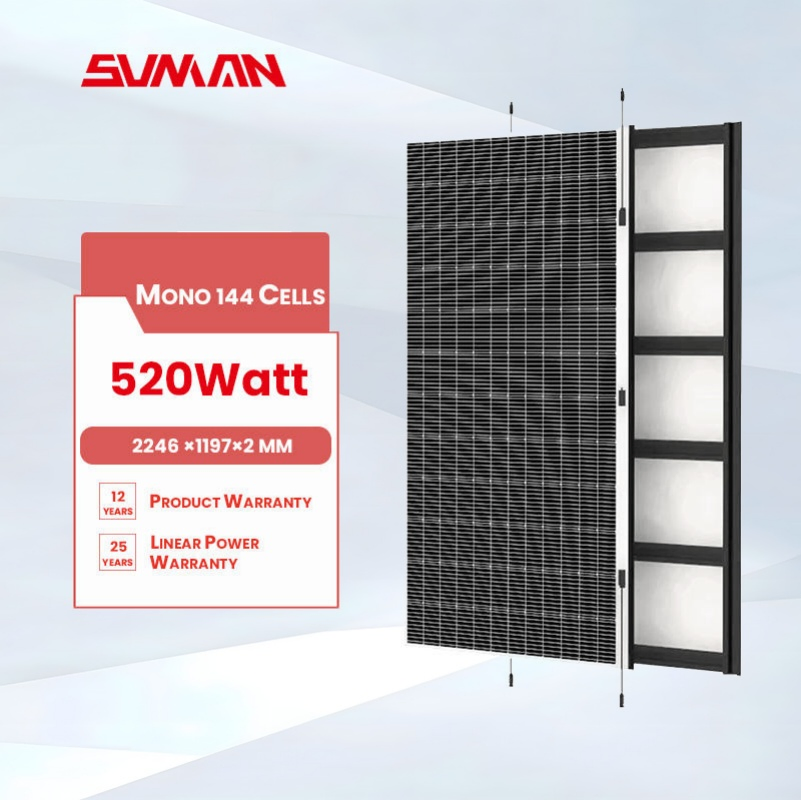

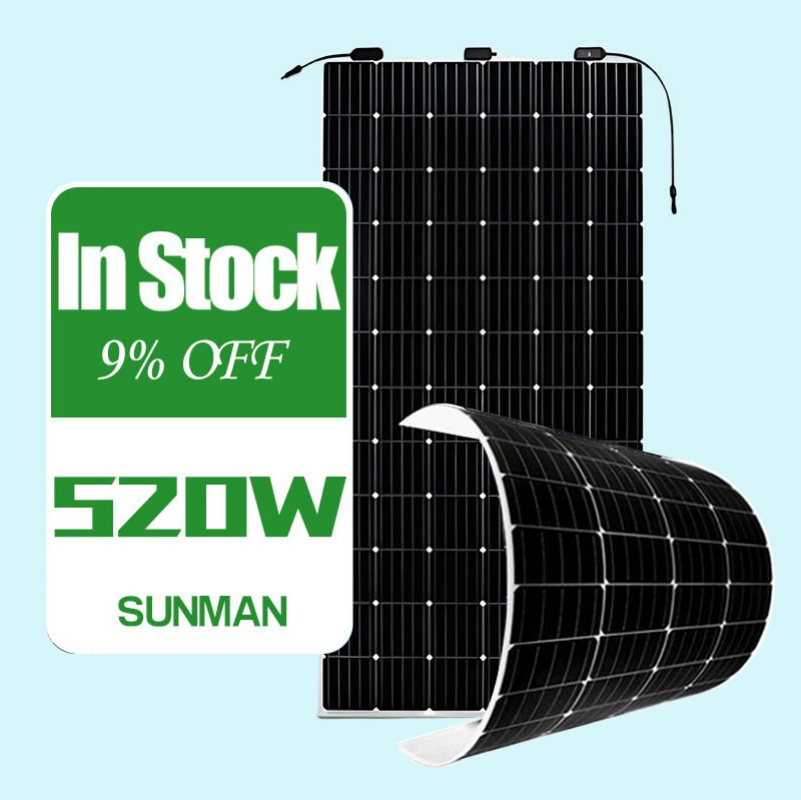

Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
1 / 5
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power
Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power

Sunman Earc Lightweight Flexible Solar Panel 520W Ultra-Thin Monocrystalline Module Bendable Thin Film Solar Panel for Outdoor Camping RV Boat Yacht Solar Power

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Information
Model NO.
SMF520J-12X12UW
Number of Cells
144
Material
Monocrystalline Silicon
Maximum Efficiency
19.3%
Power Tolerance
0~+5W
Weight
7.8kg
Specification
2246*1197*2 mm
Certification
CE, Ice
Product Description

The SMF520J-12X12UW is a high-efficiency 520W flexible solar panel designed for lightweight, bendable, and space-efficient solar installations. Built with advanced flexible photovoltaic technology, this panel delivers reliable power generation on curved surfaces and unconventional mounting structures where traditional rigid modules are impractical.

This flexible panel is ideal for mobile applications, marine, RV, camping, tiny homes, rooftops with curvature, and light-weight structures.

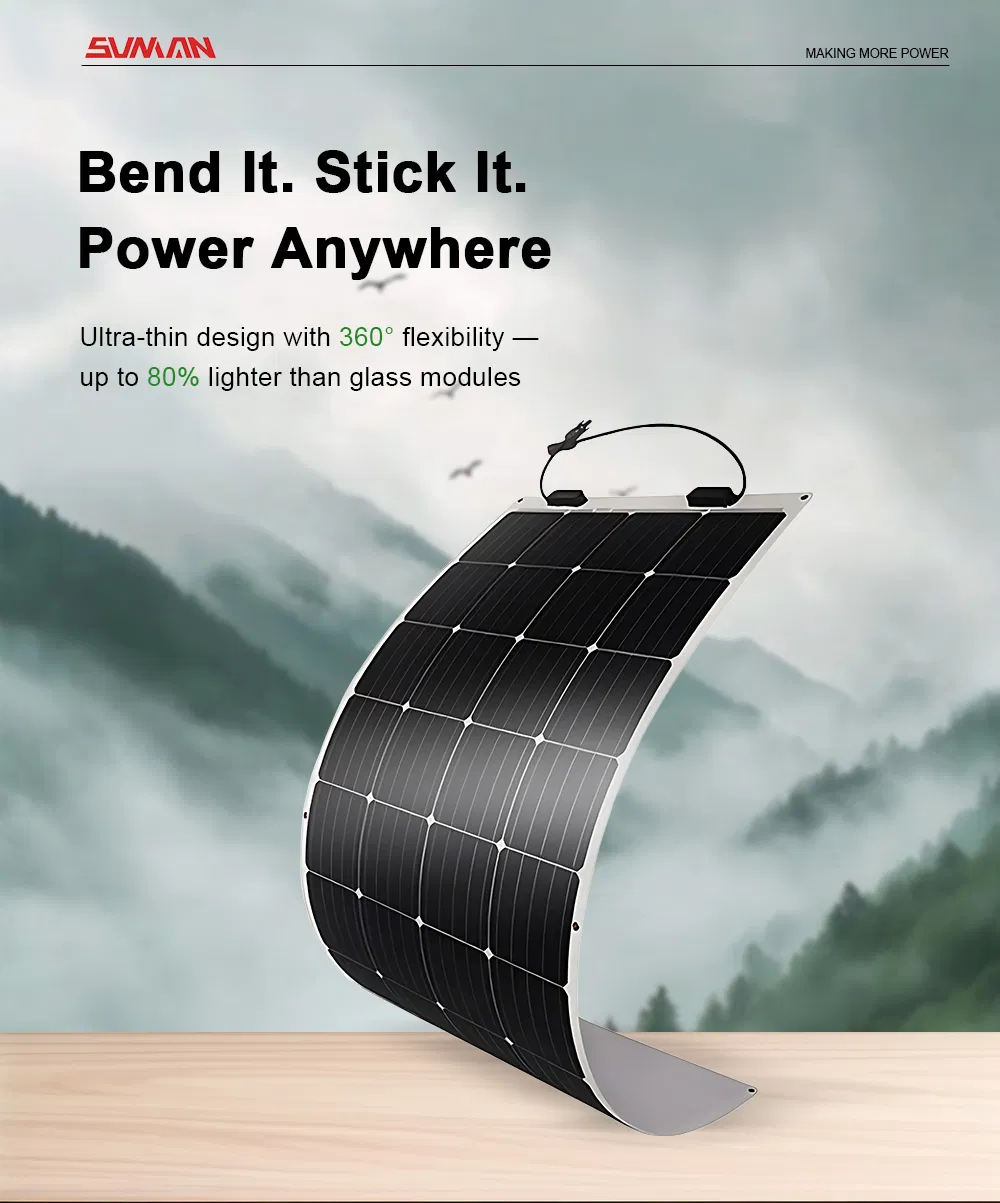

Flexible Solar Panel 520W

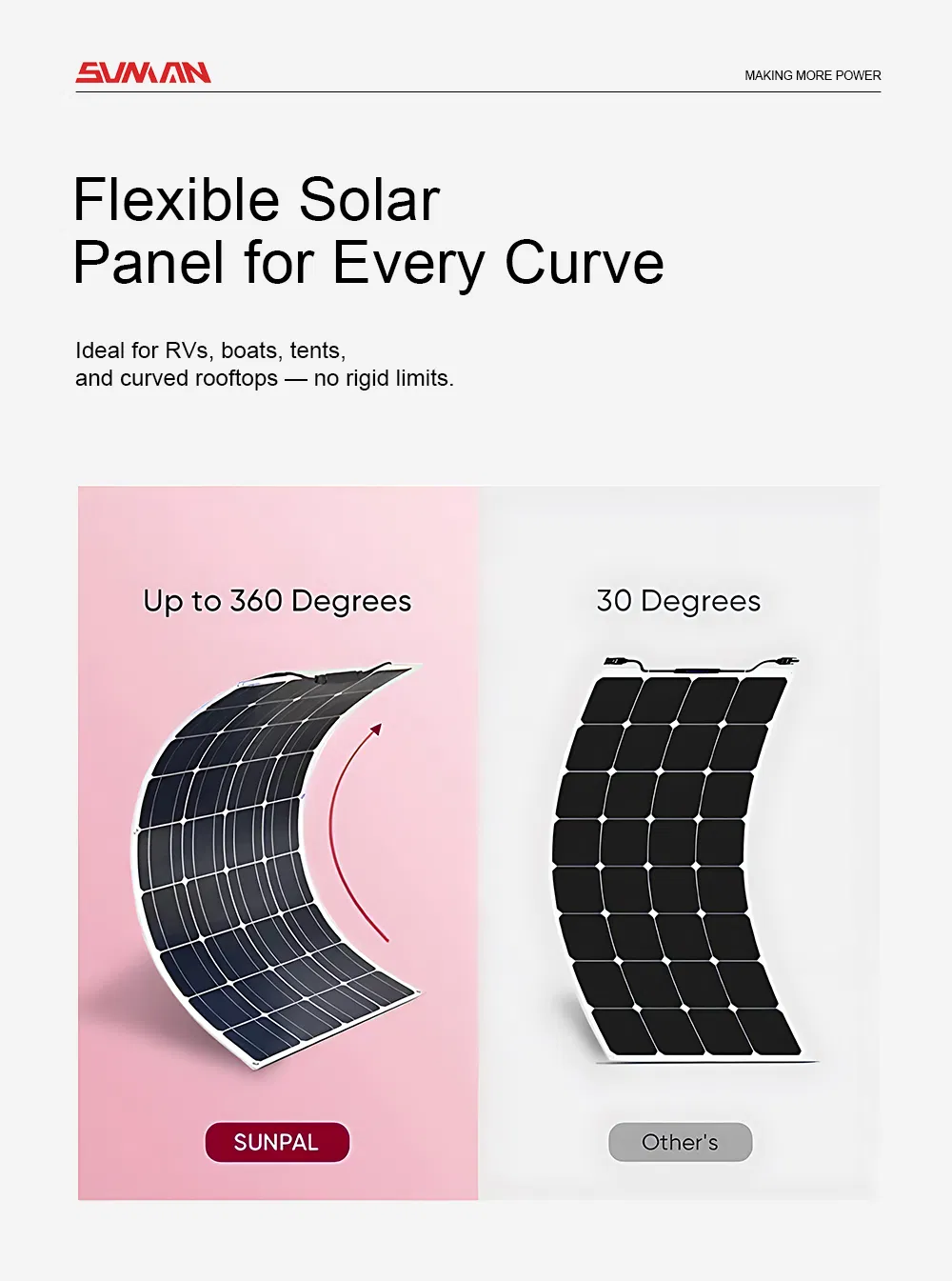

Flexible Solar Panel Detail
Lightweight Solar Module

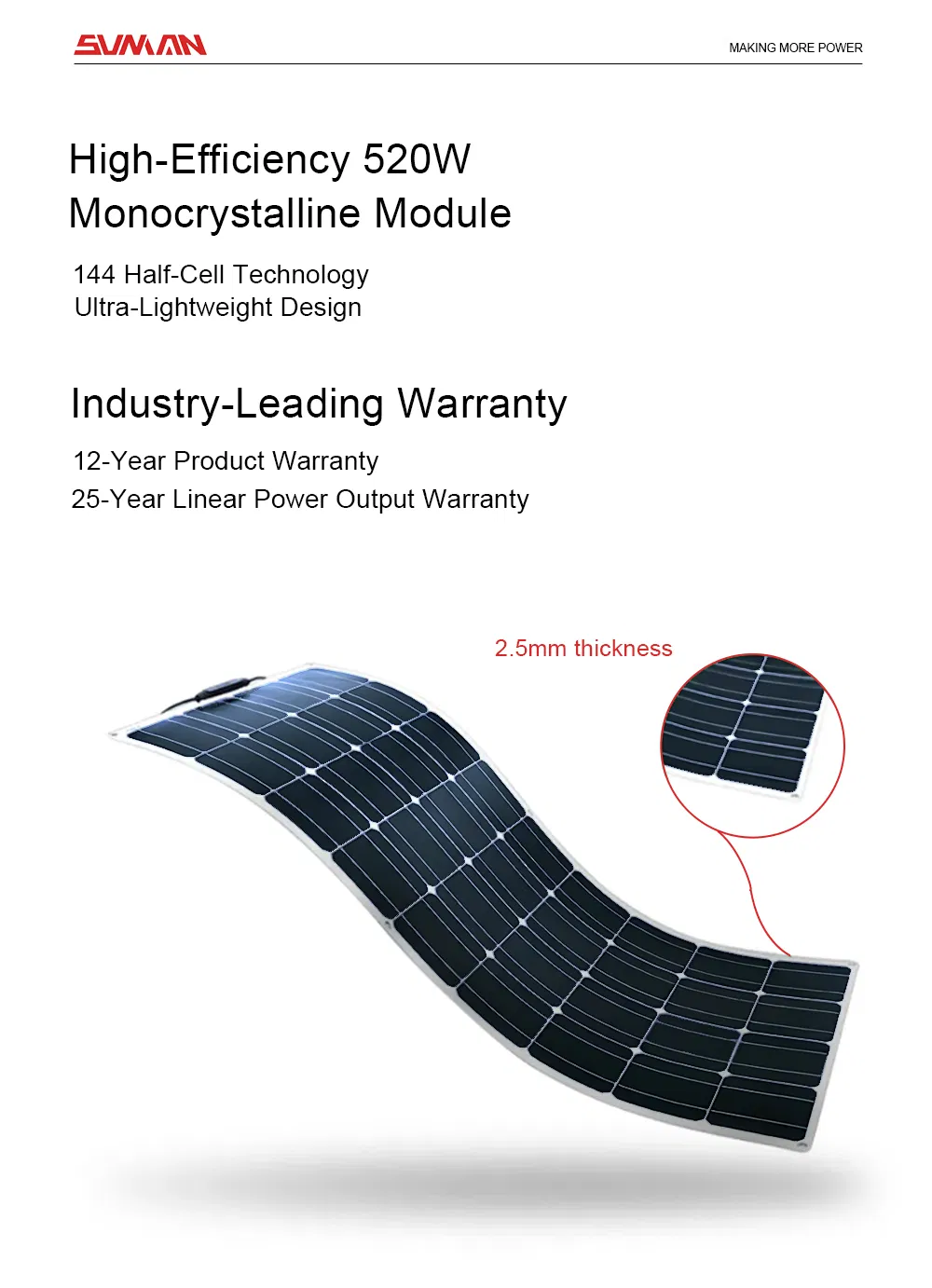

Ultra-Thin Solar Panel
Core Features
  • High-output 520W flexible solar module
  • Lightweight and bendable design for curved surfaces
  • Excellent energy yield and conversion efficiency
  • Easy installation and broad application range
  • Trusted quality for portable and outdoor solar solutions
Technical Parameters
Parameter Item Specification Data (STC)
Maximum Power (Pmax)520W
Maximum Power Voltage (Vmp)42.3V
Maximum Power Current (Imp)12.31A
Open-circuit Voltage (Voc)49.5V
Short-circuit Current (Isc)13.56A
Module Efficiency (%)19.3%
Operating Temperature-40ºC to 85ºC
Maximum System Voltage1500V DC(IEC)
Maximum Series Fuse Rating25A
Weight7.8KG
Size2246*1197*2mm

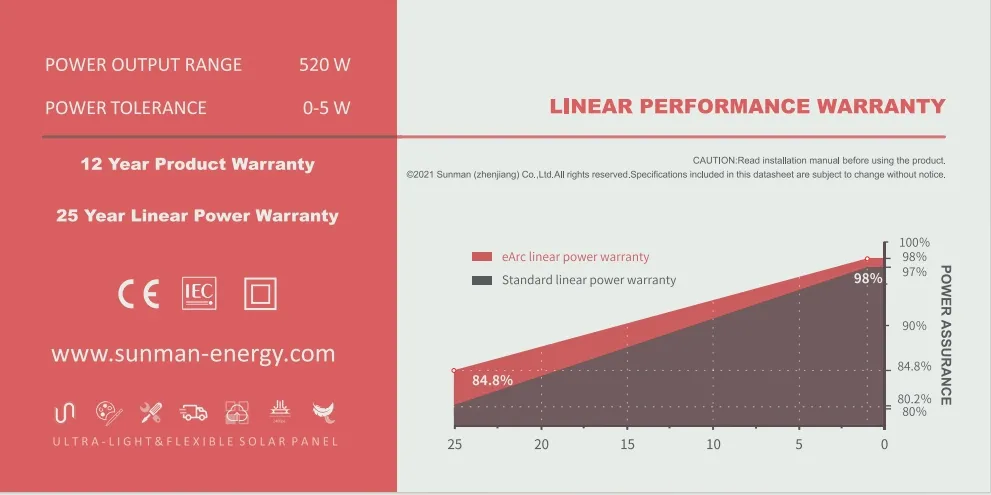

Technical Drawing

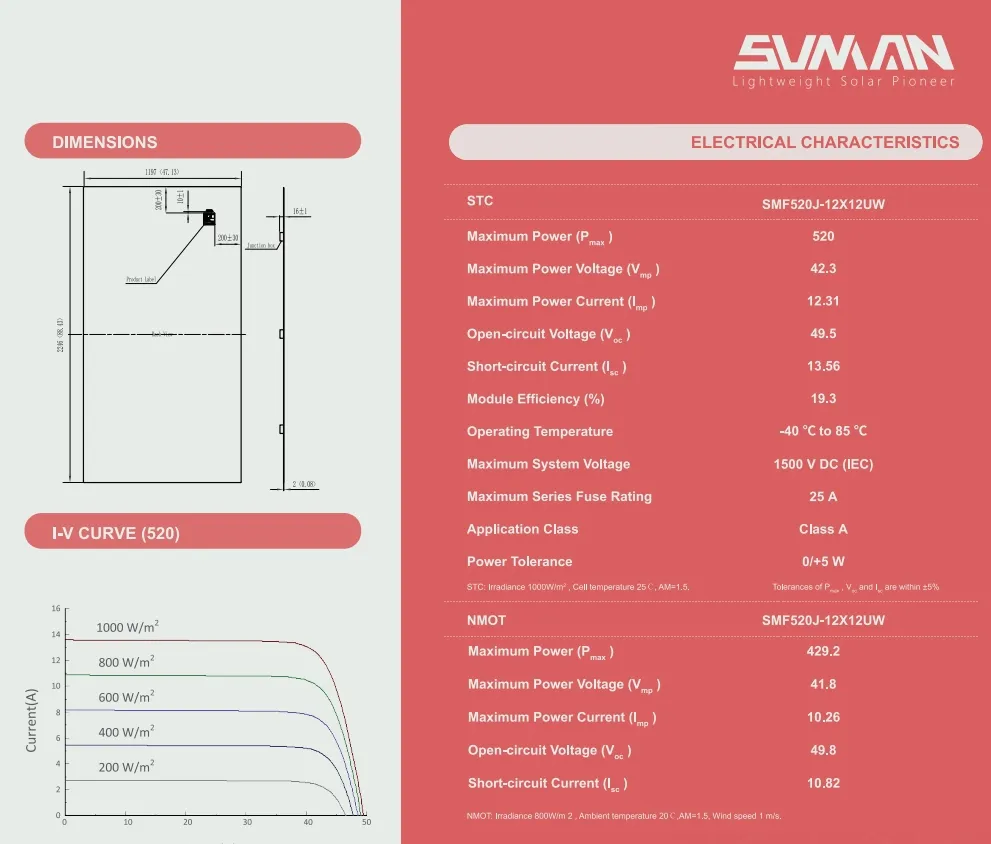

Power Specifications
Certifications & Global Projects

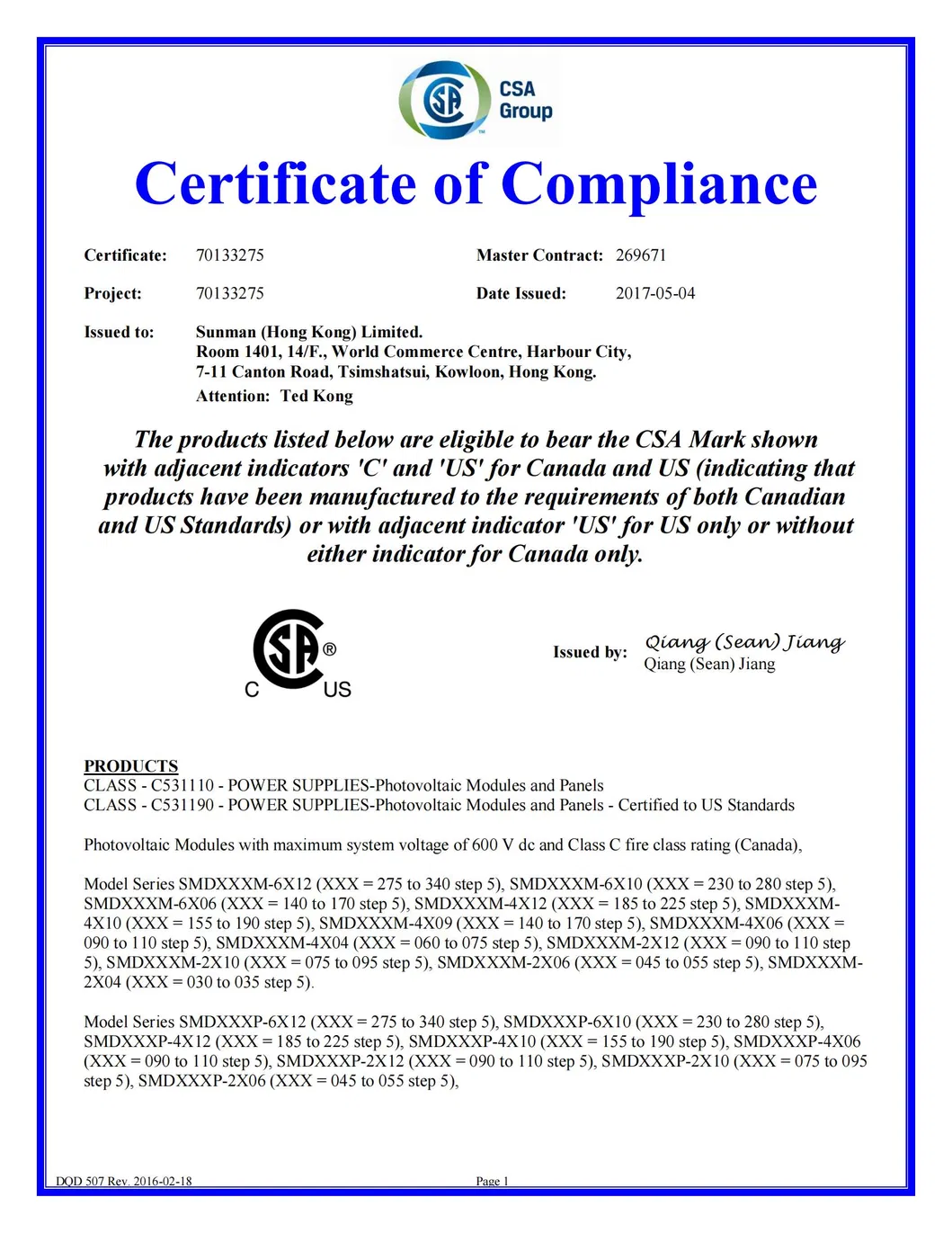

Certificates

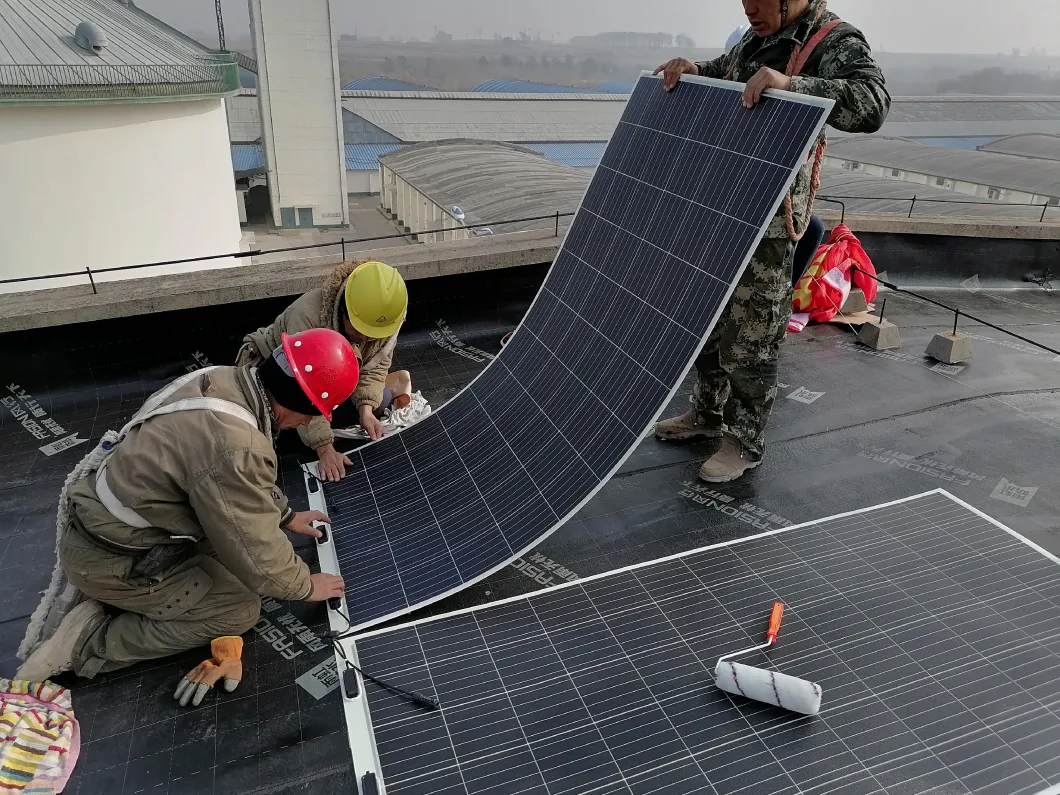

Project Case 1

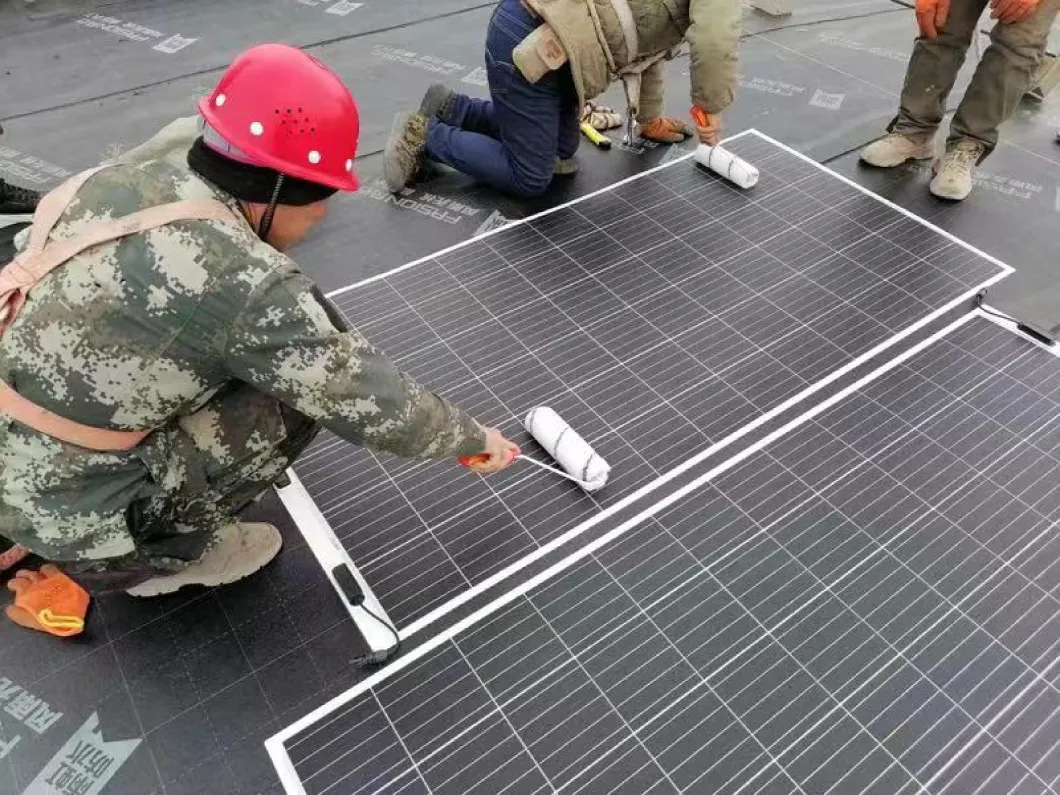

Project Case 2

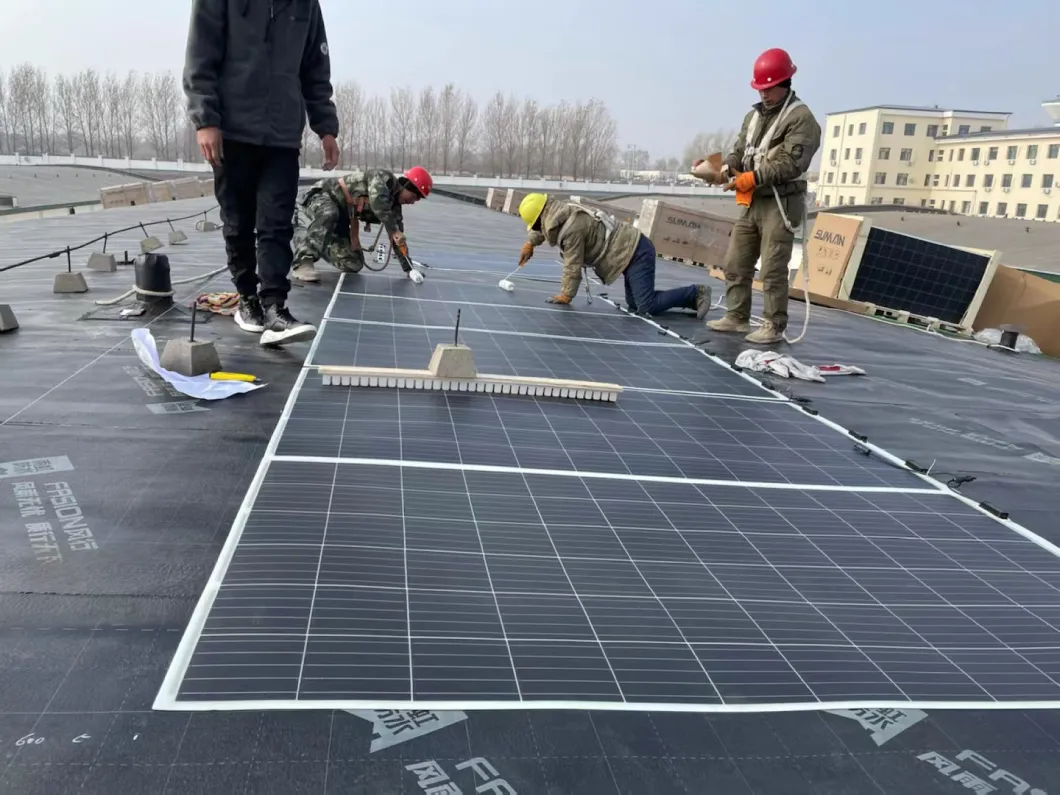

Project Case 3

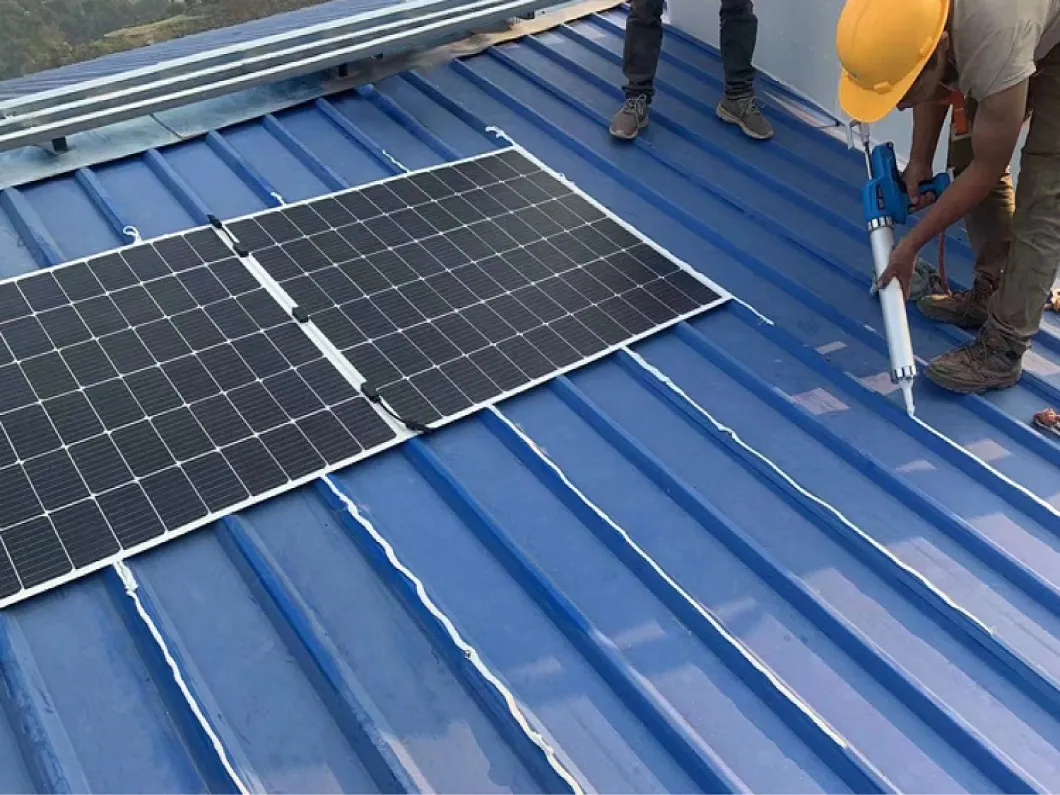

Project Case 4
Project Case 5
Project Case 6
Frequently Asked Questions
What type of solar panel is the SMF520J-12X12UW?
It is a 520W flexible solar panel designed for lightweight and curved surface installations, ideal where traditional rigid panels are unsuitable.
What are the main advantages of this flexible panel?
These panels are lighter, bendable, and easier to install. They place less load on surfaces and are perfect for curved roofs, RVs, boats, and lightweight buildings.
Can it be installed on curved surfaces?
Yes, the SMF520J-12X12UW can adapt to gently curved surfaces, making it versatile for non-flat roofs without damaging the solar cells.
Is the 520W output stable and reliable?
Absolutely. This model utilizes high-efficiency monocrystalline cells to ensure stable energy generation, offering a higher output than standard flexible modules.
What installation methods are supported?
It supports adhesive mounting, mechanical fastening, or customized solutions depending on your project requirements and the specific mounting surface.
Is it suitable for marine or outdoor environments?
Yes, the panel is specifically designed for durability in outdoor and marine environments, featuring excellent weather resistance for camping and boating.
