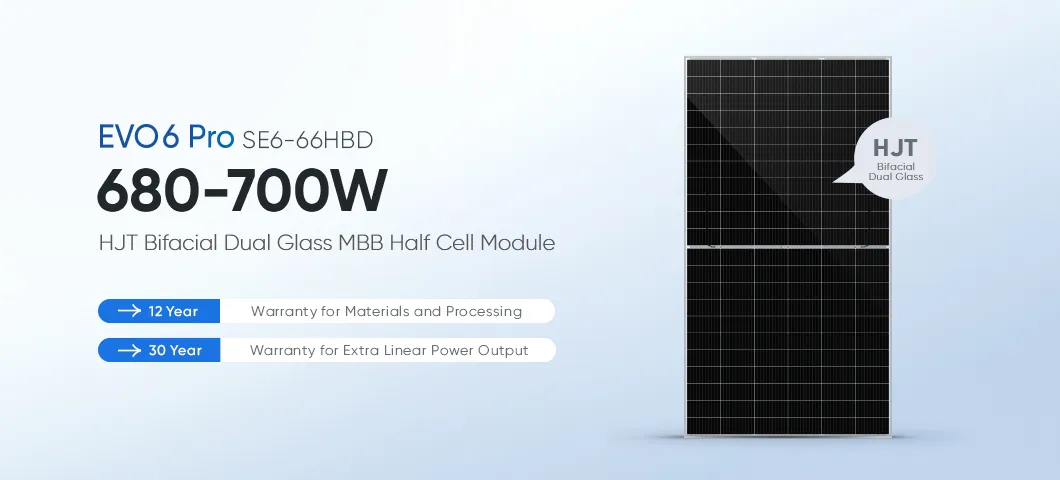

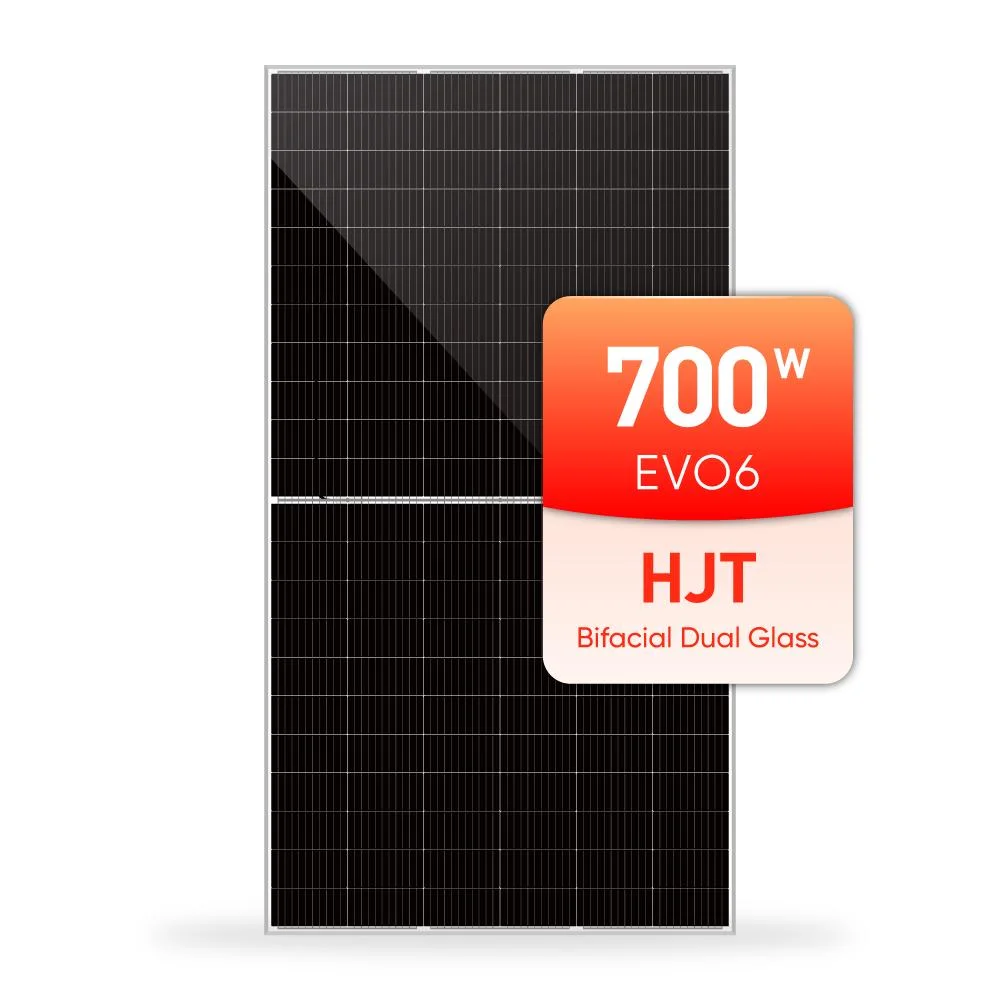

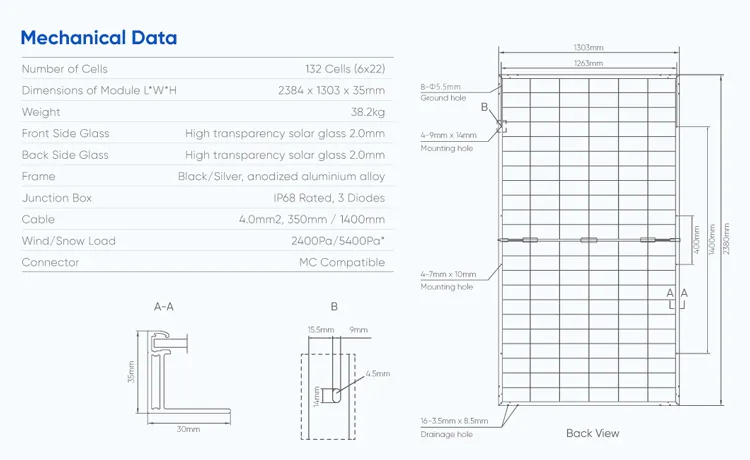

Basic Information
| Model NO. | SE6-66HBD |
| Number of Cells | 132 Cells (6X22) |
| Application | Industrial |
| Certification | ISO, CE |
| Material | Monocrystalline Silicon |
| Weight | 38.2kg |
| Front/Back Glass | High Transparency Solar Glass 2.0mm |
| Frame | Silver / Black, Anodized Aluminium Alloy |
| Junction Box | IP68 Rated, 3 Diodes |
| Wind/Snow Load | 2400PA/5400PA |
| Bifaciality | 70±5% |
| Specification | 2384 x 1303 x 35mm |
■
Product Description
| Electrical Performance (STC) |
|---|
| Maximum Power (Pmax) | 680W | 685W | 690W | 695W | 700W |
| Max Power Voltage (Vmp) | 41.49V | 41.65V | 41.80V | 41.95V | 42.10V |
| Max Power Current (Imp) | 16.39A | 16.45A | 16.51A | 16.57A | 16.63A |
| Module Efficiency | 21.9% | 22.1% | 22.2% | 22.4% | 22.5% |
■

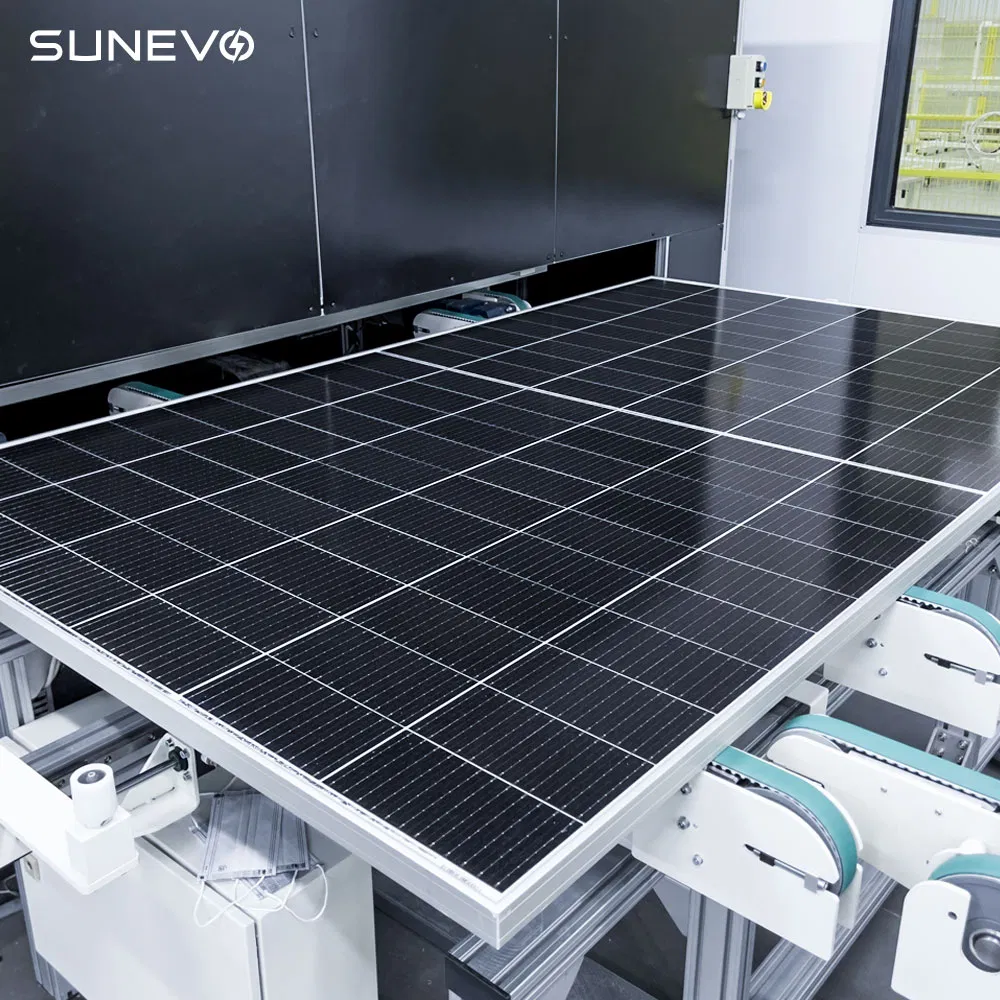

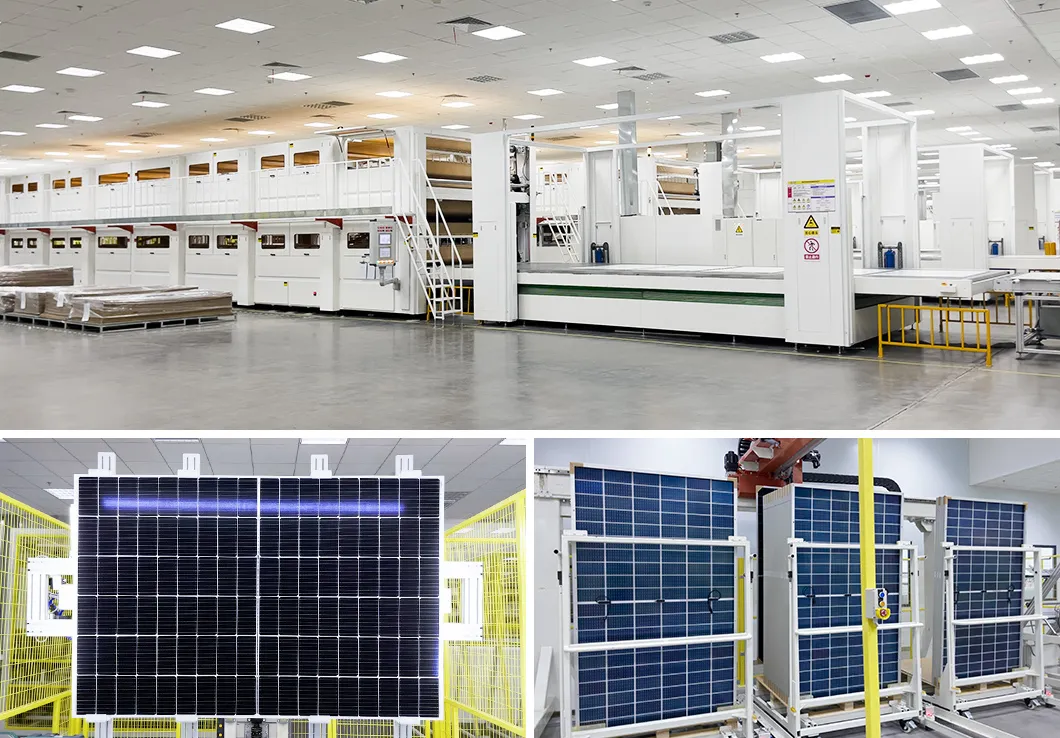

Manufacturing & Quality Control

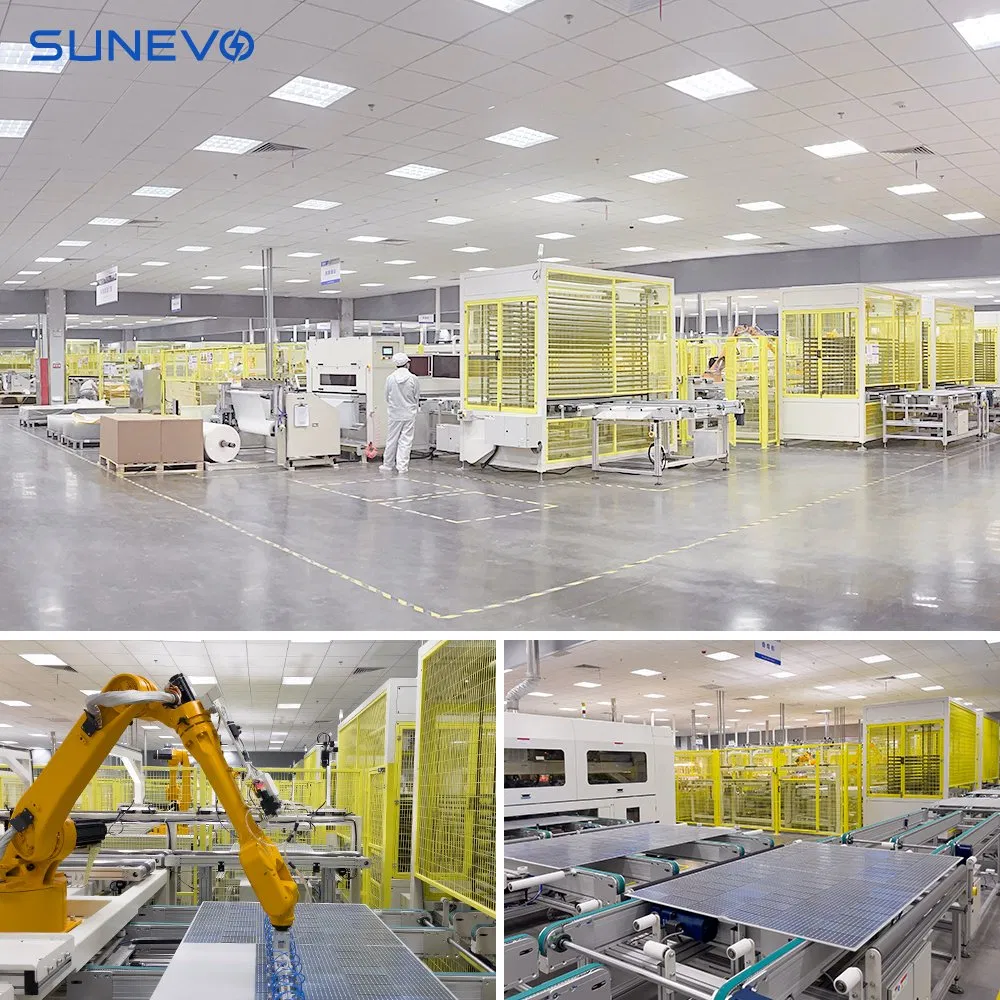

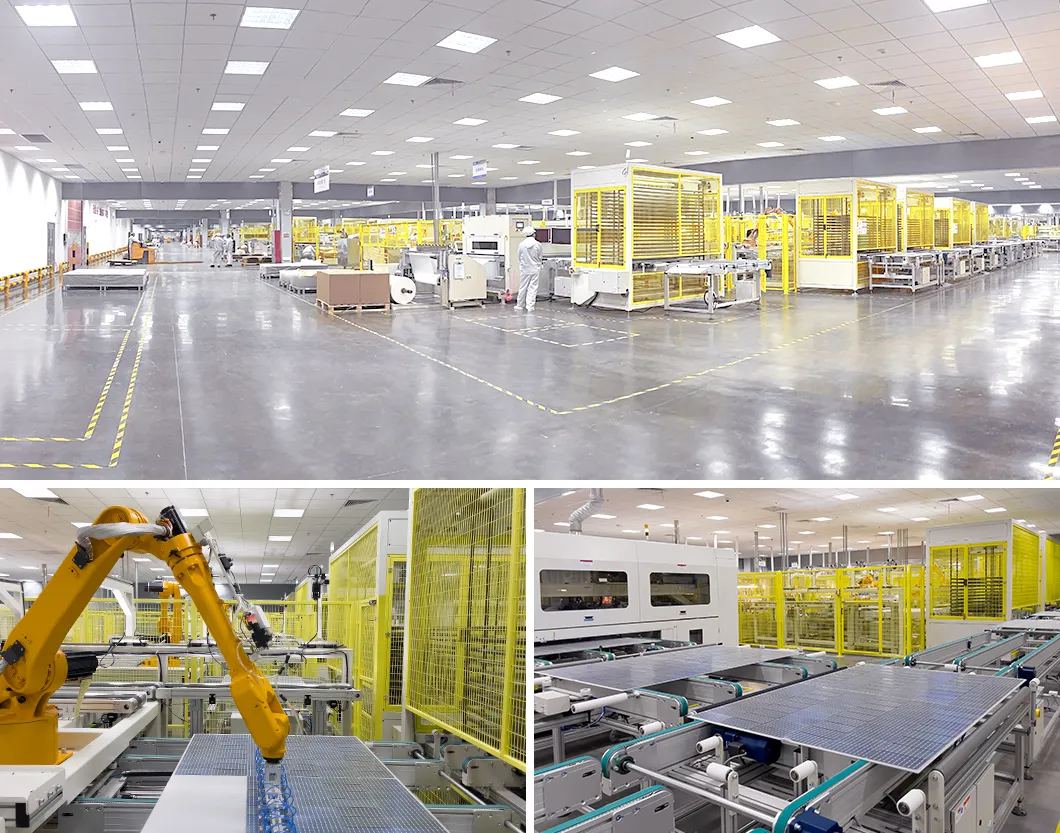

Modularized fully automated production lines enable fast delivery and cost savings. The production chain is divided into separate but closely united automated sectors. Over 40 patents are applied on process optimization to avoid manual errors.
✔

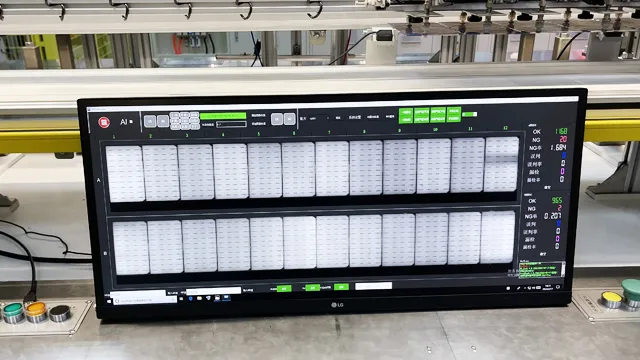

Solar Cell String EL Testing: Each solar PV cell string is tested by EL machine to ensure every single cell is perfect.
✔

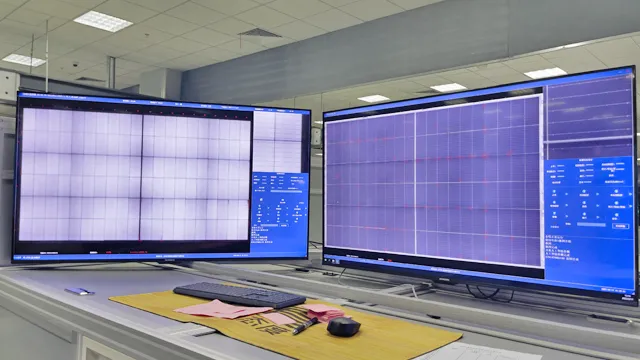

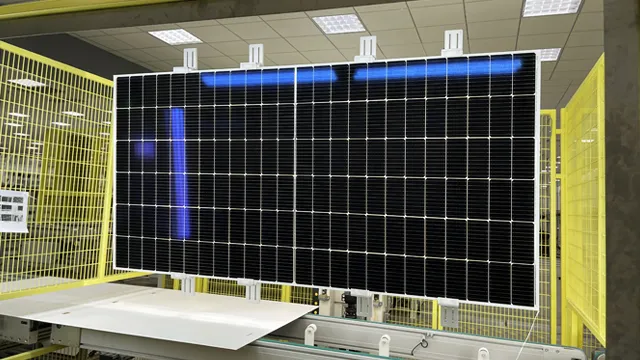

Testing Before & After Lamination: Each module undergoes EL testing before lamination and appearance inspection after lamination to ensure zero defects.
■

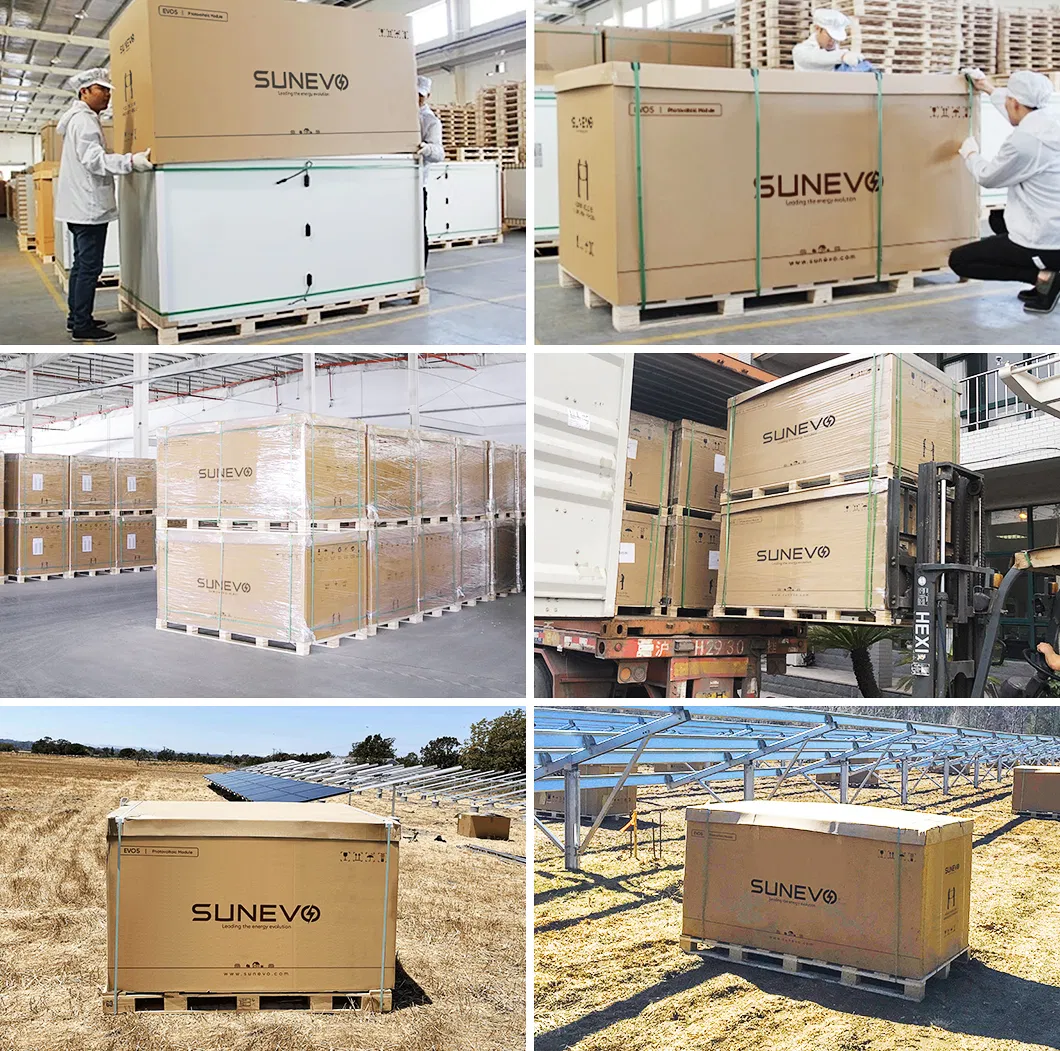

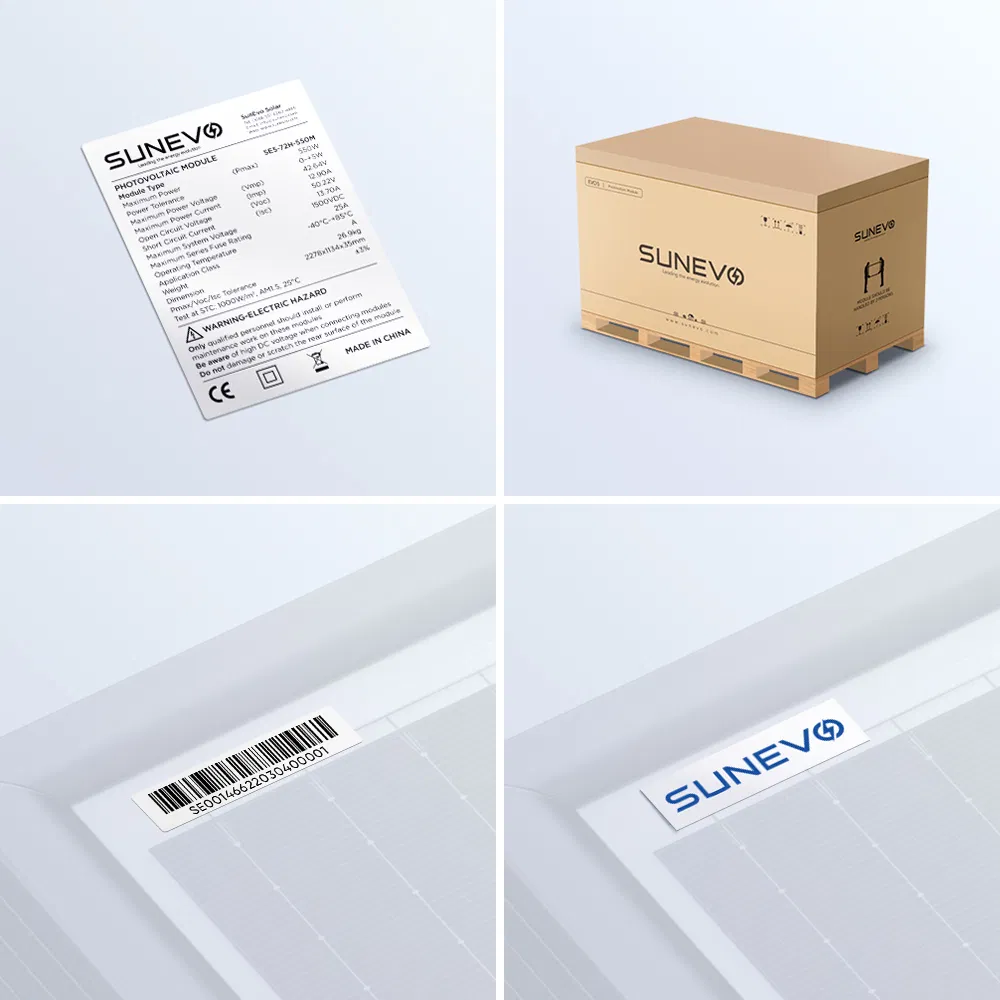

Product Packaging
■

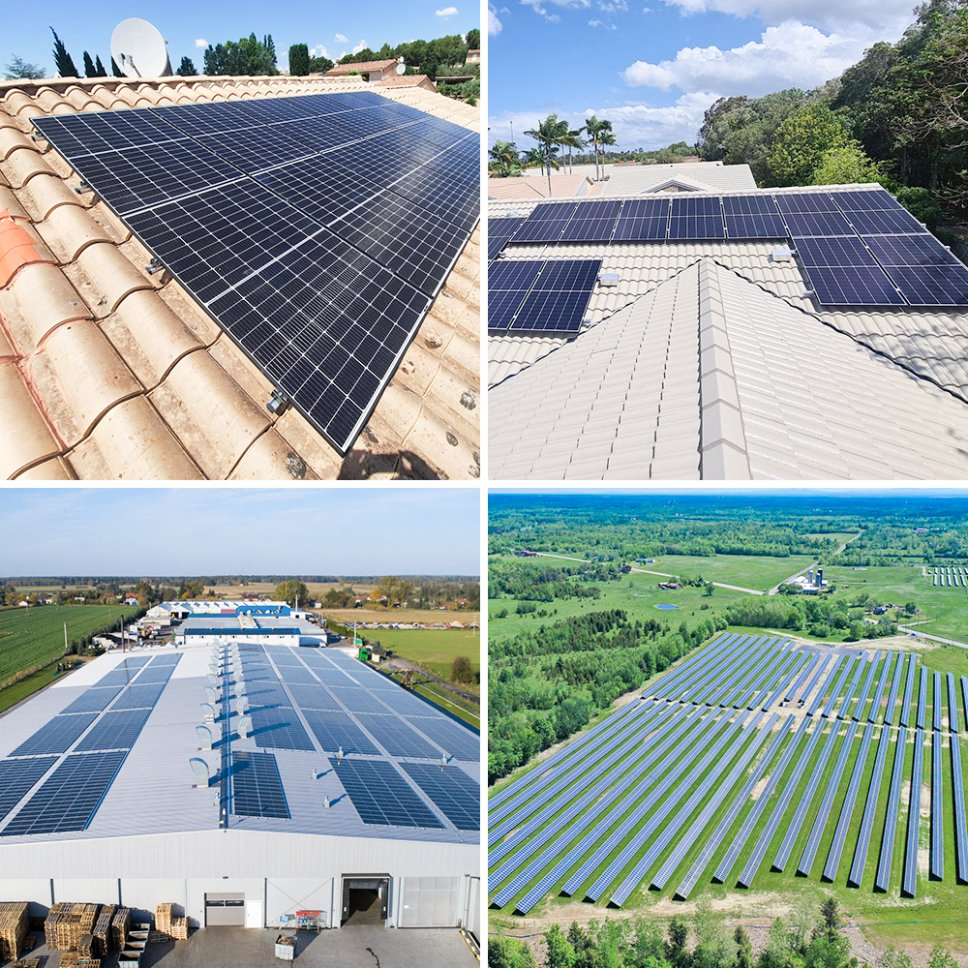

Global Project Cases

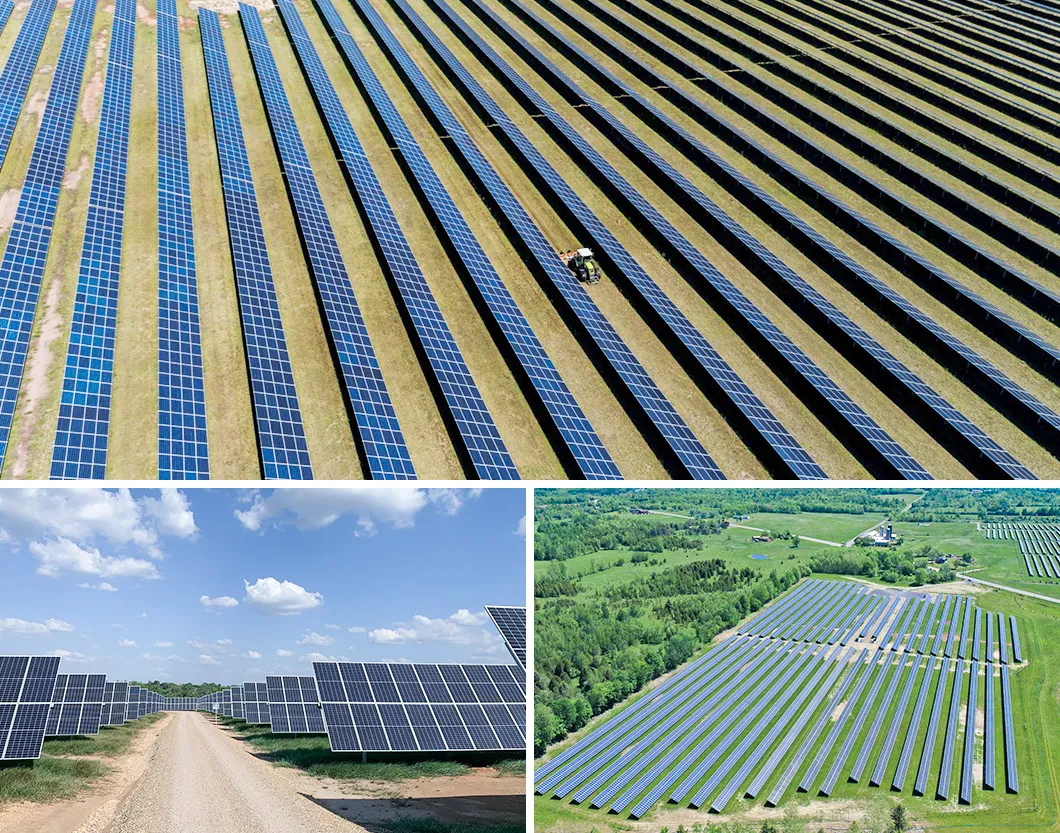

Utility Scale: Professional module products designed to maximize investment benefits for large-scale projects.

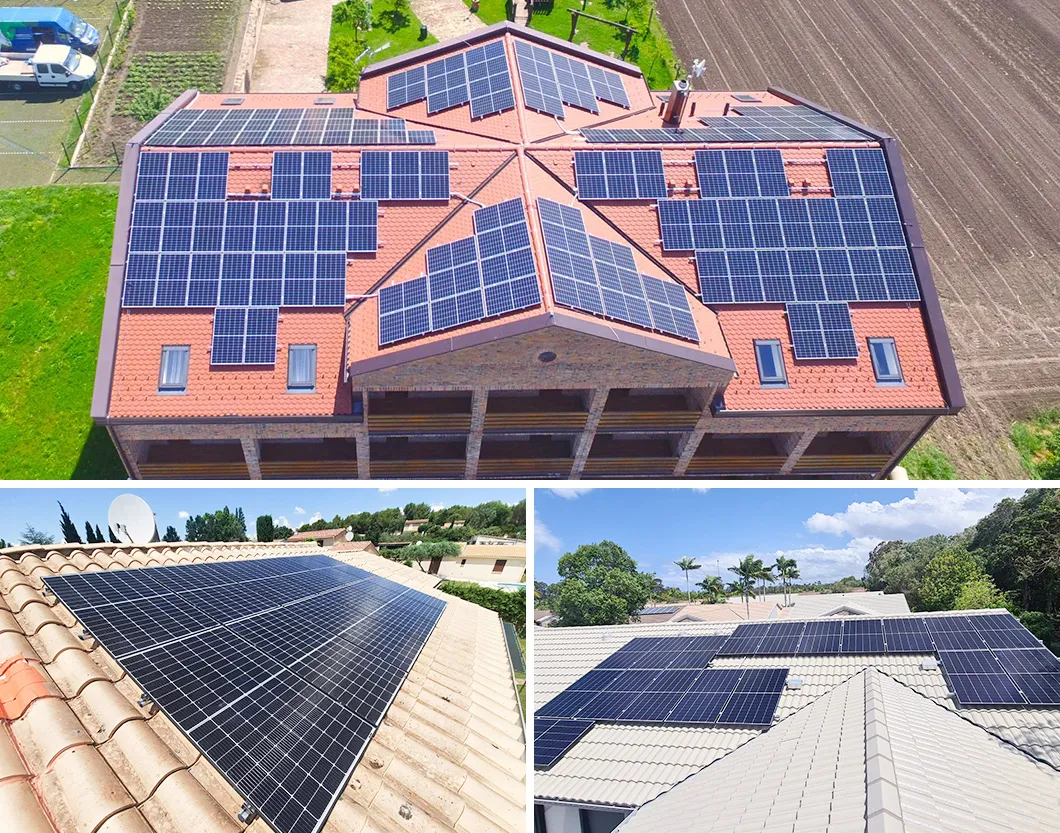

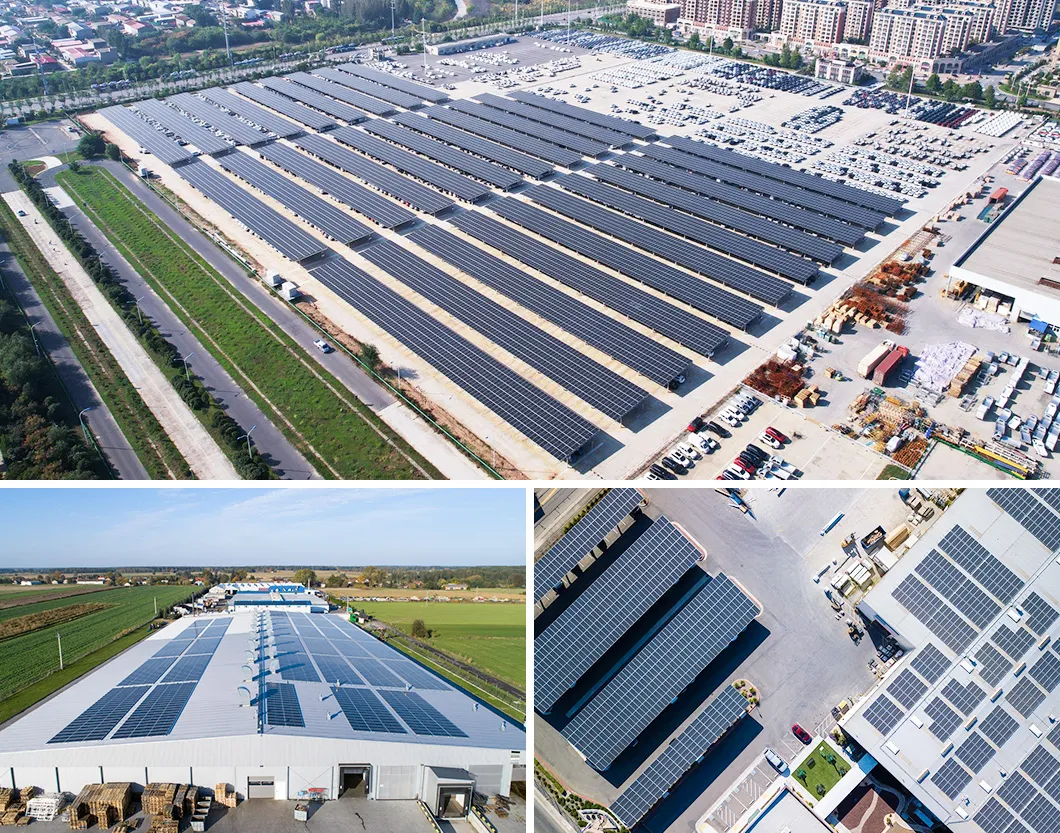

Residential & Commercial: Clean power solutions for houses and businesses to lower electricity bills and generate profit through grid-selling.
■

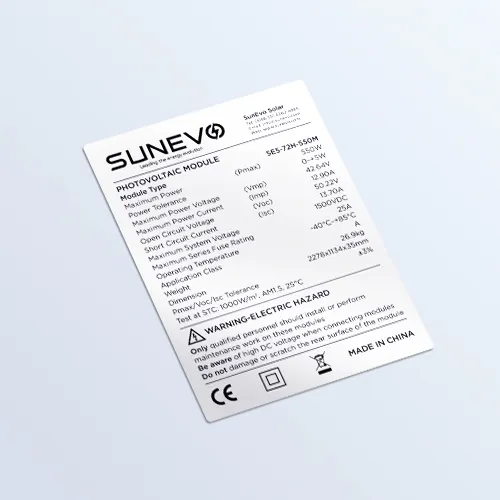

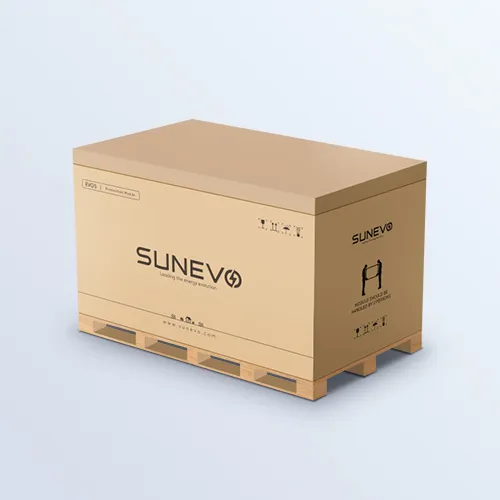

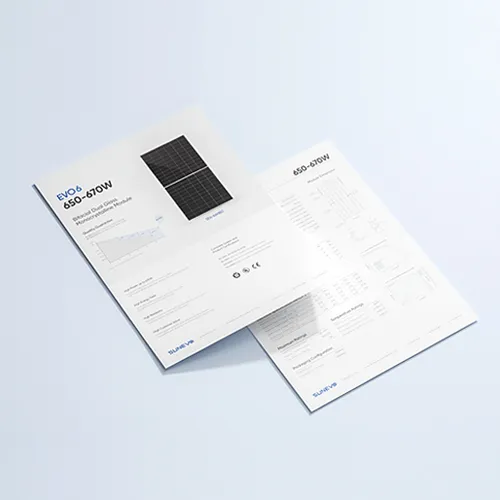

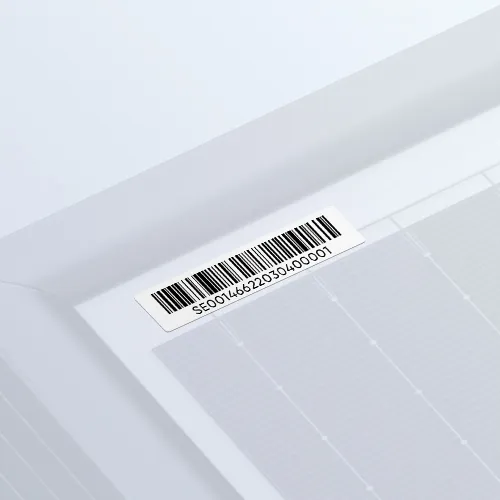

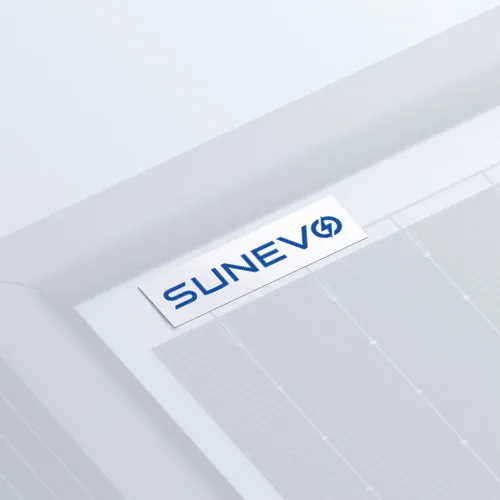

OEM & ODM Services
Frequently Asked Questions
Q1: Can the products be shipped to my area?
A1: We export to most regions including Central/South America, EMEA, SEA, SSA, and AU. Please provide your specific region for confirmation.
Q2: What is the lead time for orders?
A2: Standard lead time is 10 working days for requirements under 200kW. Larger orders require negotiation.
Q3: What are the payment terms?
A3: We accept 100% TT, or a 30% TT advance payment with the remaining 70% due when goods are ready before shipment.
Q4: What warranty is provided with the solar panels?
A4: We offer a 12-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.
Q5: What certifications do your products hold?
A5: Our manufacturing processes and products are certified under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.
Q6: Do the modules perform well in extreme weather?
A6: Yes, our modules are tested to withstand wind loads of up to 2400PA and snow loads of up to 5400PA.
