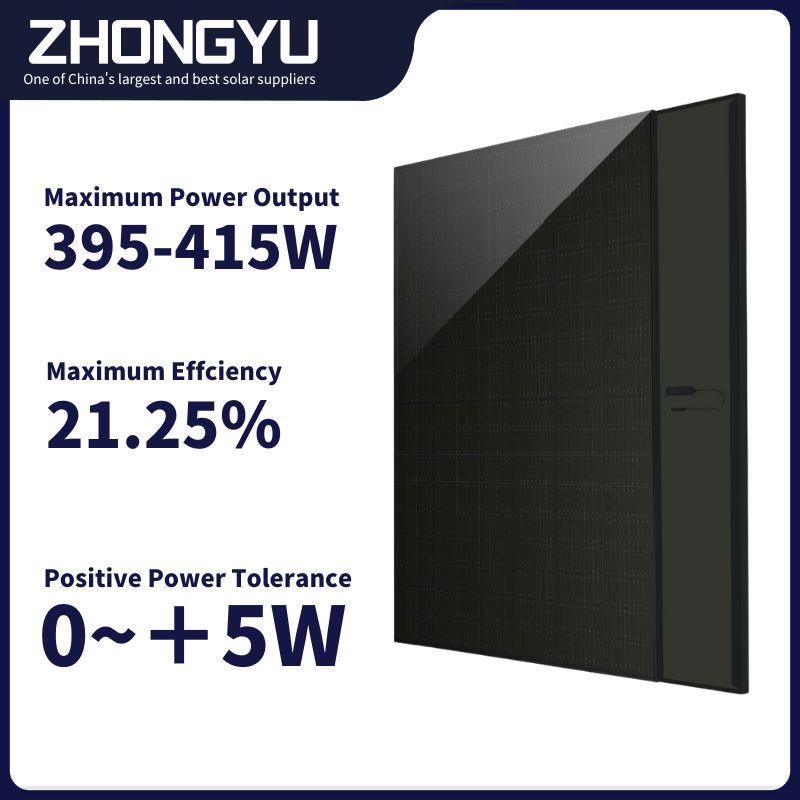

High Efficiency Full Black Shingled PV Module Performance Data:
| Rated Power - Pmax (W) | 395W | 400W | 405W | 410W | 415W |
|---|---|---|---|---|---|
| Open Circuit Voltage - Voc (V) | 36.72 | 37.02 | 37.24 | 37.50 | 37.73 |
| Short Circuit Current - Isc (A) | 13.67 | 13.75 | 13.81 | 13.88 | 13.95 |
| Working Voltage - Vpm (V) | 30.71 | 31.01 | 31.31 | 31.60 | 31.89 |
| Working Current - Ipm (A) | 12.86 | 12.90 | 12.94 | 12.97 | 13.01 |
| Module Efficiency - η (%) | 20.23 | 20.48 | 20.74 | 21.00 | 21.25 |
*STC: Irradiance 1000W/m² Cell Temperature 25°C Air Mass AM 1.5

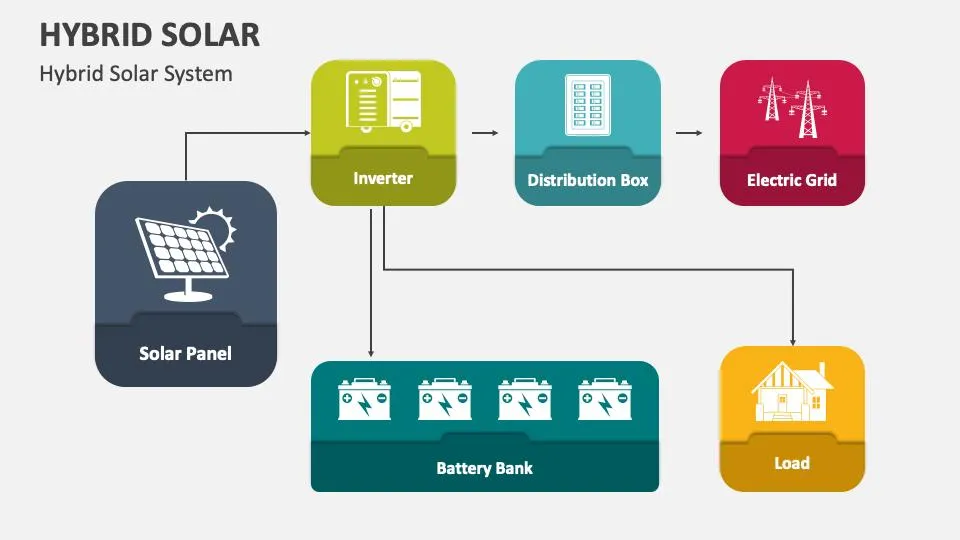

Modern hybrid systems combine solar and battery storage in one. This means being able to store solar energy that is generated during the day and using it at night. When the stored energy is depleted, the grid is there as a back up, allowing consumers to have the best of both worlds. Hybrid systems are also able to charge the batteries using cheap off-peak electricity.
Advantage: The most flexible option available system for energy independence.

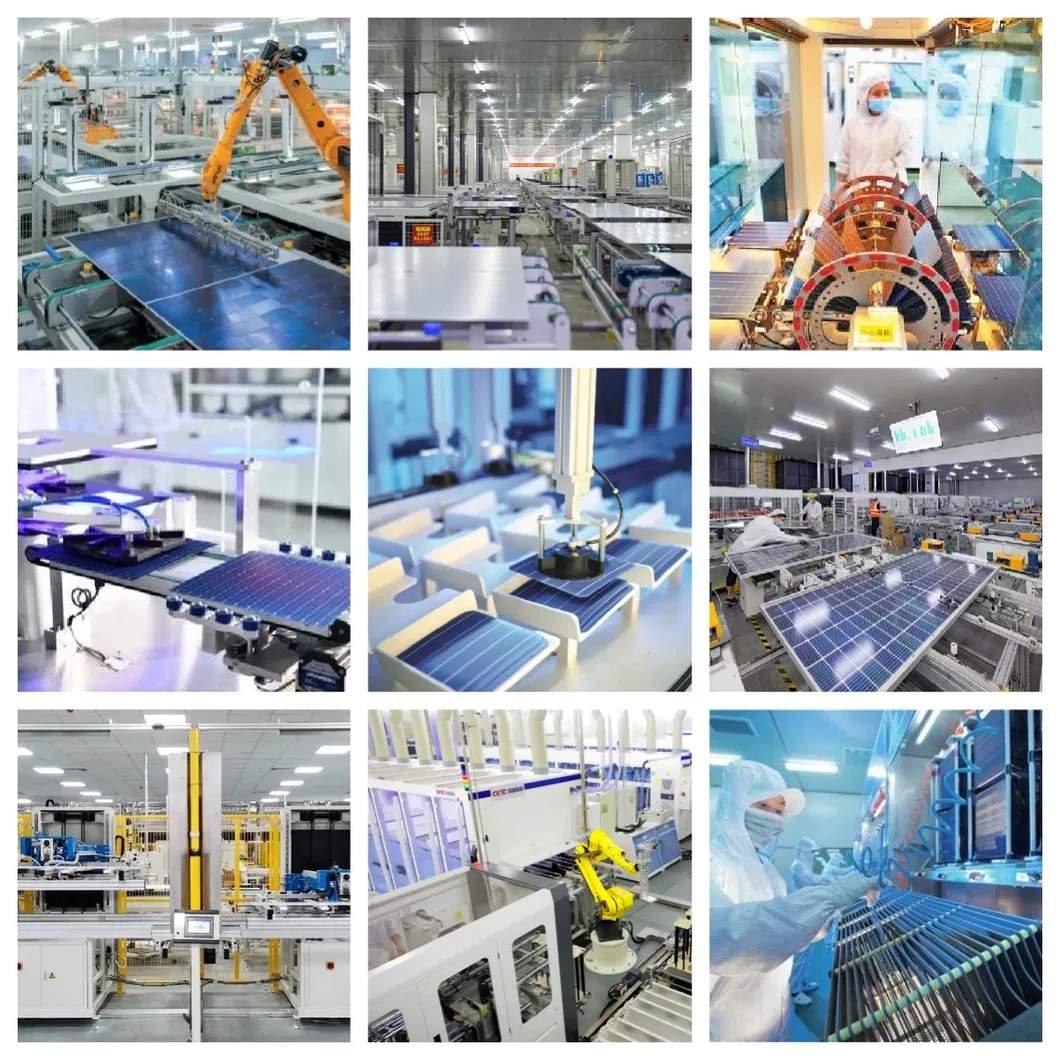

An industry-leading solar energy enterprise with a current high-efficiency module production capacity of 10GW. By designing, manufacturing and supplying high-efficiency monocrystalline solar modules, we provide outstanding photovoltaic products, system solutions and related services to customers around the world. Committed to contributing to the promotion of global carbon peaking goals and bringing power to energy-stressed regions.
