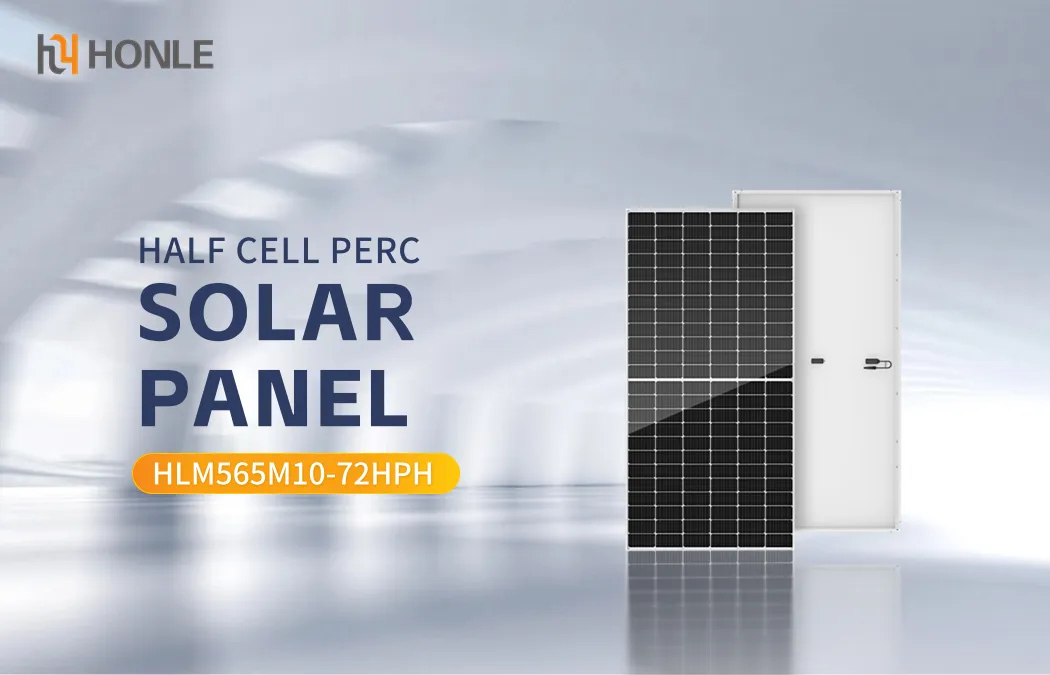

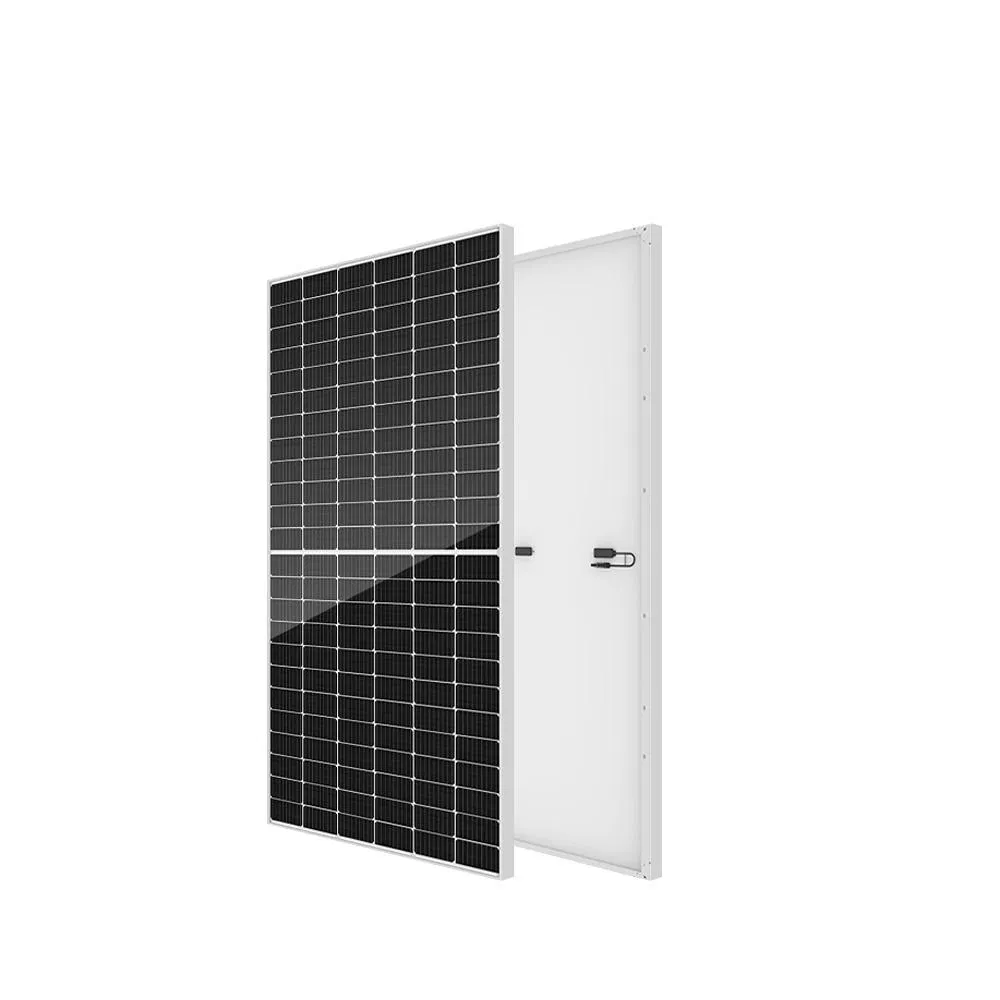

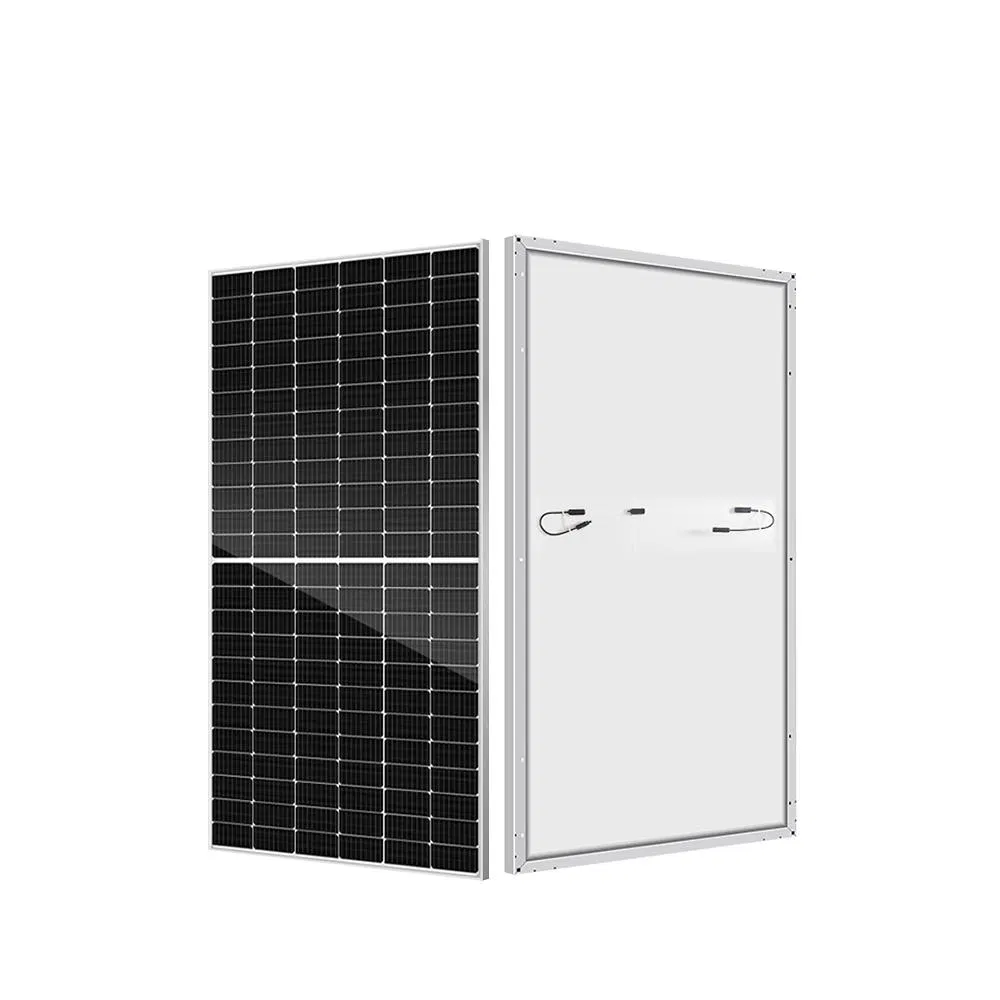

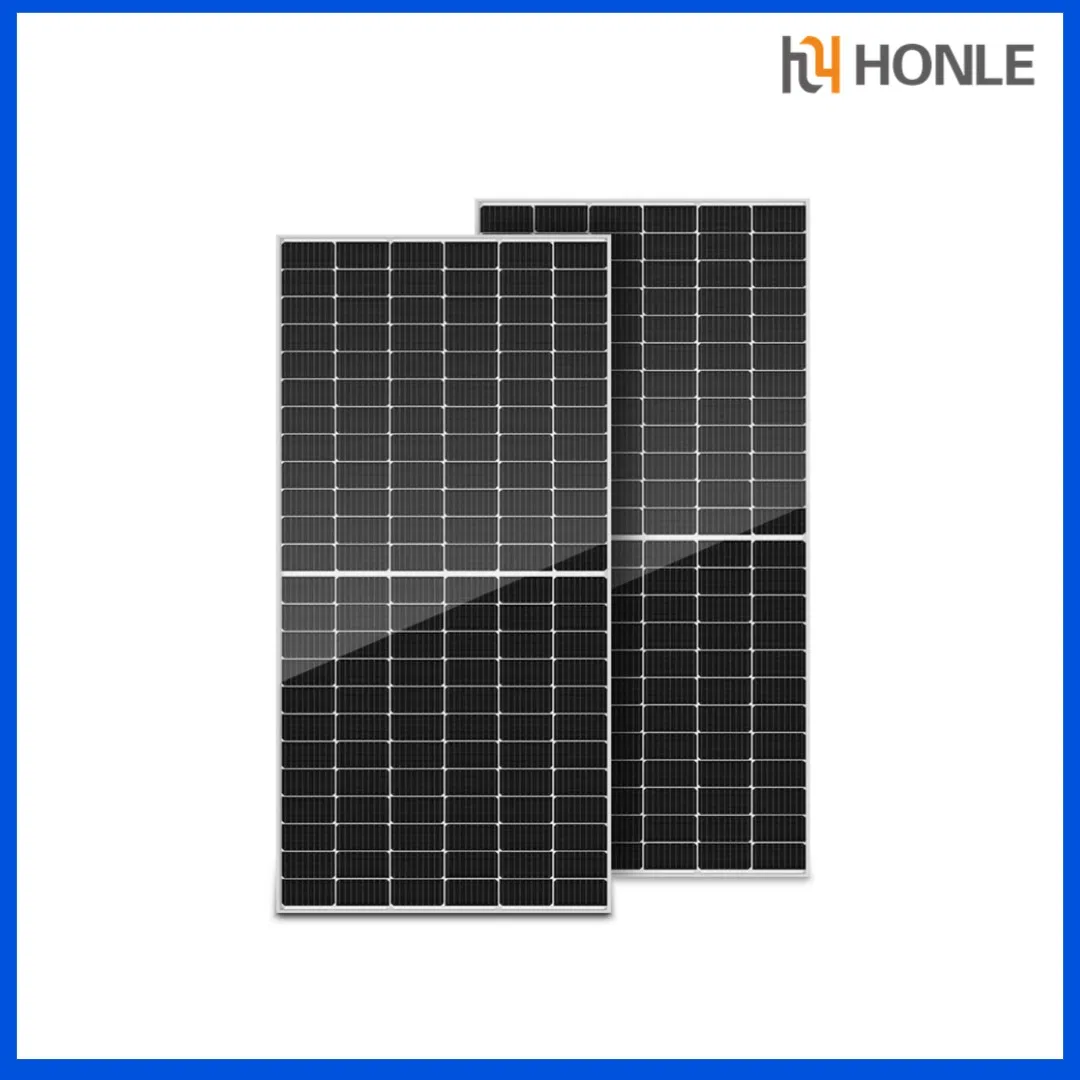

Solar Cell Photovoltaic Module 300W 400W 500W 600W Half Cell Perc Solar Panel Power Station Portable Solar Penal

i

Product Overview

Model NO.

HLM565M10-72HPH

Application

Industrial

Material

Monocrystalline Silicon

Certification

CE

Protection Grade

IP68

Weight

28.6kg

Frame

Anodized Aluminium Alloy

System Voltage

1000/1500V/DC(IEC)

★

Key Features

High Conversion Efficiency

MBB Half Cell Technology, Module efficiency up to 21.87%.

Harsh Environment Ready

Reliable quality leads to better sustainability even in desert, farm, and coastline environments.

PID Resistance

Excellent Anti-PID performance guaranteed via optimized mass-production process and materials control.

Weak Light Performance

Enhanced power output in cloudy, morning, and sunset conditions.

Extreme Load Capacity

Certified to withstand extreme wind loads (2400 Pa) and snow loads (5400 Pa).

⚙

Technical Parameters

Module Type	545M10-72HPH	550M10-72HPH	555M10-72HPH	560M10-72HPH	565M10-72HPH
Max Power (Pmax)	545W	550W	555W	560W	565W
Operating Voltage (Vmp)	42.06V	42.16V	42.24V	42.33V	42.42V
Operating Current (Imp)	12.96A	13.05A	13.14A	13.23A	13.32A
Module Efficiency	21.10%	21.30%	21.49%	21.68%	21.87%

M

Mechanical Specification

Cell Type	Monocrystalline	Cell Dimensions	182*91mm
Arrangement	144 (6*24)	Weight	28.6kg
Dimensions	2278113435mm	Junction Box	IP68
Front Glass	3.2mm AR Coating Tempered	Connector	MC4 Compatible

✔

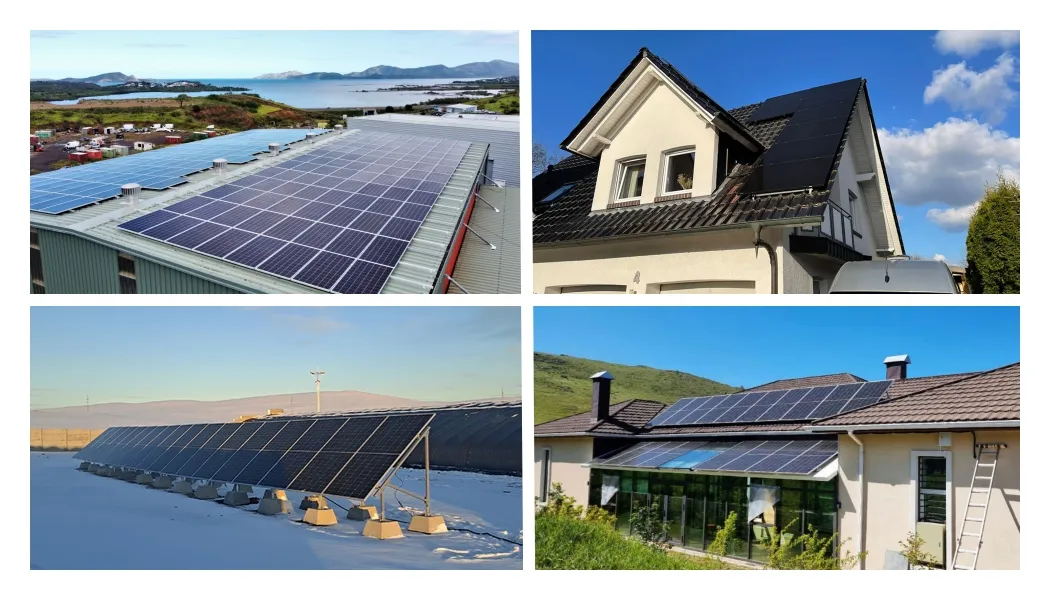

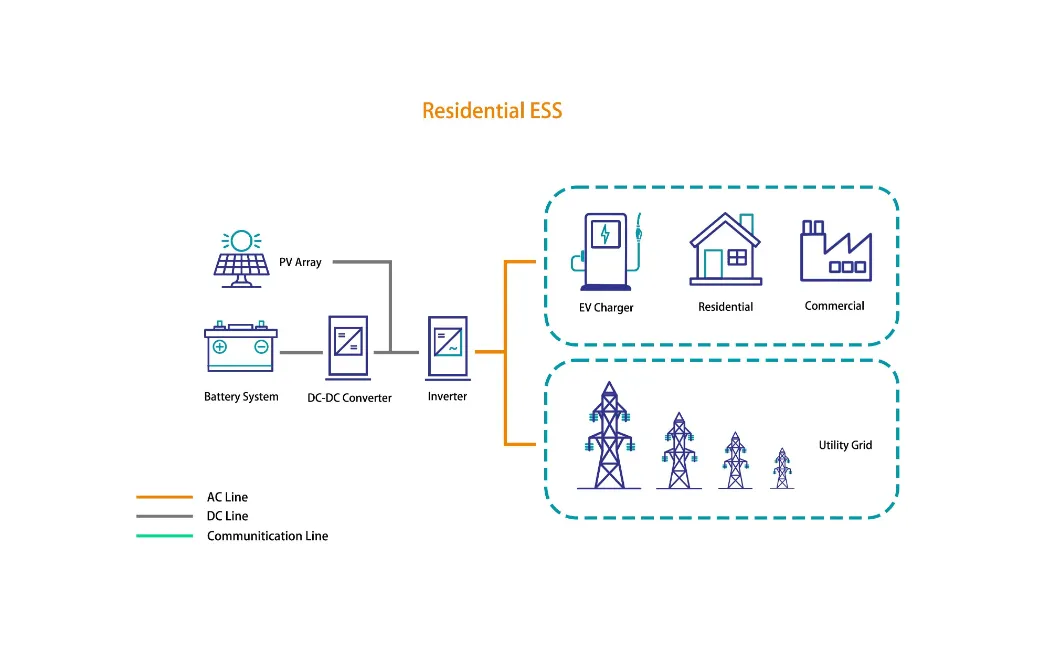

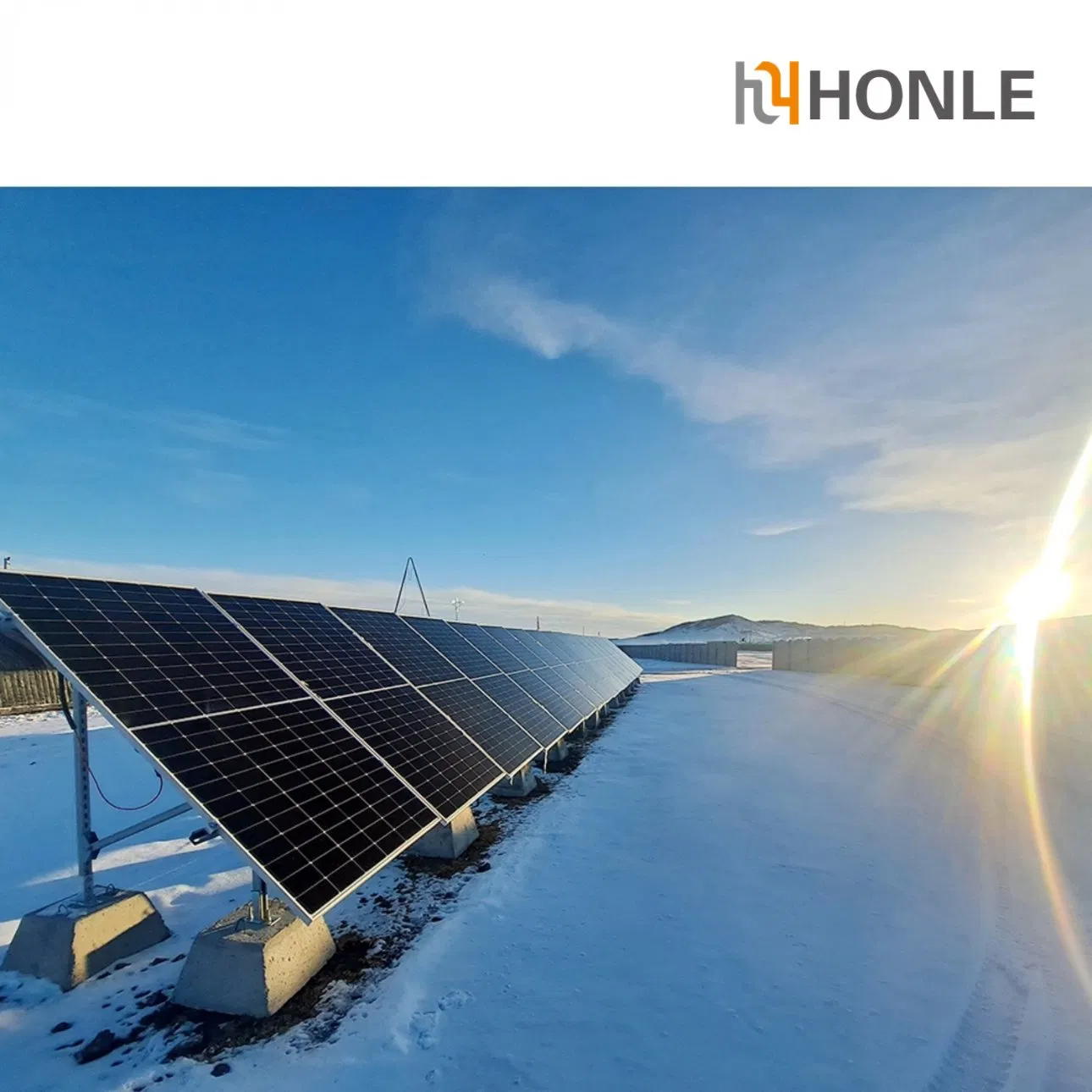

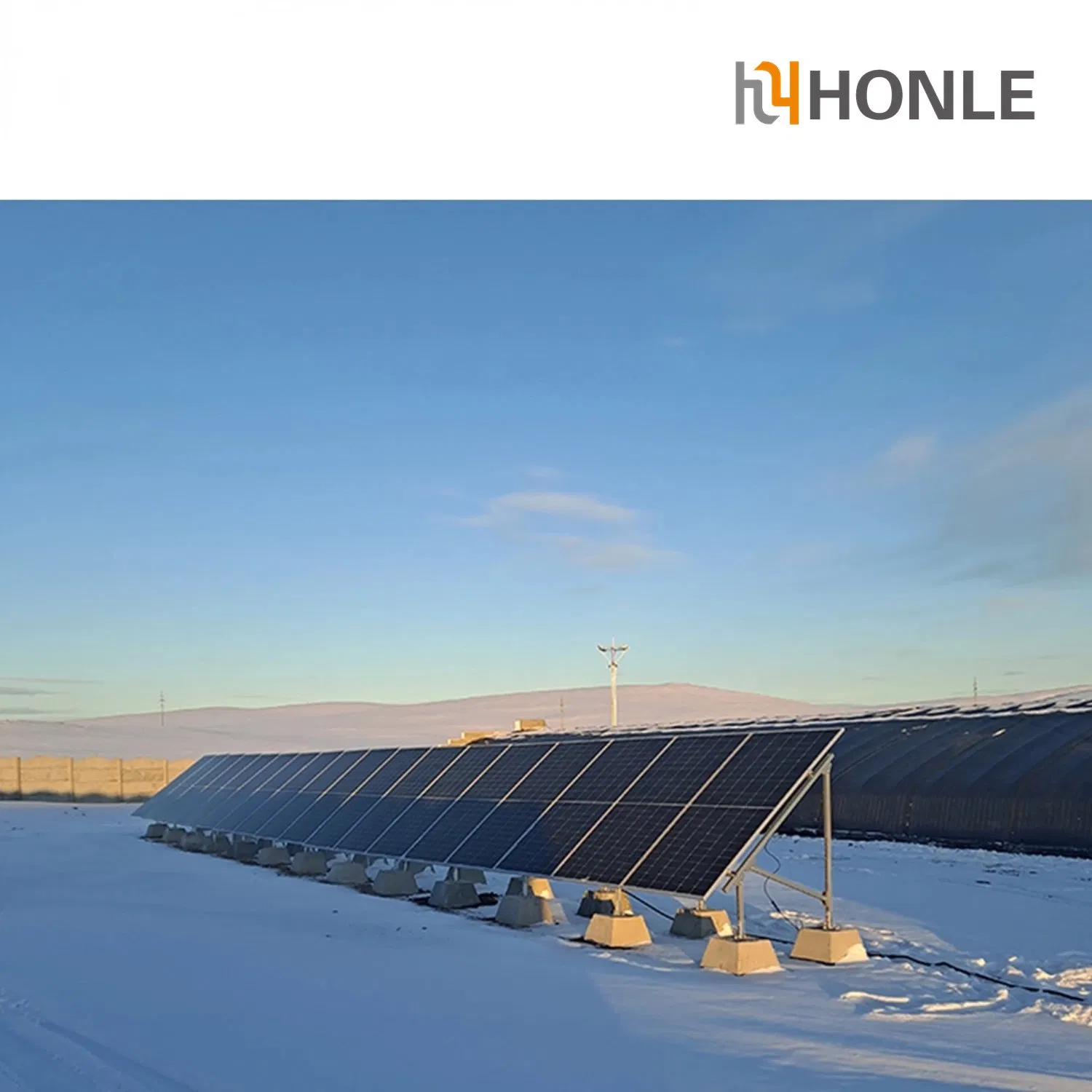

Applications

C

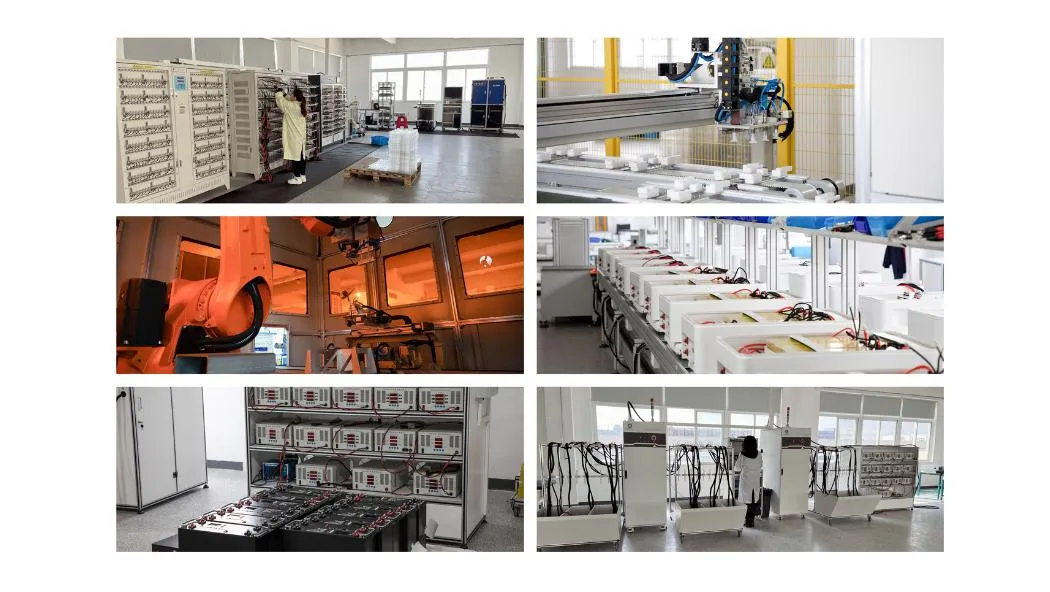

Production Capacity

Our manufacturing facility is a globally recognized supplier of sustainable, eco-friendly energy solutions. With over two decades of industry experience, the group has established an extensive international presence. Our state-of-the-art production line boasts an annual capacity of 30,000 square meters, utilizing the latest international equipment for power walls and commercial energy storage systems.

P

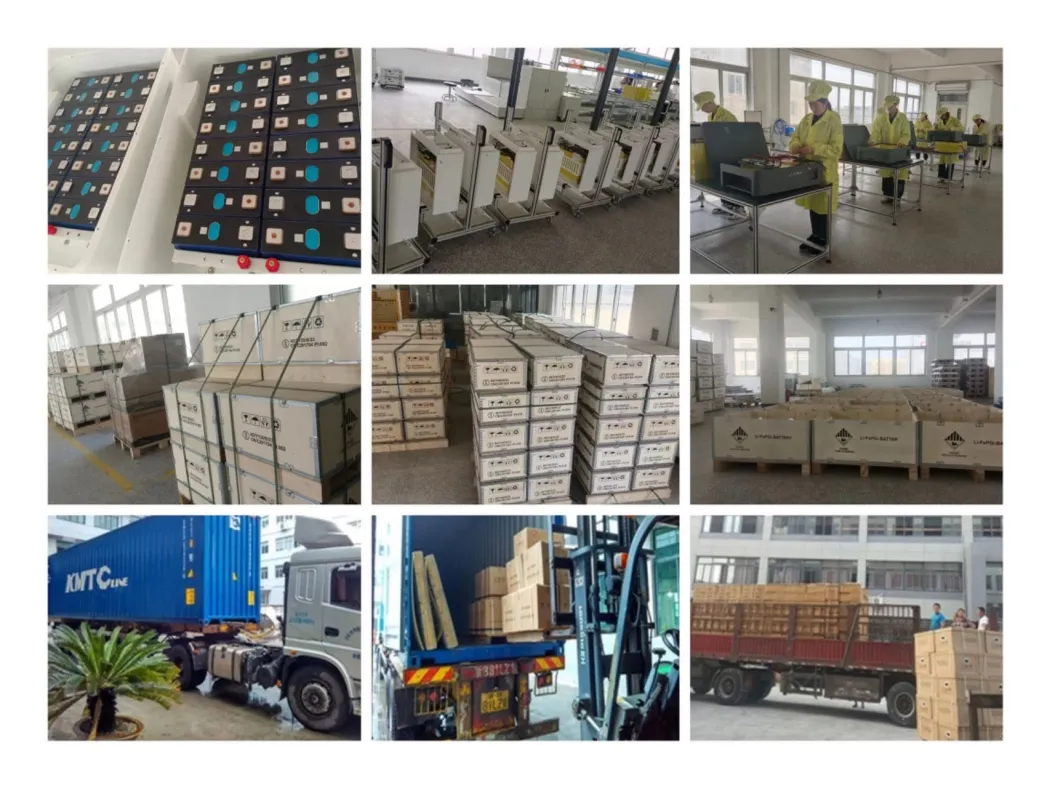

Packaging & Shipping

?

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

In general, the MOQ is 1 pallet for standard solar modules.

What is the estimated delivery time?

For large capacity orders, delivery usually takes around 25 days. For in-stock items, shipping occurs within 1-2 days.

Do you provide OEM and ODM services?

Yes, we provide free OEM services and complete ODM solutions, including custom packaging and logo design.

Are all products tested before delivery?

Yes, 100% of our products undergo strict quality testing before leaving the factory.

What packaging standards are used?

We use reinforced industrial cartons and pallets to ensure maximum protection during transit.

Can you provide Origin Certificates like Form A or C/O?

Certainly. we can prepare all necessary origin documents and certificates for your customs clearance needs.
