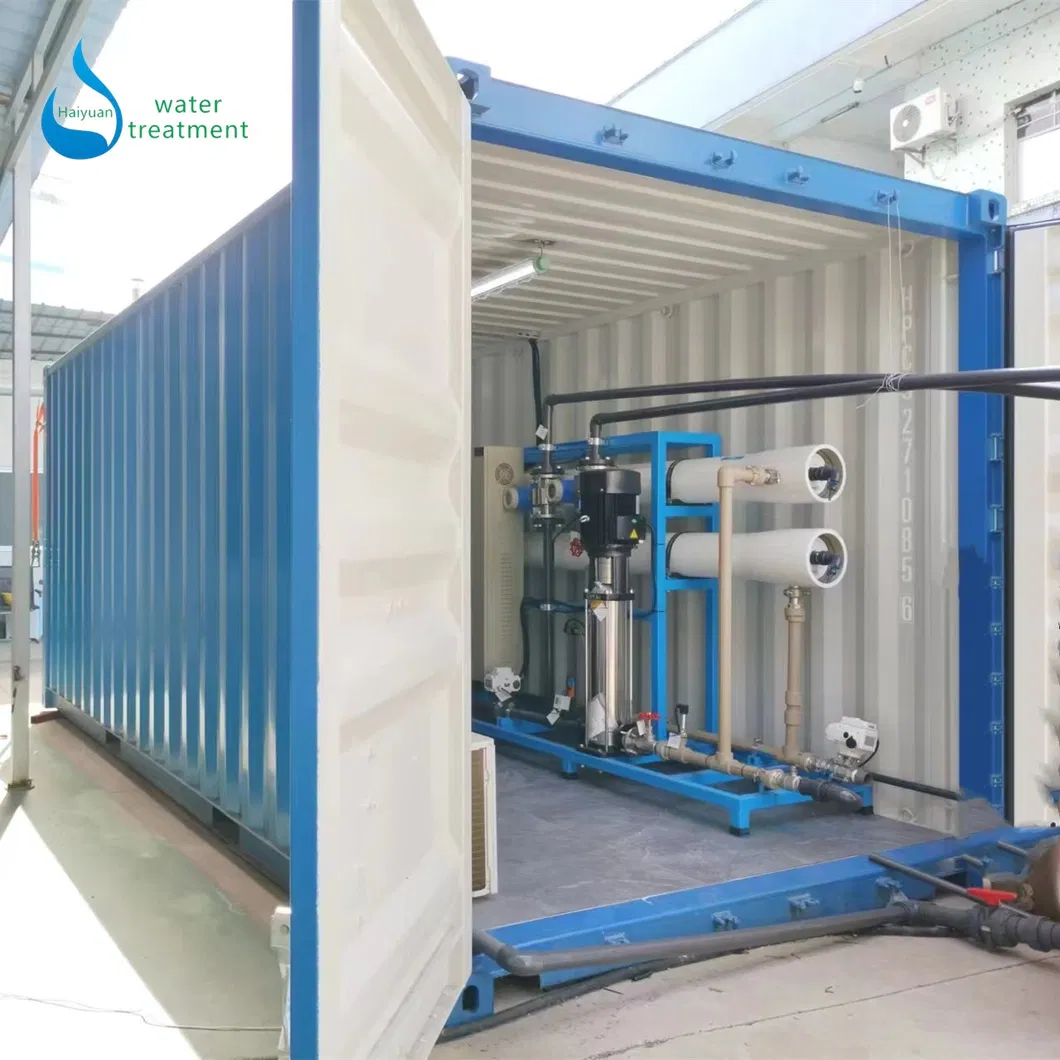

This containerized water treatment system is a fully integrated, modular solution housed in a standard shipping container (20ft or 40ft). It is designed for treating seawater, brackish water, groundwater, river water, or tap water. The system features a plug-and-play design for fast deployment and immediate operation.
| Flow Rate: 144T/day | Recovery Rate: 60% |
| Power: 380V/50hz 3 Phase | Rated Power: 9.9KW |
| Feedwater TDS: 2800ppm | Freshwater TDS: 31.6ppm |
| Operating Temp: 5-45ºC | Container Size: 20FT |
Raw water tank ➔ Feed water pump ➔ Multi-media filter ➔ Scale prevention dosing ➔ Precision filter ➔ High-pressure pump ➔ RO system ➔ Product water tank

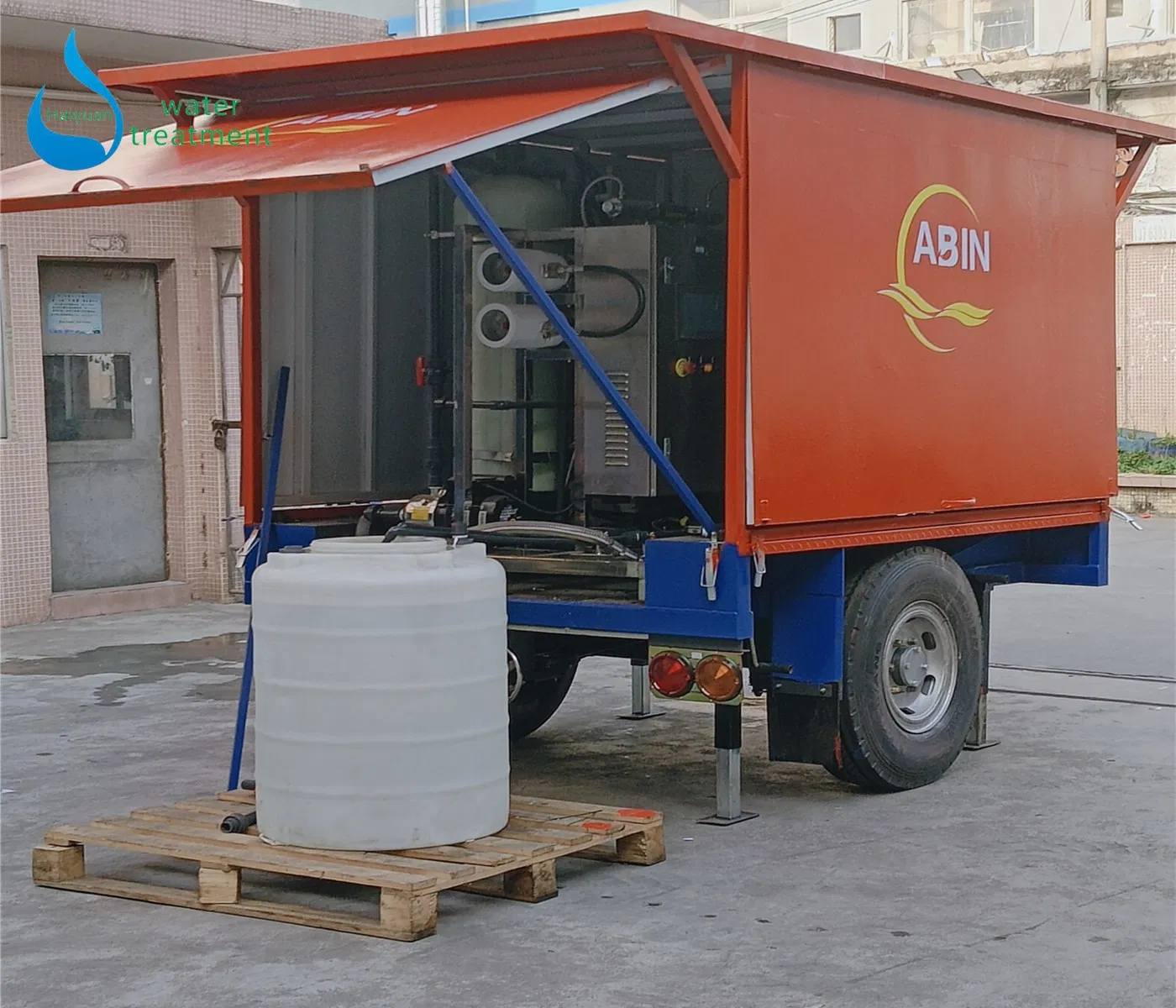

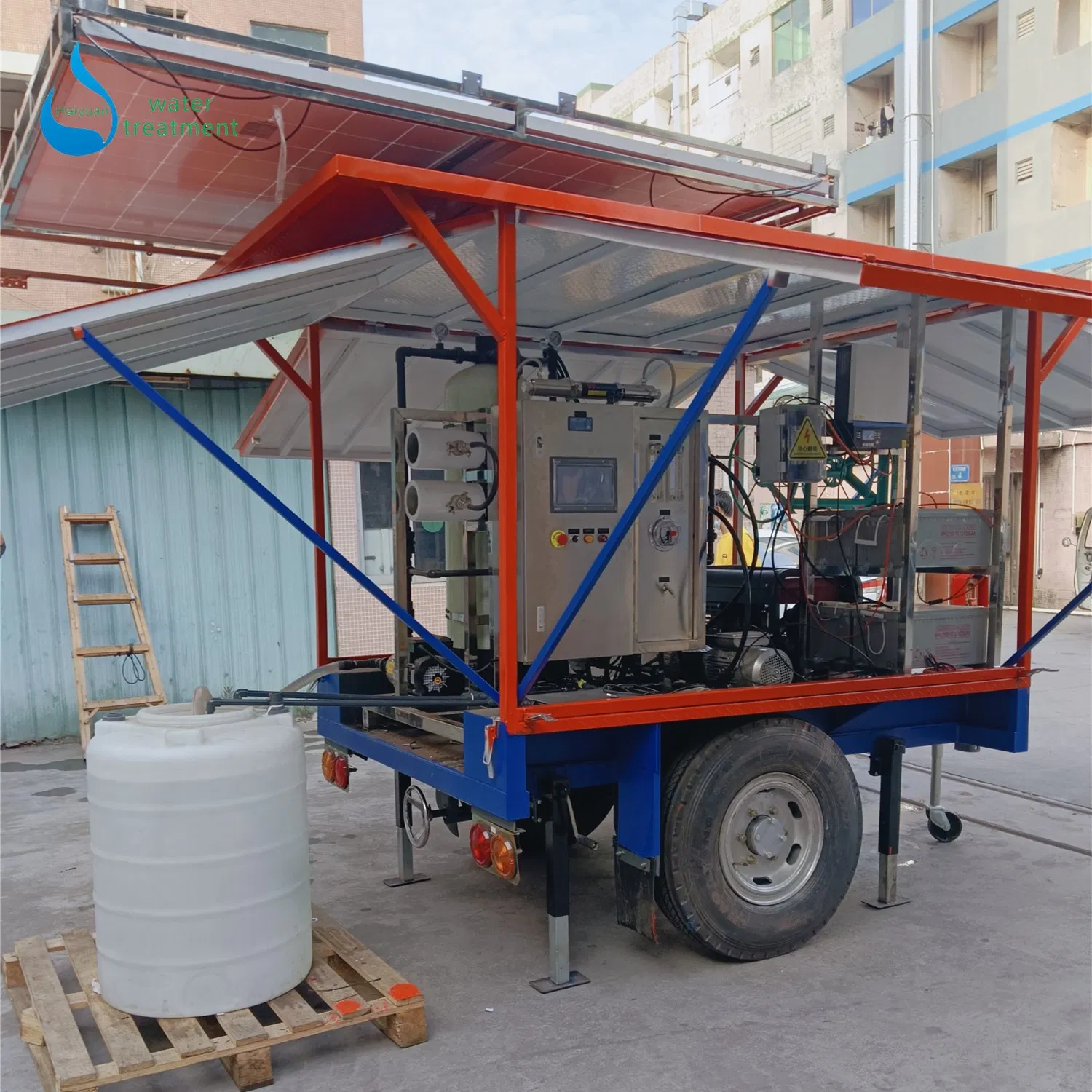

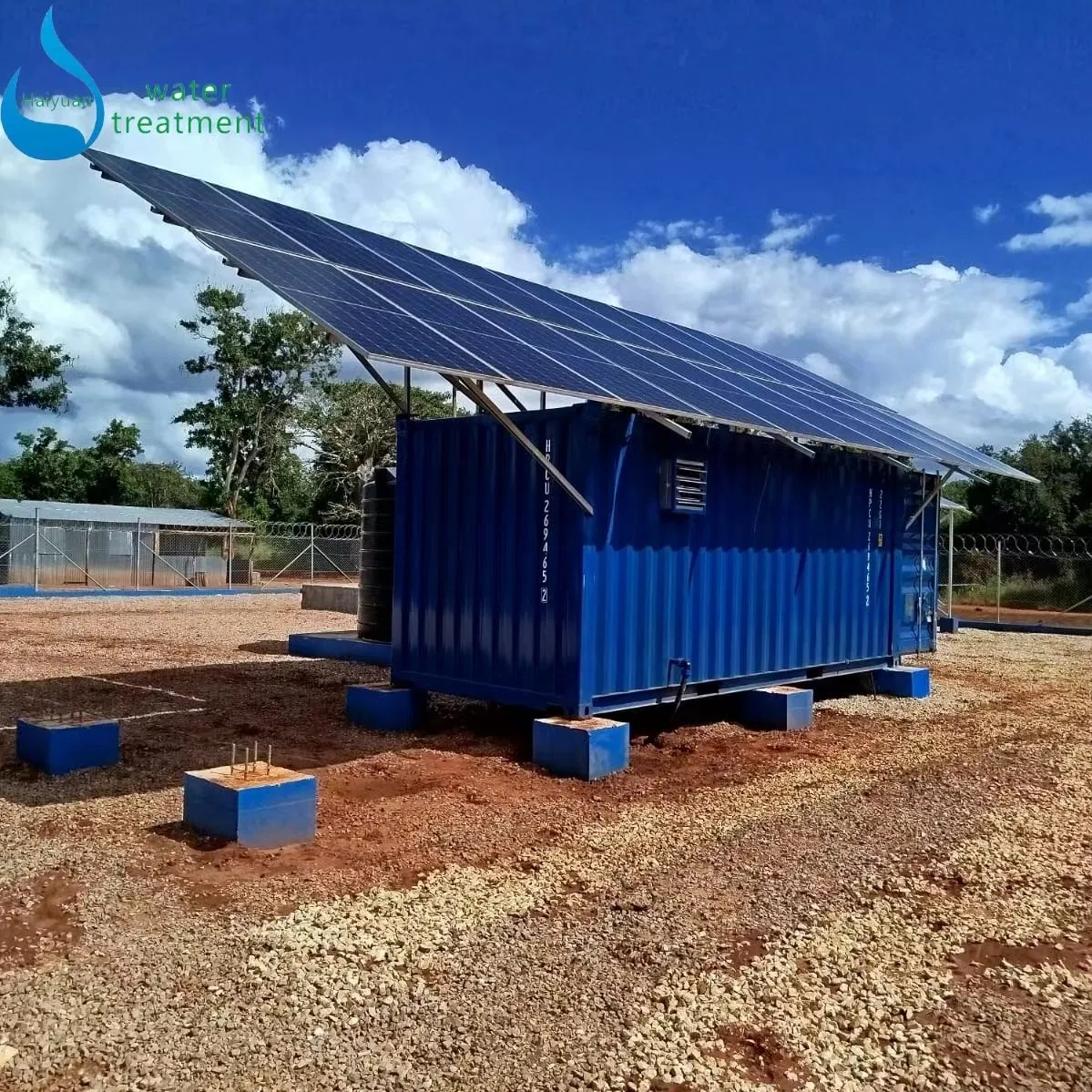

Solar Components: Solar panels, Charge Controller, Solar batteries (optional), and Inverters.

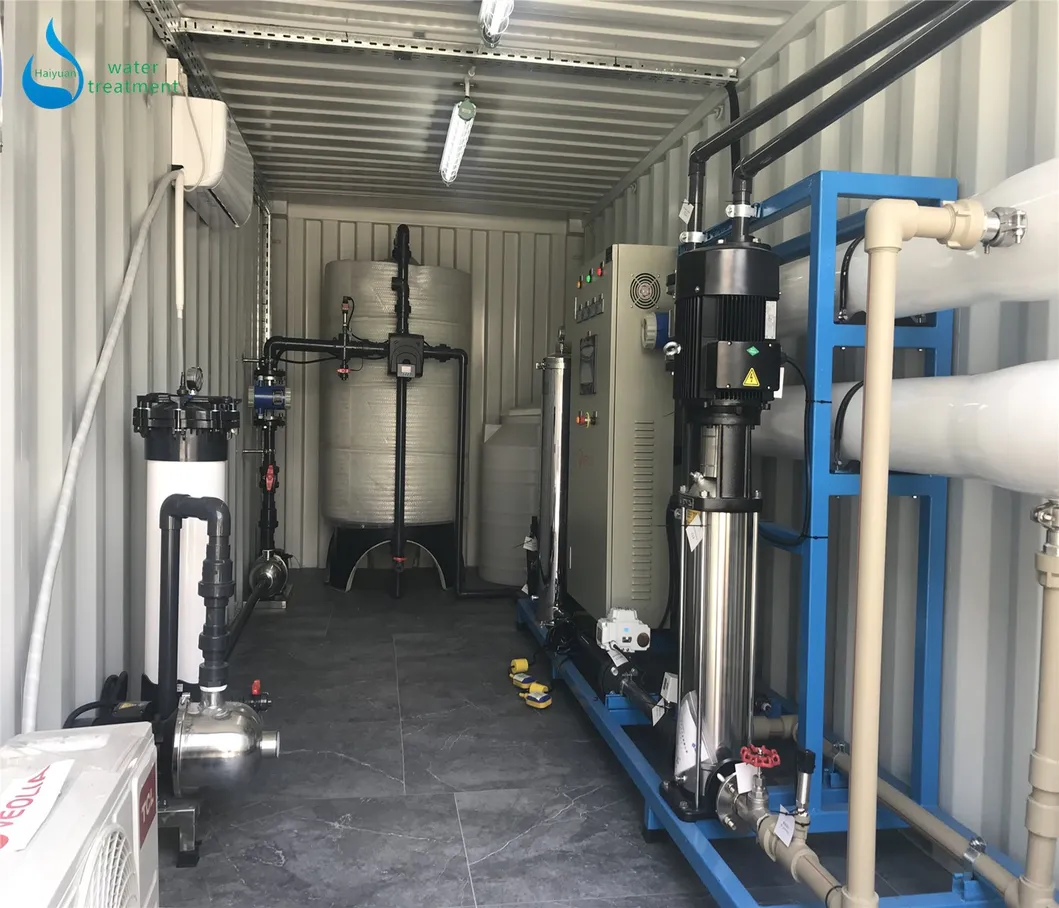

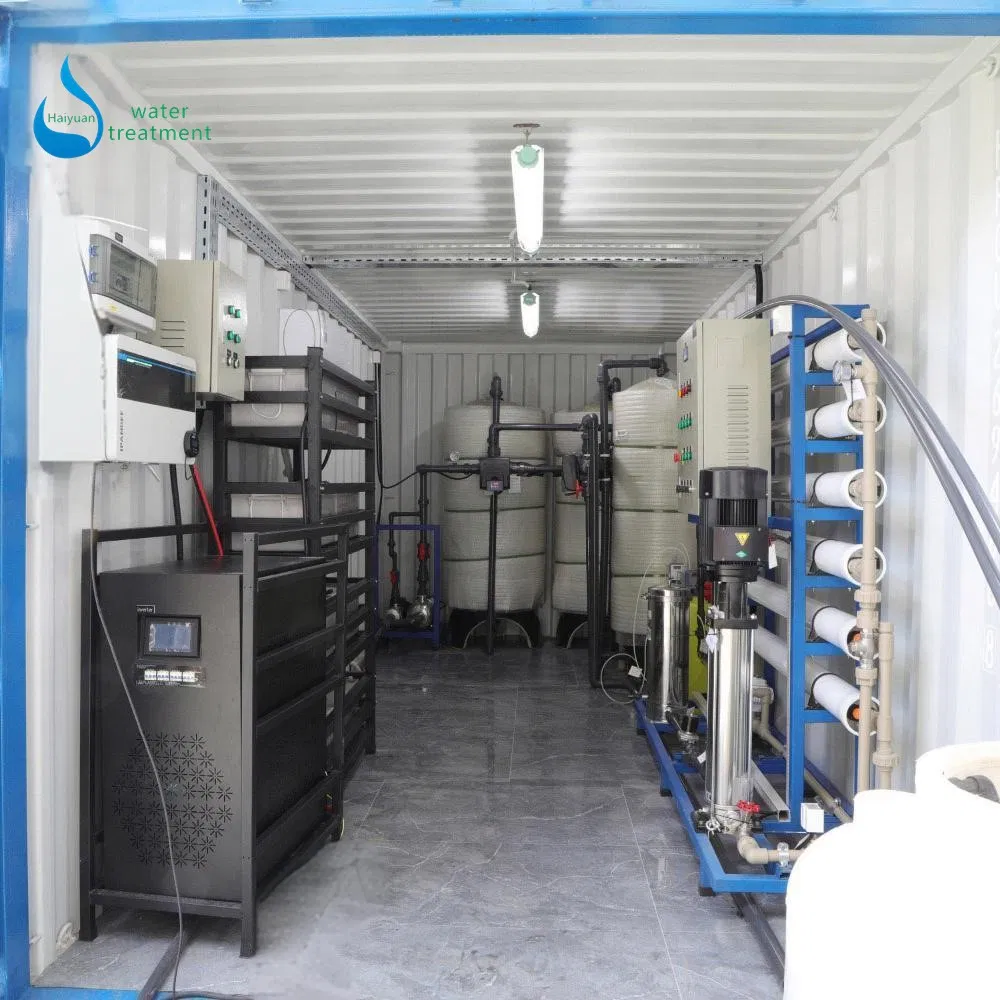

Container Interior: Treatment system, control panel, lighting, non-slip flooring, and optional air conditioning/ventilation.
| Process Stage | Equipment | Function Description |
|---|---|---|
| Pretreatment | Multi-media Filter | Removes suspended solids, sand, and rust. |
| Scaling Control | Dosing Device | Adds antiscalant to protect RO membranes. |
| Membrane Protection | Precision Filter | Filters fine particles (5 microns) before RO. |

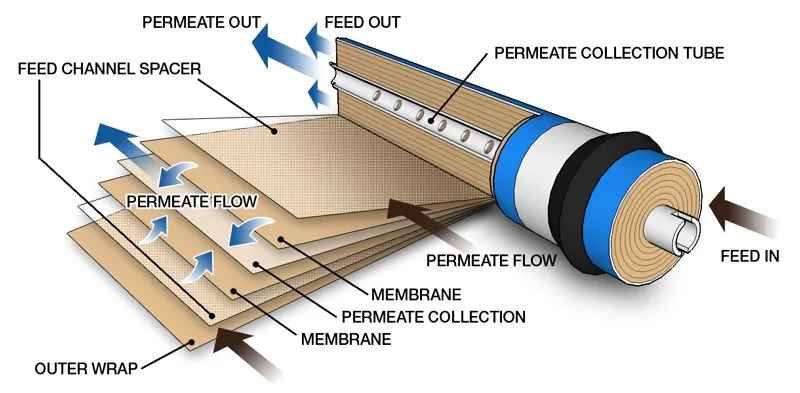

| Purification | RO Unit | Removes 97-99% of dissolved salts and heavy metals. |
