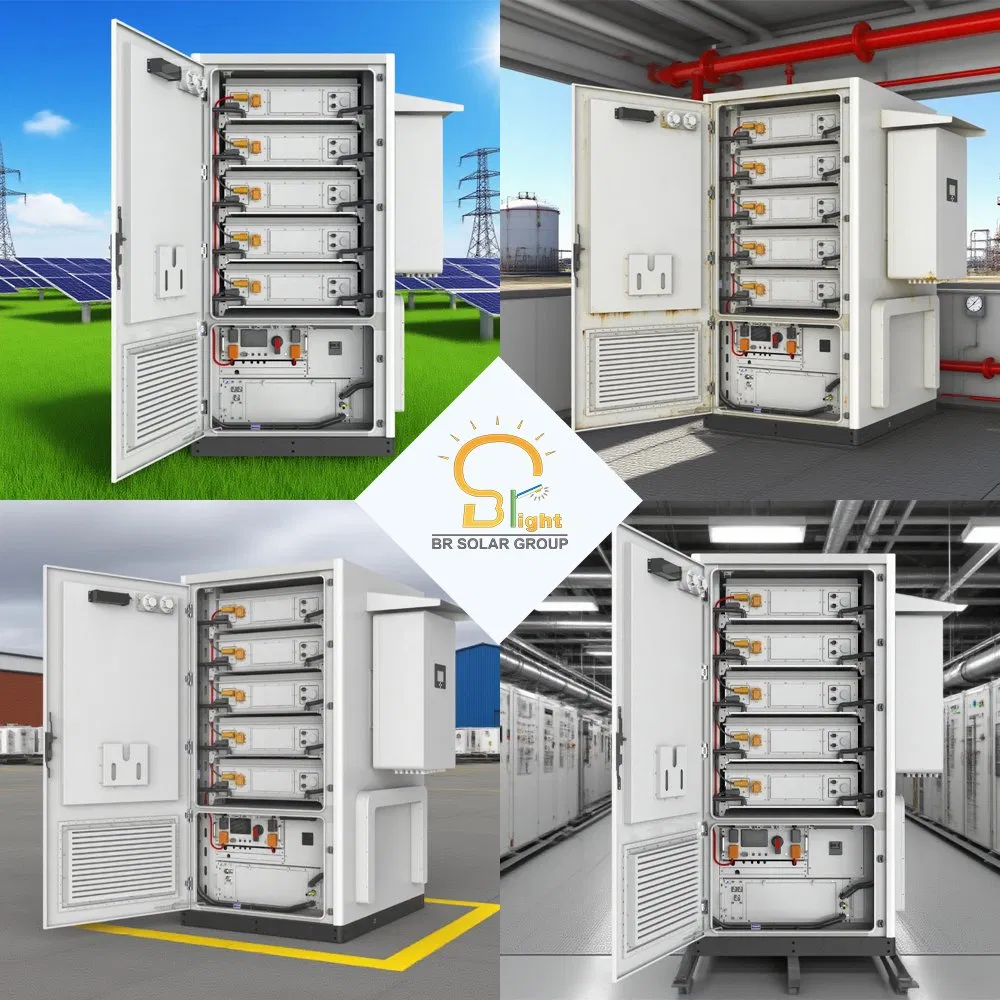

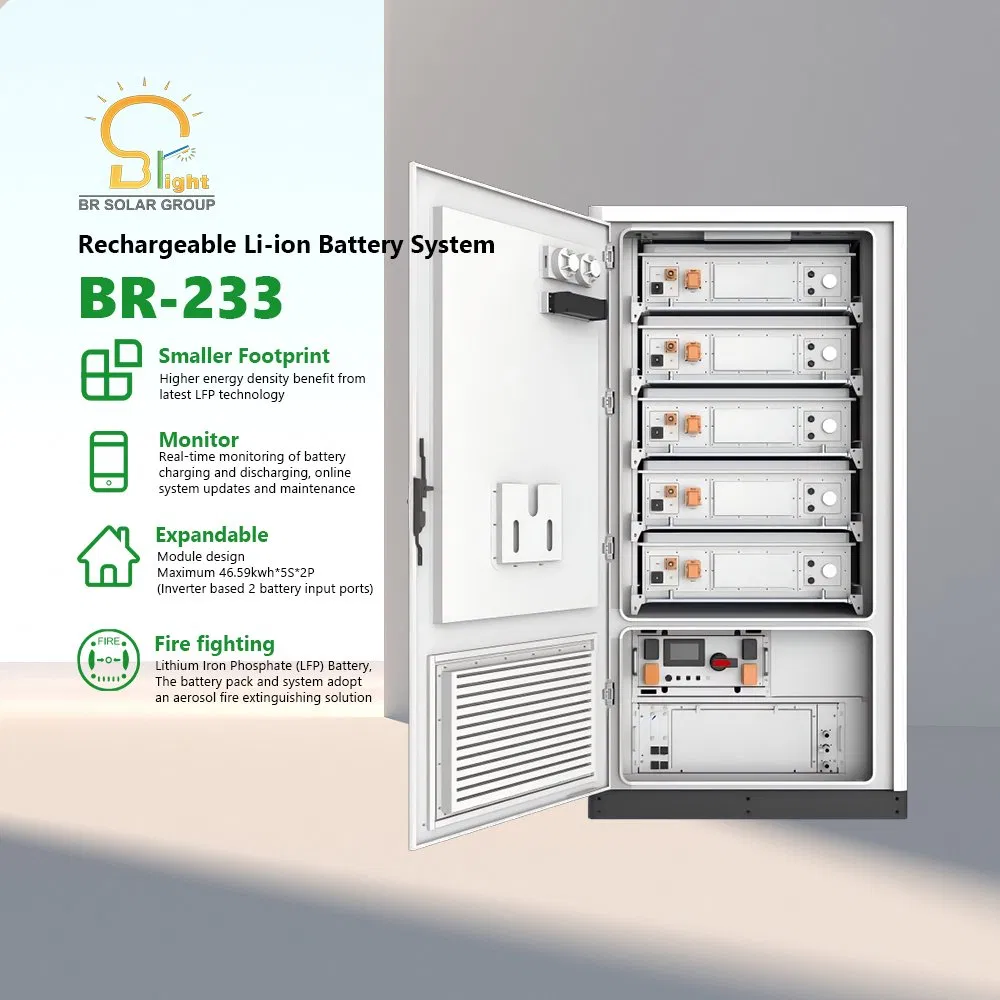

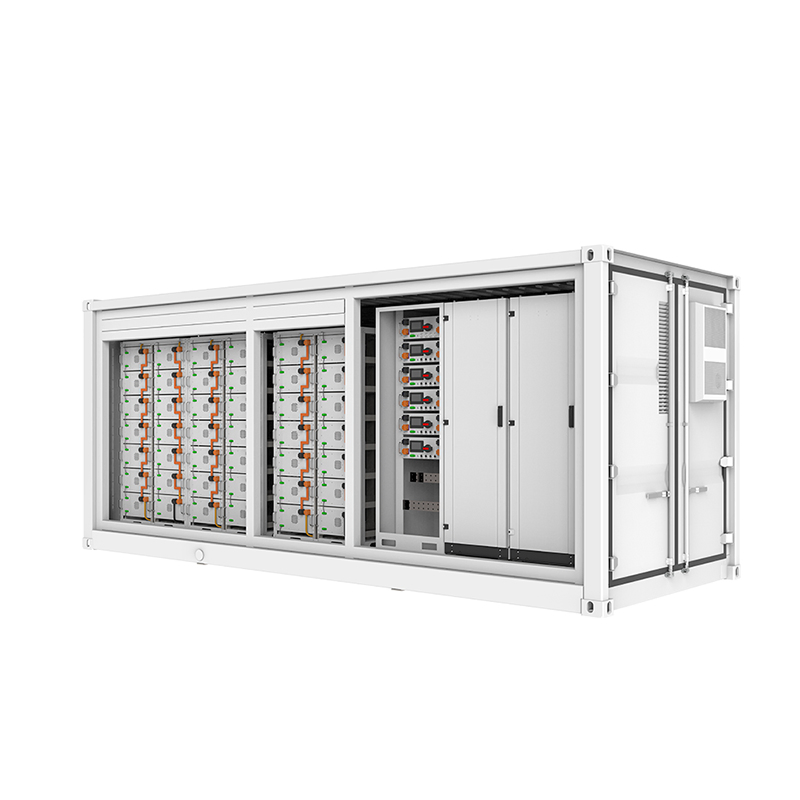

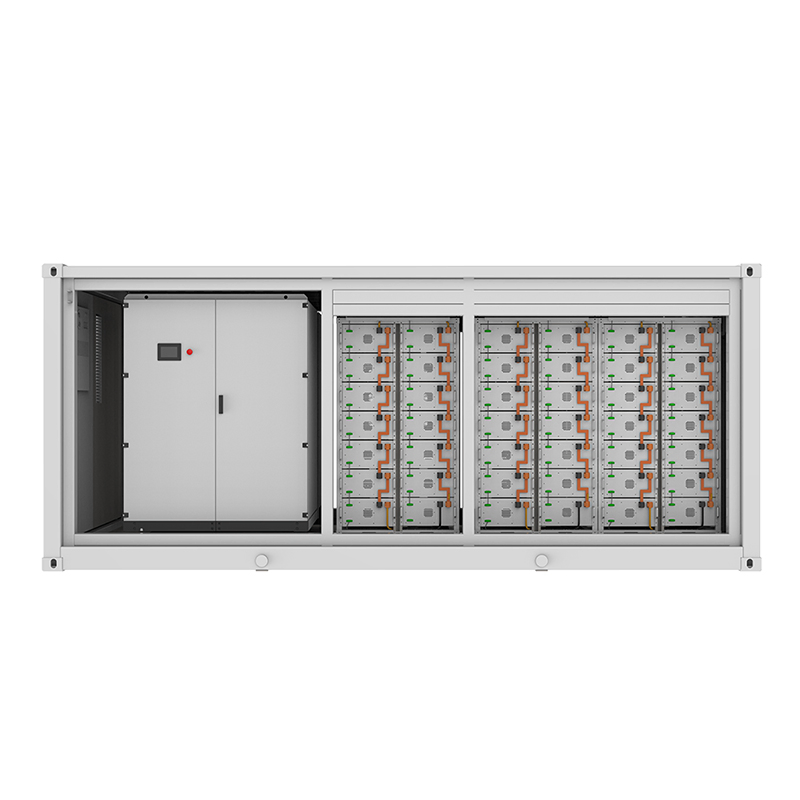

Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
1 / 5
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container
Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container

Br Solar Industrial Carton and Pallet Hybrid Inverter Storage System Bess Container

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Specifications

Condition:New
Certification:ISO, CE
Application:Home, Industrial, Commercial, School, Factory
Specification:100kwh, 233kwh
Type of Cell:Lithium Iron Phosphate(LFP)
Cell Parameter:3.2V/314ah
Cooling:Liquid Cooling
Protection Class:IP55
Max Charge Power:0.5c
Rated Capacity:5.01 Mwh
Rated Voltage:1331.2V
Production Capacity:1000set/Month

Technical Parameters

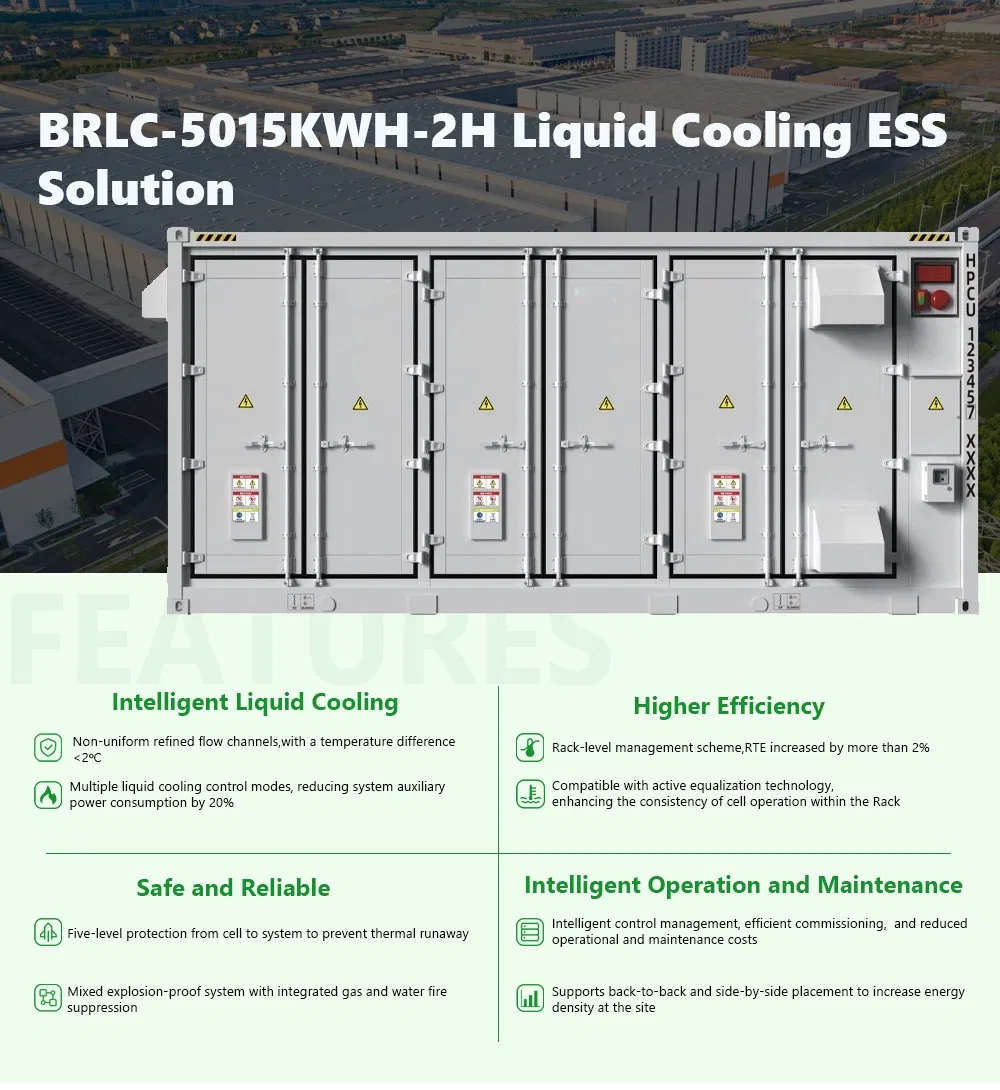

Storage System Container
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

Product Gallery

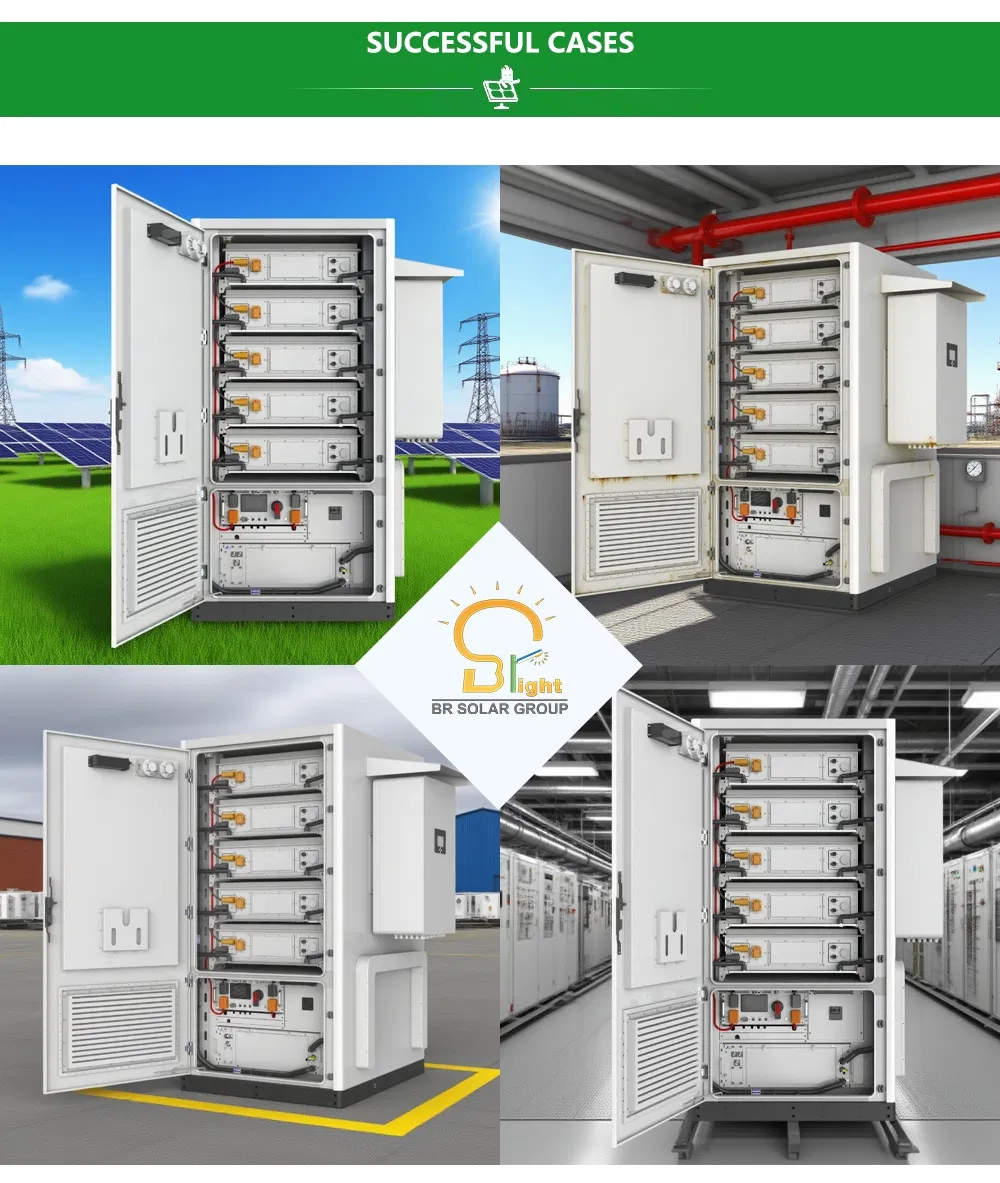

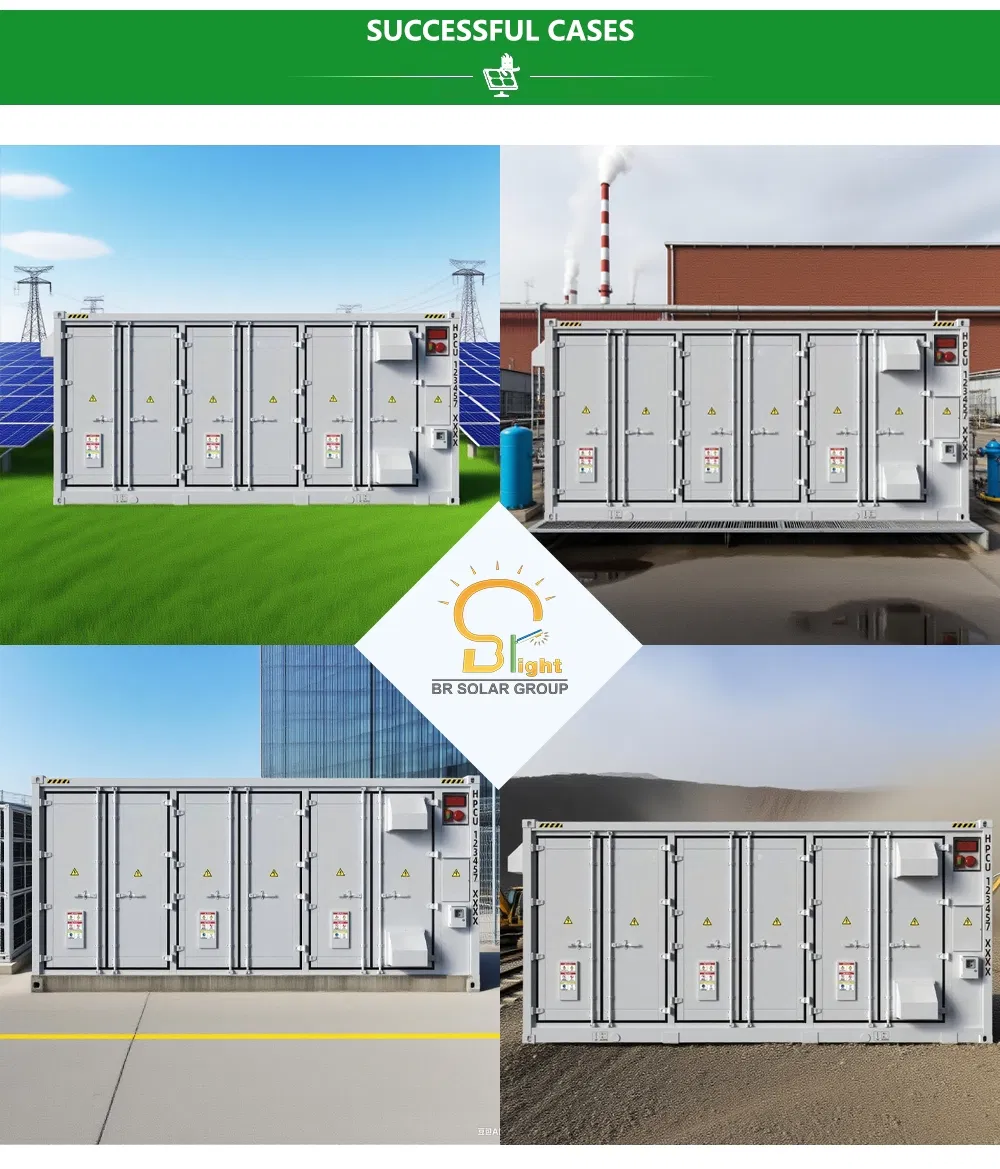

Detail Image 1 Detail Image 2
Banner Image

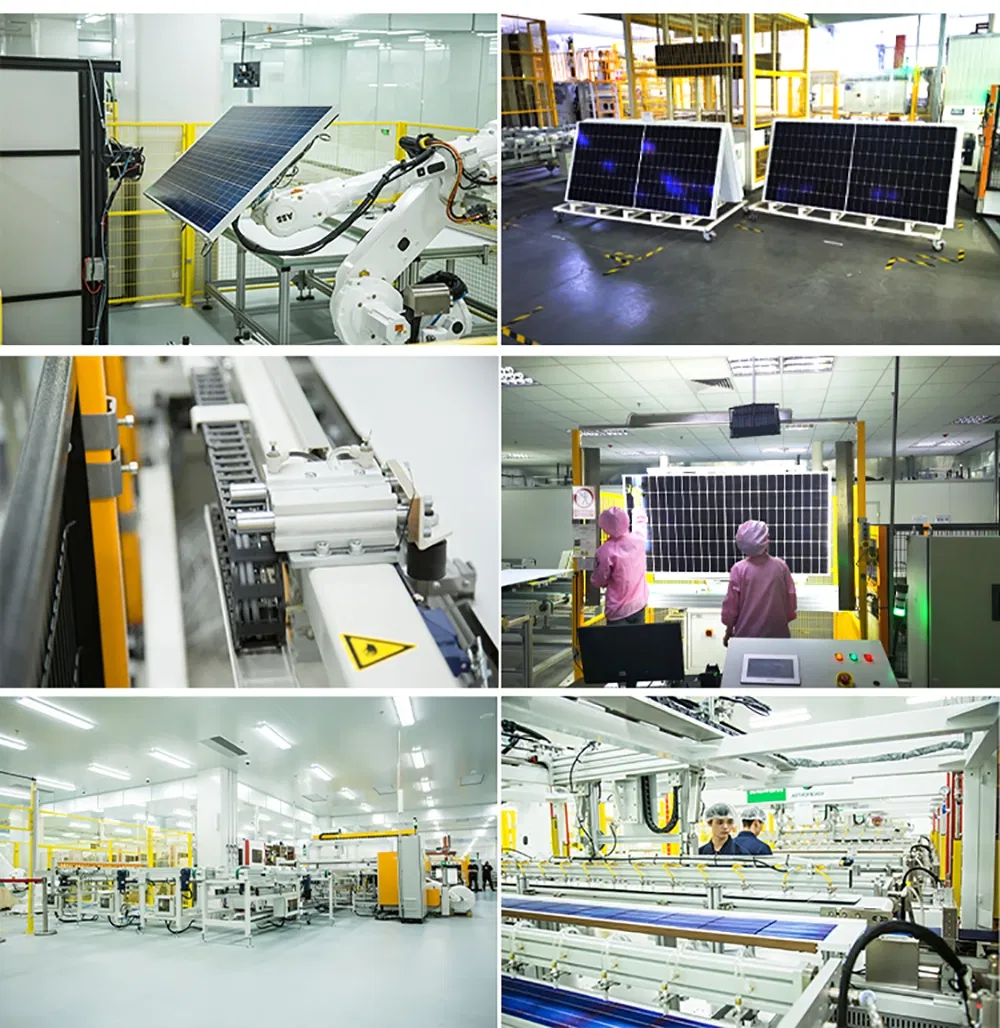

Detail Image 3 Detail Image 4 Detail Image 5

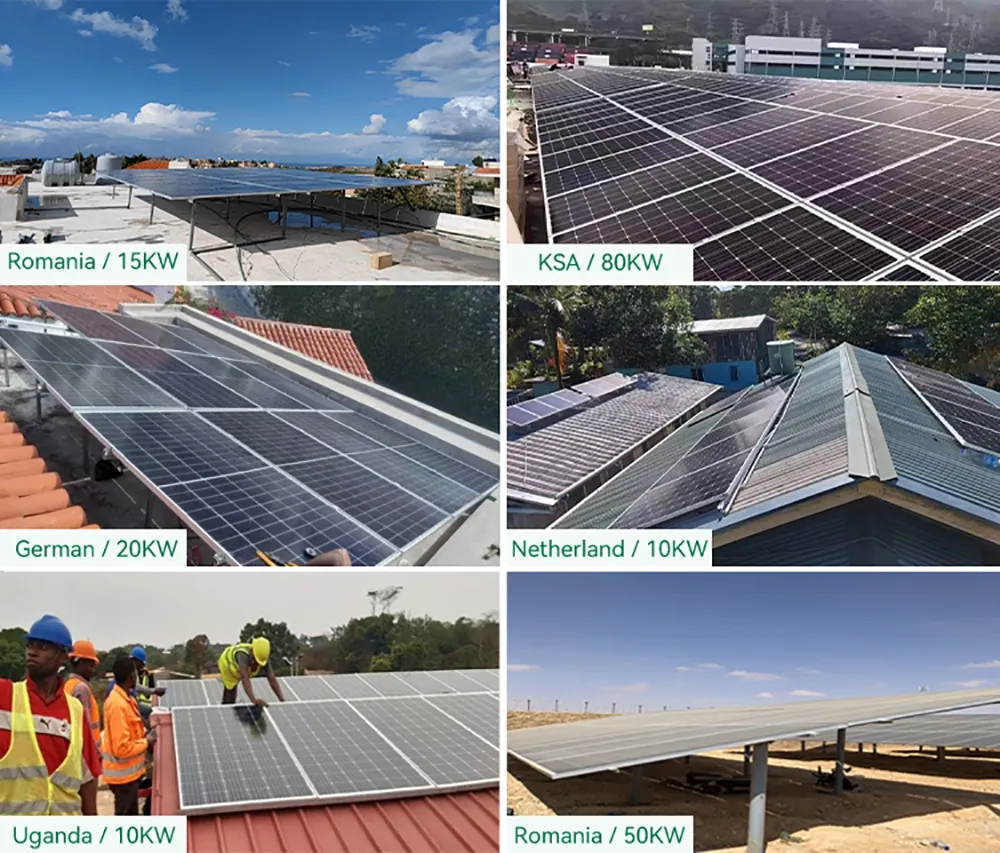

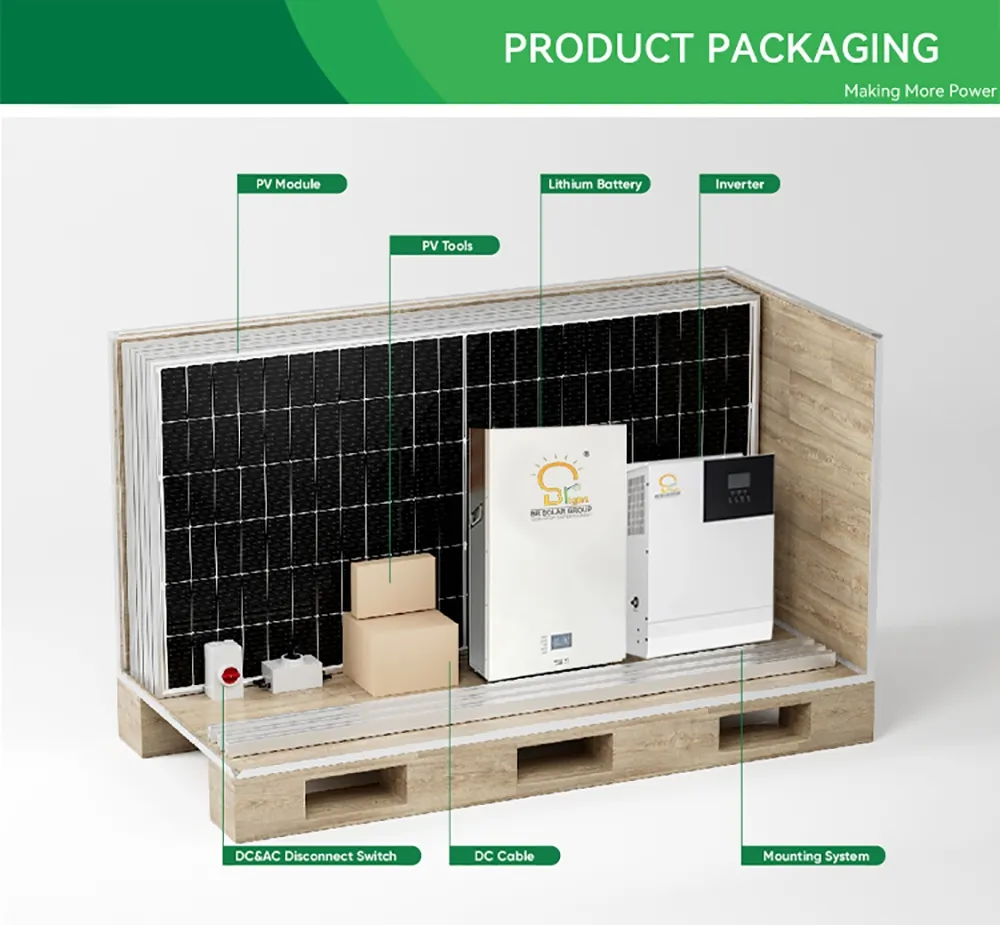

Detail Image 6 Detail Image 7 Detail Image 8

Packaging & Delivery

Package Size:110.00cm * 140.00cm * 238.00cm
Gross Weight:2000.000kg
Package Type:Carton and Pallet

Frequently Asked Questions

1. What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety and long cycle life.
2. What is the protection rating for outdoor use?
The storage system is rated at IP55, providing excellent protection against dust and water ingress in various environments.
3. How is the system cooled to maintain performance?
The system employs an advanced Liquid Cooling method to ensure optimal operating temperatures and thermal stability.
4. What is the operating temperature range?
The equipment is designed to operate reliably in temperatures ranging from -30ºC to 50ºC.
5. What fire protection measures are included?
Safety is prioritized with temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and water sprinklers.
6. What is the total rated capacity of the BESS container?
This specific configuration offers a large-scale rated capacity of 5.01 MWh.
