| Application |
Room Temperature |
Thickness of Panel |
| Chemical & Medicine |
0 to 5 ºC |
50mm |
| Fruit & Vegetable |
-5 to 10 ºC |
75mm |
| Ice Storage |
-10 to -5 ºC |
100mm |
| Frozen Meat |
-25 to -18 ºC |
150mm |
| Blast Freezing |
-40 to -30 ºC |
200mm |
Cold Room Panel
Fluoride-free, environment-friendly B2 fireproof polyurethane panels with high-pressure foaming (38-42 kg/m3).

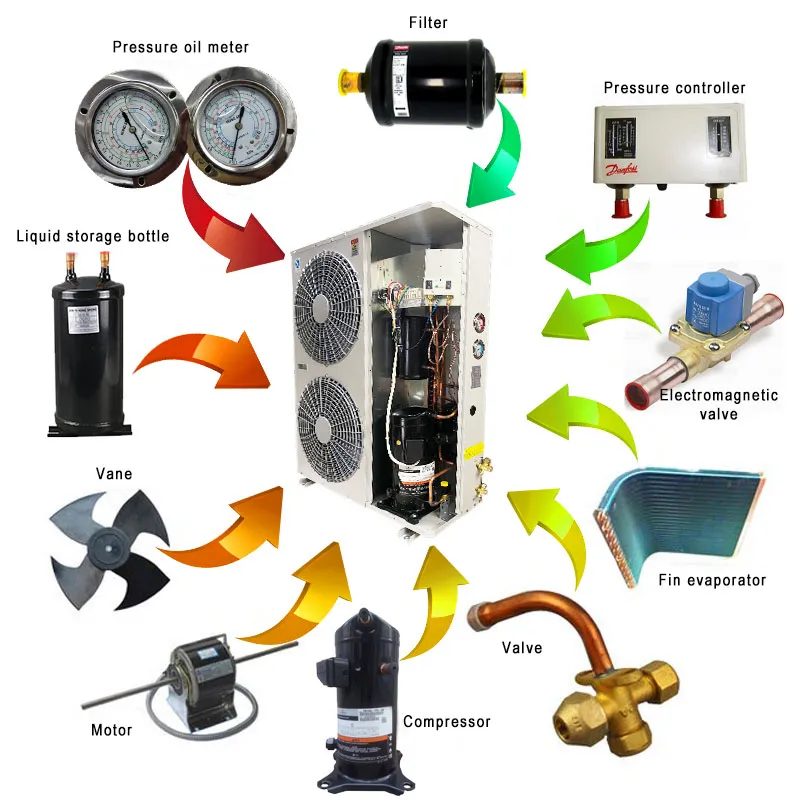

Condensing Unit
Automatic high-precision digital controller with high efficiency and user-friendly operation.
Door Systems
Available in Hinged, Sliding, and Free door types customized to specific operational requirements.
1. Application Type
The intended use directly affects the required temperature, PU panel thickness, and surface material selection.
2. Storage Dimensions
Size determines the selection of the condensing unit and air cooler to maintain stable internal temperatures.
3. Local Climate & Voltage
Regional heat affects condenser choice. Areas with high year-round temperatures require condensers with larger evaporation areas.
?
Frequently Asked Questions
What materials are used for the insulation panels?
We use fluoride-free, environment-friendly polyurethane (PU) panels with a density of 38-42 kg/m3. These panels are fire-retardant (Level B2).
What temperature range can your cold rooms maintain?
Our systems can be configured to maintain temperatures ranging from fresh storage (0 to 10 ºC) to deep freezing (-18 ºC to -40 ºC).
What is included in the refrigeration fittings package?
The package includes the temperature controller, valve parts, copper pipes, thermal insulation pipes, PVC curtains, LED lights, and all necessary connection cables.
Are the cold storage units customizable?
Yes, we provide full range customization for dimensions, door types (hinged/sliding), and cooling capacities based on your specific industry needs.
What certifications do your products hold?
Our cold storage systems are certified under CE, RoHS, ISO9001, and ISO14001, ensuring high quality and international safety standards.
How do I choose the right panel thickness?
Panel thickness is based on your target temperature: 50-75mm for chilling, 100mm for standard freezing, and 150-200mm for deep blast freezing.
