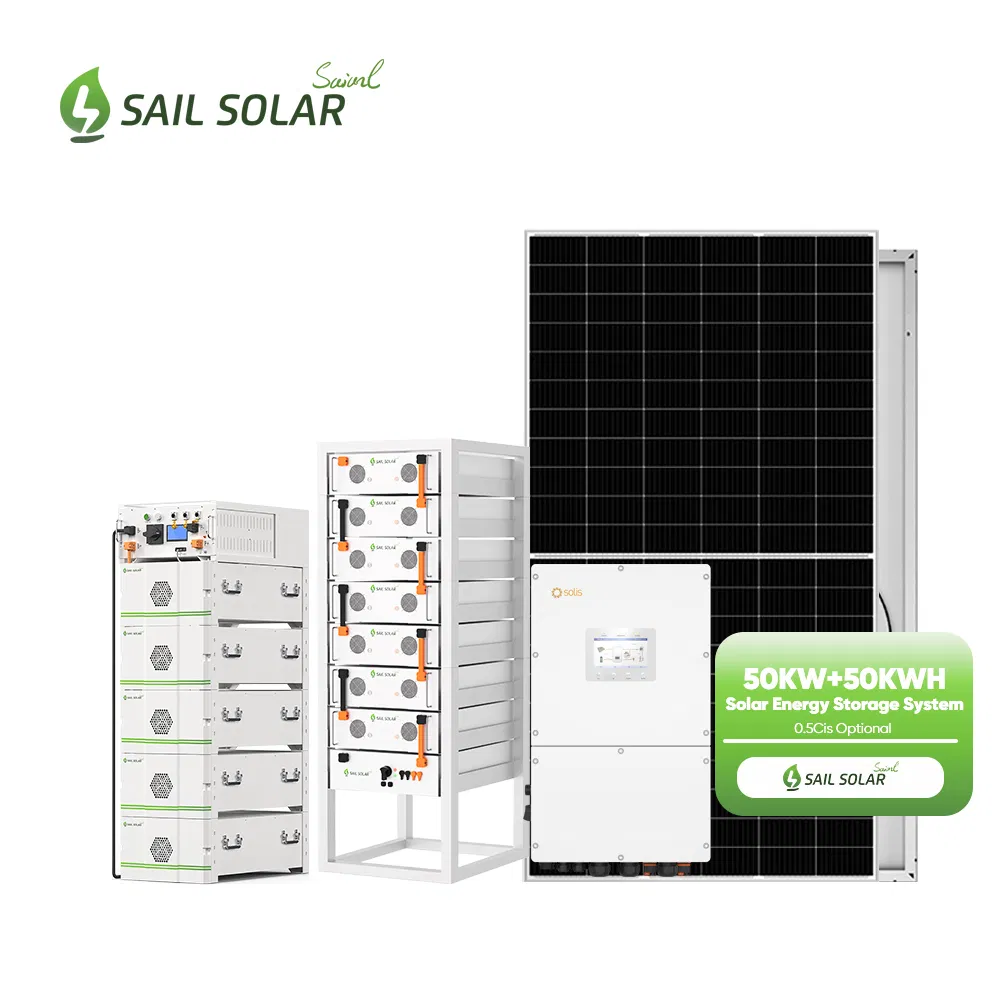

| 50KW Solar Energy System | |
|---|---|
| Model | SAS50KW-HY |

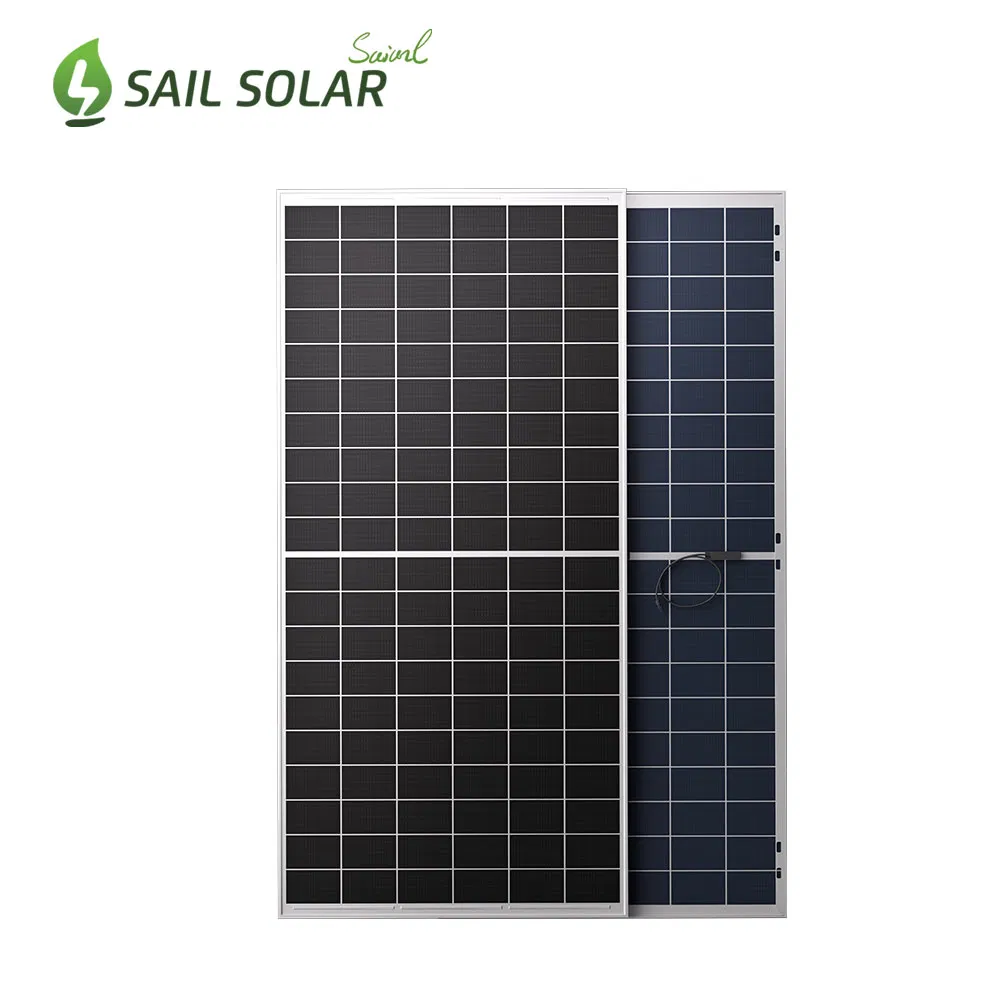

| 590W Solar Panel | 85 pieces |
| Hybrid Inverter | 50KW |
| Lithium Battery | 100KWH Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring |
| DC Cable 4mm2 | 200 Meters |
| MC4 Connector | 150 Pairs |
| Mounting System | Customized for Rooftop or Ground |
| Optional Accessories | Lightning protection, AC/DC Combiner box, AC Cable, Smart Meter |

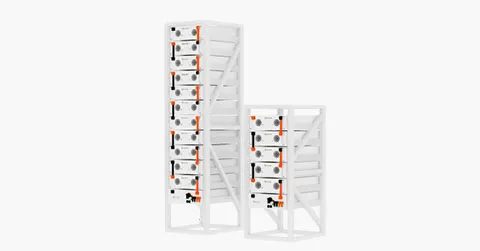

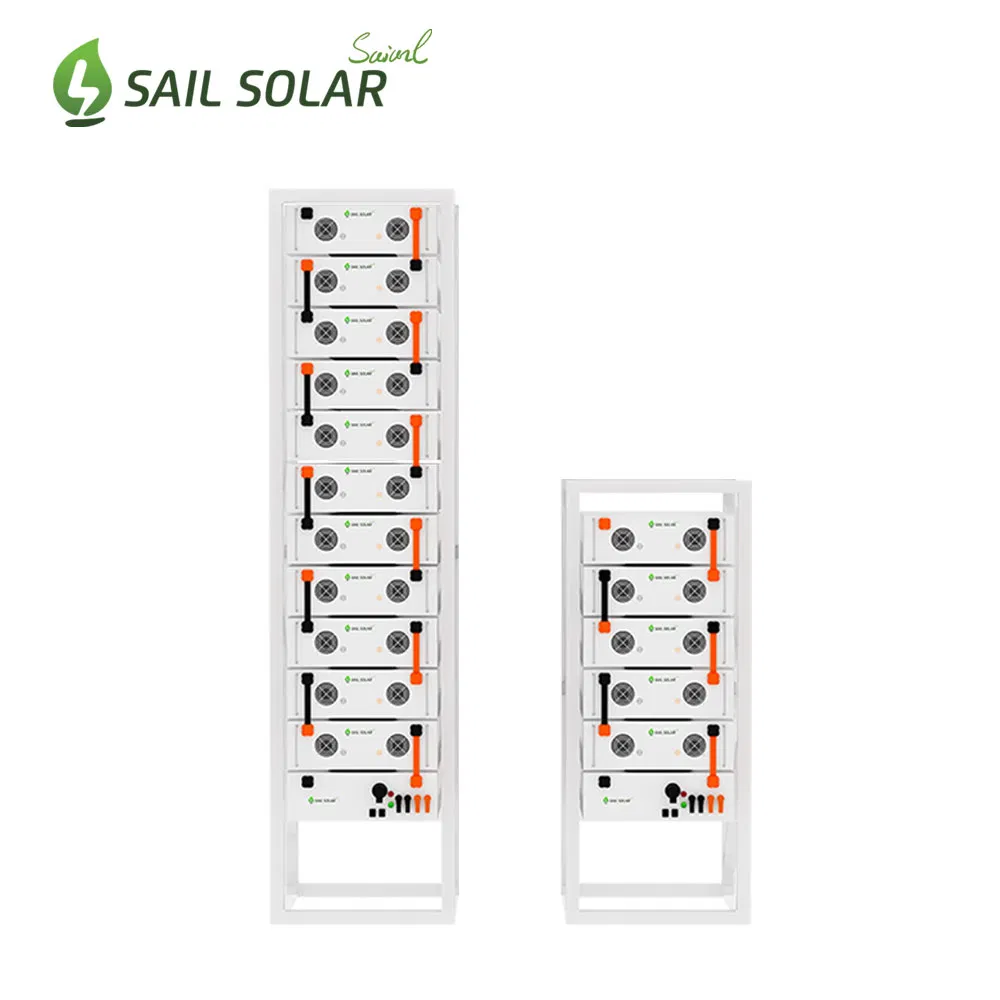

| Storage Battery Specification | |
|---|---|
| Battery Type | LiFePO4 battery |
| Efficiency of Charge | 99.5%@0.2C |
| Configuration | 4 battery modules + 1 BPU (204.8V 280Ah) |
| Energy | 57.34Kw/h |
| Recommend Charge/Discharge Current | 100A |
| Max. Charge/Discharge Current | 200A |

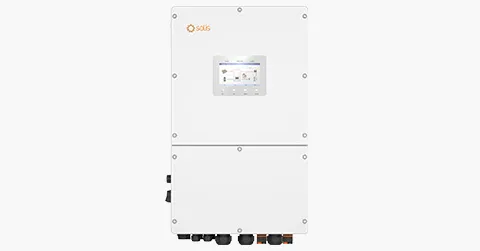

| Solar Inverter Specification | |
|---|---|
| Nominal Power (Grid) | 100kW / 50kW |
| Max. Apparent Power (Grid) | 110kVA / 55kVA |
| Nominal AC Voltage | 380/400V -15%~10% |
| Grid Frequency | 50Hz/60Hz |
| Connection Type | 3P3W+PE / 3P4W+PE |

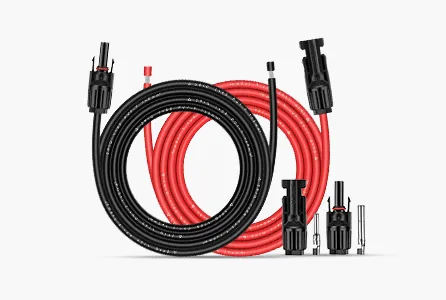

Cables & Connectors: PV DC Cable (4mm2/6mm2), AC Cable, MC4 compatible connectors.

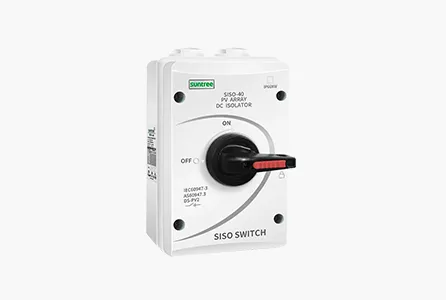

DC Isolating Switch: 1000VDC to 1200VDC, IP66 Waterproof, CE/TUV certified.

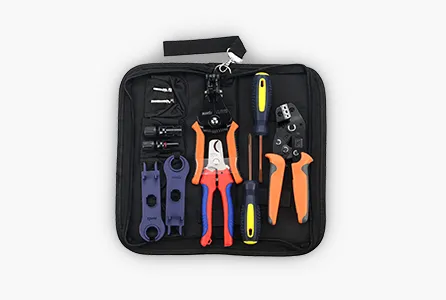

Installation Tools: Complete set including Solar Crimper and Connector Wrenches.

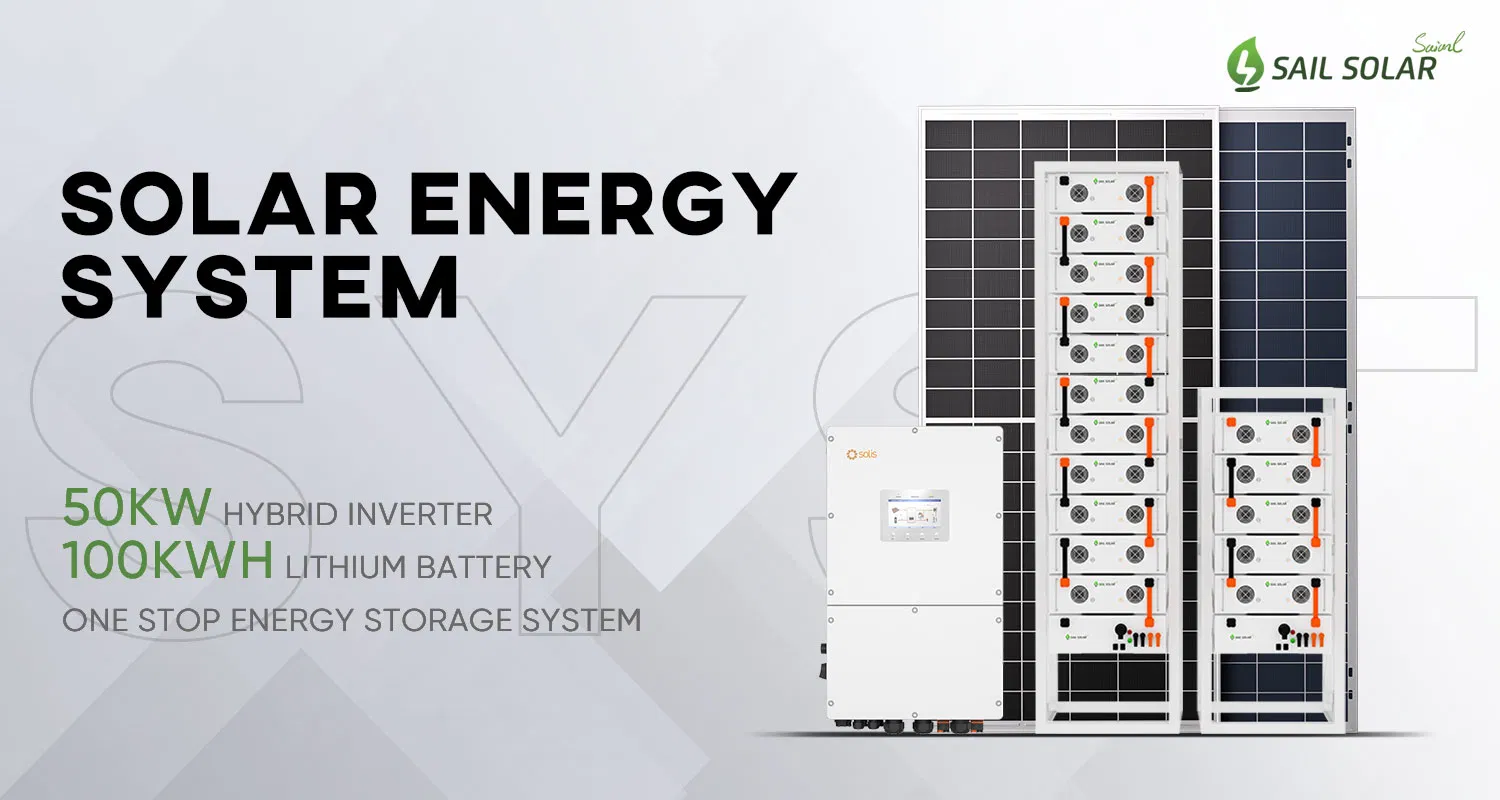

The system includes high-efficiency solar panels (85 pcs), a 50KW hybrid inverter, a 100KWH customized LiFePO4 battery storage system with BMS, mounting structures, and necessary DC/AC cables and connectors.

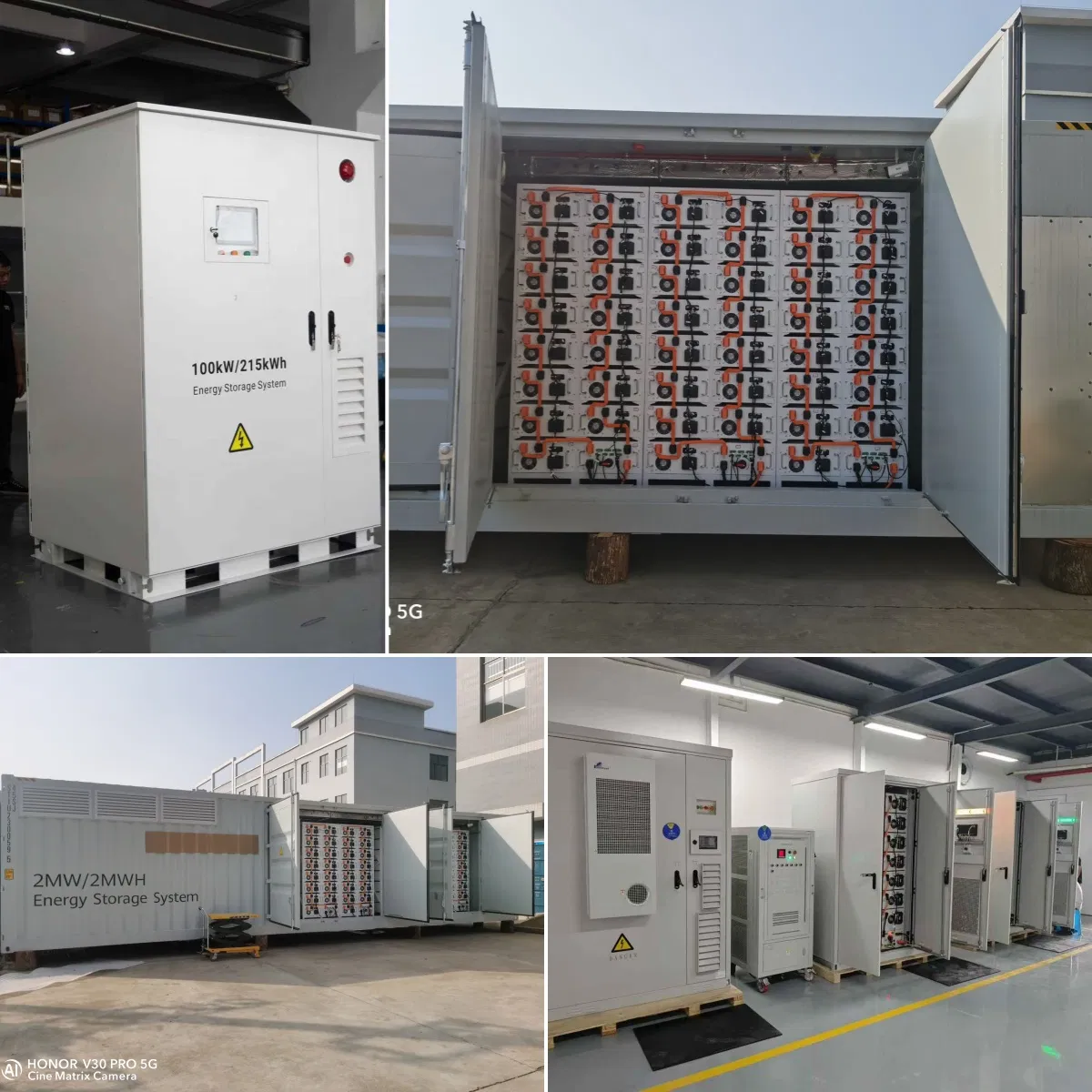

Yes, the battery storage system uses a modular design, allowing for flexible and customized capacity options to meet specific commercial or industrial energy needs.

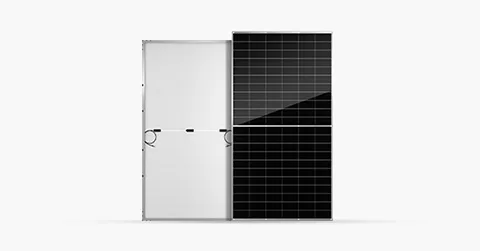

The panels feature an anti-reflective and anti-soiling surface to minimize power loss from dust. Regular cleaning and annual inspections of connections are generally sufficient for optimal performance.

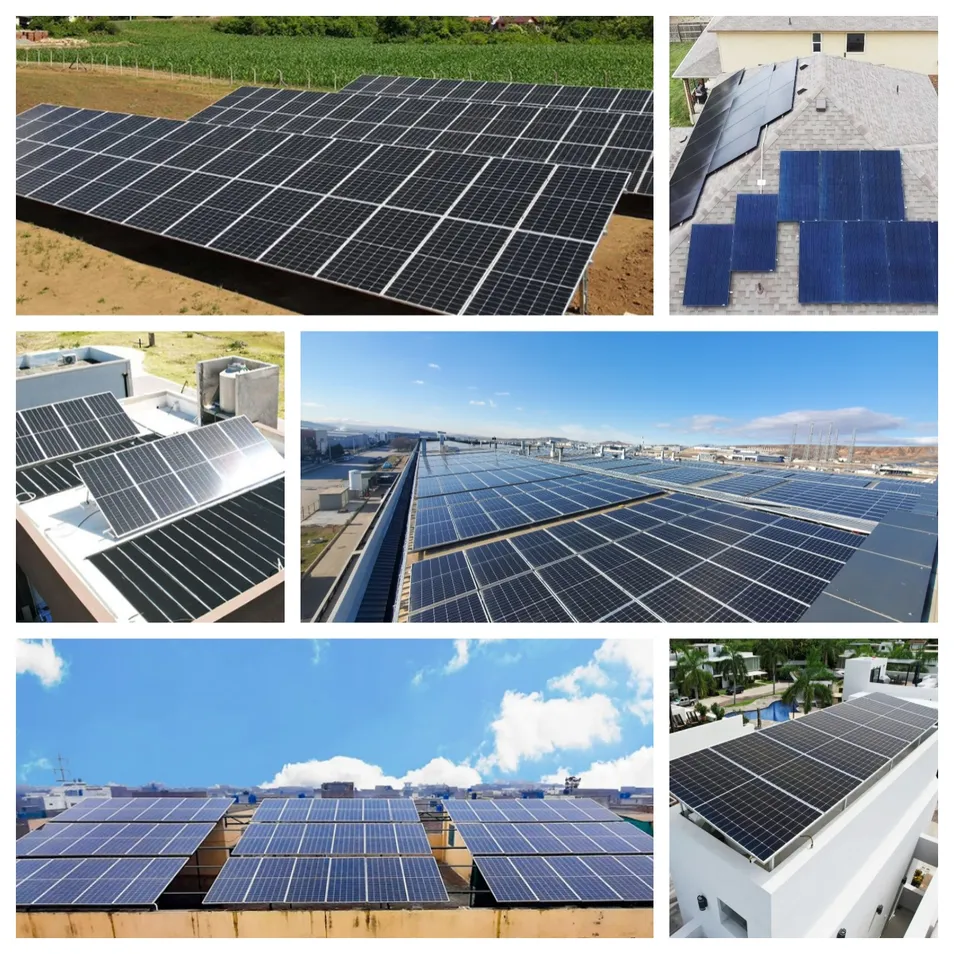

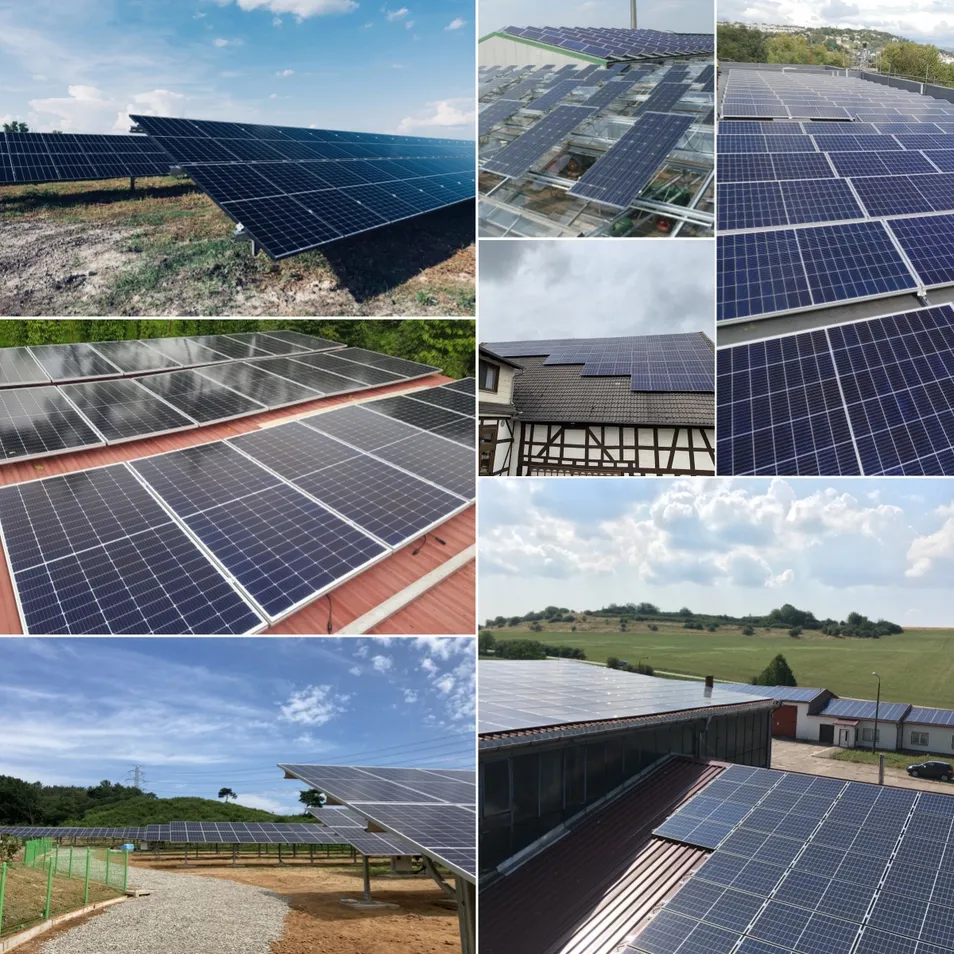

Our mounting systems are versatile and can be customized for pitched residential roofs, flat commercial workshop roofs, ground installations, and even carports or vertical walls.
The high-quality LiFePO4 cells are designed for longevity, supporting more than 6,000 charge cycles while maintaining high efficiency and safety.
Yes, the hybrid inverter supports real-time monitoring and remote upgrades, allowing you to track energy production and battery health from anywhere.
