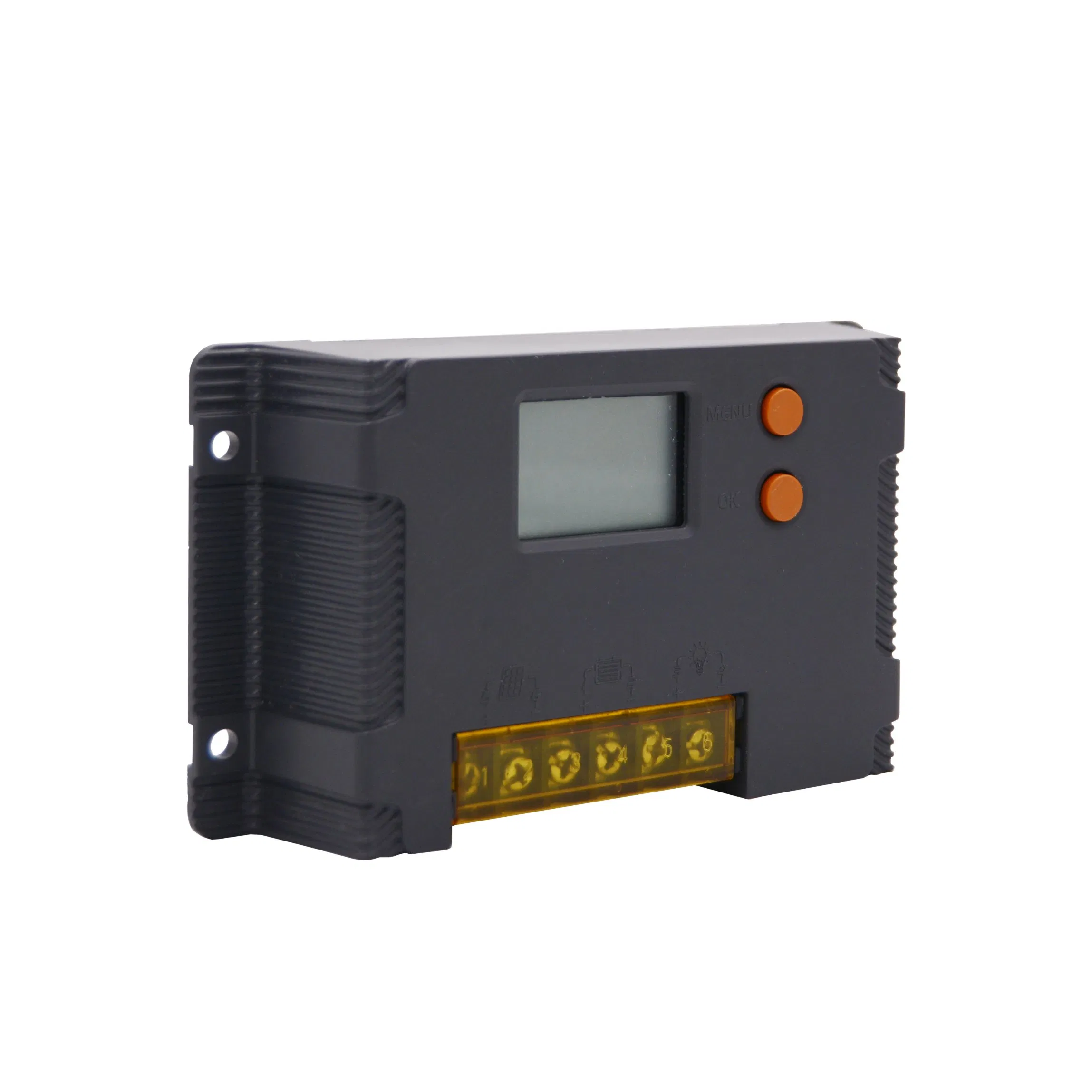

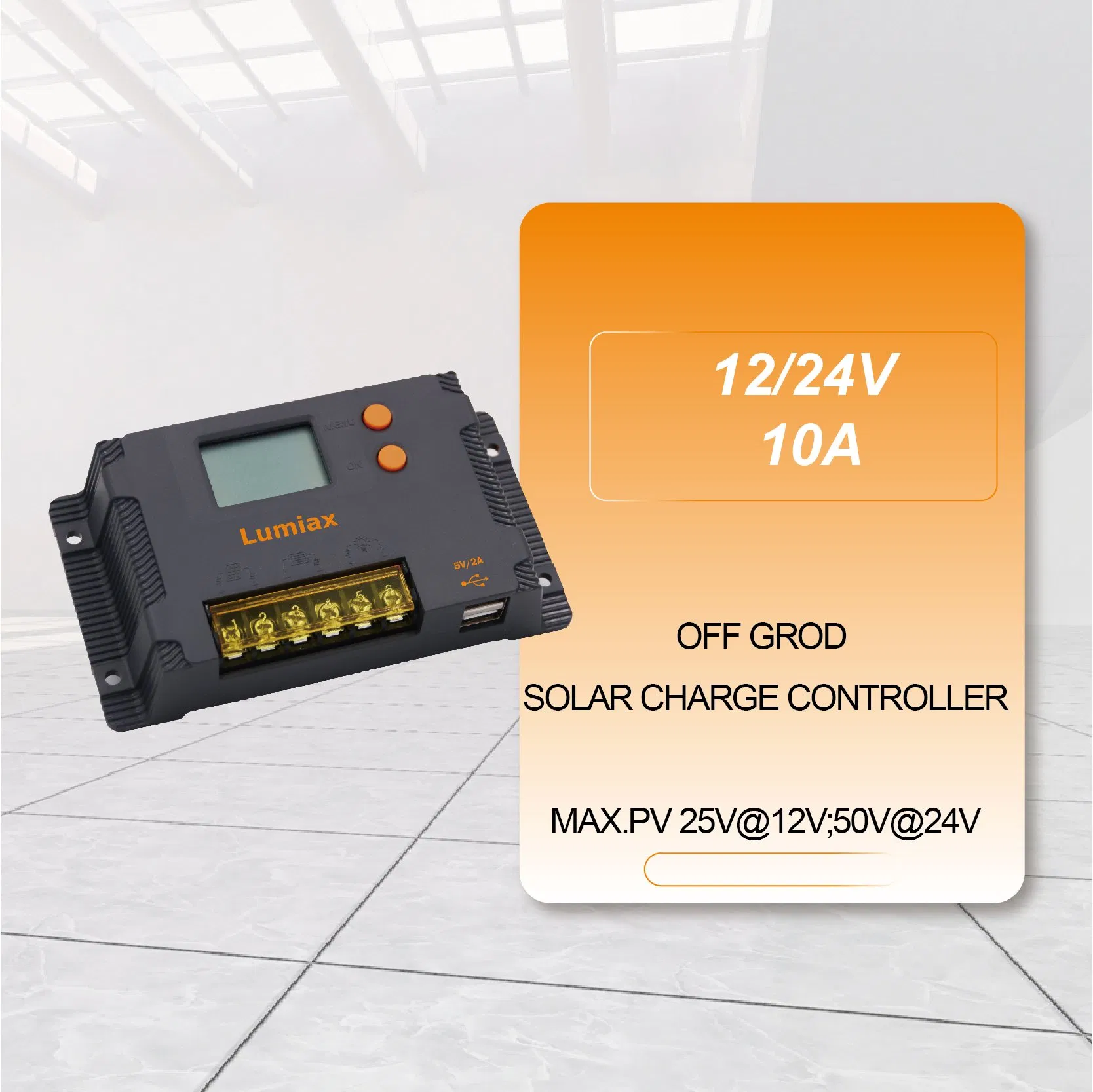

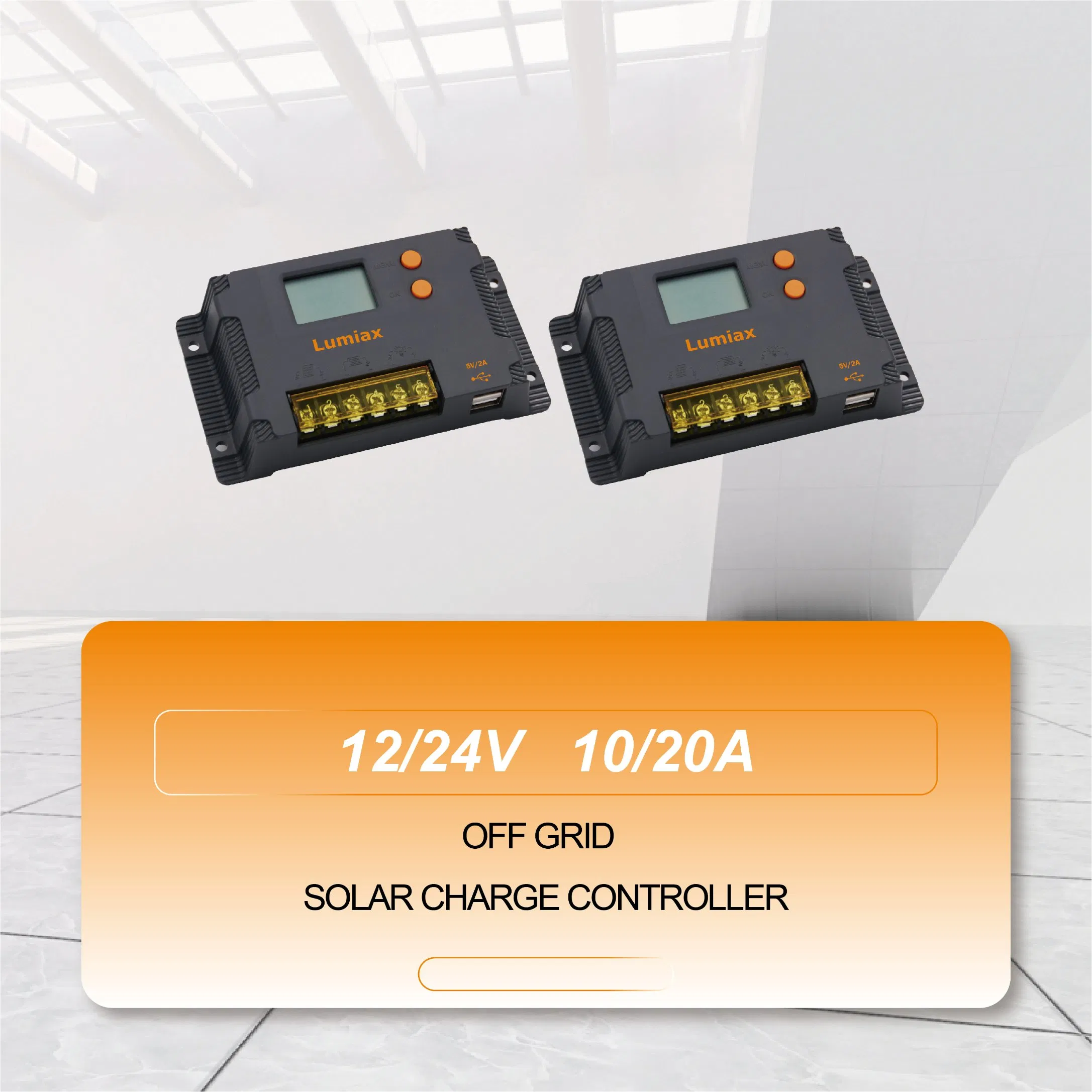

PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
1 / 5
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function
PWM Solar Charge Controller 10A 20A for Solar Power System USB Function

PWM Solar Charge Controller 10A 20A for Solar Power System USB Function

Customization: Available
After-sales Service: Installation and Debugging Guide
Warranty: 1
Send Inquiry

Product Description

📊 Overview & Basic Info
ModelMAX-U Series
ConditionNew
CertificationISO, CE, RoHS, FCC
ApplicationSolar System Controller
Rated Voltage12V/24V
Battery TypeAGM, Gel, Wet, Lithium, LiFePO4
Protection DegreeIP65
USB Interface5V/2A
Max PV Volt25V/50V/75V/100V
HS Code9032899099
Capacity1,500,000 PCS/ Year
GroundingCommon Positive

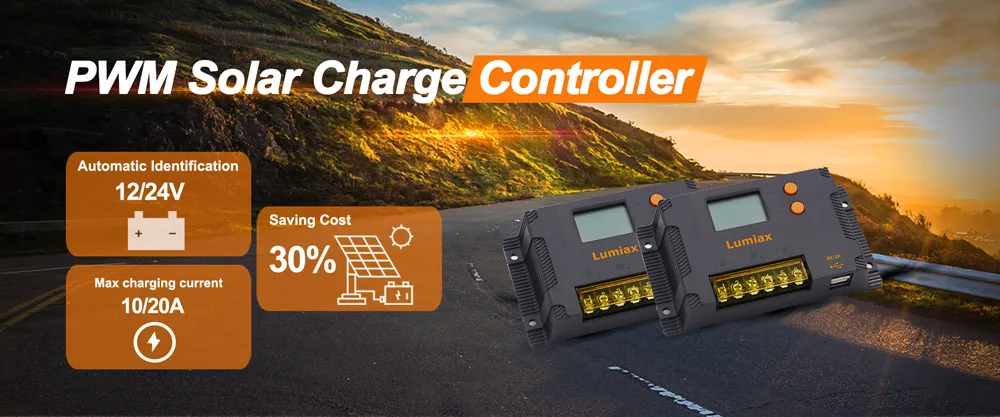

PWM Solar Charge Controller Banner
⚙️ Product Parameters
Item MAX1024-U MAX2024-U
Max Charging Current 10A 20A
System Voltage 12/24V automatic recognition
Max volt on Bat. terminal 35V
Battery Type Support Gel, AGM, Liquid, Lithium (default: Gel)
Standard Batteries Fast Charging Voltage <14.5/29.0V @25ºC
Boost Voltage 14.0~14.8V / 28.0~29.6V
Equalization Voltage 14.3~15.0V / 28.6~30.2V
Float Voltage 13.2~14.0V / 26.4~28.0V
Lithium Battery Charging Target Voltage 10.1~32.0V (default: 14.4V)
Low Voltage Disconnect 9.0~30.0V (default: 10.6V)
USB Interface Output 5V / 2A

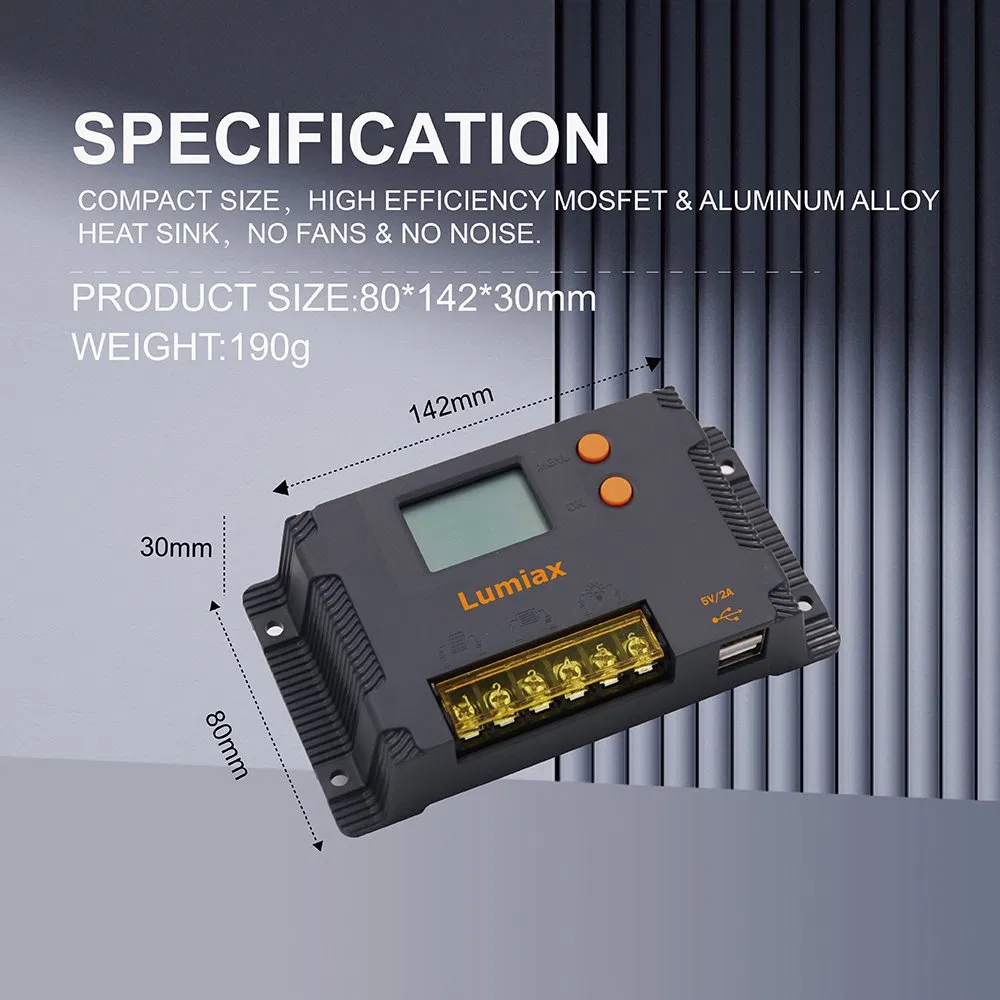

Dimensions / Weight 80*142*30mm / 190g
Ambient Temperature -20ºC ~ +45ºC

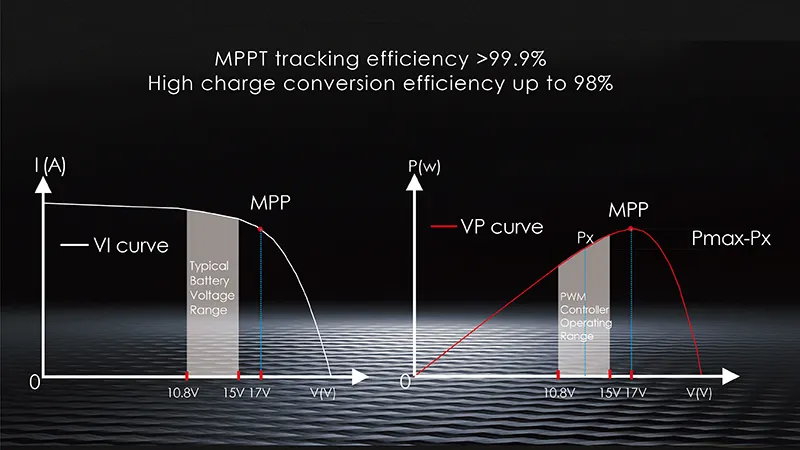

Controller Features
📝 Product Description

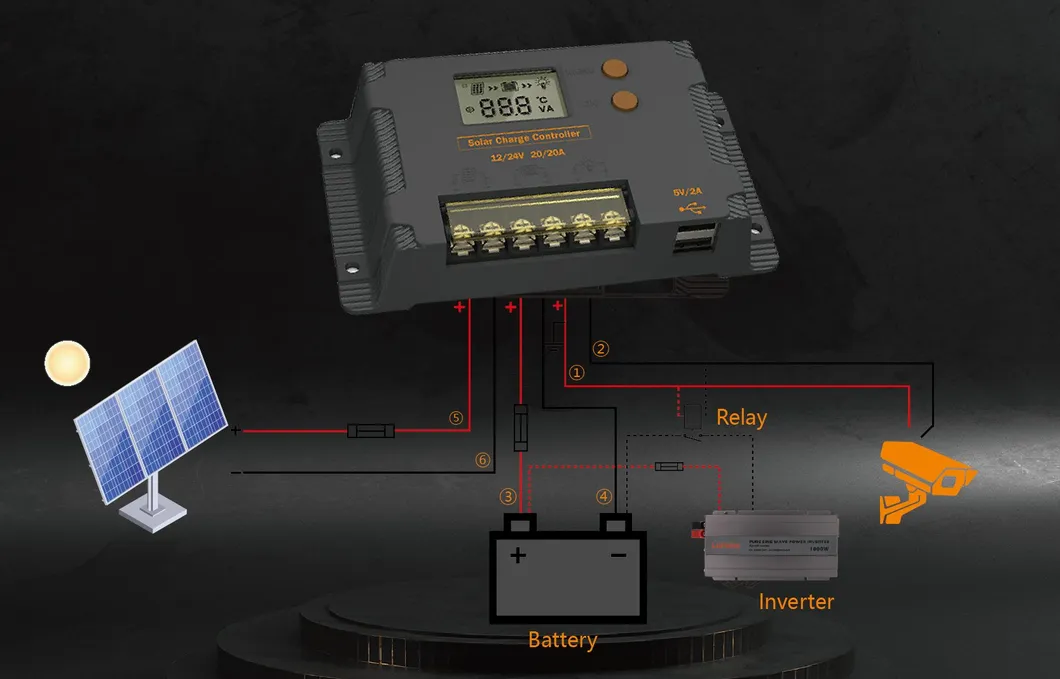

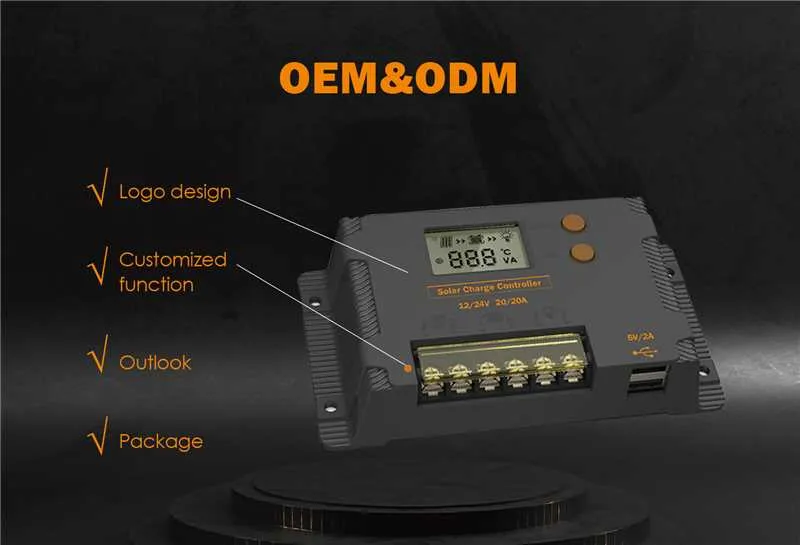

Product Detail 1 Product Detail 2 Product Detail 3
⭐ Our Advantages
Advantage 1 Advantage 2
📦 Packaging & Delivery
Package Size20.00cm * 20.00cm * 15.00cm
Gross Weight2.000kg
Lead Time (1-2000 Pcs)21 Days
Lead Time (>2000 Pcs)Negotiable
📜 Certifications
Product Certifications
🏭 Production Capacity

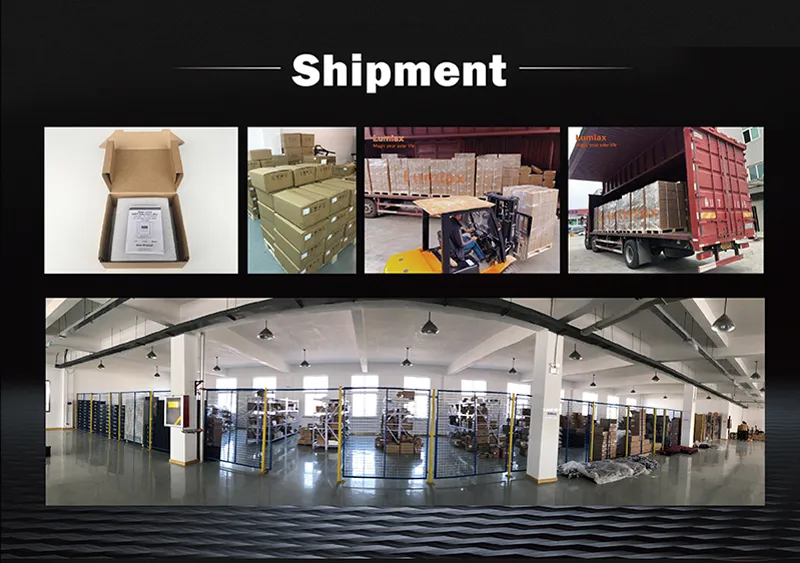

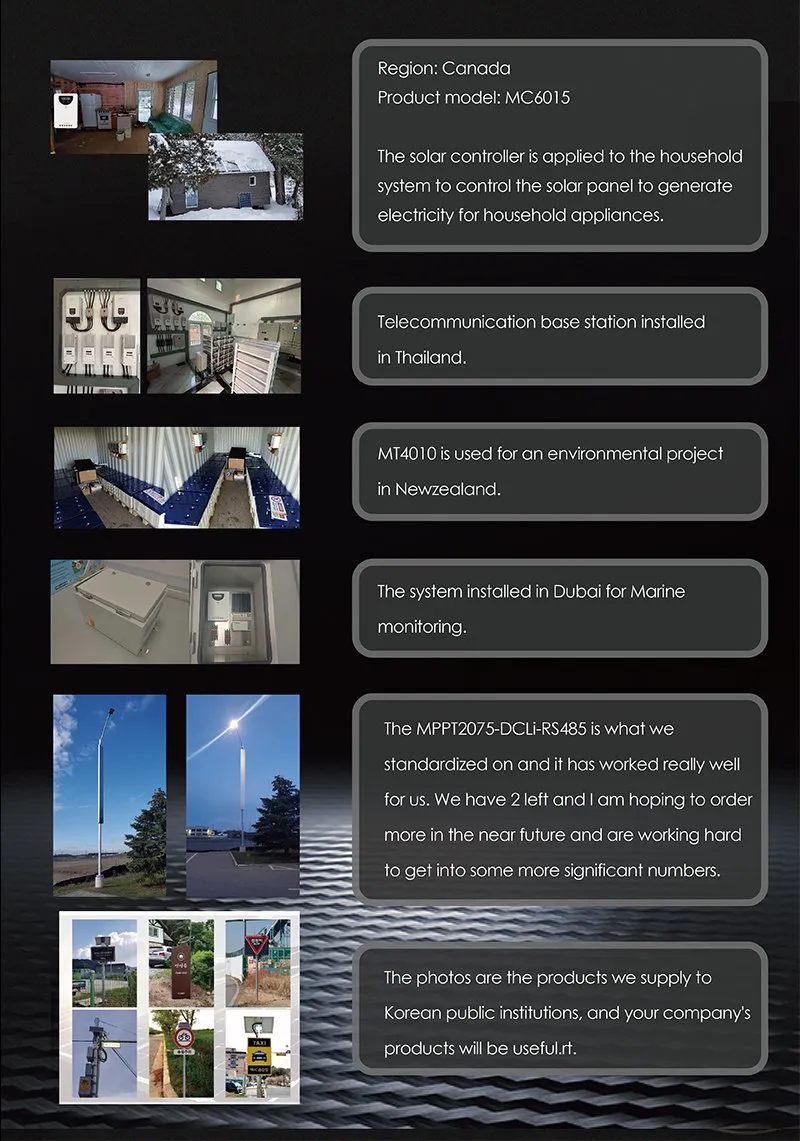

Production Process 1 Production Process 2 Production Process 3
❓ Frequently Asked Questions
What battery types does this controller support?
The MAX-U series is compatible with Gel, AGM, Liquid, and Lithium batteries (including LiFePO4 and Li-ion). The default setting is optimized for Gel batteries.
Does the controller automatically detect system voltage?
Yes, the controller features automatic recognition for 12V and 24V solar systems.
Can I charge my mobile devices directly from the controller?
Yes, it includes a built-in USB interface with a 5V/2A output, specifically designed for charging phones and other small electronic devices.
What are the available load working modes?
The controller supports multiple modes including Always On (Default), Dusk to Dawn (D2D), Light Control Mode, Time Control Mode, and User-defined Mode.
What is the protection rating and grounding type?
The controller is designed with a common positive grounding system and offers IP32/IP65 protection levels to ensure stability in various environments.
