Product Description

📋

Basic Information

Model NO.:PV cable

Current:DC & AC

Insulation Material:XLPE

Sheath Material:Crosslinking

Material Shape:Round Wire

Wire Core Material:Tinned Wire

Certification:ISO, CCC, CE

Voltage Rating:0.6/1kv

Temperature Rating:120°C

Expected Use:25 years

Standard:2 Pfg 1169/08.2007

Main Sizes:2.5mm², 4.0mm², 6.0mm², 10mm²

📦

Packaging & Delivery

Package Size:20.00cm * 20.00cm * 20.00cm

Gross Weight:5.000kg

Production Capacity:1000km/Week

☀️

Product Description

The PV1F Solar Cable is specifically engineered for fixed installations and internal connections of solar panels. With full TUV Approval, it offers outstanding UV-resistant performance for demanding environments.

Application & Specifications:

Compliant with 2 PFG 1169 08.2007 and UL 4703 standards

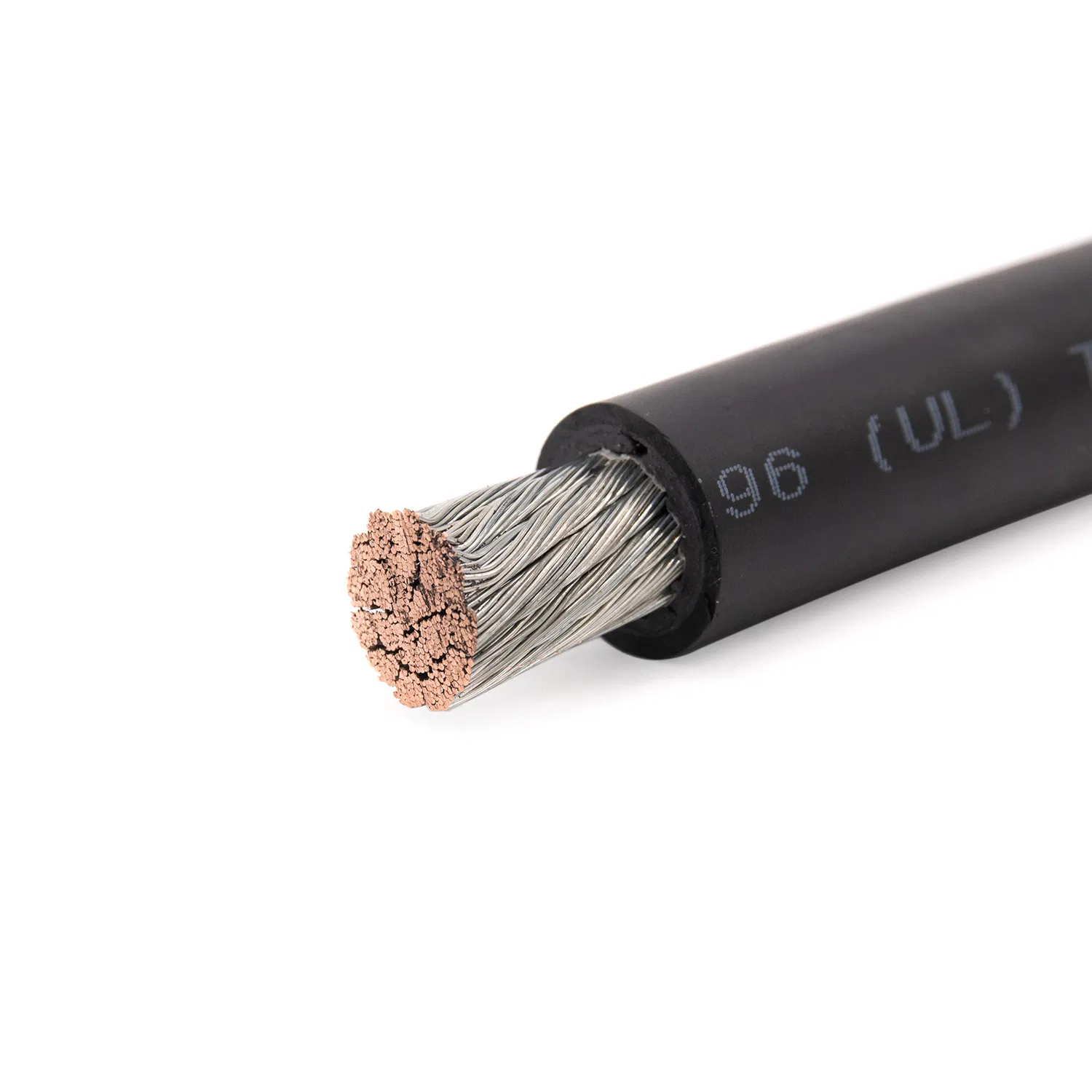

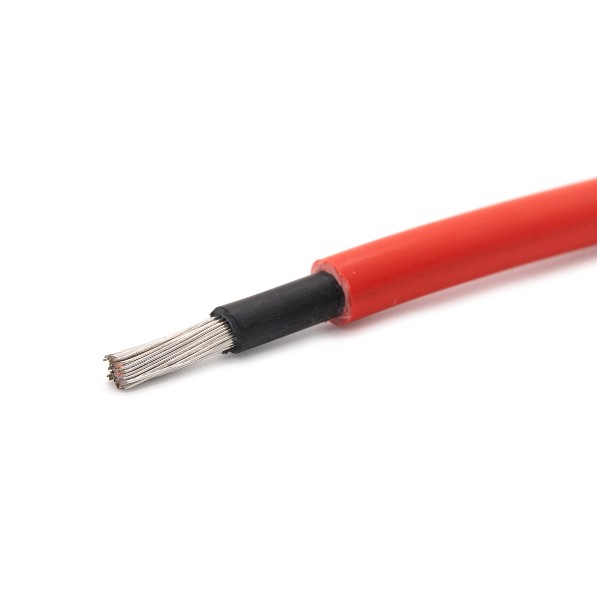

Conductor: High-quality stranded tinned copper
Insulation & Sheath: Durable XLPE material
Voltage Capacity: AC Uo/U 0.6~1.0KV, DC 1.8KV
Operating Environment: -40°C to +90°C
Flame Resistance: IEC60332-1-2 certified

Core Characteristics:

Double insulation with electron beam cross-linking
Resistant to UV, water, ozone, fluids, salt, and general weathering
Excellent abrasion resistance and mechanical strength
Halogen-free, flame retardant, and low toxicity
Superior flexibility and easy stripping performance
High current carrying capacity

📊

Datasheet of Solar Cable

Sectional Area (mm²)	0.5	0.75	1	1.5	2.5	4	6	10	16
Copper (Ω/km)	36	24.5	18.1	12.1	7.41	4.61	3.08	1.83	1.15
Tinned Copper (Ω/km)	36.7	24.8	18.2	12.2	7.56	4.7	3.11	1.84	1.16

Sectional Area (mm²)	25	35	50	70	95	120	150	185	240
Copper (Ω/km)	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.0991	0.0754
Tinned Copper (Ω/km)	0.734	0.529	0.391	0.27	0.195	0.154	0.126	0.1	0.0762

🖼️

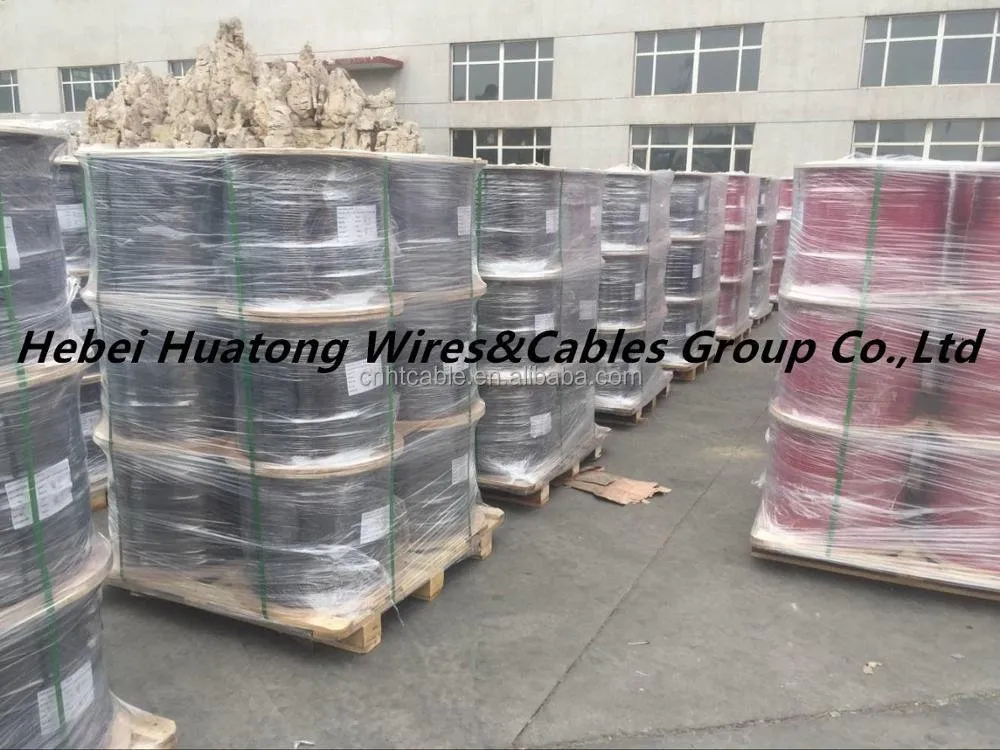

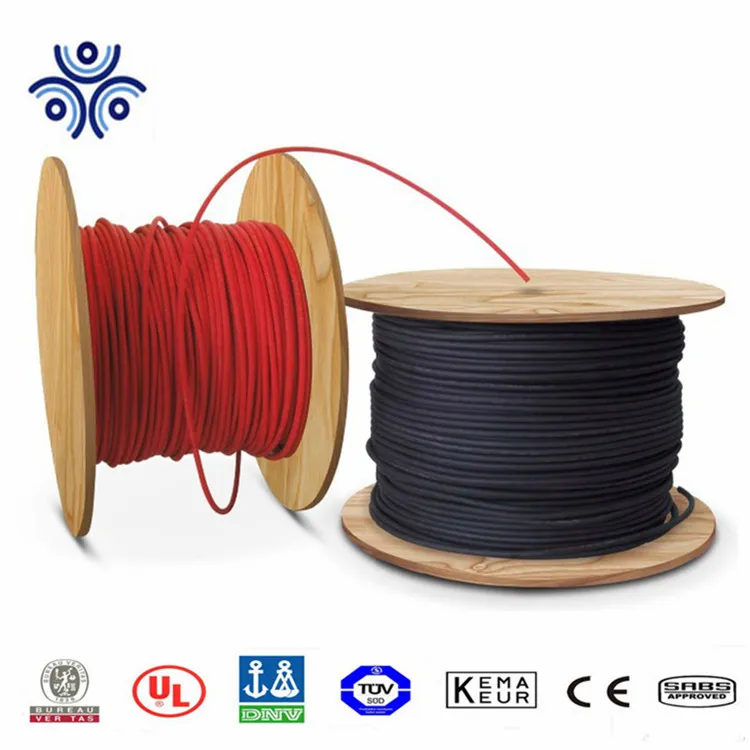

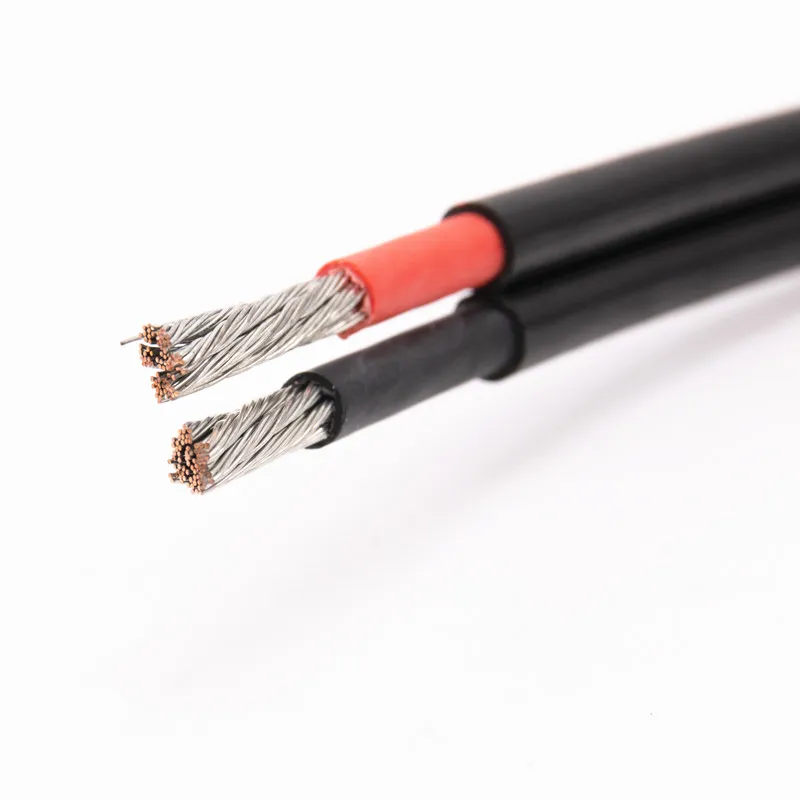

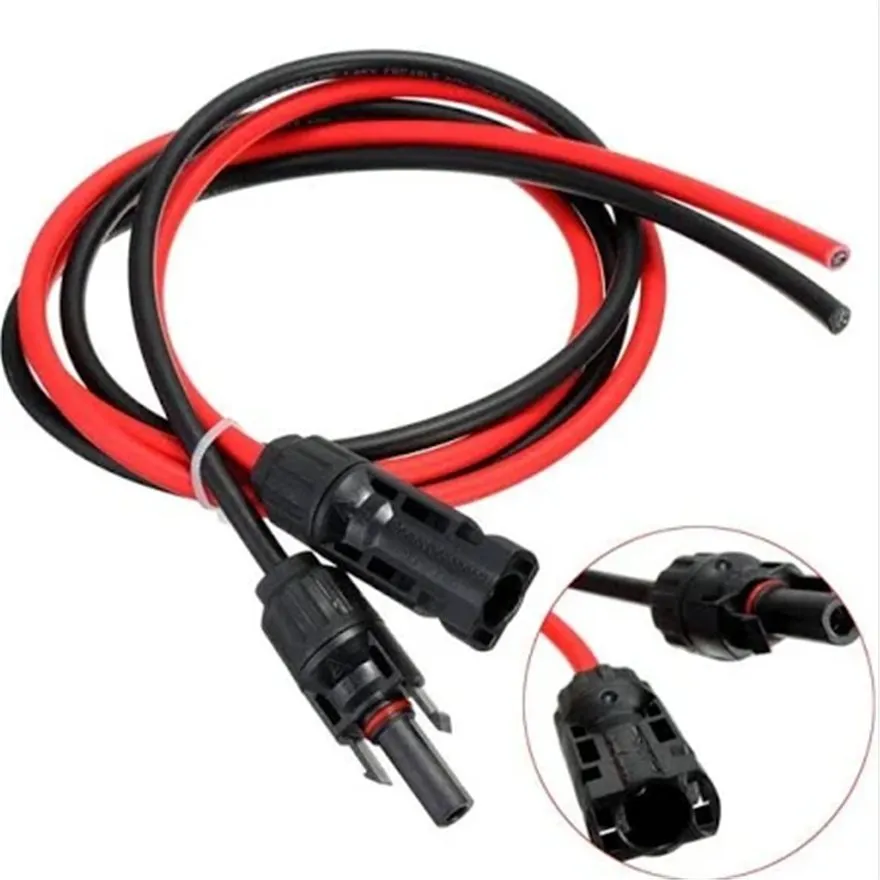

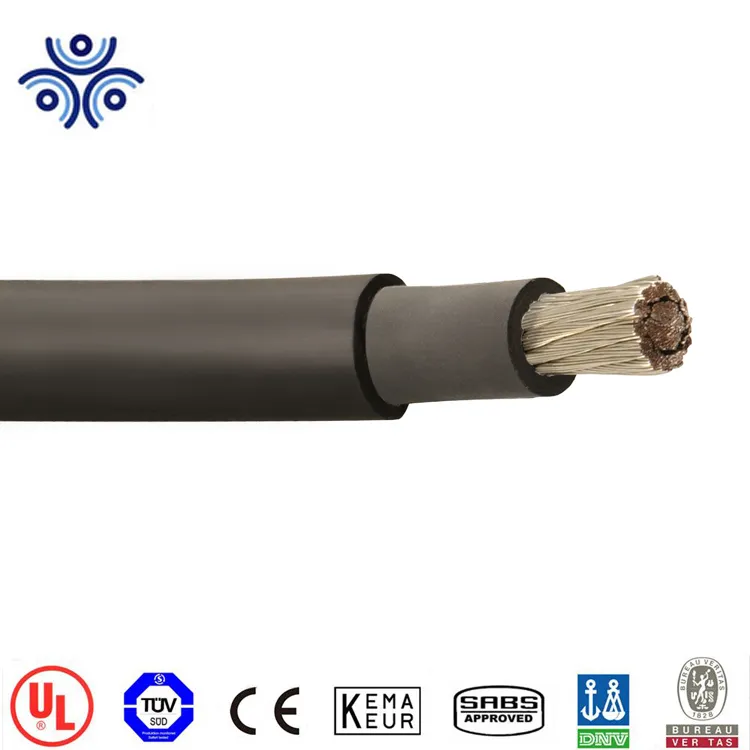

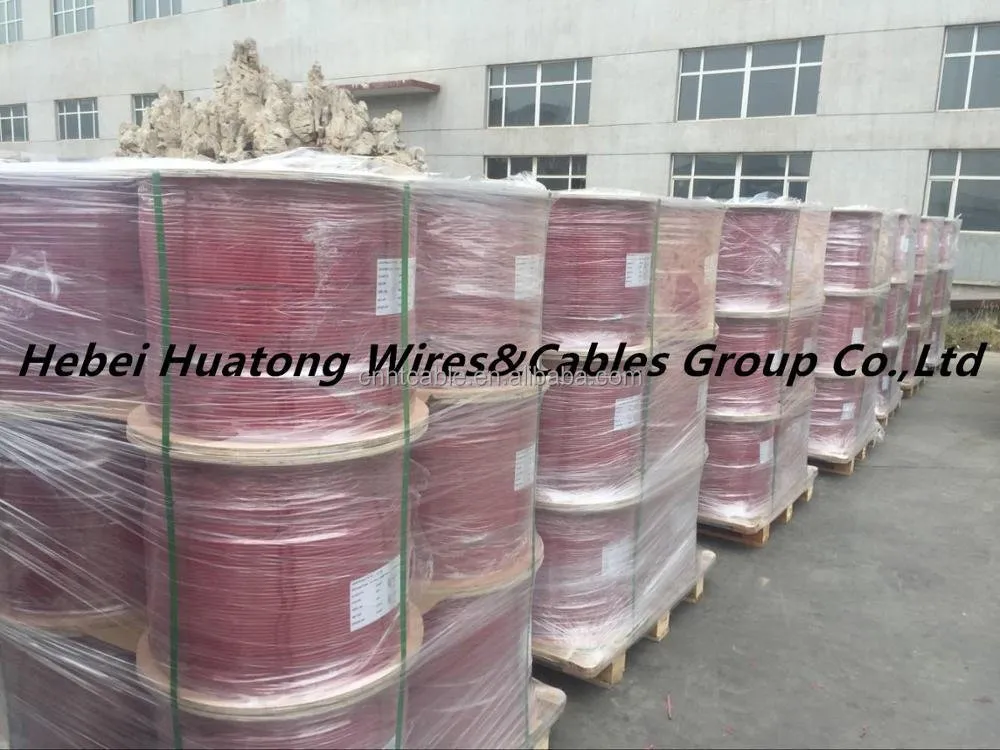

Product Visuals & Packing

❓

Frequently Asked Questions

What is the expected lifespan of this solar cable?

The PV1F solar cable is designed for long-term outdoor use with an expected period of use of 25 years.

Is the cable resistant to harsh weather conditions?

Yes, it features excellent resistance to UV, water, ozone, salt, and general weathering, making it ideal for solar power stations.

What certifications does the product have?

The solar cable is TUV and UL approved, and complies with ISO, CCC, and CE standards.

What is the temperature range for installation?

The cable is designed to operate reliably in ambient temperatures ranging from -40°C to +90°C.

Is this cable flame retardant?

Yes, it is halogen-free and flame retardant, meeting the IEC60332-1-2 standard for safety.

What materials are used in the construction?

It uses stranded tinned copper for the conductor and high-quality XLPE for both insulation and the outer sheath.
