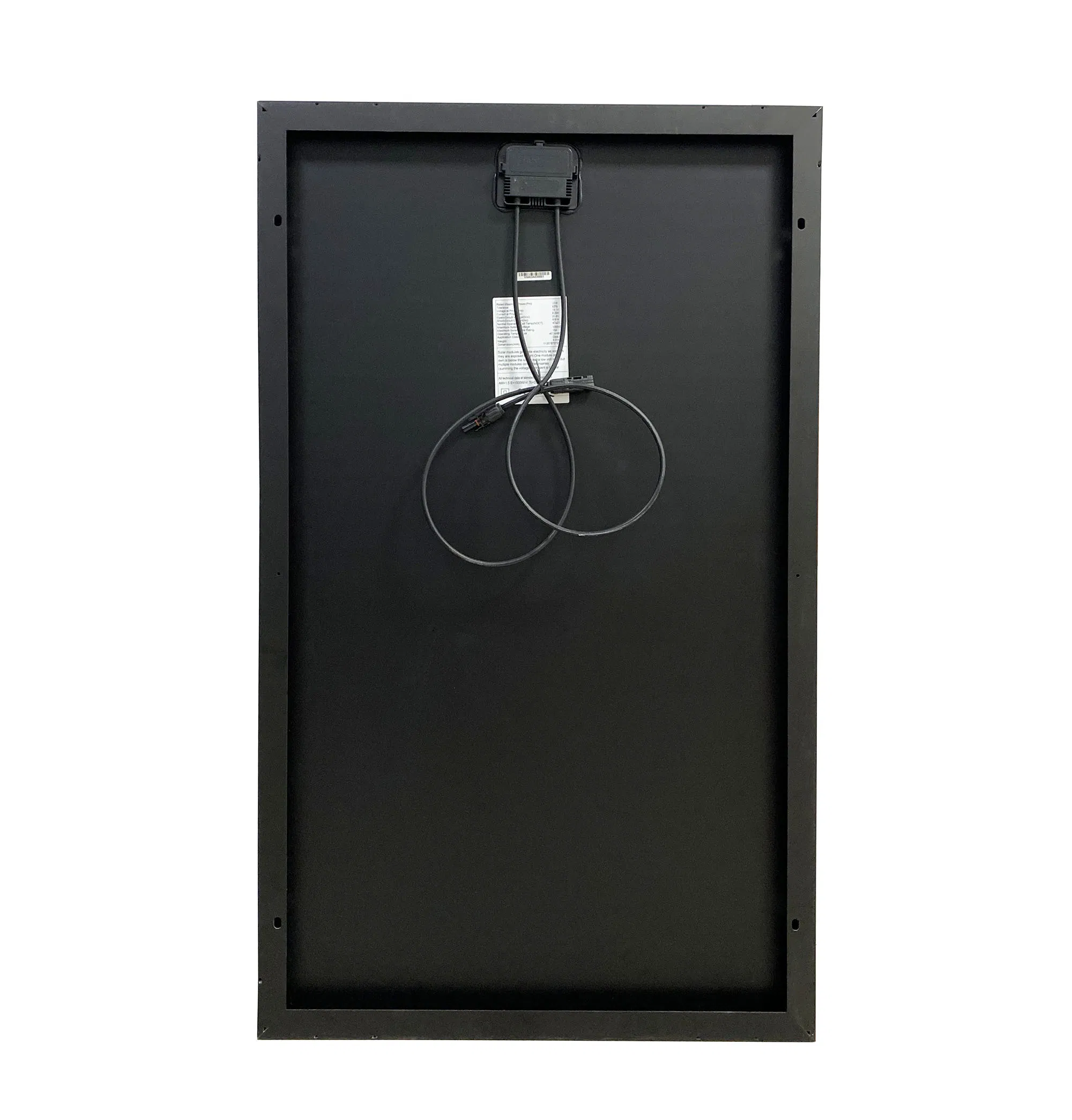

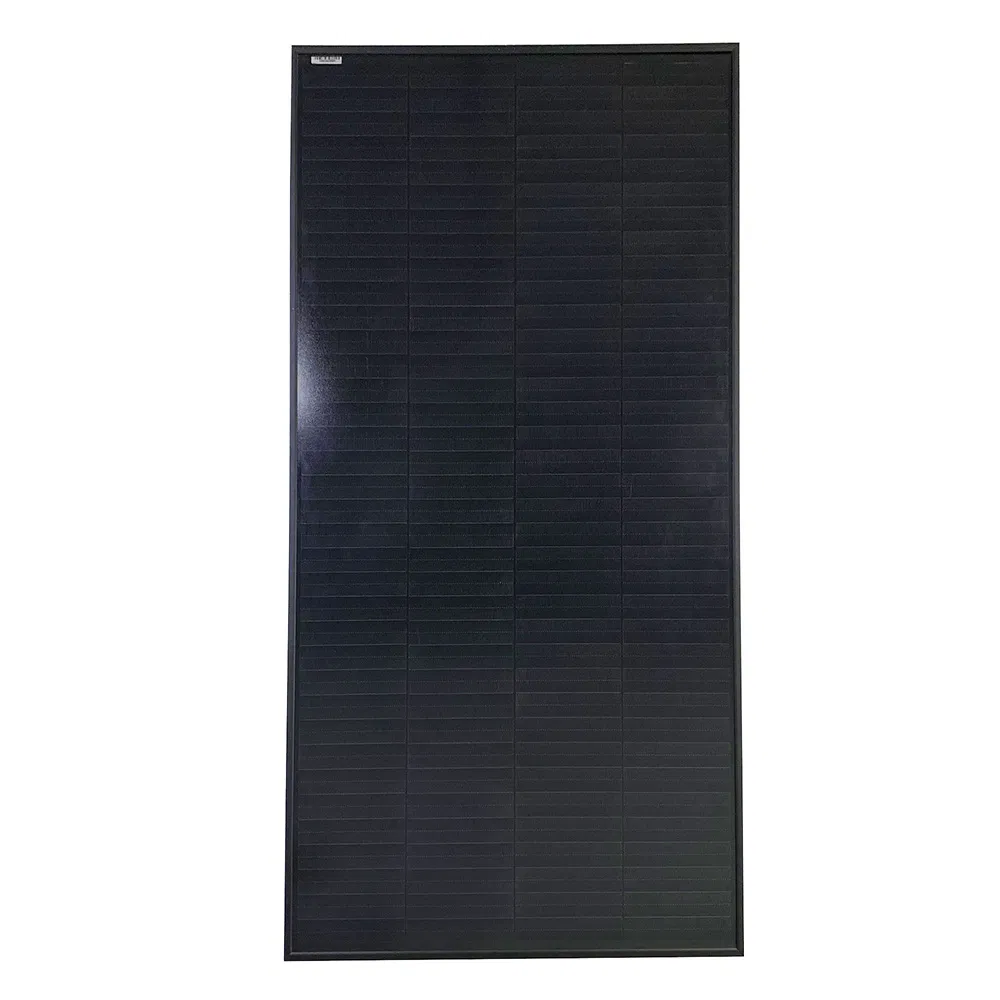

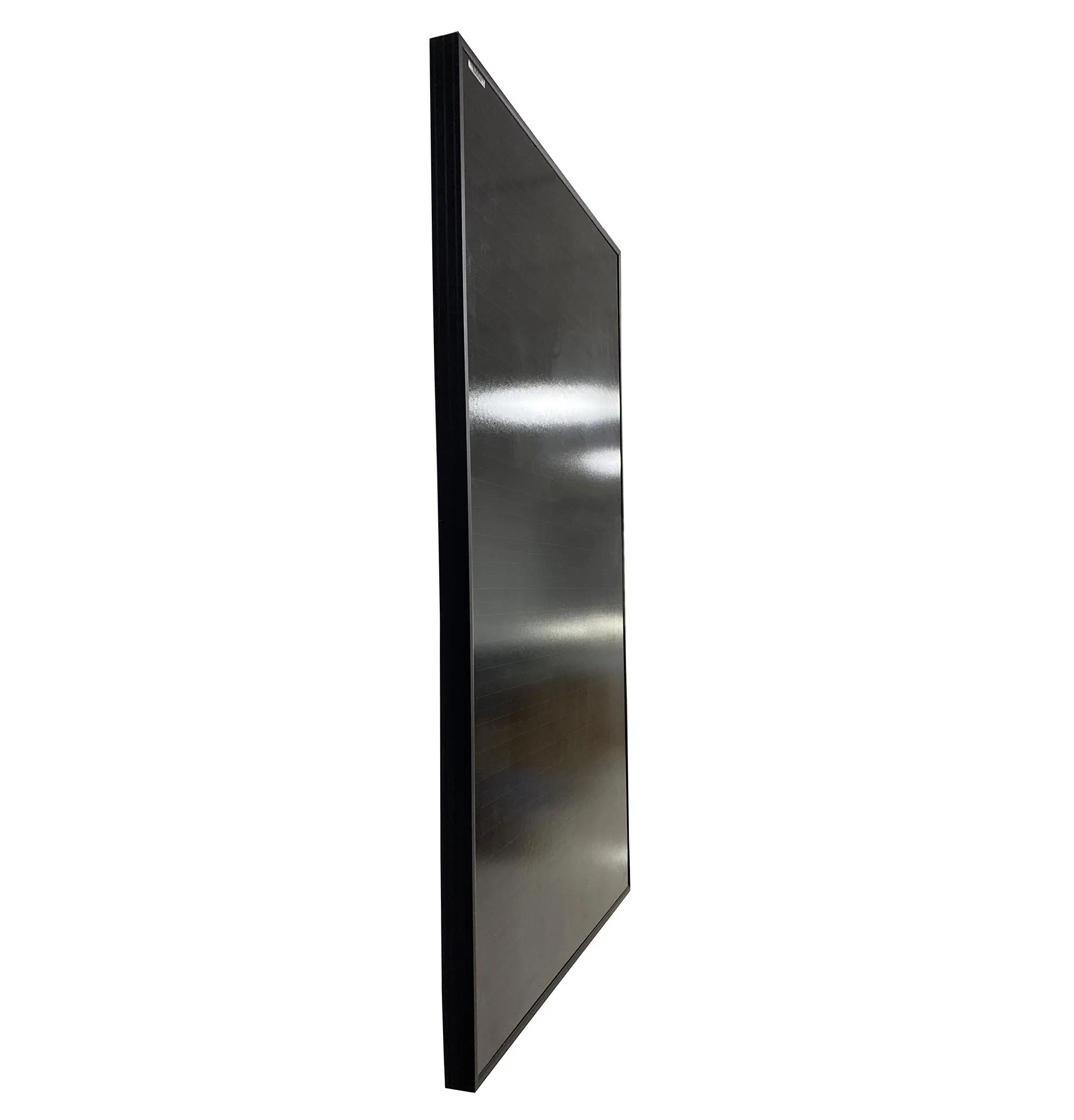

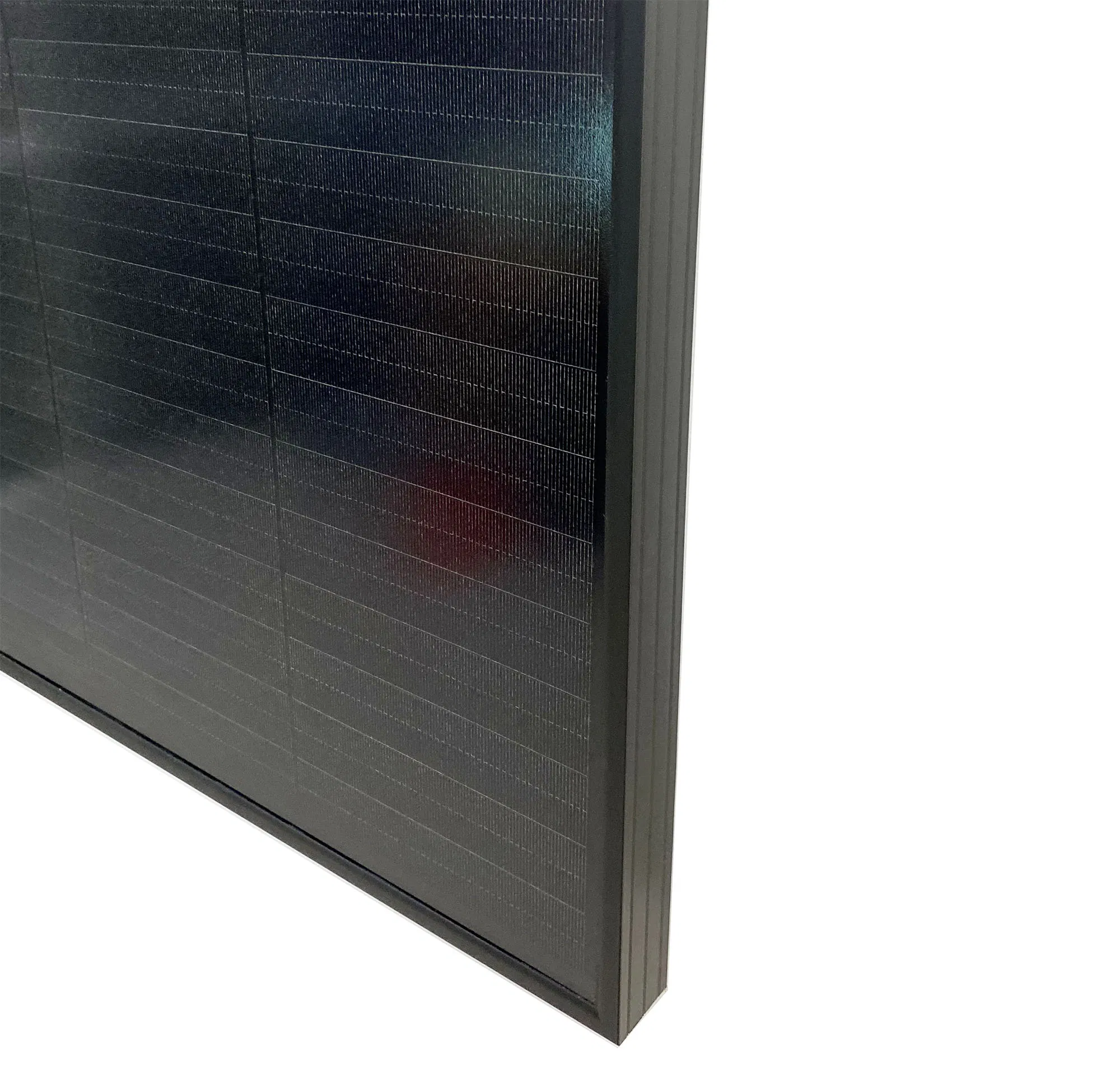

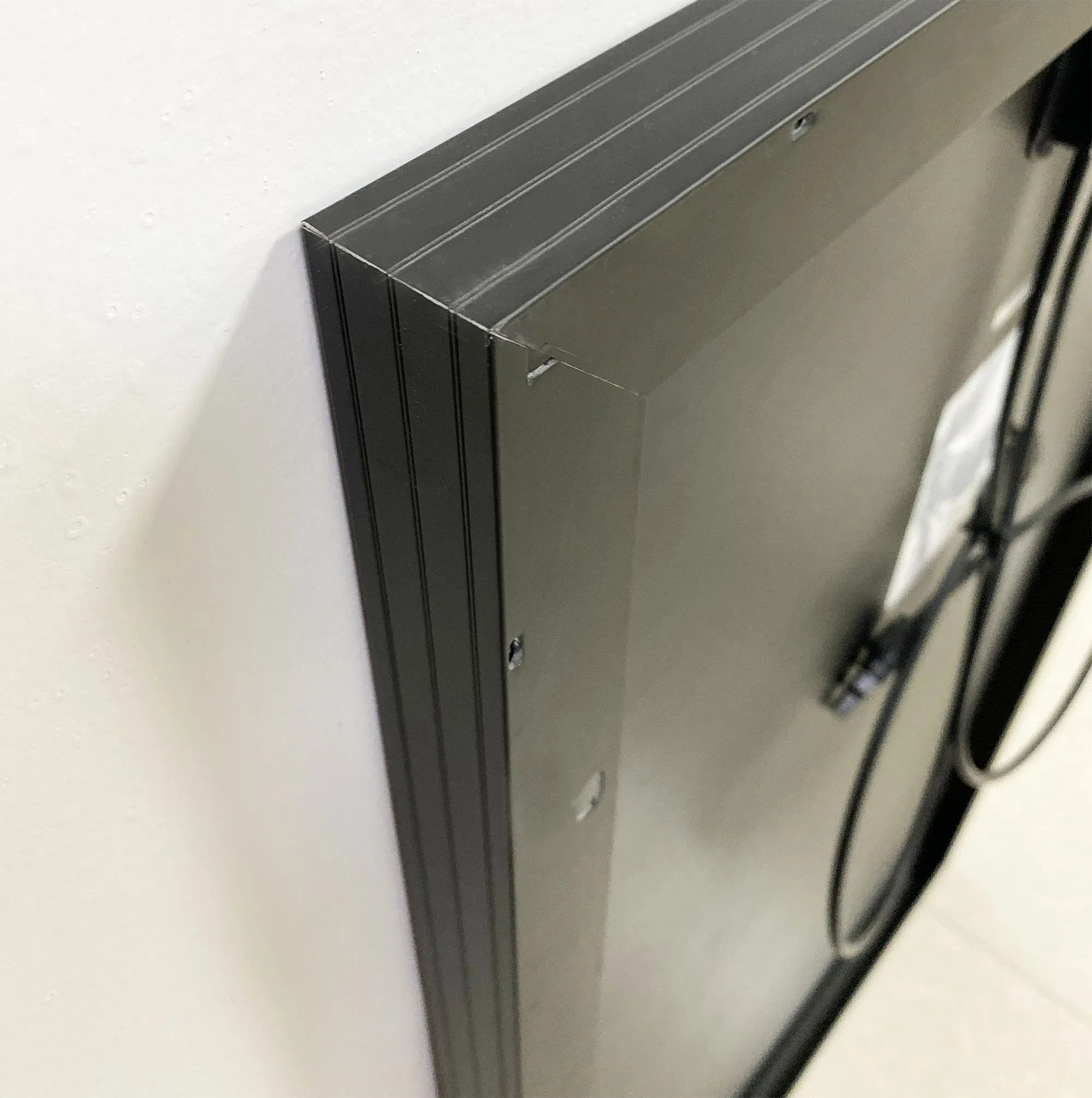

Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
1 / 5
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System
Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System

Polycrystalline Silicon 36 Batteries 150W Standard Solar Panel for Home Power System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

  • Overview
  • Specification
  • Features
  • Application
  • Process
  • FAQ

📊Basic Information

Model NO.
PV-150-M-36-SH
Number of Cells
36pcs / 144pcs
Material
Monocrystalline Silicon
Certification
ISO, CE, TUV, IEC
Output
Nominal 12V DC
Frame
Heavy Duty Anodized Aluminum
Power Warranty
10 Years 90% Output
Cell Efficiency
21.5%

📋Technical Specifications

TypePV-150-M-36-SH
Cell TypeMono-crystalline
Module Size1120x670x35mm
Weight9.0 kg
Front Cover3.2mm Safety Glass
Maximum Power (Pmax)150W
Power Tolerance+/- 3%
Max Power Voltage (Vmp)18.2 V
Max Power Current (Imp)8.24 A
Open Circuit Voltage (Voc)22.68 V
Short Circuit Current (Isc)8.71 A
Max System Voltage1000 V

💡Key Features

  • High reliability with guaranteed +/-3% power output
  • Withstands high wind-pressure, snow loads, and extreme temperatures
  • Integrated bypass diodes to minimize power loss from shading
  • High and stable conversion efficiency for premium quality
  • Double EL tests guarantee a fault-free module

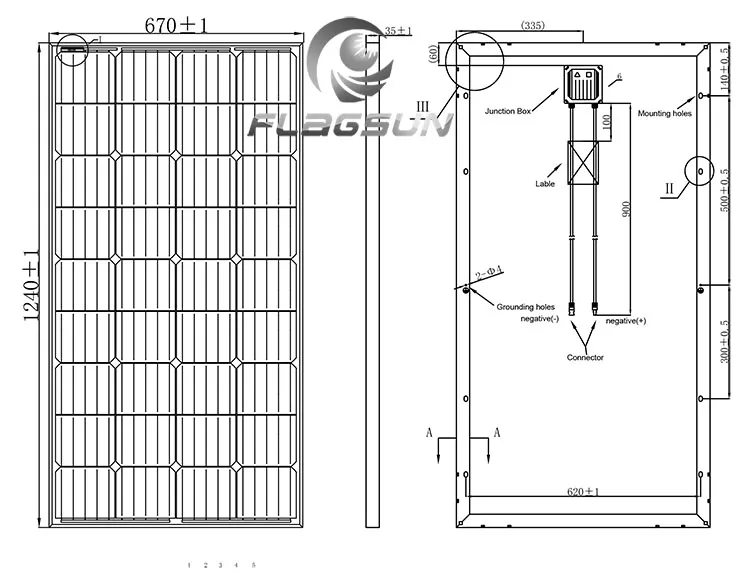

Product drawing

🚀Applications & Process

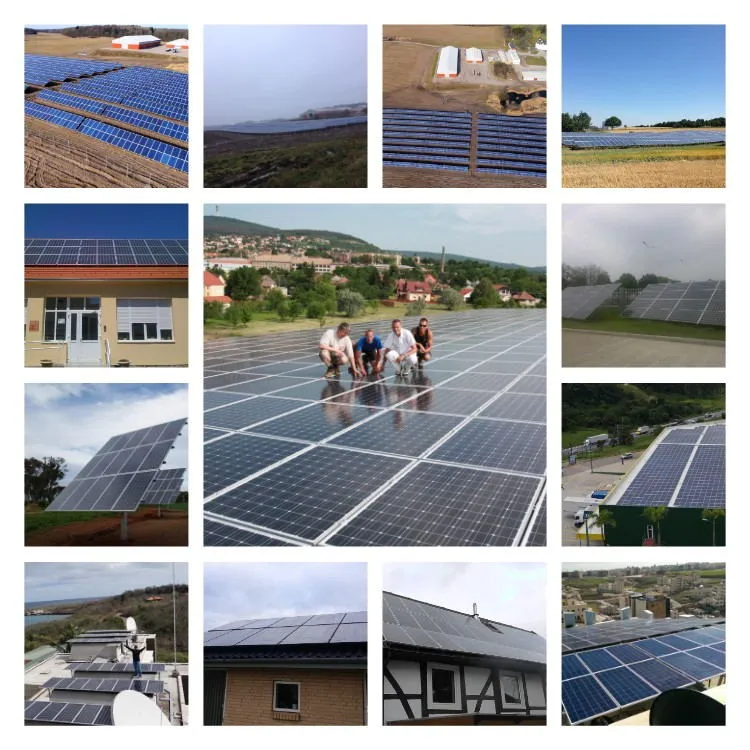

Application

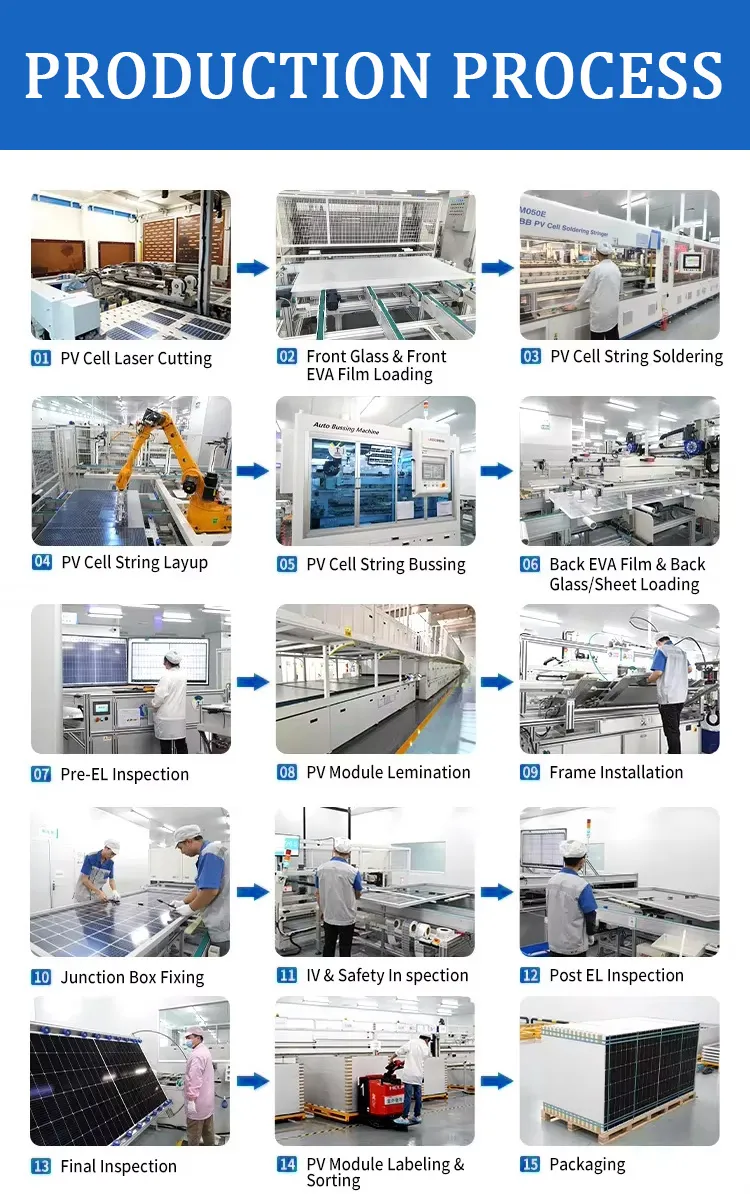

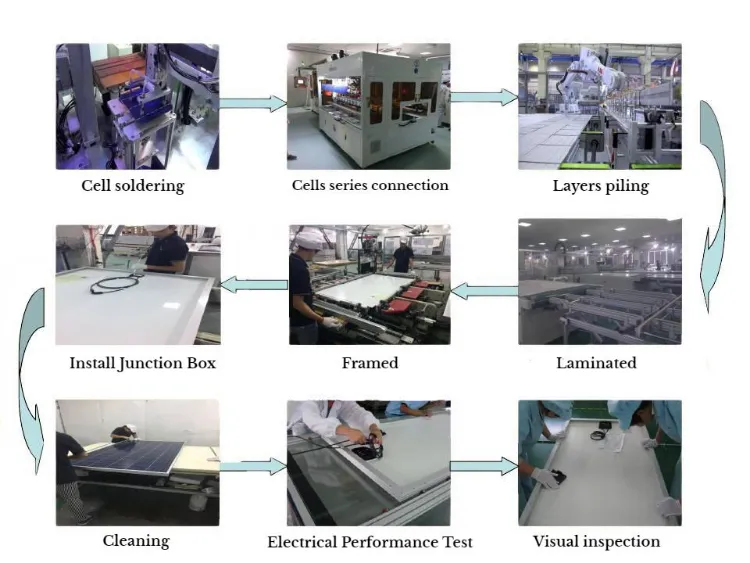

Manufacture Process

📜Certifications & Packaging

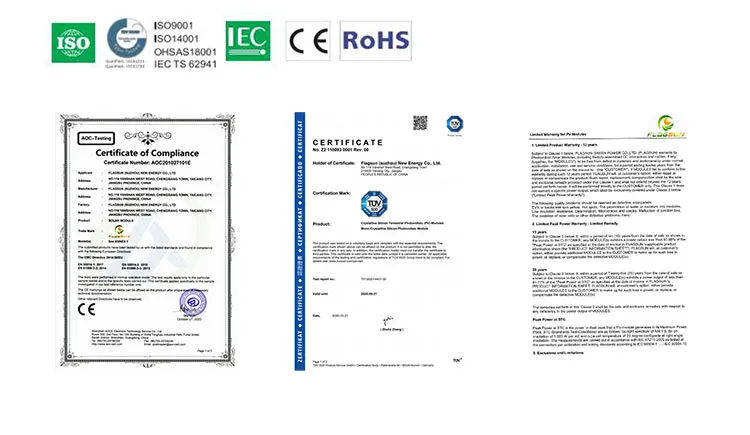

Certifications
Packaging & Shipping

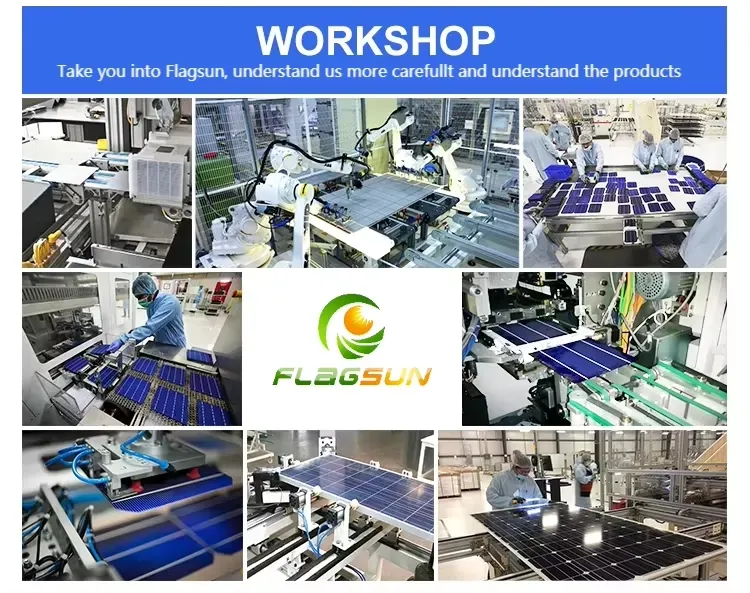

🏢Facility Gallery

Gallery 1
Gallery 2
Gallery 3

❓Frequently Asked Questions

Q: How do you guarantee product quality?
A: We maintain quality through a pre-production sample before mass production and a final inspection before every shipment. All modules undergo double EL tests.
Q: What is the efficiency of these solar cells?
A: The solar cells used in these modules have a high conversion efficiency of approximately 21.5%.
Q: Can the panels withstand extreme weather conditions?
A: Yes, our rugged design is built to withstand high wind pressure, heavy snow loads, and hail impact.
Q: What services and payment terms are available?
A: We accept delivery terms such as FOB, CFR, CIF, and EXW. Payments can be made via T/T, L/C, or Credit Card in USD, EUR, or CNY.
Q: What is the standard warranty for these panels?
A: We offer a 10-year limited material warranty and a 10-year warranty for 90% of the rated power output.
Q: Are the cable lengths customizable?
A: Yes, the cable lengths for the junction box can be customized based on specific project requirements.
