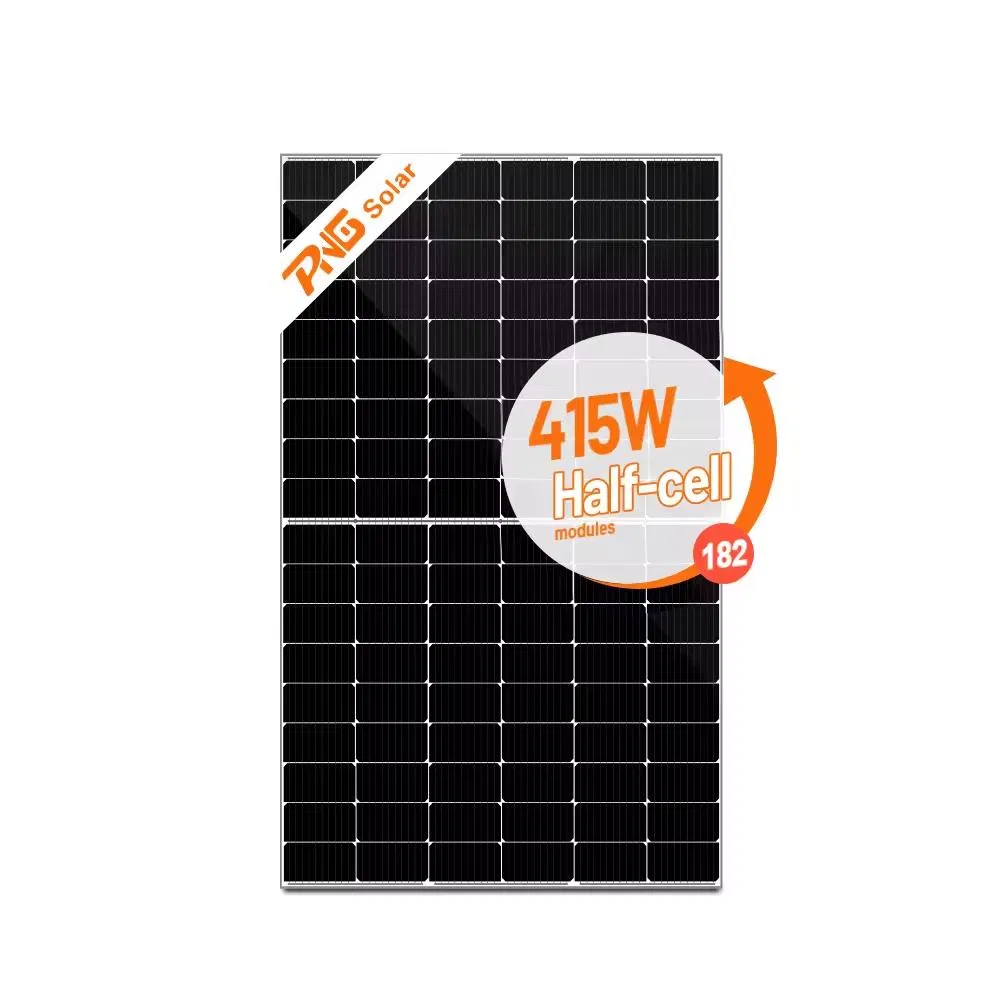

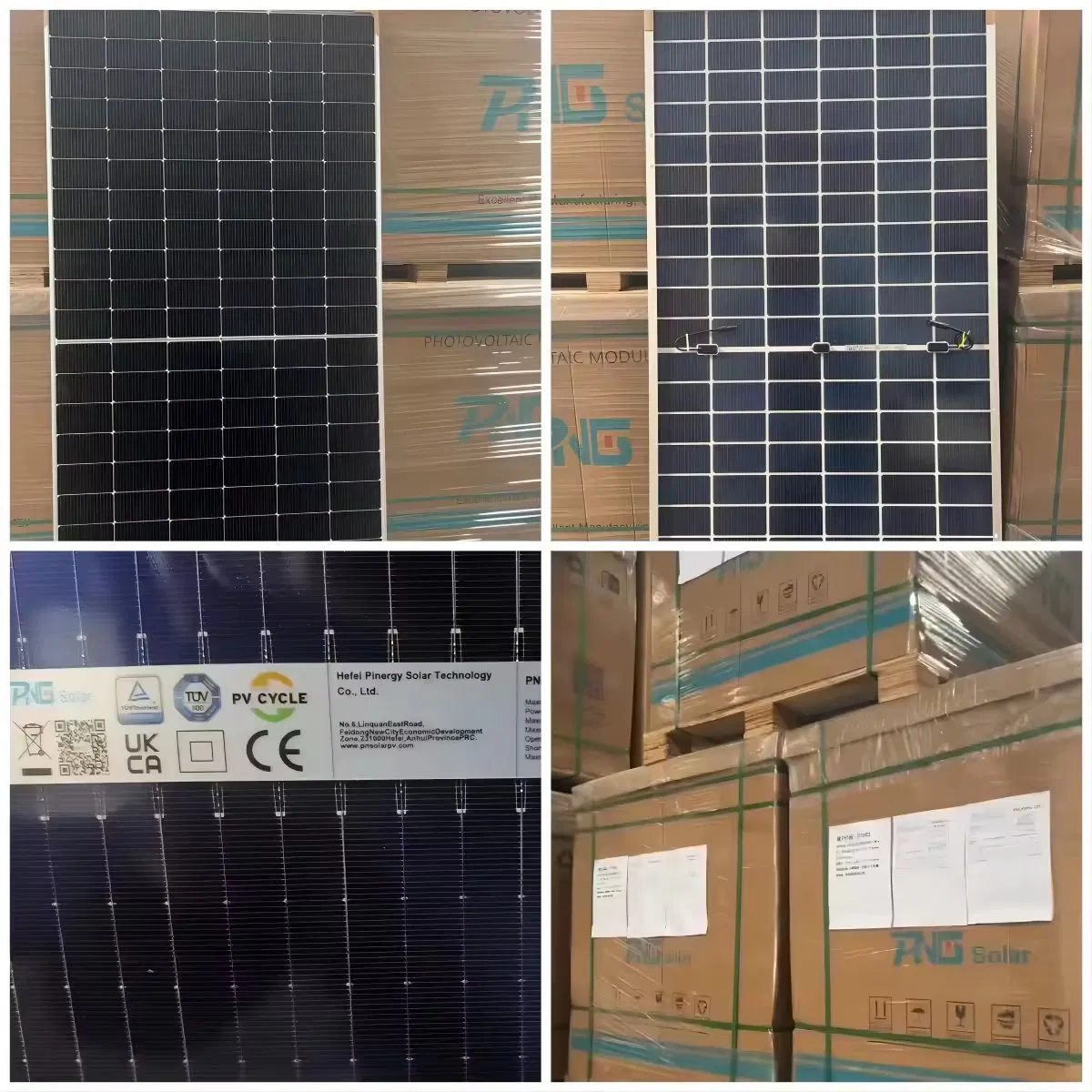

PNG Mono Professional Factory 400W 405W 410W 415W 420W Half Cut PV Module A Grade Monocrystalline Solar Panels

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

📋 Basic Info.
Number of Cells
144PCS
Application
Residential, Industrial, Commercial
Condition
New
Certification
CE, TUV
Material
Monocrystalline Silicon
Solar Cell
a-Grade
Junction Box
IP 68 Rated
Service
OEM Available
Glass
3.2mm Tempered Low Iron
Type
Half Cut Cell
Weight
24.5kg
Panel Efficiency
19.92%
Backsheet
Tpt Material
Frame
Anodized Aluminium Alloy
Front Glass
3.2mm Tempered Glass
Cable
4mm^2 300mm PV Cable
Transport Package
30PCS in Pallet
Specification
2108*1048*35mm
Origin
China
HS Code
85414020
Production Capacity
800mwatt/Years
🔍 Product Description
Products Details
Solar Module Production

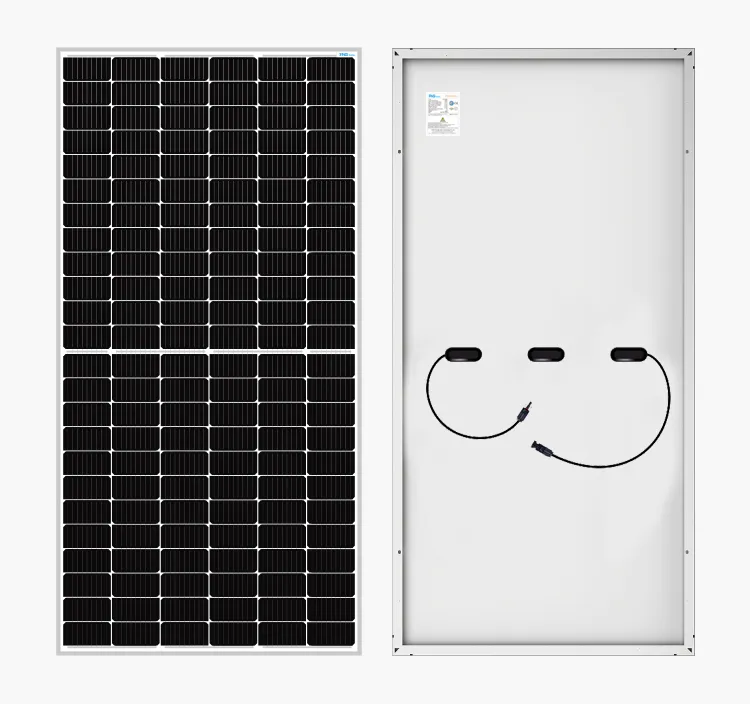

Electrical Specifications
ELECTRICAL DATA (STC)
Module Type 395W 400W 405W 410W 415W
Rated output (Pmp/Wp) 395 400 405 410 415
Short Circuit Current (Isc) 13.68A 13.77A 13.86A 13.95A 13.95A
Open Circuit Voltage (Voc) 37.0V 37.1V 37.2V 37.4V 37.6V
Max Power Current (Impp) 12.81A 12.88A 12.97A 13.05A 13.14A
Max Power Voltage (Vmpp) 30.9V 31.1V 31.2V 31.4V 31.6V
Module efficiency (%) 20.25% 20.50% 20.76% 21.01% 21.25%
Standard Test Condition Irradiance 1000W/m², Cell Temperature 25ºC, AM1.5
ELECTRICAL DATA (NOCT)
Module Type 395W 400W 405W 410W 415W
Rated output (Pmp/Wp) 297 301 305 309 313
Short Circuit Current (Isc) 10.93 11.01 11.10 11.17 11.17
Open Circuit Voltage (Voc) 34.8 34.9 35.1 35.3 35.5
Max Power Current (Impp) 10.23 10.31 10.38 10.45 10.52
Max Power Voltage (Vmpp) 29.0 29.2 29.4 29.6 29.8
NOCT Condition Irradiance 800W/m², Ambient Temperature 20ºC, AM1.5, Wind Speed 1m/s
A Grade Materials

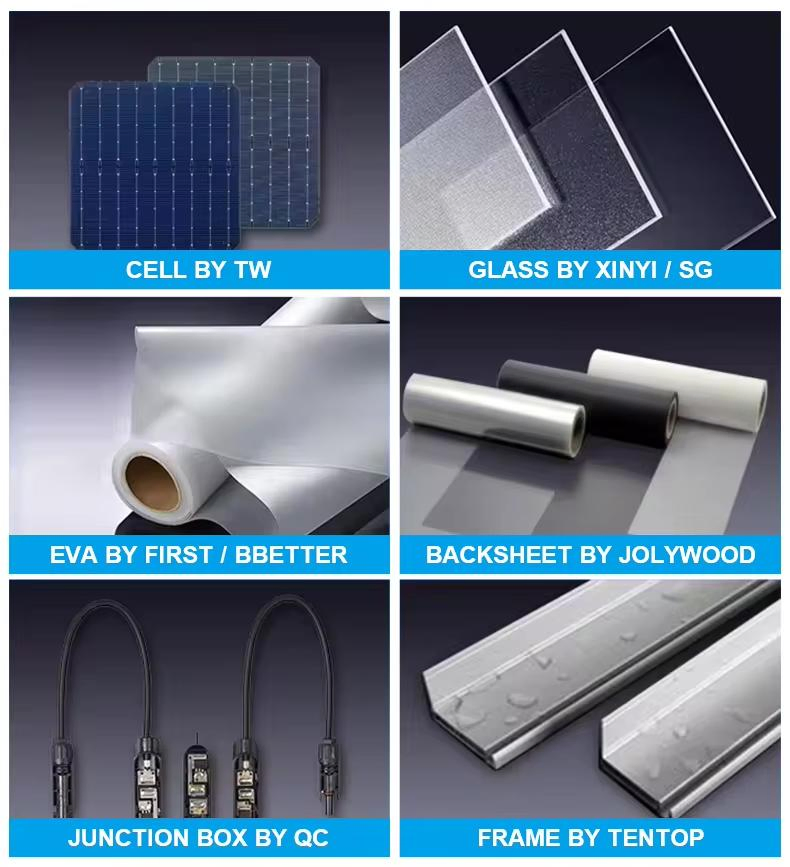

⚙️ A Grade Material

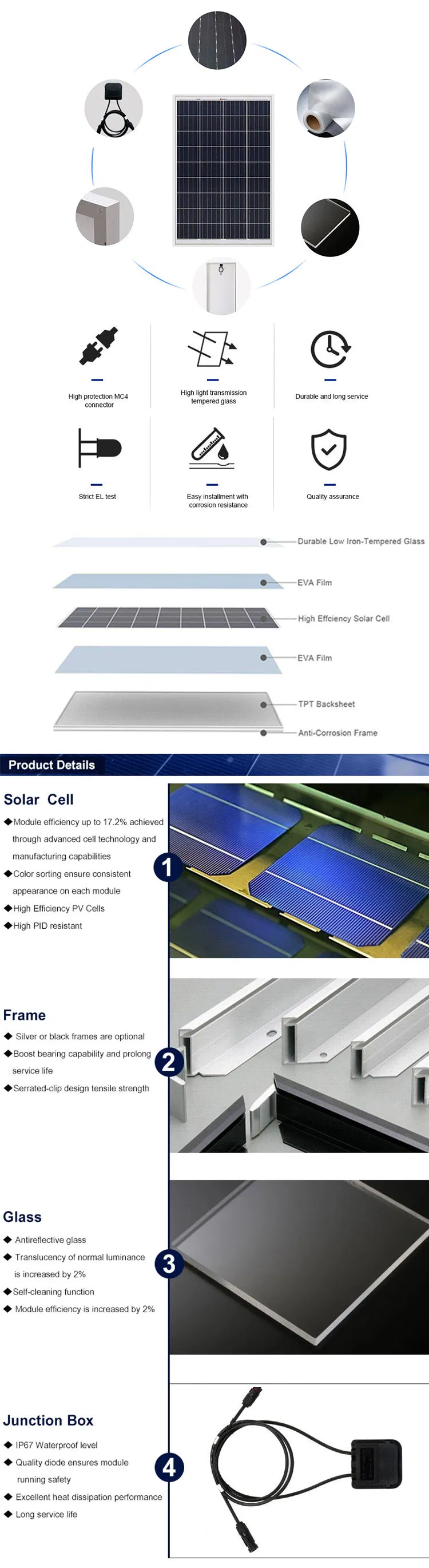

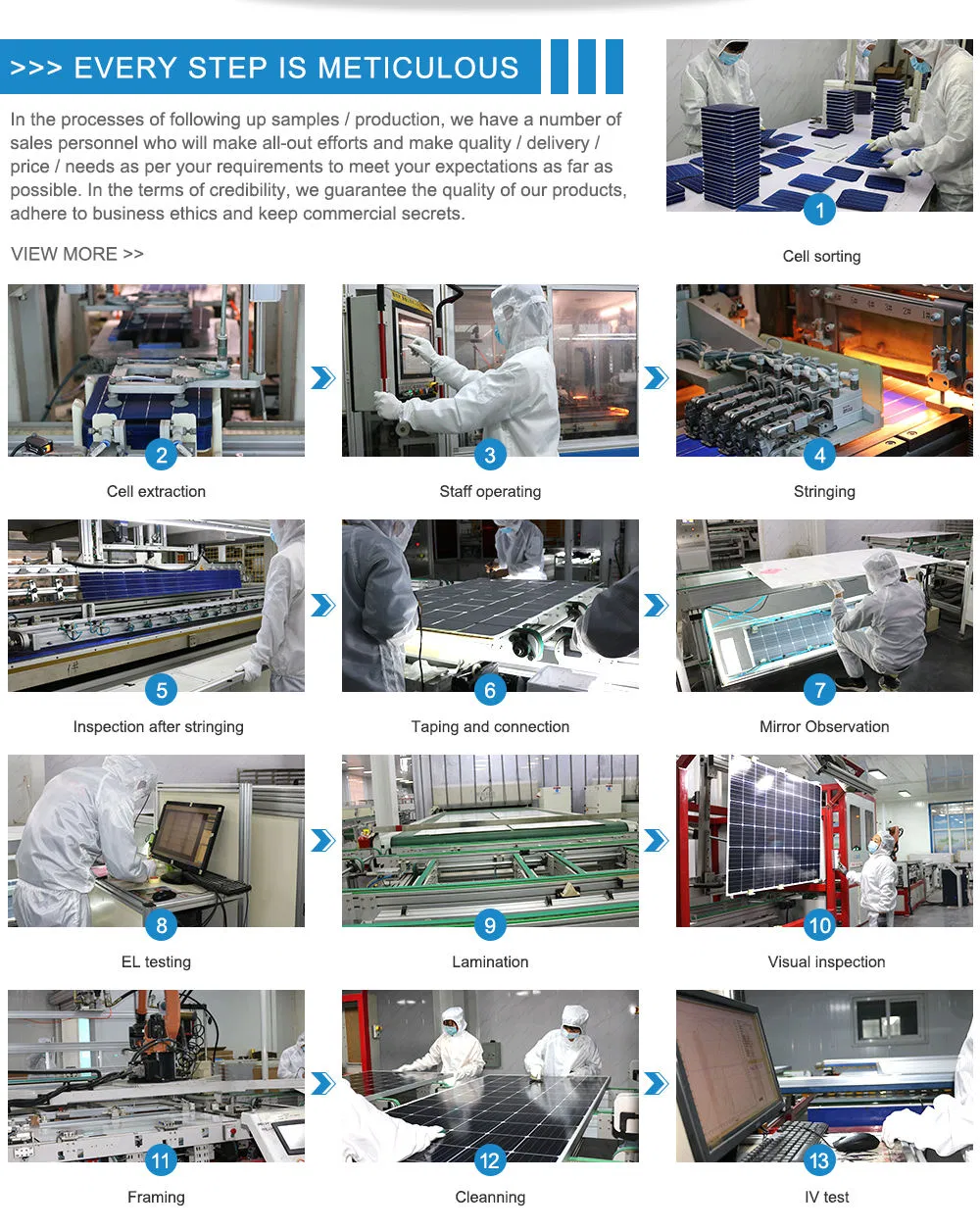

Production Process
💡 Project Cases

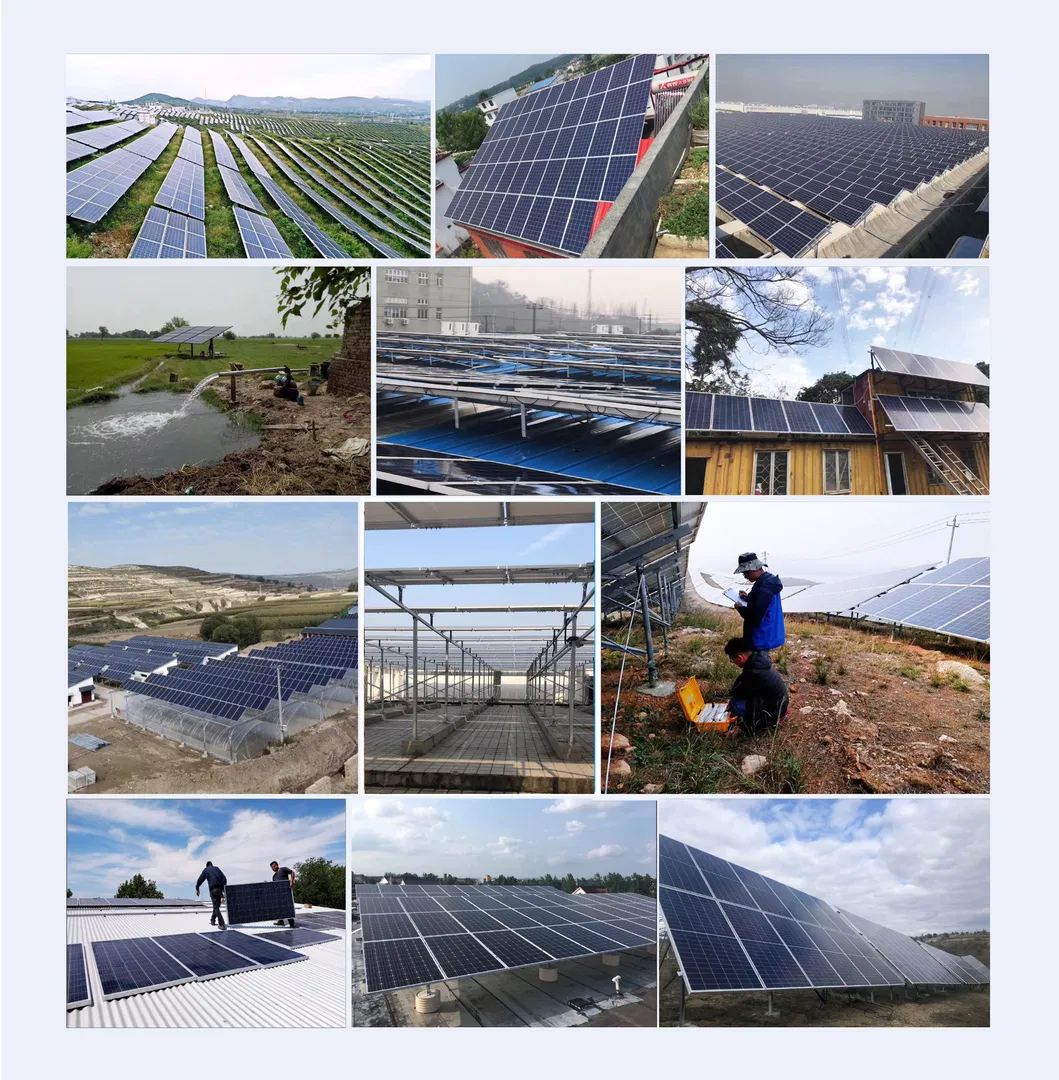

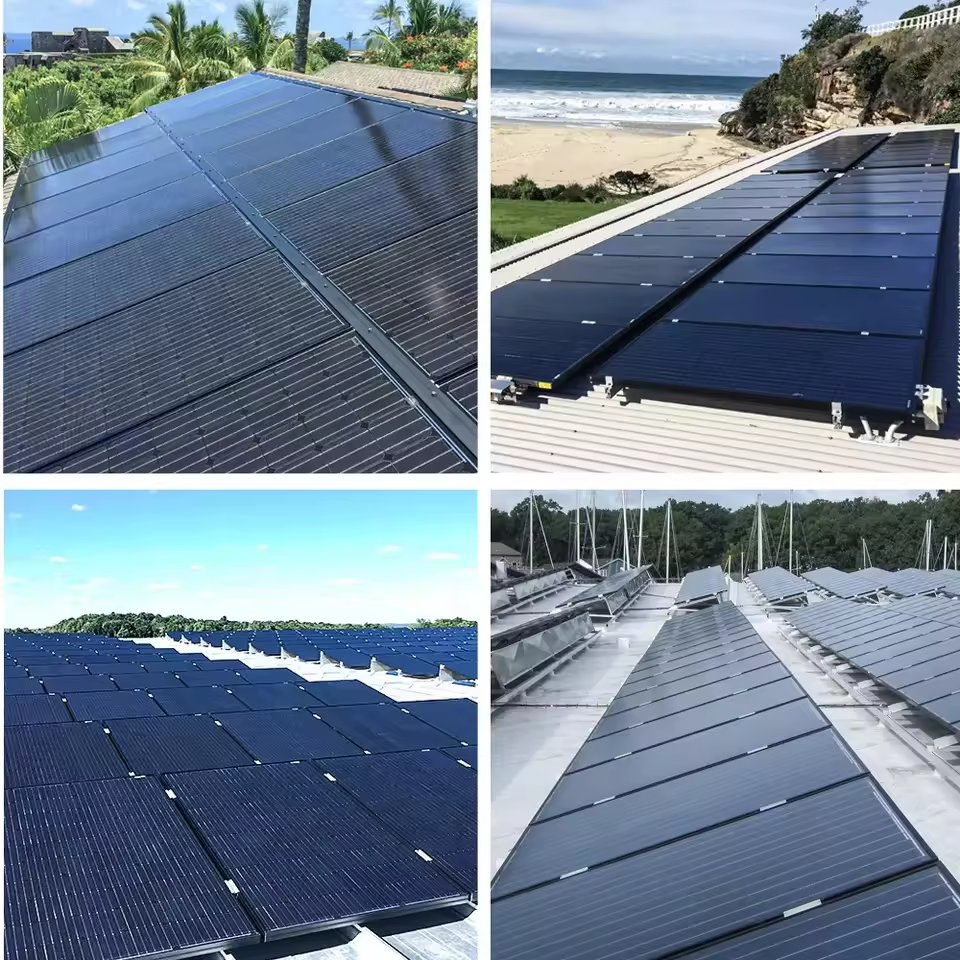

Residential Solar Projects

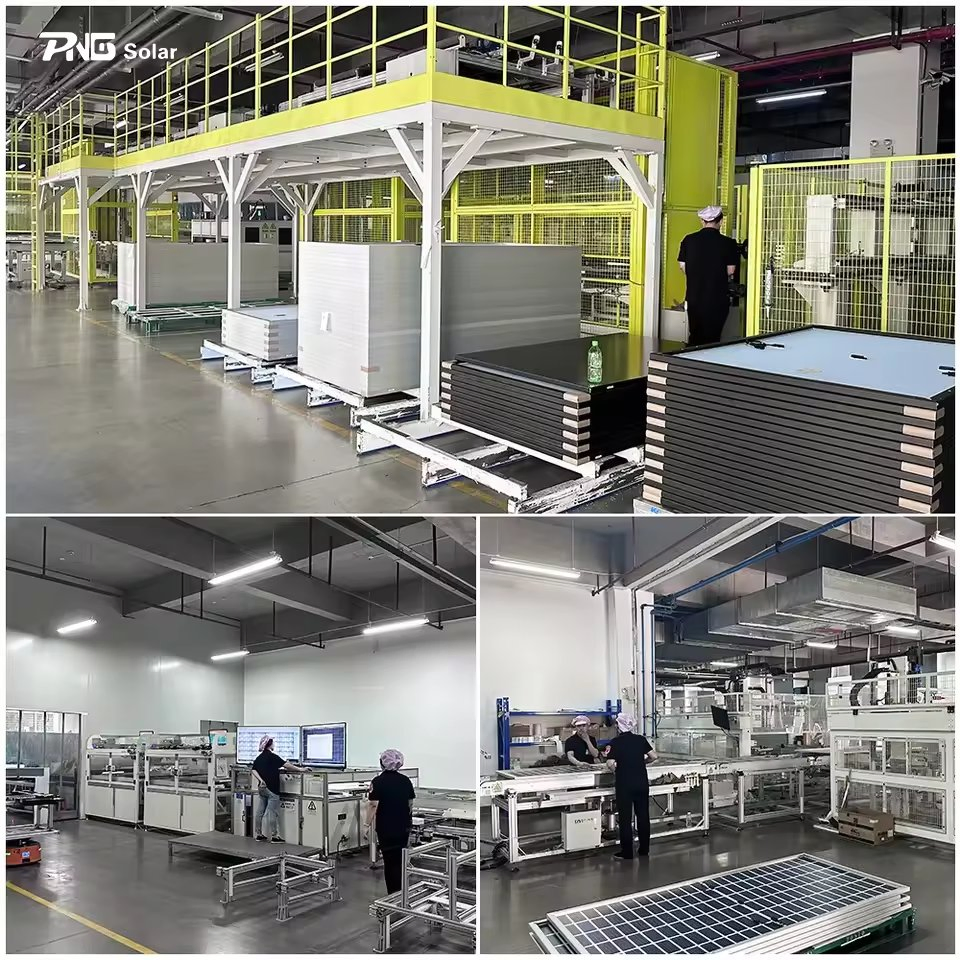

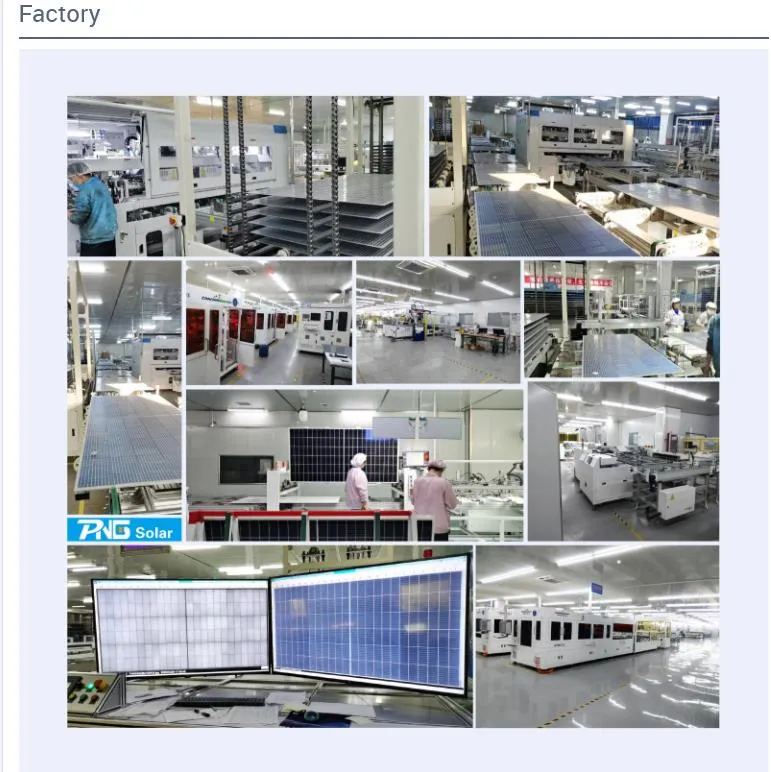

🏭 Factory Overview

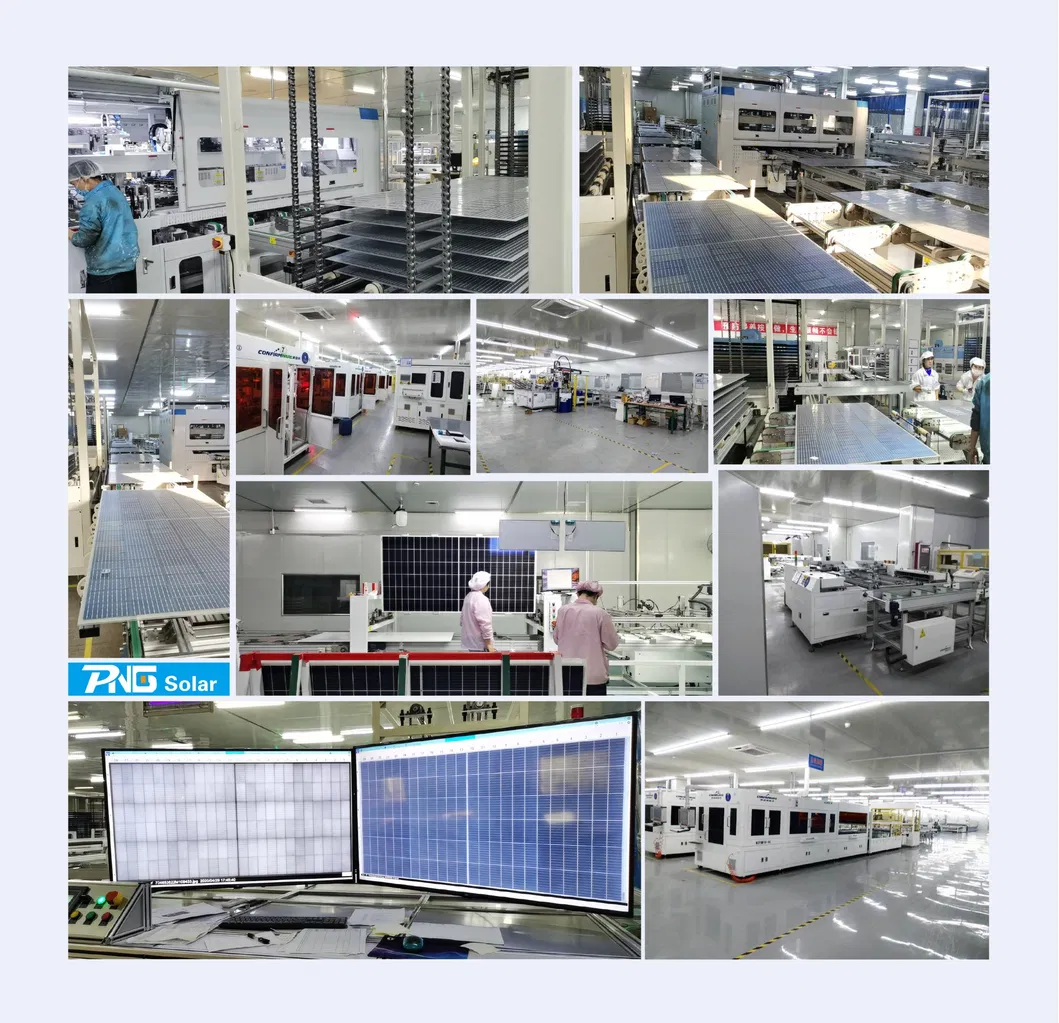

Factory Production Line
🚢 Delivery Methods
FAQ.
What are your payment terms?
We accept TT (Telegraphic Transfer), Letter of Credit (L/C), PayPal, Western Union, and other standard payment methods.
Can you provide samples?
Yes, we can provide samples. The sample fee will be fully refunded when you place your next bulk order.
Can we print our own logo on the solar panels?
Absolutely. We offer OEM services and can print your customized logo as per your requirements.
What are the advantages of your company?
As a modern factory, we focus on high-quality production with competitive pricing. We prioritize long-term customer development through exceptional service and reliable product efficiency.
What is the quality grade of your solar cells?
We strictly use A-Grade Monocrystalline silicon cells to ensure maximum power output and long-term durability.
How are the products packaged for transport?
Standard packaging includes 30 pieces per pallet, secured for international sea or air transport to ensure safe delivery.

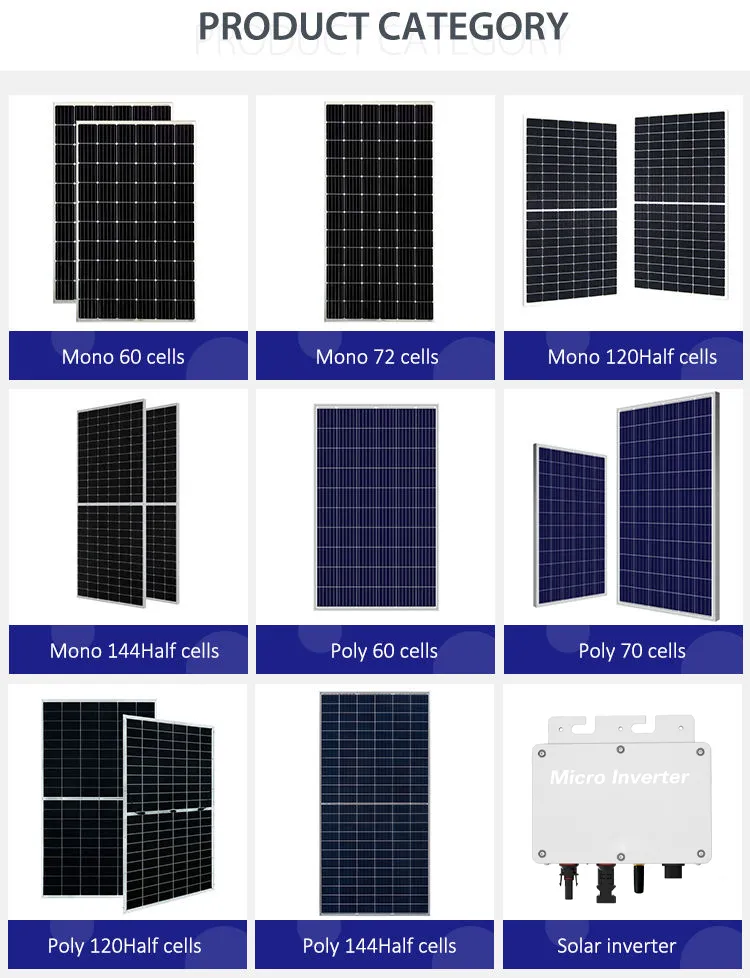

Related Products
