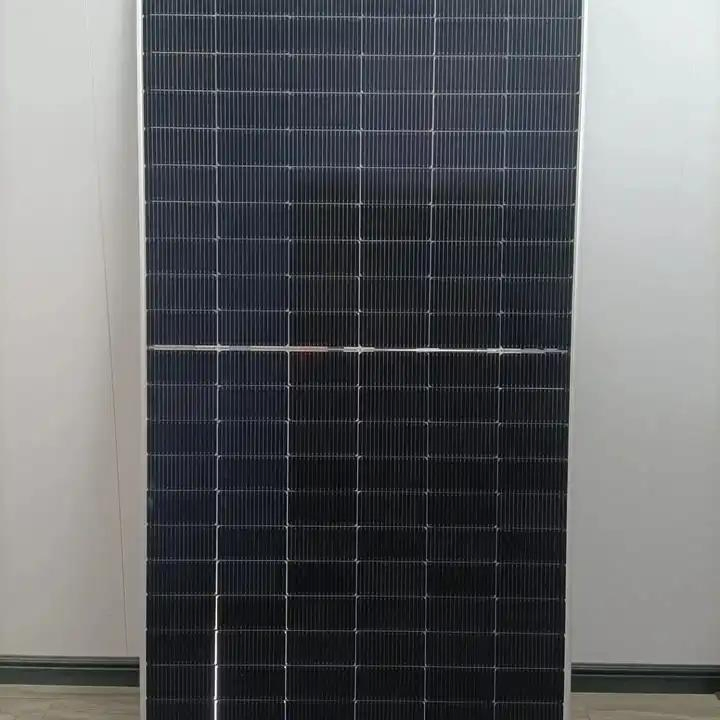

Perc Industrial 36PCS in a Pallet Monocrystalline Panel Jinko Solar

Customization: Available
After-sales Service: Yes
Warranty: 30 Years

Product Description

📋

Basic Specifications

Model NO.
JKM570N-590N-72HL4-BDV
Number of Cells
144PCS
Application
Industrial
Certification
ISO, CE
Material
Monocrystalline Silicon
Solar Cell
A Grade
Junction Box
IP 68 Rated
Type
Perc
Weight
31kg
Panel Efficiency
22.84%
Frame
Anodized Aluminium Alloy
Specification
2278*1134*30mm
🔍

Product Presentation

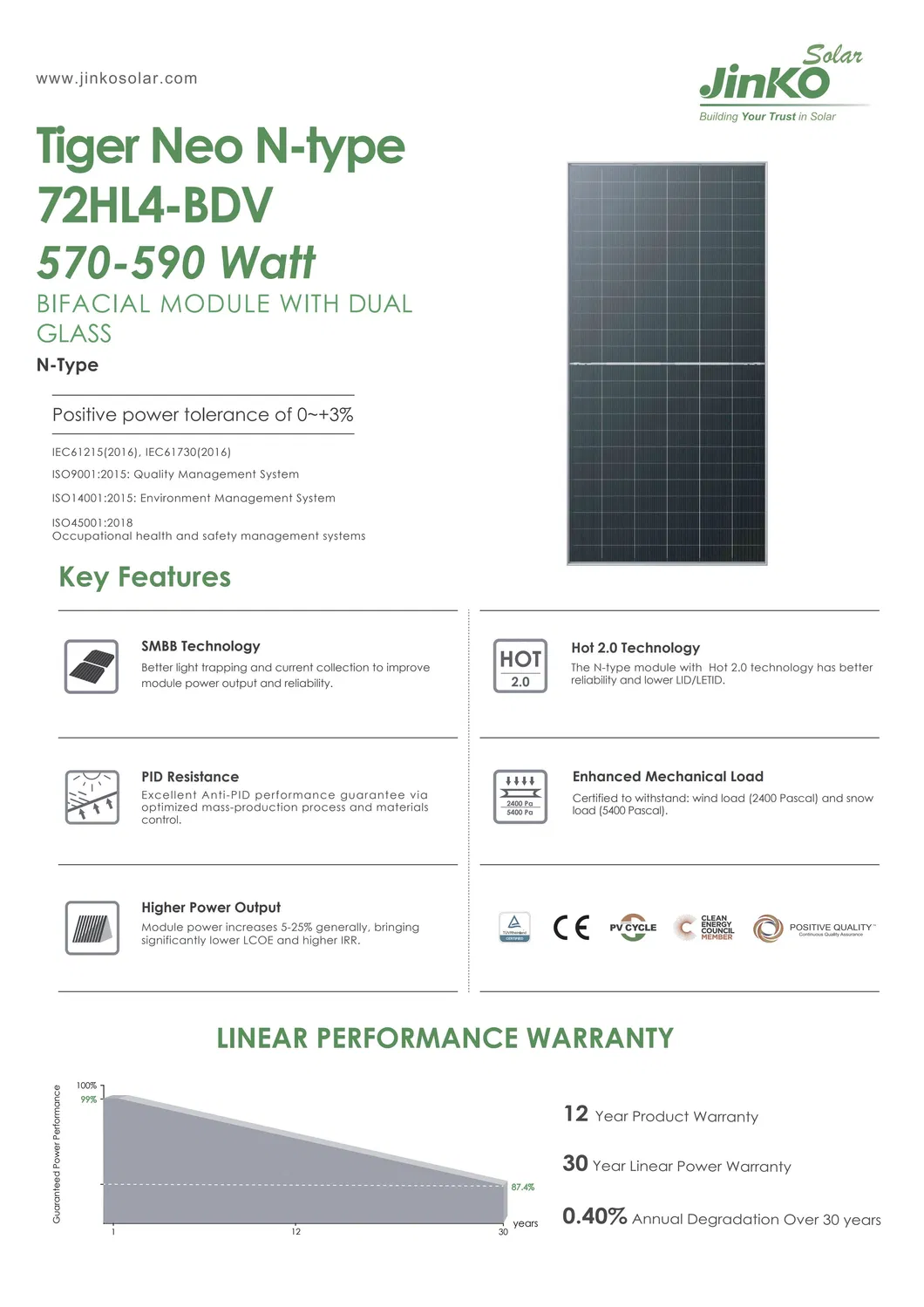

Perc Industrial Panel

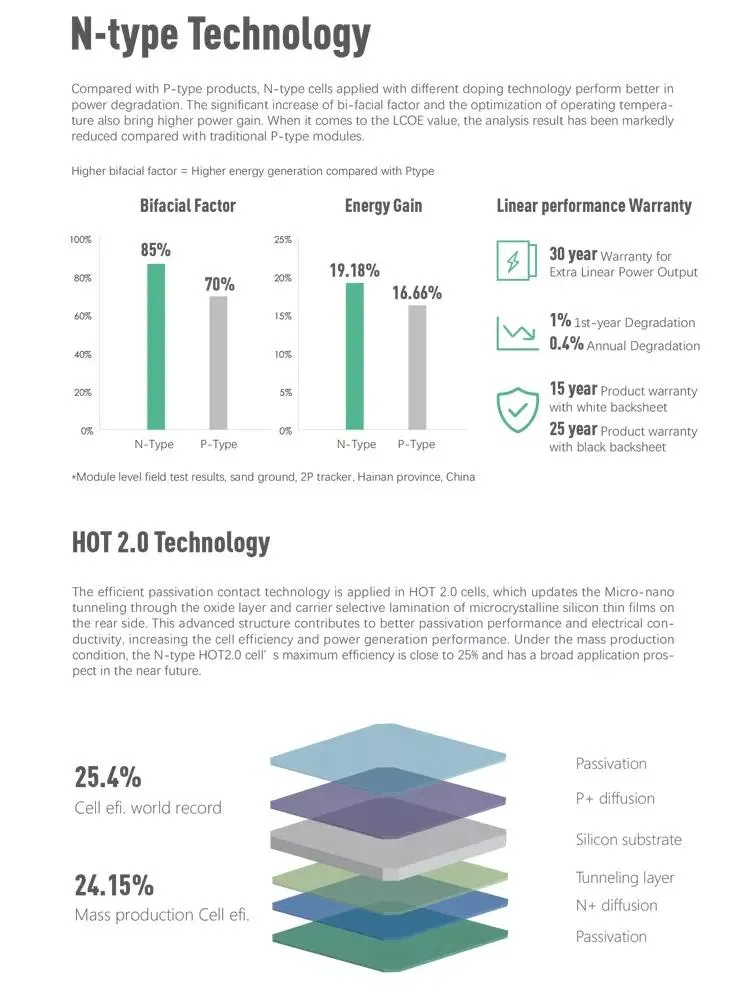

Module Details 1

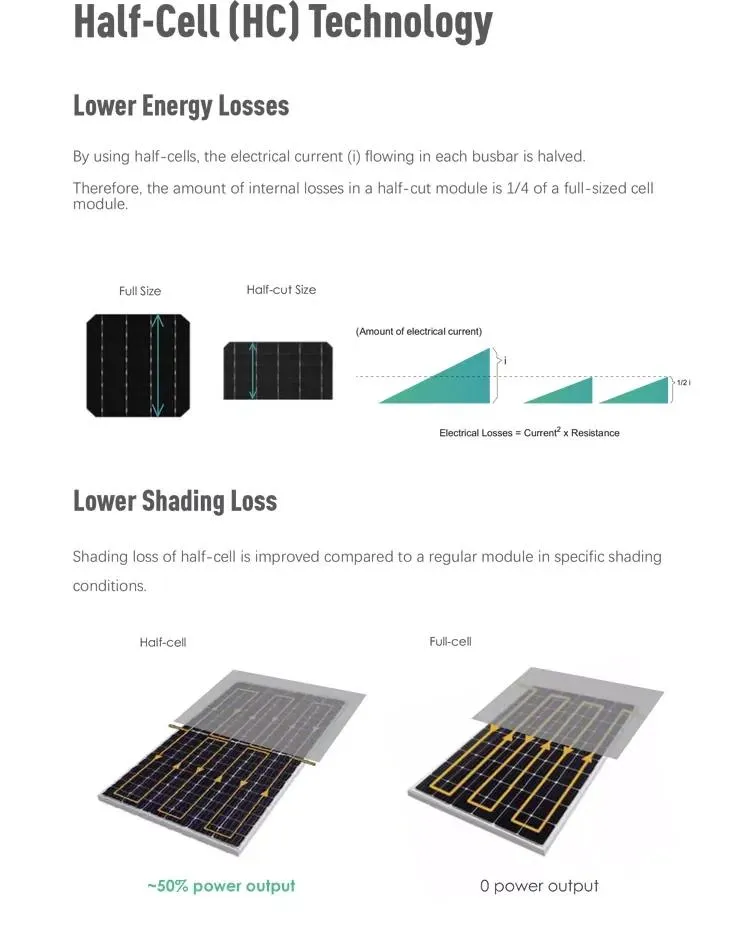

Module Details 2
⚙️

Mechanical Characteristics

Cell TypeN type Mono-crystalline
No. of cells144 (2×72)
Dimensions2278×1134×30mm (89.69×44.65×1.18 inch)
Weight31kg
Front Glass2.0mm, Anti-Reflection Coating
Back Glass2.0mm, Heat Strengthened Glass
FrameAnodized Aluminium Alloy

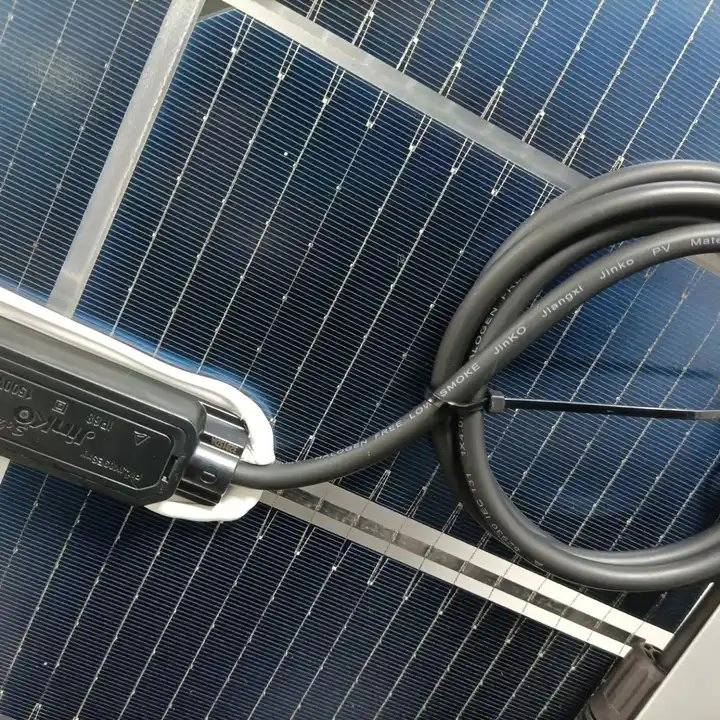

Junction BoxIP68 Rated
Output CablesTUV 1×4.0mm2; (+): 400mm , (-): 200mm or Customized Length

Electrical Data (STC)

Module Type 570Wp 575Wp 580Wp 585Wp 590Wp
Maximum Power (Pmax) 570Wp 575Wp 580Wp 585Wp 590Wp
Maximum Power Voltage (Vmp) 43.58V 43.73V 43.88V 44.02V 44.17V
Maximum Power Current (Imp) 13.08A 13.15A 13.22A 13.29A 13.36A
Module Efficiency (%) 22.07% 22.26% 22.45% 22.65% 22.84%
Operating Temperature -40°C~+85°C
Max System Voltage 1500VDC (IEC)
💎

A Grade Material & Production

A Grade Material

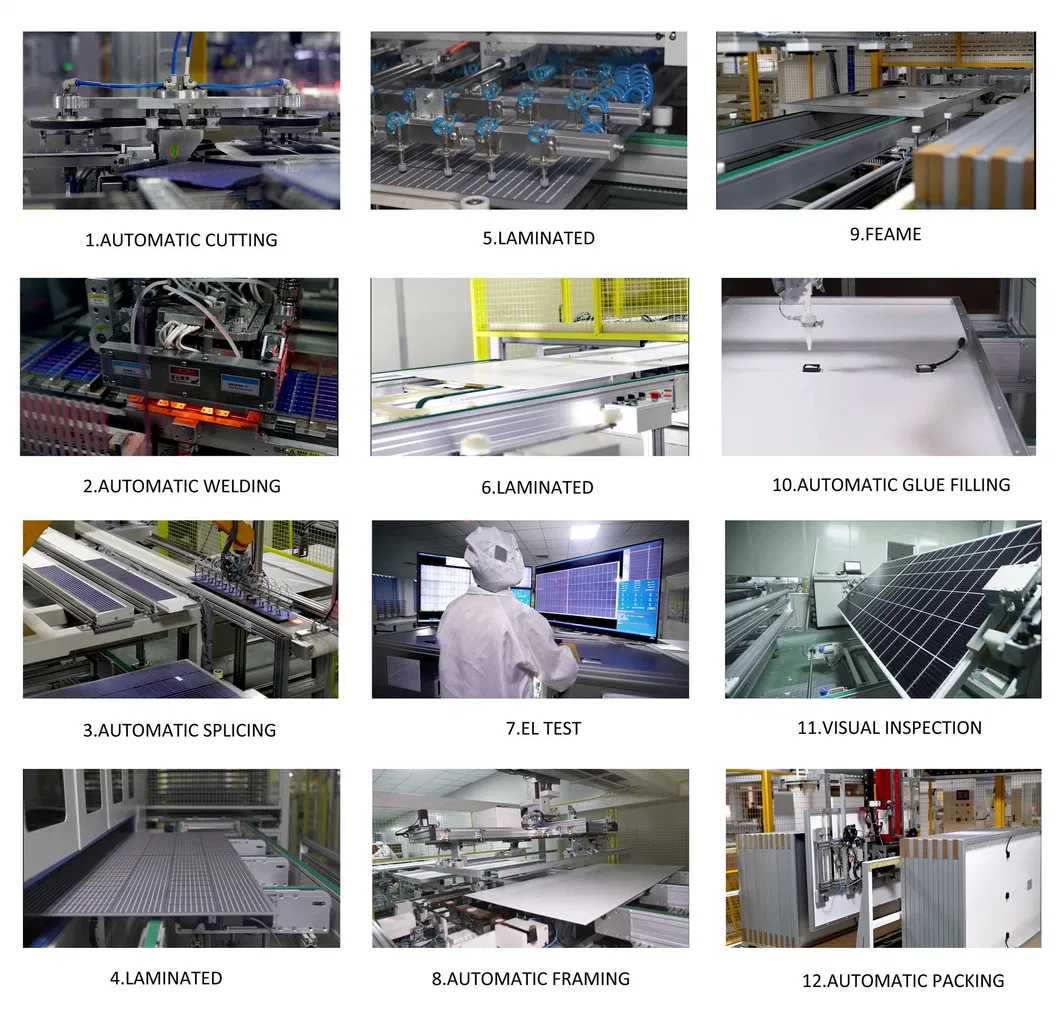

Production Process
🏭

Project Cases & Factory

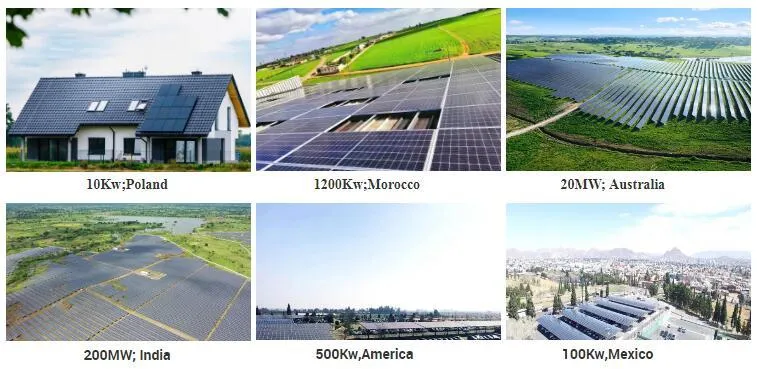

Project Case

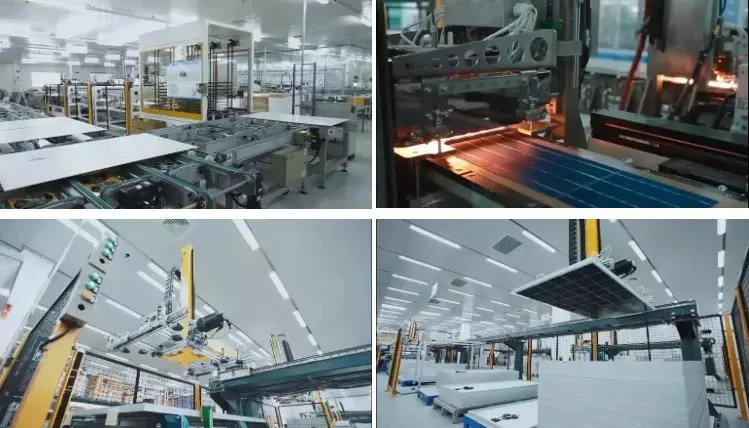

Factory Overview
🚢

Delivery Methods

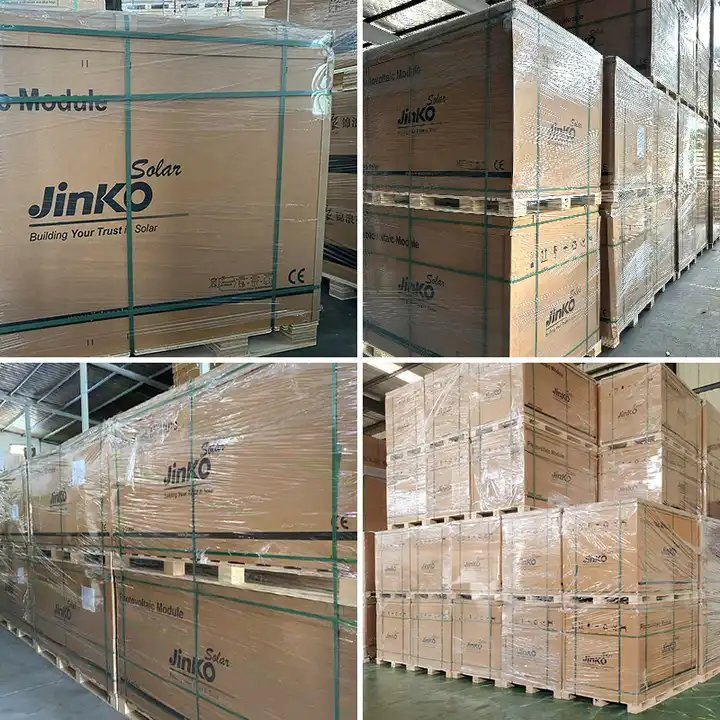

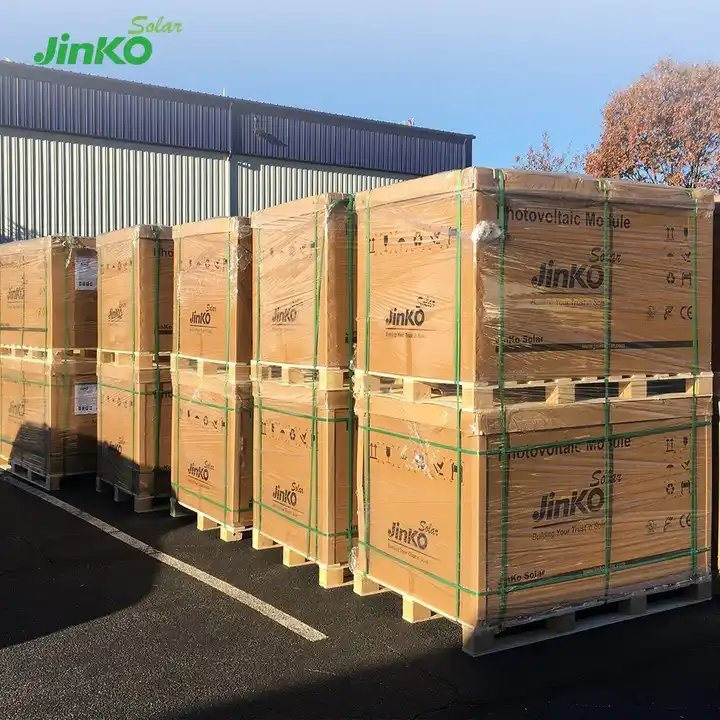

Packaging

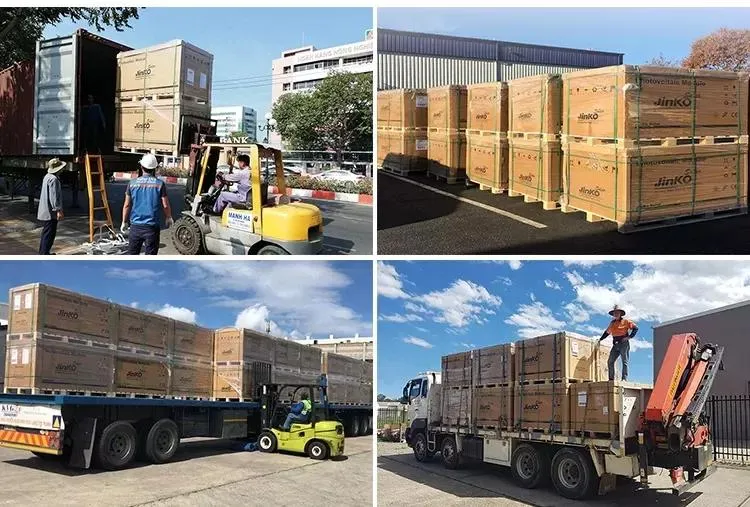

Shipping

Frequently Asked Questions

What are your payment terms and conditions?
We support T/T, Letter of Credit, Paypal, and Western Union. Trade terms include FOB, CIF, CFR, DDU, and DDP.
Can we print our own sticker or logo?
Yes, OEM and ODM services are our key advantages. We can customize stickers and branding according to your requirements.
What are the advantages of your solar modules?
Our products are manufactured to Tier 1 quality standards, offering high efficiency (up to 22.84%), A-grade materials, and competitive pricing.
What certifications do your products hold?
Our solar panels are fully certified with ISO and CE standards, ensuring reliability and safety for industrial and commercial applications.
What is the standard packaging for transport?
Standard packaging includes 36PCS per pallet to ensure maximum safety and space efficiency during sea or land transportation.
How do you ensure product durability?
We use 2.0mm heat-strengthened glass and an anodized aluminium alloy frame, paired with an IP68 rated junction box for extreme weather resistance.
