| Phase | Single |
|---|---|
| Output Power | 3kw-2000kw |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Power Source | Solar Power, Wind Power |
| Circuit Topologies | Half-Bridge Type |
| Nature of Wave String | Sine Wave Inverter |
| Input Grid AC Voltage | 380/400/415VAC 50/60Hz |
| Conversion Time | 20ms~1s |
| Operating Temperature | -10~60℃ |
| Cooling Method | Forced Air Cooling |
| Production Capacity | 10000 sets Per Year |
Features high-quality pure sine wave AC power output with strong load capacity and wide application range.

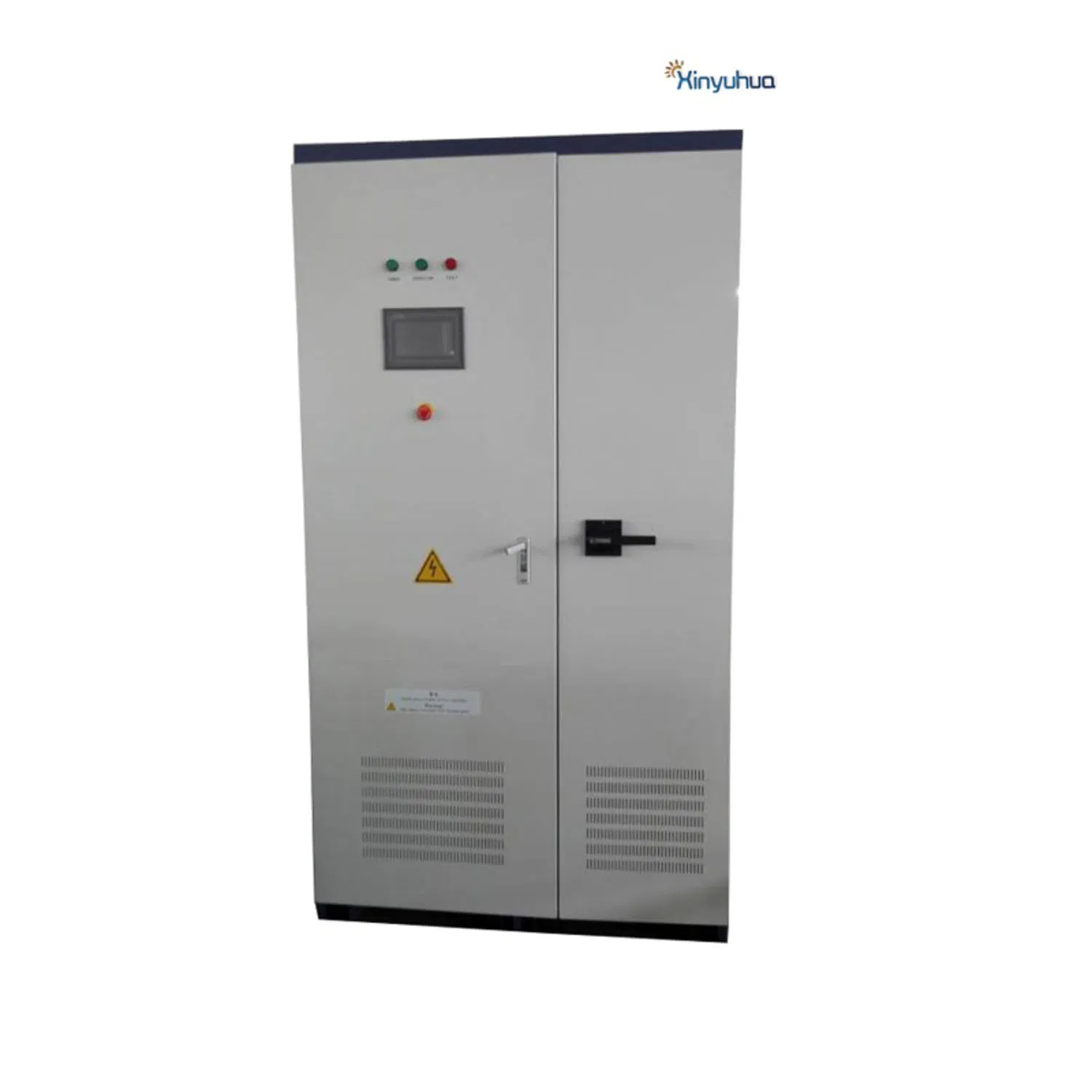

The bi-directional inverter serves as core control equipment, converting DC to AC and vice versa. It manages battery charging and discharging, ideal for grid-tied power systems with storage requirements.
| Mode | XYH-3000T | XYH-5000T | XYH-10000T | XYH-20000T |
| Rated Power | 3kw | 5kw | 10kw | 20kw |
| Battery Voltage | 48V | 48V | 96V | 192V |
| Output AC Voltage | Three-phase 380/400/415Vac | |||
| Efficiency | >90% | |||
| THD | Linear load < 3%; nonlinear load < 5% | |||
| Mode | XYH-30000T | XYH-50000T | XYH-100000T | XYH-200000T |
| Rated Power | 30kw | 50kw | 100kw | 200kw |
| Battery Voltage | 240V | 360V | 384V | 384V |
| Weight (Kg) | 298 | 380 | 578 | 1400 |
| Model | 300KS | 500KS | 1500KS | 3000KS |
| Input Rating (Vdc) | 480V (420~800V Range) | |||
| AC Output (KW) | 300 | 500 | 1500 | 3000 |
| Inverted Efficiency | 95% | |||
| Noise (1 meter) | ≤55dB | |||

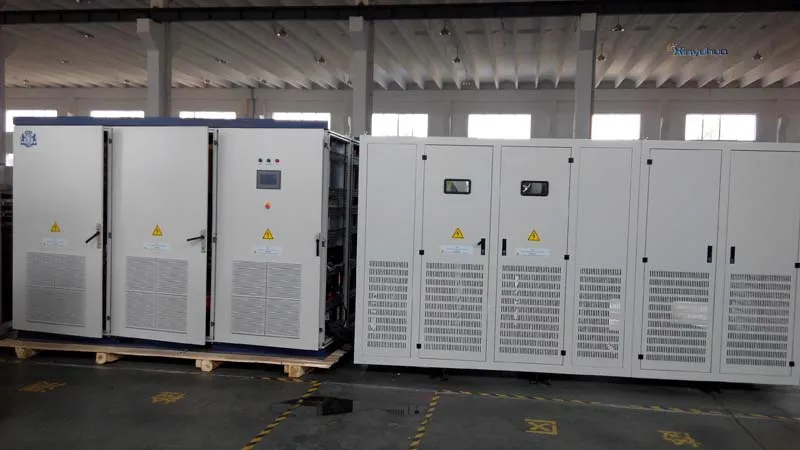

1500kw-3000kw Bi-directional Inverter
Static Frequency Converter (50Hz to 60Hz)

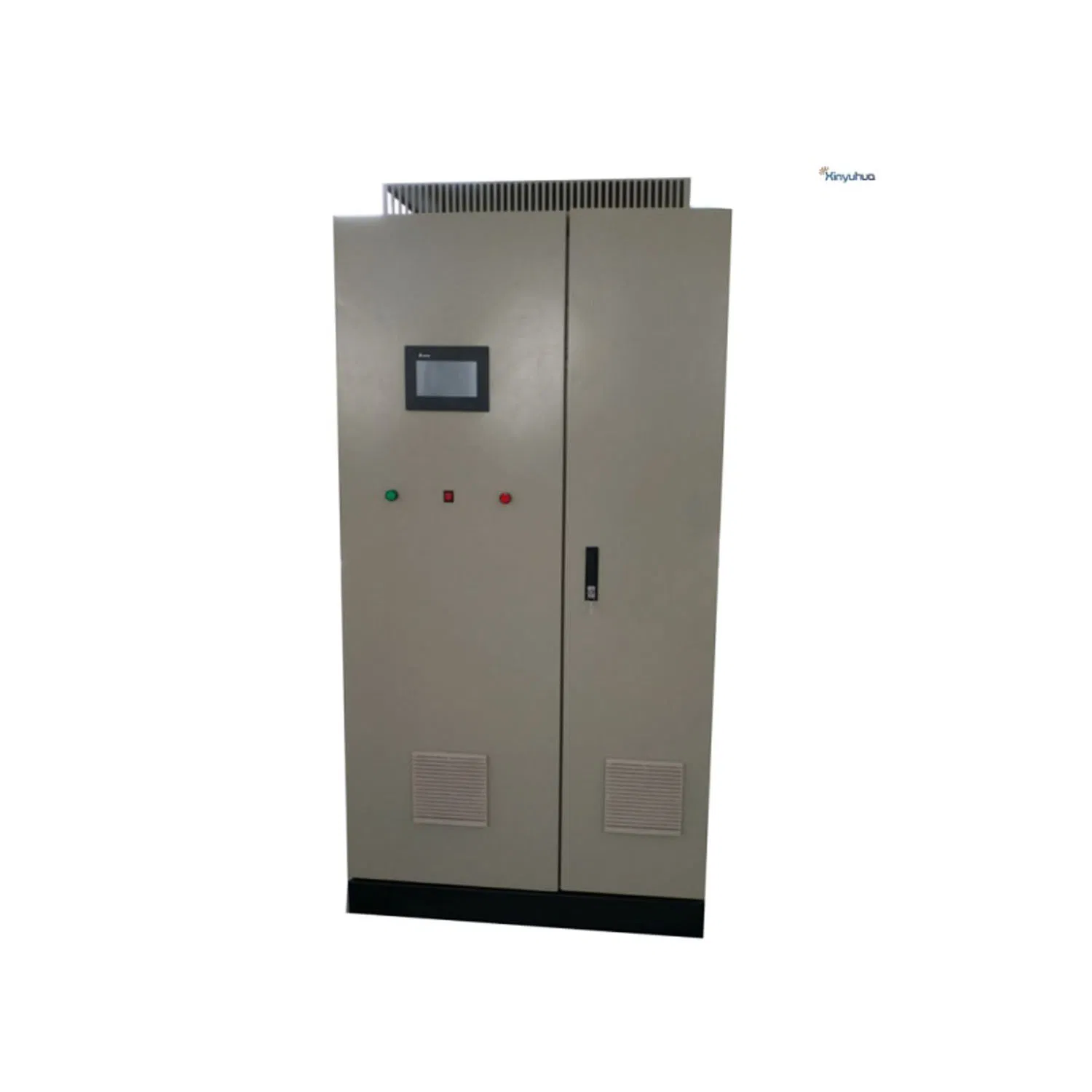

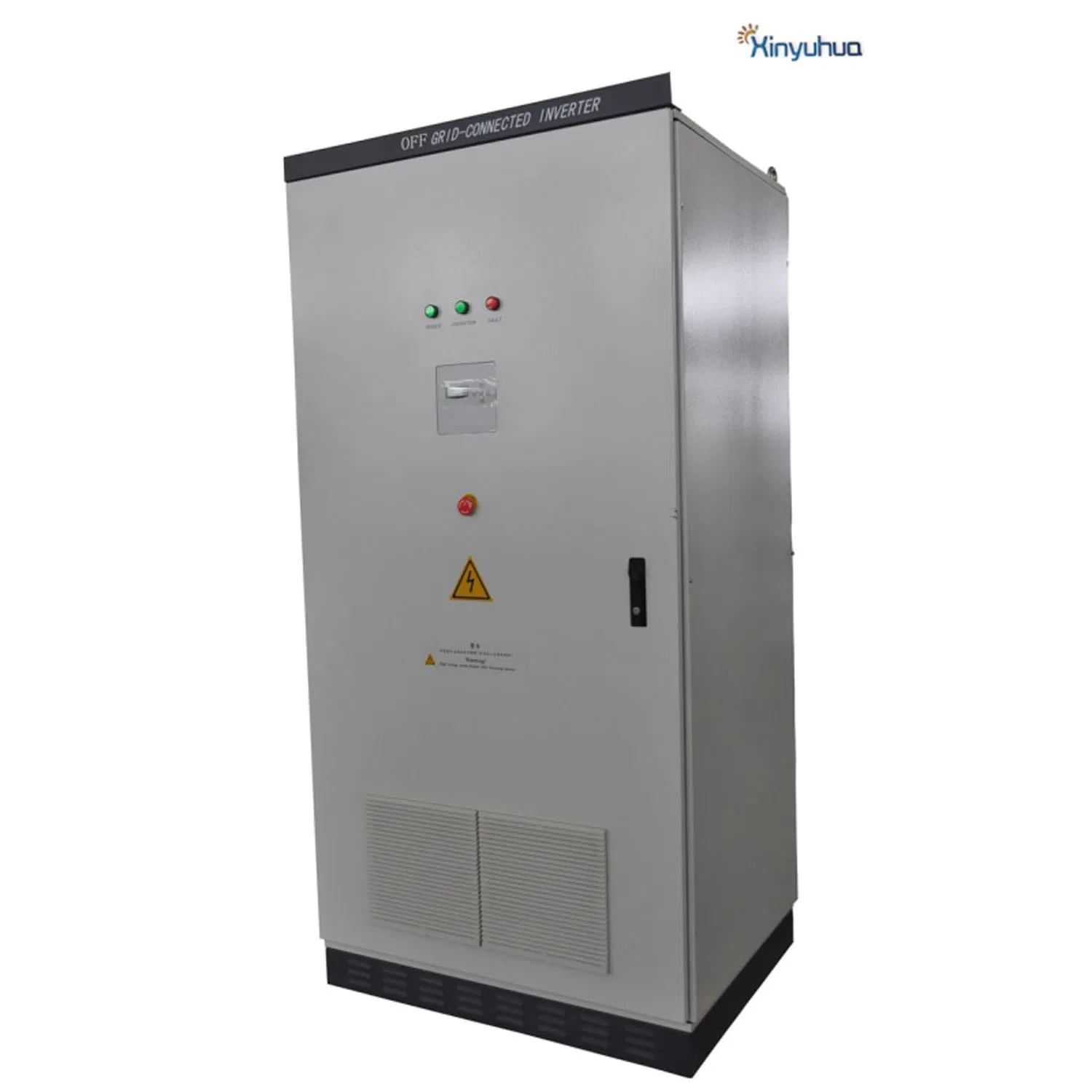

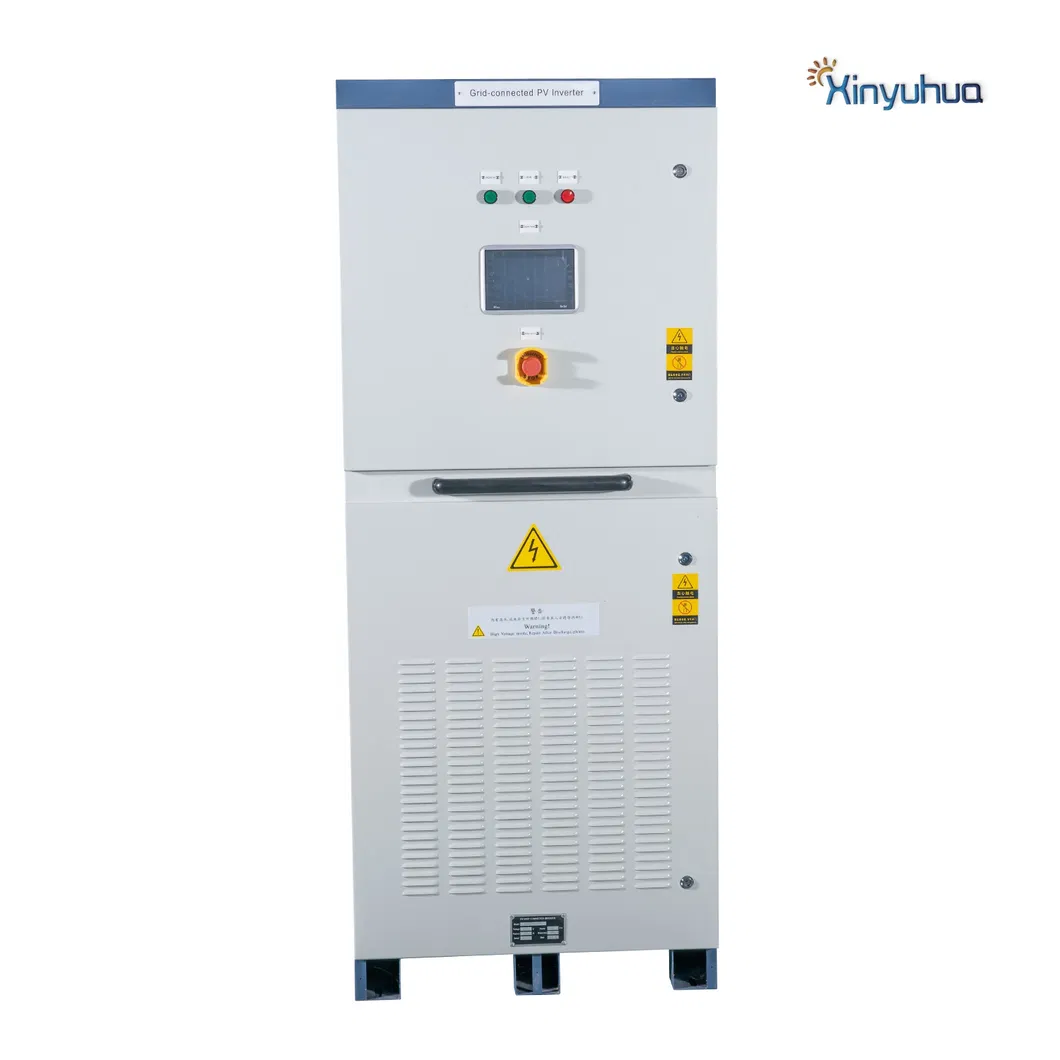

Solar Hybrid Inverter (On/Off Grid)

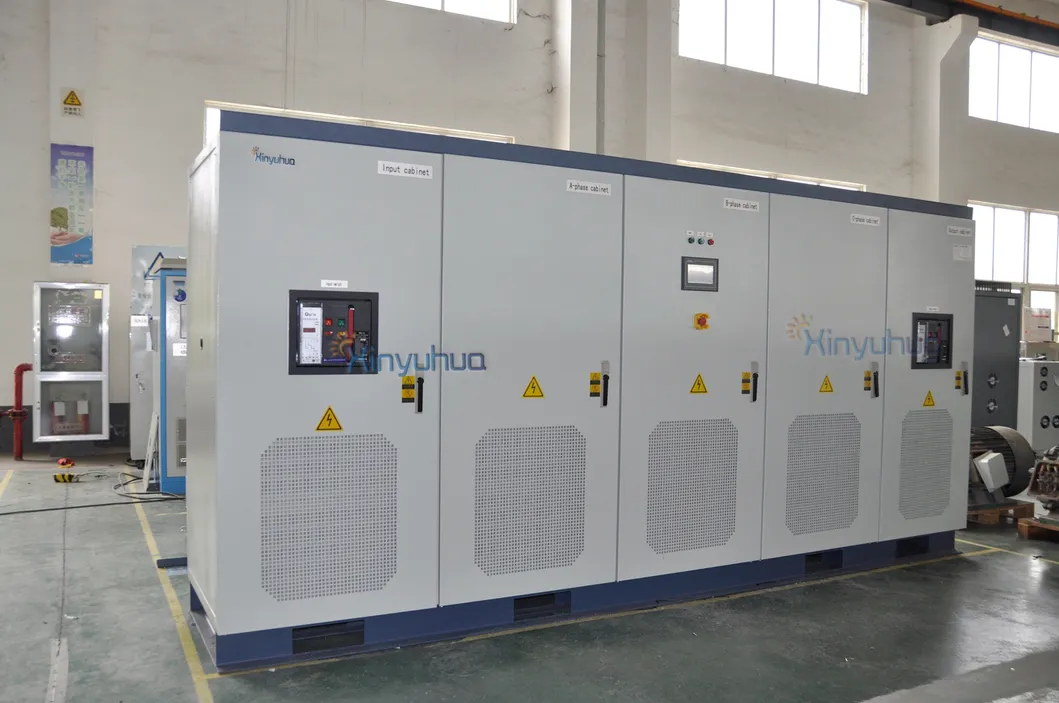

1000kw Hydro/Wind Grid Inverter
