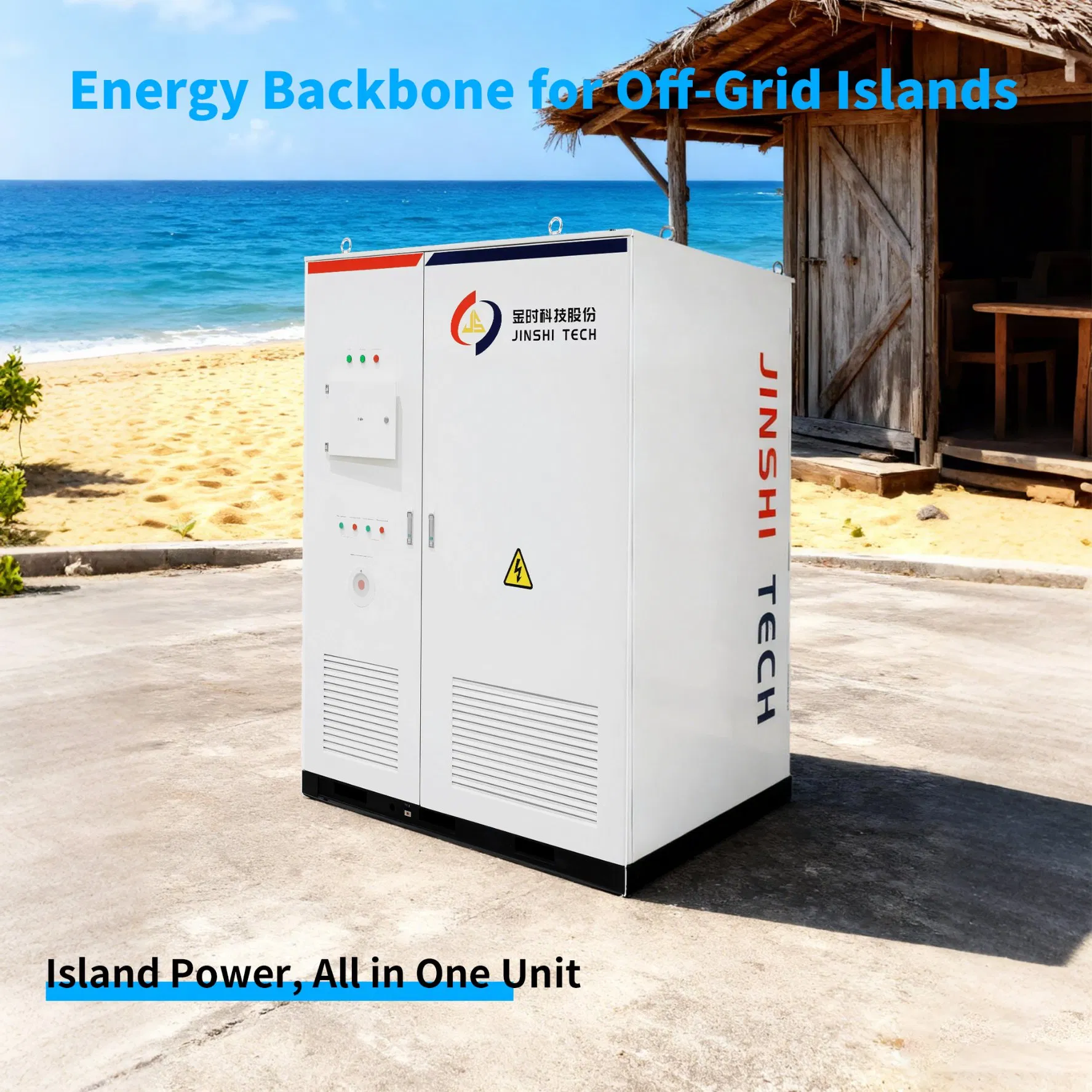

OEM ODM Customized Integrated and off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Customization:	Available
Nominal Voltage:	832V
Warranty:	2 Year

Send Inquiry

Product Description

⚙️

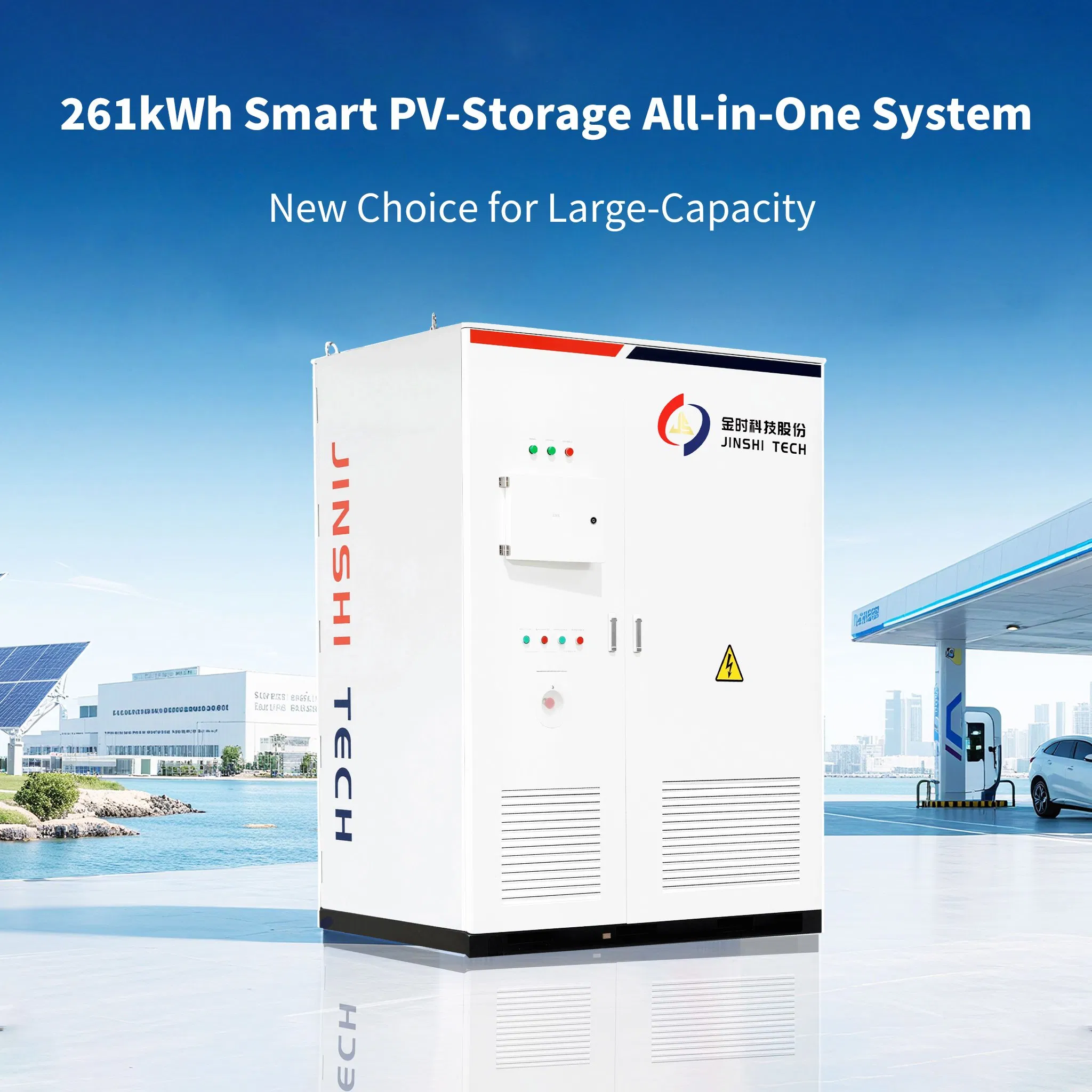

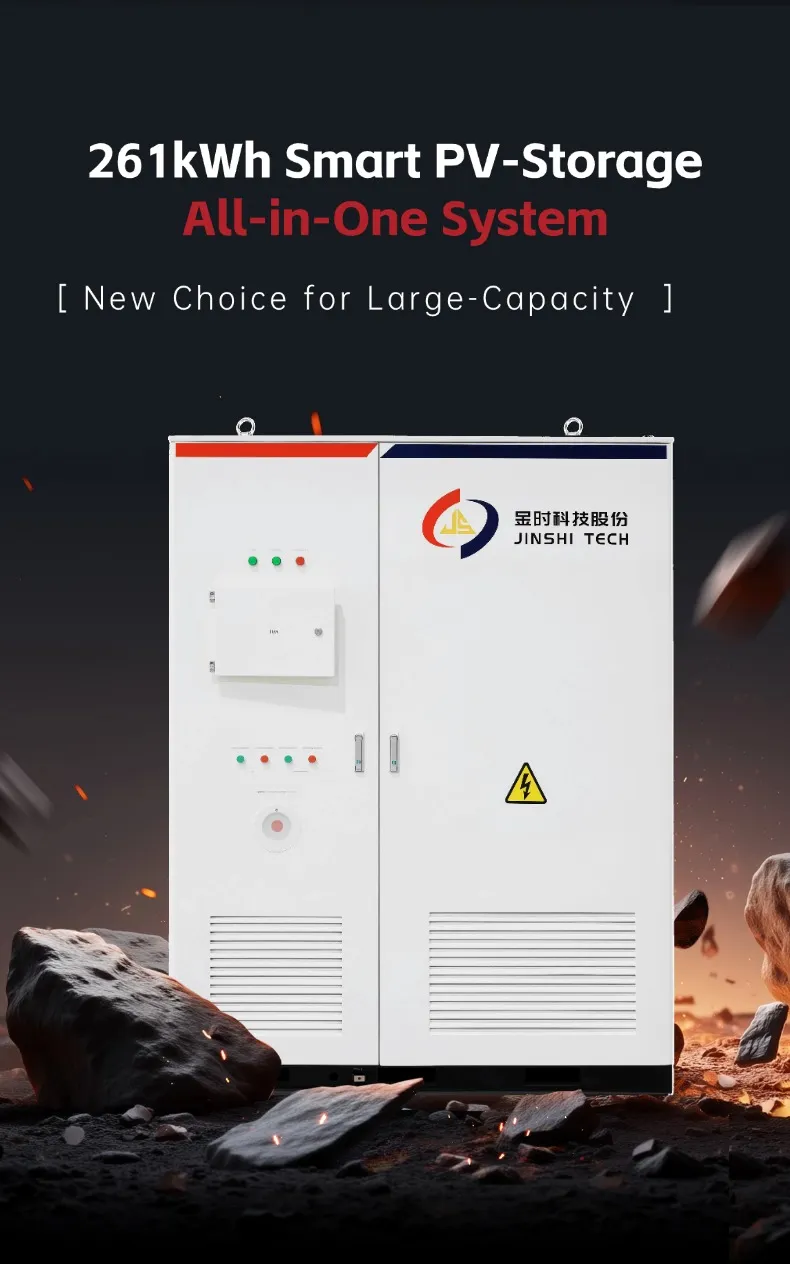

Smart PV-ESS All-in-One Unit-a-A

High-performance integrated energy storage solution with 314Ah LFP cells and intelligent liquid cooling system.

Basic Information

Model NO.Smart PV-ESS All-in-One Unit-a-A

Nominal Capacity314Ah

Cycle Life6000 Cycles

Rated Power125kW

Overload Capacity110% Long-Term

Battery Type3.2V/314Ah/LFP

Rated Voltage832V

Nominal Energy261kWh

Cooling SystemIntelligent Liquid Cooling

Protection LevelIP54

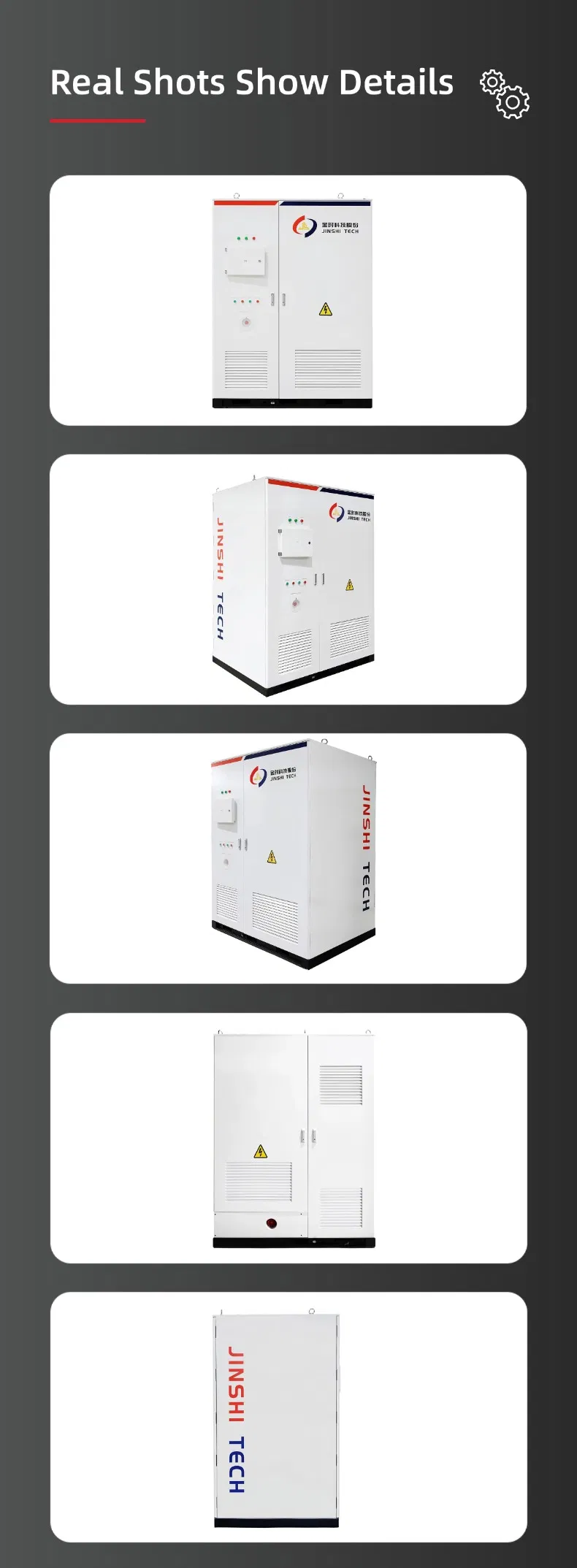

Product Visuals

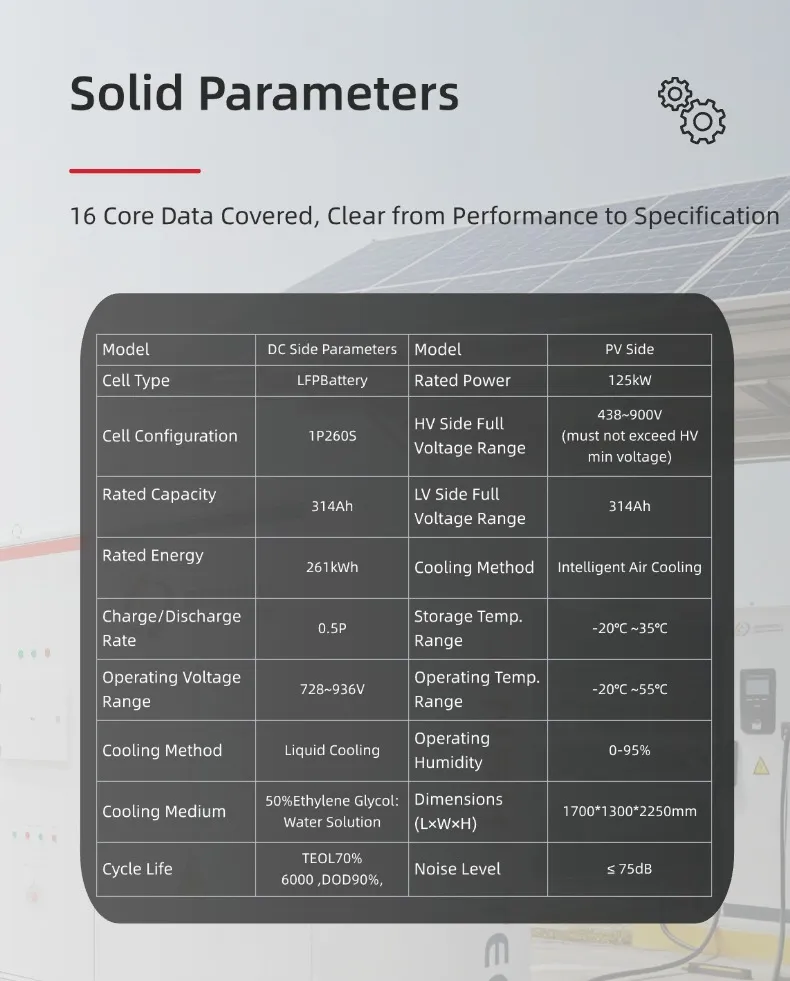

Technical Parameters

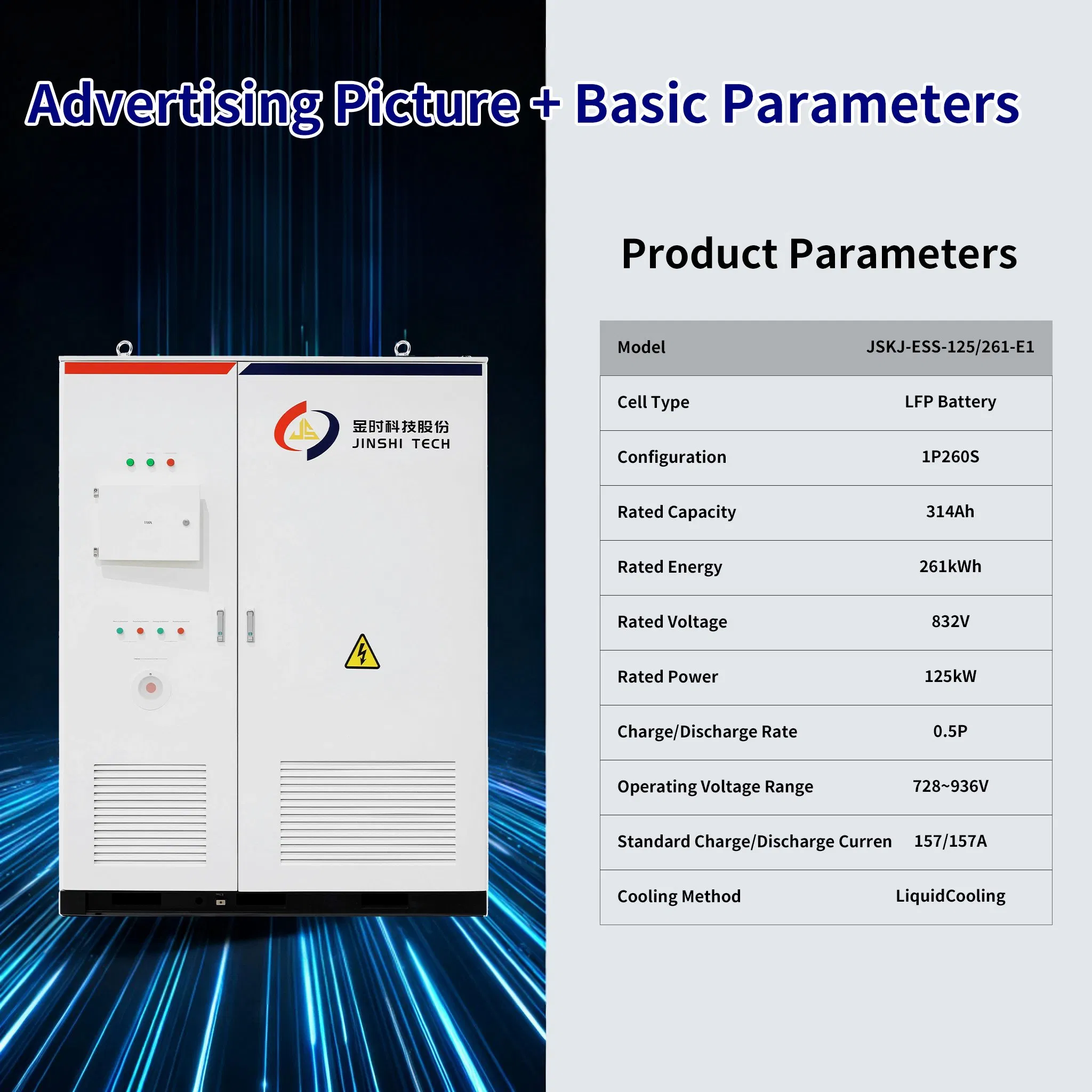

Detailed Product Specification
Cell Type	LFP Battery (314Ah)
Configuration	1P260S
Rated Energy	261kWh
Rated Power	125kW
Operating Voltage Range	728~936V
Maximum Photovoltaic Power	125kW
MPPT Operating Voltage Range	438-900V
Charge/Discharge Rate	0.5P
Standard Charge/Discharge Current	157/157A
Cooling Method	Liquid Cooling
Maximum Efficiency	99%
Protection Level	IP54
Fire Protection System	Perfluorohexane/Aerosol (Optional)
Weight	3000kg
Package Size	170.00cm * 130.00cm * 225.00cm

Frequently Asked Questions

What is the expected lifespan of the battery system?

The system features high-quality LFP cells with a cycle life of up to 6000 cycles, ensuring long-term reliability for energy storage applications.

How does the cooling system work?

This unit utilizes an Intelligent Liquid Cooling system, which provides superior thermal management compared to air cooling, maintaining optimal battery temperatures and extending service life.

Is the system suitable for outdoor installation?

Yes, the system is designed with an IP54 protection level, making it suitable for outdoor environments by providing protection against dust and water splashes.

What safety features are included for fire protection?

The unit comes equipped with advanced safety measures, including a Perfluorohexane or Aerosol fire protection system (optional) to ensure maximum operational safety.

What is the maximum efficiency of this ESS unit?

The system is highly efficient, achieving a maximum efficiency of up to 99%, which minimizes energy loss during the conversion and storage process.

What are the charging and discharging capabilities?

The unit supports a maximum charge and discharge rate of 0.5P, with a standard current of 157A, designed to balance performance and battery longevity.
