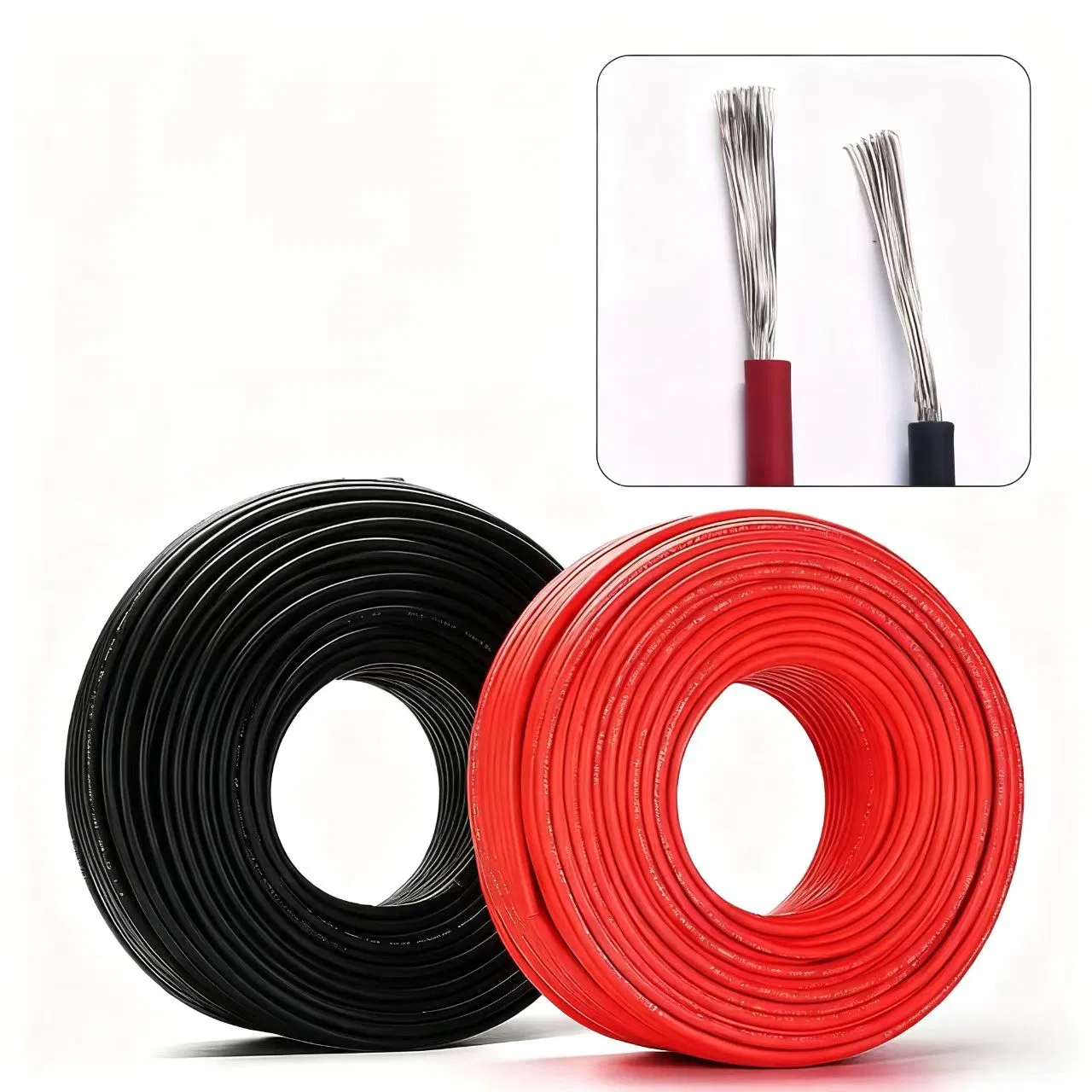

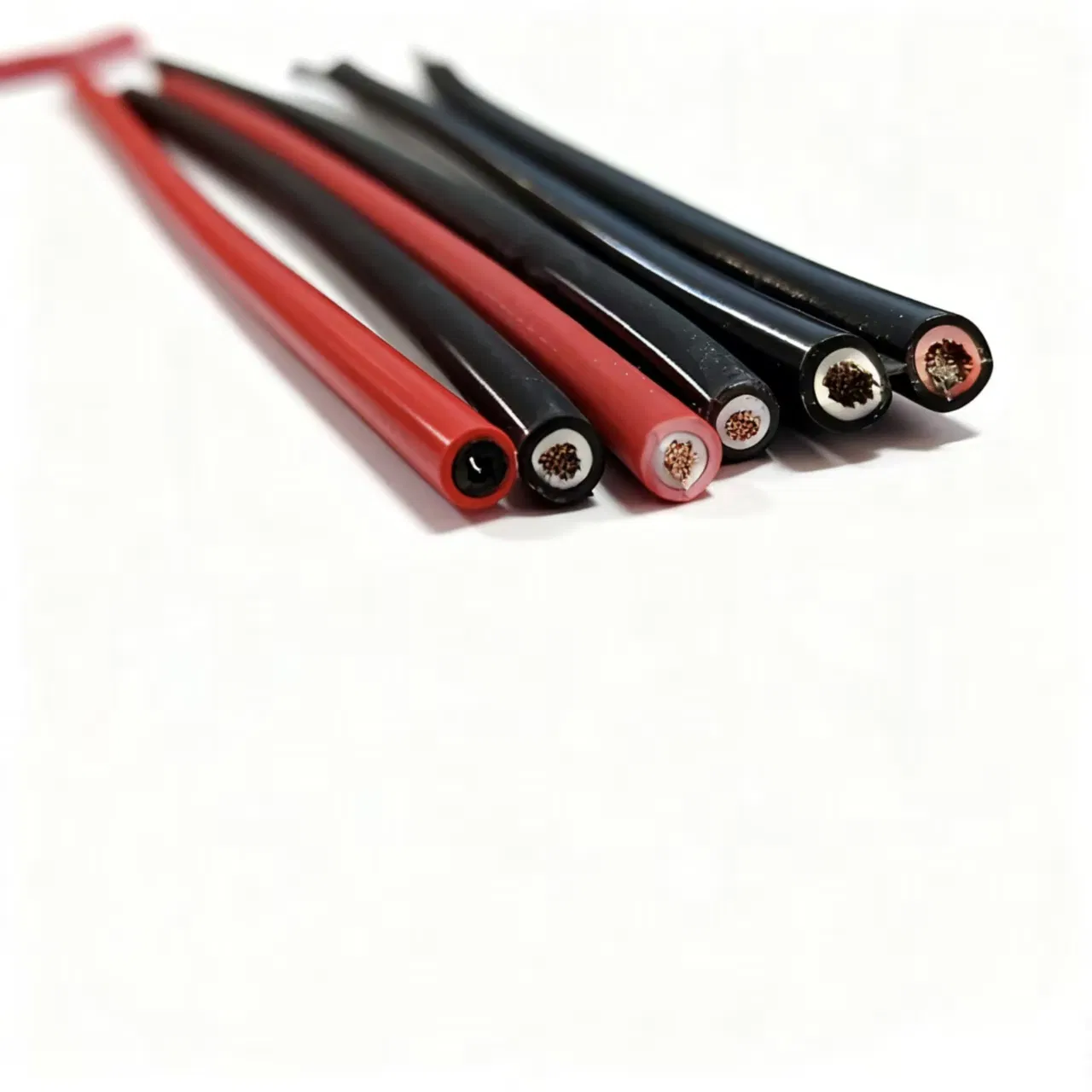

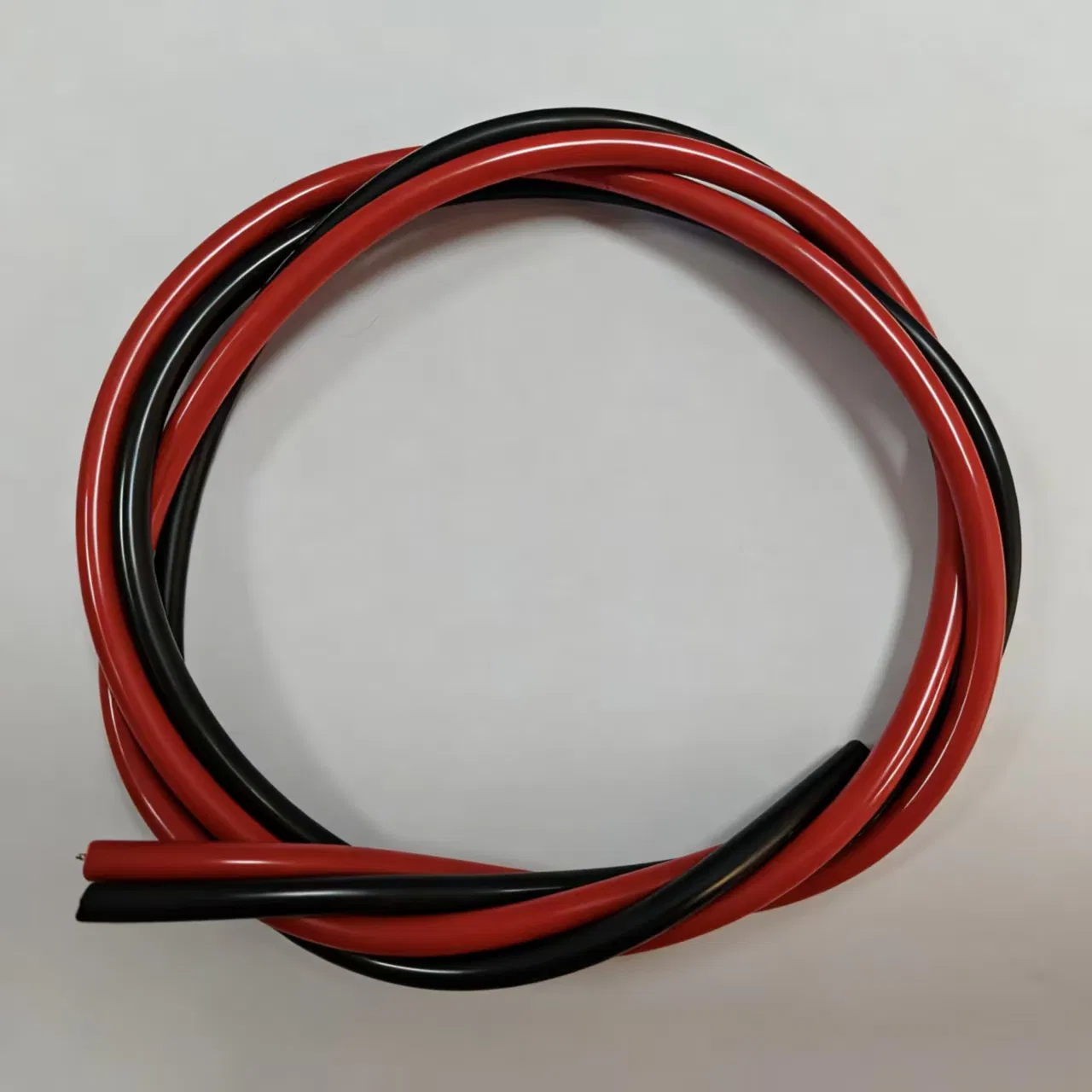

New Energy Cable 6mm² Solar DC PV Cable Weatherproof for Photovoltaic Systems

📋 Basic Information

Model NO.:

pv1-f/H1Z2Z2-K

Sheath Material:

Crosslinking

Insulating Material:

XLPE

Conductor Type:

Stranded

Certification:

TUV, ISO9001, CE, SAA, ROHS, UL

Wire Core Material:

Tinned Wire

Rated Voltage:

DC 1500V

Temperature Rating:

-40 ~ +90

Production Capacity:

100,000m/Day

☀️ Product Description

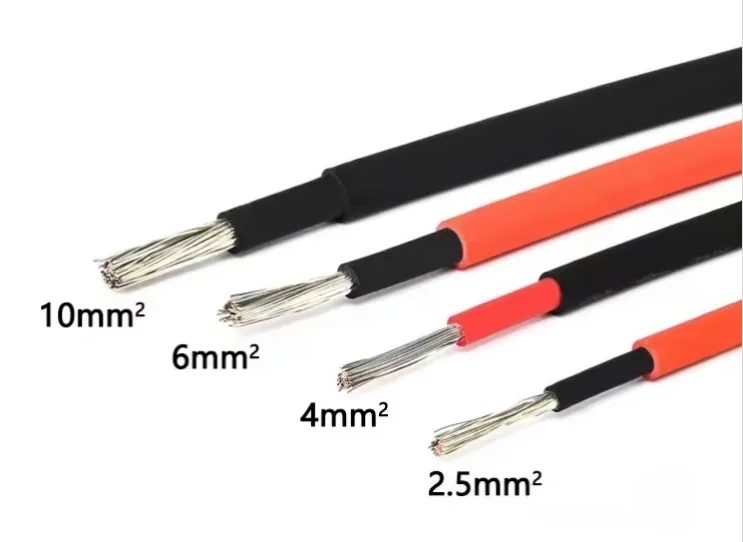

DC1500V H1Z2Z2-K Solar Cable (1.5mm² - 16mm²)

Our highly customizable solar (PV) cables are designed for photovoltaic systems with high insulation reliability and superior weather resistance.

🛡️

Key Specifications:

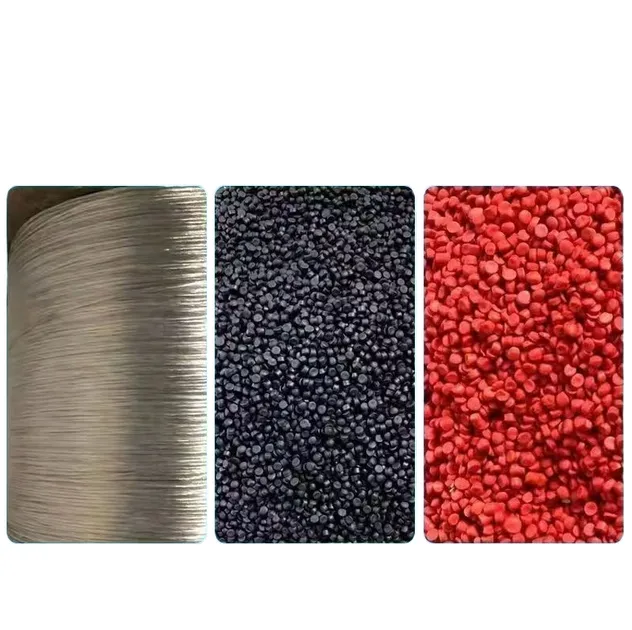

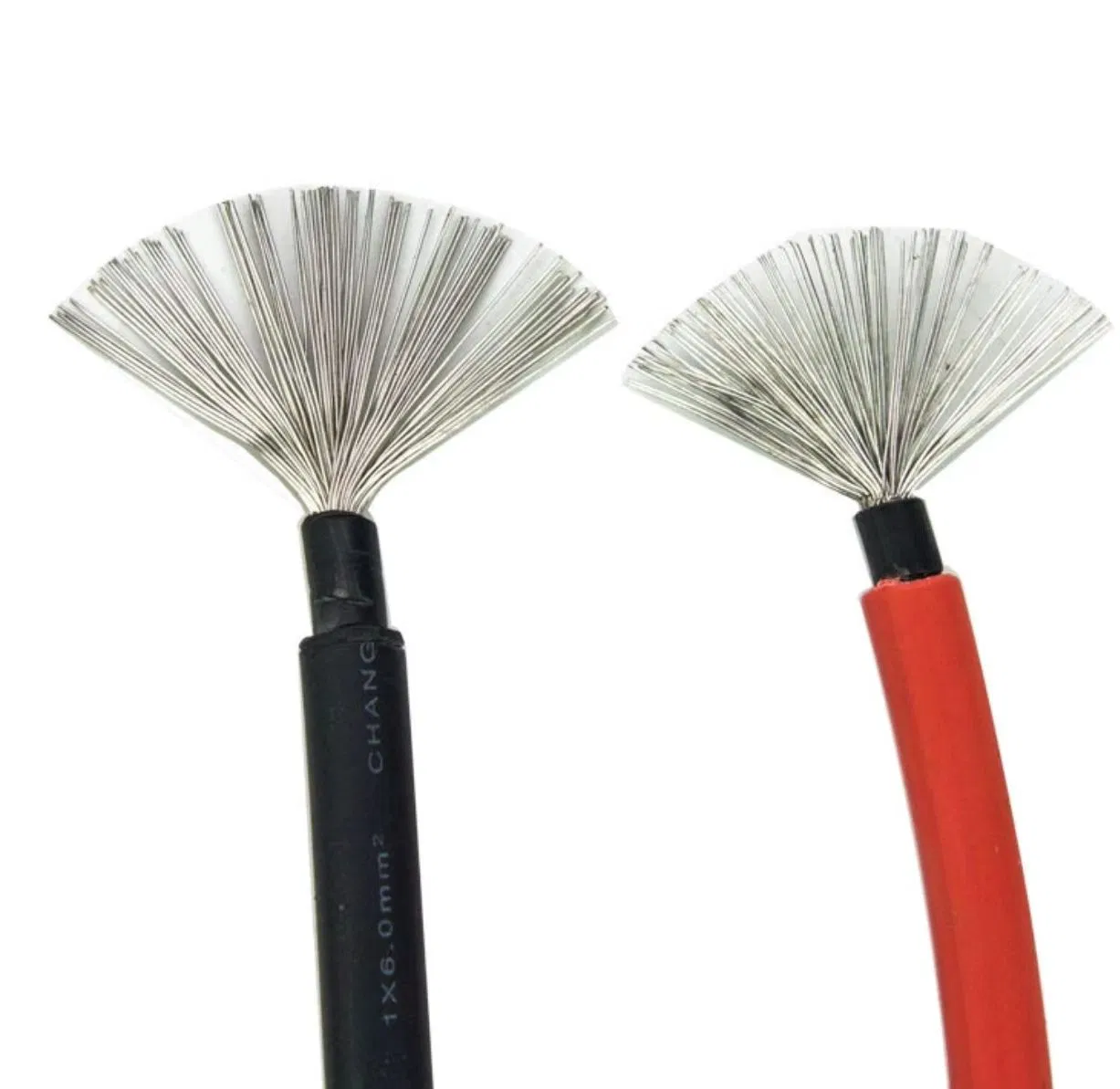

• Conductor: Tinned copper (anti-corrosion), bare copper, or aluminum alloy.
• Cross-section: 1.5mm² up to 240mm².
• Insulation & Sheath: UV-stabilized, Low-smoke, Halogen-free (LSZH) Polyolefin.
• Rated Voltage: DC 600V, 1000V, 1500V.
• Working Temp: -40℃ to +90℃ (up to +125℃ for high-temp versions).

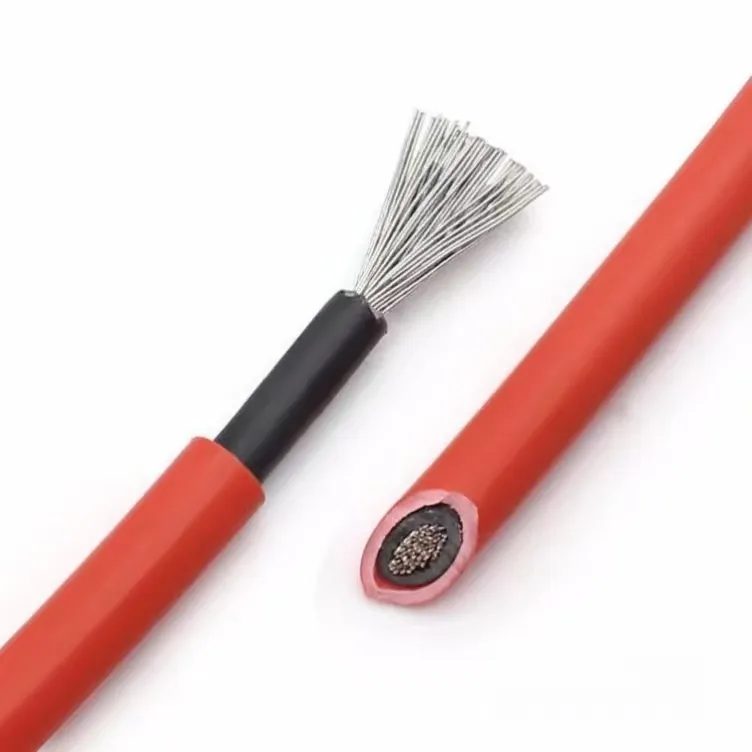

Insulation: Irradiation cross-linked low-smoke, halogen-free, flame-retardant polyolefin.

Sheath: Weather-resistant and environmentally friendly protection.

⚙️ Technical Specifications

Model Number	Nominal Area (mm²)	Conductor Structure (mm)	Cable Diameter (mm)	DC Resistance (20Ω/km)
PV1-F	1.5	30/0.2	5.2	12.2
PV1-F	2.5	50/0.2	5.6	7.56

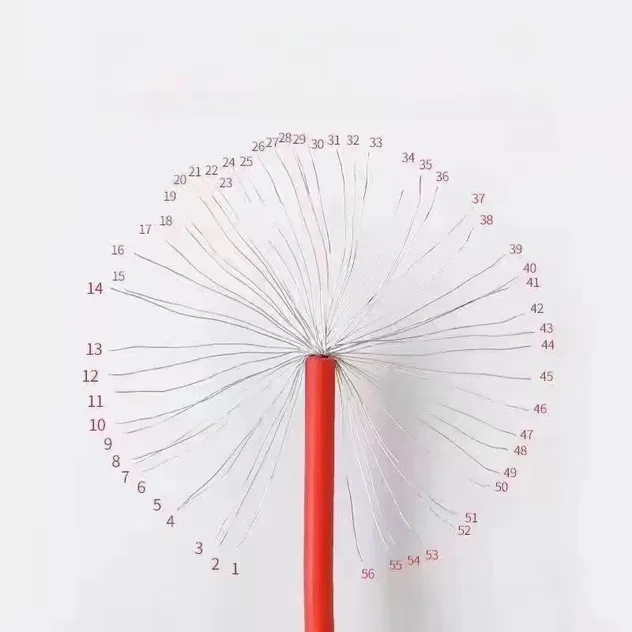

PV1-F	4	56/0.3	6.4	4.7
PV1-F	6	84/0.3	7	3.11
PV1-F	10	142/0.41	8.2	1.84
PV1-F	16	228/0.41	9.7	1.16

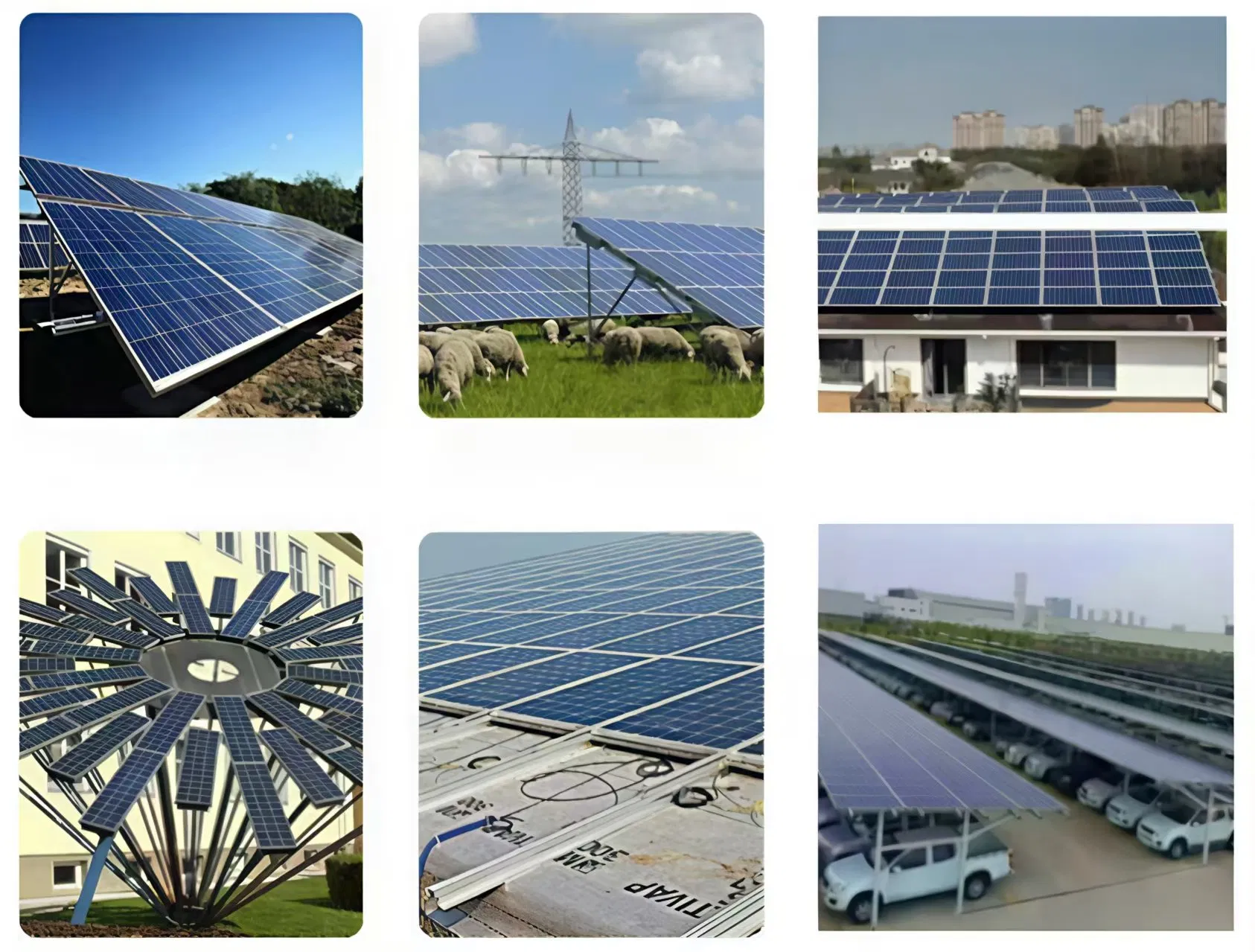

🚀 Application

Perfect for commercial and residential photovoltaic systems, ensuring stable and long-lasting conductivity.

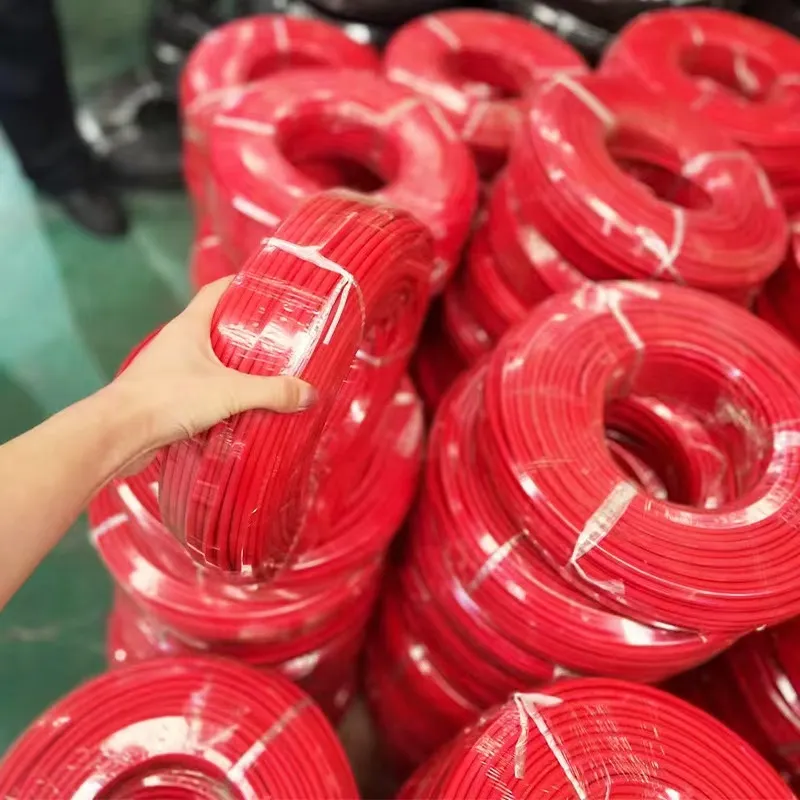

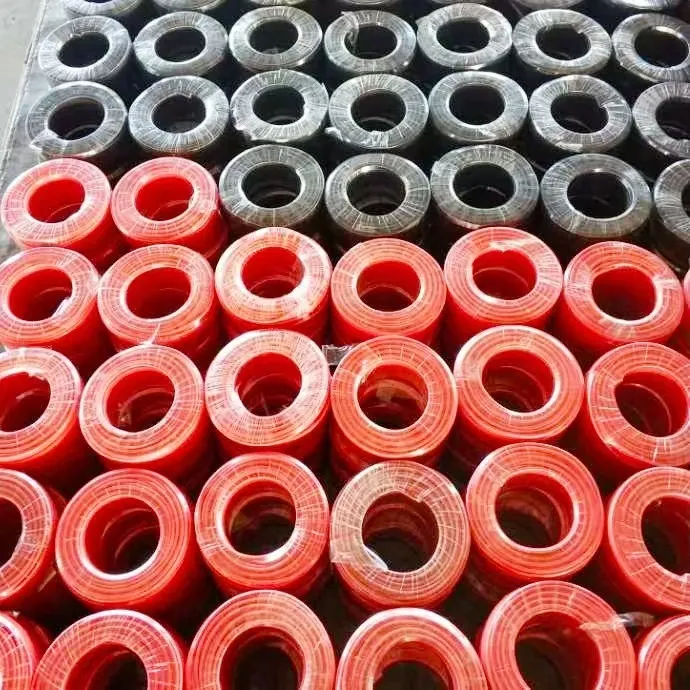

📦 Packing & Delivery

Package Size:

30.00cm * 30.00cm * 10.00cm

Gross Weight:

3.500kg

Lead Time:

Within 15 workdays

🎥 Product Video

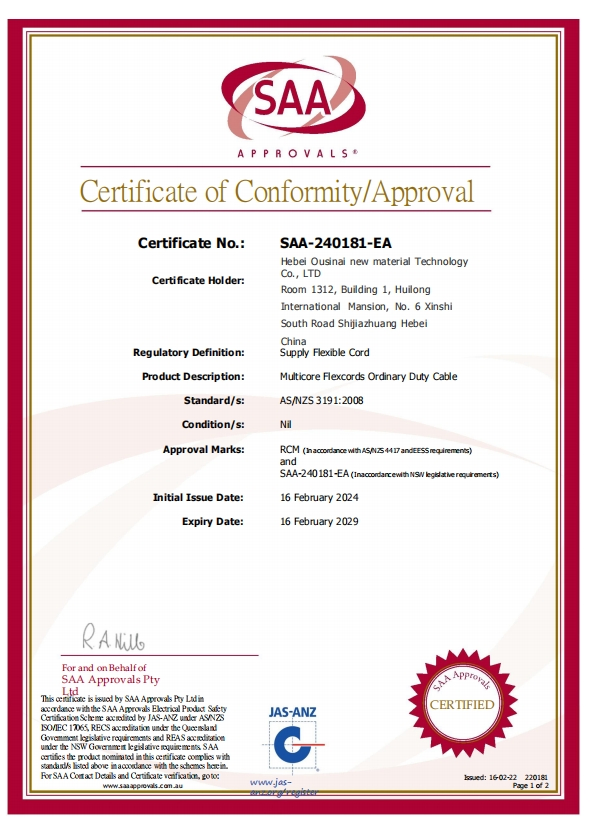

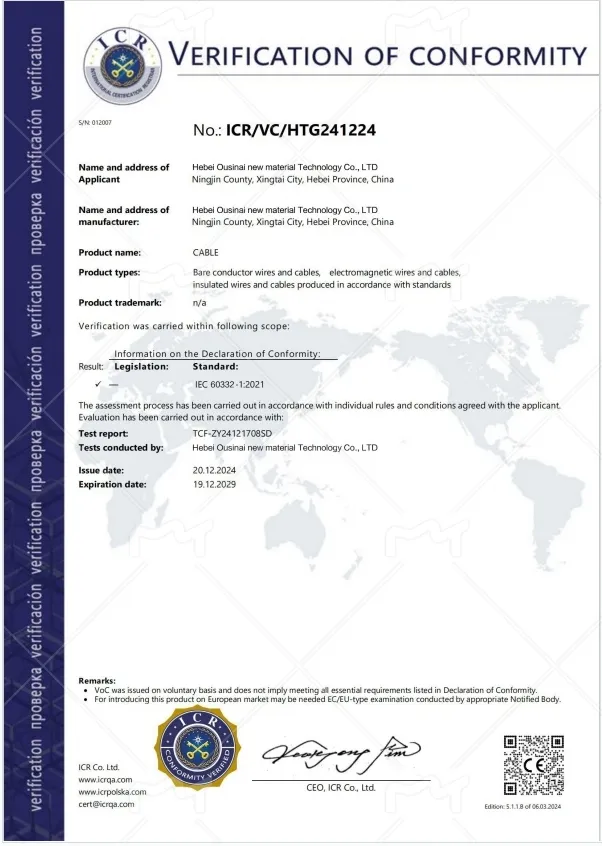

📜 Certifications

❓ Frequently Asked Questions

🔹 Q: Are you a factory or a trading company?

A: We are a professional factory specializing in solar cables and power cables.

🔹 Q: How do you control the product quality?

A: Quality is our priority. We implement strict quality tests from production to delivery according to ISO9001 systems. We guarantee all products are 100% qualified.

🔹 Q: What is the lead time for mass production?

A: Generally 10-20 days, depending on your order quantity.

🔹 Q: Can I get free samples?

A: Samples are available. We can provide sample testing, and fees may be credited back upon large-scale orders.

🔹 Q: What is your Minimum Order Quantity (MOQ)?

A: Our standard MOQ is 100 meters.

🔹 Q: Do you provide OEM services?

A: Yes, we accept OEM designs and have rich experience in manufacturing customized products for international clients.
