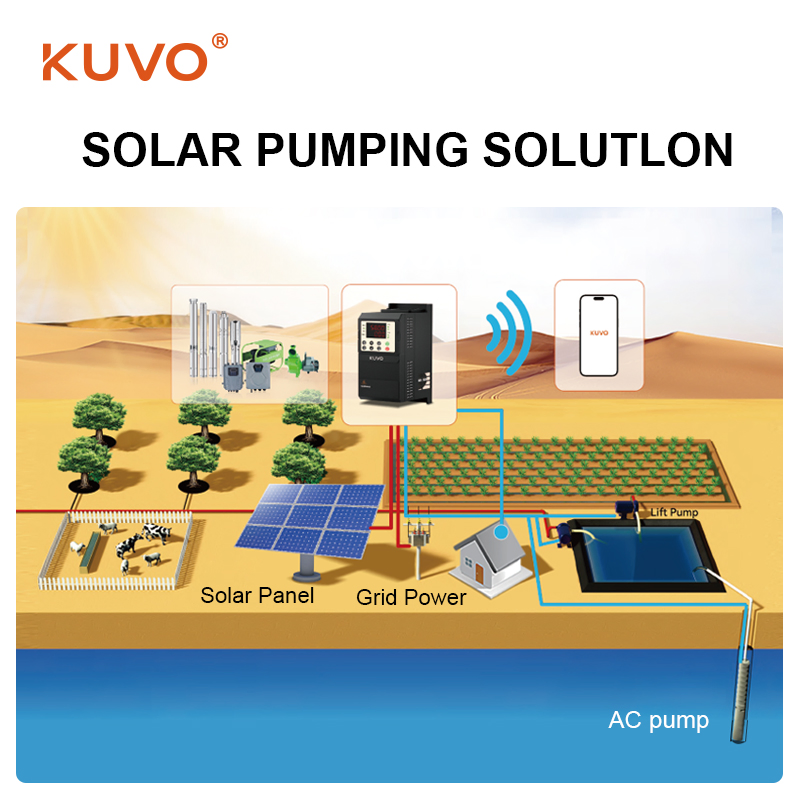

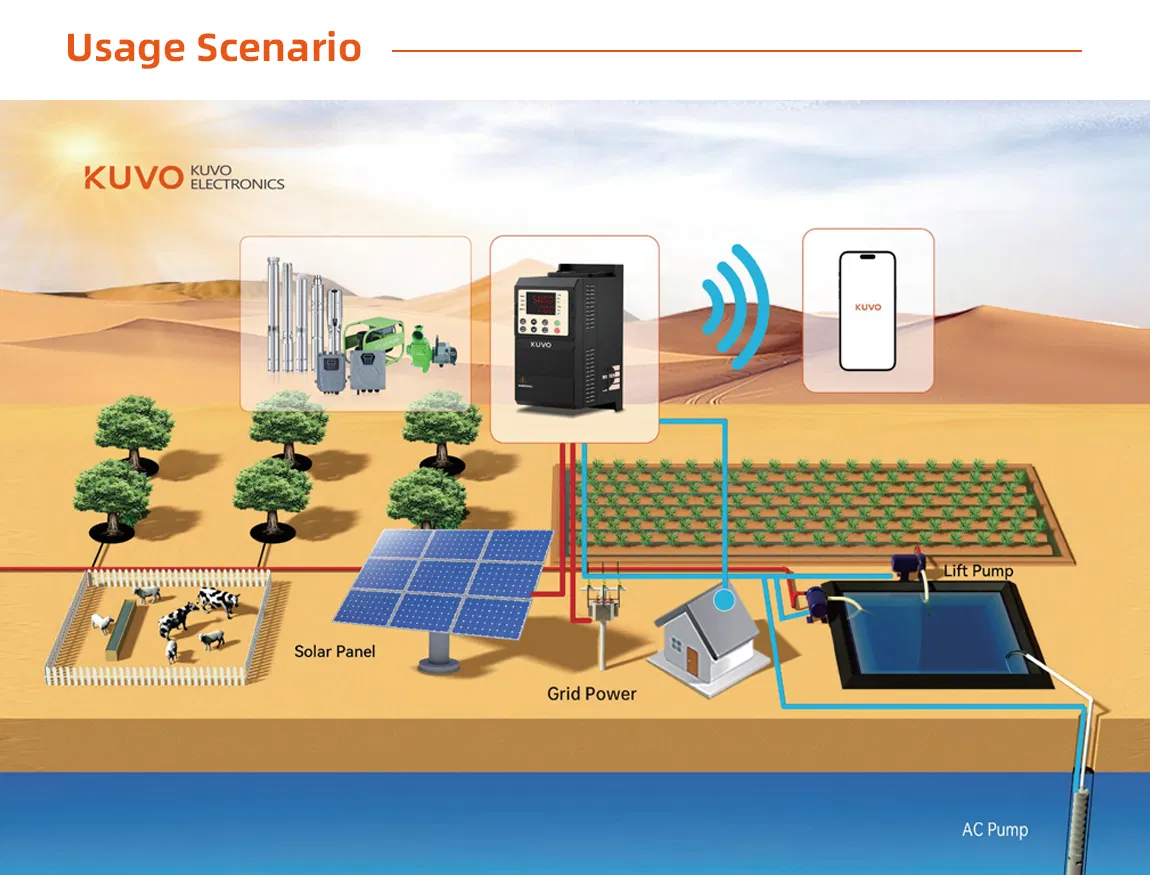

Systems mainly use solar power. Integrated storage solutions ensure consistent water supply. Can also operate via grid or generator as backup.
Water storage allows for peak demand management and overnight availability without active power generation.
The "brain" of the system constantly adjusts inputs to maximize water output efficiency.
Supports submersible and surface pumps. Reach depths up to 450m or flow rates up to 60 cubic meters per hour.
Hybrid AC/DC input (solar/grid) with 900VDC max input for continuous operation.
High-Efficiency MPPT ensures high return on investment and cost-effective performance.
Protections: Over-voltage, Under-voltage, Short-circuit, and Over-temperature.
Remote Monitoring: GPS, WiFi, and real-time status tracking for unattended operation.

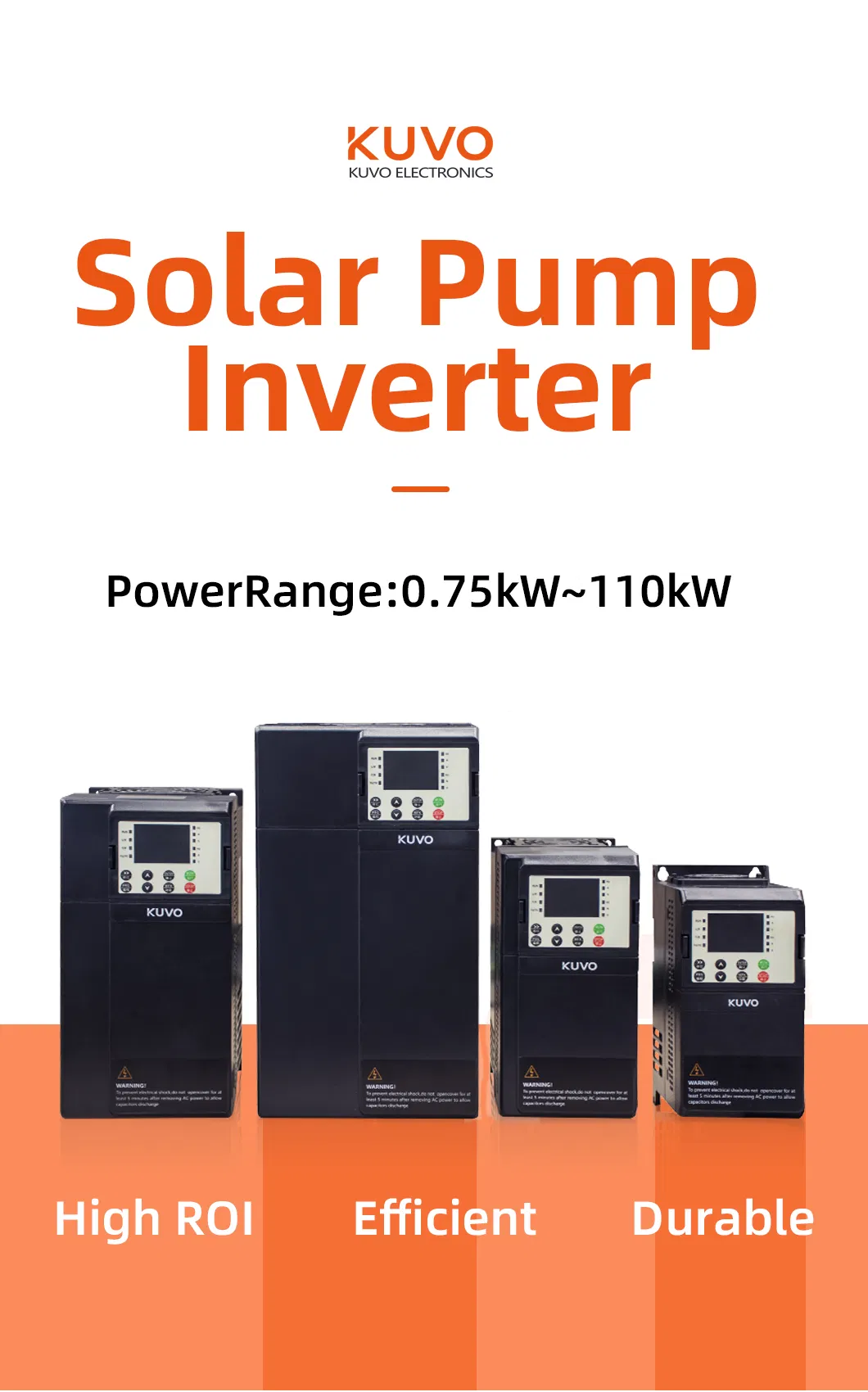

| Feature | S2 Model | 1 Model | 4 Model |
|---|---|---|---|
| PV Input Range | 150-450V | 60-450V | 350-900V |
| Optimum MPPT Voltage | 345V | 345V | 575V |
| MPPT Efficiency | Up to 99% | ||
| AC Input | 1PH 220-240V | 1PH 220-240V | 3PH 380V-480V |
| Output Power Range | 0.75-4kW | 0.75-4kW | 0.75-185kW |
| Protection Class | IP20 | ||
| Cooling | Forced Air Cooling | ||
