Product Description

📊 Overview

Basic Info.

Model NO.

MC Series

Condition

New

Certification

ISO, CE, RoHS, FCC, ISO14001

Application

Solar System Controller, Charger Controller

Rated Voltage

12V/24V

Max Tracking Efficiency

99.9%

Max Charge Conversion

98%

Max Charging Current

20A/30A/40A/60A

Battery Type

Liquid, Gel, AGM, Lithium

Protection Degree

IP32

Specification

MPPT

HS Code

9032899099

Packaging & Delivery

Package Size

20.00cm * 15.00cm * 10.00cm

Gross Weight

2.800kg

Lead Time

31 days (1 - 2000 Pieces)

⚙️ Product Parameters

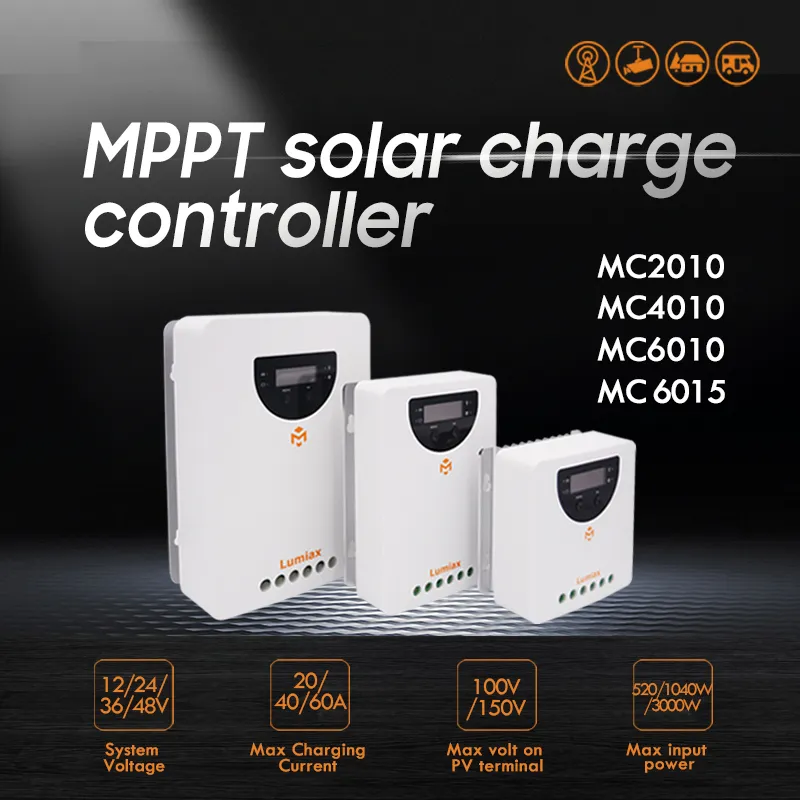

Item	MC2010	MC3010	MC4010	MC6010
Max Charging Current	20A	30A	40A	60A
System Voltage	12/24V automatic recognition
Battery Type	Gel, AGM, Liquid, Lithium (default: Gel)
Max volt on Bat. terminal	35V
Gel, AGM, Liquid Parameters
MPPT Charging Voltage	<14.5/29V@25ºC
Boost Voltage	14~14.8/28~29.6V (default: 14.8/29.6V)
Float Voltage	13~14.5/26~39V (default: 13.7/27.4V)
Lithium Parameters
Charging target voltage	10.0~32.0V (default: 14.4V)
Low voltage disconnect	9.0~30.0V (default: 10.6V)
PV Input
Max volt on PV terminal	100V(-20ºC), 90V(25ºC)
Max input power	260/520W	390/780W	520/1040W	750/1500W
Physical Features

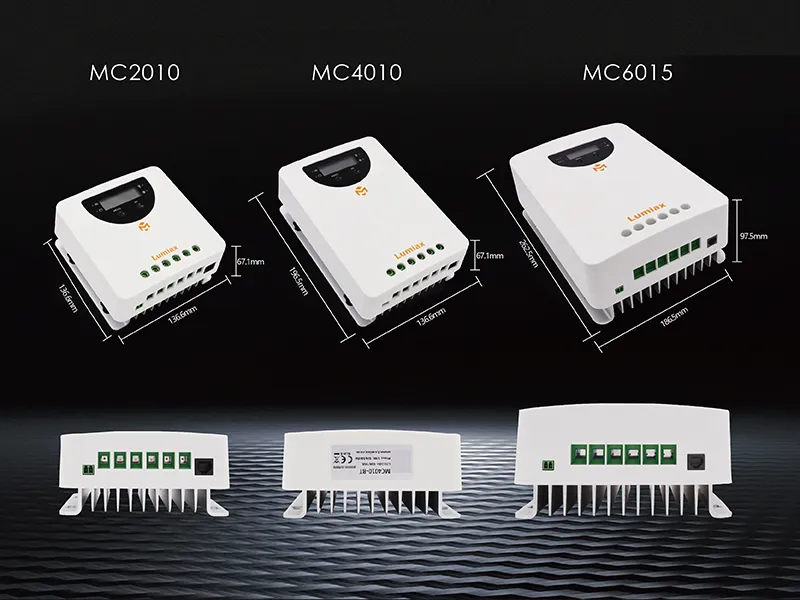

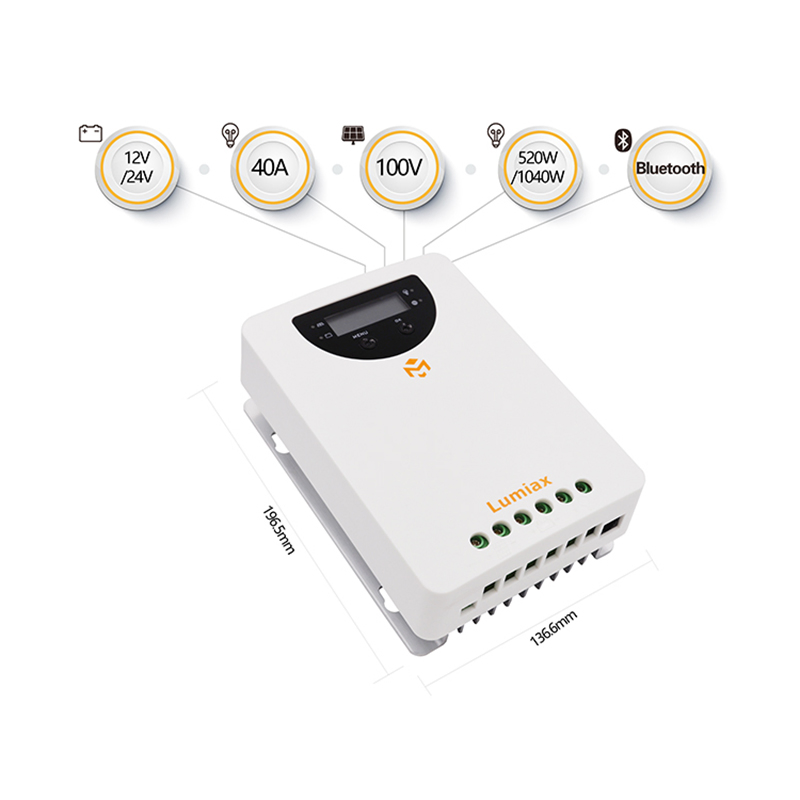

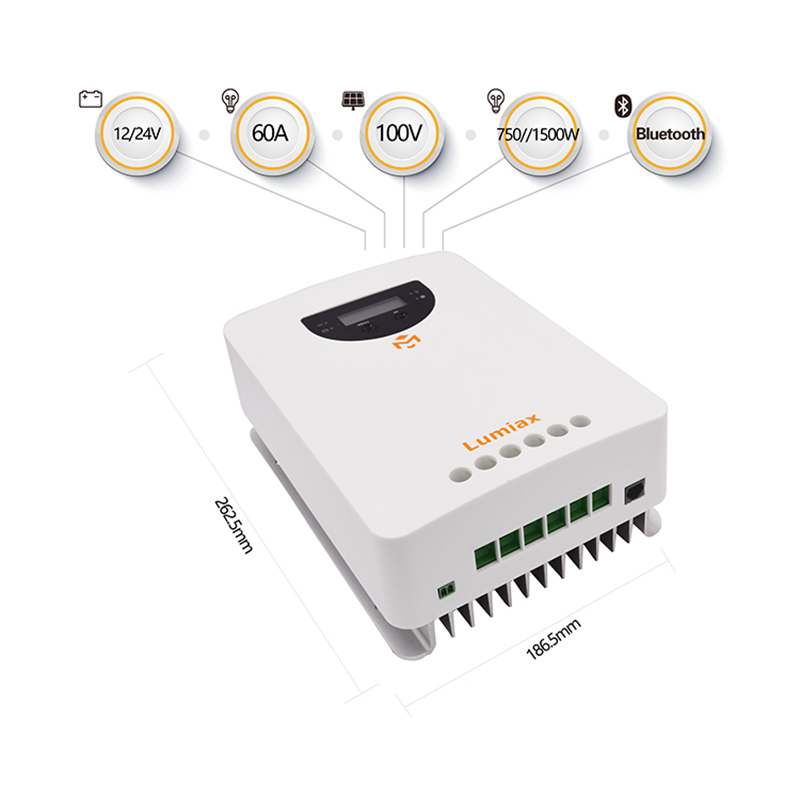

Dimensions	136.6136.667.1mm	196.5136.667.1mm	196.5136.667.1mm	262.5186.597.5mm
Weight	830g	1.3Kg	1.3Kg	2.5Kg
Communication	RS485 (RJ11 interface), BLE (Internal/External), IoT

📝 Product Description

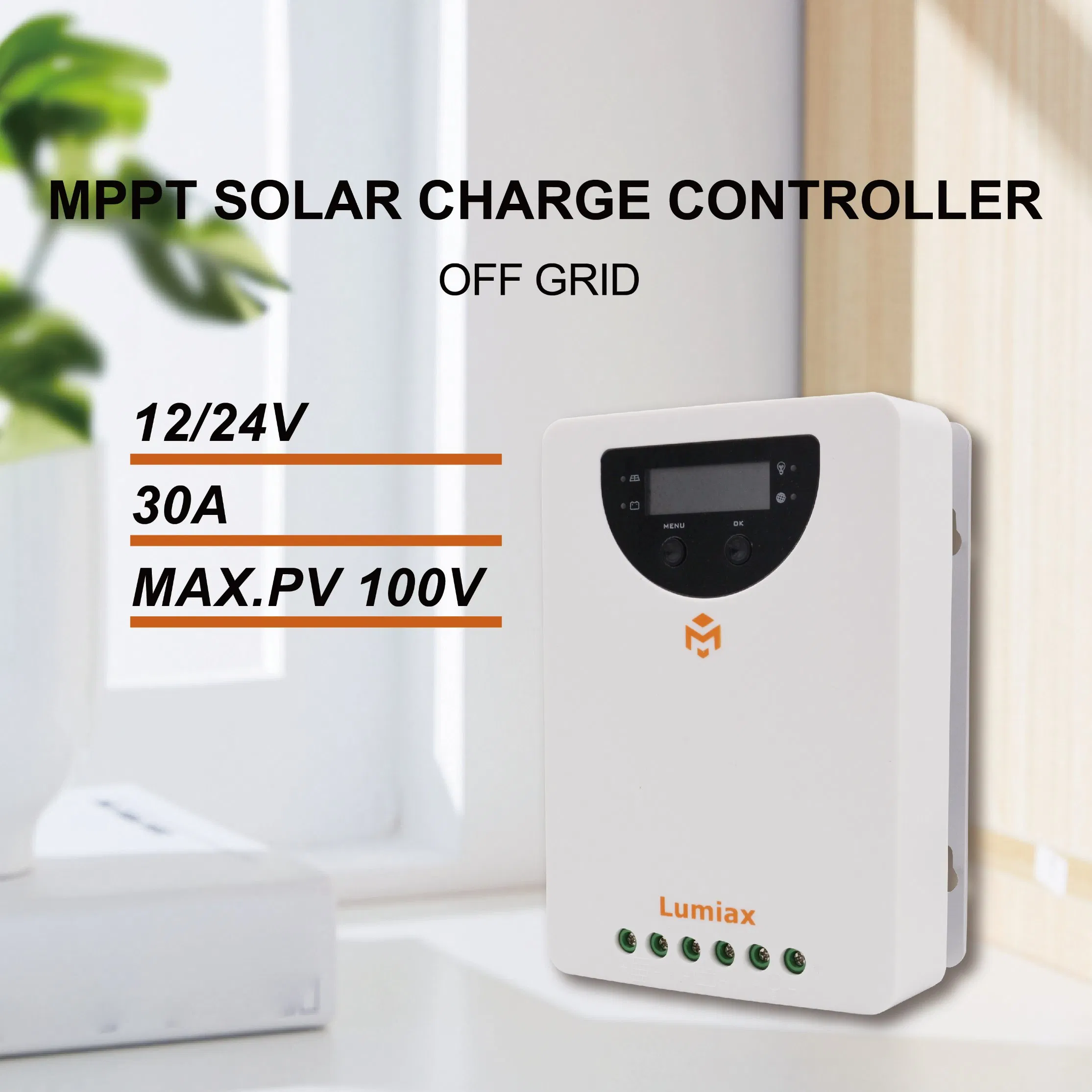

High Efficiency MPPT Solar Charge Controller with RS485 and Bluetooth

🌟 Our Advantages

📜 Certifications

❓ Frequently Asked Questions

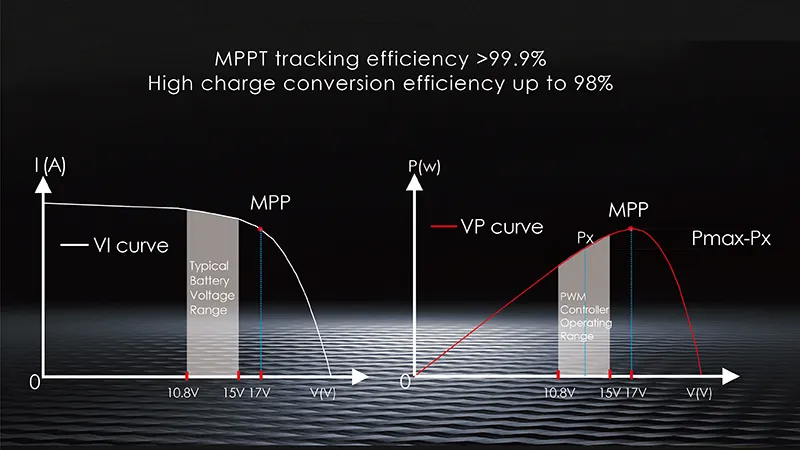

1. What is the maximum tracking efficiency of the MC series MPPT controller?

The MC series features advanced MPPT technology with a maximum tracking efficiency of over 99.9%.

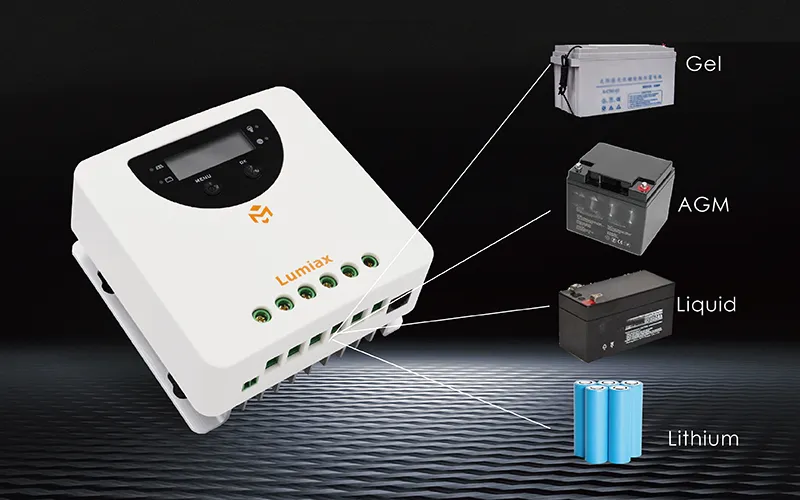

2. Which battery types are compatible with this controller?

This controller supports a wide range of batteries including Liquid, Gel, AGM, and Lithium batteries.

3. Does it support automatic voltage recognition?

Yes, it automatically recognizes 12V and 24V system voltages for easier setup and integration.

4. What remote monitoring options are available?

The controller comes with an RS485 communication interface (RJ11) and supports optional internal or external Bluetooth (BLE) as well as IoT connectivity.

5. What is the protection rating and conversion efficiency?

The device has an IP32 protection degree and achieves a maximum charge conversion efficiency of 98.0%.

6. Can this controller be used in high altitude locations?

Yes, the MC series is designed to operate at altitudes up to 4000 meters.
