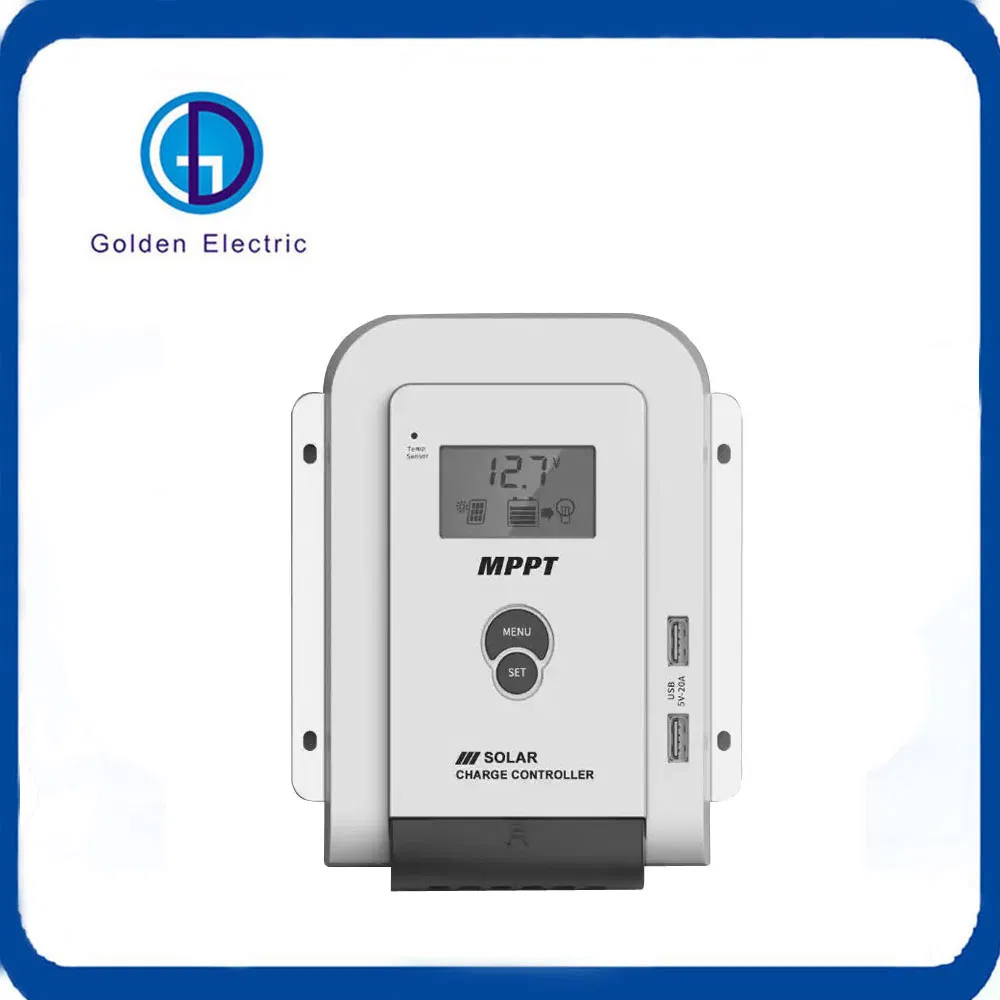

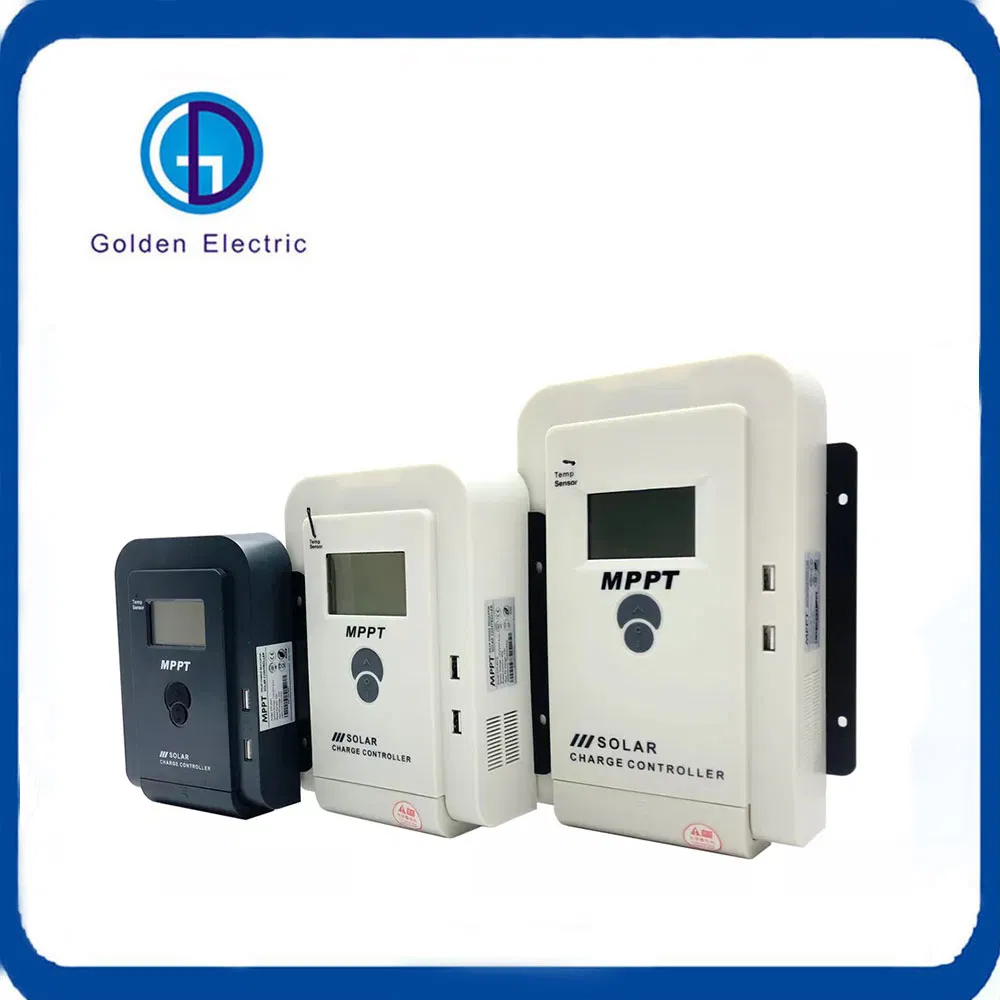

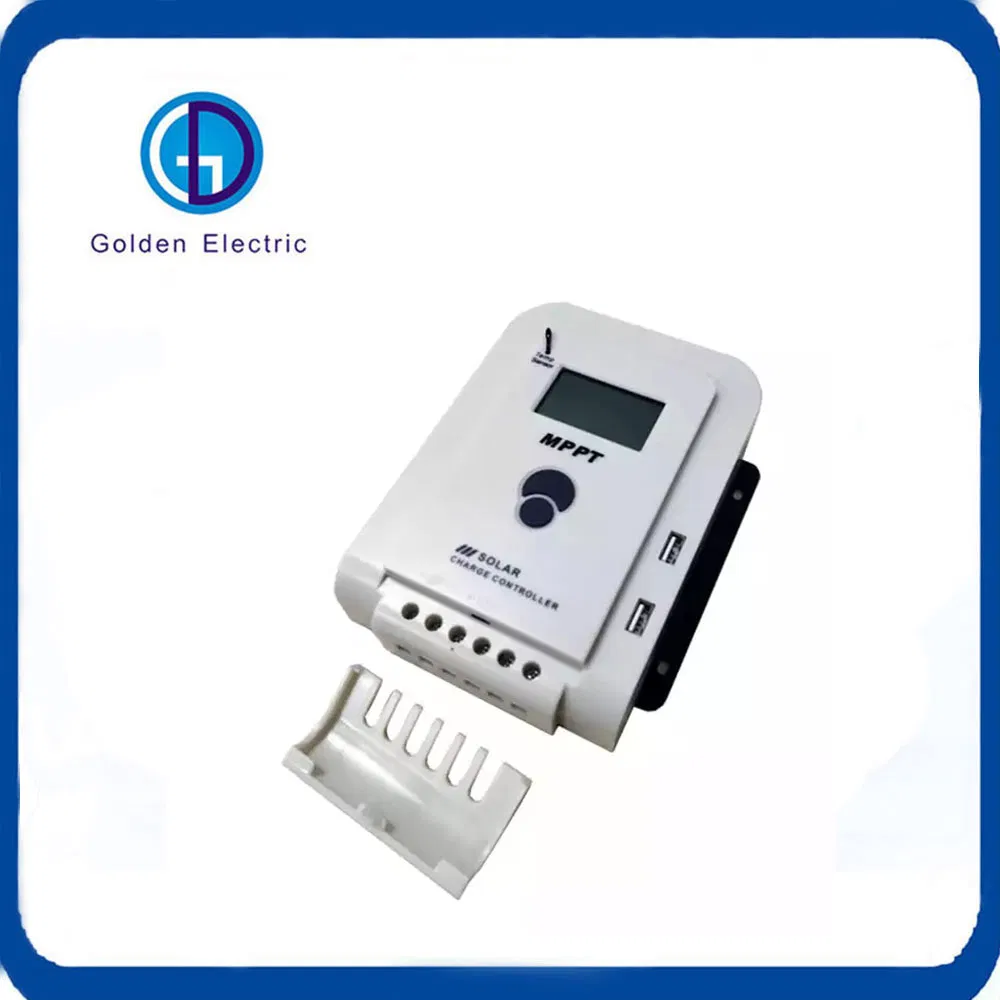

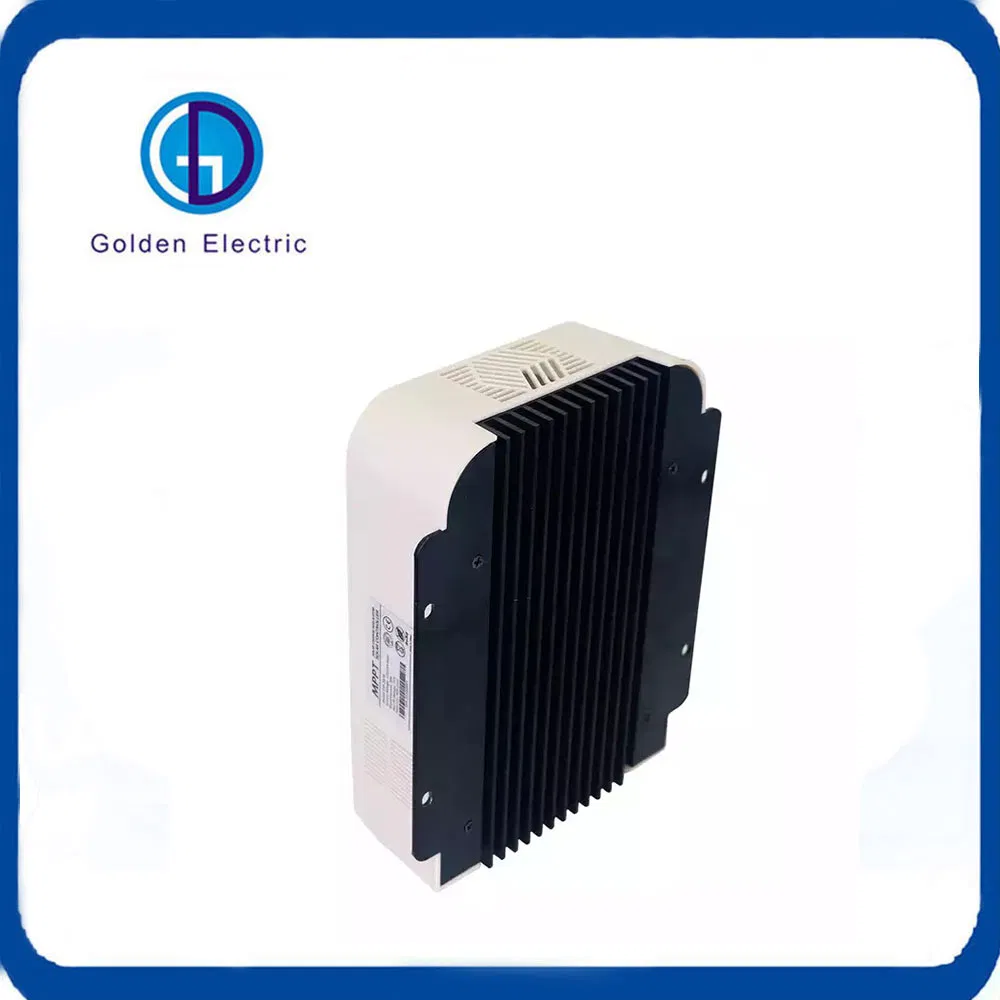

MPPT Solar Charge Controller 12V 24V 48V Auto 10A 20A 30A 40A 50A 60A Solar PV Charger Regulator with LCD USB

Customization: Available
After-sales Service: Best After-Sales Service
Warranty: 12 Month

Product Description

📋

Product Overview

Model NO.
MPQ series
Condition
New
Certification
ISO, CB, CE
Application
Solar System, Charger, Lighting, Wind Controller
Rated Voltage
12V/24V
Current
10A to 60A
Charging Mode
MPPT
Battery Type
Flooded, AGM, Gel, LiFePO4, Lithium
Display
LCD Screen
Origin
China
💡

Product Description

  • 12V/24V system voltage automatically recognized.
  • Maximum Power Point Tracking (MPPT) technology with up to 99% efficiency.
  • Intelligent temperature compensation for optimized charging parameters.
  • LCD screen for real-time data monitoring and parameter modification.
  • Multiple battery support: GEL, Flood, Lead acid, SLD, and Lithium.
  • Built-in dual USB 5V output for mobile devices.
📊

Technical Parameters

Model Rated Current Battery Voltage Max PV Input Features
MPQ20-10A 10A 12V/24V Auto 130W(12V)/260W(24V) LCD Display, USB Output, Lithium Support, Over-current/Short-circuit Protection
MPQ20-20A 20A 12V/24V Auto 260W(12V)/520W(24V)
MPQ40-30A 30A 12V/24V Auto 390W(12V)/780W(24V)
MPQ40-40A 40A 12V/24V Auto 520W(12V)/1040W(24V)
MPQ60-50A 50A 12V/24V Auto 650W(12V)/1300W(24V) Advanced Heat Dissipation, Heavy Duty Terminals
MPQ60-60A 60A 12V/24V Auto 780W(12V)/1560W(24V)

Key Features & Advantages

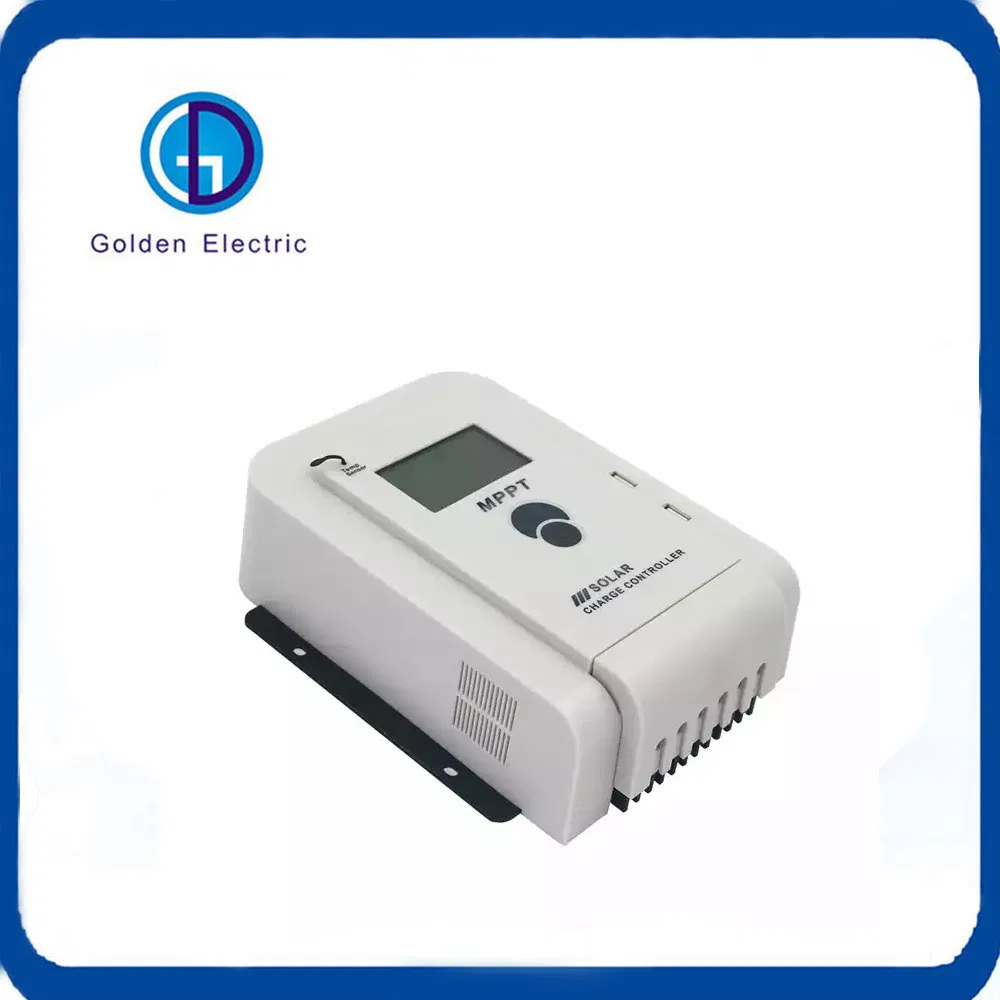

MPPT Controller Features

Comprehensive Protection: Provides over-current, short-circuit, inverse connection, low voltage, and overcharge protection.

User-Friendly Design: Simple one-button operation for setting changes. Industrial-grade microcontroller for automatic management.

Related Products

Solar Product 1

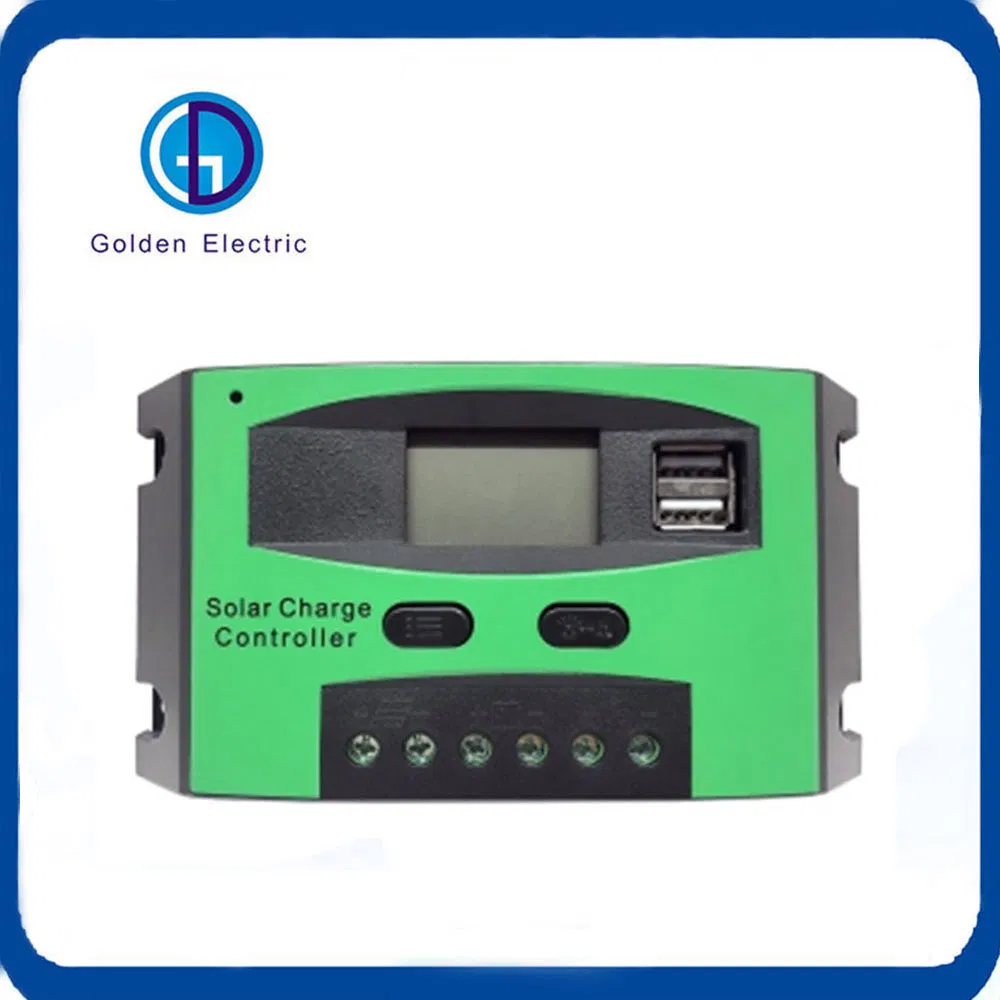

Solar Product 2

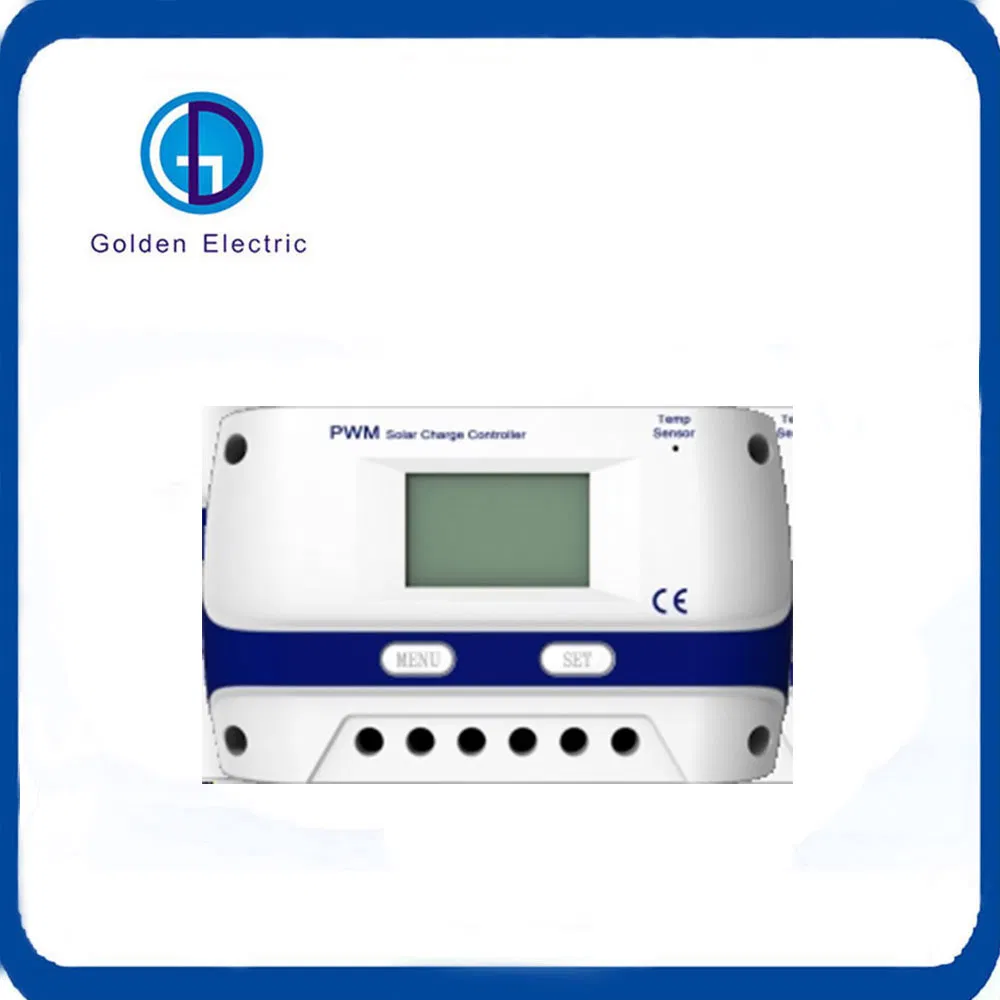

Solar Product 3

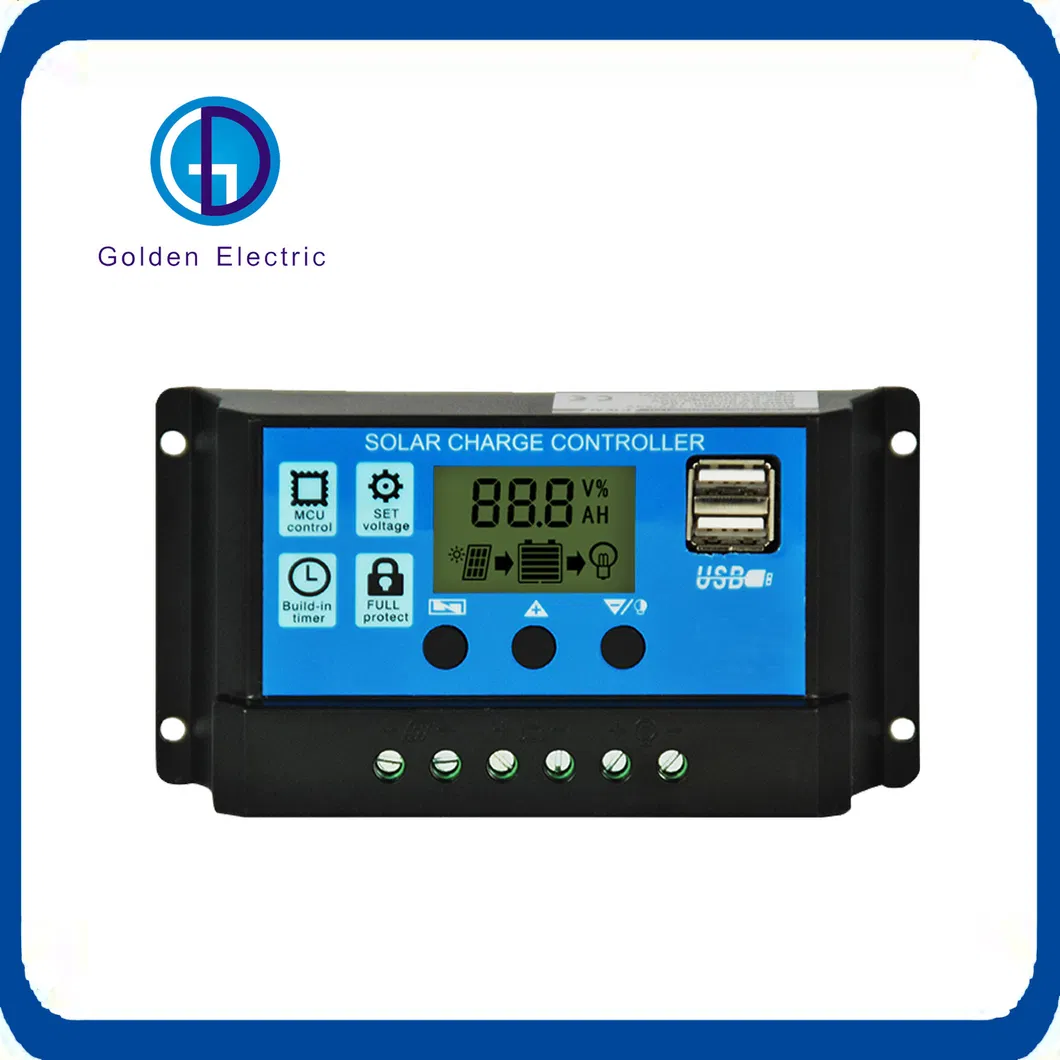

Solar Product 4

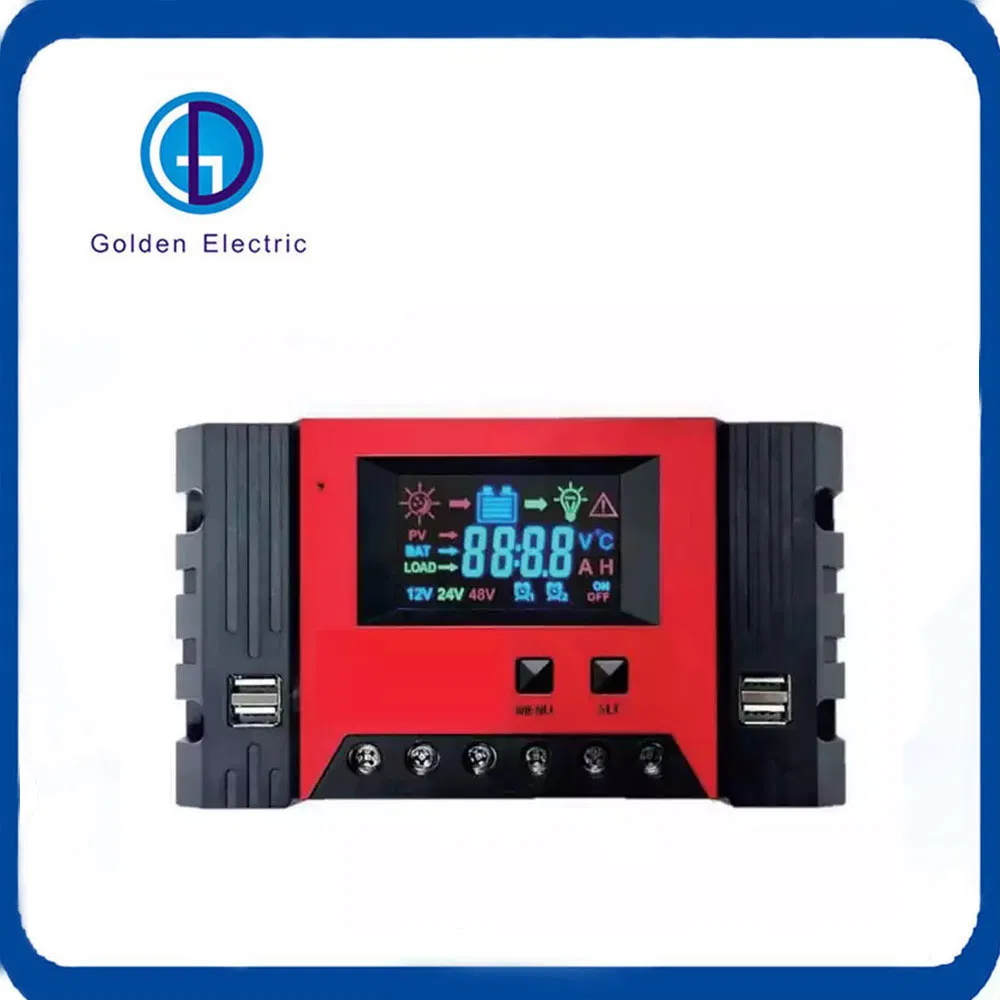

Solar Product 5

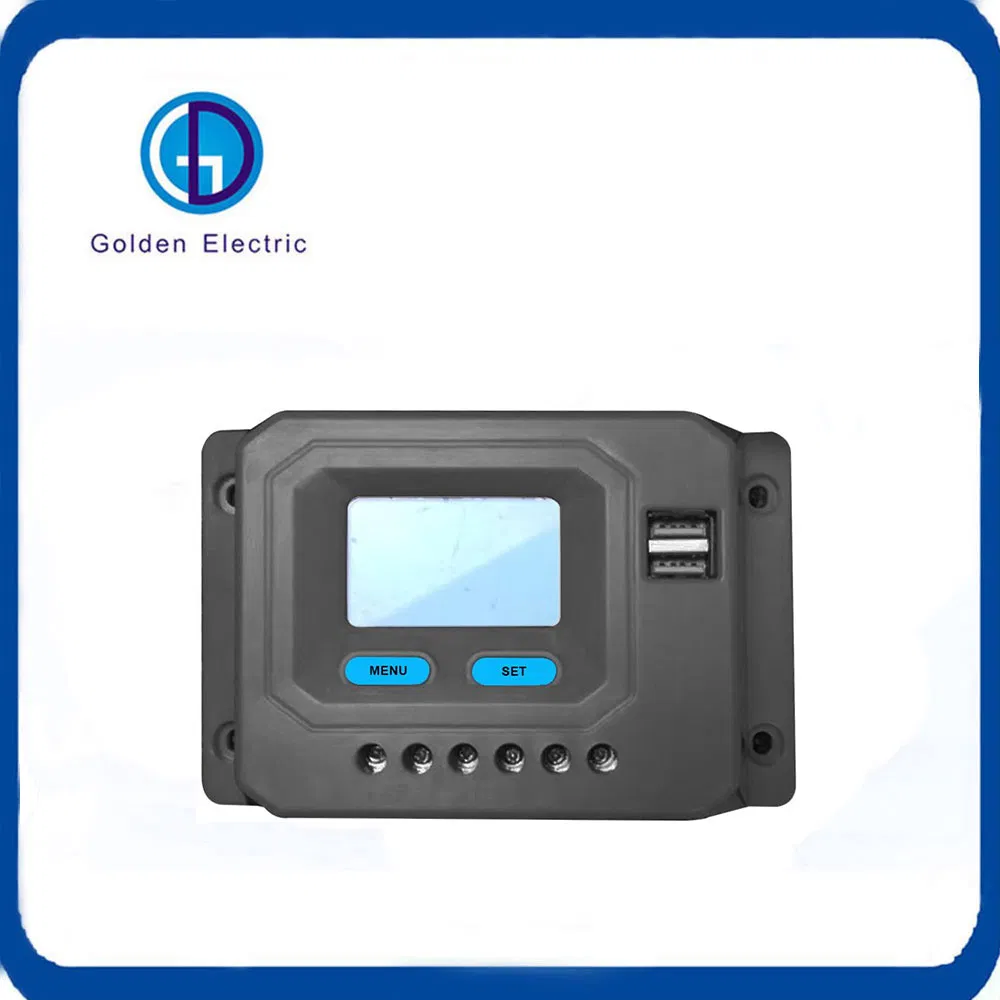

Solar Product 6

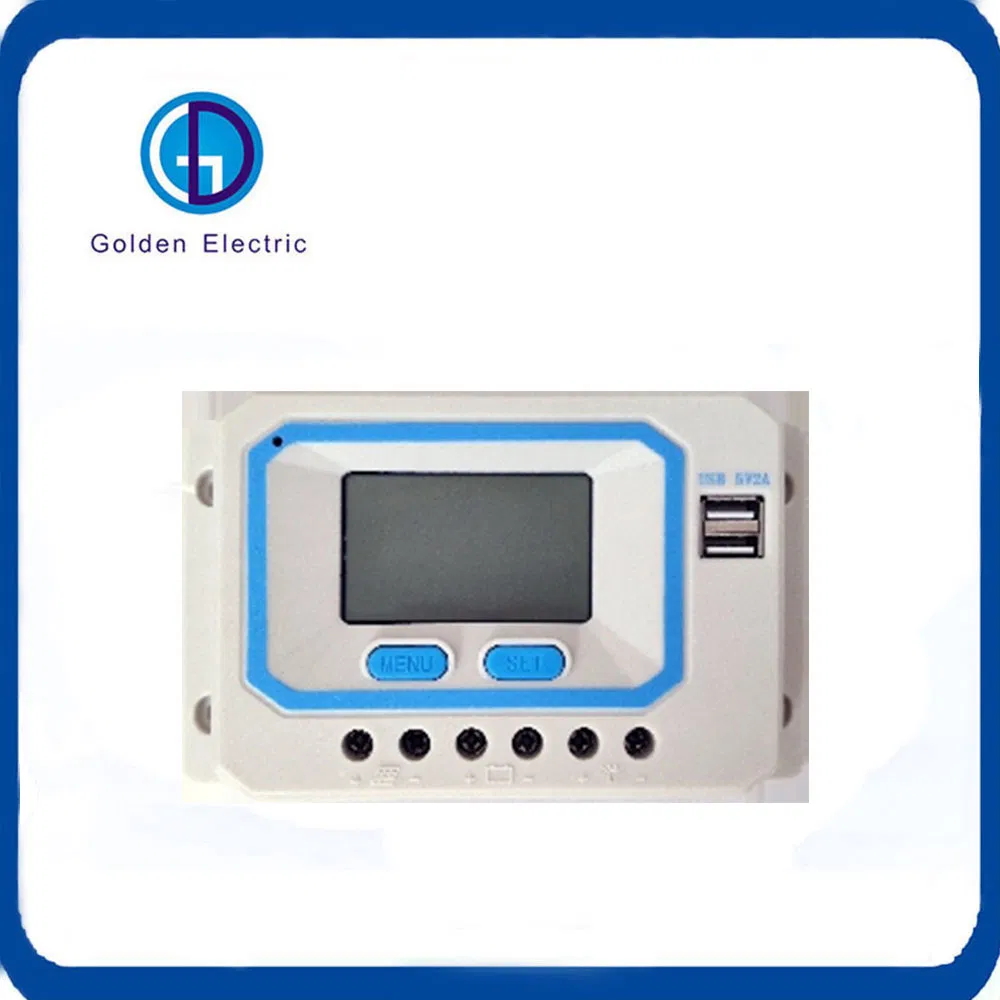

Solar Product 7

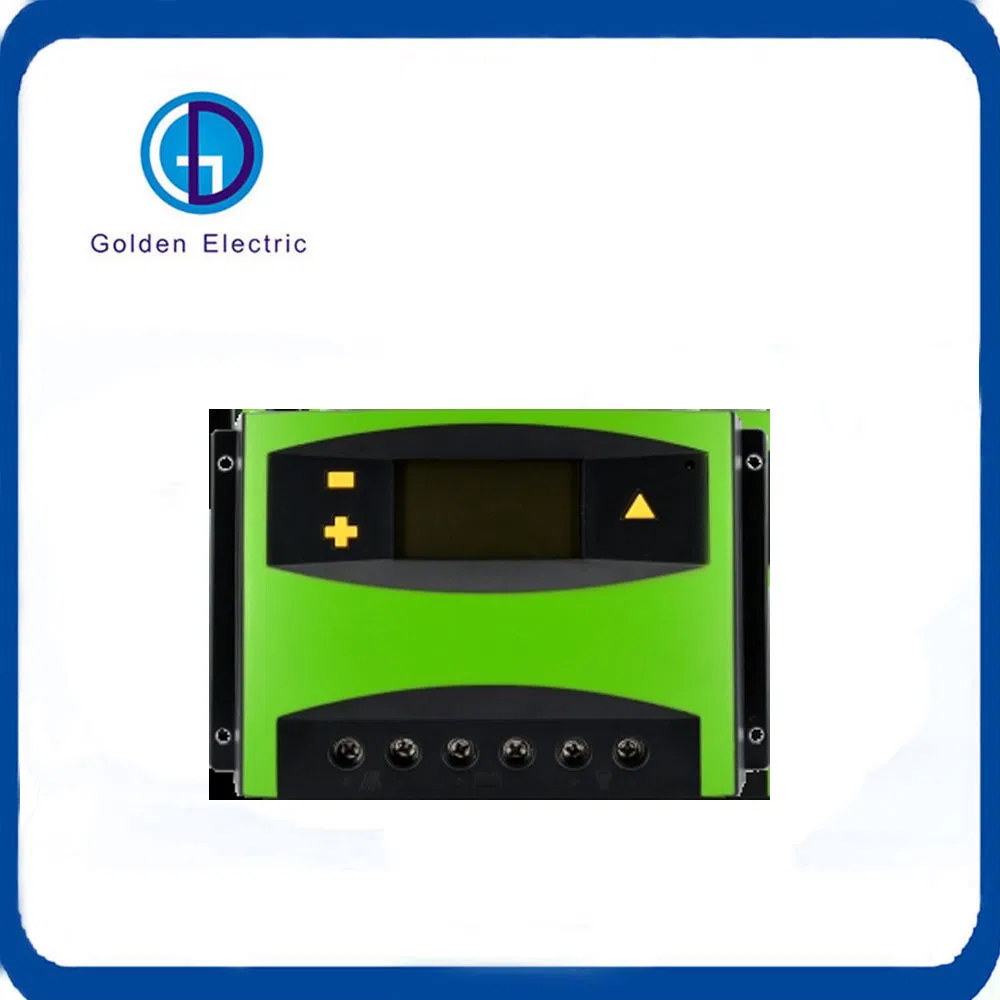

Solar Product 8

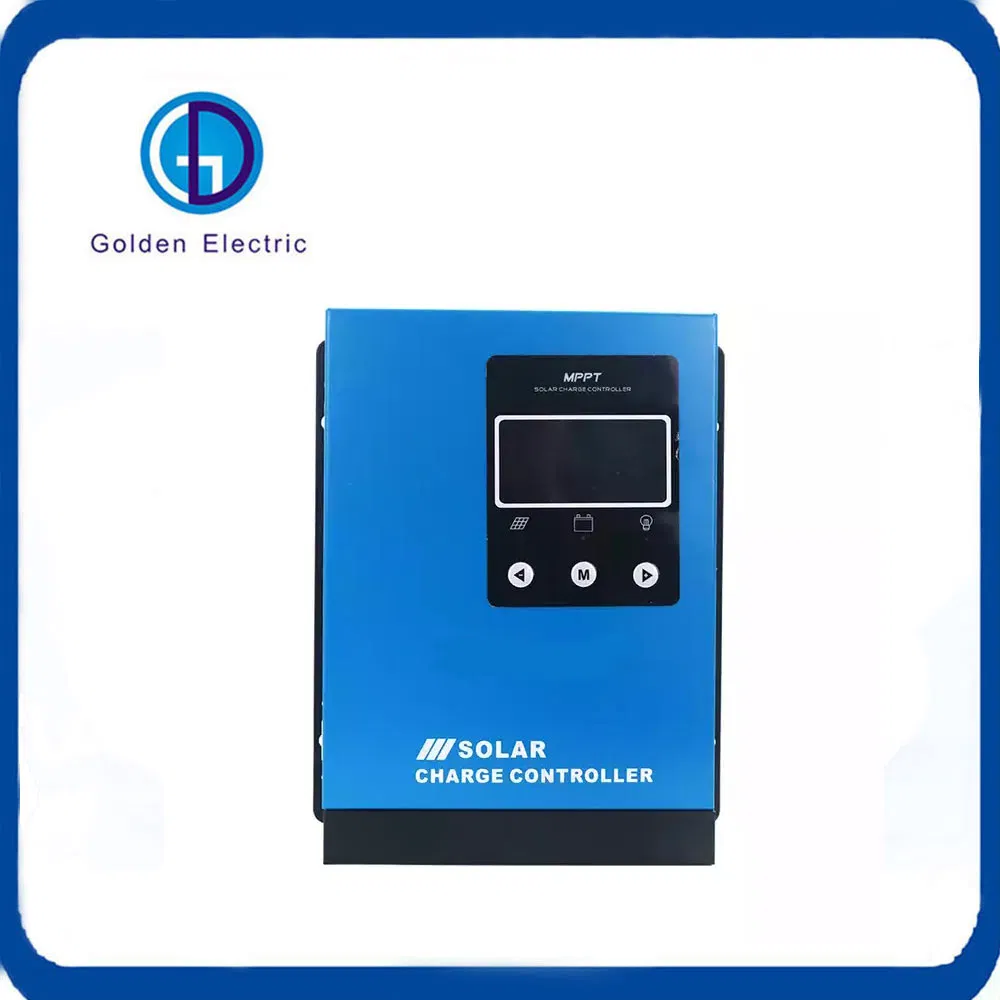

Solar Product 9
🏢

Our Professional Capability

Established in 2007, we specialize in high-quality AC and DC electric components including cable glands, isolator switches, fuses, breakers, PV combiner boxes, surge protectors, and solar charge controllers.

Our operations are ISO9001 certified, ensuring strict quality control across a line of over 1000 models. Our products carry international approvals such as TUV, CE, CQC, SGS, and ROHS, serving clients in over 60 countries and regions worldwide.

Frequently Asked Questions

1. Can this controller charge lithium batteries?
Yes, the MPQ series is fully compatible with lithium batteries, as well as GEL, Flood, and standard Lead-acid batteries.
2. Is the system voltage automatically detected?
Yes, the controller automatically recognizes 12V and 24V systems upon connection to the battery.
3. What is the efficiency of the MPPT tracking?
Our advanced Maximum Power Point Tracking technology achieves a tracking efficiency of up to 99%.
4. Does it have USB ports for phone charging?
Yes, it features dual USB 5V output ports, suitable for charging mobile phones, tablets, and other 5V electronic devices.
5. What safety protections are included?
The controller includes built-in protection against over-current, short-circuits, inverse connection, low voltage, and overcharging.
6. What is the warranty period for this controller?
The product comes with a 1-year warranty. We offer quick replacement for any manufacturing defects.
