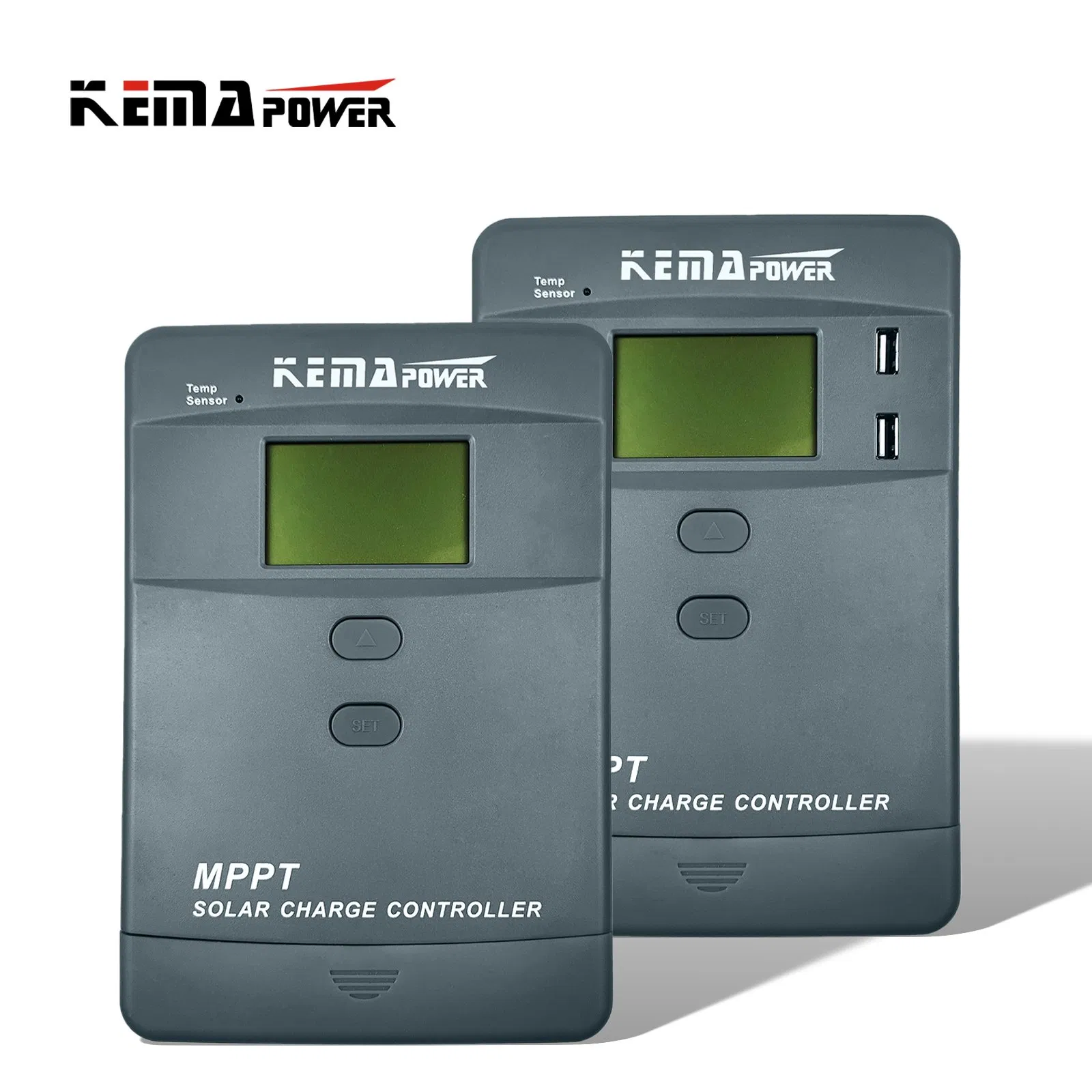

MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
1 / 5
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery
MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery

MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
MPPT-R
Condition
New
Certification
ISO, CB, CE
Application
Solar System Controller, Charger Controller, Voltage Controller
Rated Voltage
12V/24V/36V/48V
Production Capacity
50,000 PCS/Year
HS Code
9032899090
Specification
12/24V 20-60A and 12/24/36/48V 30-100A
Key Features
  • ✓ 12/24V 20-60A and 12/24/36/48V 30-100A automatic identification
  • ✓ Common Positive, Max PV input 60/75/150V, efficiency >99%
  • ✓ LCD display for PV/Battery/Load parameter setup
  • ✓ Multi-stages charging: Bulk, Absorption, Float, Equalization
  • ✓ Supports GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2
  • ✓ Temperature Compensation and current limiting charging
  • ✓ Lithium battery activation function included
  • ✓ Optional Bluetooth or External WIFI communication

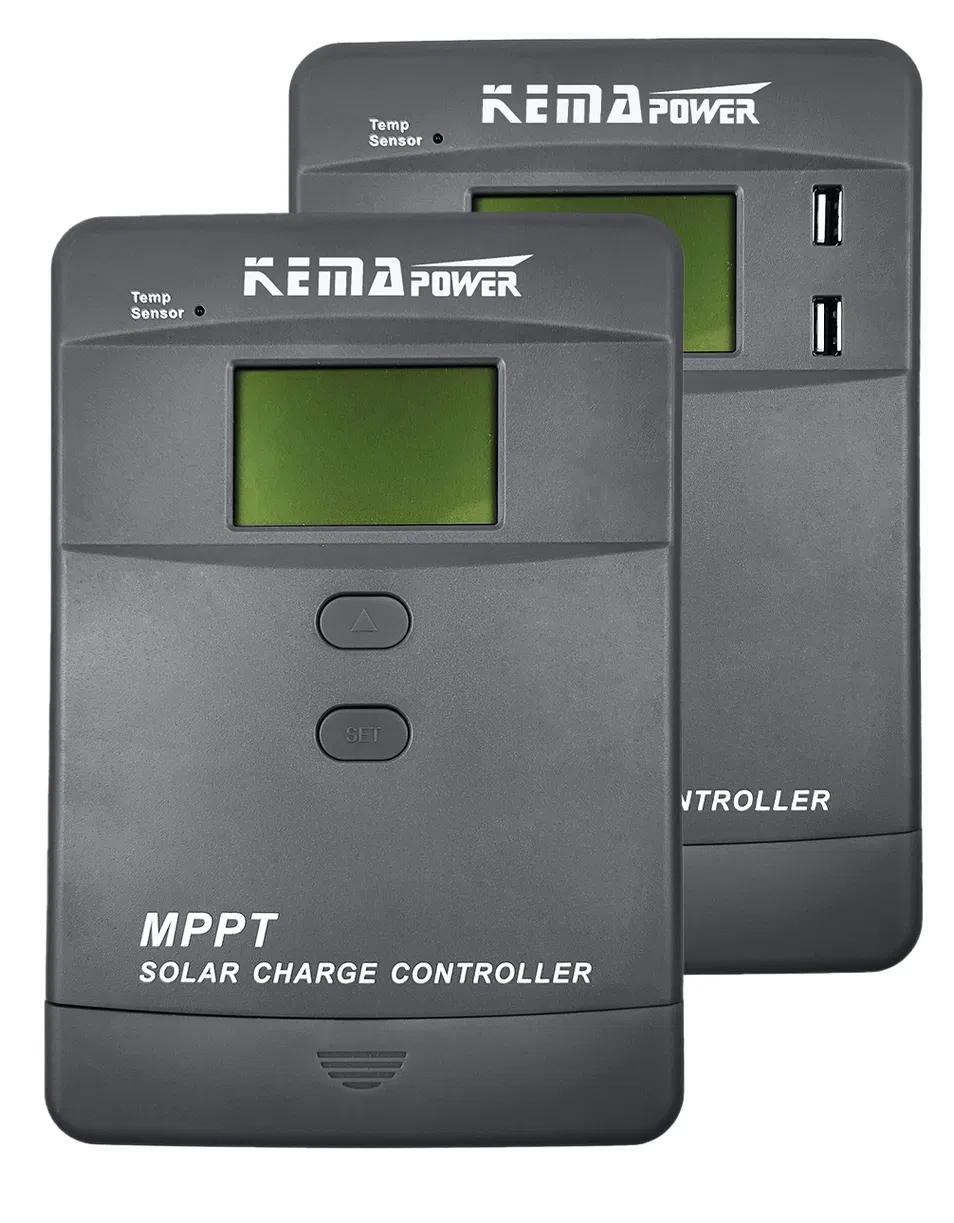

MPPT Charge Controller Features
Product Display

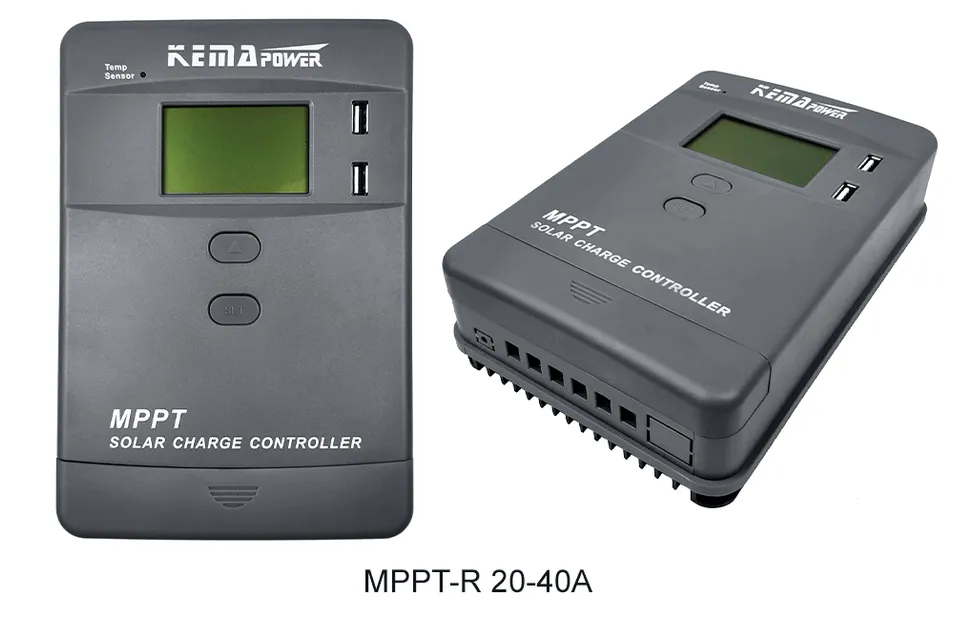

MPPT Controller Front View

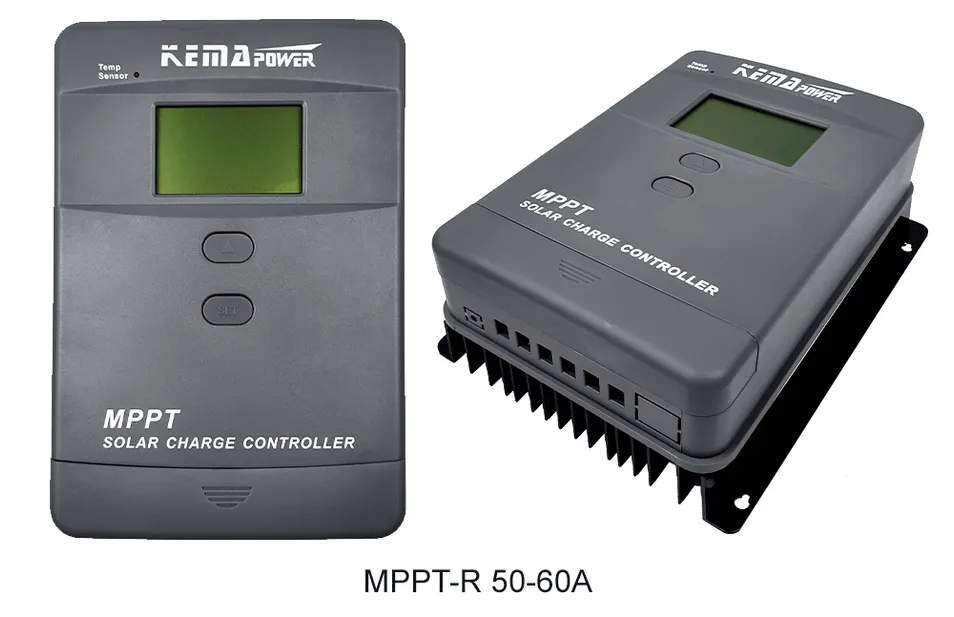

MPPT Controller Side View

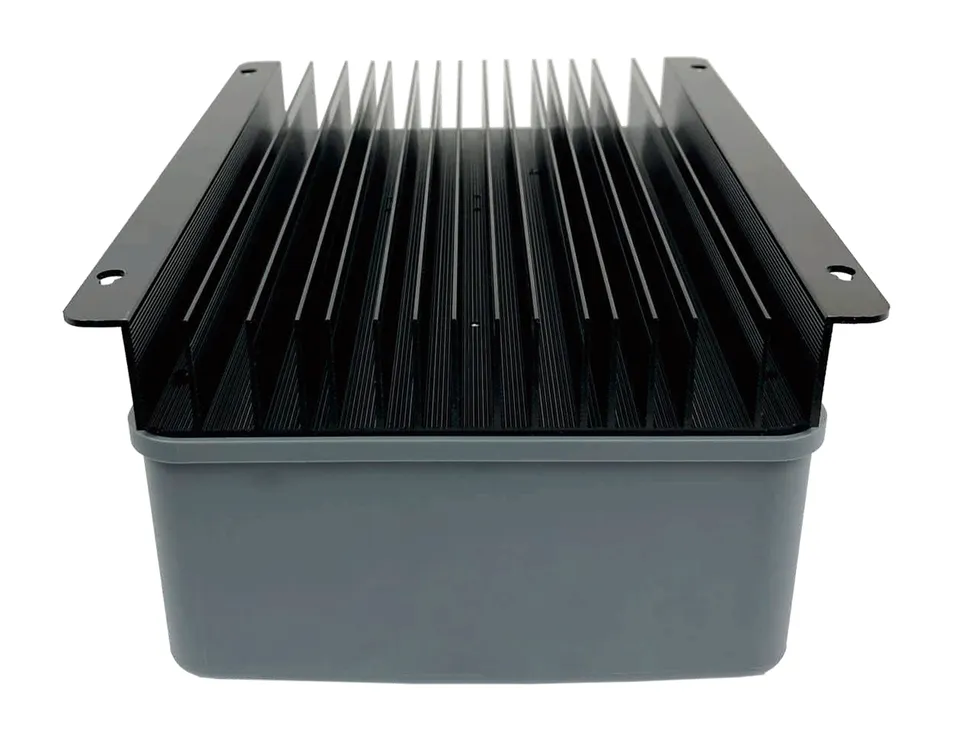

20-40A Natural Cooling

20-40A, Natural Cooling

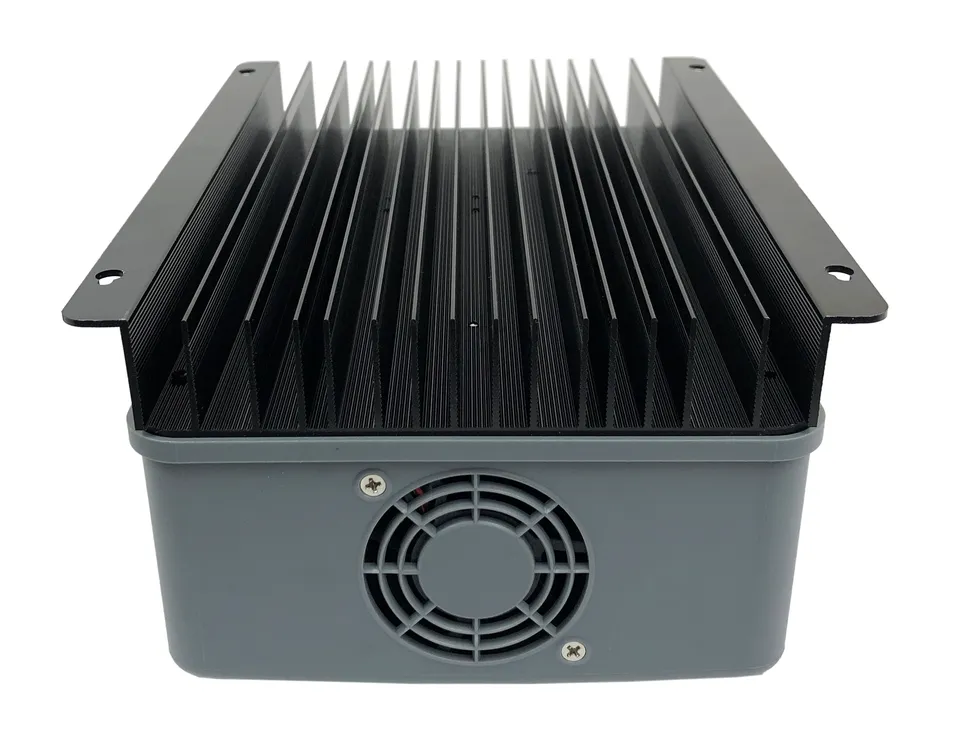

50-100A Fan Cooling

50-100A, Fan Cooling

Technical Specifications
Model 2420R 2440R 2460R 4830R 4850R
System Voltage 12/24V Auto 12/24V Auto 12/24V Auto 12/24/48V Auto
Rated Charging Current 20A 40A 60A 30A 50A
Max PV VOC <60V <100V <100V <150V <150V
Max PV Power 12V 260W 520W 780W 390W 650W
24V 520W 1040W 1560W 780W 1300W
Battery Type GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, Customization
USB Charger 2A/5V *2 2A/5V *2 No No No
Protection PV/BAT Reverse Connection, Over/Low Voltage, Over Load
Functional Details

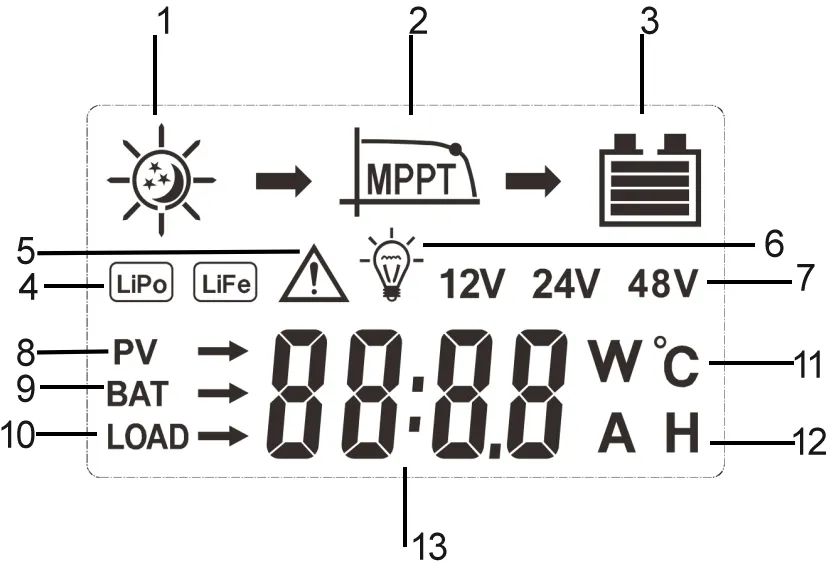

LCD Display Interface

Intelligent LCD Display Interface

Product Infographic 1 Product Infographic 2 Product Infographic 3 Product Infographic 4
Frequently Asked Questions
What is the maximum conversion efficiency of this MPPT controller?
The controller features an advanced MPPT algorithm with a tracking efficiency of over 99% and peak conversion efficiency.
Which battery types are compatible with this device?
It supports a wide range of batteries including GEL, Sealed, Flooded, LiFePO4, and Li(NiCoMn)O2, with custom setting options available.
Can this controller work with 48V solar systems?
Yes, specific models like the MPPT-4830R, 4840R, and 4850R support 12V, 24V, and 48V automatic identification (36V can be set manually).

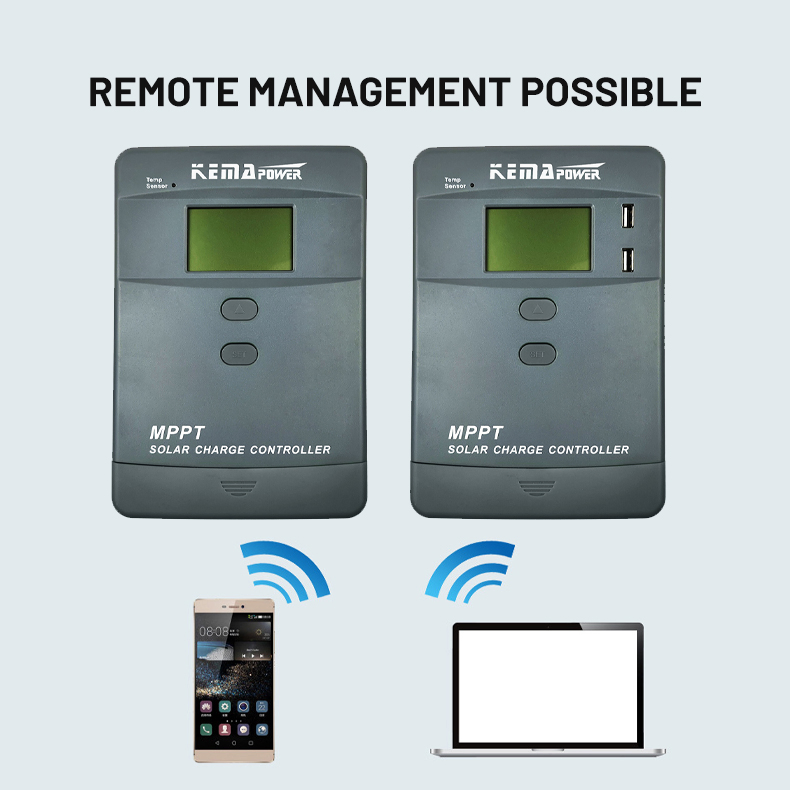

Does it support remote monitoring?
Yes, the controller offers optional internal Bluetooth or external WiFi communication modules for remote monitoring and data management.
What safety protections are built into the unit?
It includes comprehensive protection against PV and Battery reverse connection, battery over/low voltage, and output overload.
Does it have a lithium battery activation function?
Yes, it is equipped with a lithium battery activation function to ensure your lithium energy storage system starts up correctly.
