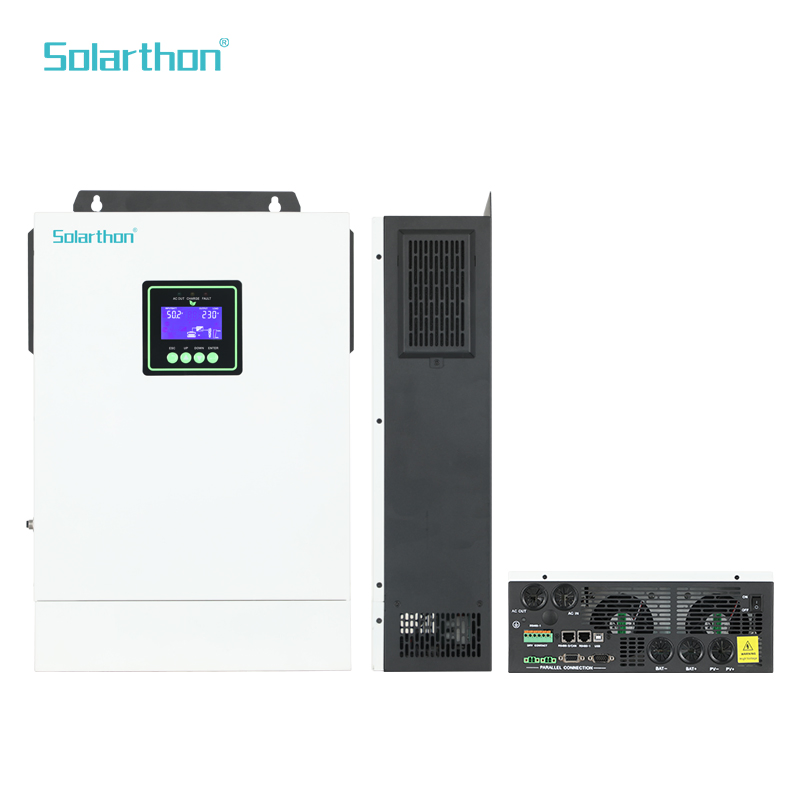

MPPT 5600W Pure Sine Wave Hybrid Solar Power Inverter Without Lithium Battery

1 / 5

MPPT 5600W Pure Sine Wave Hybrid Solar Power Inverter Without Lithium Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

THON-5.6KW-01P

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Wave String

Sine Wave Inverter

Rated Power

5.6kw/8kw/10kw/11kw/12kw

AC Output

230VAC

IP Grade

IP20

Warranty

3 Years

Product Description

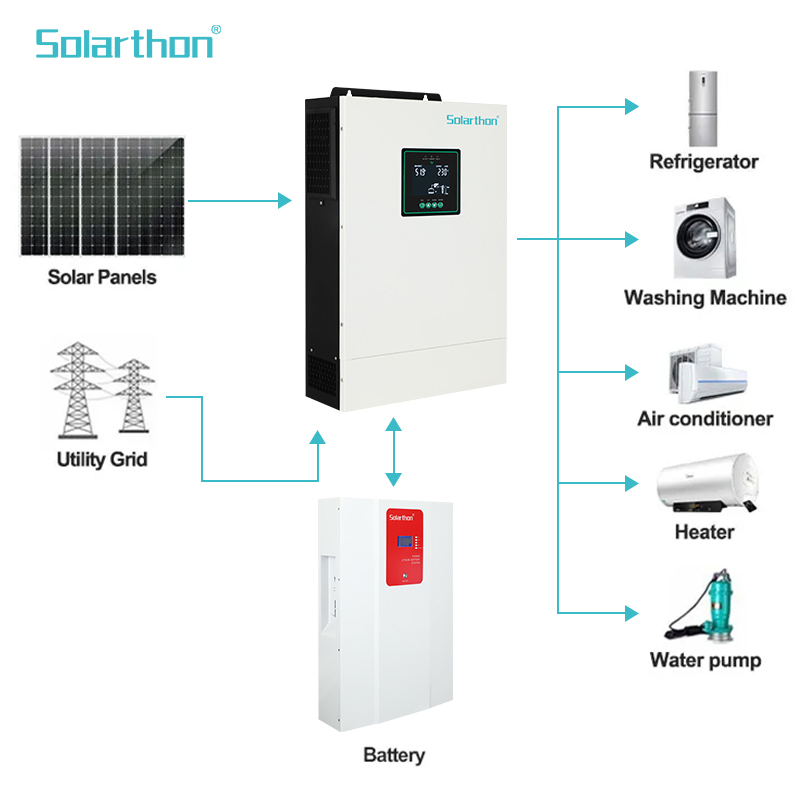

The THON series is an advanced solar storage inverter integrating solar energy storage, mains charging storage, and AC sine wave output. Utilizing DSP control and sophisticated algorithms, it delivers high response speed, reliability, and industrial-grade performance. Features four charging modes: Only Solar, Mains Priority, Solar Priority, and Hybrid Charging.

✔ Sectional charge and discharge management.

✔ Supports battery-free operation; solar and utility grid can power loads simultaneously.

✔ Dual activation for lithium batteries via mains or photovoltaic input.

✔ Full digital voltage and current double closed-loop control with pure sine wave output.

✔ 360° protection including over/under voltage, overload, and reverse protection.

Technical Parameters

Model	5.6KW-01P	8KW-02P	10KW-01P	11KW-01P	12KW-01P
Battery Voltage	51.2VDC	51.2VDC	51.2VDC	51.2VDC	51.2VDC
Rated Power	5600W	8000W	10000W	11000W	12000W
AC Output	230VAC	230VAC	230VAC	230VAC	230VAC
Max PV Input Power	5600W	4500W*2	6000W*2	5500W*2	6000W*2
MPPT Range	120-450VDC	90-450VDC	22A*2	90-450VDC	90-500VDC
Max Parallel	6 sets	6 sets	6 sets	6 sets	6 sets

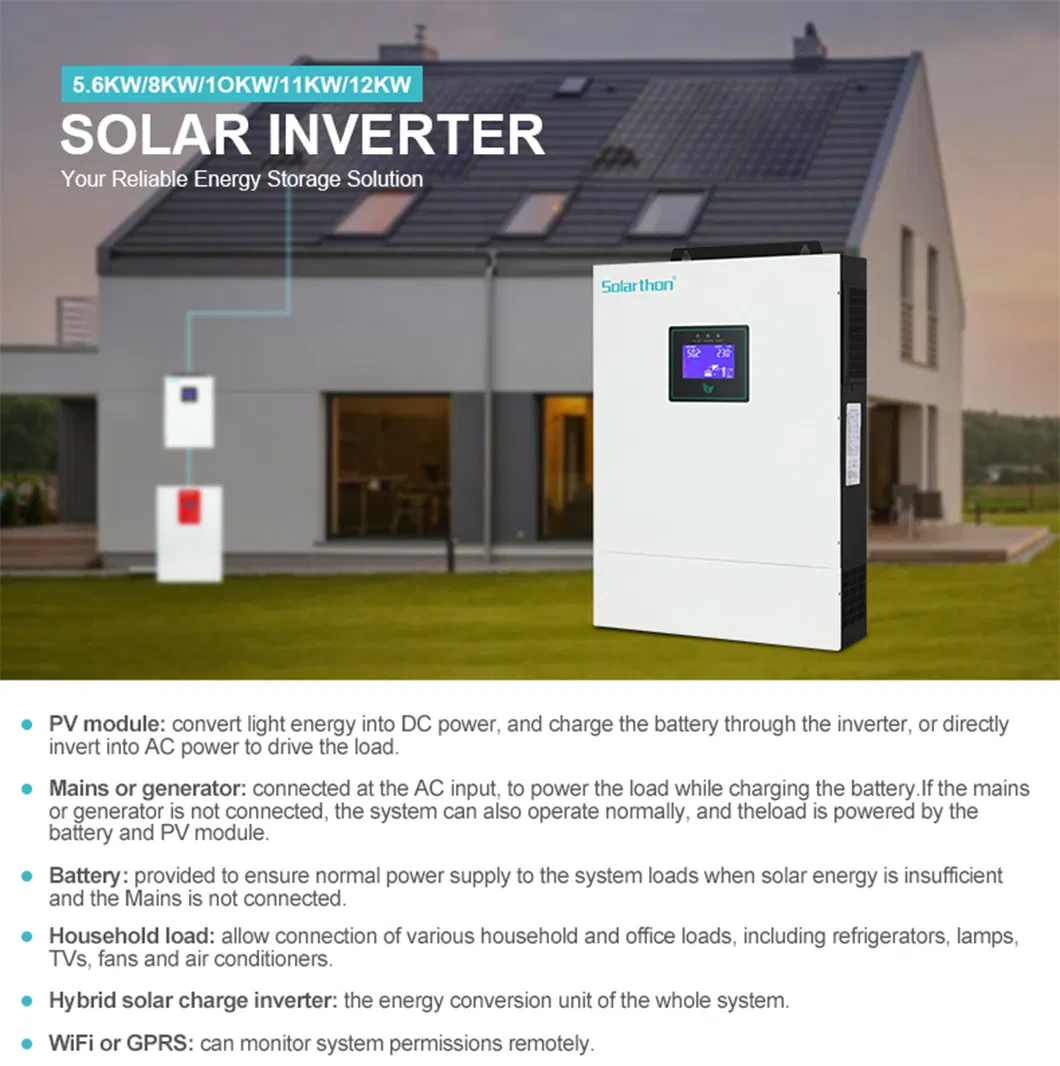

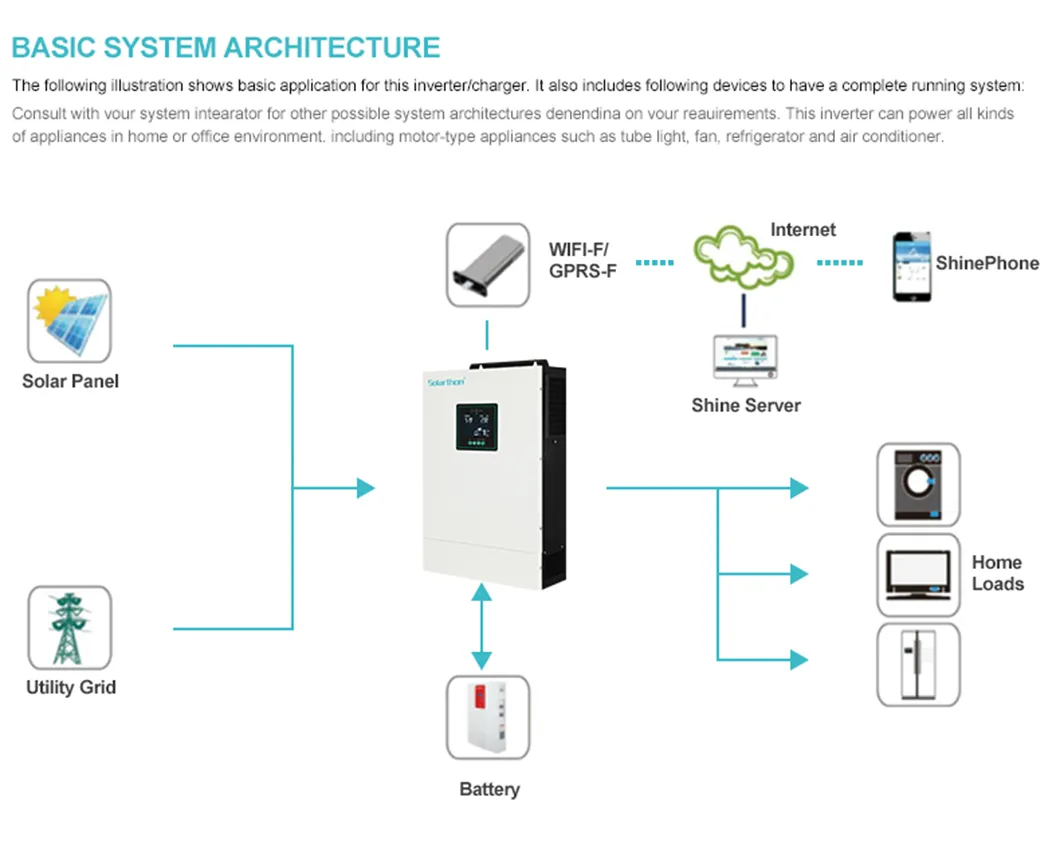

Product Details & Advantages

Packaging & Shipping

Frequently Asked Questions

Are your inverters pure sine wave output?

Yes, all our inverters feature a true pure sine wave output for maximum appliance protection and efficiency.

What's the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters provide power equal to or better than the public grid, with no harmonic pollution and a long lifespan. Modified sine wave inverters can negatively impact inductive loads like refrigerators and air conditioners.

What appliances can these inverters power?

Our inverters are designed for household, office, and agricultural use, including inductive loads like water pumps, air conditioners, and refrigerators.

Do I absolutely need a power inverter for a solar system?

An inverter is necessary if you want to use standard AC appliances (220V/230V). Without one, you are limited to direct battery power.

How do I choose between a 12V, 24V, or 48V inverter?

This depends on your battery bank voltage. Higher voltages allow for lower currents and smaller wiring. Ensure your panels, inverter, and battery bank all share the same voltage.

What is your warranty policy if a product is faulty?

We provide a 3-year warranty. If a product is faulty, simply provide photos or videos, and we will offer free spare parts for the PCB board as part of our after-sales support.
