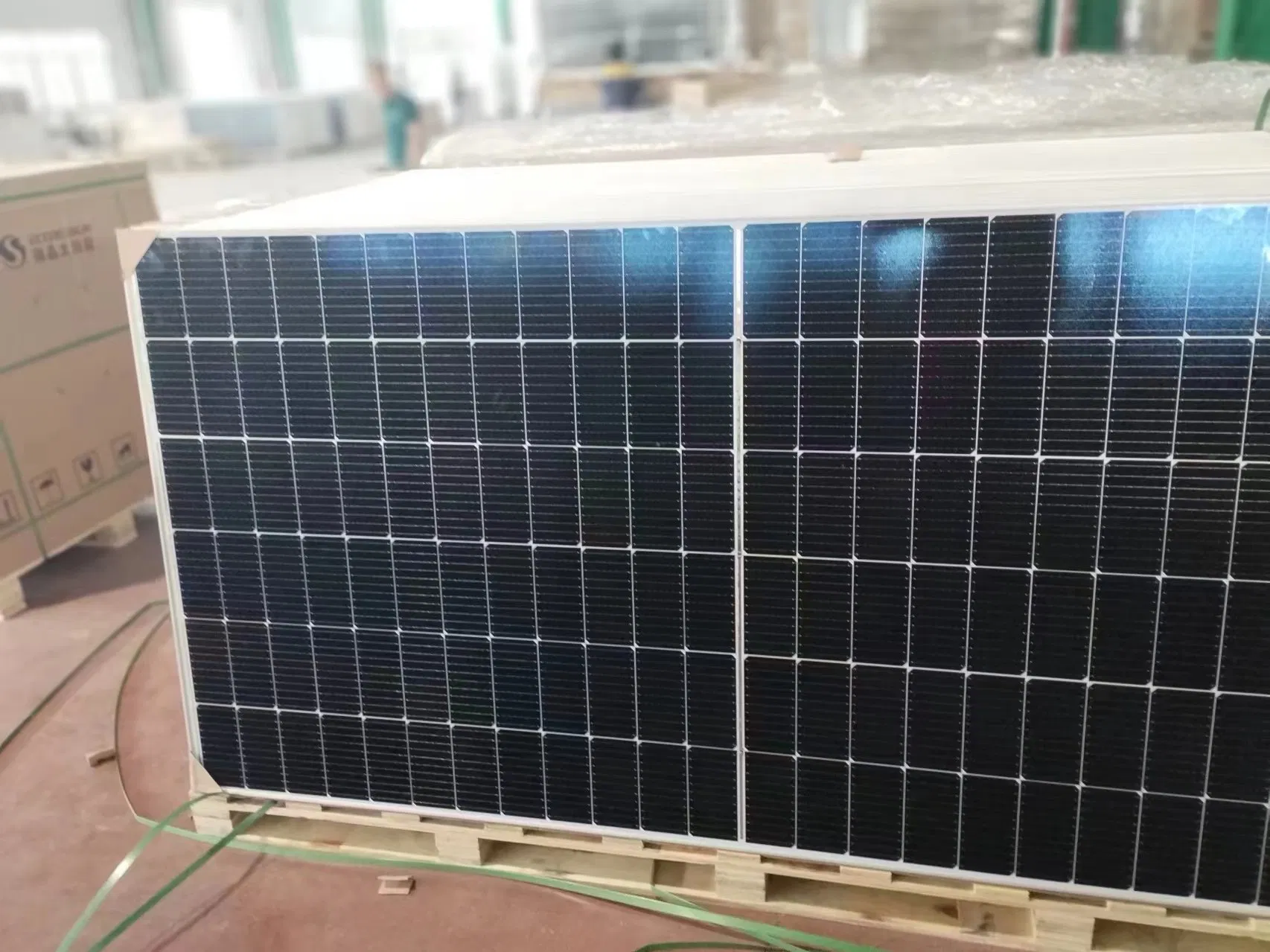

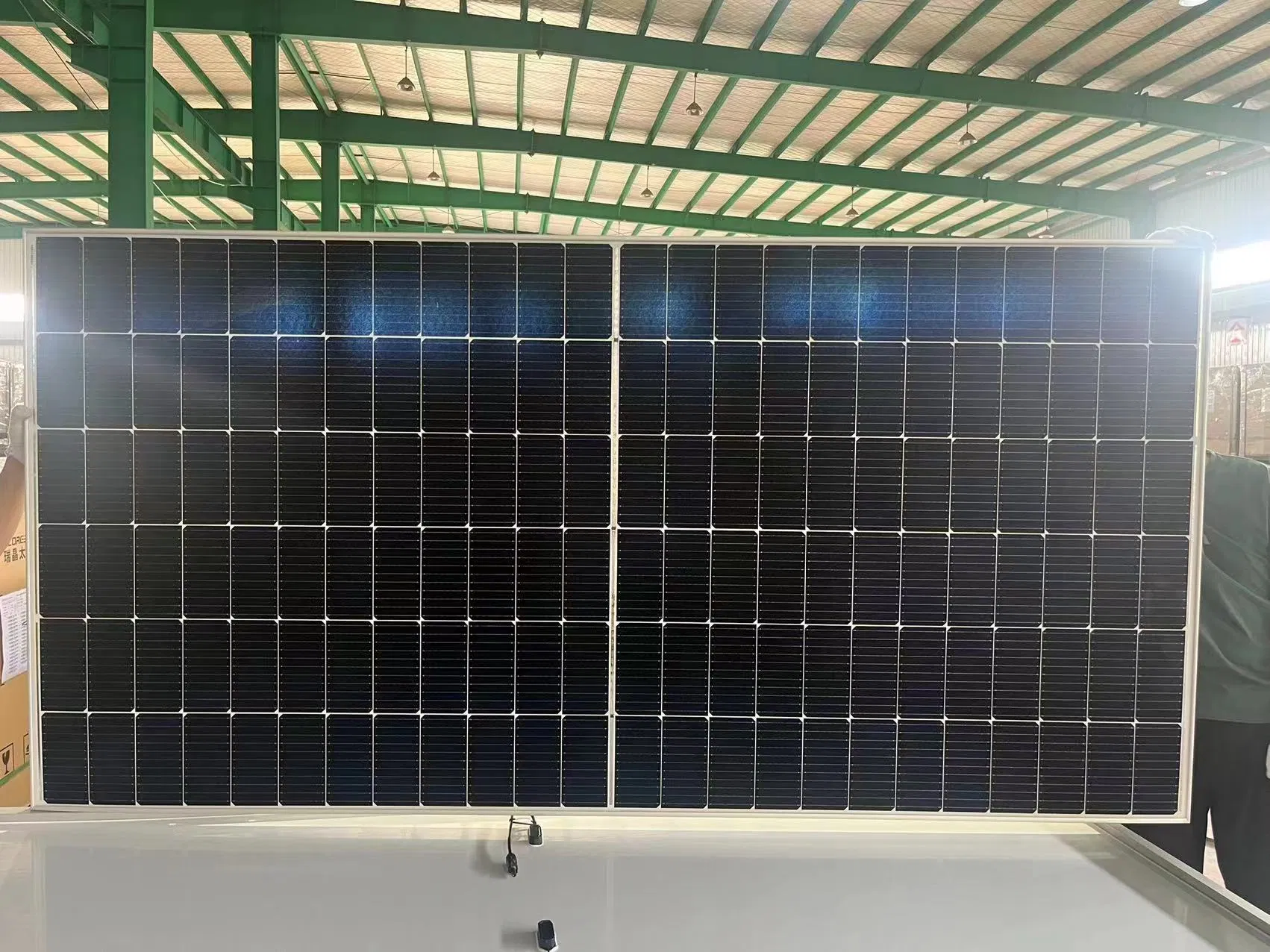

High-Quality Monocrystalline Material

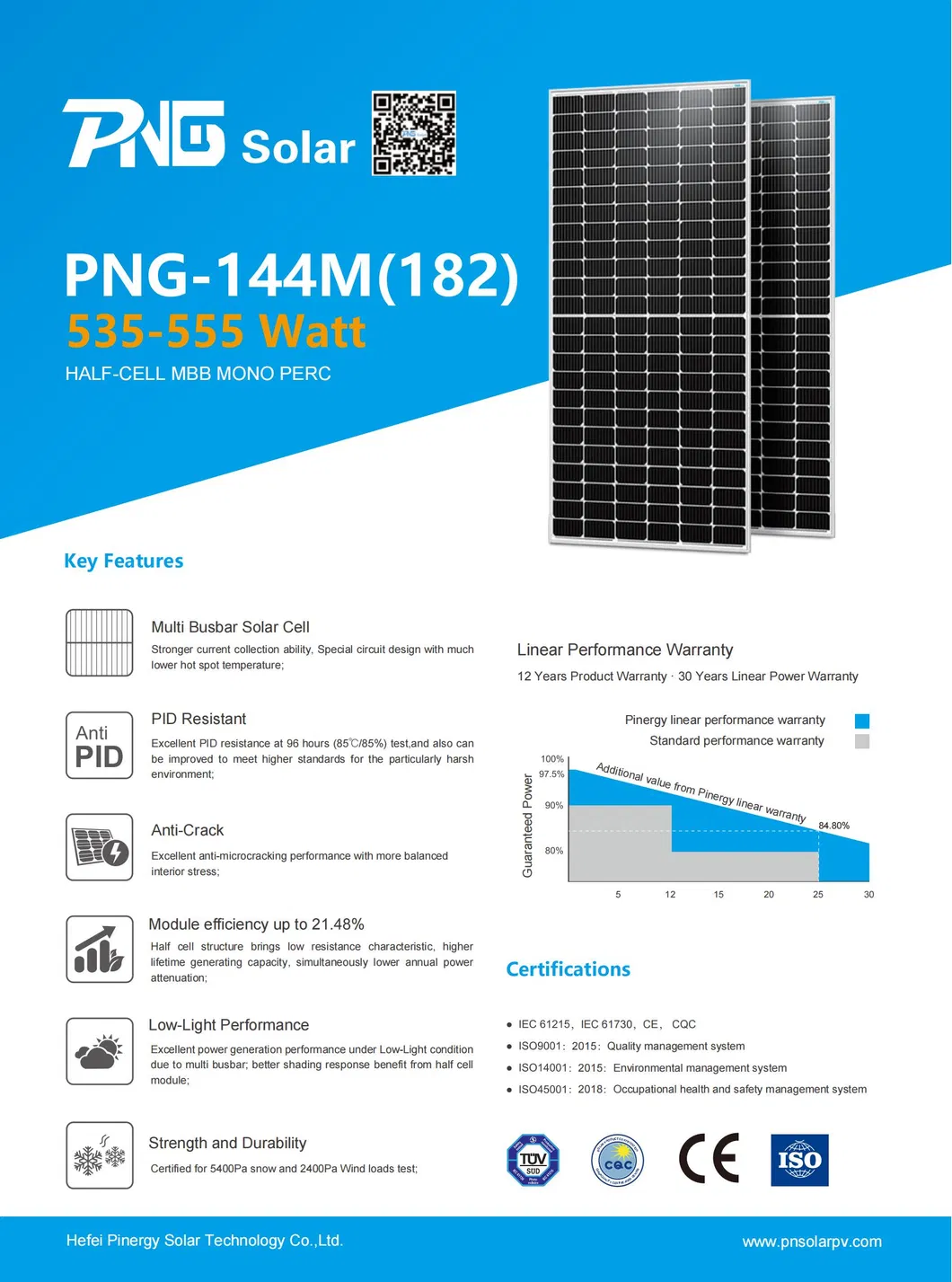

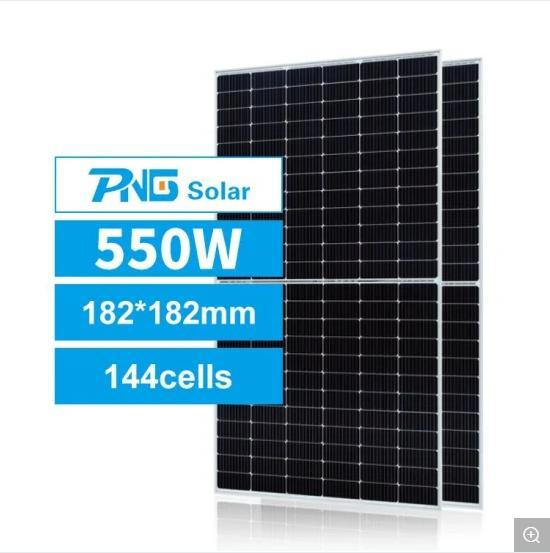

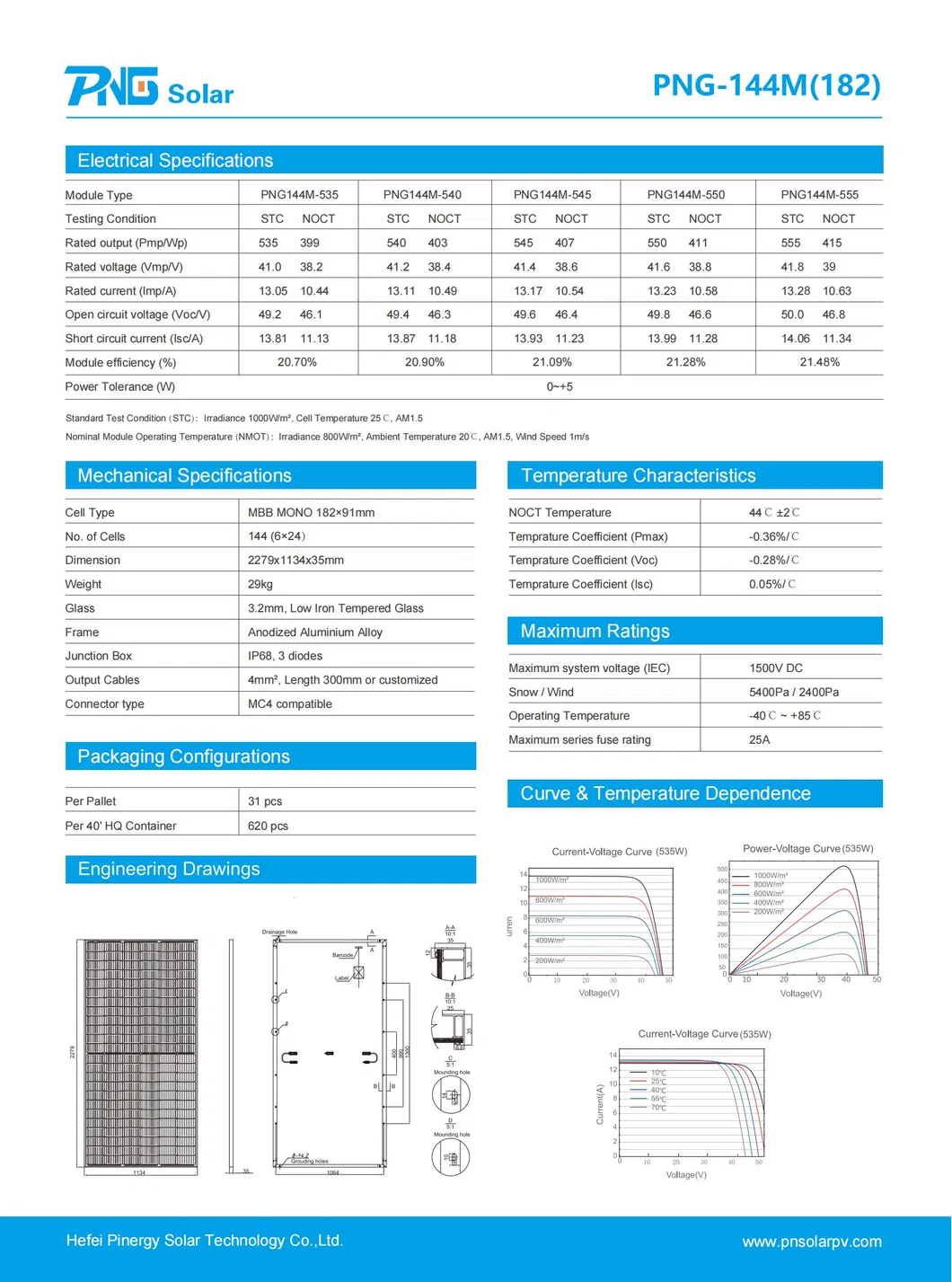

| Module Type | PNG535-144M | PNG540-144M | PNG545-144M | PNG550-144M |
|---|---|---|---|---|
| Rated output (Pmp/Wp) | 535 | 540 | 545 | 550 |
| Maximum power voltage (Vmp/V) | 41.0 | 41.2 | 41.4 | 41.6 |
| Maximum power current (Imp/A) | 13.05 | 13.11 | 13.17 | 13.23 |
| Open circuit voltage (Voc/V) | 49.2 | 49.4 | 49.6 | 49.8 |
| Module efficiency (%) | 20.6% | 20.8% | 21.0% | 21.2% |
| Standard Test Condition(STC): Irradiance 1000W/m², Cell Temperature 25ºC, AM1.5 | ||||
| Module Type | PNG535-144M | PNG540-144M | PNG545-144M | PNG550-144M |
|---|---|---|---|---|
| Rated output (Pmp/Wp) | 398.9 | 402.7 | 406.6 | 410.5 |
| Maximum power voltage (Vmp/V) | 38.2 | 38.4 | 38.6 | 38.8 |
| Maximum power current (Imp/A) | 10.44 | 10.49 | 10.54 | 10.58 |
| Open circuit voltage (Voc/V) | 46.1 | 46.3 | 46.4 | 46.6 |
| Nominal Module Operating Temperature(NMOT): Irradiance 800W/m², Ambient Temperature 20ºC, AM1.5, Wind Speed 1m/s | ||||
