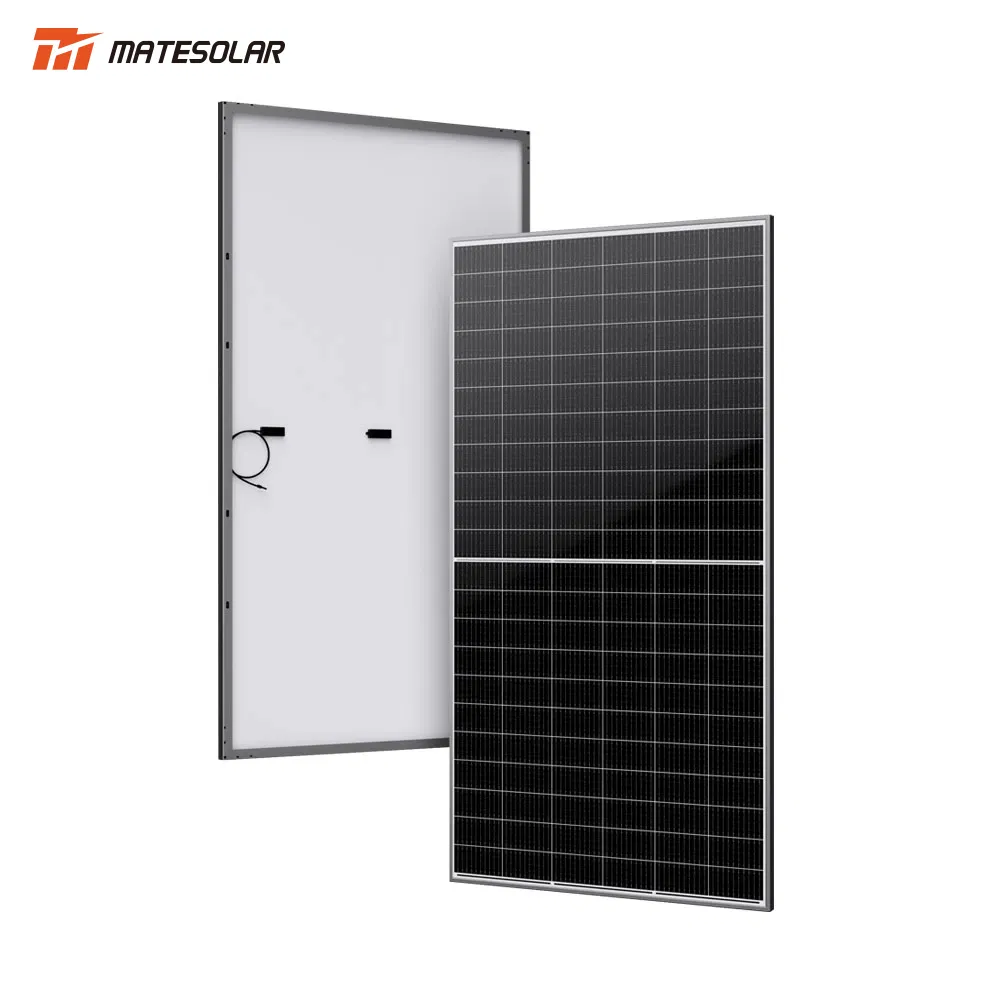

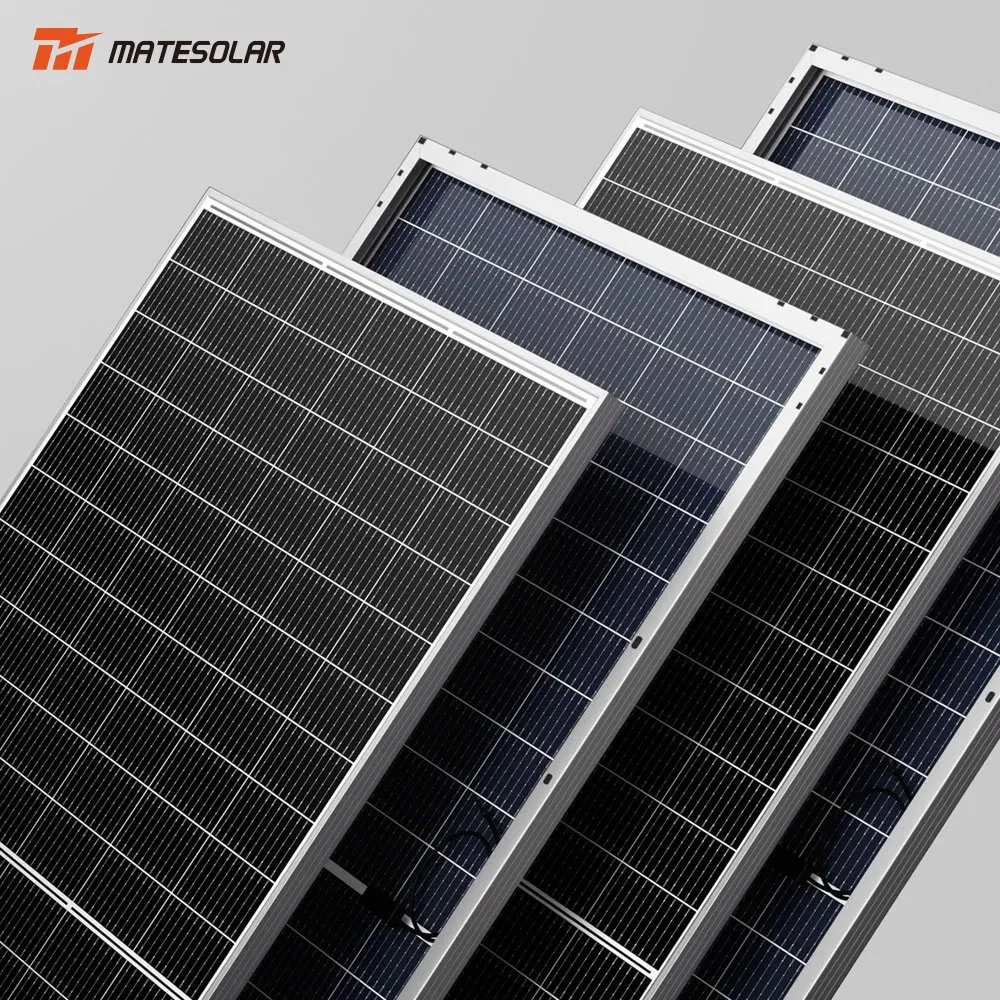

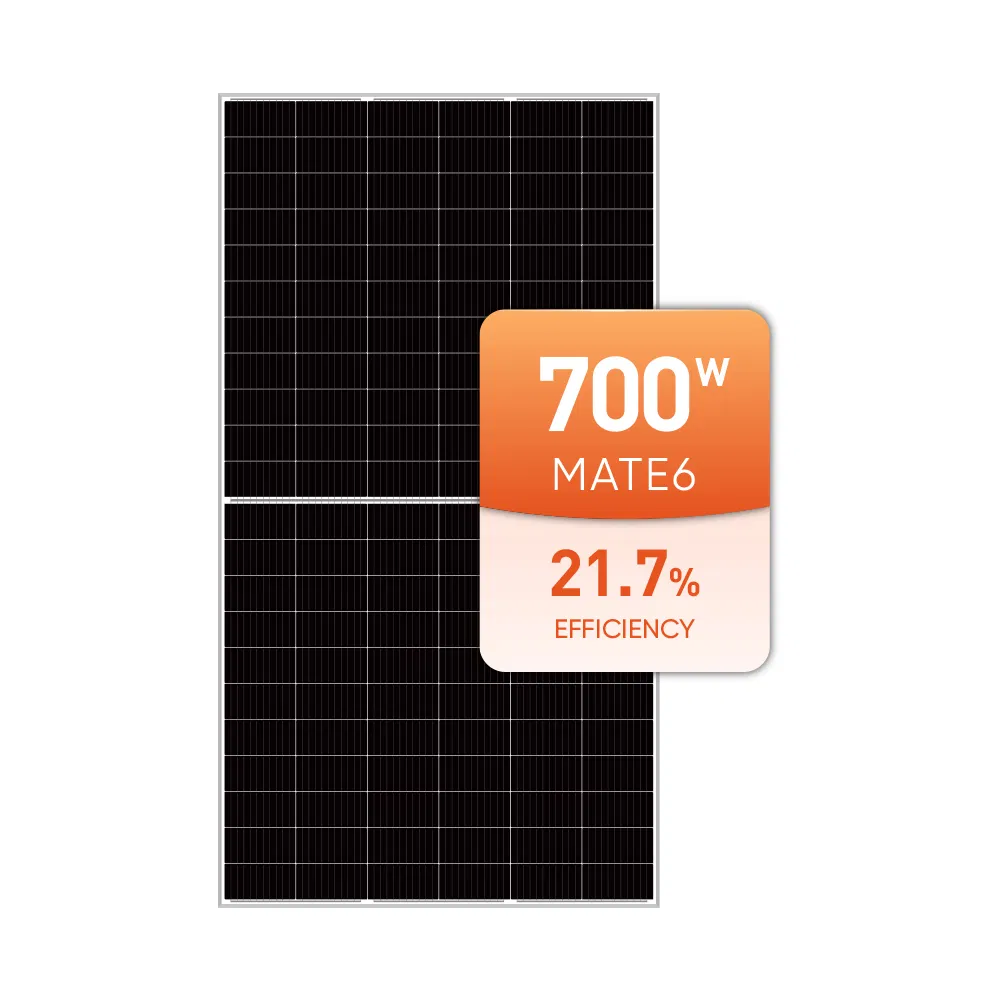

📊 Basic Information

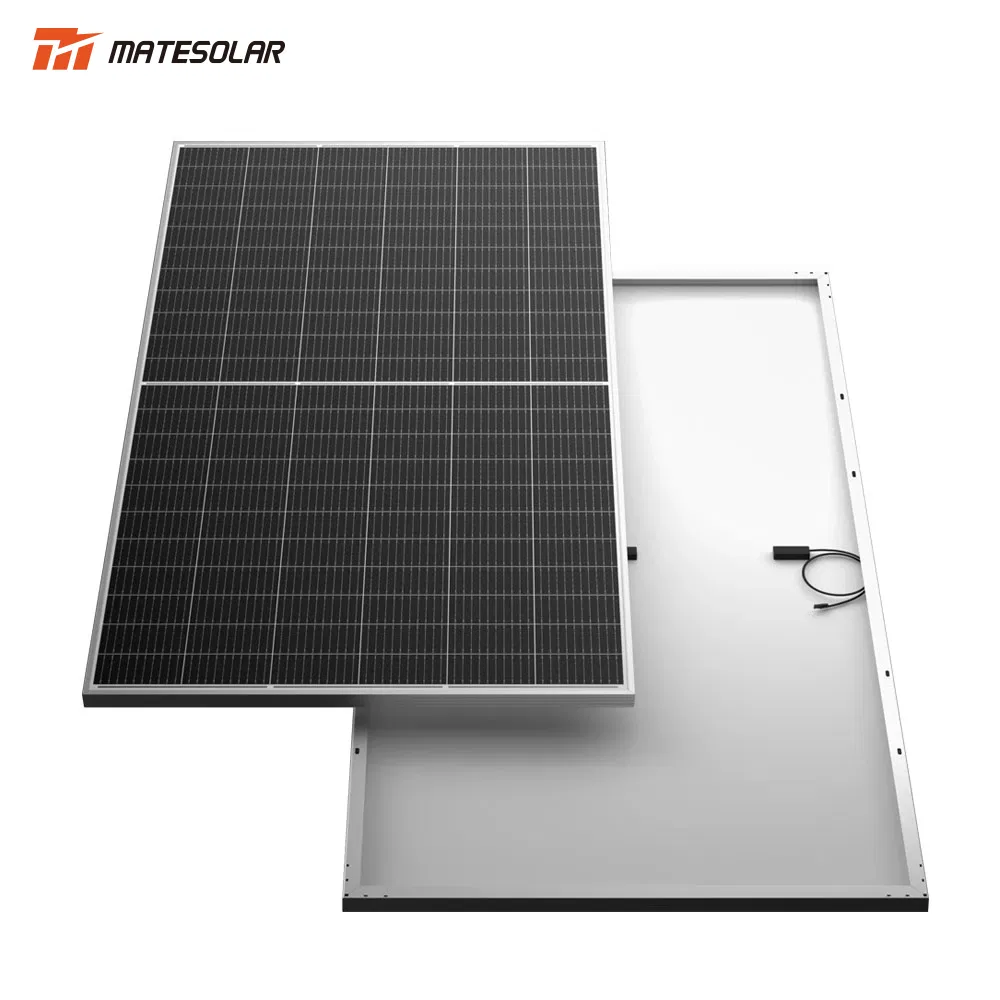

Model NO.
210MM MT6 MS700W-66H
Number of Cells
132 Cells (6X22)
Certification
ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Front Side Glass
3.2mm High Transparency
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated, 3 Diodes
Wind / Snow Load
2400PA / 5400PA

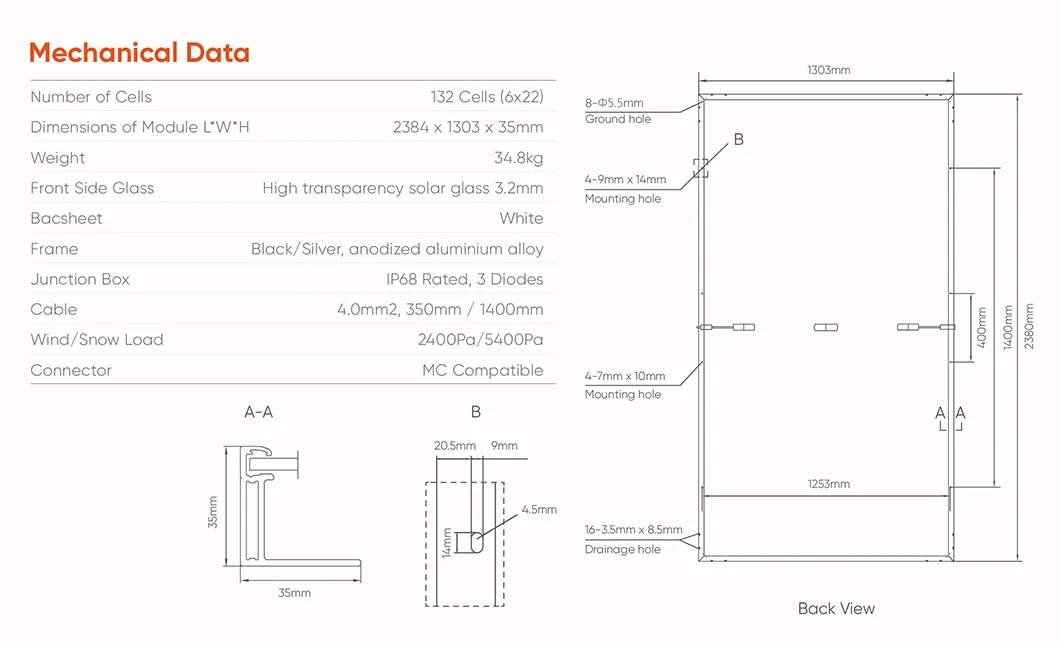

Specification
2384 x 1303 x 35mm
Production Capacity
5gw/Year
☀️ Product Description
| Parameter |
655W |
660W |
665W |
670W |
675W |
| Max Power (Pmax/W) | 655 | 660 | 665 | 670 | 675 |
| Max Power Voltage (Vmp/V) | 37.60 | 37.80 | 38.00 | 38.20 | 38.40 |
| Max Power Current (Imp/A) | 17.42 | 17.46 | 17.50 | 17.54 | 17.58 |
| Open Circuit Voltage (Voc/V) | 45.40 | 45.60 | 45.80 | 45.80 | 46.20 |
| Short Circuit Current (Isc/A) | 18.50 | 18.55 | 18.60 | 18.65 | 18.70 |
| Module Efficiency (%) | 21.1% | 21.2% | 21.4% | 21.6% | 21.7% |

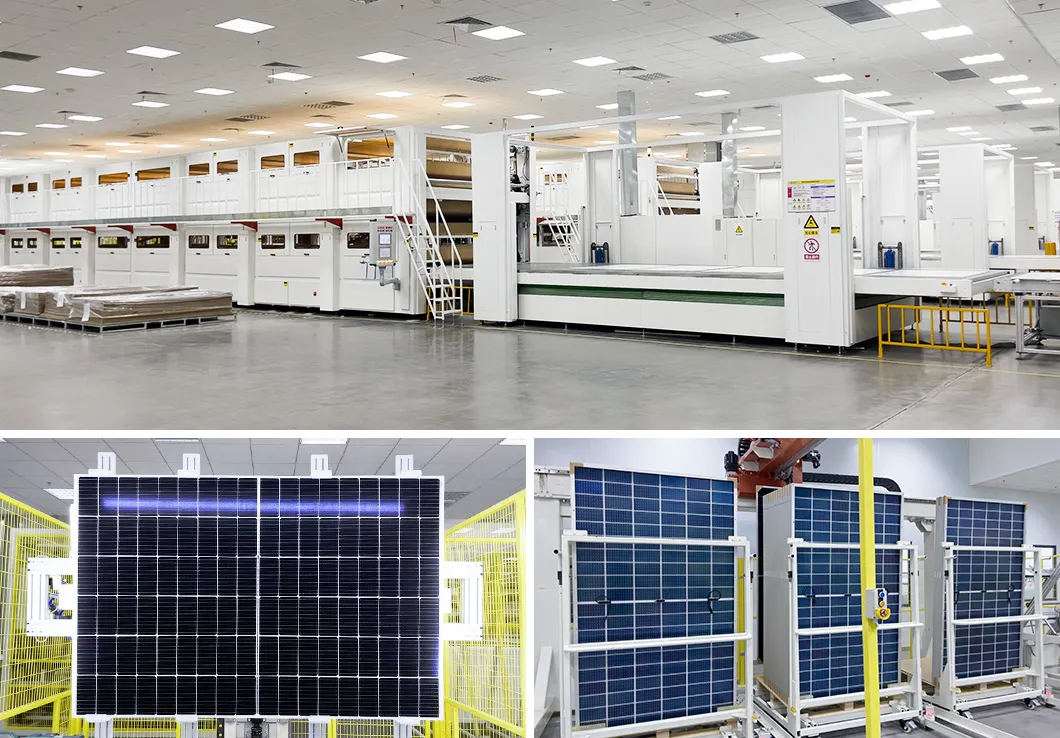

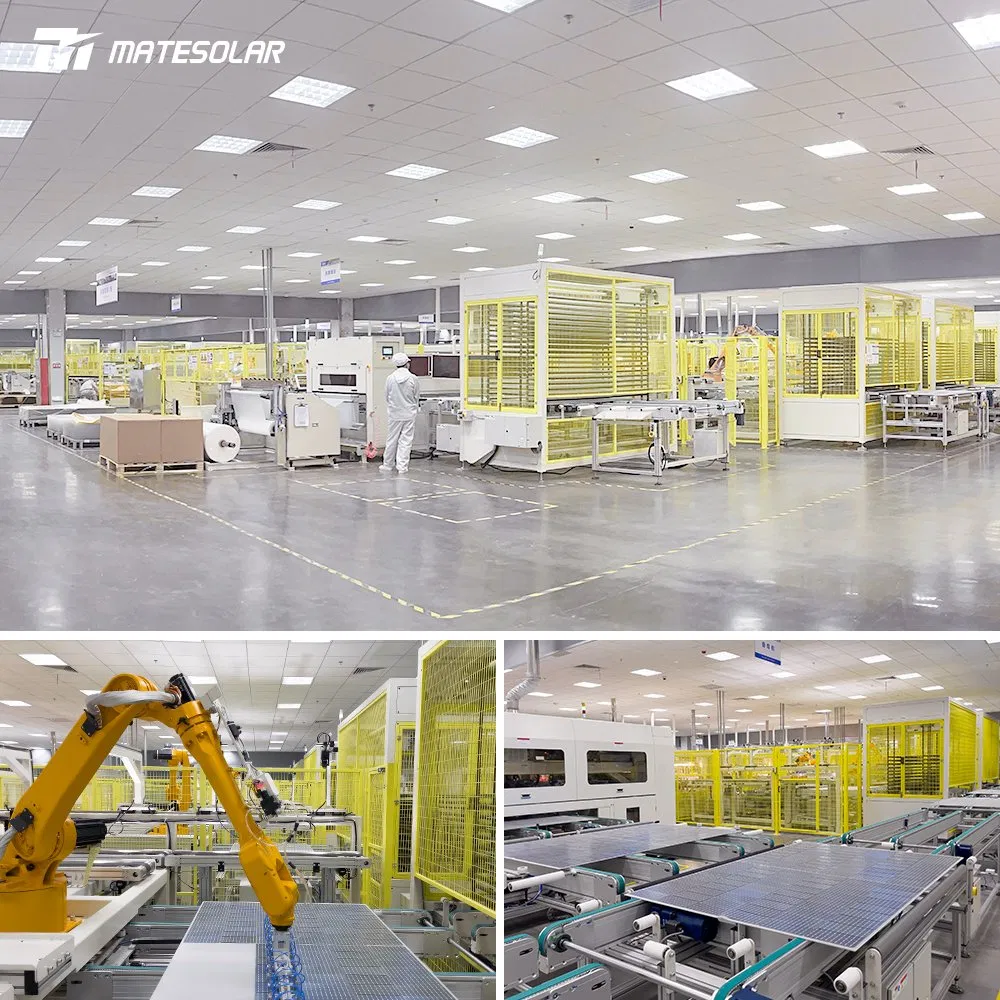

🏭 Smart Manufacturing
Modularized fully automated production lines enable fast delivery and cost savings. We have divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which effectively avoid manual errors and ensure all processes from raw material inspection to packing are monitored online and saved for later use.
🔍 Quality Control
Stringent quality control is the cornerstone of our manufacturing. We continue to invest in state-of-the-art equipment and professional training. Our products are certified for Quality Management (ISO 9001), Environment (ISO 14001), and Occupational Health (ISO 45001).

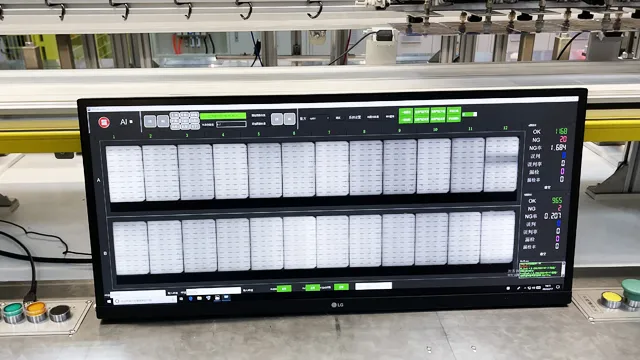

SOLAR CELL STRING TESTING
Each cell string is tested by EL machine to ensure perfection.
EL TESTING BEFORE LAMINATION
Ensures every solar cell string is perfect before final sealing.

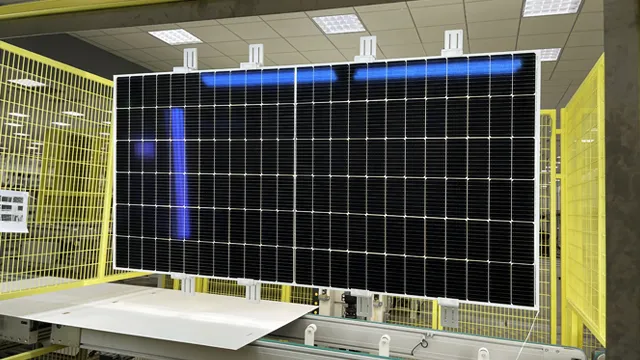

APPEARANCE INSPECTION
QC inspection after lamination to eliminate any process defects.

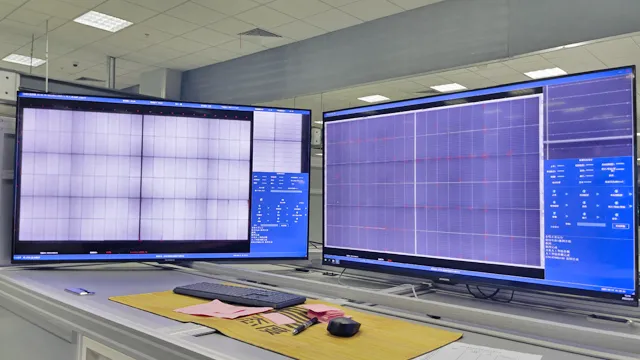

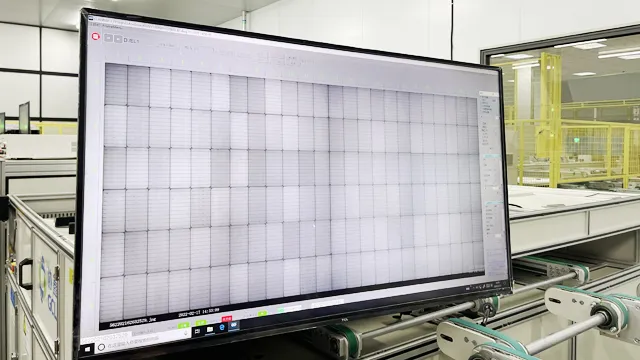

FINAL EL TESTING
100% ensures zero internal electric defects for every module.

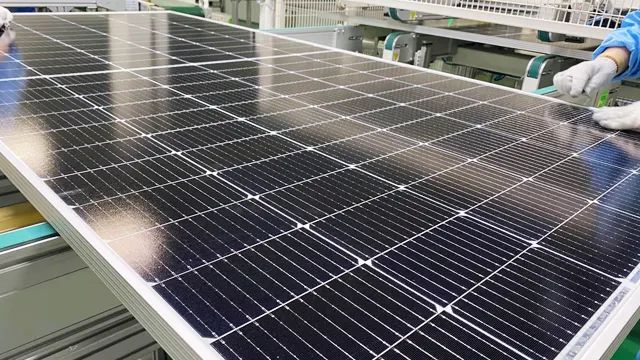

FINAL APPEARANCE INSPECTION
Final check before packaging to ensure flawless delivery.

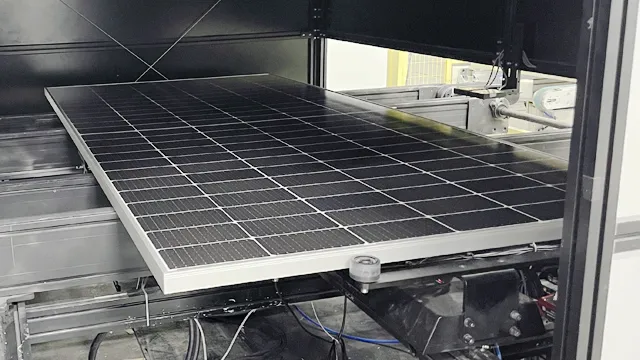

OUTPUT POWER TESTING
Guarantees 100% positive power tolerance and performance.
🏡 Solar Projects

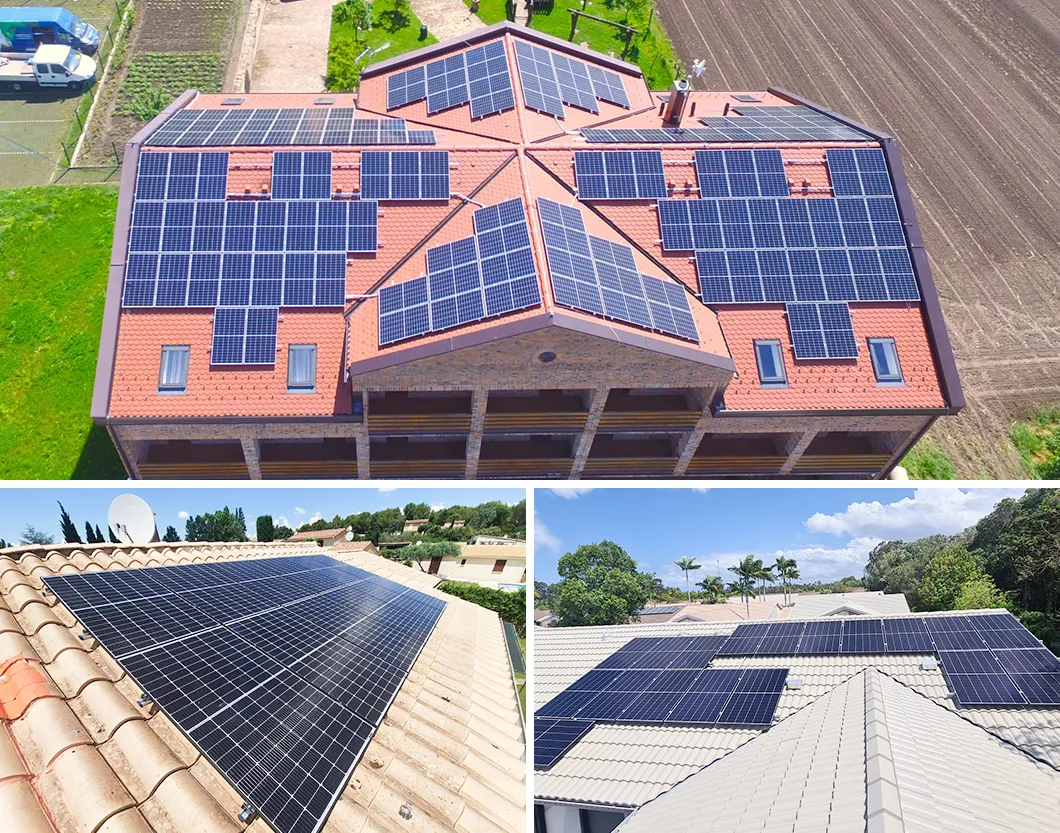

Residential: Thousands of houses globally are equipped with our solar systems, enjoying clean power with lower electricity bills and long-term profits.

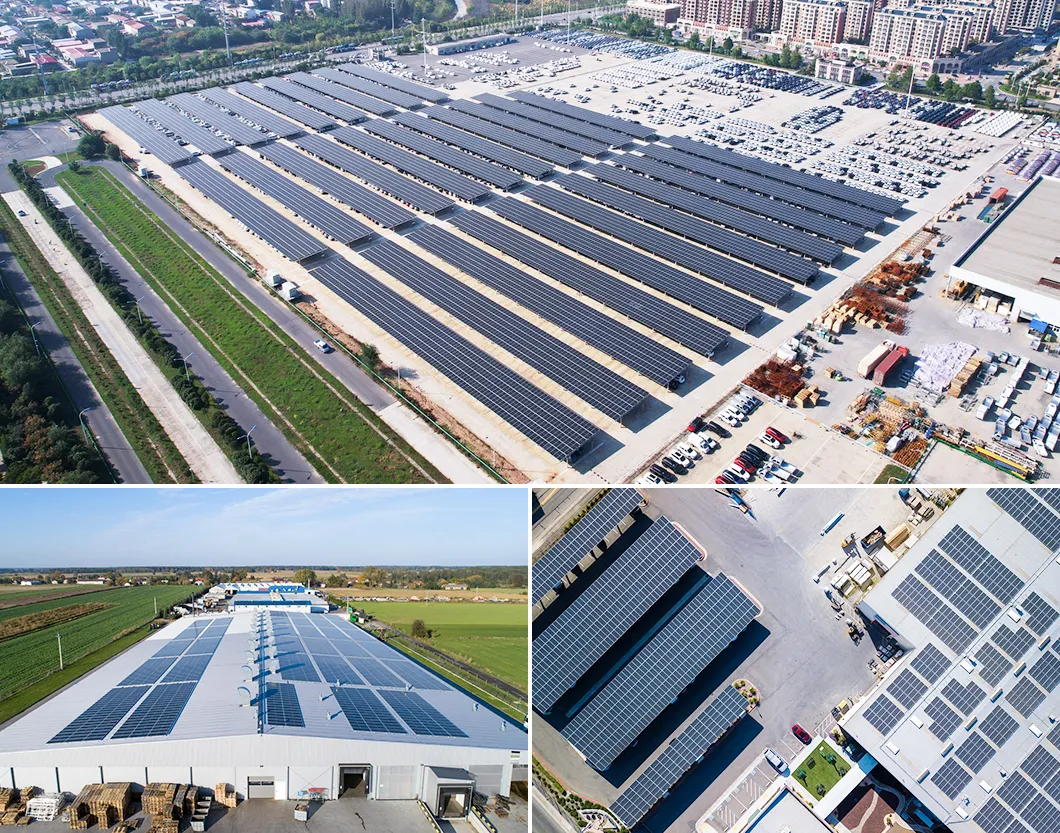

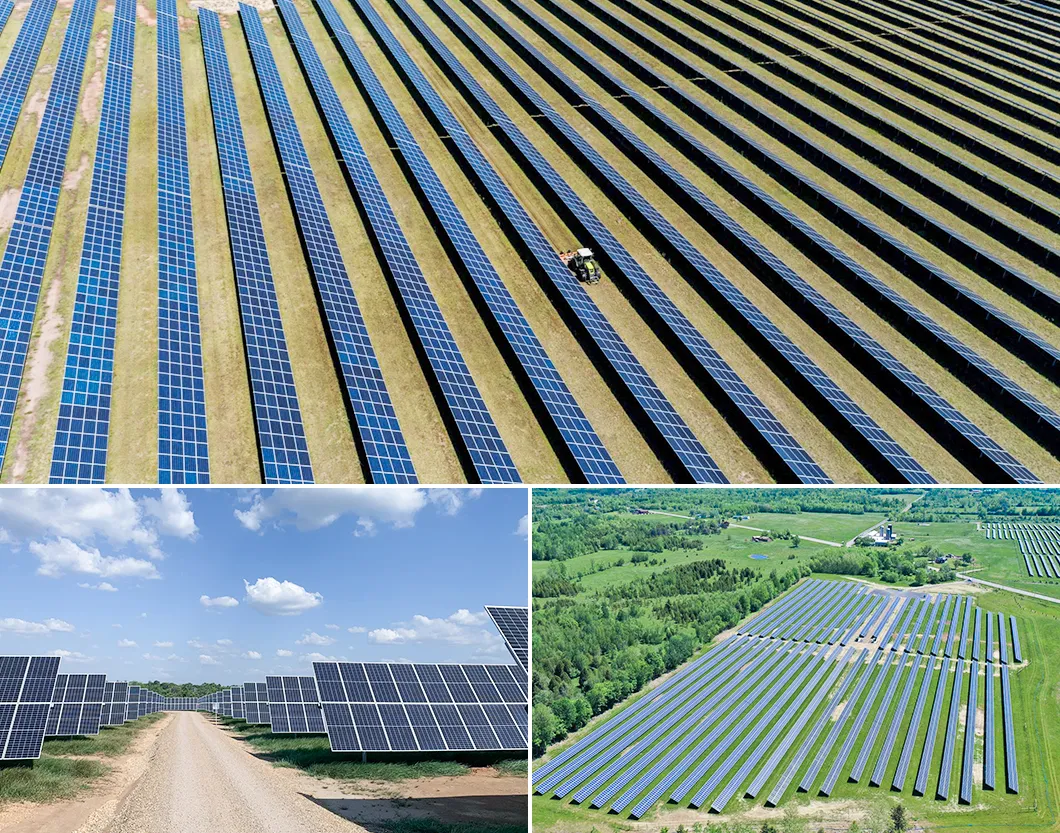

Commercial & Utility: Whether for self-consumption, selling to the grid, or large-scale utility projects, our modules provide a reliable investment for any scale.
🔄 OEM & ODM Services
With a full array of exciting renewable energy technologies, our strong innovation helps customers meet their specific goals. We work with unique needs of each application to deliver right products and professional OEM/ODM services.
❓ Frequently Asked Questions
Can the product be shipped to my specific region?
We export to most countries and regions including Central/South America, EMEA, SEA, SSA, and AU. Please provide your region for specific confirmation.
What is the standard lead time for orders?
For requirements under 200kW, the standard lead time is 10 working days. For orders exceeding 200kW, timelines are negotiable based on capacity.
What are the accepted payment terms?
We accept 100% TT, or a 30% TT advance payment with the remaining 70% TT due upon goods being ready before shipment.
What kind of warranty is provided with the solar modules?
We offer a 12-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.
How do you ensure the quality of high-power 700W modules?
Our manufacturing uses fully automated lines with 100% EL testing at multiple stages and rigorous output power testing to ensure zero defects.
Are these panels suitable for industrial applications?
Yes, these monocrystalline modules are specifically designed for high-efficiency industrial use, featuring heavy-load resistance of up to 5400PA.
