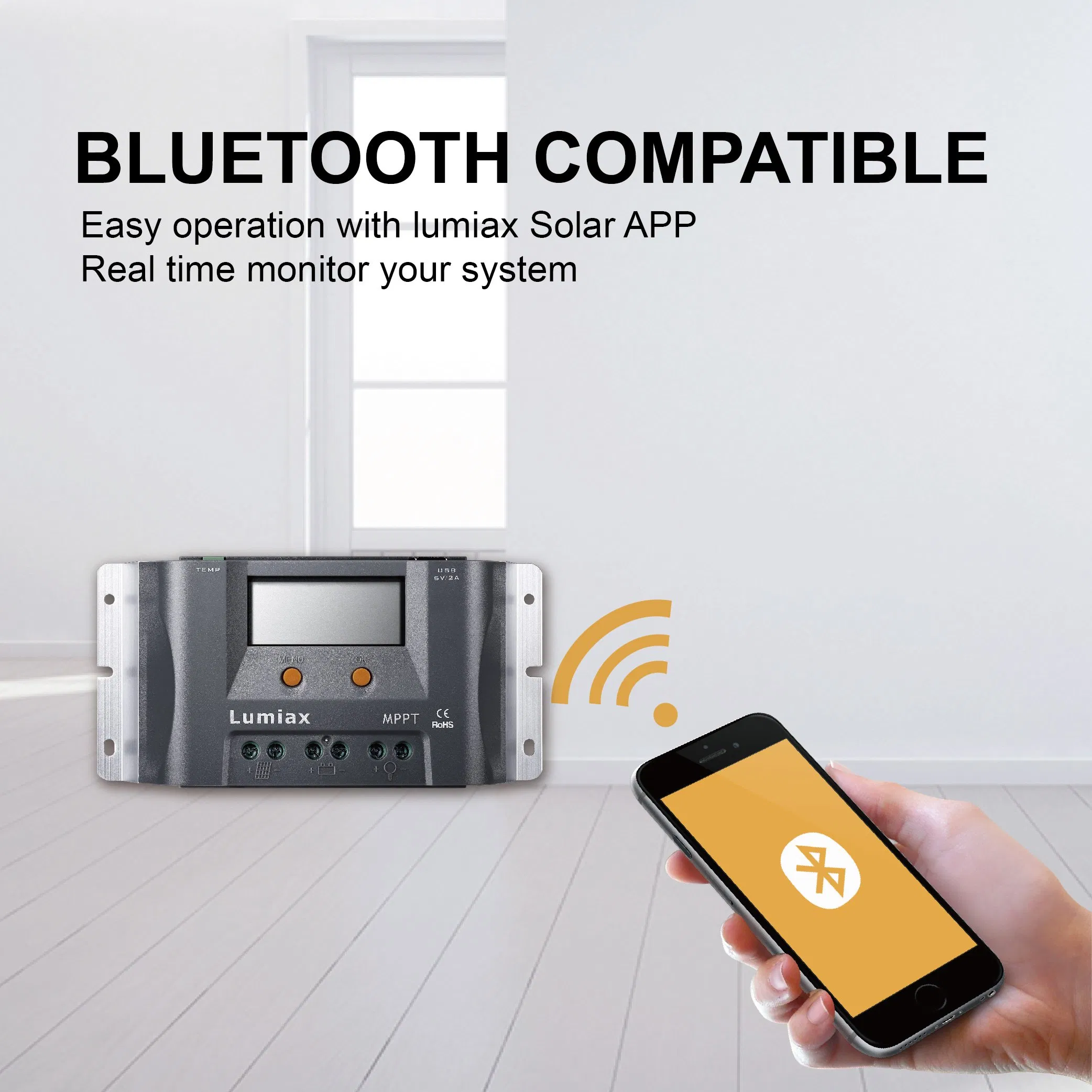

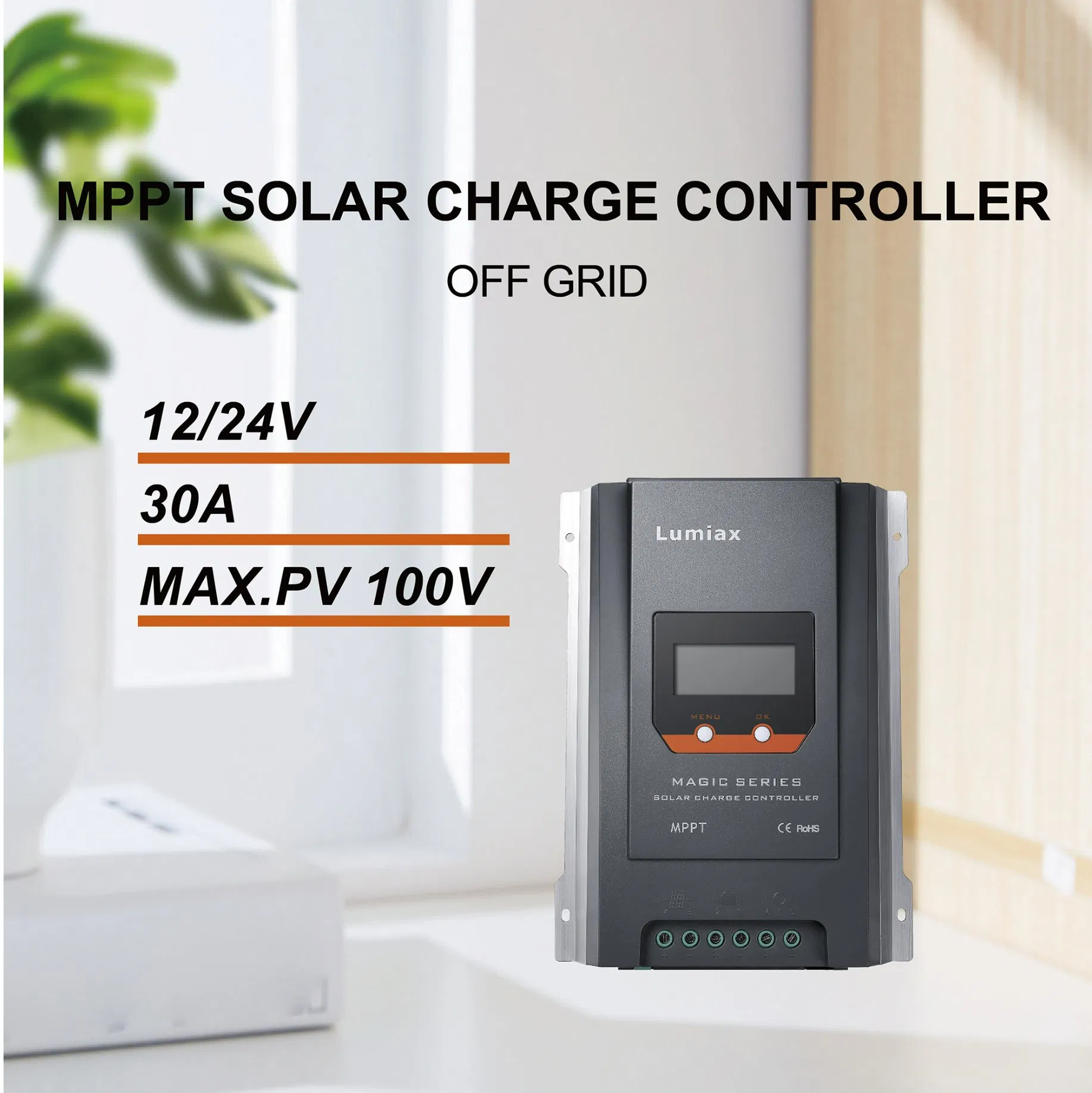

Lumiax 10A 20A 30A 12V 24V MPPT Solar Charge Controller 55V Bluetooth RS485

1 / 5

Lumiax 10A 20A 30A 12V 24V MPPT Solar Charge Controller 55V Bluetooth RS485

Customization:	Available
After-sales Service:	Installation and Debugging Guide
Warranty:	1

Send Inquiry

Product Description

Basic Info.

Model NO.MT10/20/30

ConditionNew

CertificationISO, CE

ApplicationSolar System Controller, Charger Controller, Lighting Controller, Voltage Controller

Rated Voltage12V/24V Automatical Recognization

Max Solar Voltage35V/45V/55V/50V/100V/95V

DisplayLCD

Charge WayMPPT, Boost, Equalization, Float

Tracking Efficiency99.9%

Max Conversion98%

Battery TypeLiquid, Gel, AGM, Lithium

Protection DegreeIP32

★

Product Highlights

Innovative MPPT technology, tracking efficiency 99.9%, conversion efficiency up to 97%

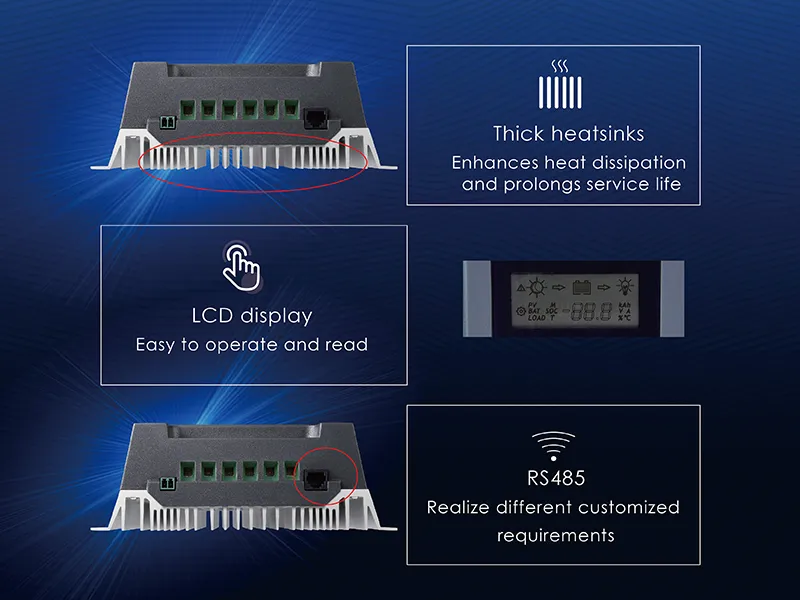

Real-time display of operational data and working status via a large LCD in digital, graphic, and textual forms
Multiple choices for battery type, working mode, and protection settings
Two navigation buttons for easy implementation of various operations
Clear readable display of charge/discharge, battery status, and error descriptions
12V/24V automatic recognition, temperature compensation, and perfect EMC design
Four-stage charging method: MPPT, Boost, Equalization, and Float
Full automatic electronic protection functions

📋

Product Parameters

Item	MT2010	MT3010	MT2075	MT3075	MT4010
Max Charging Current	20A	30A	20A	30A	40A
System Voltage	12V/24V automatical recognization
Max input power	260/520W	390/780W	260/520W	390/780W	520/1040W
Max volt on PV terminal	100V@-20ºC, 90V@25ºC		55V@-20ºC, 50V@25ºC		100V@-20ºC, 95V@25ºC

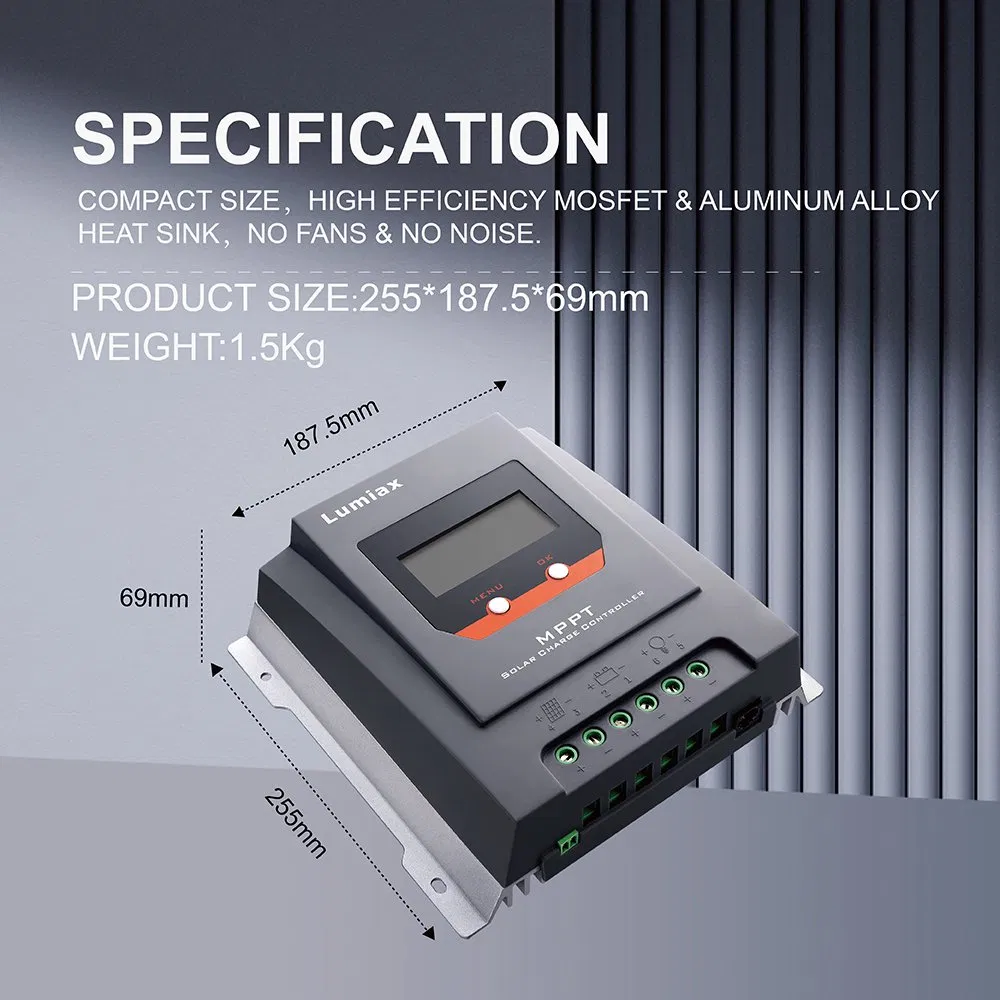

Dimensions(mm)	18918264	18925563	18918258	18918264	18925569

🔍

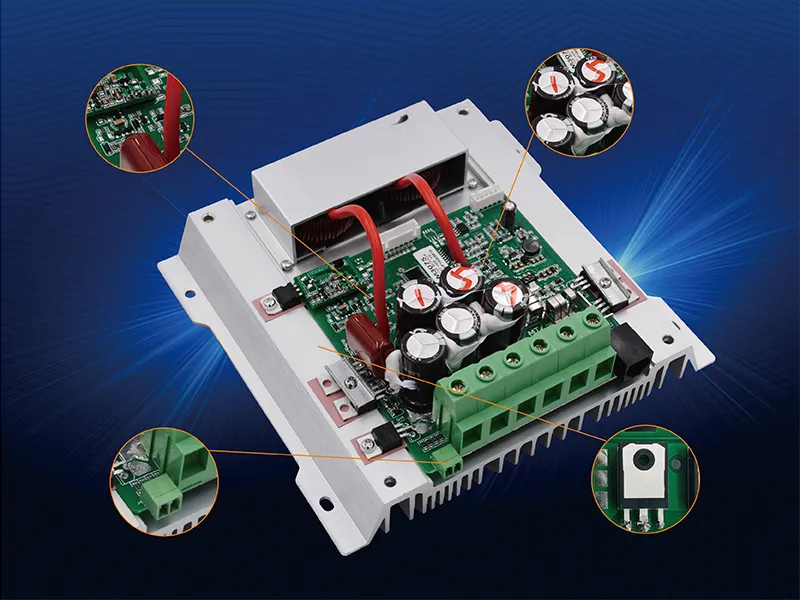

Product Details

✔

Our Advantages & Certifications

🏭

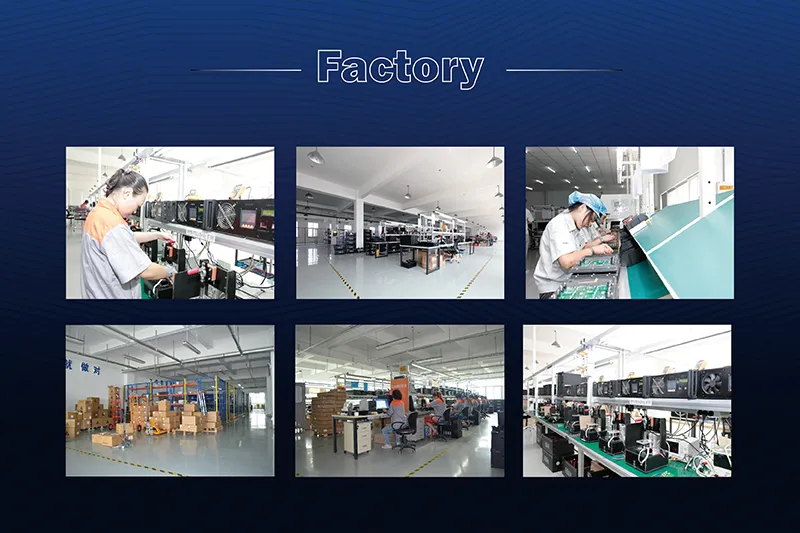

Professional Environment

Frequently Asked Questions

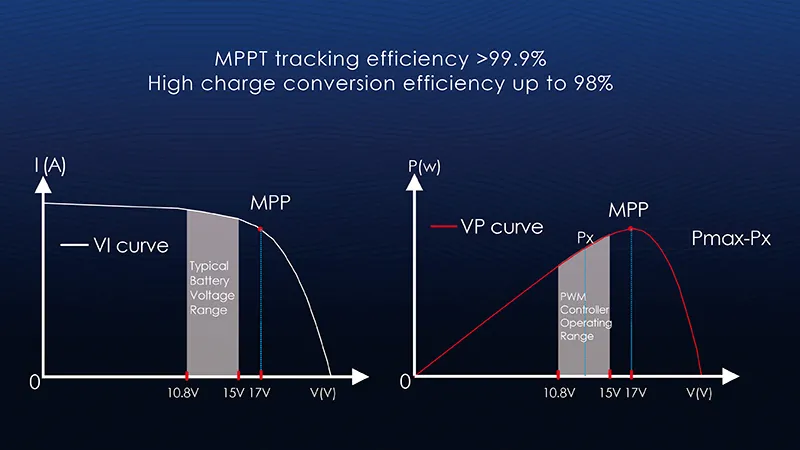

What are the main advantages of MPPT technology?

MPPT technology ensures a tracking efficiency of up to 99.9% and a conversion efficiency of 97%, maximizing the energy output from your solar panels.

Does this controller support lithium batteries?

Yes, the controller is compatible with various battery types, including Liquid, Gel, AGM, and Lithium batteries.

Is the system voltage detected automatically?

The controller features 12V/24V automatic recognition for seamless integration into your solar power system.

What kind of protection does the controller provide?

It includes full automatic electronic protection functions against overcharging, short circuits, and reverse polarity, with an IP32 protection degree.

Can I monitor the working status in real-time?

Yes, the large LCD provides a clear, real-time display of operational data, charging/discharging status, and any error descriptions.

What is the maximum tracking efficiency of this unit?

The unit achieves a maximum tracking efficiency of 99.9%, ensuring minimal energy loss during the power conversion process.
