| DC PART SPECIFICATIONS | |
|---|---|
| Cell Type | LFP 3.2V/280Ah |
| PACK | 17.92kWh/1P20S |
| Battery System | 215kWh/1P240S |
| Voltage Range | 672~864Vdc |
| Rated Voltage | 768Vdc |
| AC PART SPECIFICATIONS | |
| Rated Power | 100kW |
| Max. Power | 110kW (60s) |
| THDi | <3% |
| Nominal Voltage | 400Vac |
| Nominal Frequency | 50/60 Hz |
| GENERAL PARAMETERS | |

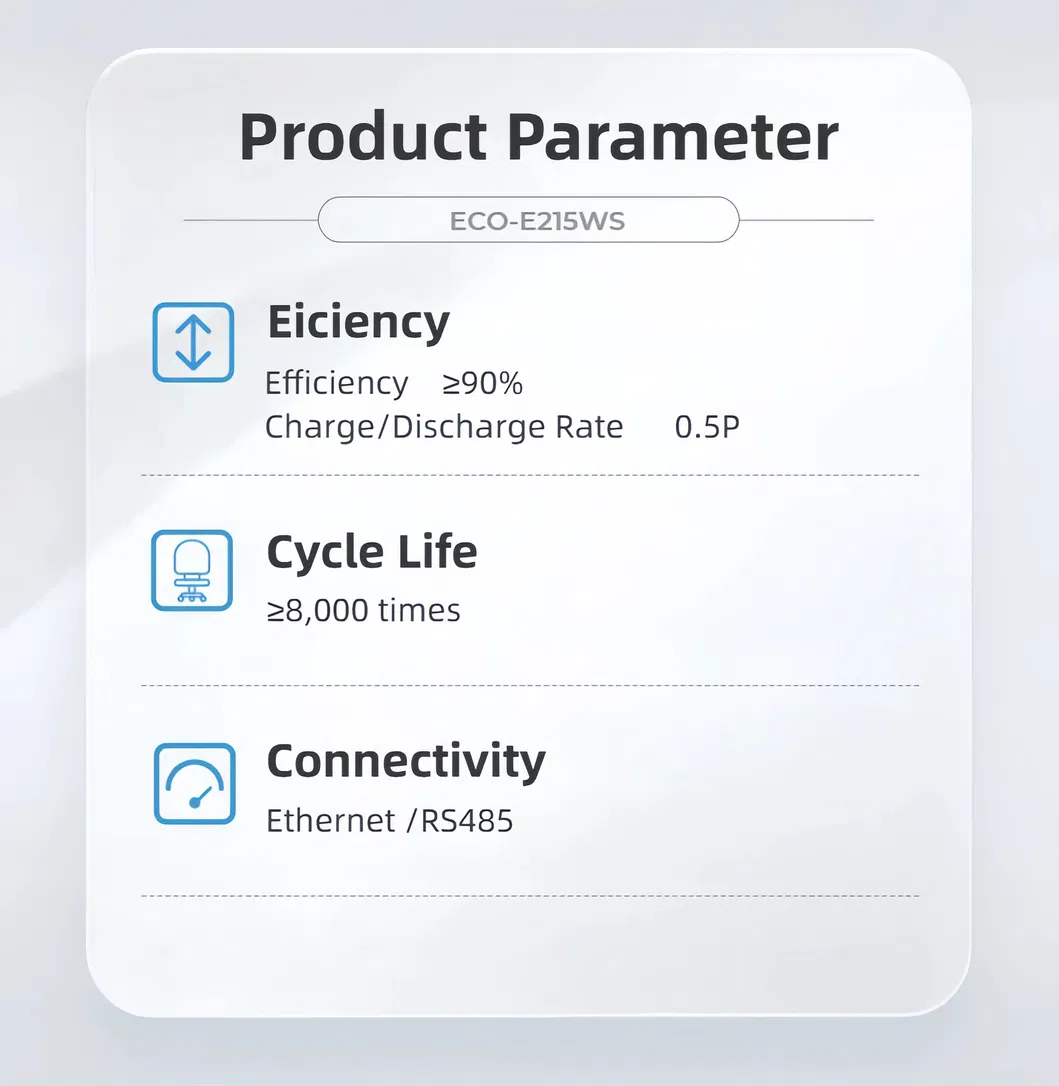

| Efficiency | ≥90% |
| DoD | 95% |
| Cycle Life | ≥8,000 times |
| Switching Time | <100ms |
| Operating Temperature | -25ºC~55ºC |
| Fire Safety | Aerosol + Active Warning |
| Weight | 2,500kg |
Our technology-based enterprise focuses on overall solutions for energy storage systems. We possess comprehensive supporting capabilities for the system integration of PACK, PCS, and BMS. We aim to meet the diversified energy requirements of segmented markets and customers, with products at the core and quality as the cornerstone. We are committed to providing high-quality customized products and services for various energy consumption scenarios on the power generation side, grid side, and user side.
