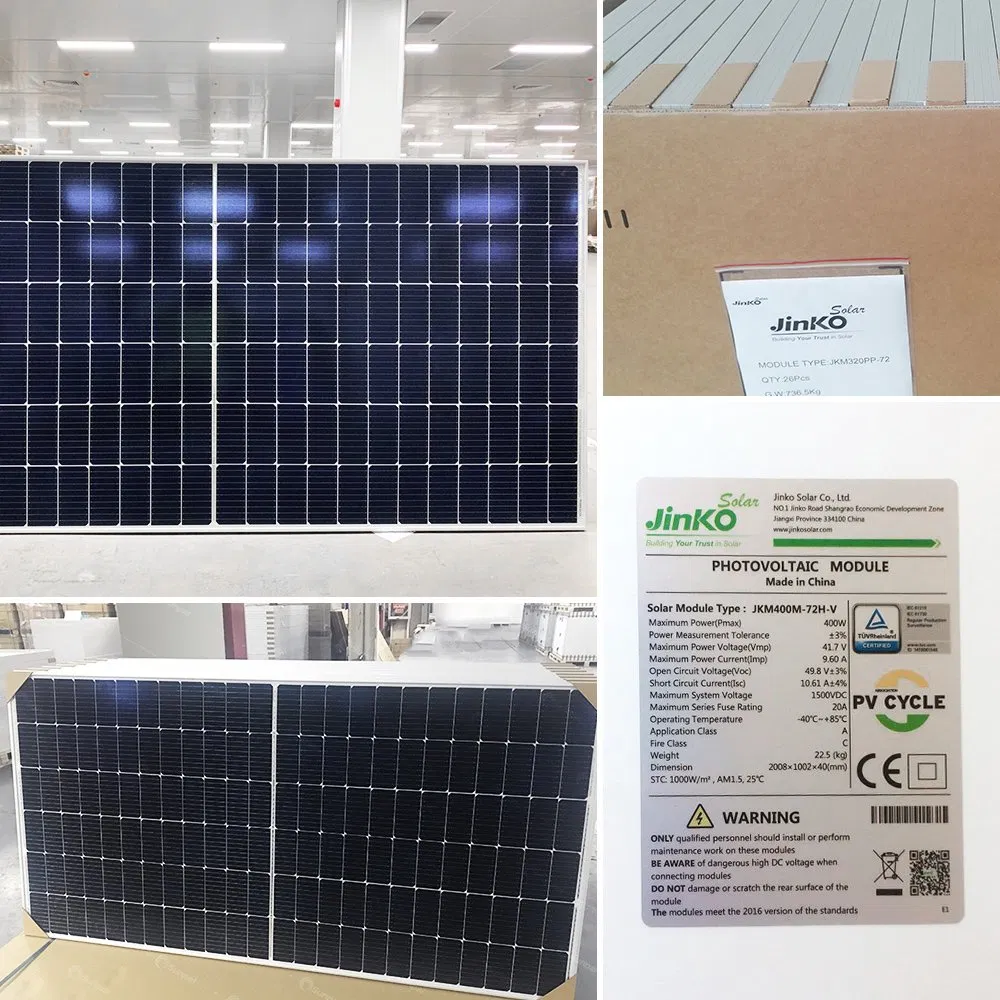

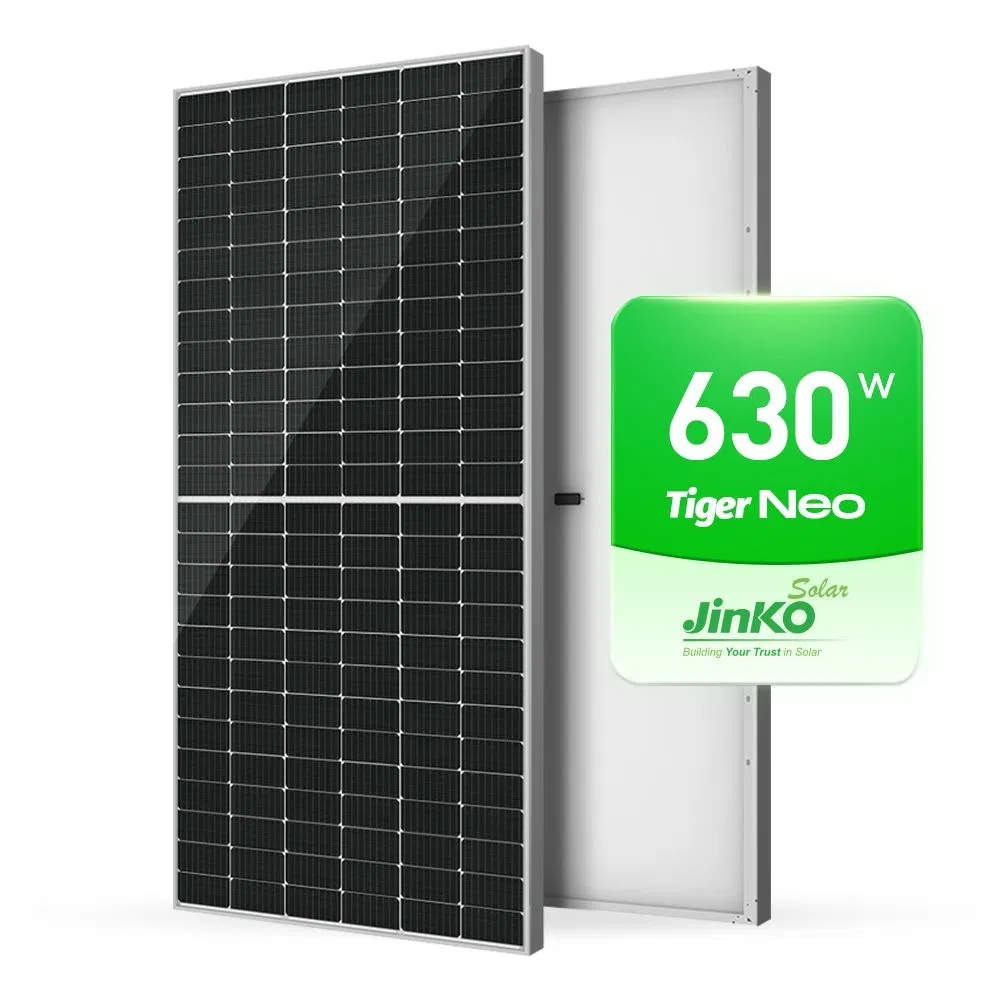

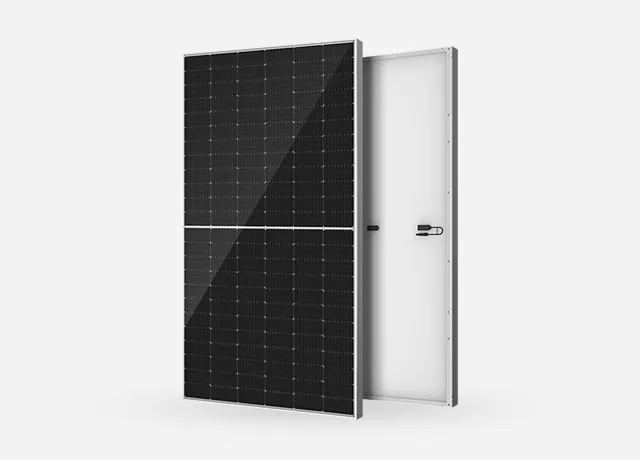

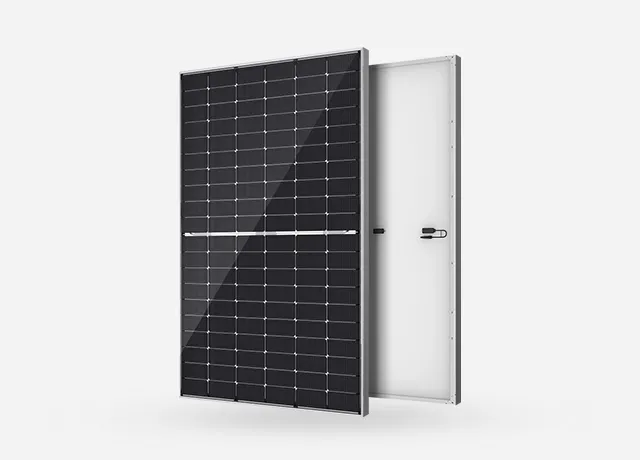

Jinko tiger neo n-type Monocrystalline Photovoltaic Solar Panels 545W 550W 555W Watt Paneles Solares Manufacturers in China

📋 Basic Information

Model	Tiger Neo Series 410W-630W
Number of Cells	144 Cells (6X24)
Application	Industrial & Commercial
Material	Monocrystalline Silicon
Certification	ISO, CB, CE, TUV
Weight	34.8kg / 27kg (varies by model)
Glass Type	High Transparency Solar Glass 2.0mm / 3.2mm
Frame	Anodized Aluminium Alloy (Black/Silver)
Junction Box	IP68 Rated, 3 Diodes
Wind/Snow Load	2400PA / 5400PA

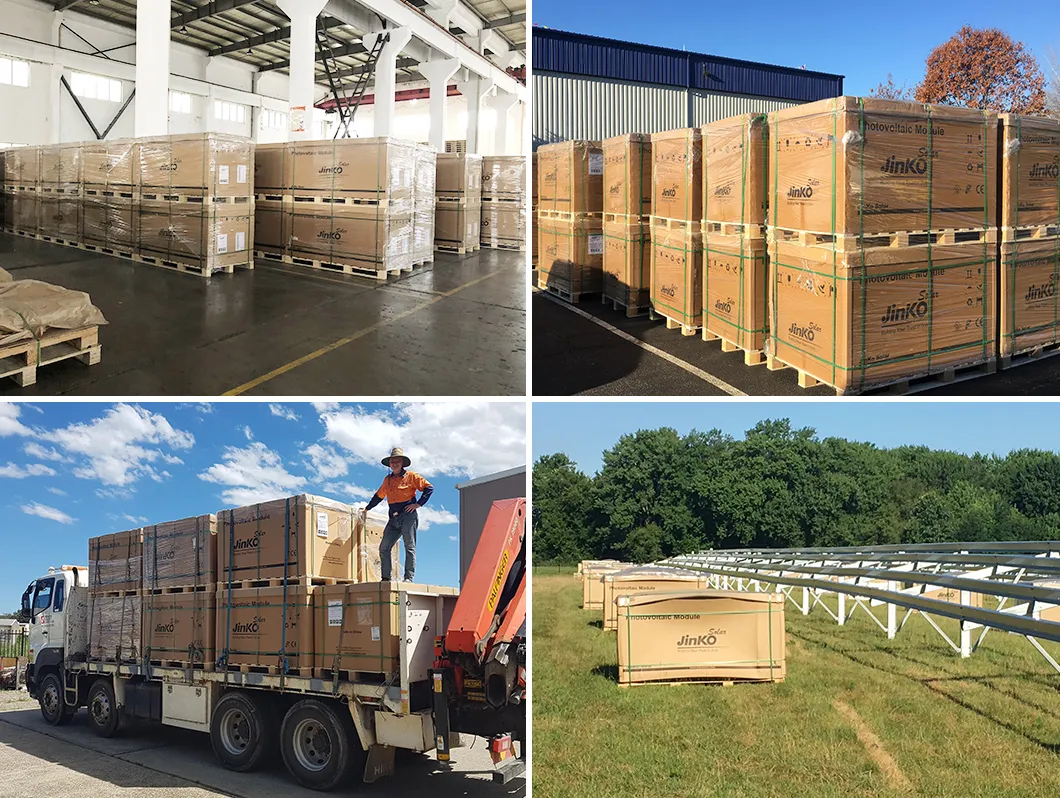

📦 Packaging & Delivery

Package Size	230.00cm * 115.00cm * 4.00cm
Package Gross Weight	30.000kg
Transport Package	Export Standard Box with Pallets

⚡ Product Description

Electrical Characteristics (Tiger Pro 72HC 550-570W)
Max Power (Pmax)	550Wp	555Wp	560Wp	565Wp	570Wp
Voltage (Vmp)	40.90V	40.99V	41.09V	41.21V	41.34V
Current (Imp)	13.45A	13.54A	13.63A	13.71A	13.79A
Open-circuit (Voc)	49.62V	49.72V	49.82V	49.93V	50.04V
Efficiency (%)	21.29%	21.48%	21.68%	21.87%	22.07%

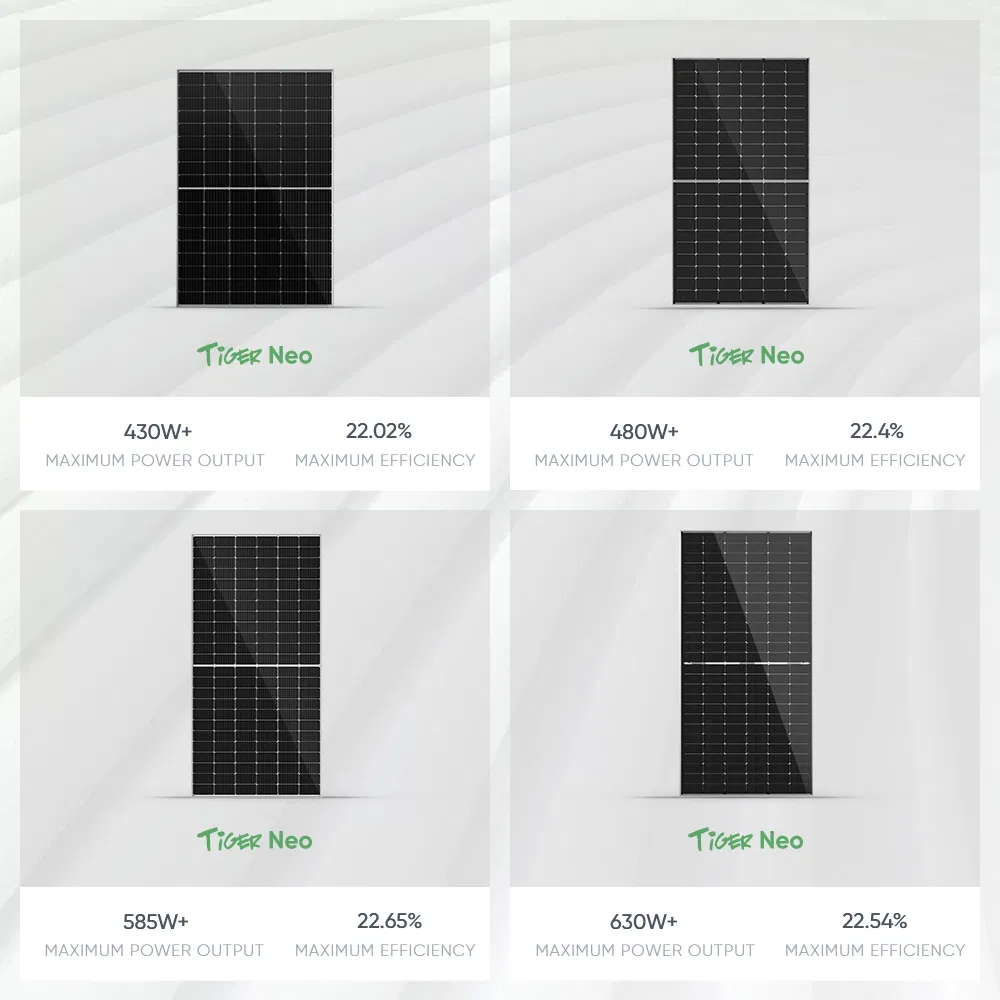

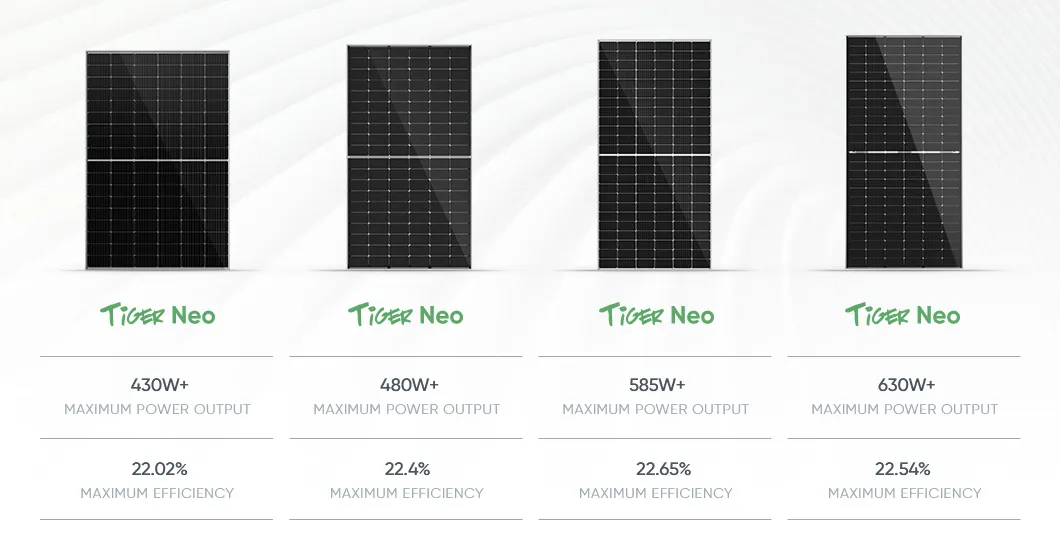

🏷️ Series Categories

Tiger Neo N-type 54HL4-(V)

Power Range: 410-430W
Cells: 108 cells
Dim: 1722×1134×30 mm
Weight: 22 kg

Tiger Neo N-type 60HL4-(V)

Power Range: 460-480W
Cells: 120 cells
Dim: 1903×1134×30 mm
Weight: 24.2 kg

Tiger Neo N-type 72HL4-(V)

Power Range: 565-585W
Cells: 144 cells
Dim: 2278×1134×35 mm
Weight: 28 kg

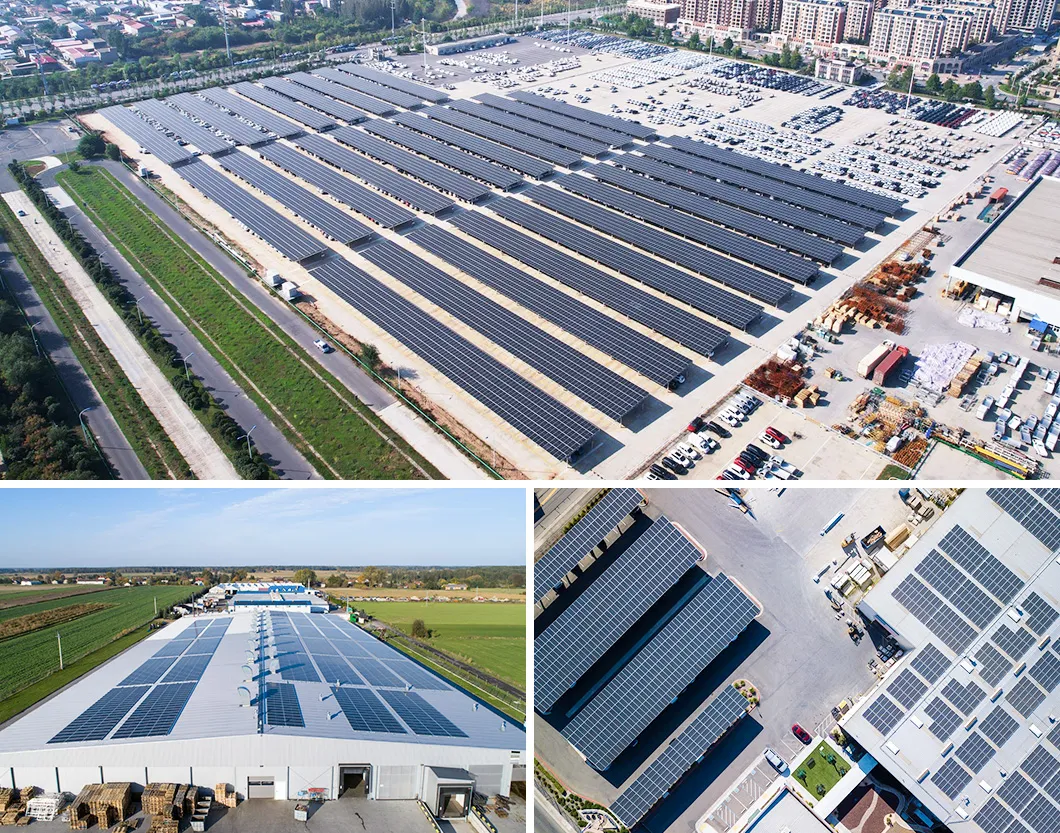

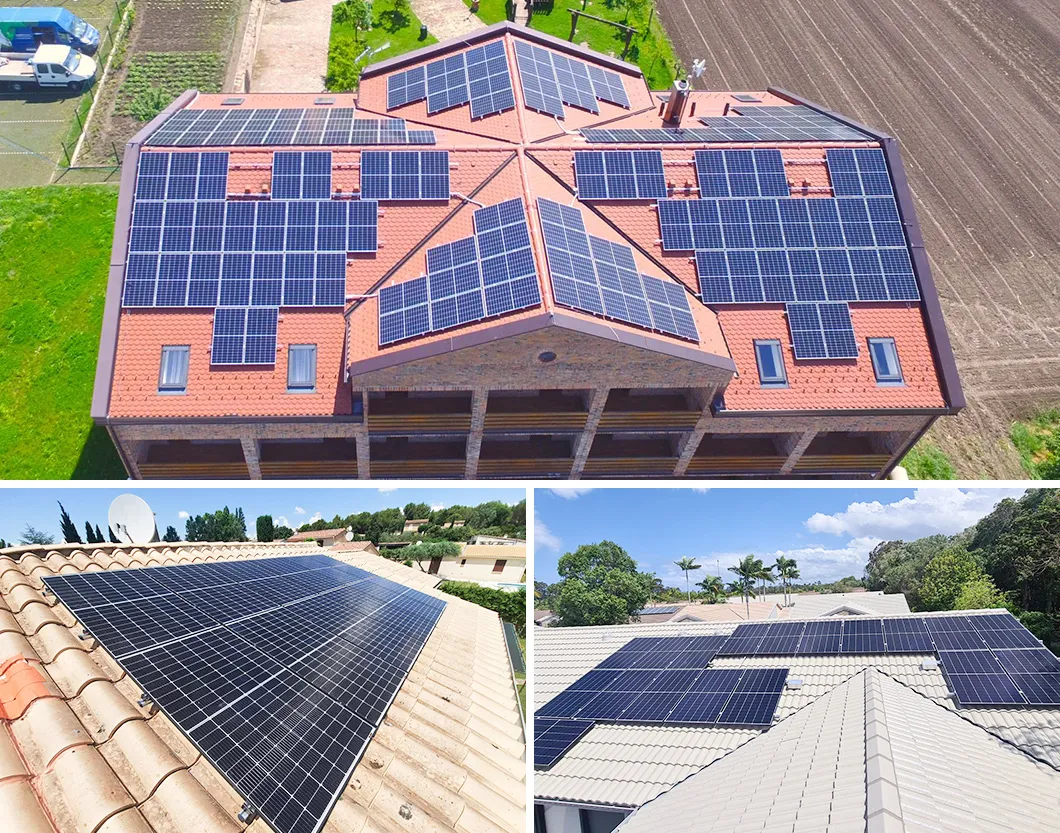

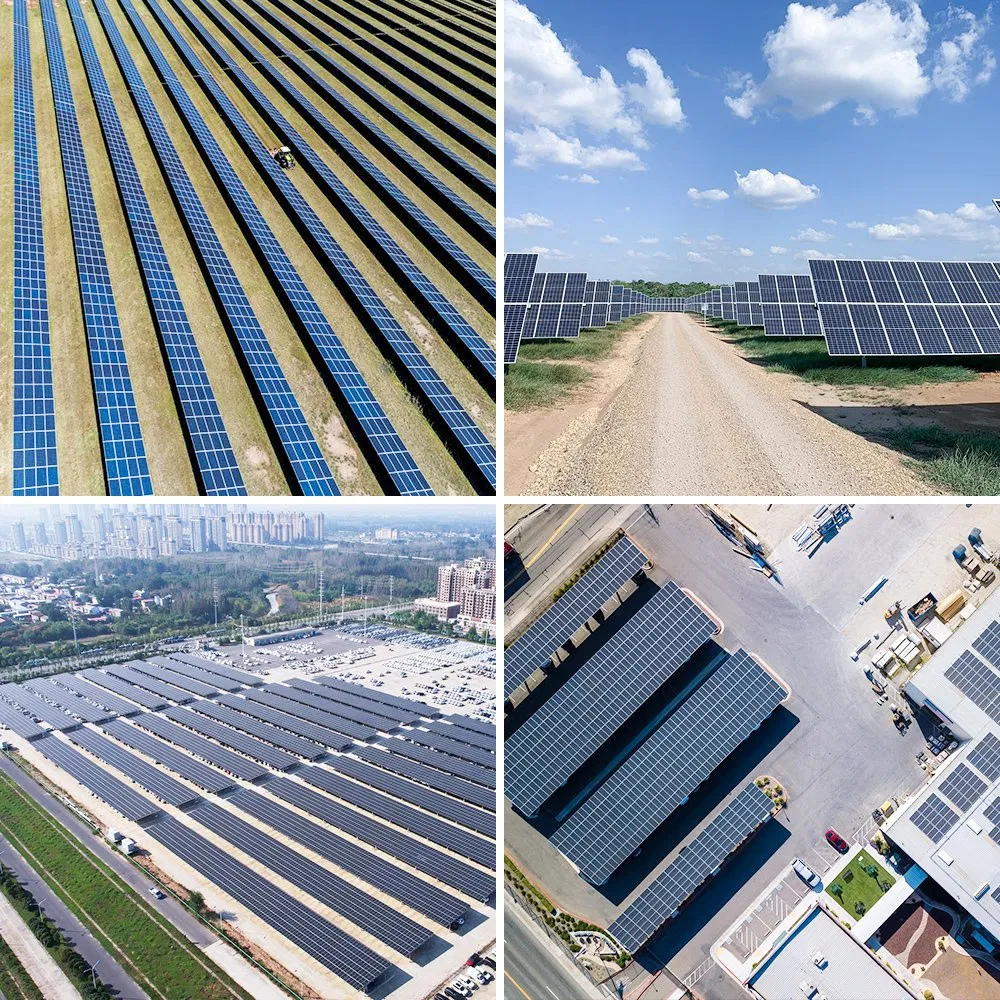

🌍 Global Projects & Quality

🏆

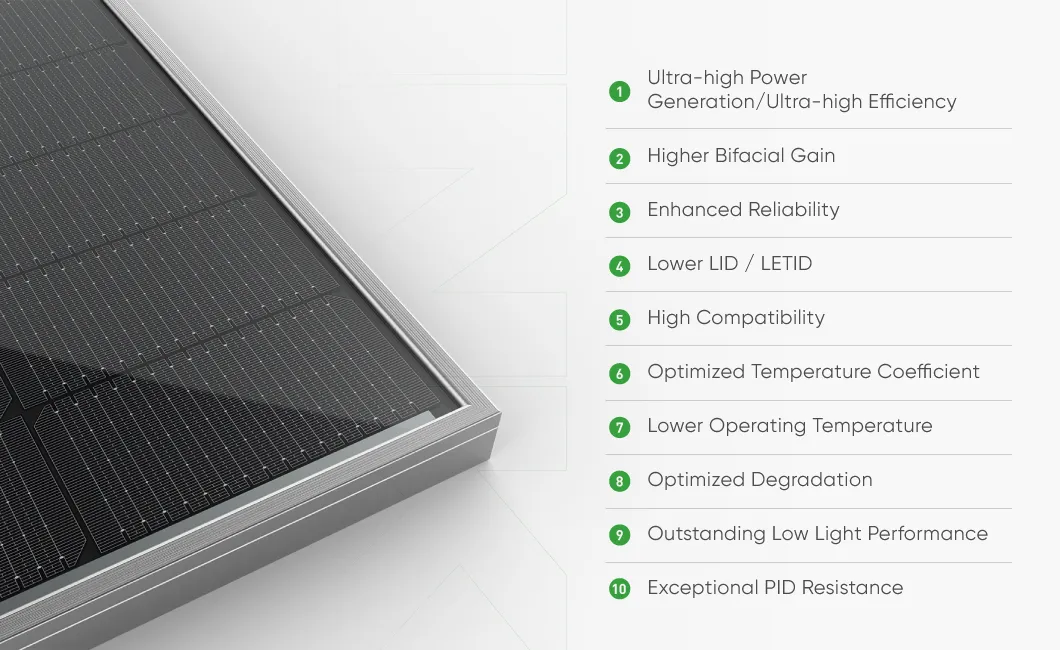

Tier 1 Solar Module excellence with advanced N-type technology for higher efficiency and lower degradation.

❓ FAQ

Can the product be shipped to my area?

We export to most countries/regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm delivery feasibility once you provide your specific region.

What about the lead time?

Approximately 10 working days for requirements under 200kW. For orders exceeding 200kW, the timeline will be negotiated based on production capacity.

How can I make payment?

We accept 100% TT, or a 30% TT advance payment with the remaining 70% TT due when goods are ready before shipment.

What is the warranty coverage?

12 years enhanced product warranty on materials and workmanship, and 25 years linear power output warranty.

Are these panels certified for international use?

Yes, all modules carry international certifications including ISO, CE, TUV, and CB, ensuring compliance with global safety and performance standards.

What is the advantage of N-type cells?

N-type technology offers higher power conversion efficiency, better performance in low-light conditions, and a lower temperature coefficient compared to traditional P-type cells.
