Jinko Tiger 500 570 580 W 78hl4 Wholesale Poly PV Fold Flexible Black Monocrystalline Polycrystalline Photovoltaic Module Mono Solar Sun Energy Power Cell Panel

Customization: Available
After-sales Service: Support
Warranty: 25 Years

Product Description

📋 Basic Information
Model NO.KM585-144Number of Cells72pcs
ApplicationLight IndustryConditionNew
CertificationEST, ISO, CB, CEMaterialMonocrystalline Silicon
ColourWhite and BlackGlassDouble and Single
FrameAnodized Aluminum AlloyTemperature-40° C~+85° C
Junction BoxIP68/Pass TUV CertificateTransport PackageCarton; Wooden Case; Pallet
HS Code8541430000Production Capacity50000 PCS/Year
🔍 Product Description

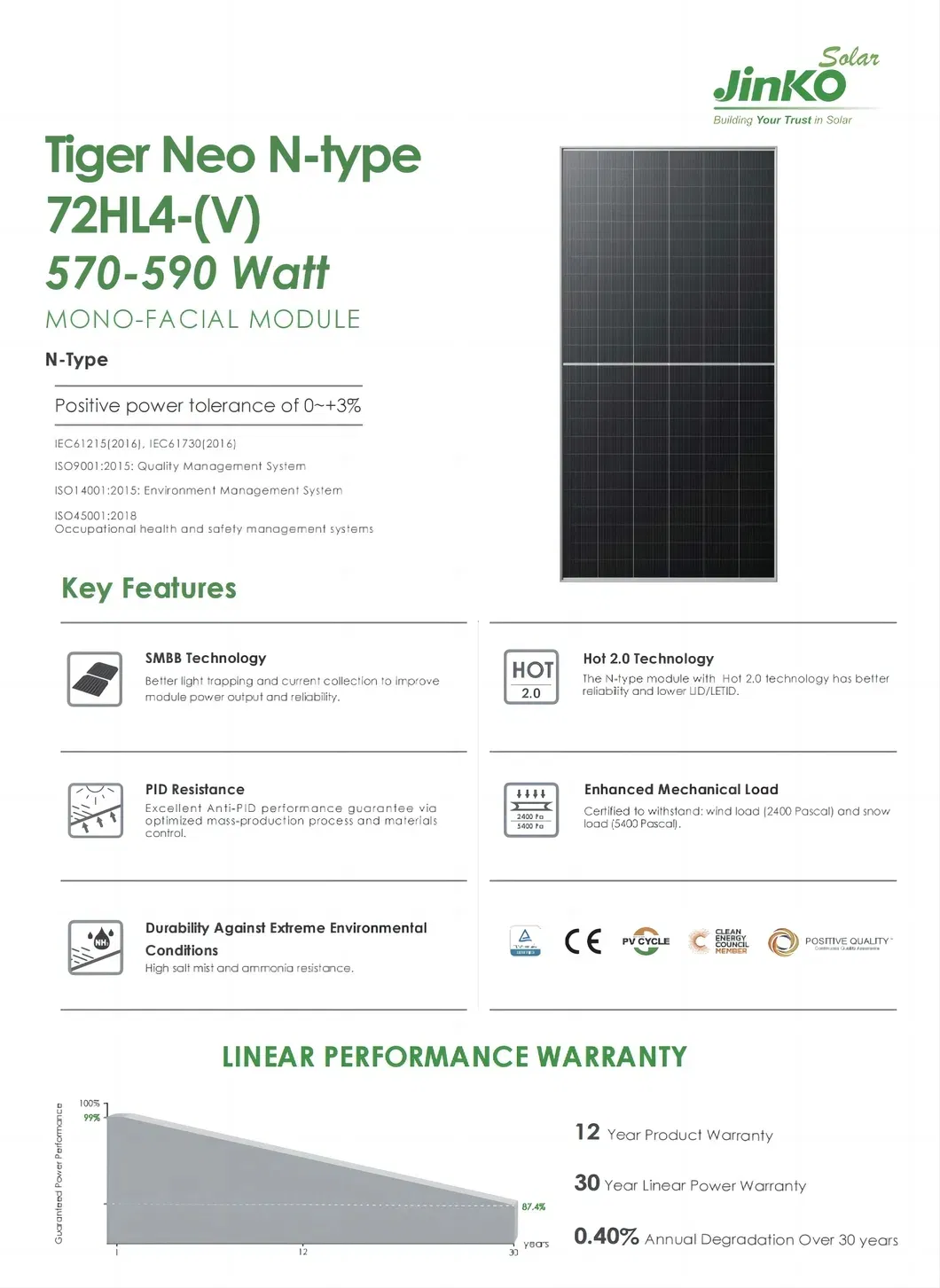

Photovoltaic Module
📊 Specifications
Maximum Power (Pmax) 570W 575W 580W 585W 590W
Maximum Power Voltage (Vmp)42.99V43.17V43.35V43.53V43.71V
Maximum Power Current (Imp)13.26A13.32A13.38A13.44A13.50A
Open Circuit Voltage (Voc)51.99V52.15V52.31V52.47V52.63V
Short Circuit Current (Isc)13.89A13.95A14.01A14.07A14.13A
Module Efficiency (%)21.0722.2622.4522.6522.84
Temperature Coefficient of Pmax: -0.29%/°C
Power Output Tolerance: 0~+3 W
Operation Temperature: -40° C~+85° C
📷 Detailed Photos

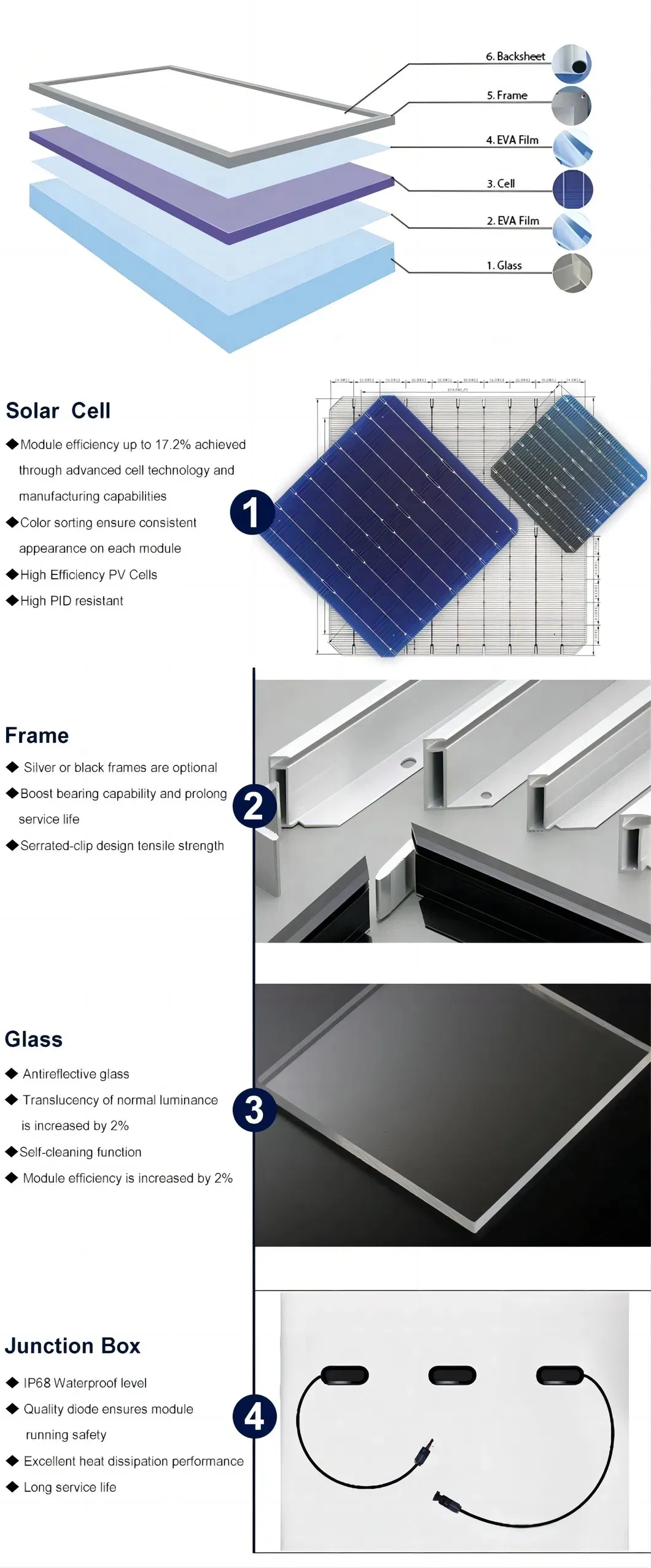

Technical Details
⚙️ Product Parameters
Solar Cell Low Lid Mono Perc, 9bb Half Cut Degradation First Year < 2%, 0.55% Year 2~25
Output Cable 4.0mm2, 300mm or Customized Glass 3.2mm Tempered, Low Iron High Transmittance
Wind/Snow Load 5400/2400PA Hailstone Test 25mm Hailstone at 23m/S
Dimensions 2182*1029*35mm Product Class 100% A Grade
📜 Certifications

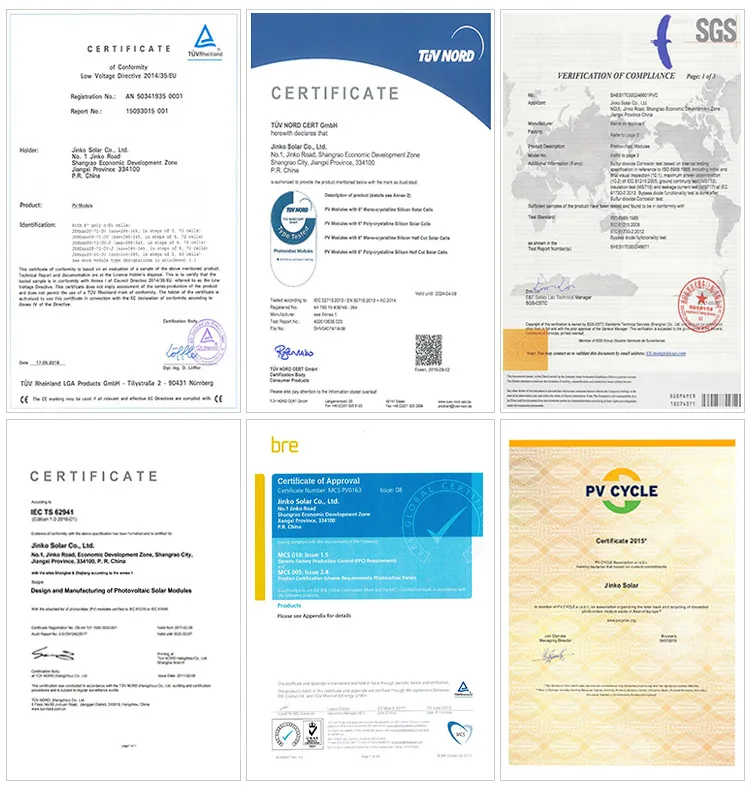

Quality Certifications
📦 Packaging & Shipping

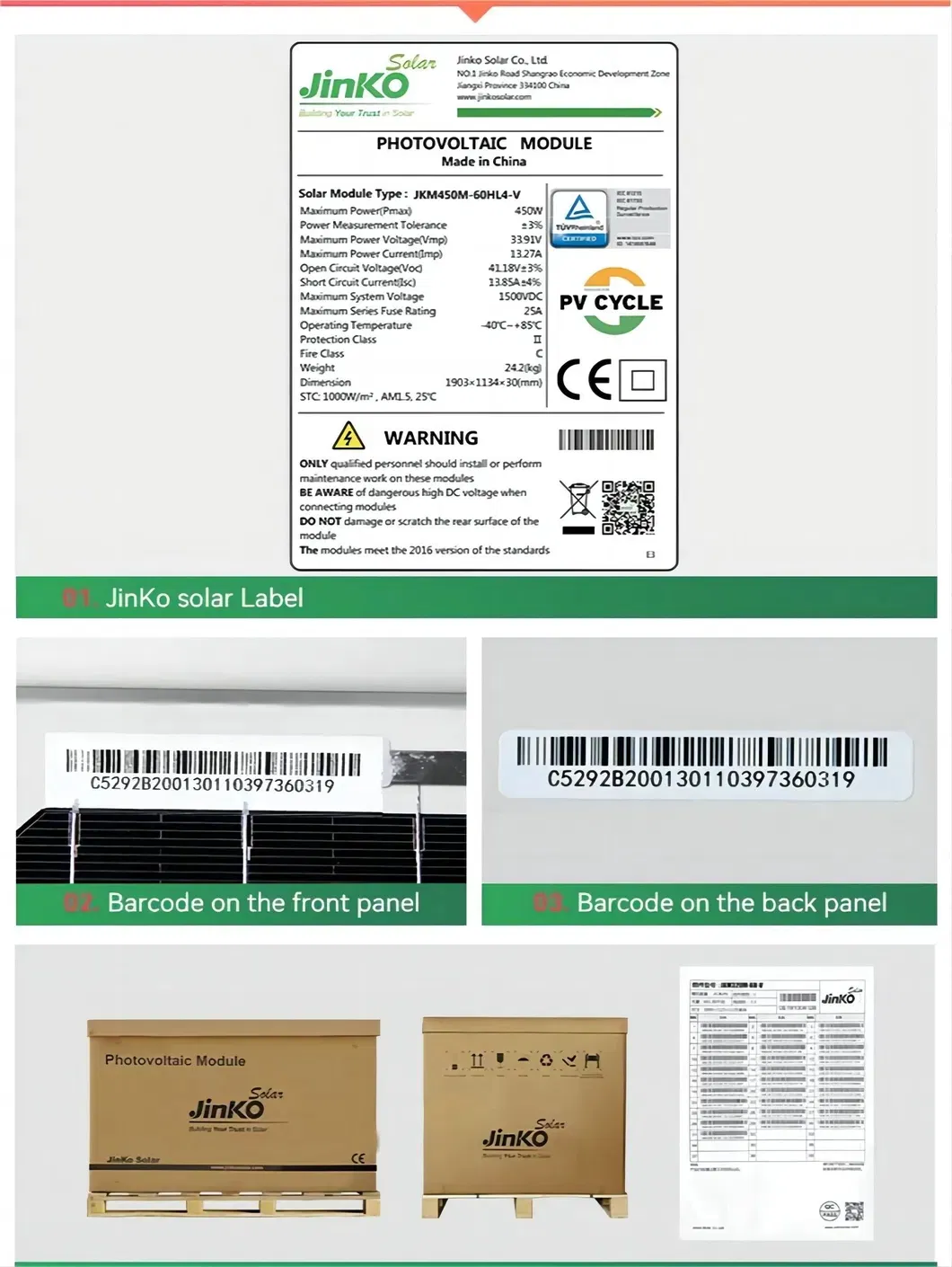

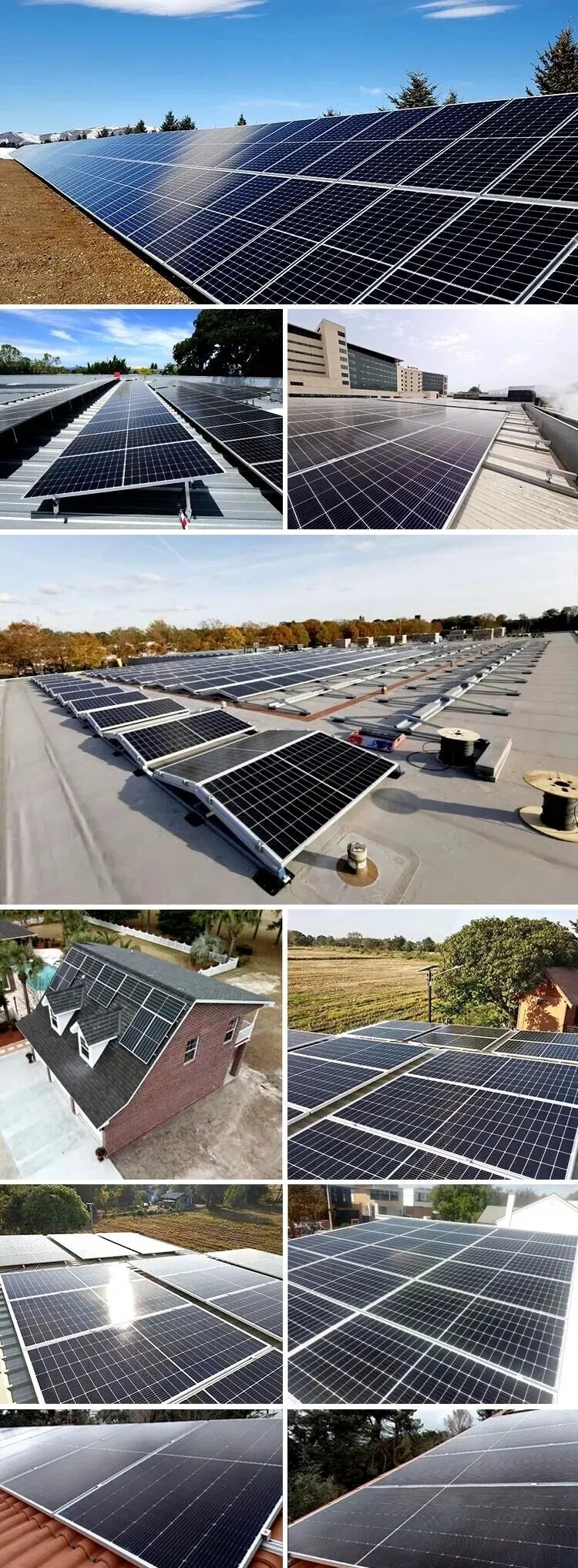

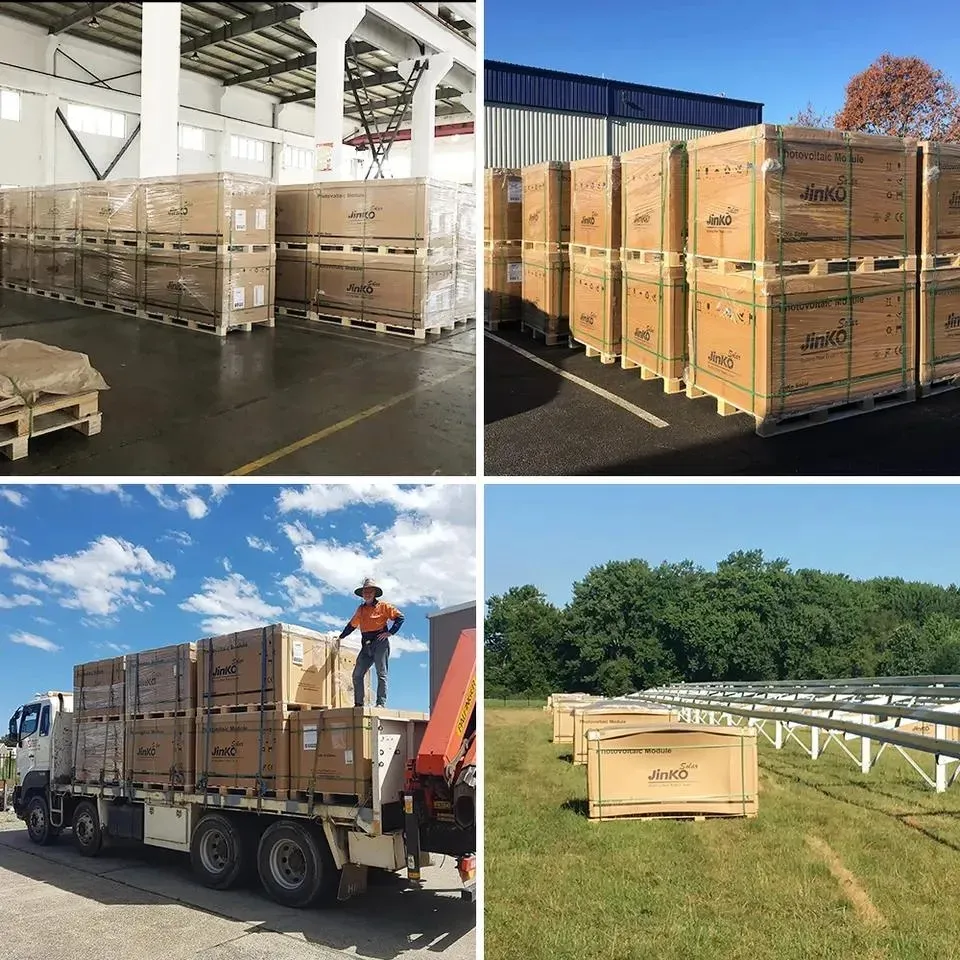

Packaging Process 1 Packaging Process 2 Shipping Logistics
Why Choose Our Solutions

We stand as a professional manufacturer with over 15 years of expertise in the solar industry, focusing on quality and innovation.

🚀 Diverse Portfolio: Poly and mono solar panels, solar batteries, power systems, inverters, and solar air-conditioning.
🌍 Global Reach: Bespoke solutions serving clients across more than 60 countries in Europe, Asia, the Americas, and Africa.
💎 Quality Commitment: 100% A Grade product classes with rigorous testing standards.

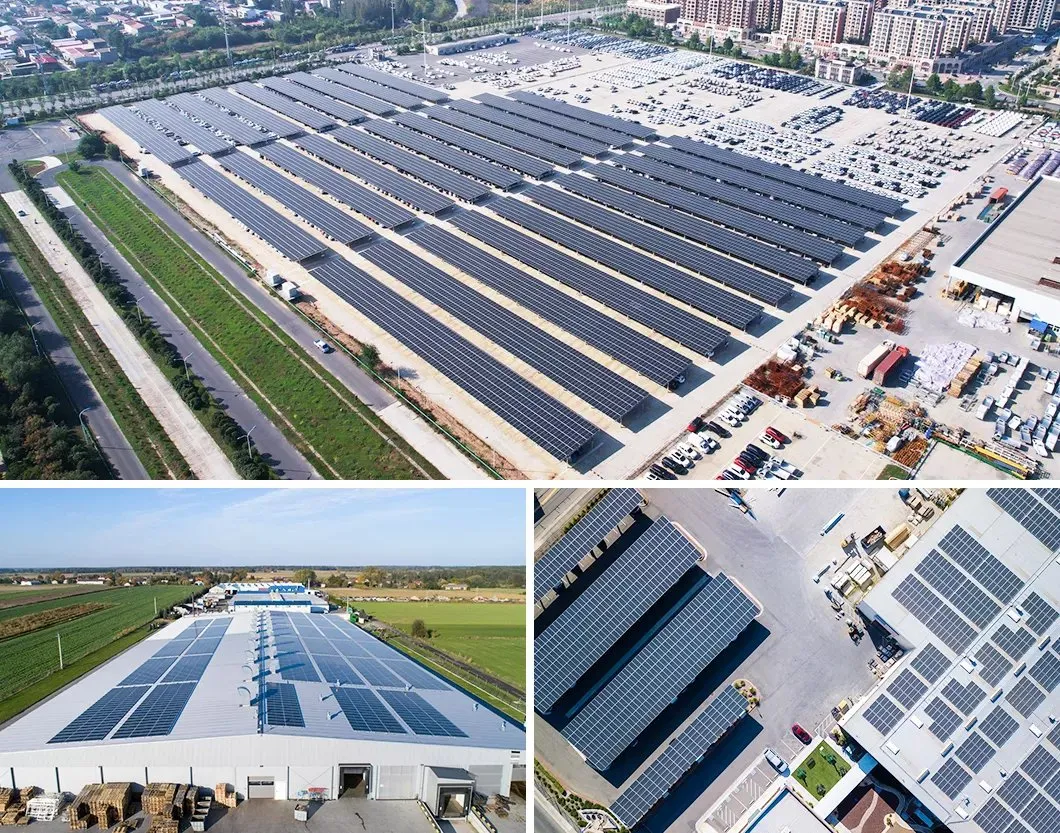

Production Facility Global Supply
Frequently Asked Questions
1. How can we guarantee product quality? We employ the latest state-of-the-art fully automatic production equipment and a rigorous, step-by-step final inspection system to ensure every product is thoroughly vetted before shipment.
2. What specific products can you purchase from us? We offer high-efficiency Solar Panels and complete solar system sets tailored to residential, commercial, and industrial needs.
3. What are the available delivery and payment terms? We offer FOB, CIF, EXW, and Express Delivery. We accept multiple currencies (USD, EUR, CNY, etc.) via T/T and Cash payments.
4. What is the typical lead time for orders? Typically, orders are processed and ready for dispatch within 15 working days following the receipt of advance payment.
5. Do you support customized technical specifications? Yes, we provide customization options for cable lengths, frame colors, and specific connector types to meet your local installation requirements.
6. Is the glass on the panels durable enough for extreme weather? Our panels use 3.2mm tempered low-iron glass, tested to withstand 25mm hailstones at speeds of 23m/s and heavy snow loads up to 5400PA.
