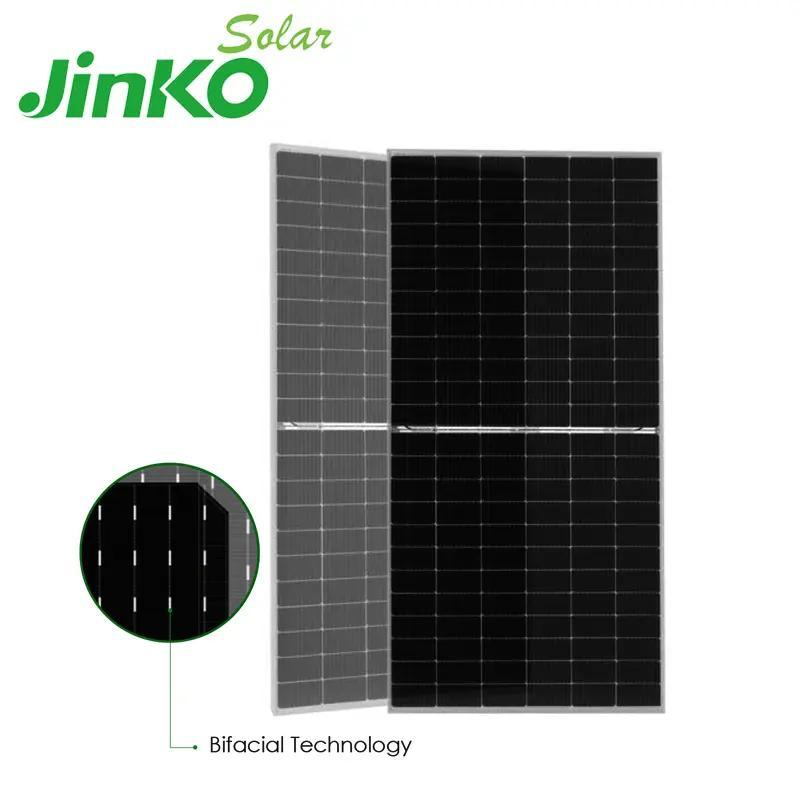

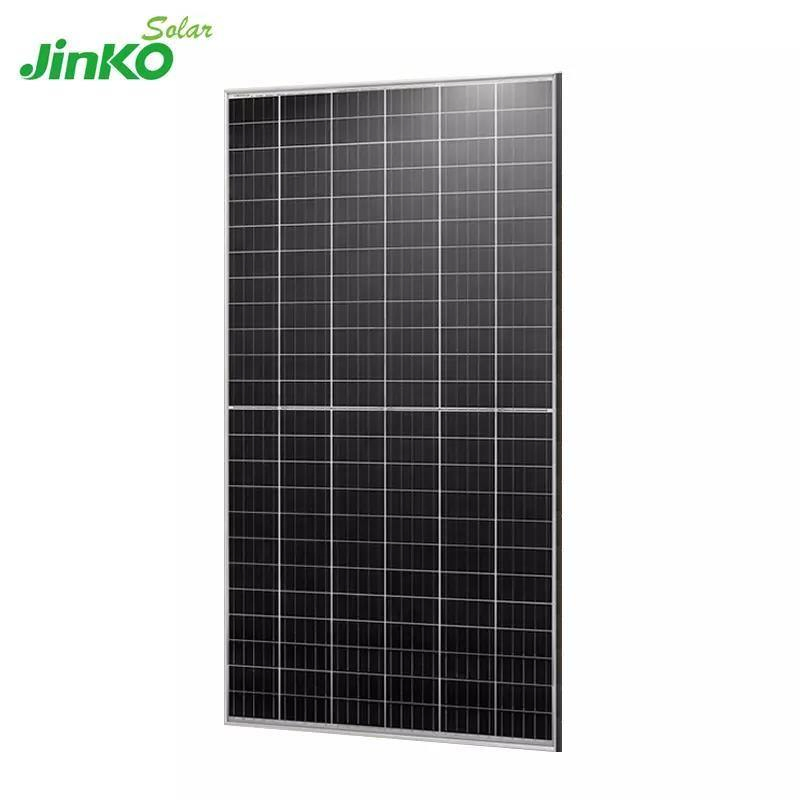

Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
1 / 5
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System
Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System

Jinko Solar Panel Price 560W 570W 580W 575W 585W 590W Bifacial PV Panels Original Jinko Photovoltaic Solar Energy Panel 620W 630W 720W for Solar Power System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.

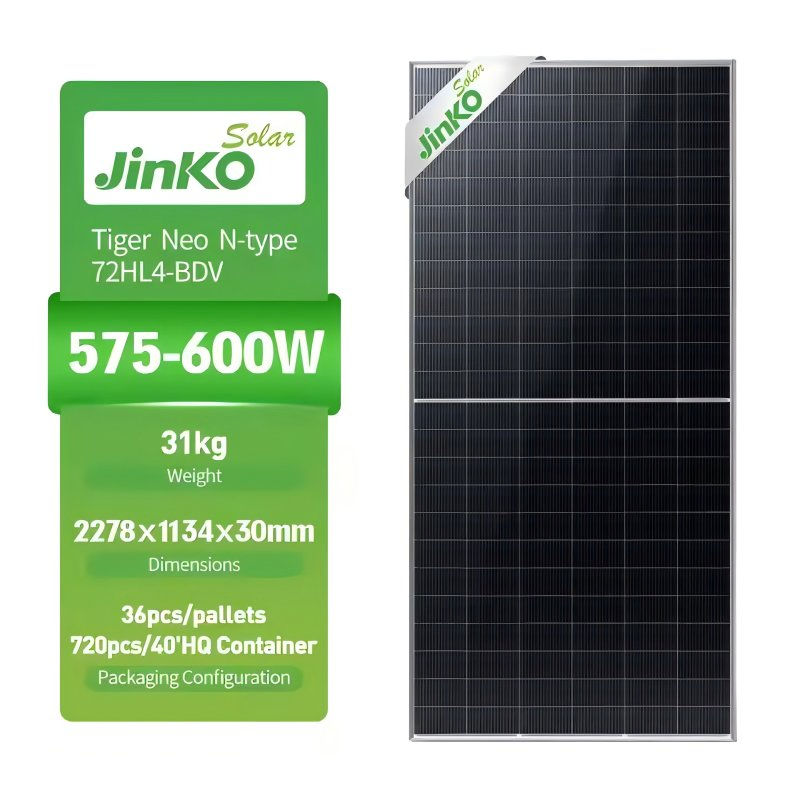

Tiger Neo N-type 72HL4-BDV 575-600 Watt
Number of Cells
144cells
Application
Solar System
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Weight
31 Kg
Packing
36PCS/Pallets
Junction Box
IP68 Rated
Frame
Anodized Aluminium Alloy
Trademark
Jinko
Specification
2278*1134*30mm
Package Size
227.80cm * 113.40cm * 3.00cm
★

Product Highlights

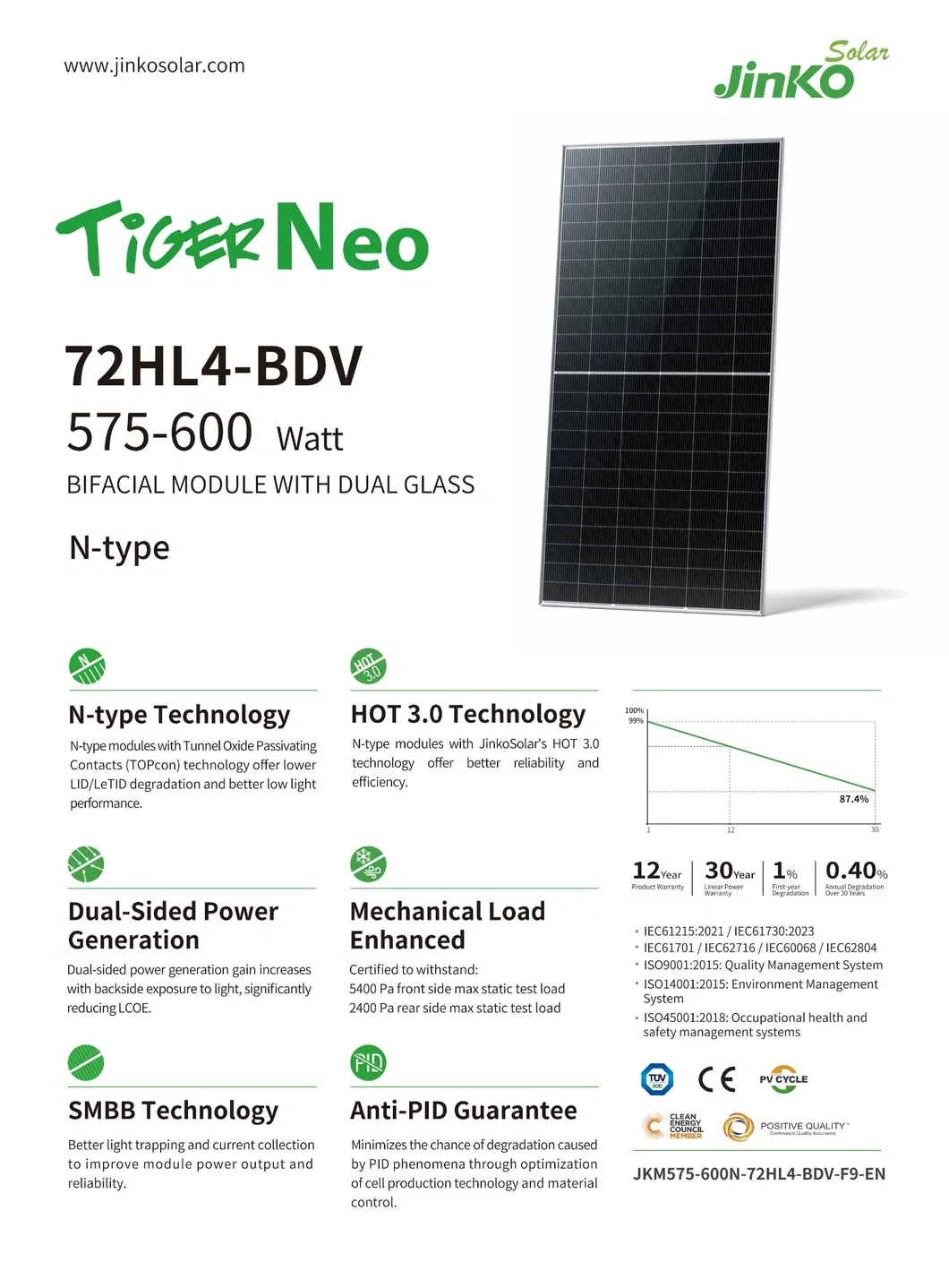

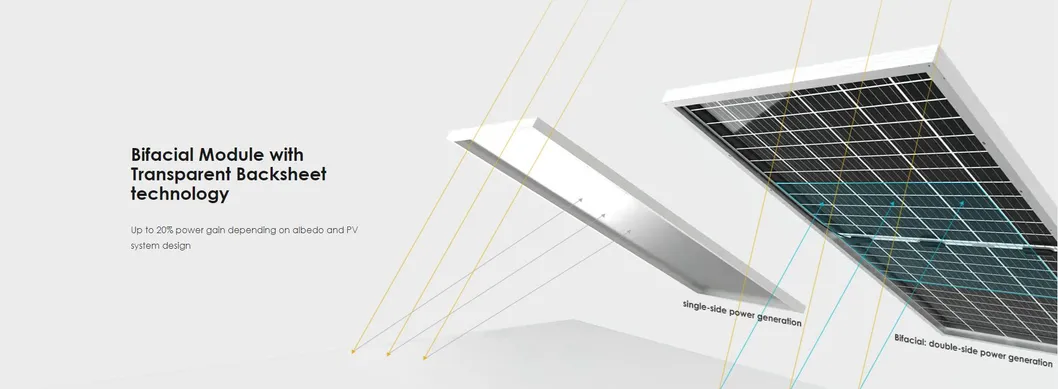

Solar Panel Overview Technical Design
SPECIFICATIONS (STC)
Maximum Power (Pmax) 585Wp 590Wp 595Wp 600Wp
Maximum Power Voltage (Vmp) 44.02 44.17 44.31 44.45
Maximum Power Current (Imp) 13.29 13.36 13.43 13.50
Open-circuit Voltage (Voc) 52.70 52.90 53.10 53.30
Short-circuit Current (Isc) 14.01 14.07 14.13 14.19
Module Efficiency STC (%) 22.65 22.84 23.03 23.23
Operating Temperature -40ºC~+70ºC
Product Detail 1
Product Detail 2
Divider

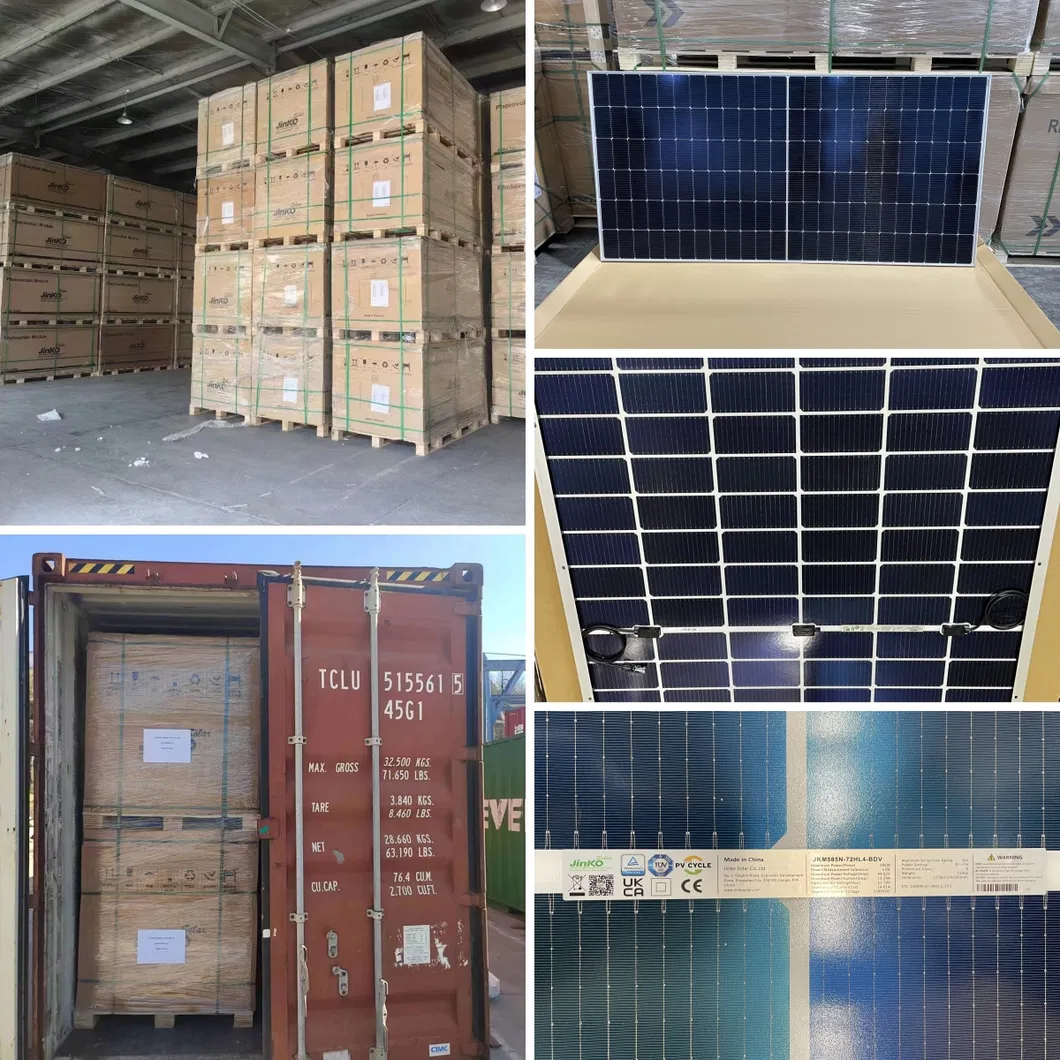

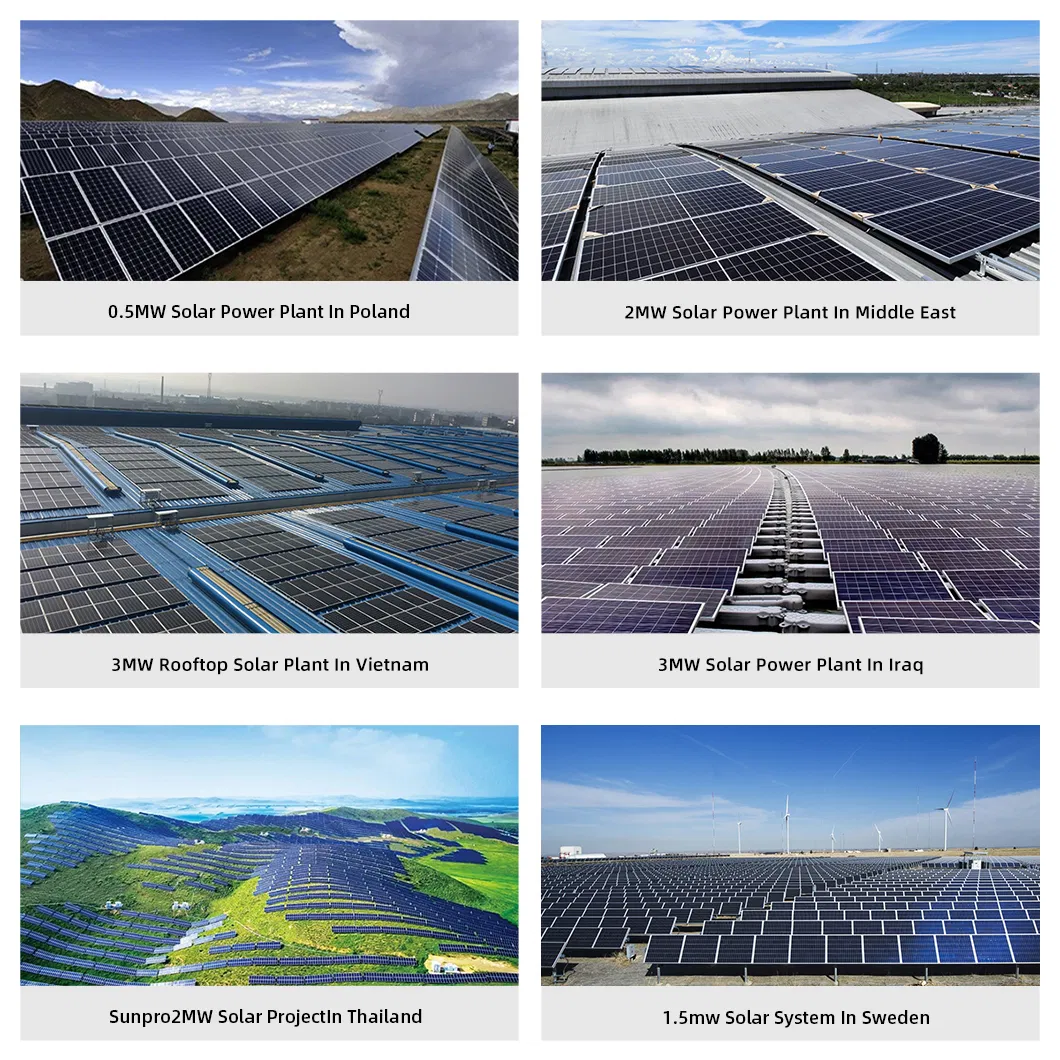

Product Application
Production Line
Quality Test
Certifications Footer
?

Frequently Asked Questions

What are the power options for the Tiger Neo N-type series?
The Tiger Neo N-type series offers high-efficiency performance ranging from 575W to 600W.
What is the bifaciality coefficient of these PV panels?
These panels feature an excellent bifaciality coefficient with φPmax at 80±5%, allowing significant energy gain from the rear side.
How many solar cells are integrated into one module?
The module consists of 144 N-type monocrystalline cells arranged in a 2x72 configuration.
What is the durability rating for the junction box?
The junction box is IP68 rated, ensuring the highest level of protection against dust and water ingress in various weather conditions.

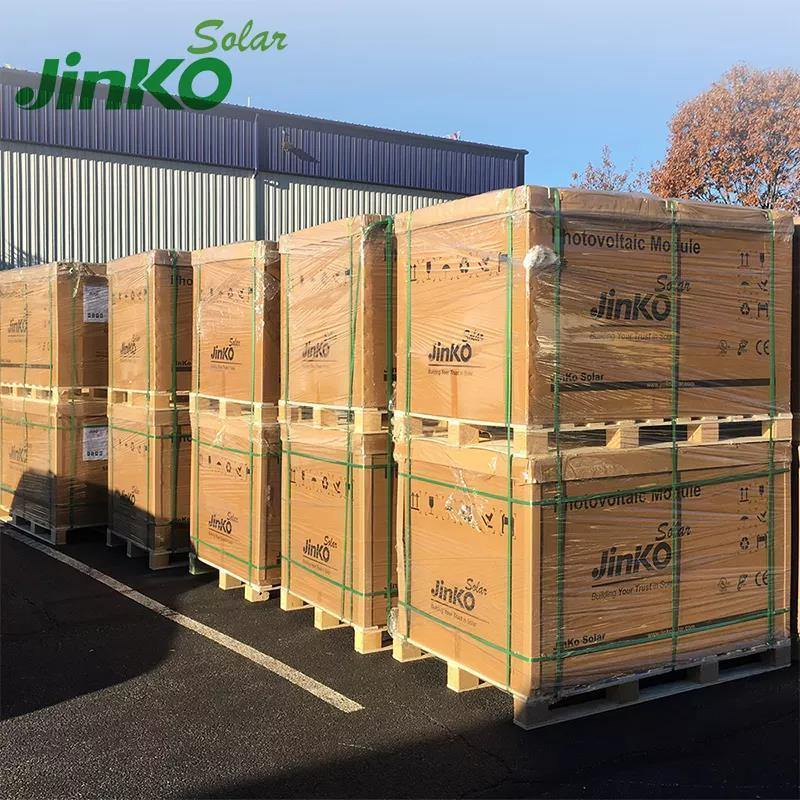

What is the standard packaging configuration for large orders?
Standard packaging includes 36 pieces per pallet, with a total of 720 pieces fitting into a 40'HQ container.
Can these panels operate in extreme temperatures?
Yes, the panels are designed to operate in a wide temperature range from -40ºC to +70ºC.
