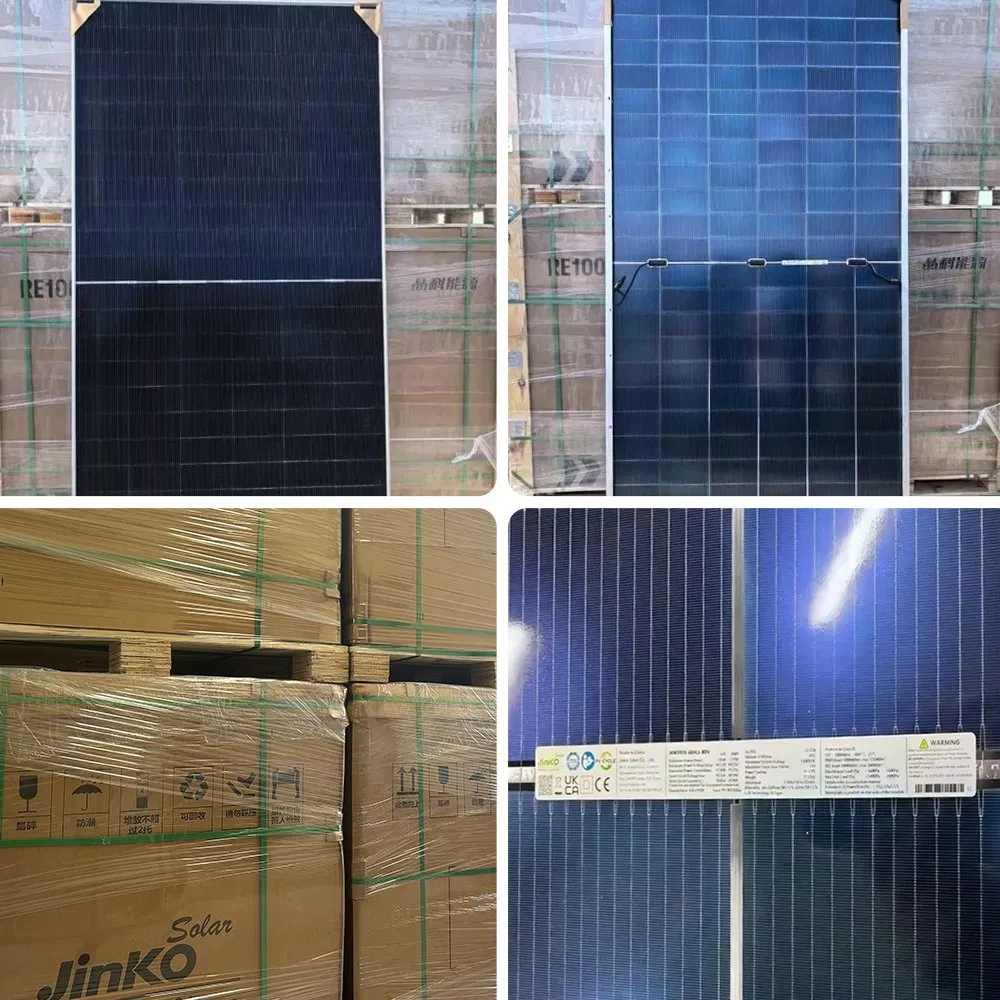

Jinko Mono Hjt Bifacial Solar Panels 600W 550 W 750 Watt 800 Watt Home Use Topcon Solar Panel

Customization: Available
After-sales Service: 30 Years
Warranty: 30 Years

Product Description

Basic Information

Model NO.
Tiger Neo N-type 66HL5-B
Number of Cells
132 Cells
Application
Residential, Commercial, Industrial
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Panel Efficiency
22%
Type
Bifacial, Double-glass, N-TYPE, TOPCON
Cell size
210mmx210mm
Junction Box
IP68 Rated, 3 Diodes
Max Voltage
1500 VDC (IEC)

Product Description

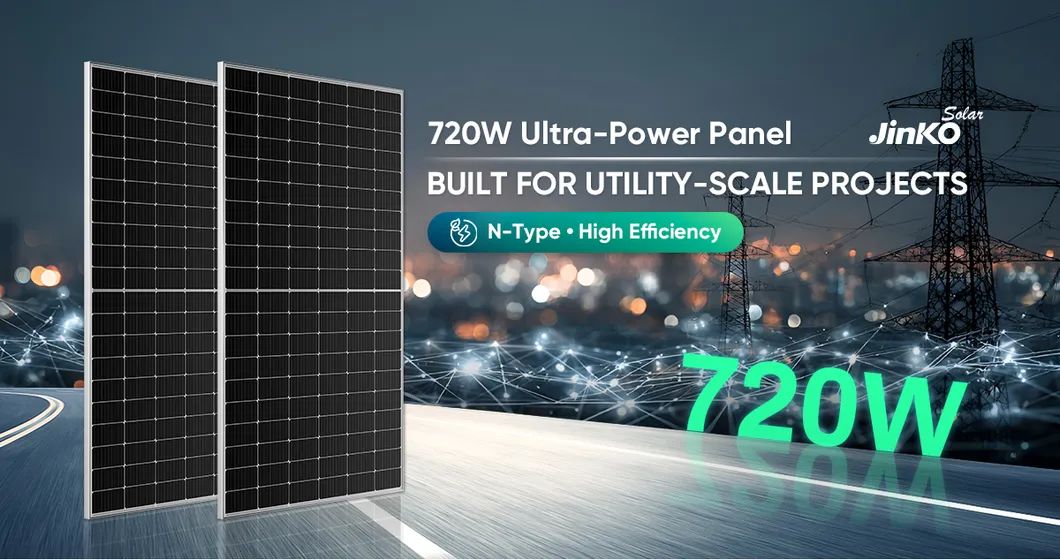

Solar Panel Overview

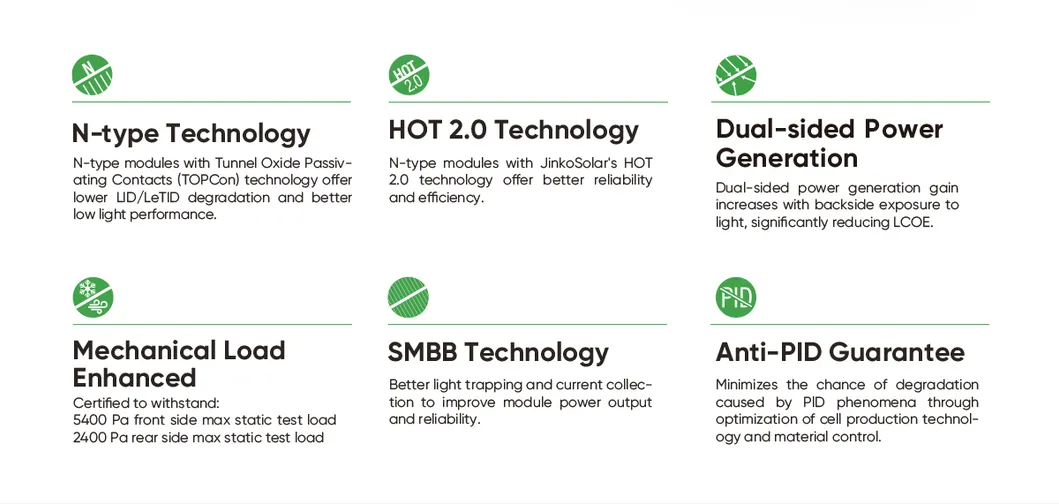

Solar Panel Features
ELECTRICAL DATA (STC)
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5. Measuring Tolerance: ±3%.
Model Cell Types Watts Cells Size Package
Tiger Neo N-type 54HL4-B N type mono 182×182mm 395-415W 108 (6×18) 1722×1134×30mm 36pcs/pallet
Tiger Neo N-type 54HL4-B N type mono 182×182mm 410-430W 108 (6×18) 1722×1134×30mm 36pcs/pallet
Tiger Neo N-type 72HL4-BDV N type mono 182×182mm 555-575W 144 (6×24) 2278×1134×35mm 31pcs/pallet
Tiger Neo N-type 66HL5-B N type mono 210×210mm 710-735W 132(66x2) 2384x1303x33mm 33pcs/pallet

Tier 1 Solar Module & Certification

Tier 1 Status
Module Details
Certificates

N-Type VS P-Type Technology

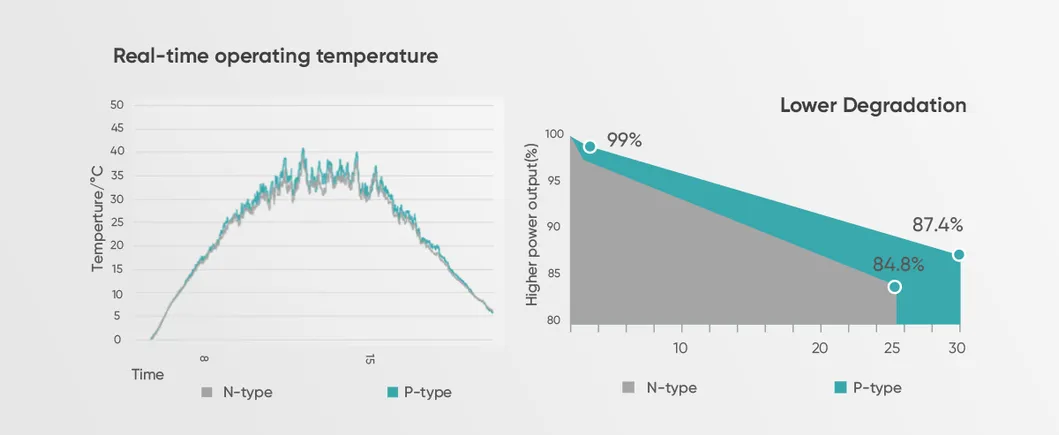

Technology Comparison
The Advantage of N Type:
Optimized Temperature Coefficient -0.29%/ºC. Under high temperature conditions, Tiger Neo can generate 2% more power than P-type (which averages -0.35%/ºC).

Limited Warranty

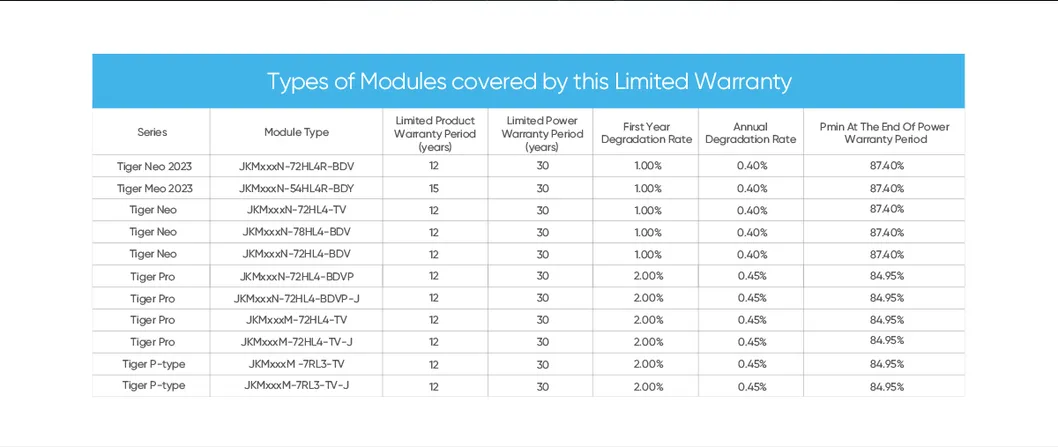

Warranty Chart

Warranties are provided to the original purchaser and its successors with respect to solar modules sold under agreements signed on or after 1st April, 2023.

Frequently Asked Questions

What is the efficiency of the Tiger Neo N-type panels?
The Tiger Neo N-type panels feature a high module efficiency of up to 22%, utilizing TOPCon technology for superior performance.
Why is N-type technology better than P-type?
N-type cells have a lower temperature coefficient (-0.29%/ºC), which means they perform better in hot climates and experience less degradation over time compared to P-type cells.
Are these solar panels bifacial?
Yes, these models are bifacial and double-glass, allowing them to capture sunlight from both the front and back sides, increasing total energy yield.
What certifications do the modules carry?
The panels are fully certified with ISO, CE, CB, and TUV standards, ensuring they meet global safety and quality requirements.
What is the maximum system voltage for these panels?
The maximum system voltage is 1500 VDC (IEC), which allows for longer strings and reduced BOS (Balance of System) costs in large installations.
How are the panels packaged for transport?
Panels are securely packed in cartons with pallets, typically with 31 to 36 pieces per pallet depending on the specific model size.
