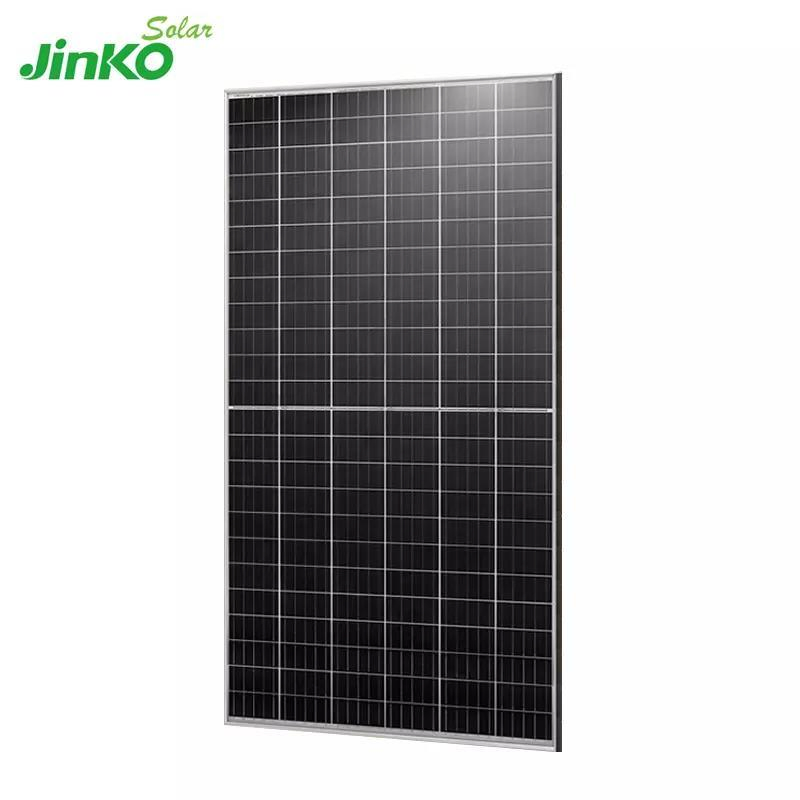

Tier 1 Brand Jinko Bifacial Solar Panel 550W 570W 575W 580W 590W Jinko Solar Panel Price 620W 630W 710W 730W Monocrystalline Half Cell Fotovoltaic Panel

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

i Basic Information

Model NO.

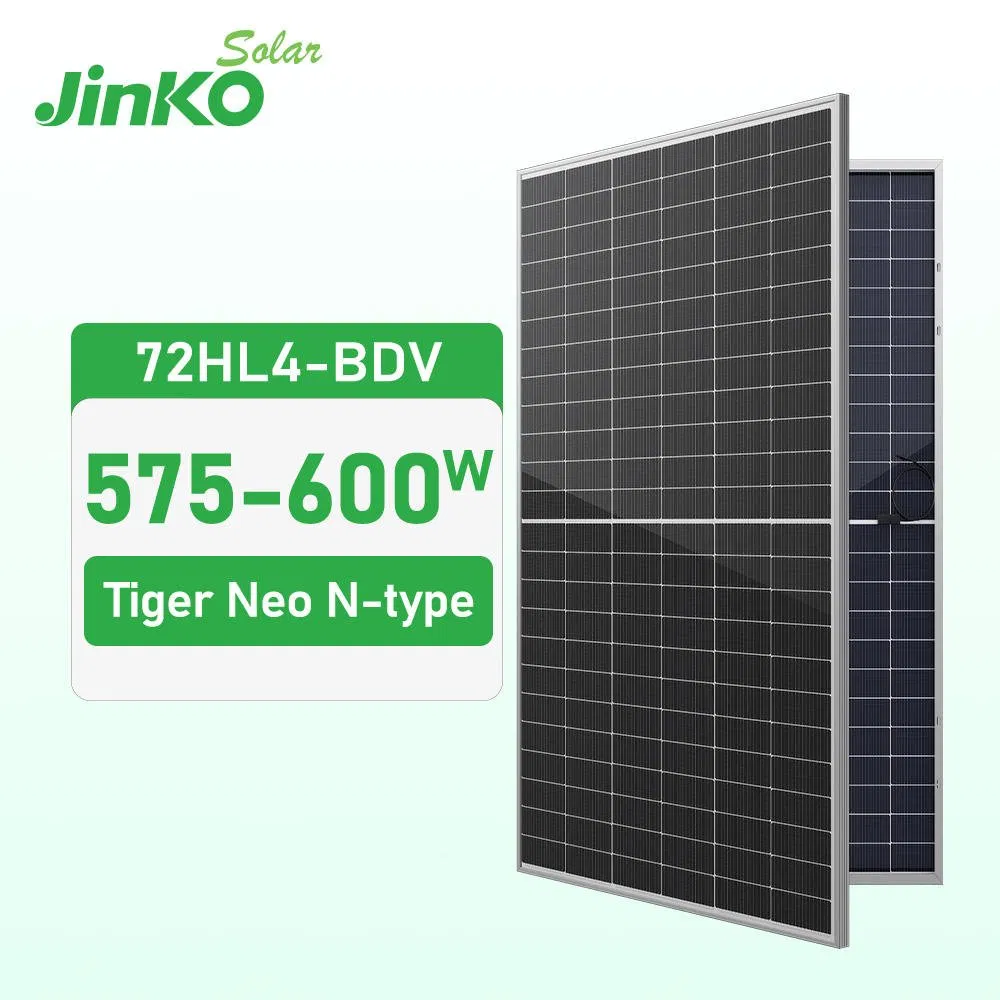

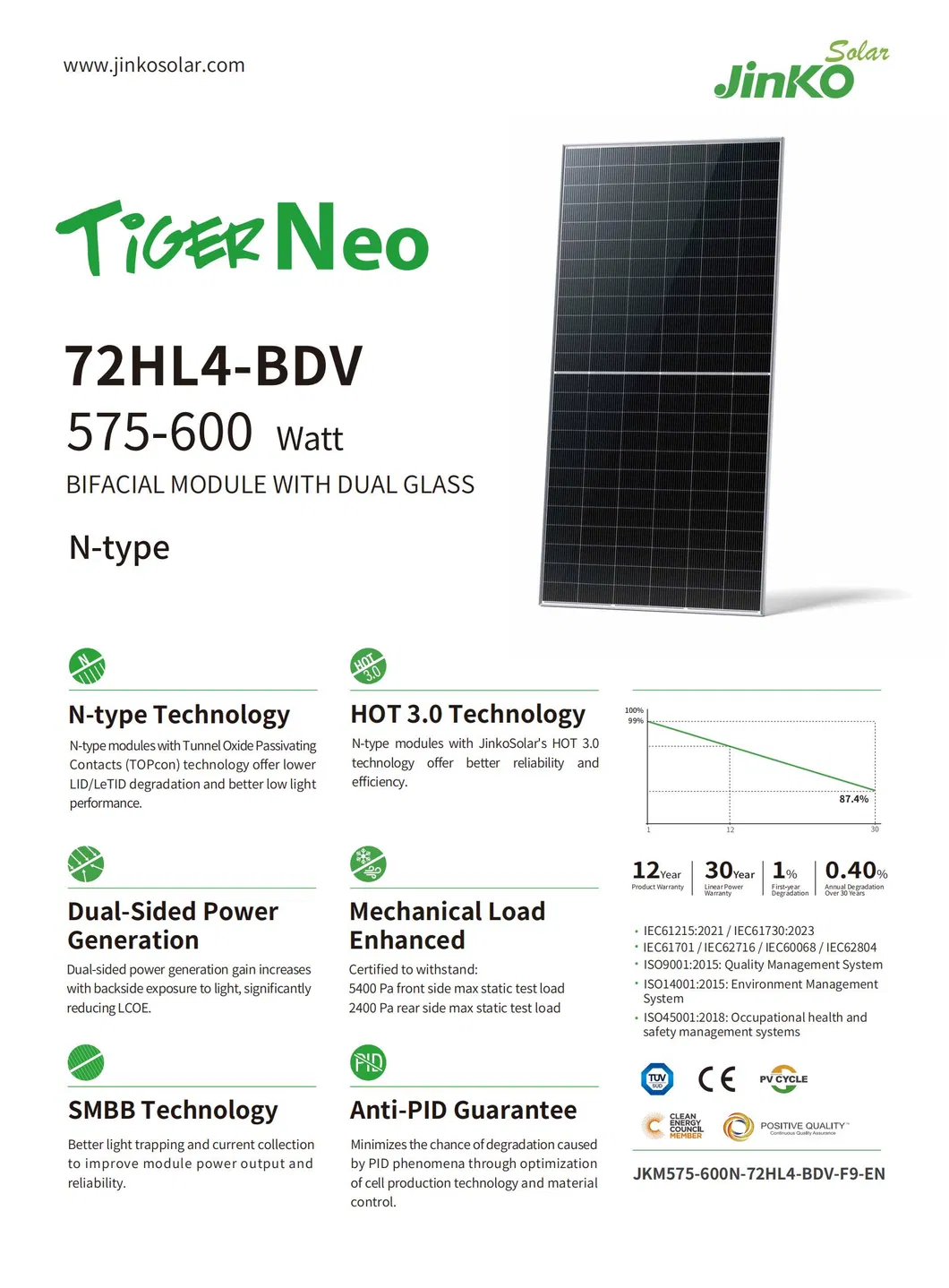

Tiger Neo N-type 72HL4-BDV 560-580 Watt

Number of Cells

144 cells

Application

Solar System

Condition

New

Certification

EST, ISO, CB, CE

Material

Monocrystalline Silicon

Weight

31 Kg

Packing

36PCS/Pallets

Junction Box

IP68 Rated

Frame

Anodized Aluminium Alloy

Specification

2278*1134*30mm

Origin

China

P Product Description

ELECTRICAL SPECIFICATIONS (STC)
Maximum Power (Pmax)	585Wp	590Wp	595Wp	600Wp
Maximum Power Voltage (Vmp)	44.02	44.17	44.31	44.45
Maximum Power Current (Imp)	13.29	13.36	13.43	13.50
Open-circuit Voltage (Voc)	52.70	52.90	53.10	53.30
Module Efficiency (%)	22.65	22.84	23.03	23.23

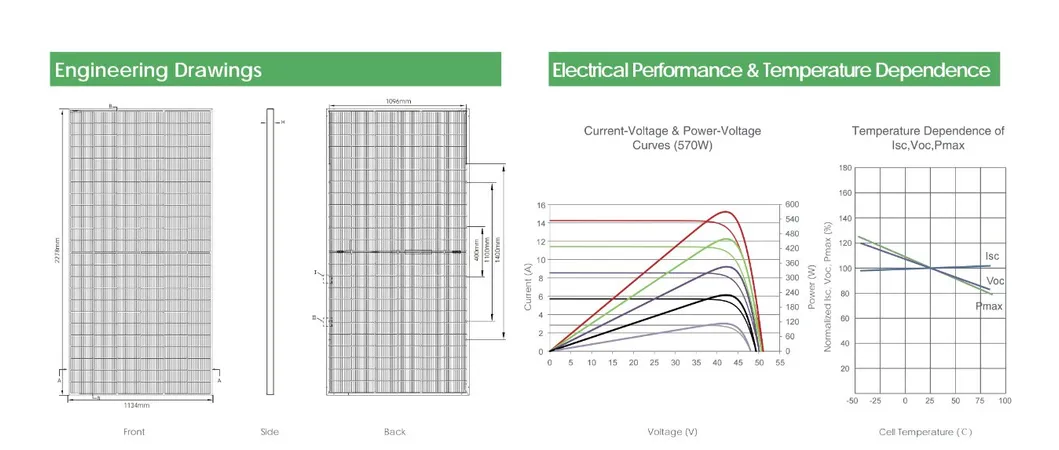

MECHANICAL CHARACTERISTICS
Cell Type	N type Mono-crystalline
Dimensions	2278×1134×30mm
Front Glass	2.0mm, Anti-Reflection Coating
Junction Box	IP68 Rated, 3 bypass diodes

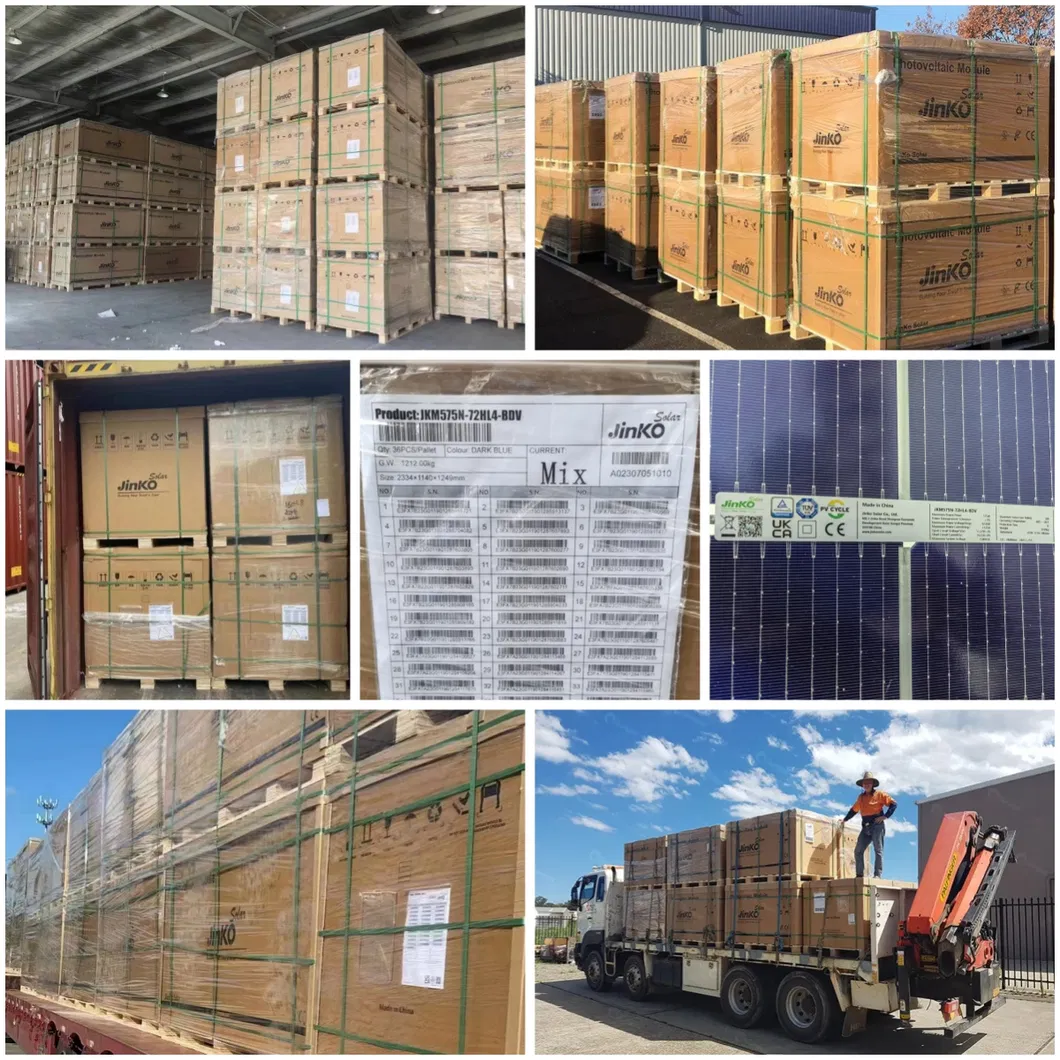

L Logistics Information

Package Size

227.80cm * 113.40cm * 3.00cm

Gross Weight

31.000kg

Loading Capacity

720PCS/ 40'HQ Container

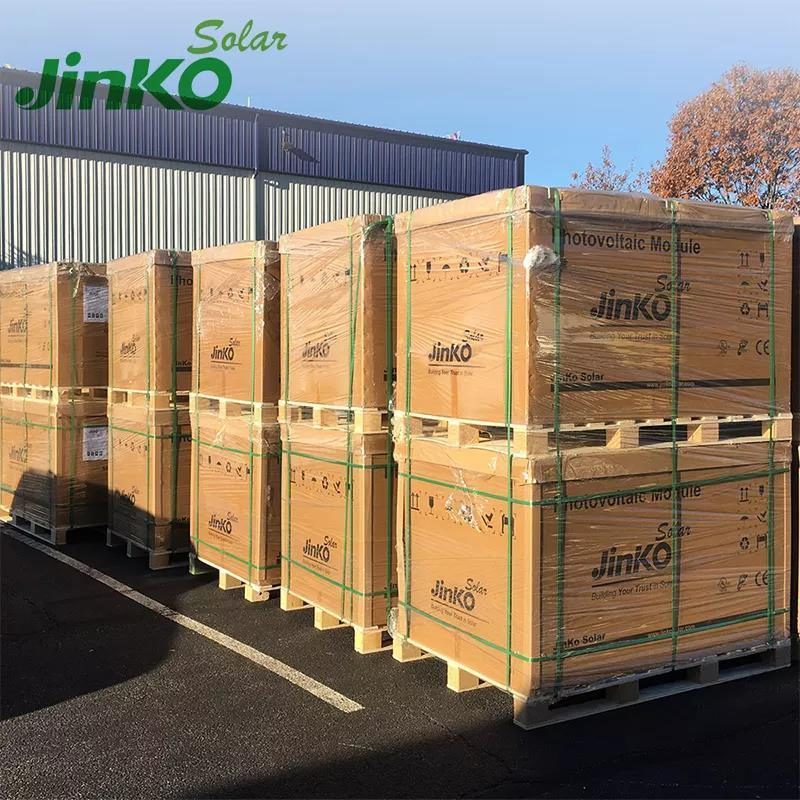

Packing Style

36pcs/pallets, 72pcs/stack

Frequently Asked Questions

What is the advantage of N-type solar cells in this model?

N-type cells offer higher efficiency, lower light-induced degradation (LID), and better performance in low-light conditions compared to traditional P-type cells.

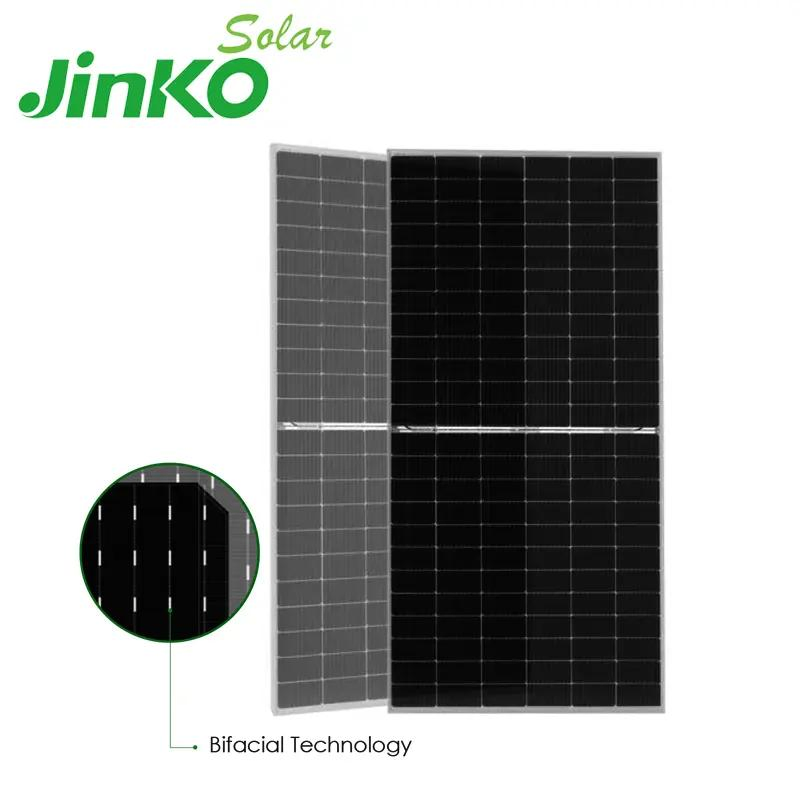

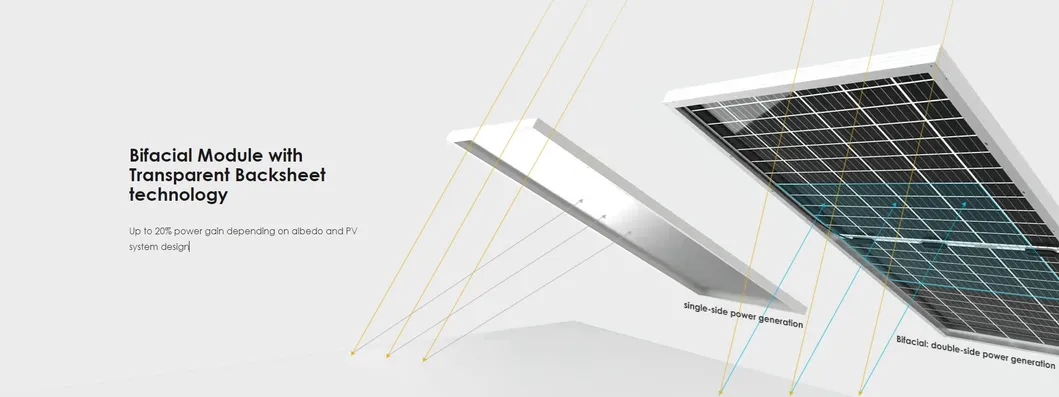

What is the bifaciality coefficient of these panels?

The Tiger Neo series features a high bifaciality coefficient with φPmax at 80±5%, allowing significant energy gain from the rear side.

Is the junction box waterproof?

Yes, the panels are equipped with an IP68 rated junction box, providing the highest level of protection against dust and water ingress.

What are the dimensions and weight of a single module?

Each module measures 2278*1134*30mm and weighs approximately 31 kg (68.34 lbs).

How many panels are shipped in a standard 40'HQ container?

A standard 40'HQ container can be loaded with up to 720 pieces, packed at 36 pieces per pallet.

What is the maximum system voltage supported?

These solar modules support a maximum system voltage of 1500VDC according to IEC standards.
